*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | CITIZEN |
| Model: | A-20 VIIIPL |
| Year: | 2014 |

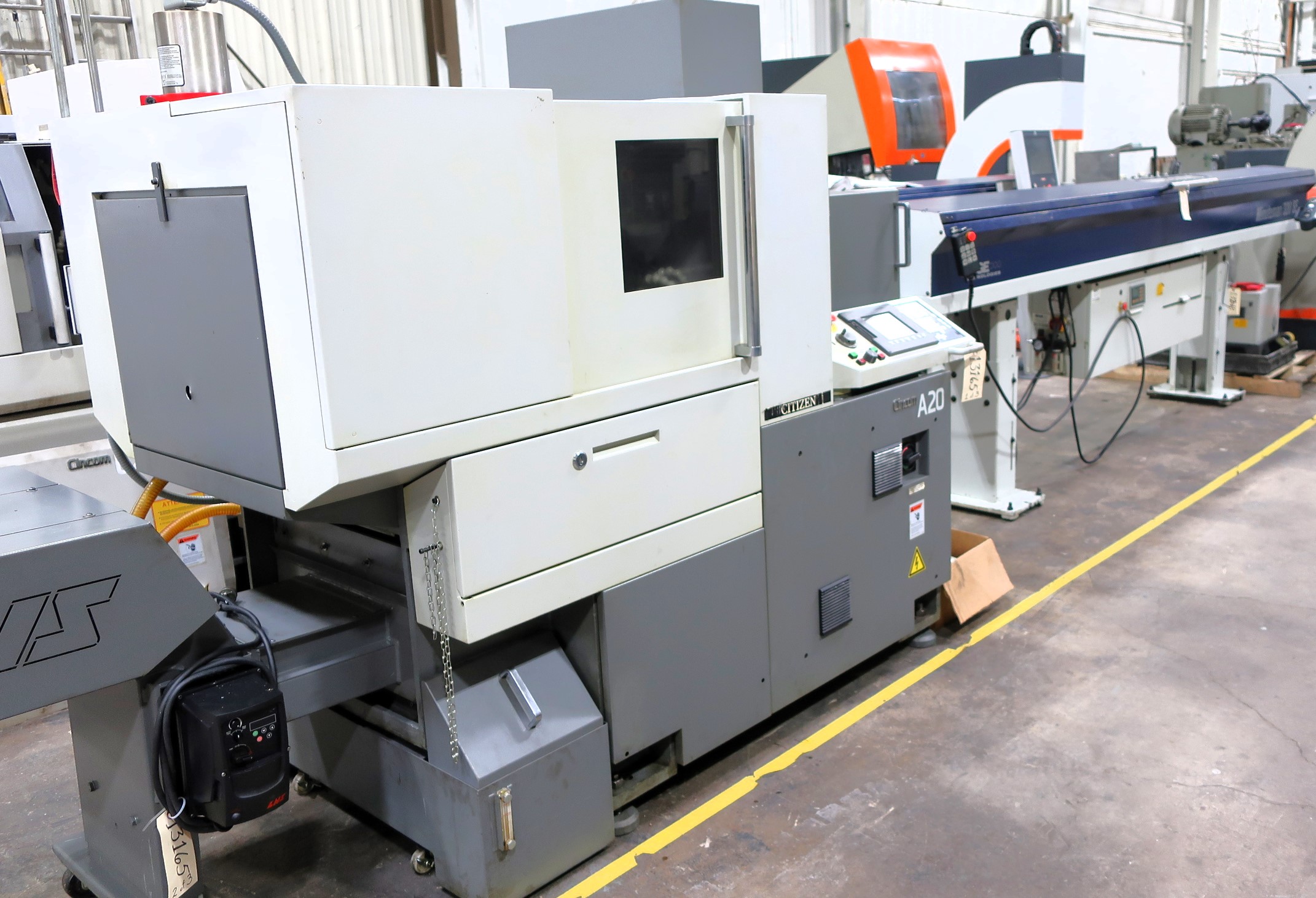

| Machine Type: | CNC Swiss Type Sliding Headstock Automatic Lathe |

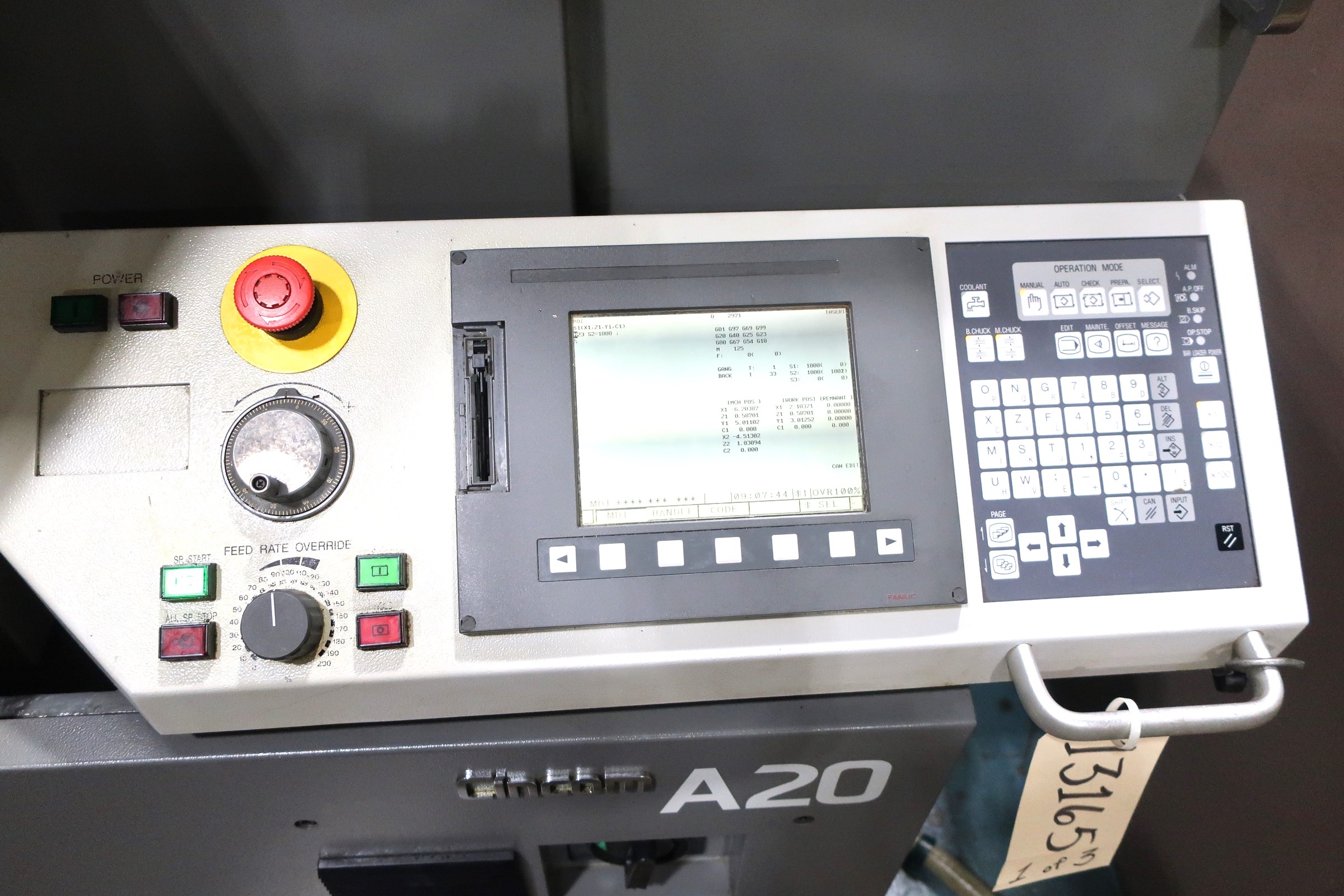

| Control: | FANUC CNC Control |
| Equipped With: |
|---|
| FANUC CNC Control |

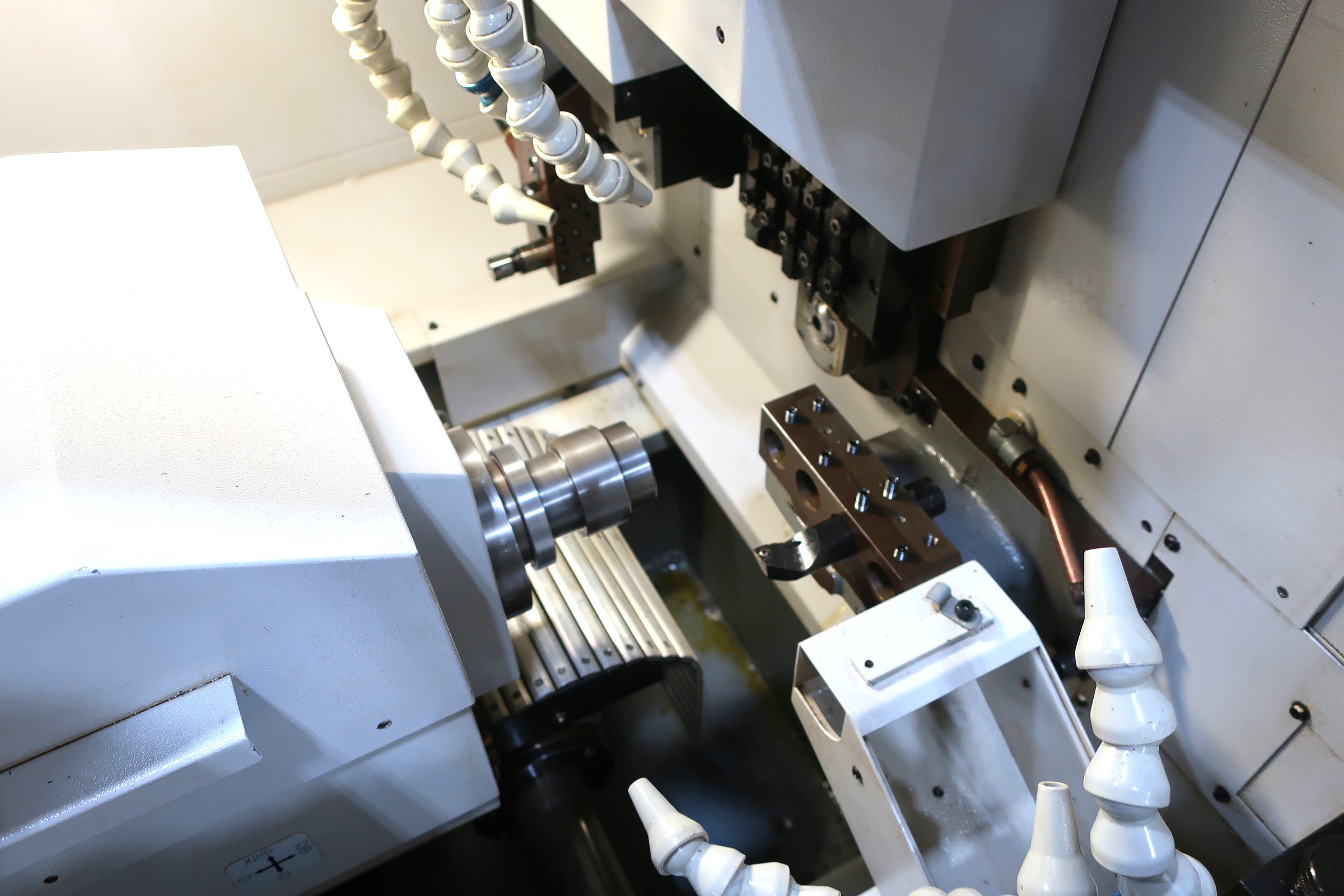

| (4) Live Cross Milling Spindles |
| Sub-Spindle |
| C-Axis on Main & Sub-Spindles |
| Synchronous Rotary Guide Bushing |
| Parts Catcher |
| Coolant System |
| Chip Conveyor |
| EDGE Technologies Minuteman 320 SE Magazine Bar Feeder |
| 12′ Bar Feeder |
| High-Speed Rapid Traverse |
| Capacity: |
|---|
| Maximum Machining Diameter: 0.787″ |
| Maximum Machining Length: 6.50″ |
| Back Spindle Maximum Chucking Diameter: 0.787″ |
| Spindle: |
|---|
| Main Spindle Speed: 100–8,000 RPM |
| Main Spindle Drive: 5 HP / 3 HP |
| Back Spindle Speed: 100–8,000 RPM |
| Back Spindle Drive: 2 HP |
| Tooling: |
|---|
| Turning Tools: 5 Static on Main Slide |
| Rotary Live Tools: 4 Live on Main Slide |
| Front-End Working Tools: 4 Static |
| Back-End Working Tools: 4 Static |
| Rotary Tool Speed: 6,000 RPM Maximum |
| Rotary Tool Drive: 1 HP |
| Cutting Tool Shank: 1/2″ |
| Travels: |
|---|
| Rapid Traverse X2 / Y1 / Z1 / Z2: 1,260 IPM |
| Rapid Traverse X1: 709 IPM |
| General: |
|---|

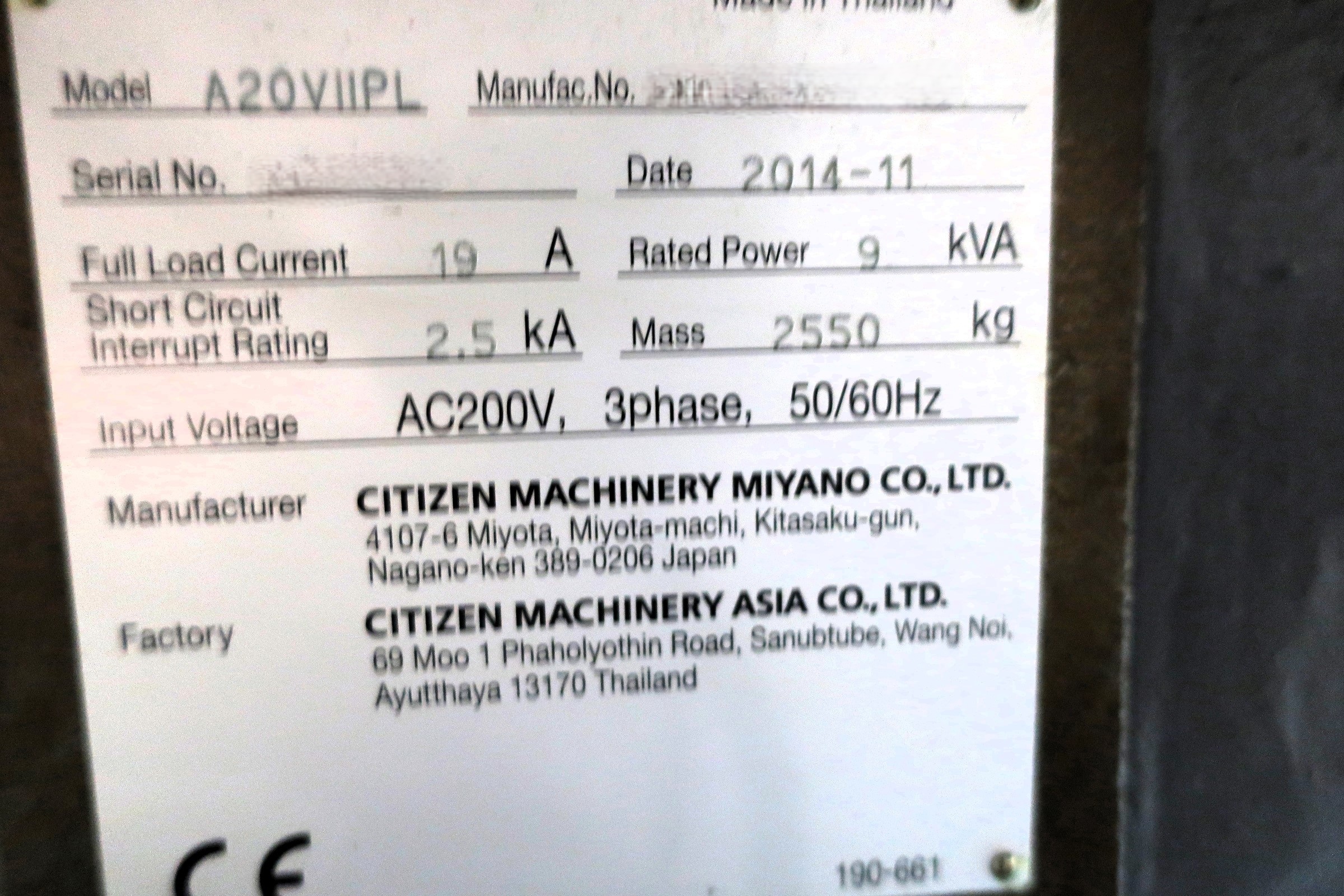

| Input Voltage: 200V / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 5,622 lbs. |
