*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Citizen |
| Model: | A20 VII PL |
| Year: | 2008 |
| Machine Type: | CNC Swiss-Type Automatic Lathe |
| Equipped With: |
|---|
| LNS Alpha ST 212 Barfeed (2007) |
| Cool Blaster Mist Control 850 |
| Fire Suppression System |
| Main Spindle with C-Axis Control |
| Back Spindle with C-Axis Control |
| Front Power-Driven Tooling |
| Front and Back Working Tool Stations |

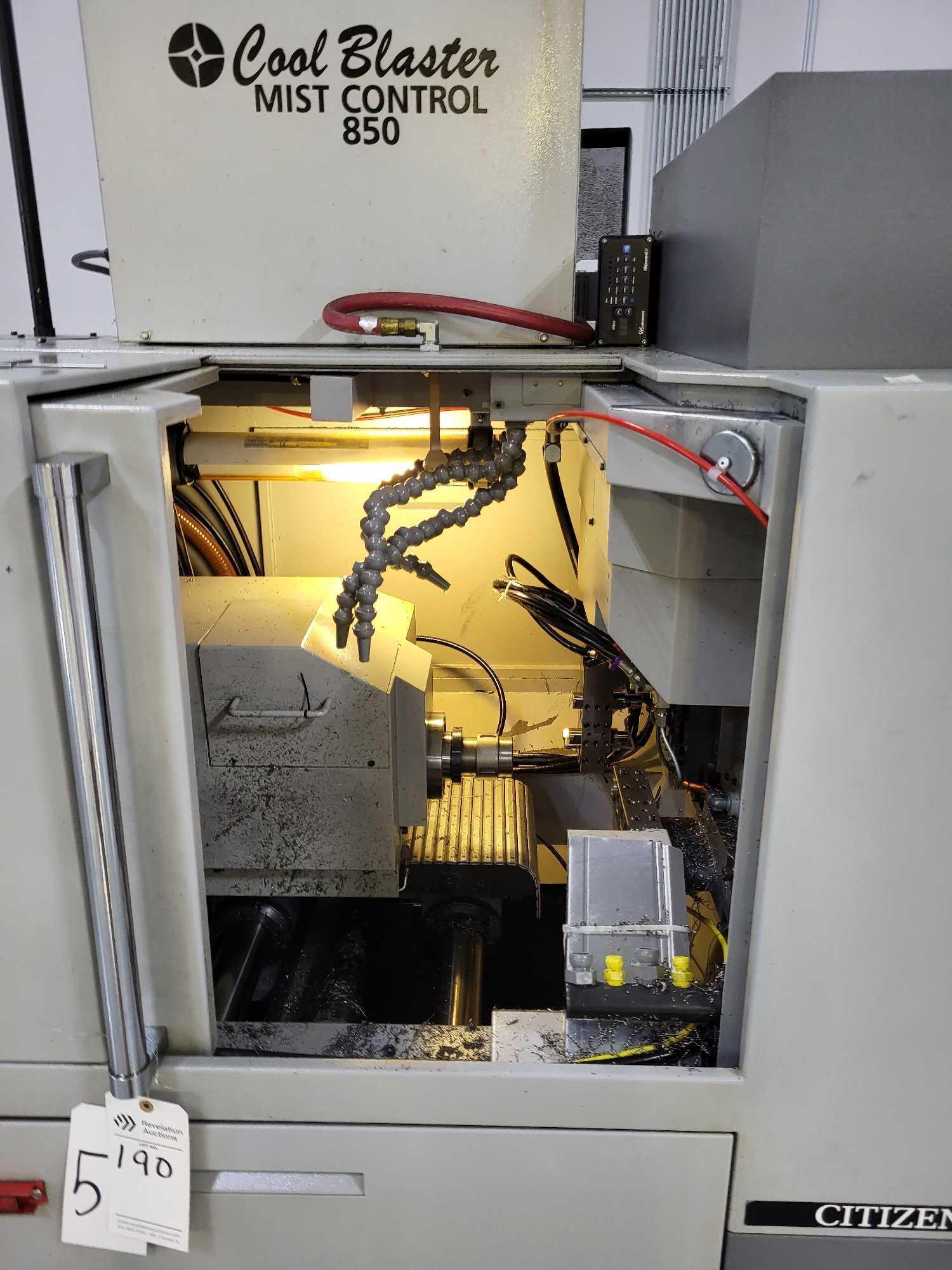

| Enclosed Machining Area |
| CNC Operator Control Panel |
| Chip Collection Tray |
| Capacity: |
|---|
| Maximum Turning Diameter: 25/32″ |
| Maximum Turning Length: 7.87″ |
| Maximum Back Spindle Workpiece Protrusion: 1.96″ |
| Maximum Bar Capacity: 0.79″ |
| Maximum Drilling Capacity: 25/64″ |
| Die Cutting Capacity: M8 × P1.25 |
| Main Spindle: |
|---|
| Main Spindle Bore: 1.02″ |
| Maximum Spindle Speed: 10,000 RPM |
| Spindle Motor Power: 5 HP |
| C-Axis Control |
| Back Spindle: |
|---|
| Maximum Spindle Speed: 8,000 RPM |
| Spindle Motor Power: 2 HP |
| C-Axis Control |
| Tooling: |
|---|
| Total Tool Capacity: 21 |
| Turning Tools: 5 |
| Front-End Working Tools: 5 Static |
| Back-End Working Tools: 8 Static on 2 Blocks |
| Power-Driven Tooling: |
|---|
| Maximum Front Drilling Capacity: 25/64″ |
| Maximum Front Milling Capacity: 25/64″ |
| Maximum Front Tapping Capacity: M8 × P1.25 |
| Driven Tool Speed: 6,000 RPM |
| Driven Tool Motor Power: 1 HP |
| General: |
|---|
| Power Source: 200v / 3-Phase / 50/60 Hz |
| Overall Dimensions: 84″ × 44″ × 74″ H |
| Machine Weight (Approx.): 5,621 lbs |
