*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Citizen |
| Model: | Cincom L25 |
| Machine Type: | CNC Swiss-Type Turning Center |
| Equipped With: |
|---|

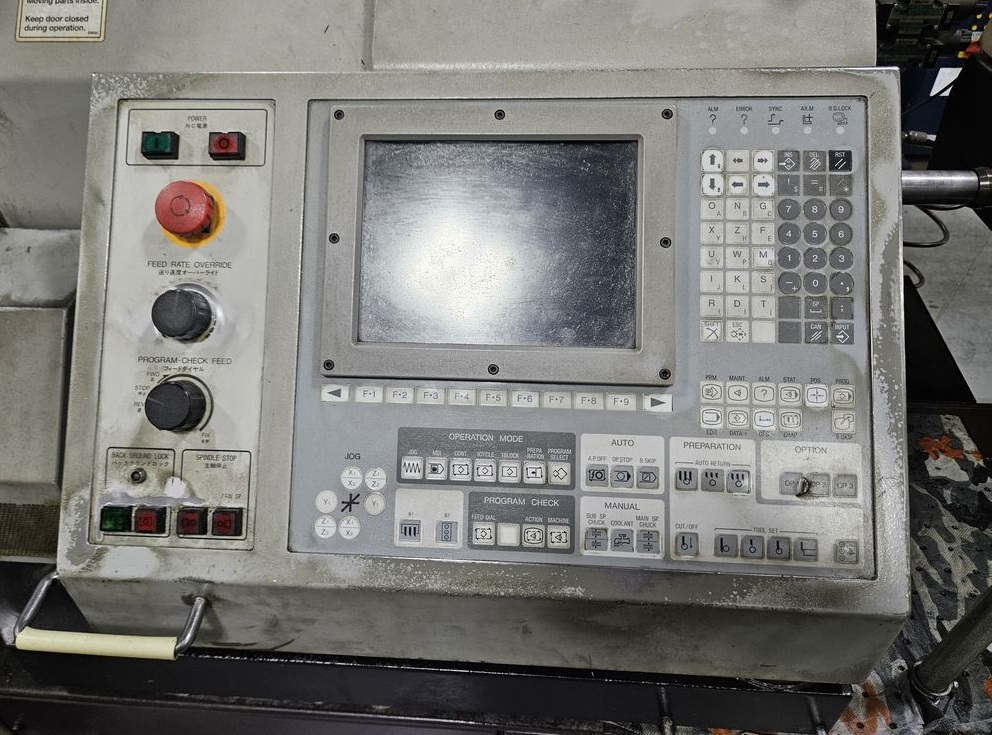

| Mitsubishi MELDAS 500 CNC Control |
| LNS Hydrobar Express 226 Bar Feeder |
| Chip Conveyor |
| Coolant System |
| Parts Catcher |
| Main & Sub-Spindle Synchronization |
| Synchronous Tapping |
| Rotary Guide Bushing |
| Miscellaneous Tooling |
| Capacity: |
|---|
| Maximum Bar Capacity: 1.00″ |
| Maximum Turning Diameter: 1.00″ |
| Maximum Turning Length per Chucking: 10.00″ |
| Maximum Drilling Diameter: 0.47″ |
| Maximum Thread Size: M10 |
| Maximum Pick-Off Diameter: 1.00″ |
| Maximum Pick-Off Length: 4.70″ |
| Travels: |
|---|
| Rapid Traverse X-Axis: 630 IPM |
| Rapid Traverse Y-Axis: 787 IPM |
| Rapid Traverse Z1-Axis: 709 IPM |
| Rapid Traverse Z2/X2-Axis: 709 IPM |
| Spindle: |
|---|
| Main Spindle Speed: 200–8,000 RPM |
| Main Spindle Motor: Approx. 7.5 HP |
| Spindle Bore: 1.30″ |
| Pick-Off Spindle Speed: 200–6,000 RPM |
| Pick-Off Spindle Motor: 3 HP |
| Sub-Spindle Indexing: 15° |
| Driven Tool Speed: 200–5,000 RPM |
| Driven Tool Motor: 1 HP |
| General: |
|---|
| Machine Weight (Approx.): 5,500–6,000 lbs. |
| Machine Dimensions (Approx.): 99″ L × 51″ W × 71″ H |
