*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

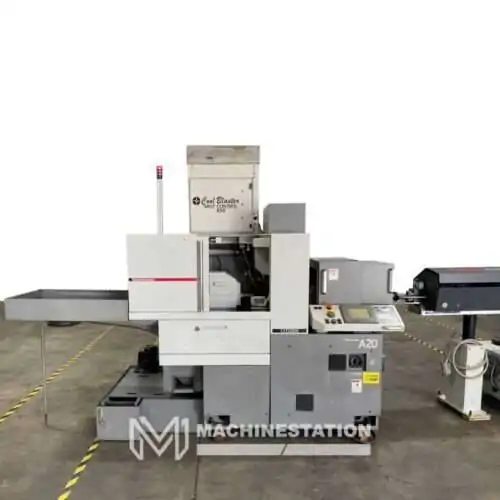

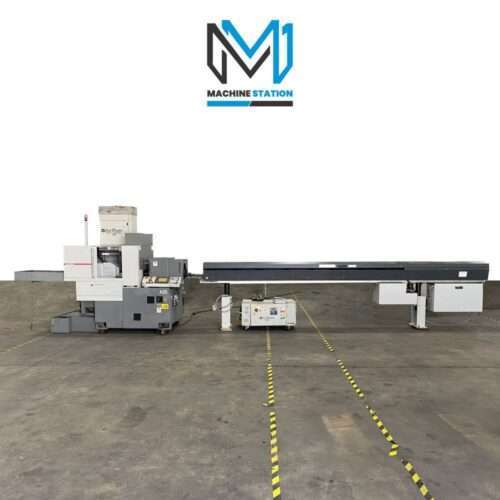

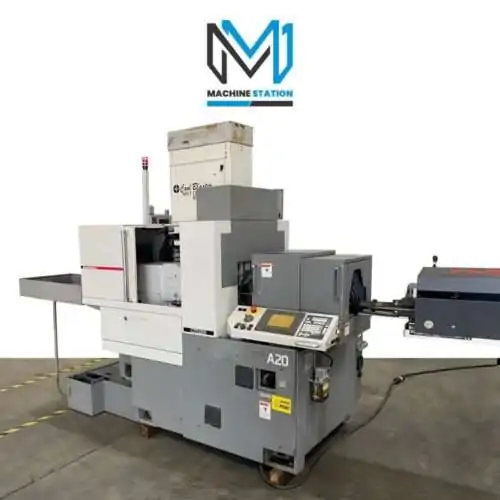

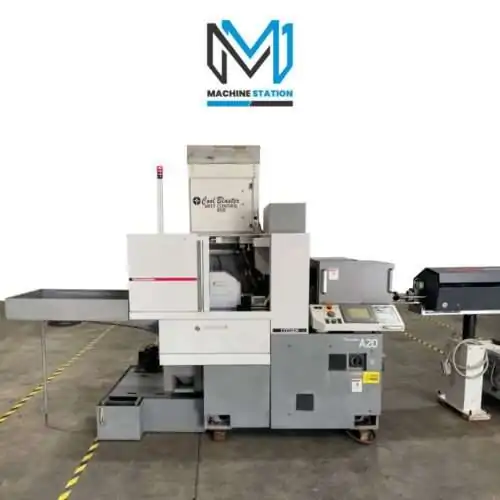

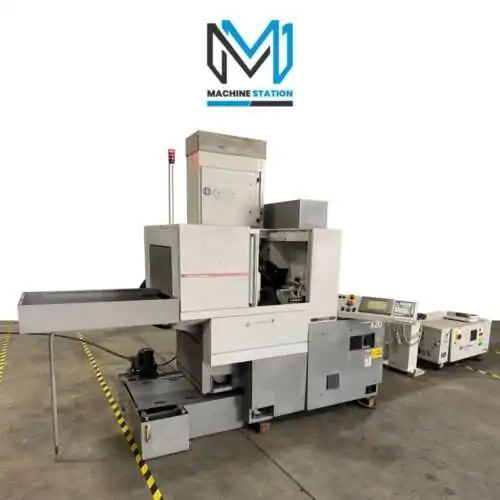

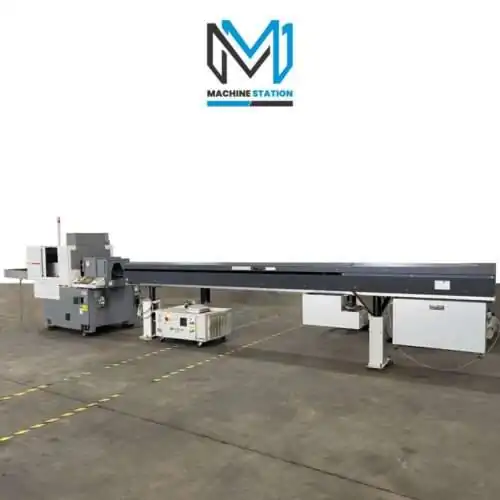

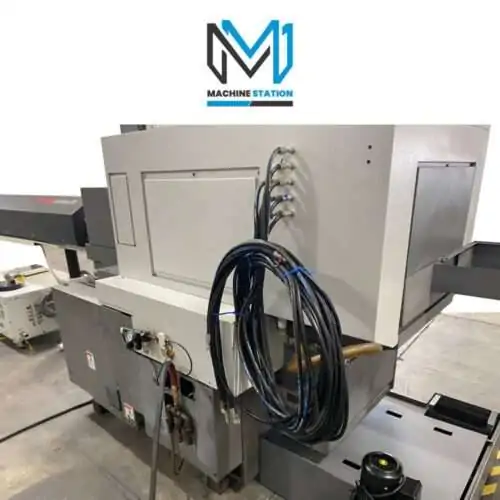

| SKU: | 112510 |

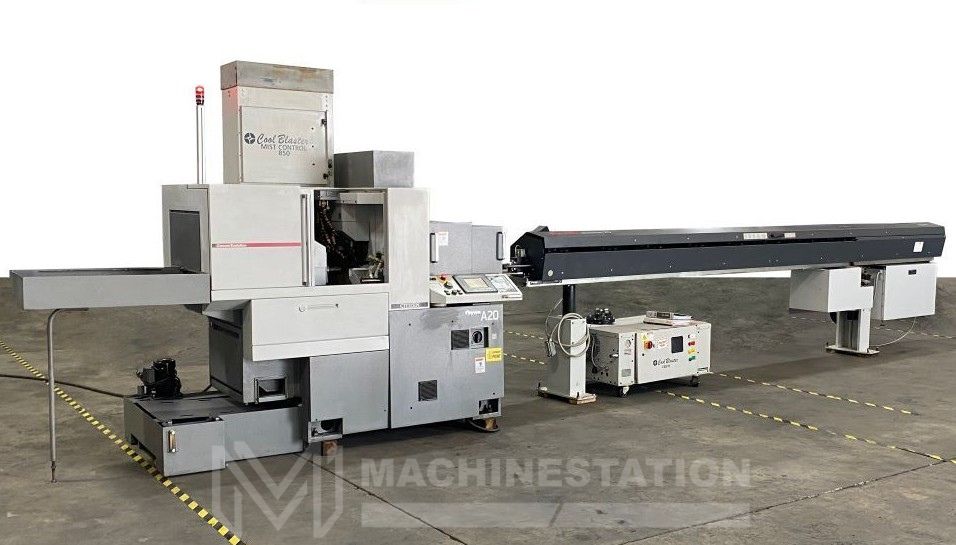

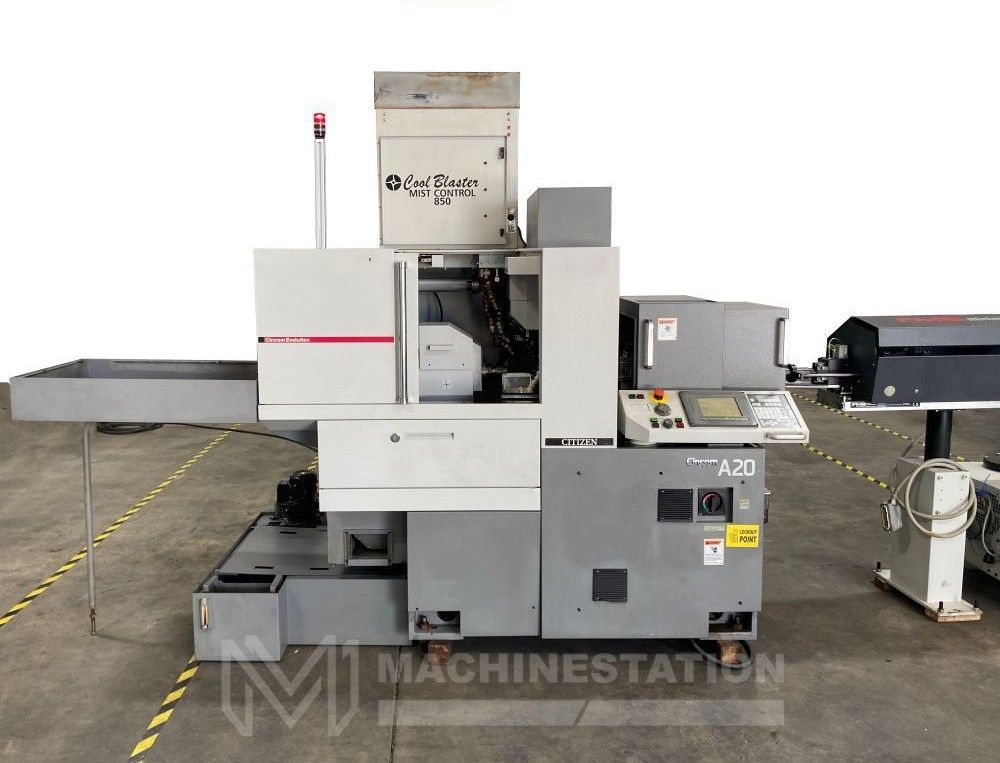

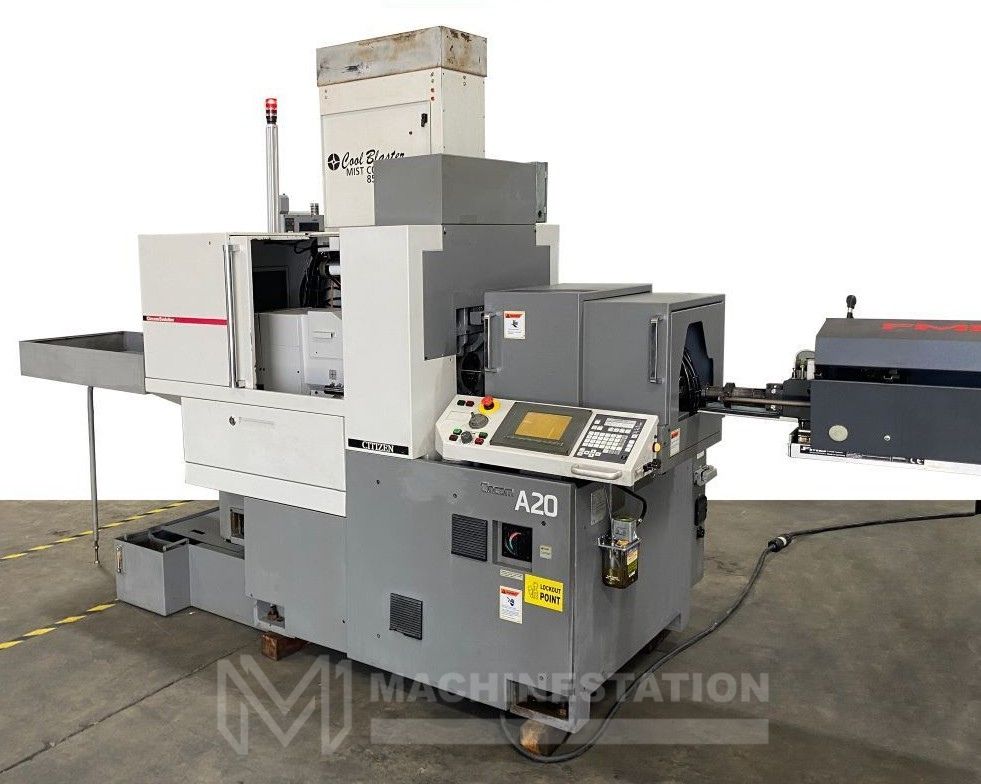

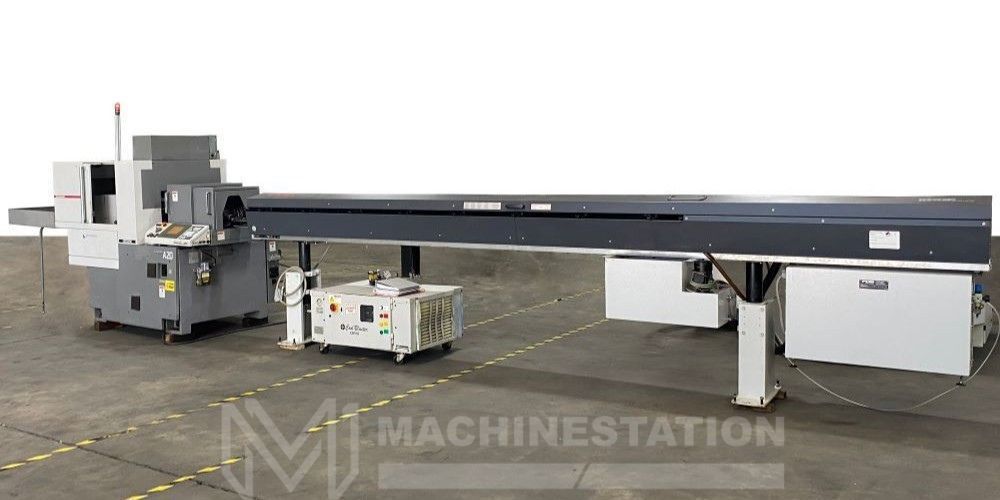

| Make: | Citizen |
| Model: | A20VIIPL |
| Year: | 2011 |
| Equipped With: |
|---|

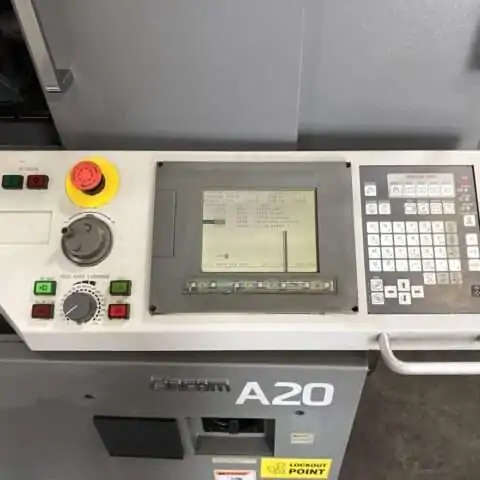

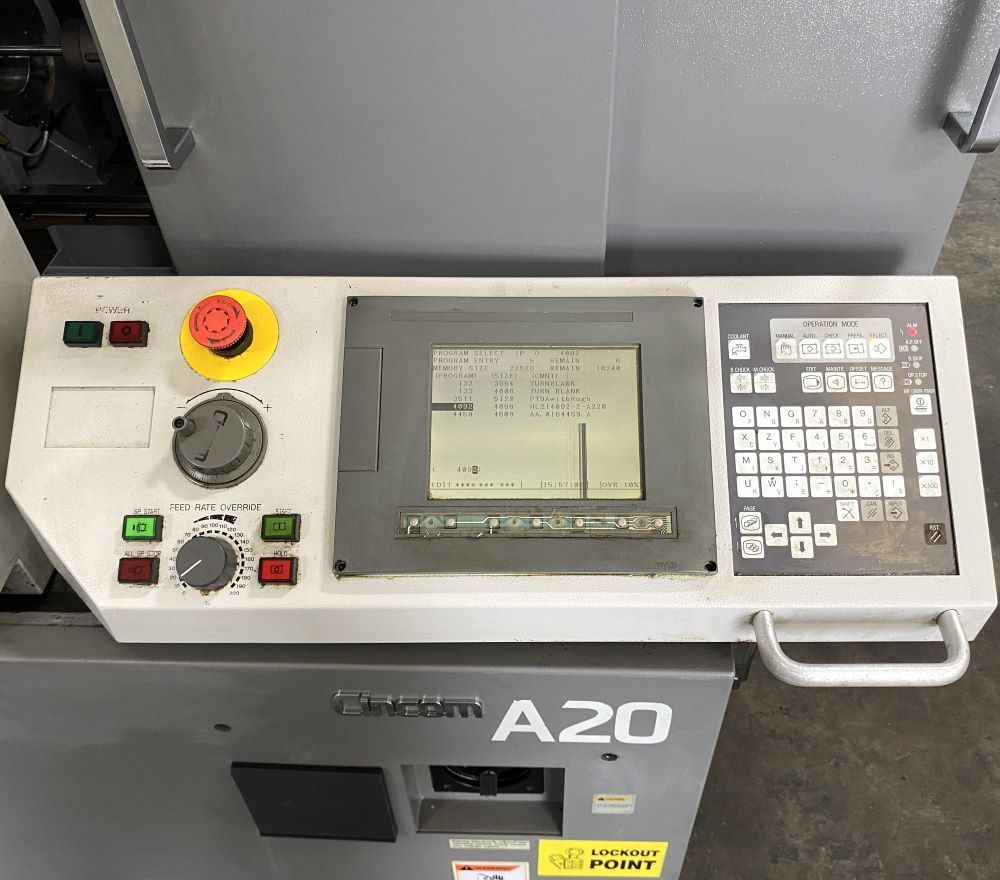

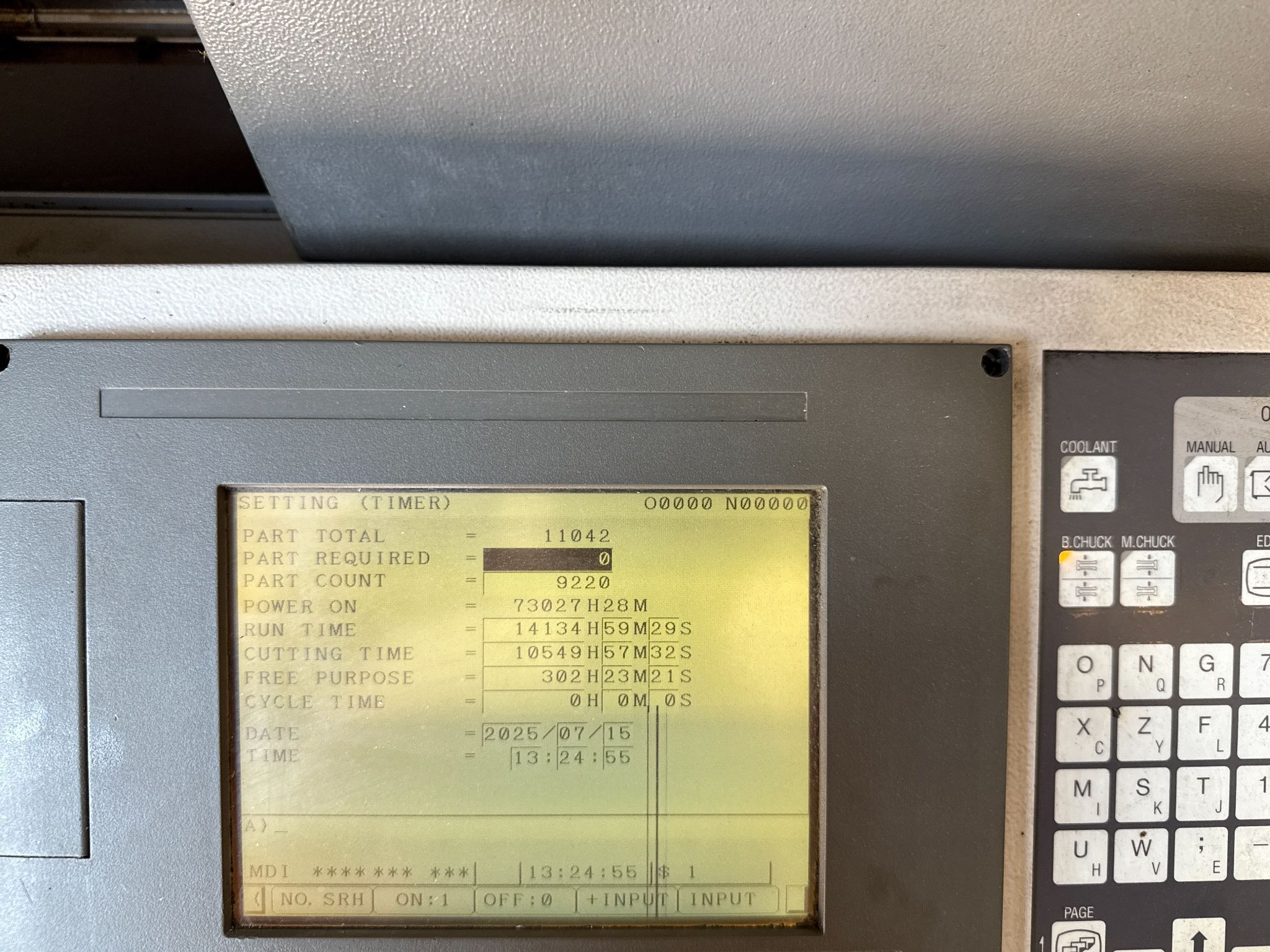

| Fanuc CNC Control |

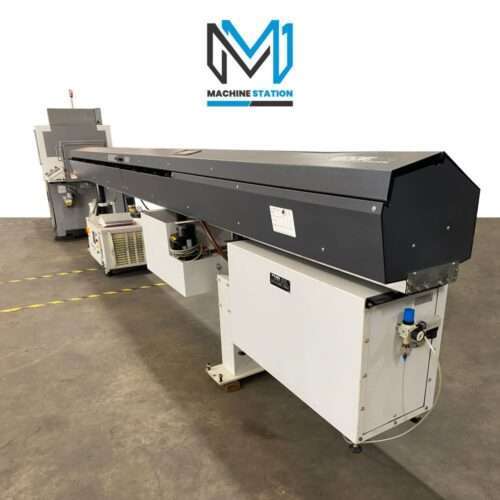

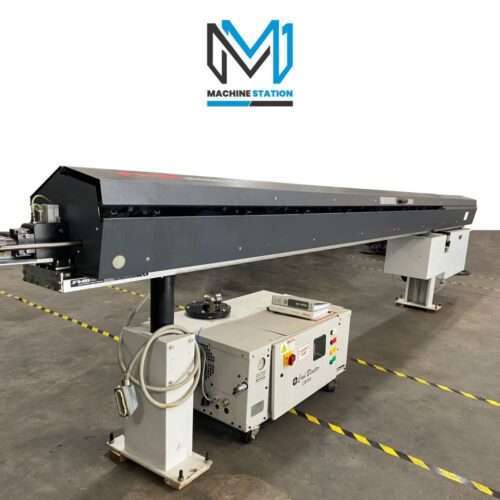

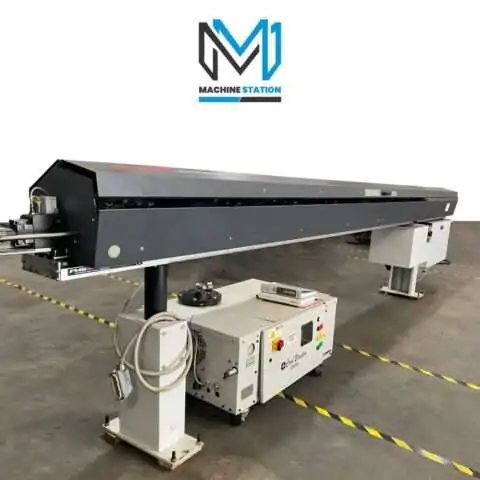

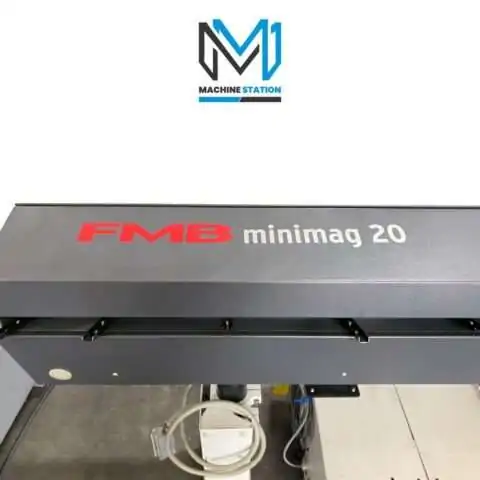

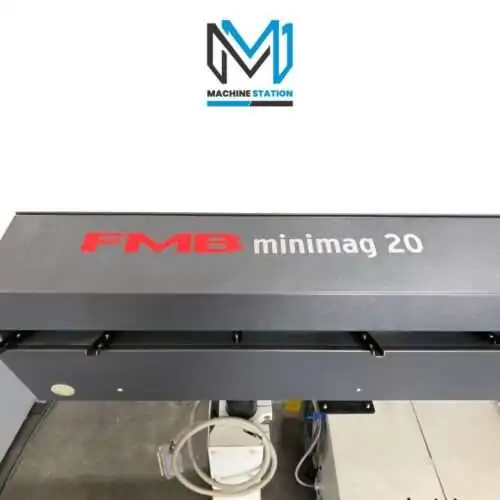

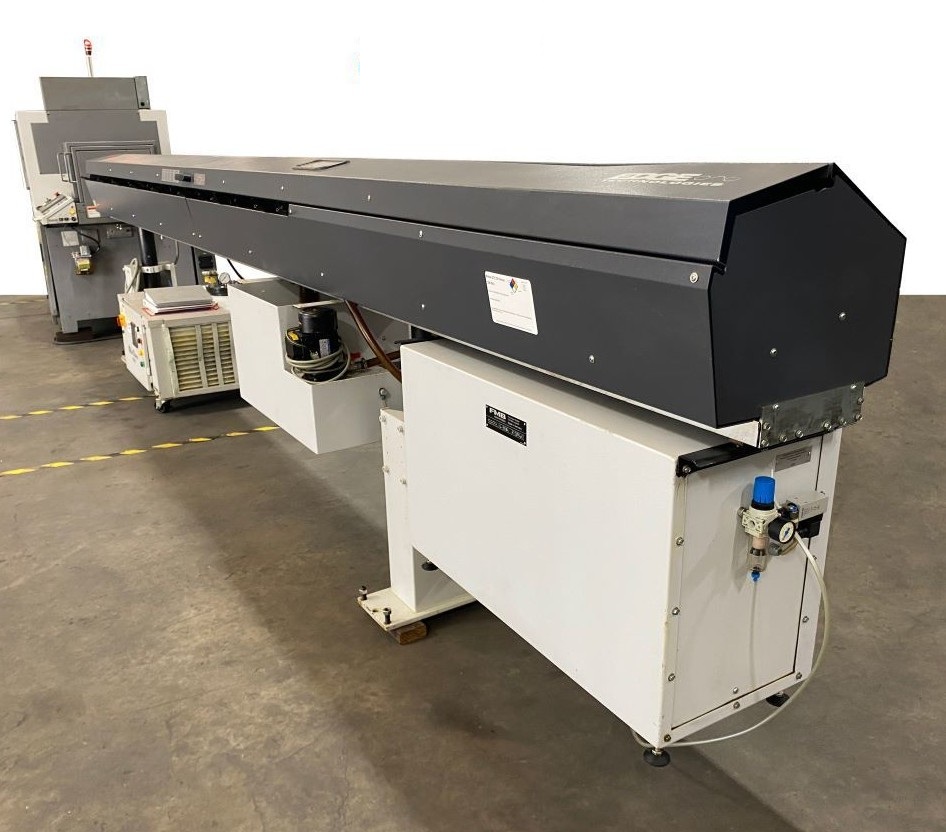

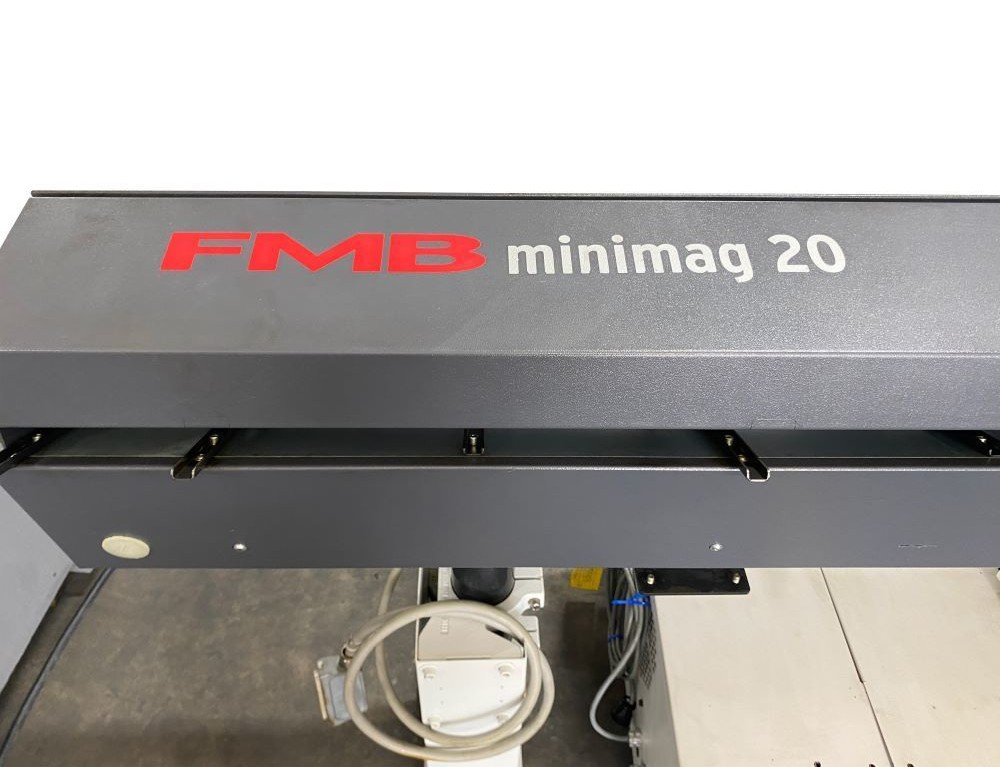

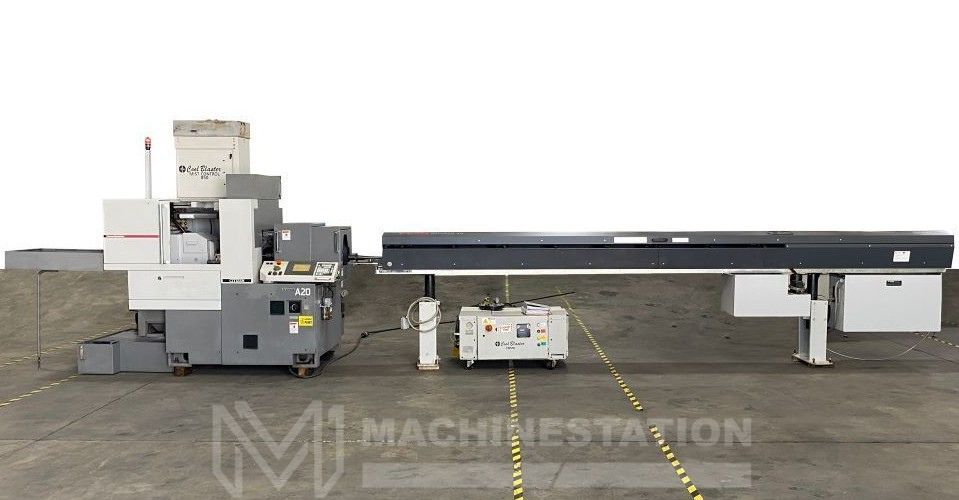

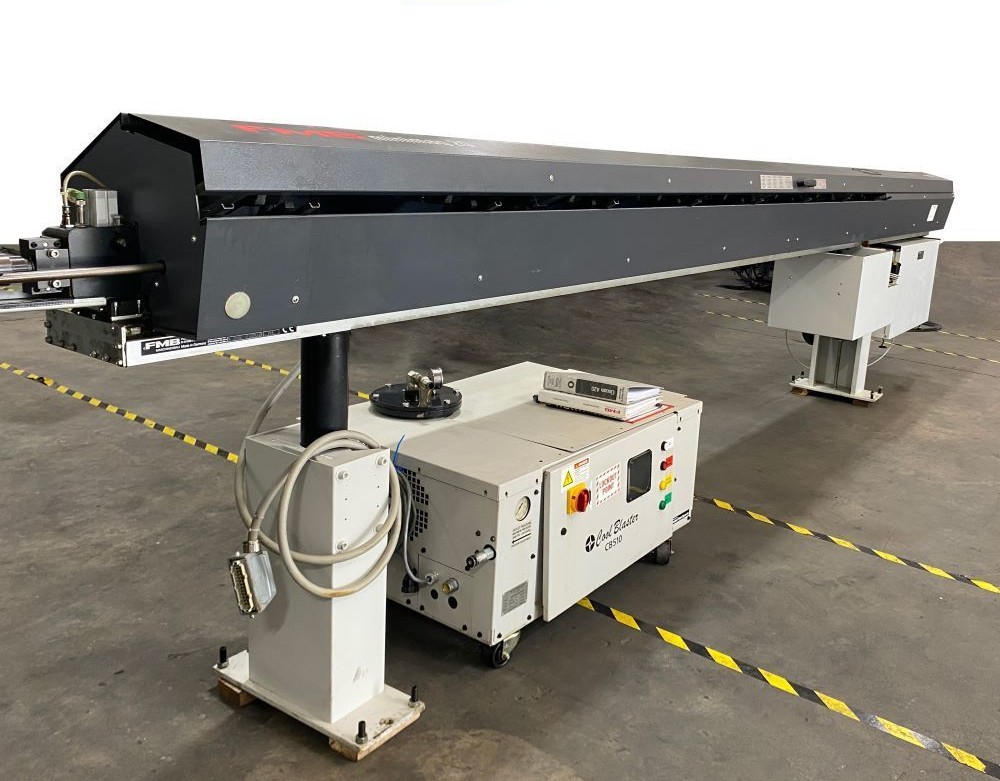

| Edge FMB Minimag 20 Bar Feeder |
| Full C Axis and Live Tools Capable |
| Full Y Axis Capable |
| Long Parts Capable |
| Main & Back Spindle Synchronization |
| High Speed Rapid Travers: 1260 IPM |
| High Speed Program Processing |
| Absolute Position Detection |
| Automatic Lubrication System |

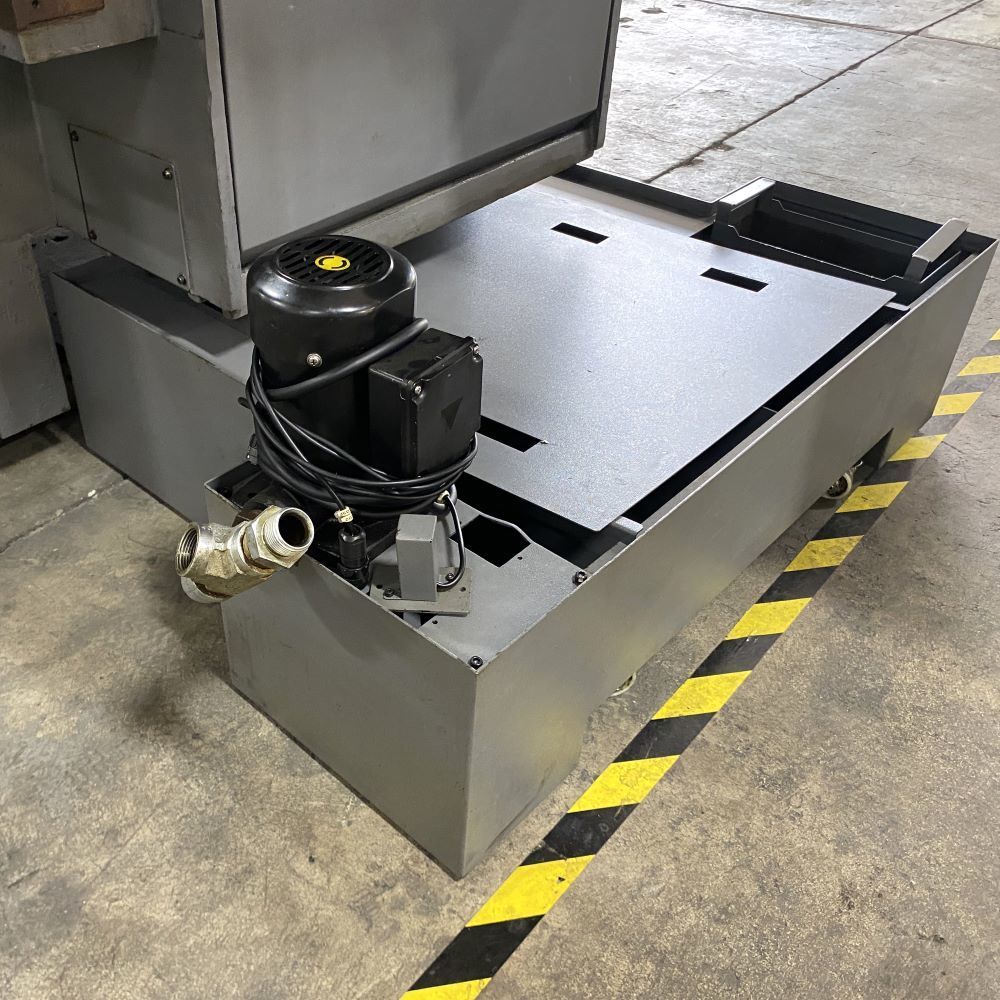

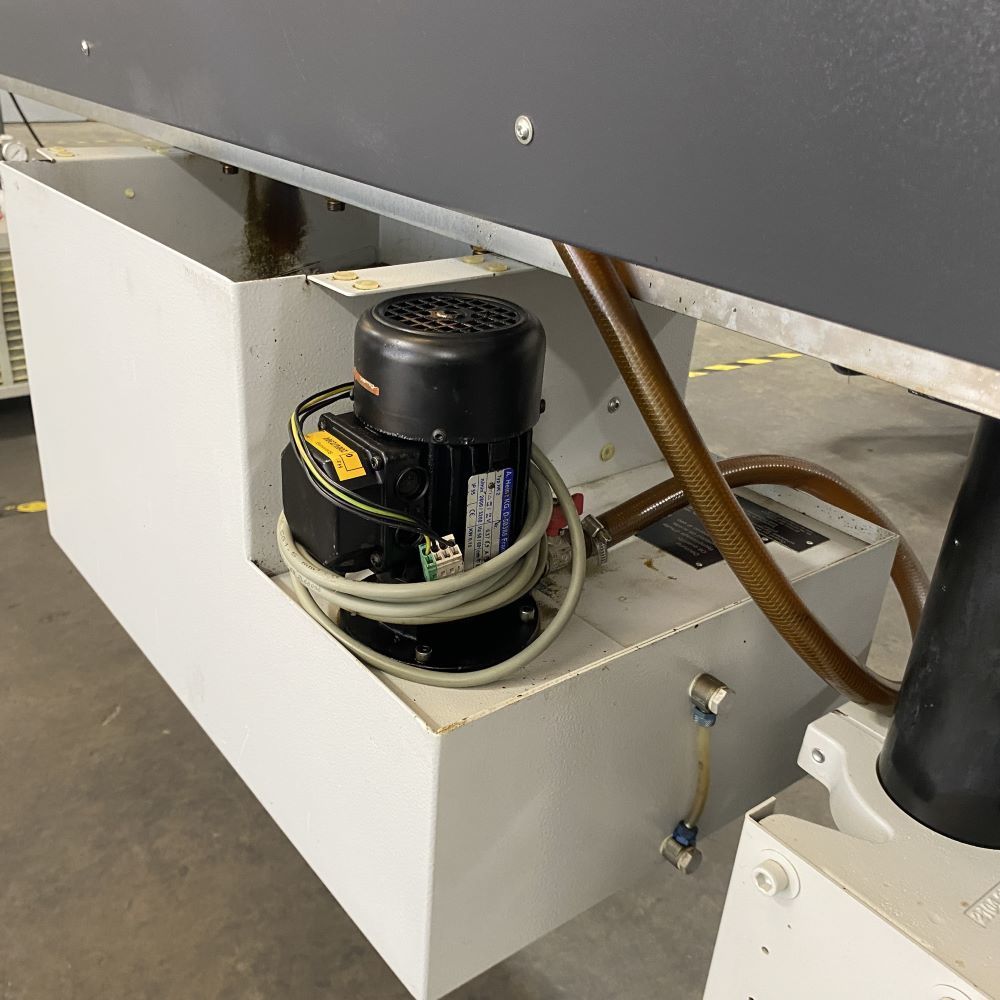

| Coolant System |

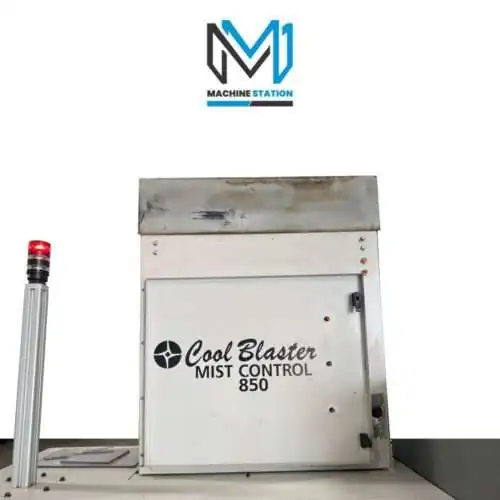

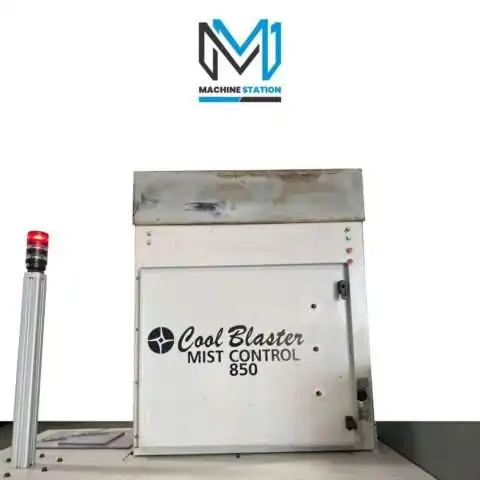

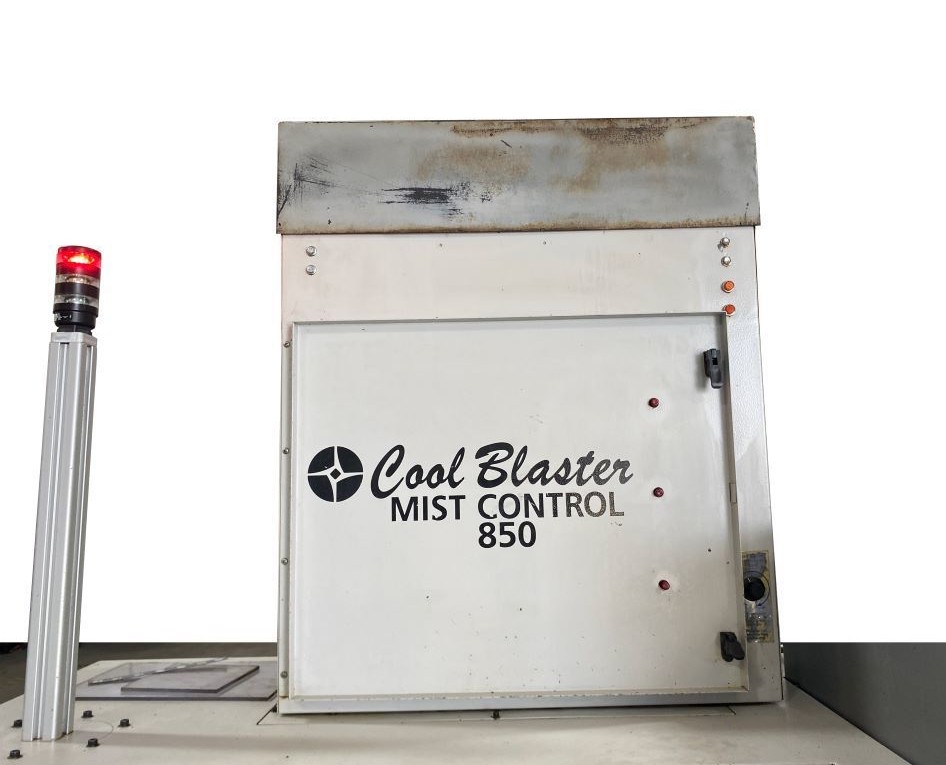

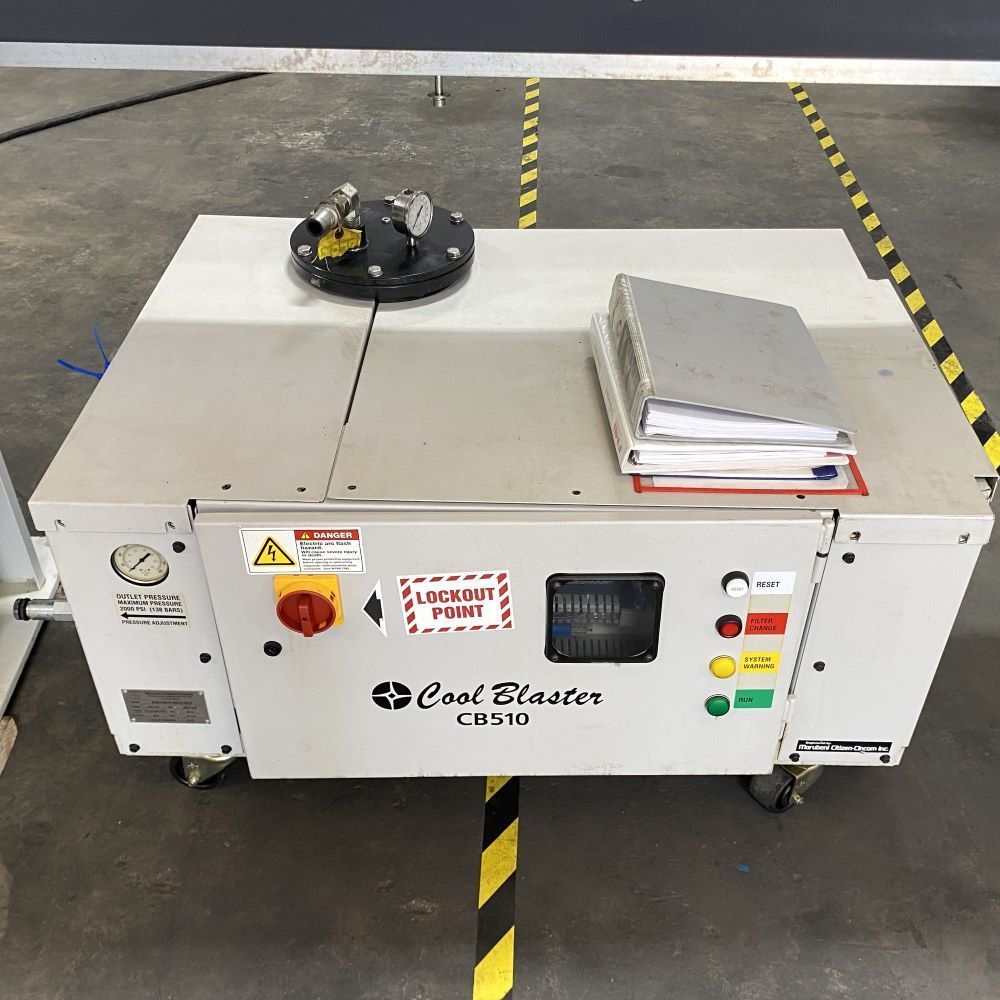

| Cool Blaster Mist Control 850 |

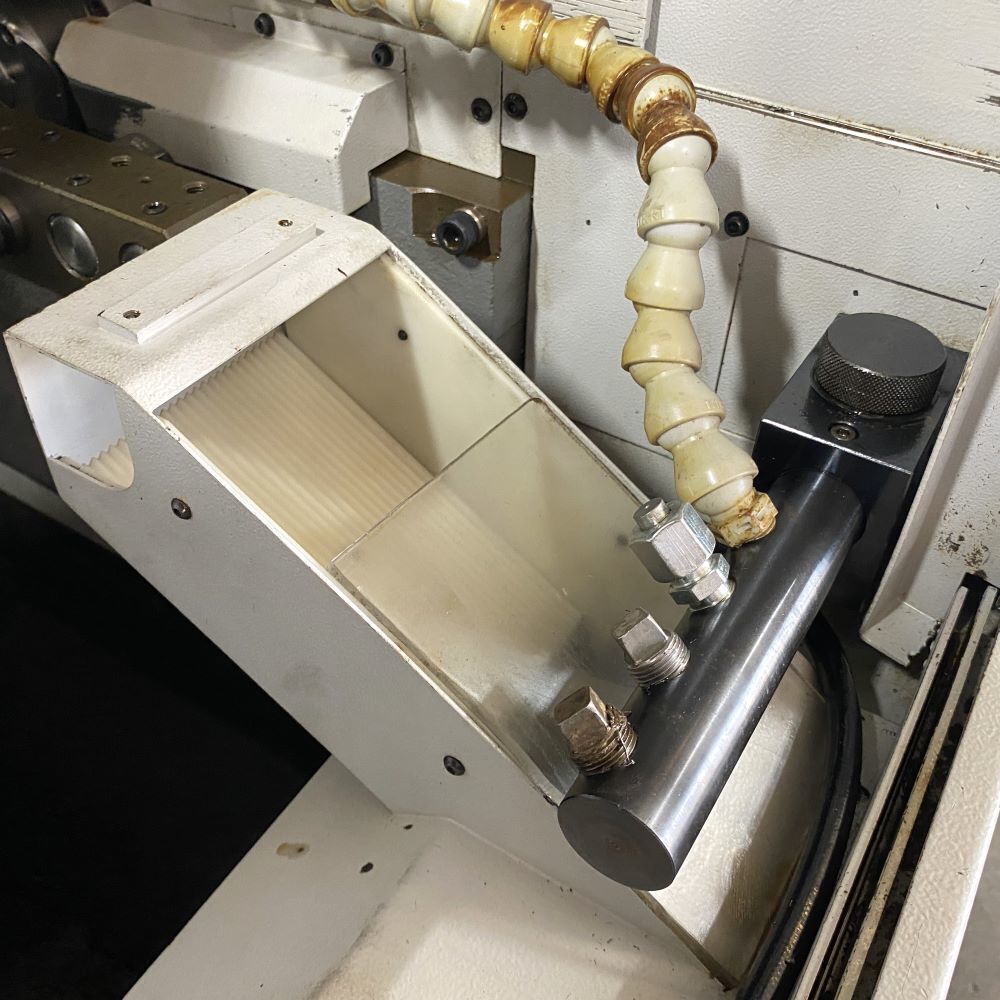

| Part Catcher |

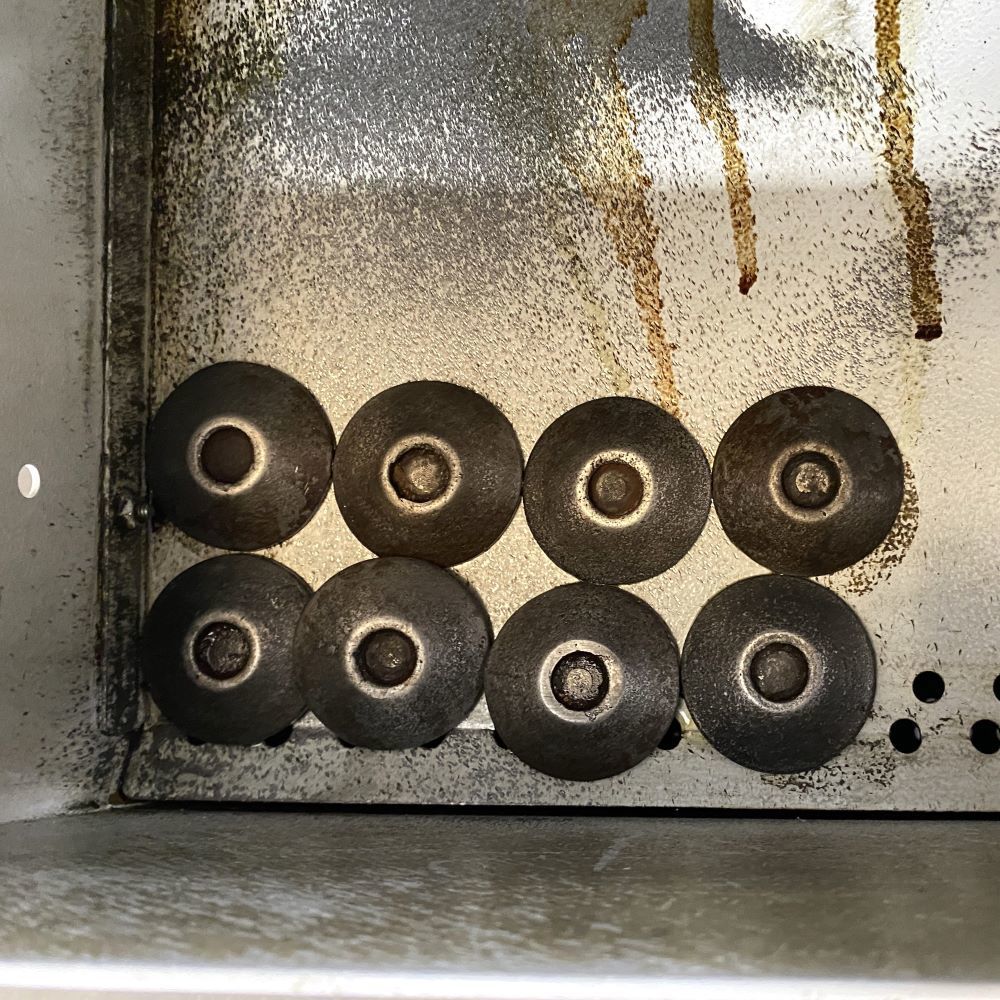

| Levelling Pads |
| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 25/32″ (20 mm) |
| Max Turning Length: 7.87″ (200 mm) |
| Max Protrusion Length of the Back Spindle Workpiece: 1.96″ (50 mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Tool Capacity: 21 |
| Spindle: |
|---|

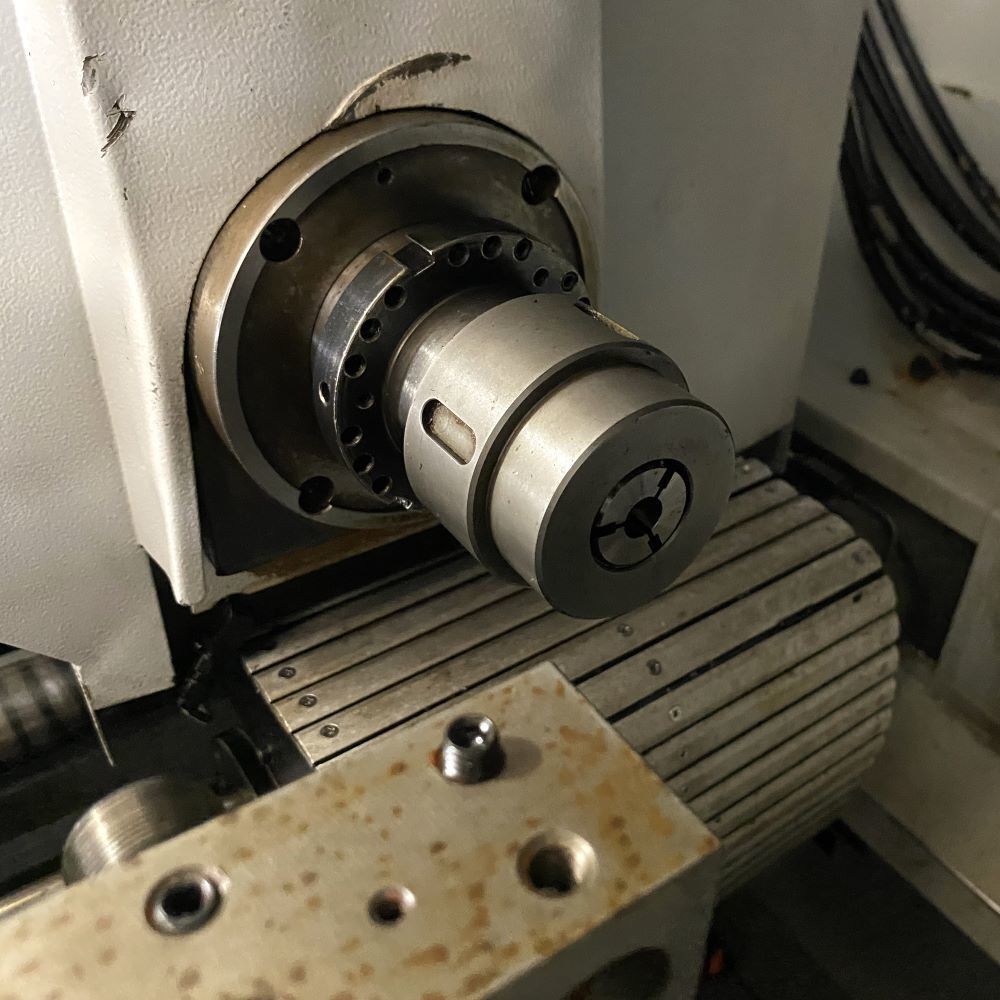

| Main Spindle Index: 0.001 Degree (C-axis control) |
| Main Spindle Bore: 1.02″ (26 mm) |
| Main Spindle Speed: 10,000 RPM |
| Main Spindle Motor: 5 HP |

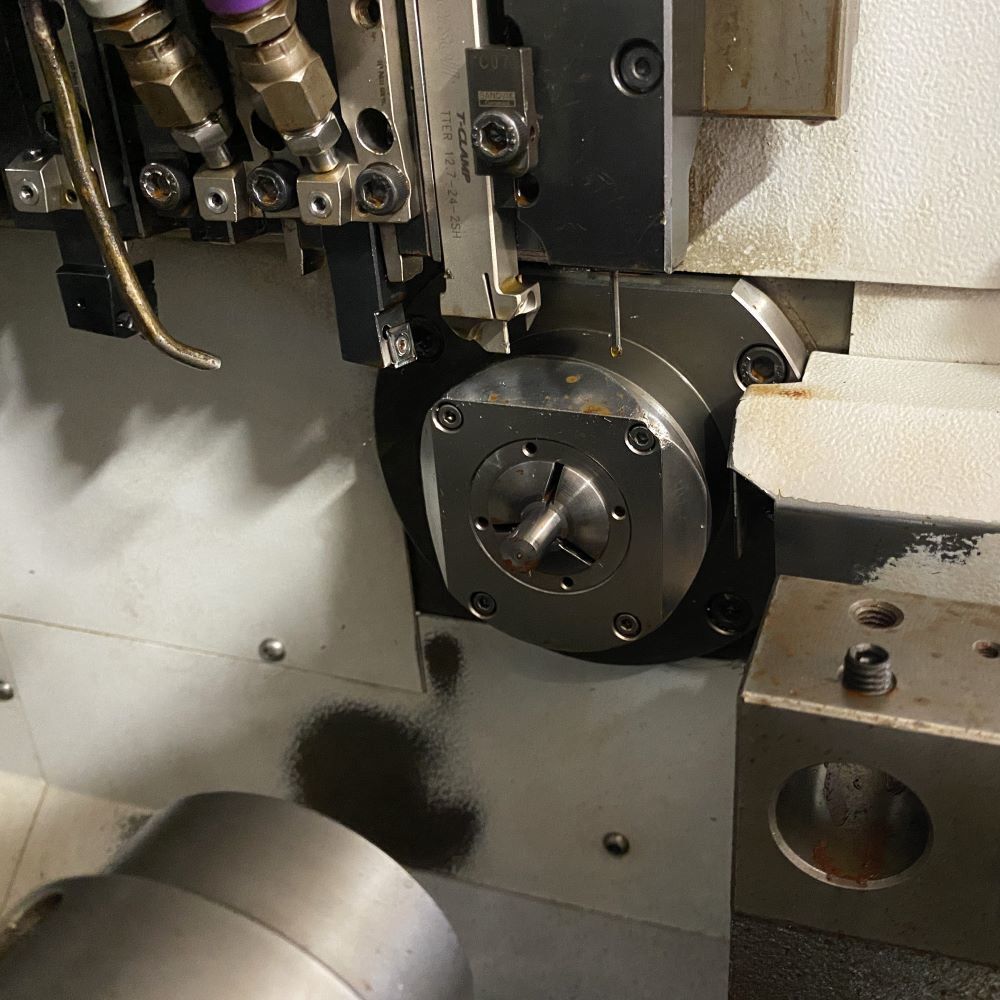

| Back Spindle Index: 0.01 Degree (C-axis control) |
| Back Spindle Speed: 8,000 RPM |
| Back Spindle Motor: 2 HP |

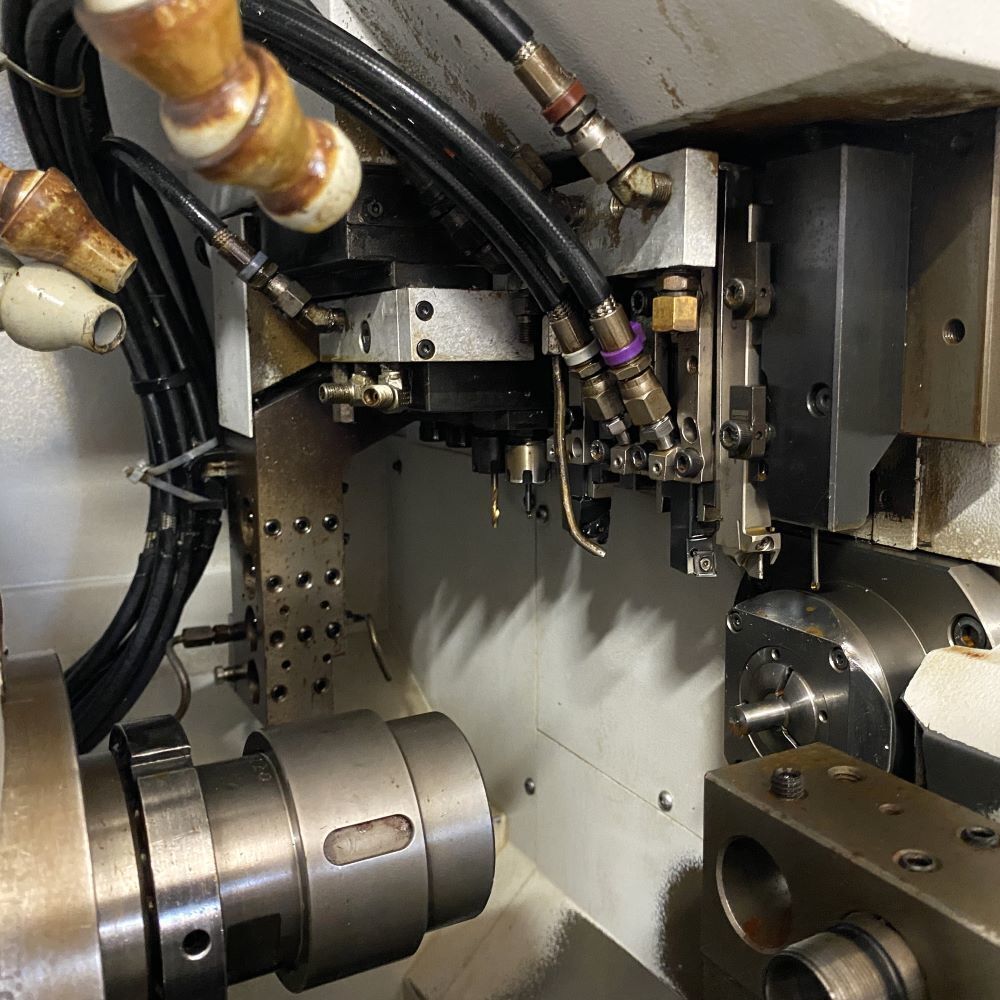

| Standard Tools: |
|---|
| Turning Tools: 5 |

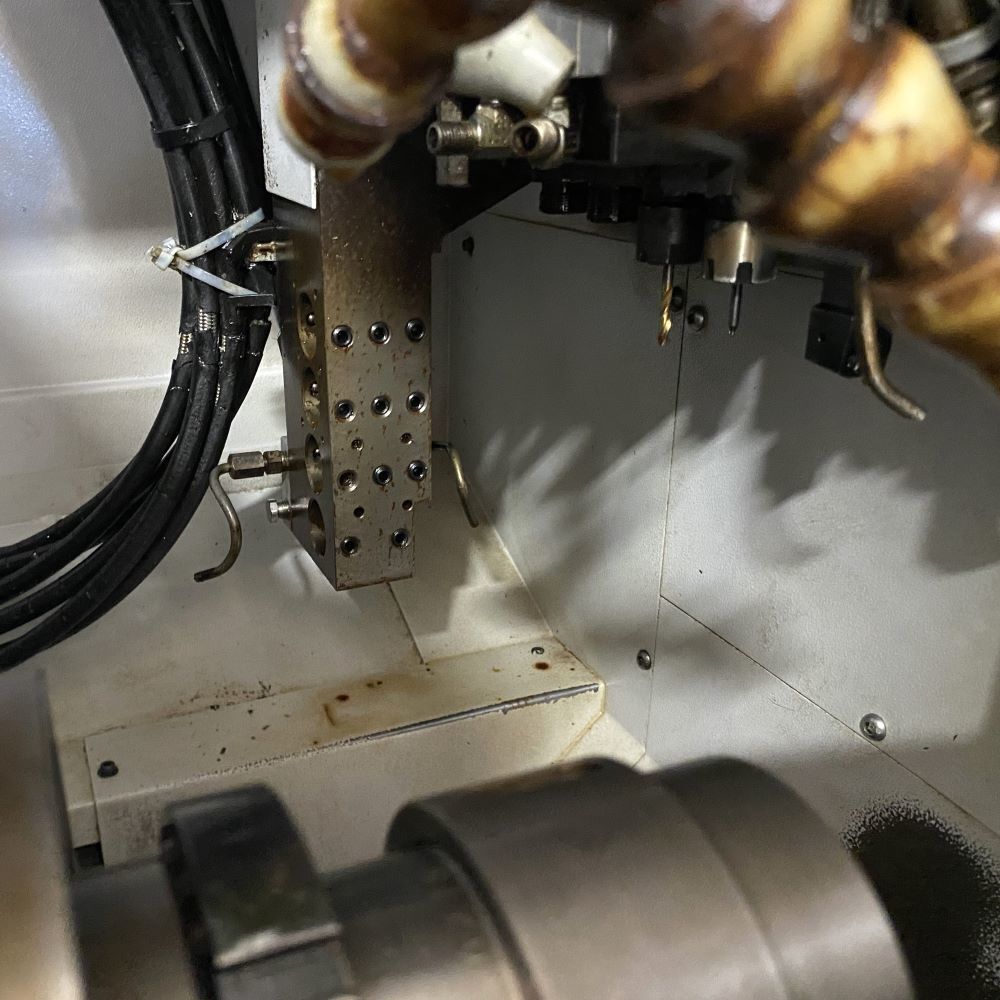

| Front Endworking Tools: 5 Static |

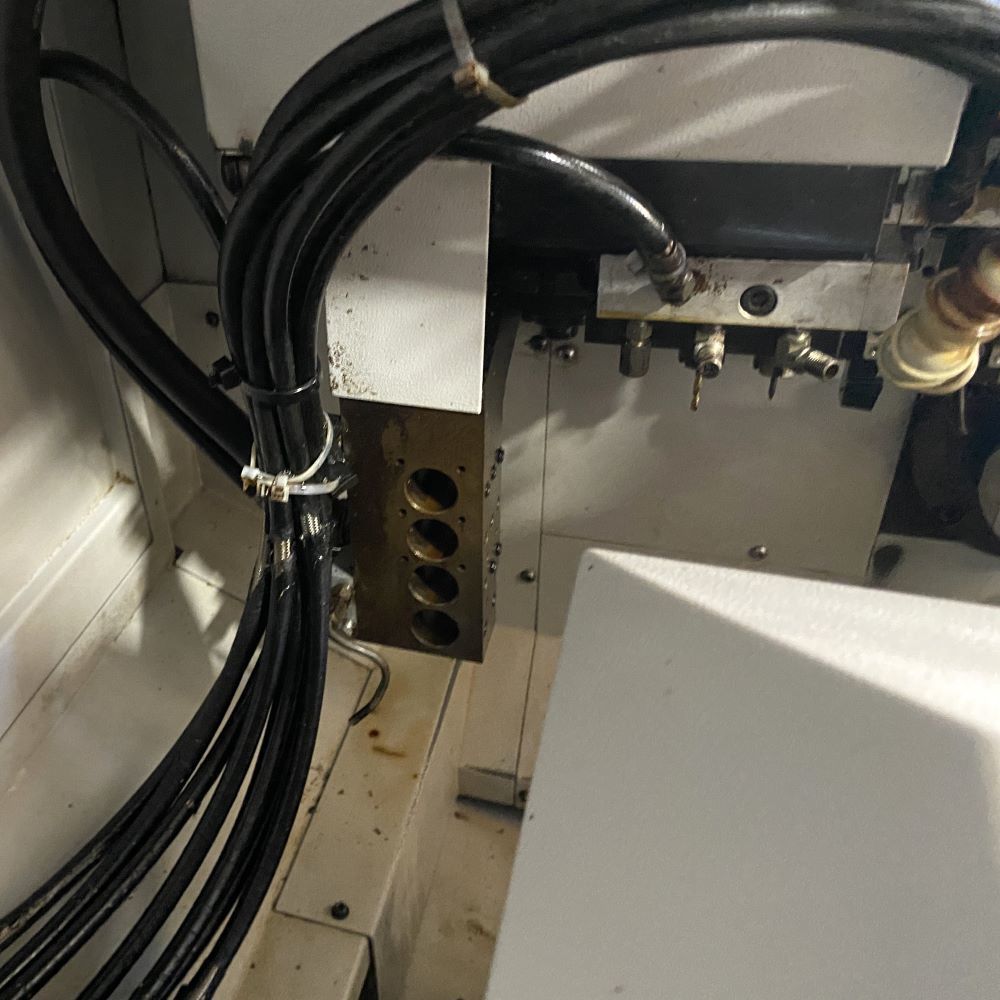

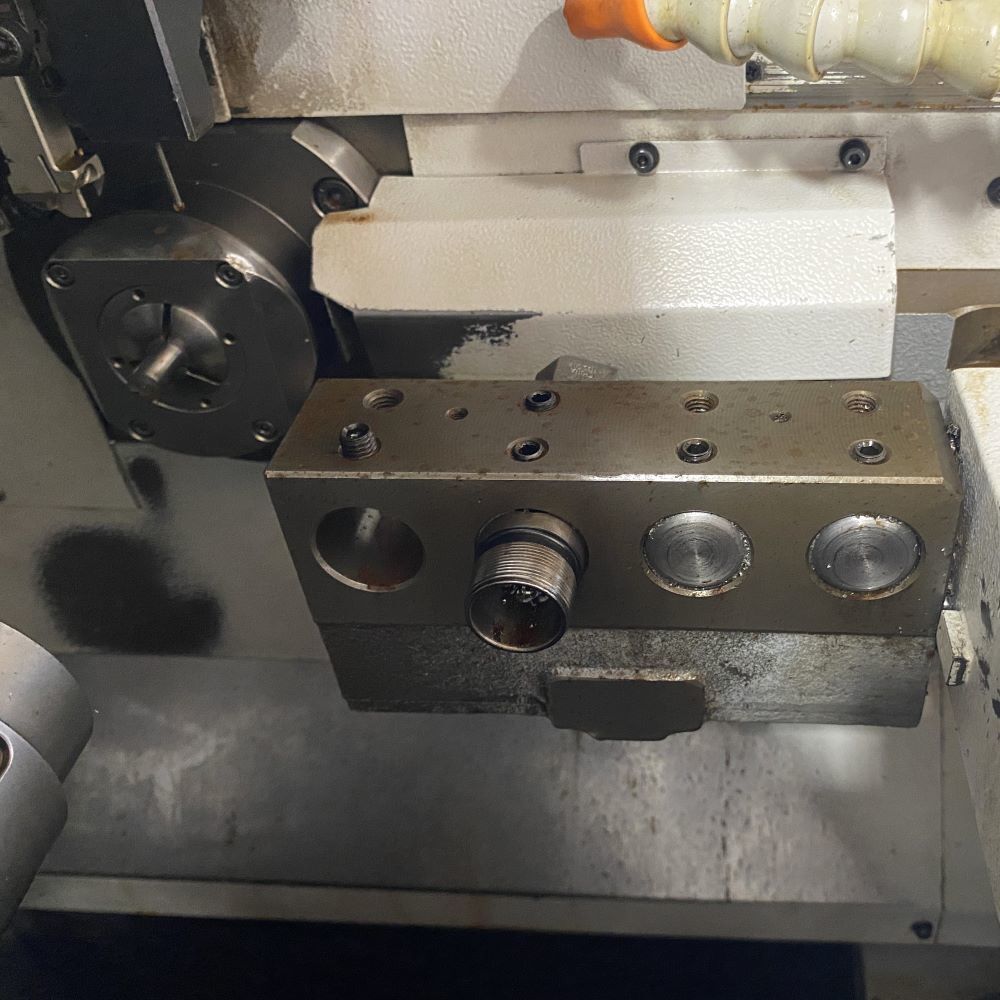

| Back Endworking Tools: 8 Static on 2 Blocks |
| Max Drilling Capability: 25/64″ (10 mm) |
| Max Tapping Capability: M8 X P1.25 |
| Die Cutting Capability: M8 X P1.25 |
| Power Driven Tools Attachment: |
|---|
| Front Working Power Driven Tools: 4 |
| Max Front Drilling: 25/64″ (10 mm) |
| Max Front Milling: 25/64″ (10 mm) |
| Max Front Tapping: M8 x P1.25 |
| Driven Tool Speed: 6000 RPM |
| Driven Tool Motor: 1 HP |
| General: |
|---|

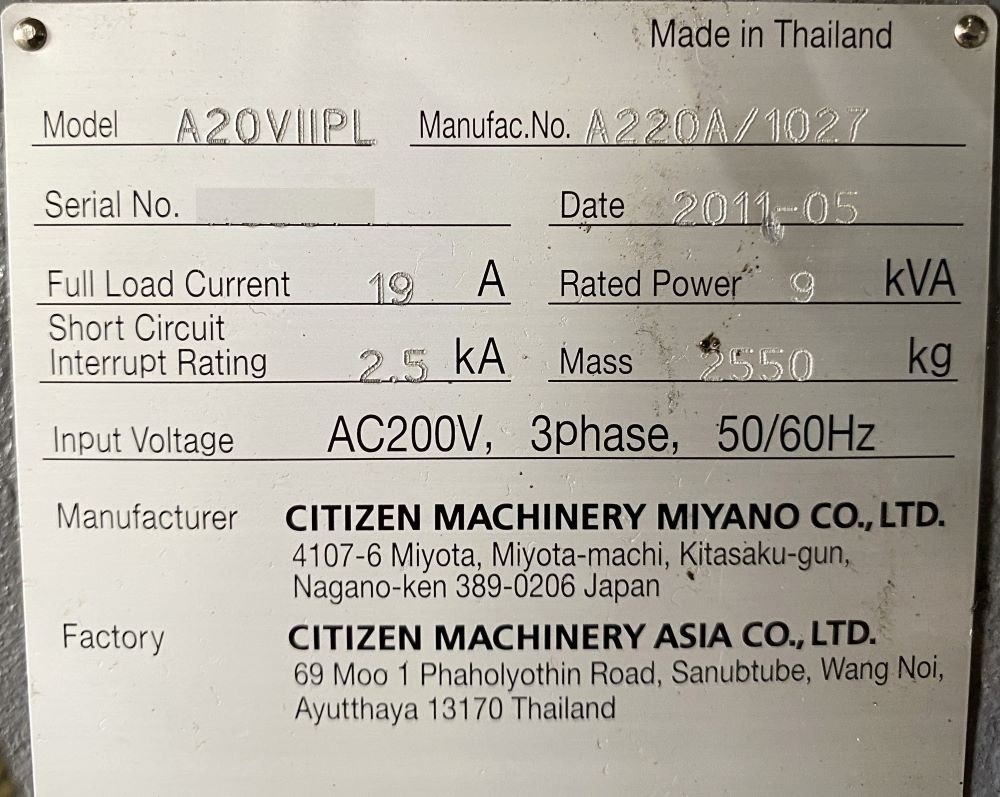

| Power Source: AC 220 V/ Three Phase/ 60 Hz |
| Overall Dimensions: 84″ x 44″ x 74″ High |
| Weight: 5,621 lbs Approx. |
