Citizen L20 Type VIII CNC Swiss Lathe

SKU 12104

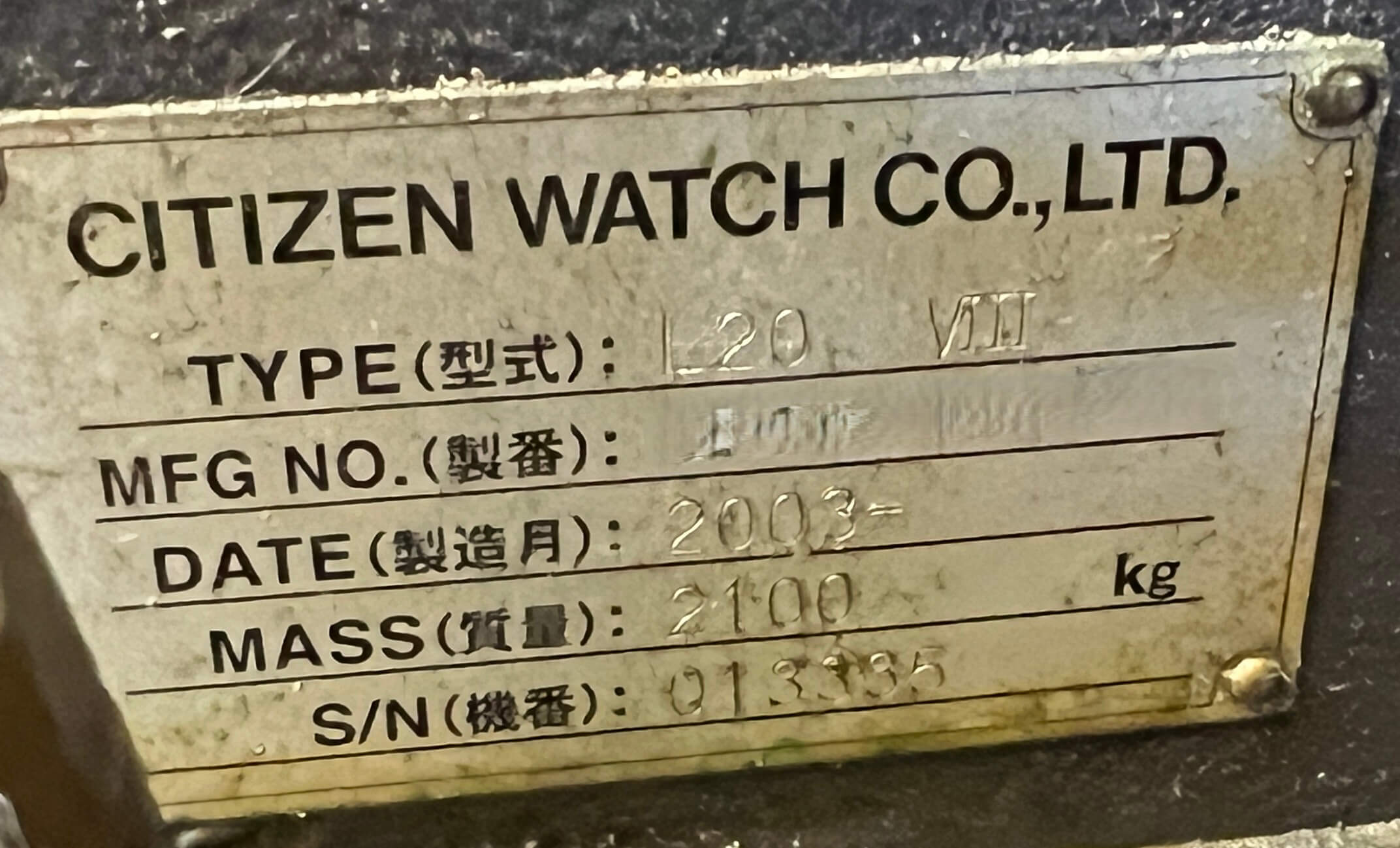

Make/Model Citizen L20 Type VIII

Year 2003

Out of stock

SKU:	12104
Make/Model:	Citizen L20 Type VIII
Year:	2003

SKU: 12104

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Citizen
Model:	L20 Type VIII (5M8)
Year:	2003
Machine Type:	CNC Swiss-Type Lathe
CNC Control:	Citizen Cincom System M6

Equipped With:
Citizen Cincom System M6 CNC Control
10.4″ Color LCD Display
Main Spindle with C-Axis
Sub Spindle with C-Axis
Main Spindle Speed up to 10,000 RPM
Sub Spindle Speed up to 8,000 RPM
5 Outside-Diameter (OD) Turning Tools
Long Parts Attachment
Parts Conveyor
CAV20L-IS 12-Foot Magazine Bar Feeder
Coolant Tank
Enclosed Machining Area

Capacity:
Maximum Machining Diameter: 0.79″
Maximum Machining Length: 7.87″
Main Spindle Through-Hole Diameter: 0.94″
Maximum Front Drilling Diameter: 0.39″
Maximum Front Tapping Capacity: M8 Tap / M6 Die
Maximum Back Drilling Diameter: 0.31″
Maximum Back Tapping Capacity: M6
Maximum Back-Machined Workpiece Protrusion: 1.18″
Optional Long-Workpiece Attachment Capacity: Up to 23.62″

Travels:
X1-Axis Stroke: 3.76″
Y1-Axis Stroke: 11.65″
Z1-Axis Stroke: 8.07″
X2-Axis Stroke: 12.44″
Z2-Axis Stroke: 7.09″
Rapid Traverse Rate (X1, Y1, Z1, X2, Z2): 787.4 IPM

Main Spindle:
Main Spindle Speed Range: 200–10,000 RPM
Main Spindle C-Axis Indexing: 1°
Main Spindle Motor Power: 2.2 kW / 3.7 kW

Sub Spindle:
Sub Spindle Speed Range: 200–8,000 RPM
Sub Spindle C-Axis Indexing: 1°
Sub Spindle Motor Power: 0.75 kW / 1.5 kW

Tooling:
Total Tool Positions: 16
Turning Tools: 5
Cross-Drilling Tools: 5
Front-Drilling Tools: 3
Back-Drilling Tools: 3
Front Driven ID Tools: 4
Driven Backworking Tools: 3
Tool Bit Size: 0.47″ × 0.47″ × 5.12″
Tool Sleeve Diameter: 0.75″

Bar Feeder:
Model: CAV20L-IS
Type: Magazine Bar Feeder
Magazine Length: 12 Feet

General:
Machine Dimensions (Approx.): 80.71″ × 42.72″ × 69.69″
Machine Weight (Approx.): 4,630 lbs

Equipped With:
Citizen Cincom System M6 CNC Control
264 mm Color LCD Display
Main Spindle with C-Axis
Sub Spindle with C-Axis
Main Spindle Speed up to 10,000 RPM
Sub Spindle Speed up to 8,000 RPM
5 Outside-Diameter (OD) Turning Tools
Long Parts Attachment
Parts Conveyor
CAV20L-IS 12-Foot Magazine Bar Feeder
Coolant Tank
Enclosed Machining Area

Capacity:
Maximum Machining Diameter: 20 mm
Maximum Machining Length: 200 mm
Main Spindle Through-Hole Diameter: 24 mm
Maximum Front Drilling Diameter: 10 mm
Maximum Front Tapping Capacity: M8 Tap / M6 Die
Maximum Back Drilling Diameter: 8 mm
Maximum Back Tapping Capacity: M6
Maximum Back-Machined Workpiece Protrusion: 30 mm
Optional Long-Workpiece Attachment Capacity: Up to 600 mm

Travels:
X1-Axis Stroke: 96 mm
Y1-Axis Stroke: 296 mm
Z1-Axis Stroke: 205 mm
X2-Axis Stroke: 316 mm
Z2-Axis Stroke: 180 mm
Rapid Traverse Rate (X1, Y1, Z1, X2, Z2): 787.4 IPM

Main Spindle:
Main Spindle Speed Range: 200–10,000 RPM
Main Spindle C-Axis Indexing: 1°
Main Spindle Motor Power: 2.2 kW / 3.7 kW

Sub Spindle:
Sub Spindle Speed Range: 200–8,000 RPM
Sub Spindle C-Axis Indexing: 1°
Sub Spindle Motor Power: 0.75 kW / 1.5 kW

Tooling:
Total Tool Positions: 16
Turning Tools: 5
Cross-Drilling Tools: 5
Front-Drilling Tools: 3
Back-Drilling Tools: 3
Front Driven ID Tools: 4
Driven Backworking Tools: 3
Tool Bit Size: 12 mm × 12 mm × 130 mm
Tool Sleeve Diameter: 19 mm

Bar Feeder:
Model: CAV20L-IS
Type: Magazine Bar Feeder
Magazine Length: 12 Feet

General:
Machine Dimensions (Approx.): 2,050 mm × 1,085 mm × 1,770 mm
Machine Weight (Approx.): 4,630 lbs
