*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Citizen |
| Model: | C32 Type VIII |
| Year: | 2004 |
| Machine Type: | CNC Swiss-Type Lathe |
| CNC Control: | Citizen Cincom System M6D |
| Equipped With: |
|---|
| Citizen Cincom System M6D CNC Control |
| 10.4-Inch Color LCD Display |
| Main Spindle with C-Axis |
| Sub Spindle |
| Gang Tool Post |
| Rotary Tool Capability |
| Long-Parts Attachment |
| Parts Conveyor |
| Iemca Boss 432/37 Automatic Magazine Bar Feeder |
| Guide Bushing System |

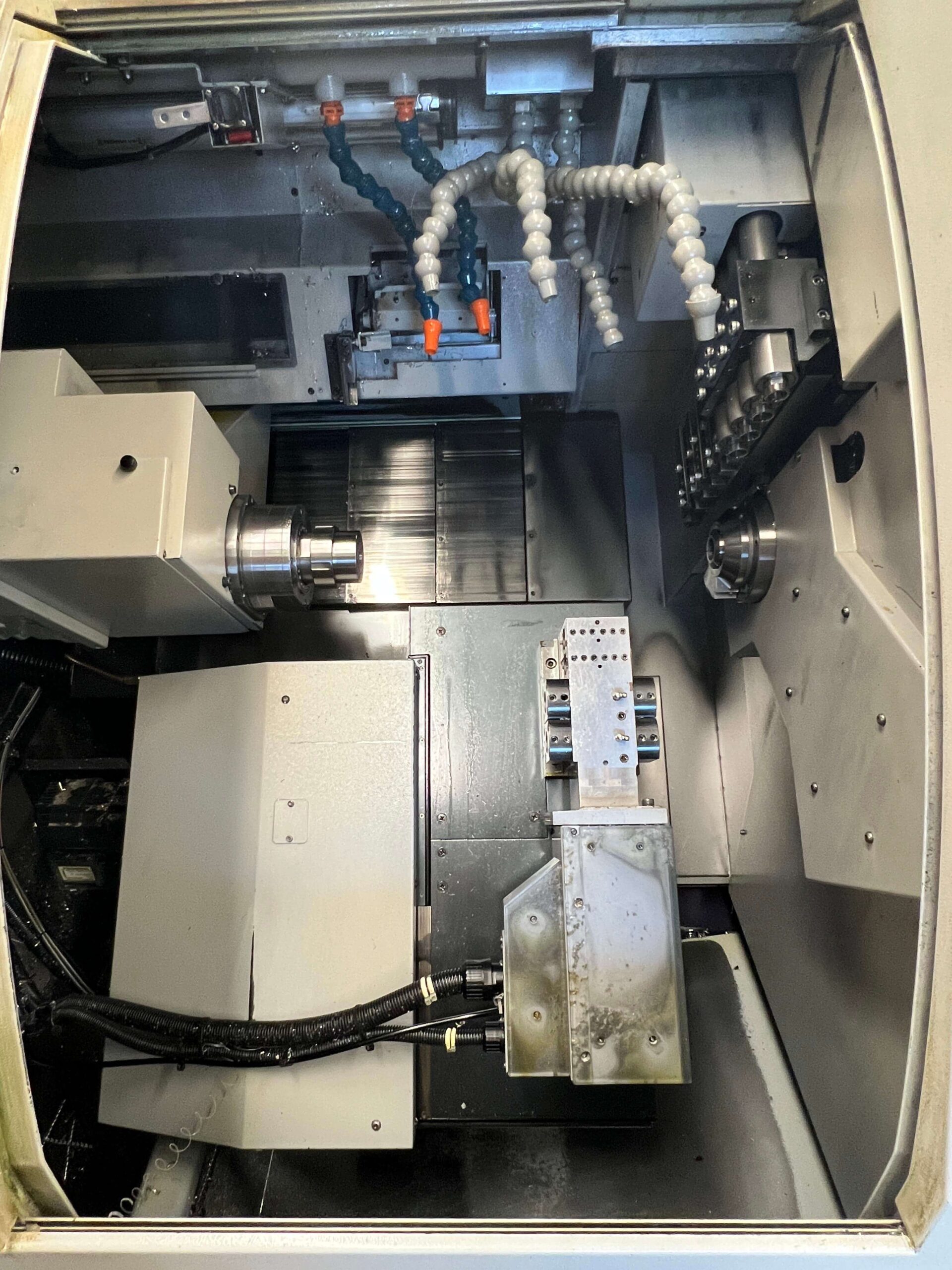

| Enclosed Machining Area |
| Coolant Delivery Nozzles |
| Capacity: |
|---|
| Maximum Machining Diameter: 1.25″ |
| Optimum Machining Diameter: 0.39″–1.25″ |
| Maximum Machining Length: 12.5″ Per Chuck |
| Maximum Front Drilling Diameter: 0.47″ |
| Maximum Front Tapping Diameter: M10 Tap / M8 Die |
| Main Spindle Through-Hole Diameter: 1.41″ |
| Travels: |
|---|
| X1-Axis Stroke: 4.2″ |
| Y1-Axis Stroke: 10.8″ |
| Z1-Axis Stroke: 12.8″ |
| X2-Axis Stroke: 9.0″ |
| Z2-Axis Stroke: 5.1″ |
| Z3-Axis Stroke: 16.1″ |
| Rapid Feed Rate: 787.4 IPM (20 m/min) |
| Main Spindle: |
|---|
| Main Spindle Speed Range: 200–8,000 RPM |
| Maximum Main Spindle Speed: 8,000 RPM |
| Spindle Speed Control: Stepless |
| Main Spindle Indexing: 1° |
| Main Spindle Motor Power: 3.7 kW / 7.5 kW |
| Sub Spindle: |
|---|
| Back Spindle Speed Range: 200–7,000 RPM |
| Maximum Back Spindle Speed: 7,000 RPM |
| Back Spindle Indexing: 1° |
| Back Spindle Motor Power: 1.5 kW / 2.2 kW |
| Tooling: |
|---|
| Total Tool Capacity: Up to 18 Tools |
| Gang Tool Post Turning Tools: 5 |
| Gang Tool Post Rotary Tools: 4 |
| Standard Opposite Tool Post: 4 Tools |
| Gang Tool Post Spindle Speed: 200–5,000 RPM |
| Opposite Tool Post Spindle Speed: 200–4,500 RPM (Optional) |
| Gang Tool Post Maximum Drilling Diameter: 0.27″ |
| Gang Tool Post Maximum Tapping: M6 |
| Bar Feeder: |
|---|
| Make: Iemca |
| Model: Boss 432/37 |
| Type: Automatic Magazine Bar Feeder |
| Magazine Length: 12 Feet |
| Bar Feeder Weight: 1,984 lbs |
| General: |
|---|
| Power Source: 230v / 3-Phase / 60 Hz |
| Machine Weight: 6,129 lbs |
