Citizen M20-V CNC Swiss Type Lathe

SKU 11583

Make/Model Citizen M20-V

Condition Used - Goof

Year 2010

Video On Request

Out of stock

SKU:	11583
Make/Model:	Citizen M20-V
Condition:	Used – Goof
Year:	2010
Video:	On Request

SKU: 11583

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Citizen
Model:	M20-V
Year:	2010
Condition:	Used – Good
Machine Type:	CNC Swiss Type Lathe

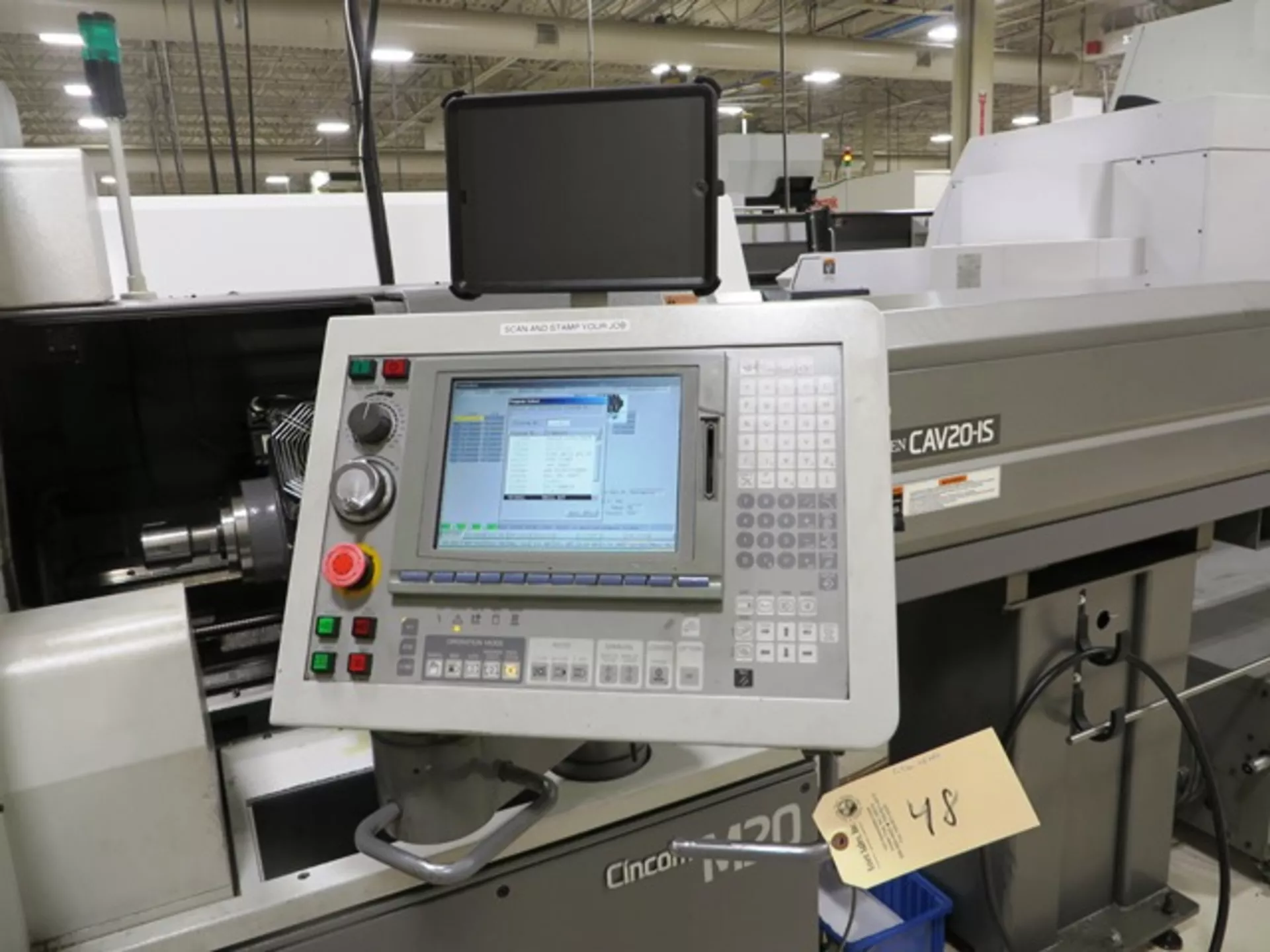

Control:	Citizen / Mitsubishi Cincom CNC

Features:
Citizen / Mitsubishi CNC Control
CAV20-IS CNC Bar Feeder
20 mm Bar Capacity
Main Spindle
Sub-Spindle
Independent Cross Slides
Guide Bushing System
High-Speed Precision Swiss Turning
Automatic Bar Feed System
Coolant System
Chip Conveyor / Chip Collection System
Parts Catcher
Work Light
Complete Safety Enclosure

Capacity:
Max. Bar Capacity: 0.787″ (20mm)
Max. Machining Length: 23.622″
Max. Drilling Diameter: 0.393″ (10mm)
Max. Tapping Diameter: M8 (0.315″)
Collet Type: TF25

Travels:
X1-Axis Travel: 4.252″
X2-Axis Travel: 4.724″
X3-Axis Travel: 9.370″
Y1-Axis Travel: 10.827″
Y2-Axis Travel: 1.732″
Z1-Axis Travel: 12.795″
Z2-Axis Travel: 7.953″
Z3-Axis Travel: 16.142″
C1-Axis (Main Spindle): 360°
C2-Axis (Sub-Spindle): 360°
Number of Axes: 10

Spindle:
Main Spindle Speed: 200 – 10,000 RPM
Main Spindle Motor: 5 HP
Main Spindle Bore: 0.945″
Sub-Spindle Speed: 200 – 8,000 RPM
Sub-Spindle Motor: 2 HP
Sub-Spindle Bore: 0.787″

Turret / Tool Carriers:
Primary Turret – Max Turning Tools: 10
Primary Turret – Max Rotary Tools: 10
Rotary Tool Spindle Speed: 5,000 RPM
Rotary Tool Spindle Motor: 1.30 HP
Third Slide – Max Turning Tools: 3
Third Slide – Max Rotary Tools: 2
Tool Shank Size (Square): 0.625″
Tool Shank Size (Round): 1.000″

Guide Bushing:
Type: Synchronous Rotary Guide Bushing

CAV20-IS Bar Feed:
Bar Profiles: Round, Hexagonal, Square
Max. Bar Length: 13′
Bar Diameter Range: 0.078″ – 0.787″
Bar Supply Method: Magazine / Disk Feeding
Control: Synchronized with NC Lathe

General:
Overall Dimensions (Machine): 105″ L x 54″ W x 72″ H Approx.
Machine Weight: 6,834 lbs. Approx.

Capacity:
Max. Bar Capacity: 20 mm (20mm)
Max. Machining Length: 600 mm
Max. Drilling Diameter: 10 mm (10mm)
Max. Tapping Diameter: M8 (8 mm)
Collet Type: TF25

Travels:
X1-Axis Travel: 108 mm
X2-Axis Travel: 120 mm
X3-Axis Travel: 238 mm
Y1-Axis Travel: 275 mm
Y2-Axis Travel: 44 mm
Z1-Axis Travel: 325 mm
Z2-Axis Travel: 202 mm
Z3-Axis Travel: 410 mm
C1-Axis (Main Spindle): 360°
C2-Axis (Sub-Spindle): 360°
Number of Axes: 10

Spindle:
Main Spindle Speed: 200 – 10,000 RPM
Main Spindle Motor: 5 HP
Main Spindle Bore: 24 mm
Sub-Spindle Speed: 200 – 8,000 RPM
Sub-Spindle Motor: 2 HP
Sub-Spindle Bore: 20 mm

Turret / Tool Carriers:
Primary Turret – Max Turning Tools: 10
Primary Turret – Max Rotary Tools: 10
Rotary Tool Spindle Speed: 5,000 RPM
Rotary Tool Spindle Motor: 1.30 HP
Third Slide – Max Turning Tools: 3
Third Slide – Max Rotary Tools: 2
Tool Shank Size (Square): 16 mm
Tool Shank Size (Round): 25 mm

Guide Bushing:
Type: Synchronous Rotary Guide Bushing

CAV20-IS Bar Feed:
Bar Profiles: Round, Hexagonal, Square
Max. Bar Length: 13'
Bar Diameter Range: 2 mm – 20 mm
Bar Supply Method: Magazine / Disk Feeding
Control: Synchronized with NC Lathe

General:
Overall Dimensions (Machine): 2,667 mm L x 1,372 mm W x 1,829 mm H Approx.
Machine Weight: 6,834 lbs. Approx.

Categories	Swiss Type Lathe
Make	Citizen
Model	M20-V

Citizen / Mitsubishi CNC Control
CAV20-IS CNC Bar Feeder
20 mm Bar Capacity
Main Spindle
Sub-Spindle
Independent Cross Slides
Guide Bushing System
High-Speed Precision Swiss Turning
Automatic Bar Feed System
Coolant System
Chip Conveyor / Chip Collection System
Parts Catcher
Work Light
Complete Safety Enclosure

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
