*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DAEWOO |
| Model: | DMV-4020S |
| Year: | 2002 |
| Condition: | Used – Good |
| Features: |
|---|

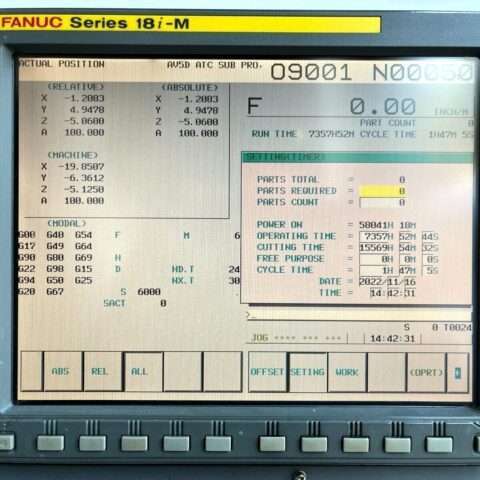

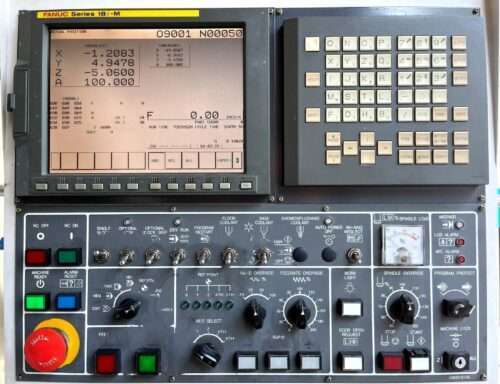

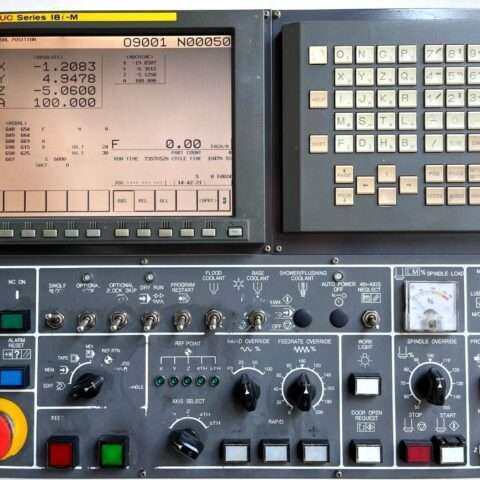

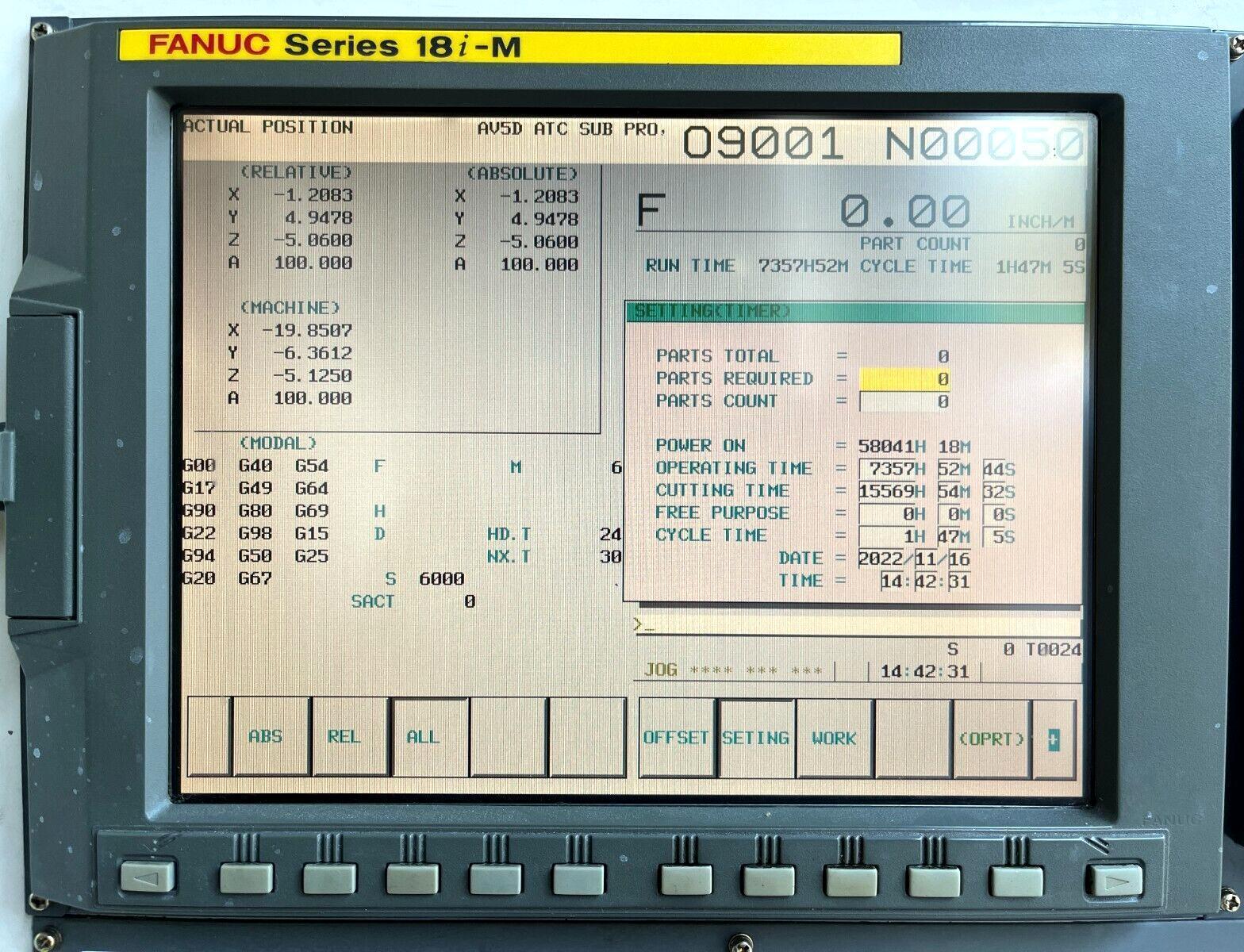

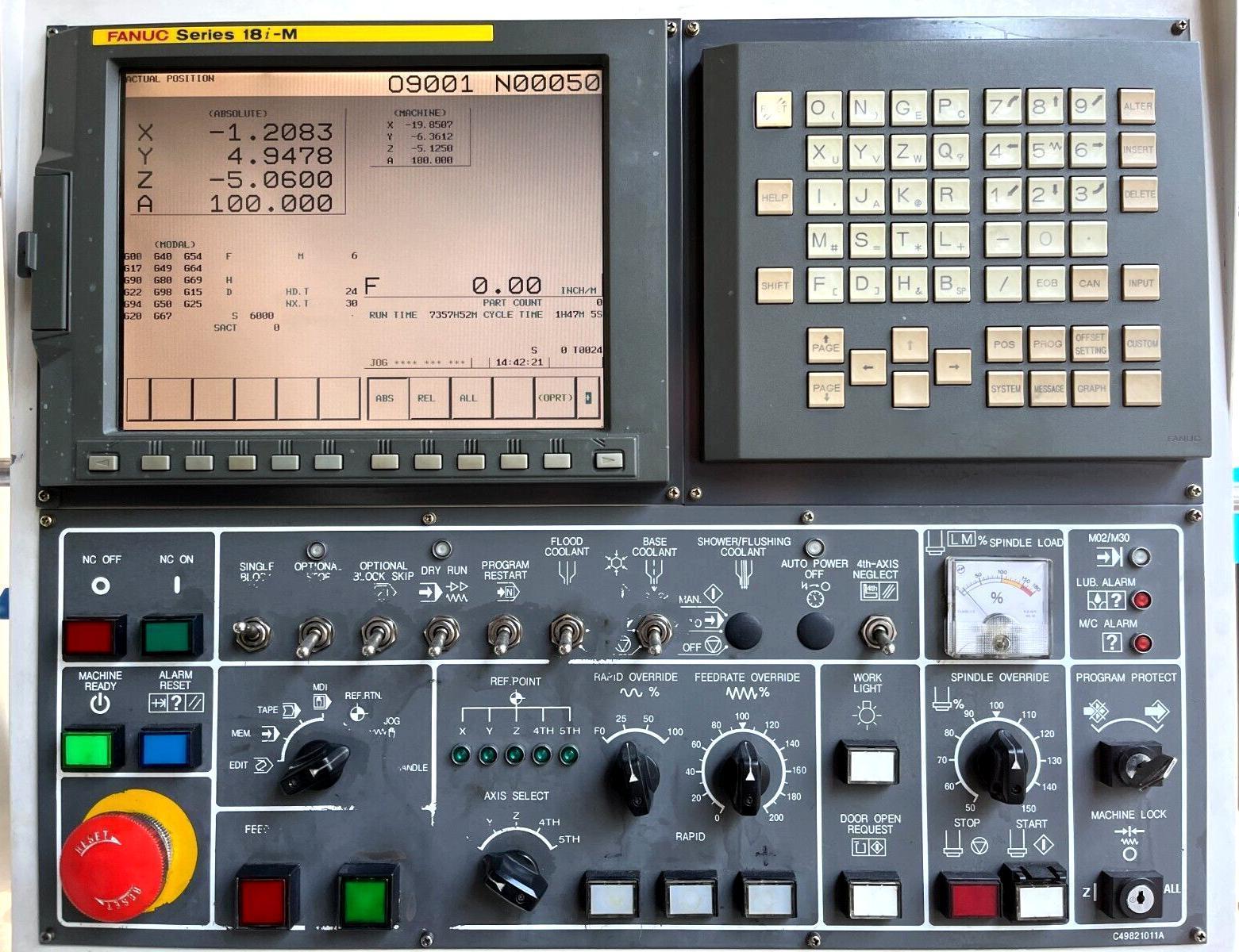

| Fanuc 18iM CNC Control |
| Box Way Construction |

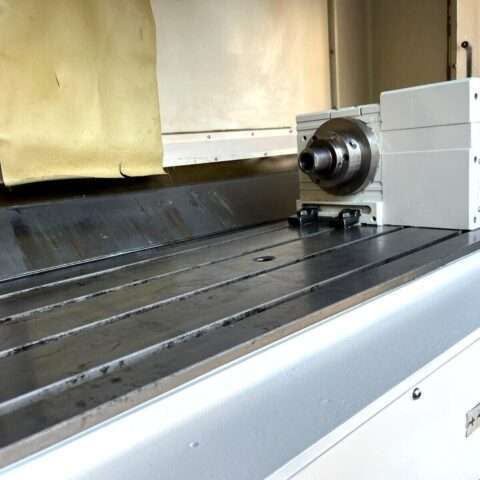

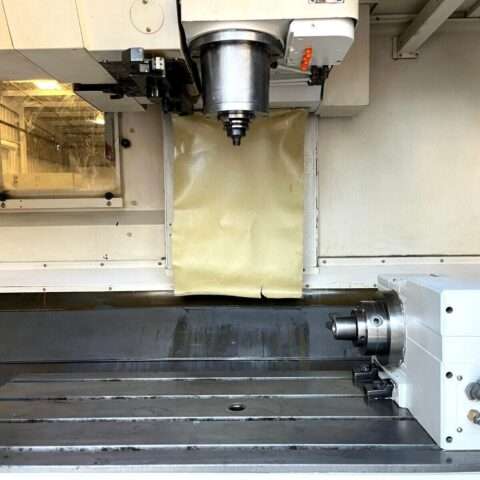

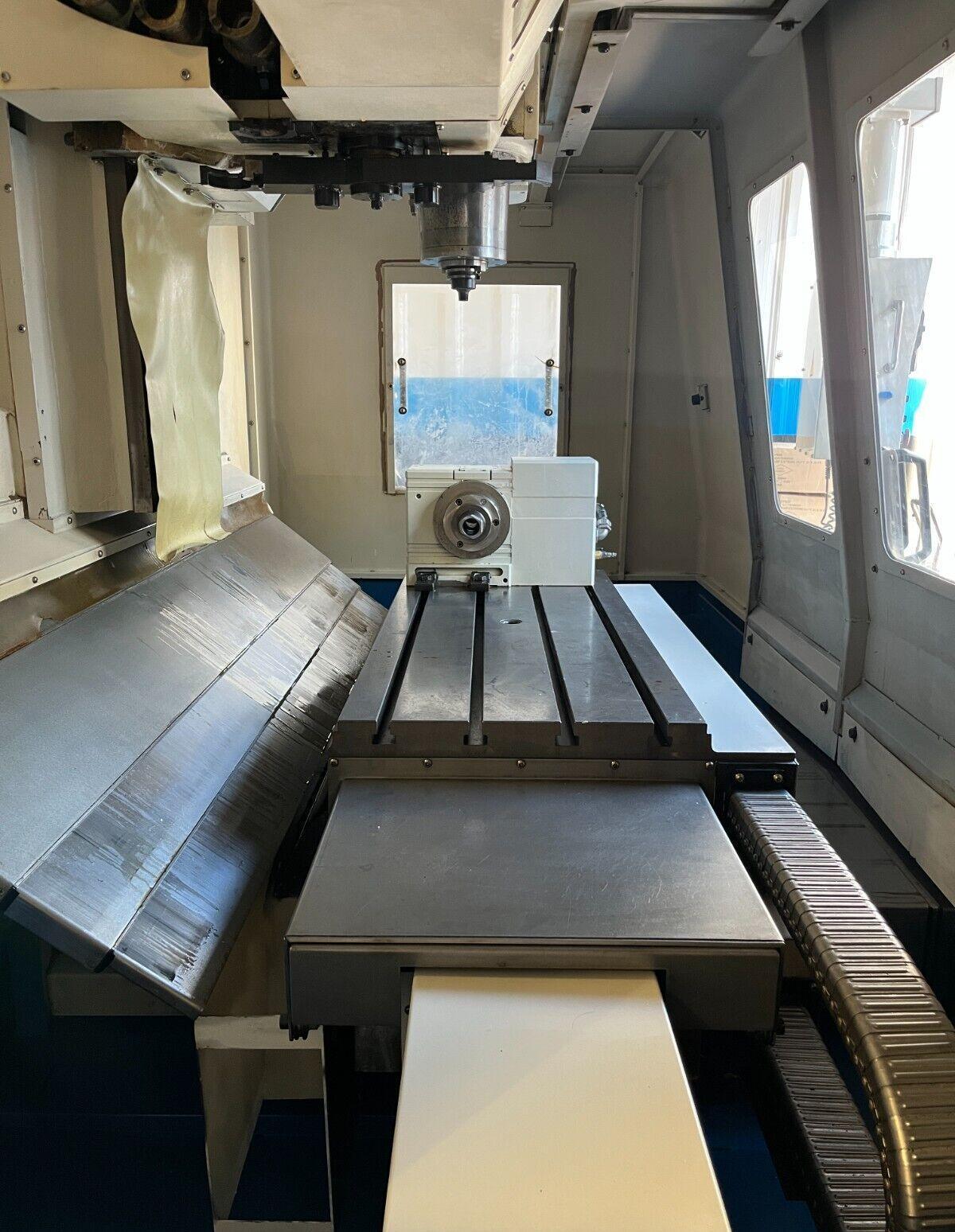

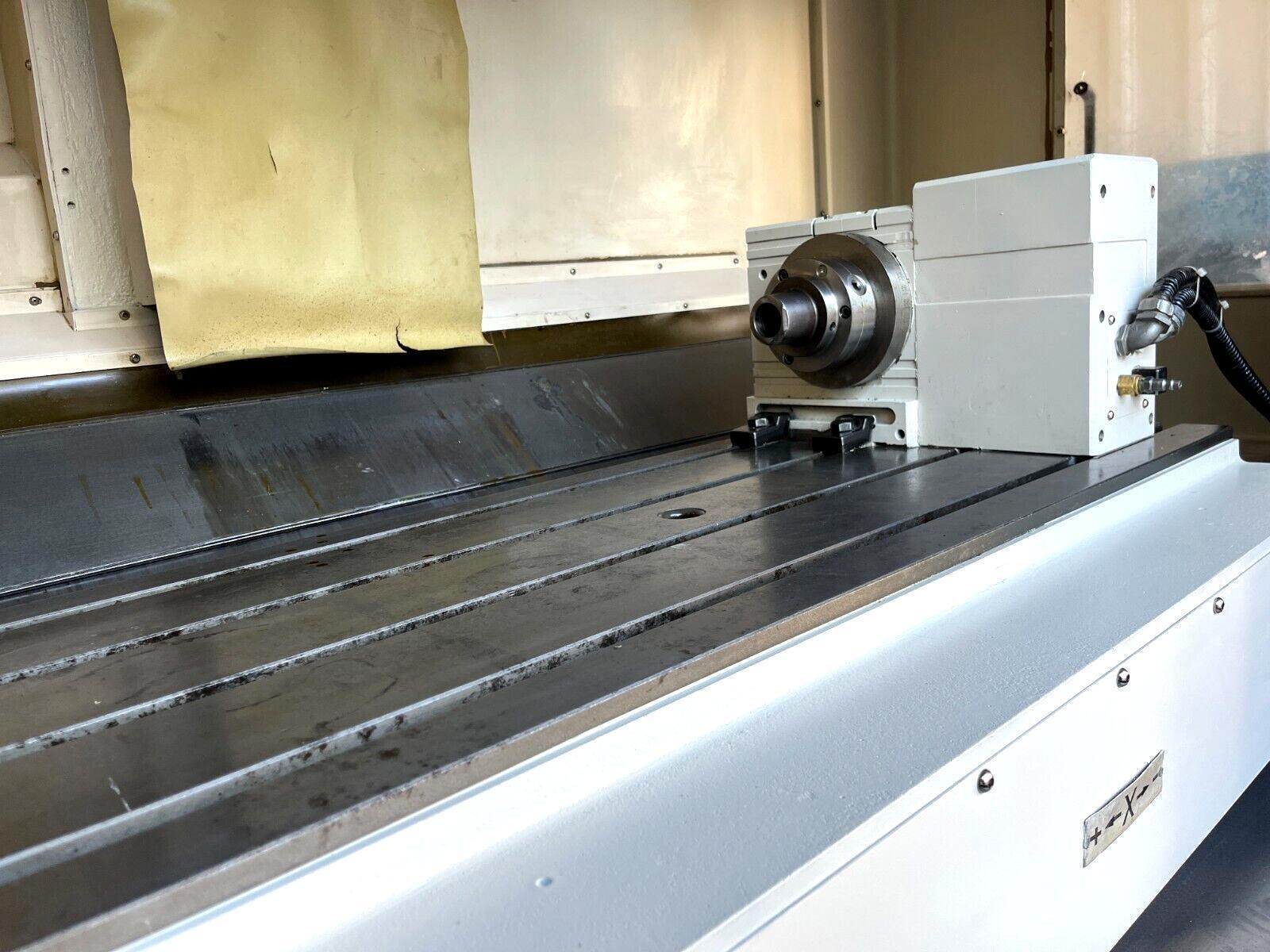

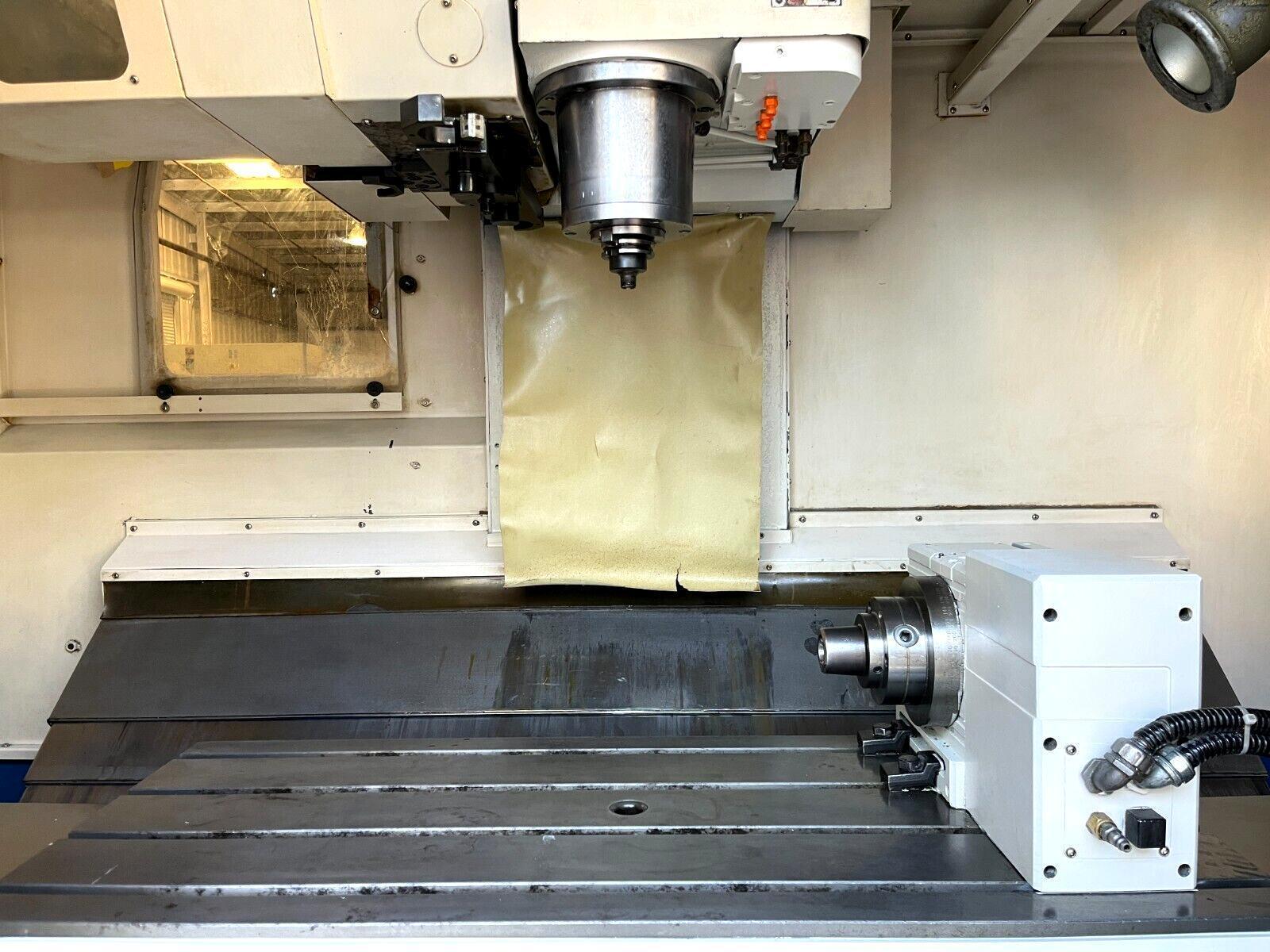

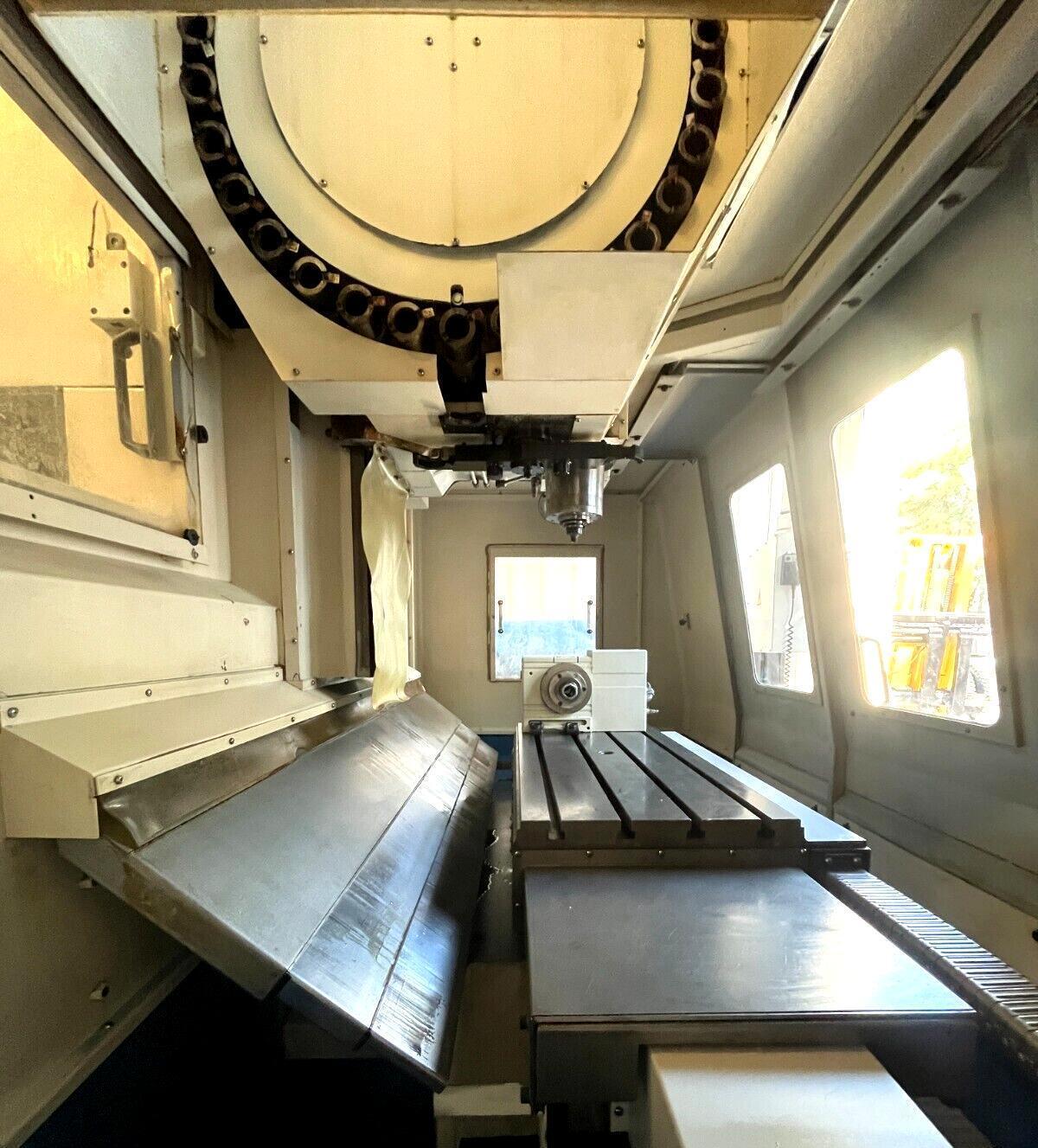

| 4th Axis Rotary Table |
| 10000 RPM Precision Spindle |
| 30 Automatic high speed tool changer |

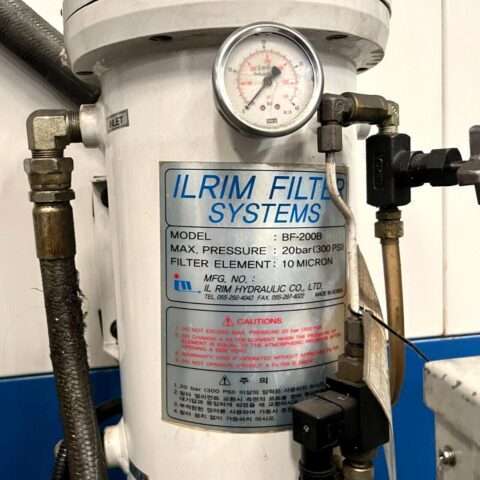

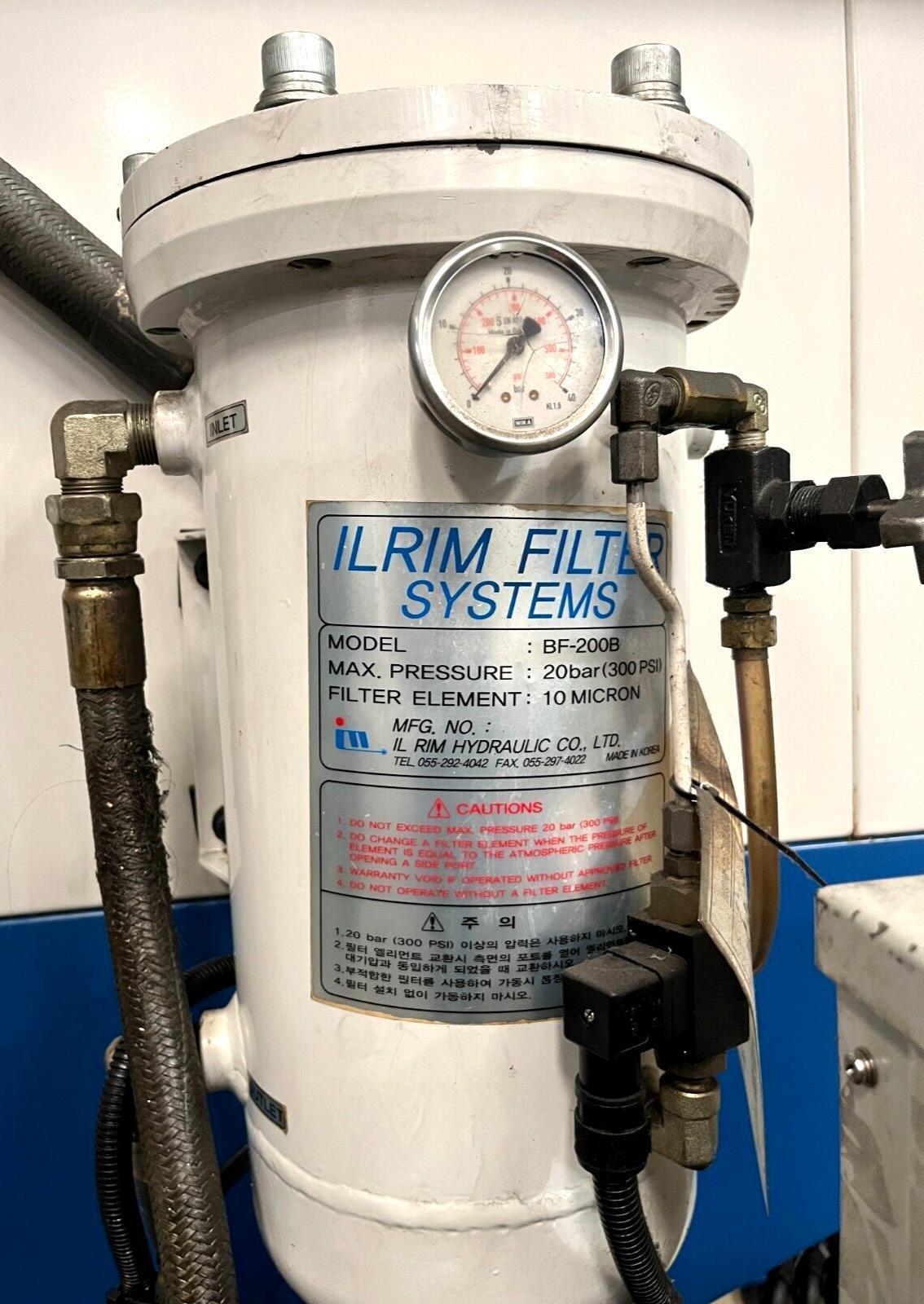

| Through Spindle coolant – 300 psi |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |

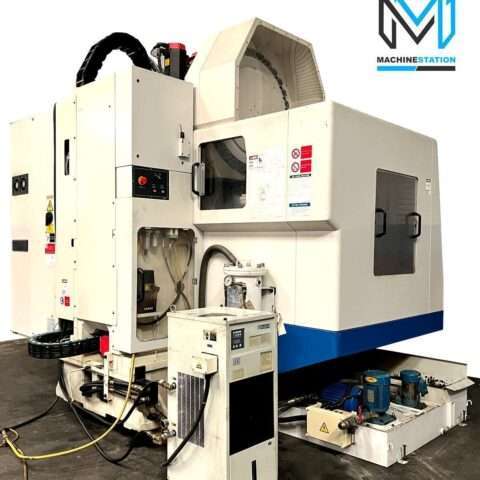

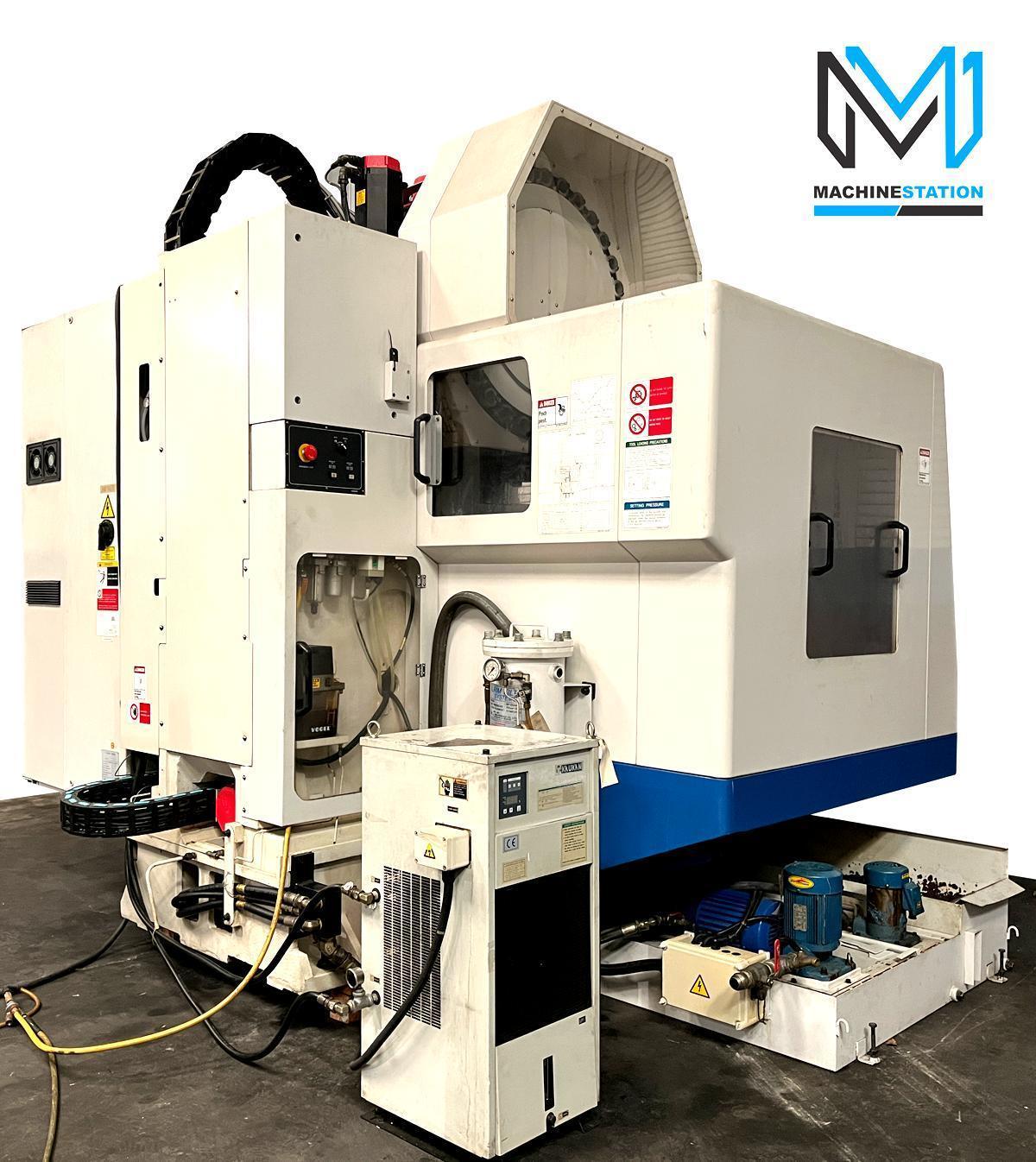

| Spindle Chiller Unit |
| Flood Coolant system |
| Manuals & Books |
| Travels: |
|---|
| X-Axis: 40.2″ |
| Y-Axis: 20″ |
| Z-Axis: 20.2″ |
| Rapid Traverse Rates Axis: 1181 IPM |
| Cutting Feed Rates: 593 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26″ |

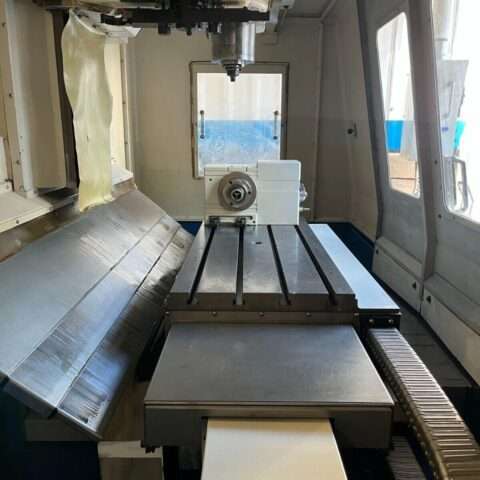

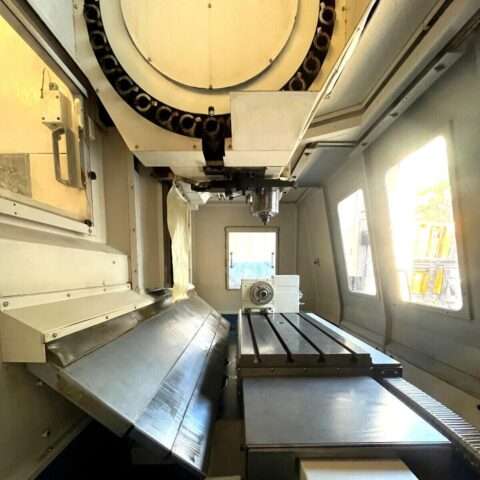

| Table: |
|---|
| Length: 47.2″ |
| Width: 19.7″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1800 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10000 RPM |
| Spindle Power: 20 HP |

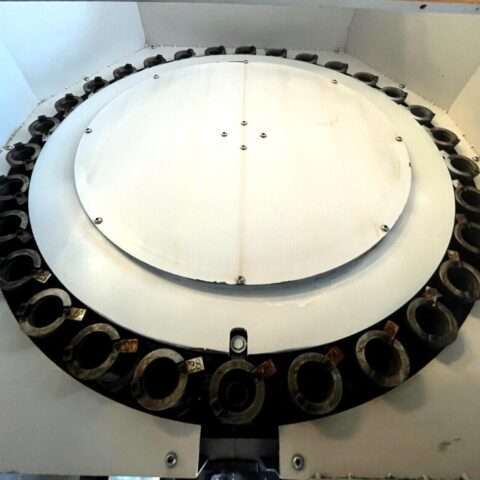

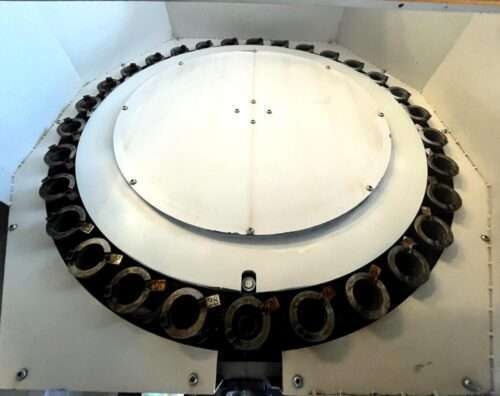

| Automatic Tool Changer: |
|---|

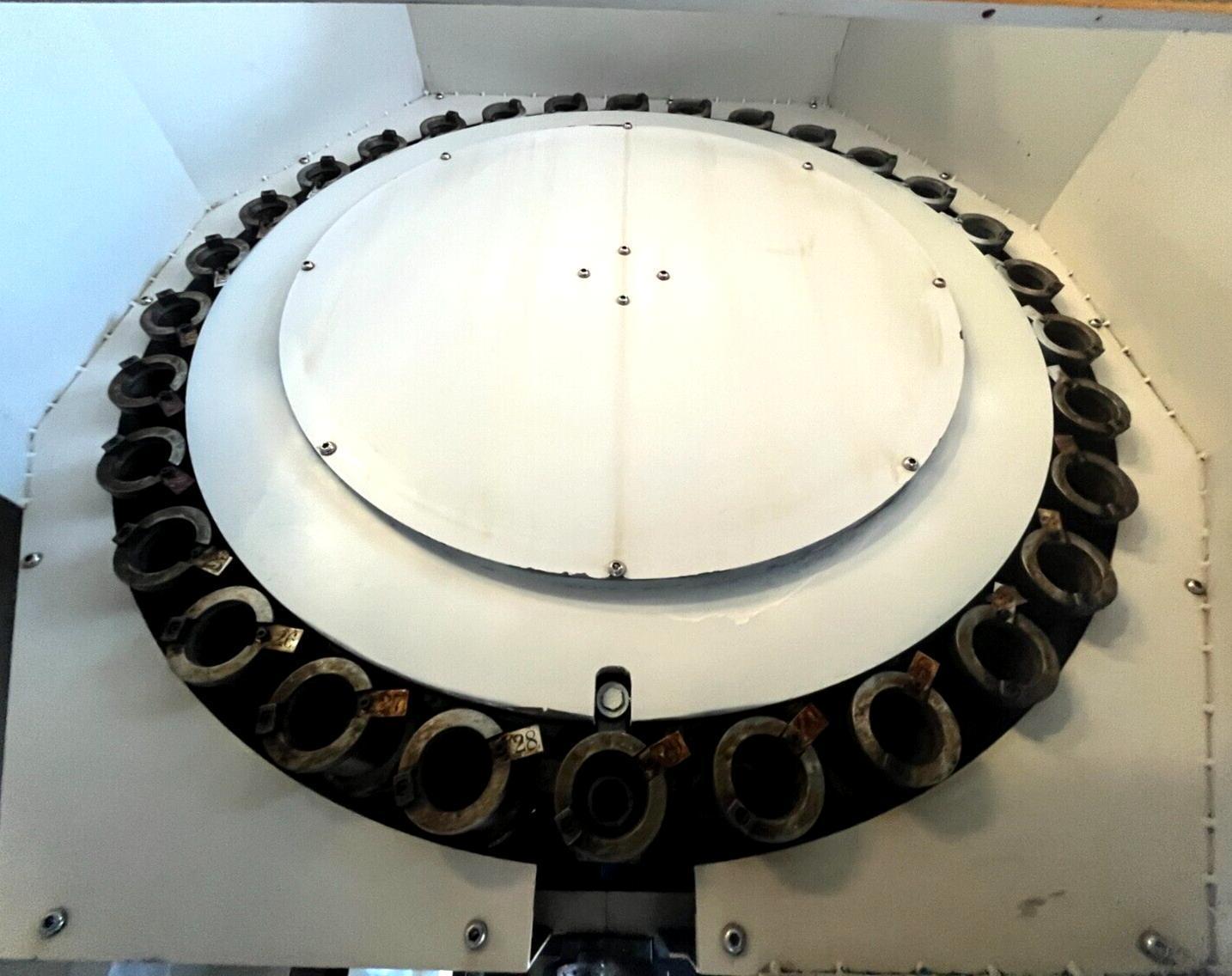

| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3″ -5.90″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.5 Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

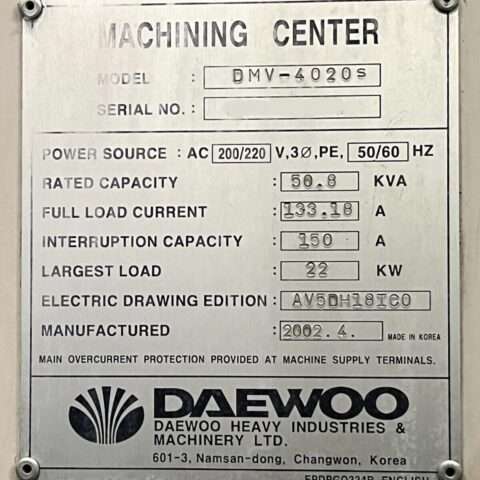

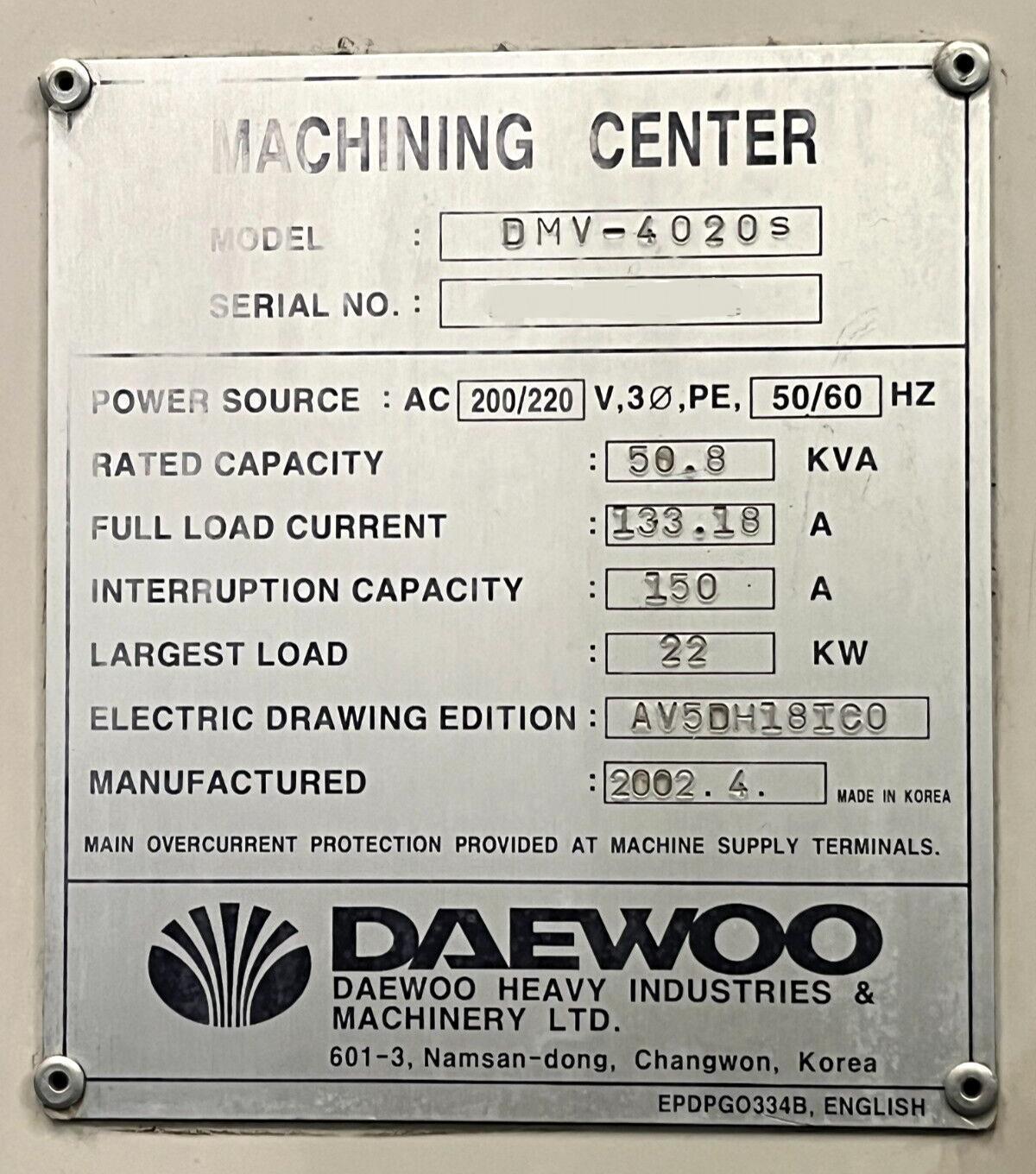

| Power: 220v / 50.8 kva / 3-Phase |
| Overall Dimensions: 140″ x 100″ x 110″ High |
| Weight: 16500 lbs |
