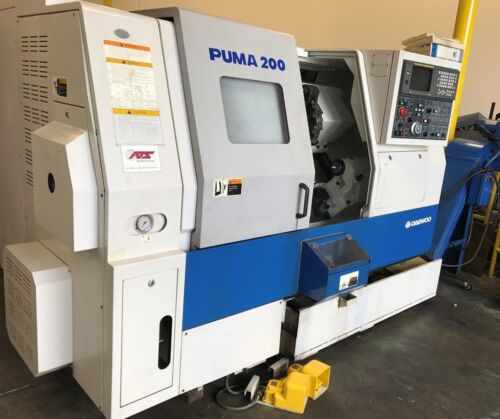

| DAEWOO PUMA 200C CNC Turning Center | |
|---|---|
| Make | DAEWOO |
| Model No. | PUMA 200C |

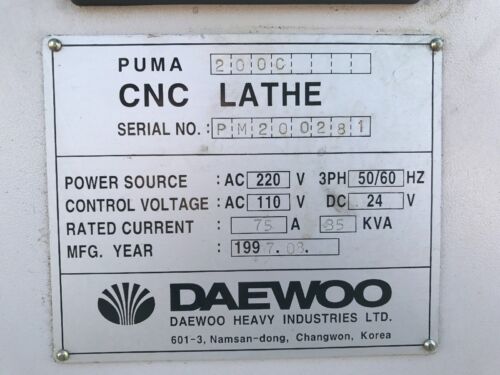

| Serial # | PM200281 |
| Condition | Very Good |
Comes with 8″ Chuck, Chip Conveyor, Tool Holders, Manuals.
All specifications are approximations and are subject to verification.

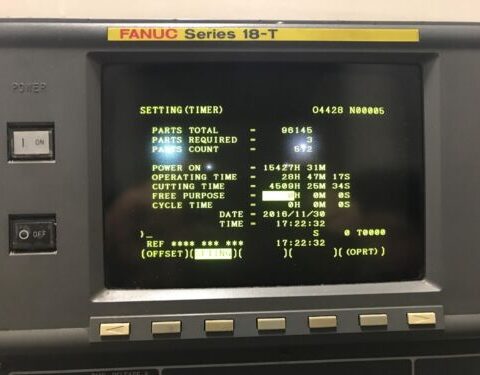

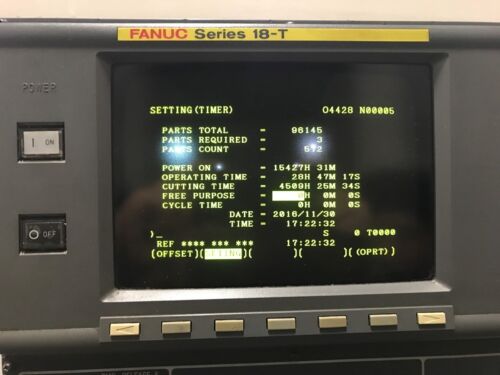

“This Machine has only 4509 cutting hours. Its a Heavy Duty machine with 2.99″ Spindle Bore, Hydraulic Tailstock & Fanuc 18T control. On Our Floor now, Fully powered / tested & is in Great working condition.”
Equipped With:
- Fanuc 18T CNC Control

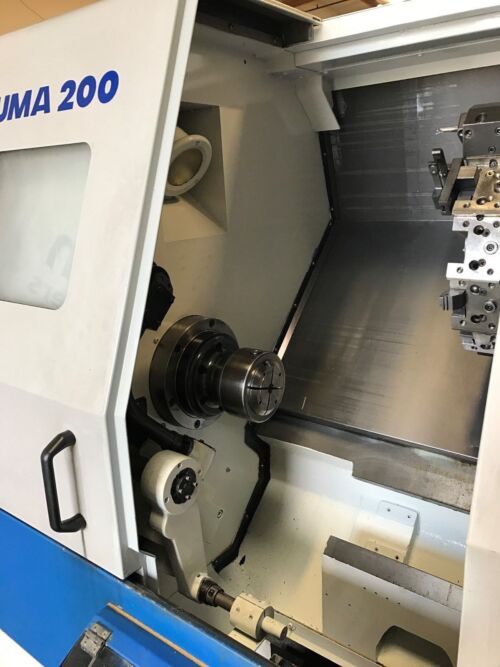

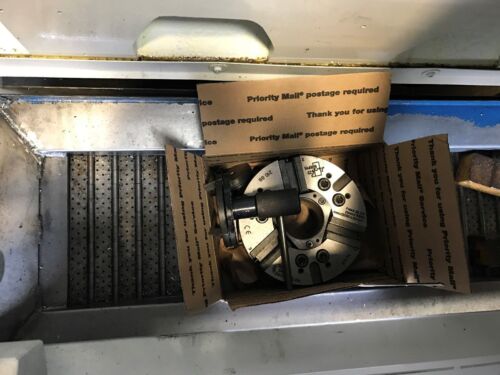

- 8″ 3 Jaw Hydraulic Chuck

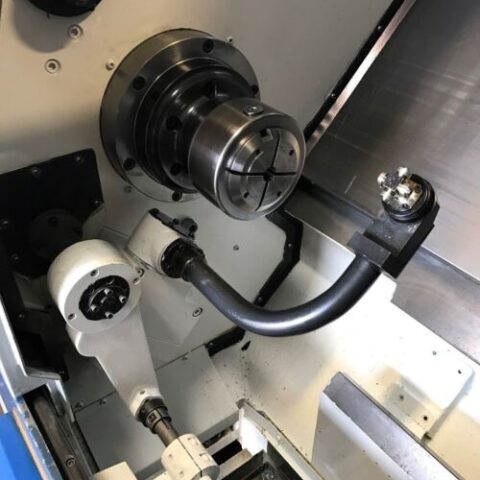

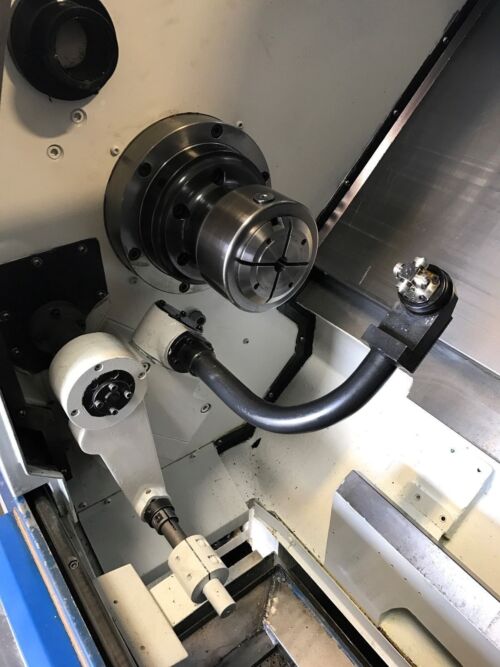

- Tool Presetter

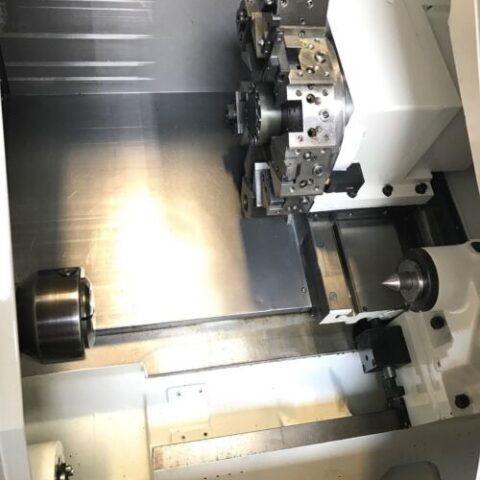

- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

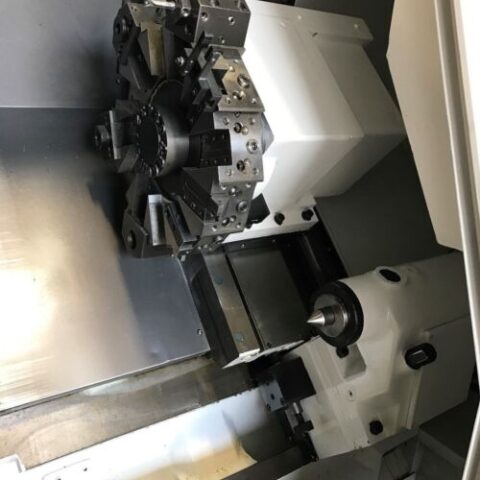

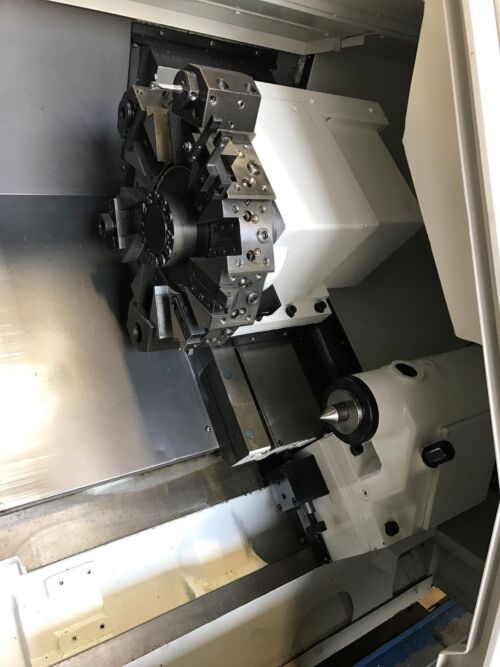

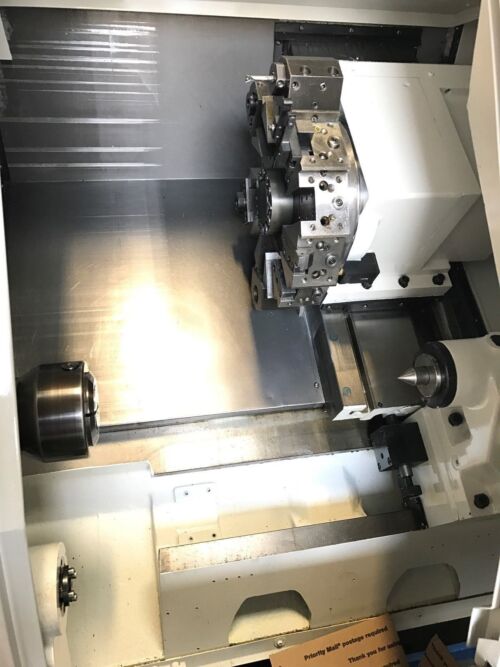

- 12 Station Automatic Turret
- Chip Conveyor
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 105″ x 64″ x 69″ High
- Overall Dimensions: 130″ x 64″ x 69″ High (With Chip Conveyor)
- Weight: 8800 lbs
DAEWOO PUMA 200C Specifications:
Capacity:
- Max Turning Diameter: 13.78″
- Max Turning Length: 15.75″
- Max Bar Capacity: 2.56″
- Swing Over Bed: 20.08″
- X Axis Travel: 9.53″
- Z Axis Travel: 17.32″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 1000 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.99″
- Spindle Speed: 45 – 4500 RPM
- Spindle Motor: 11/15 kw
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.95″
- Tailstock Quill Travel: 3.15″

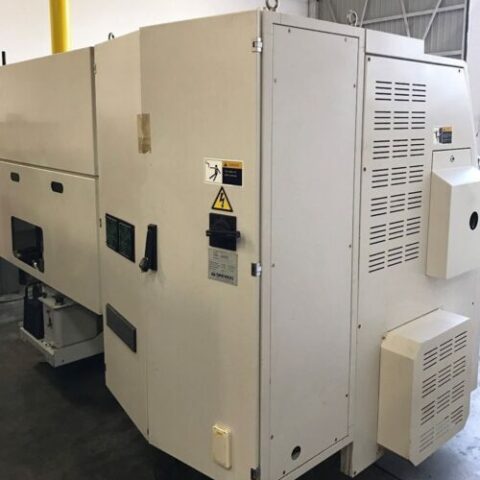

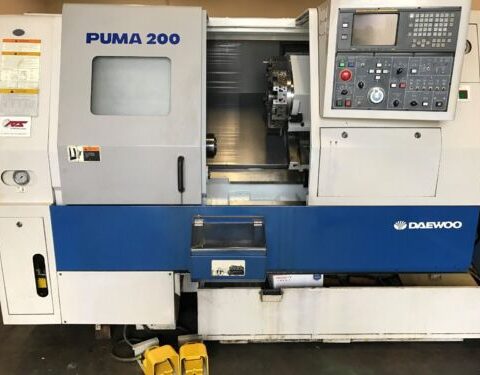

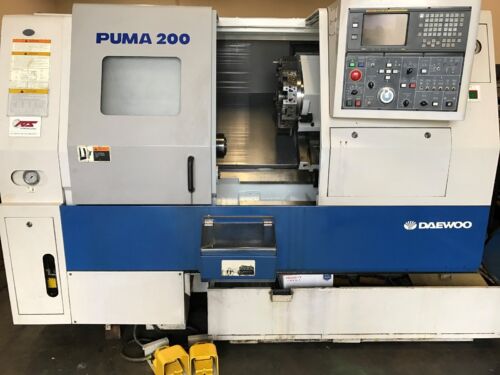

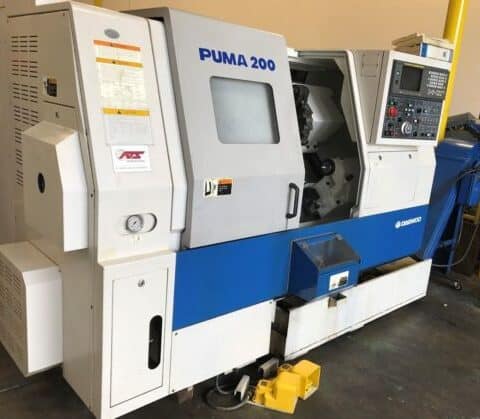

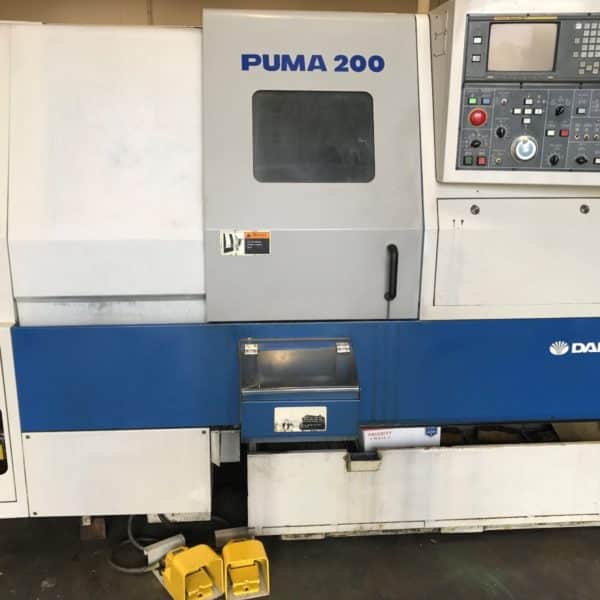

DAEWOO PUMA 200C Comes as shown in pictures.
