DMG Mori DMU 60 eVo linear 5-Axis CNC Mill

$5,500.00

1 in stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

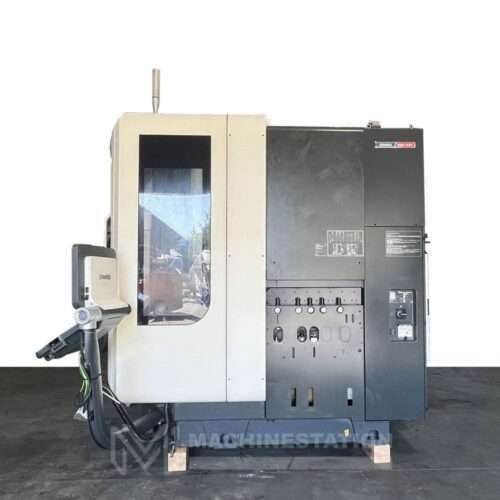

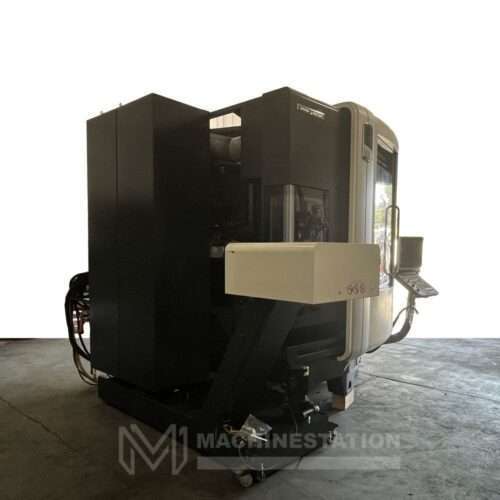

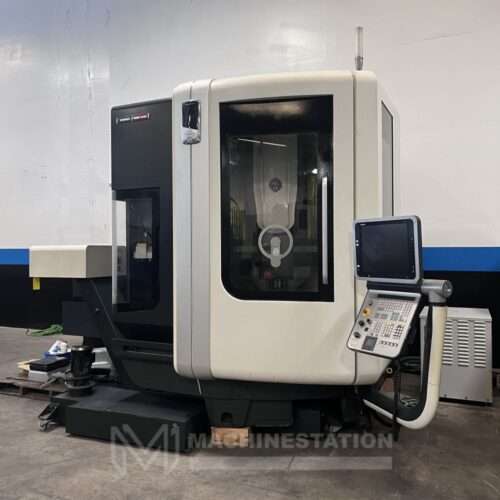

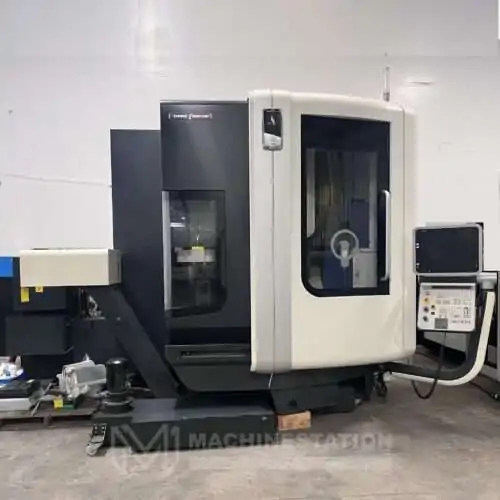

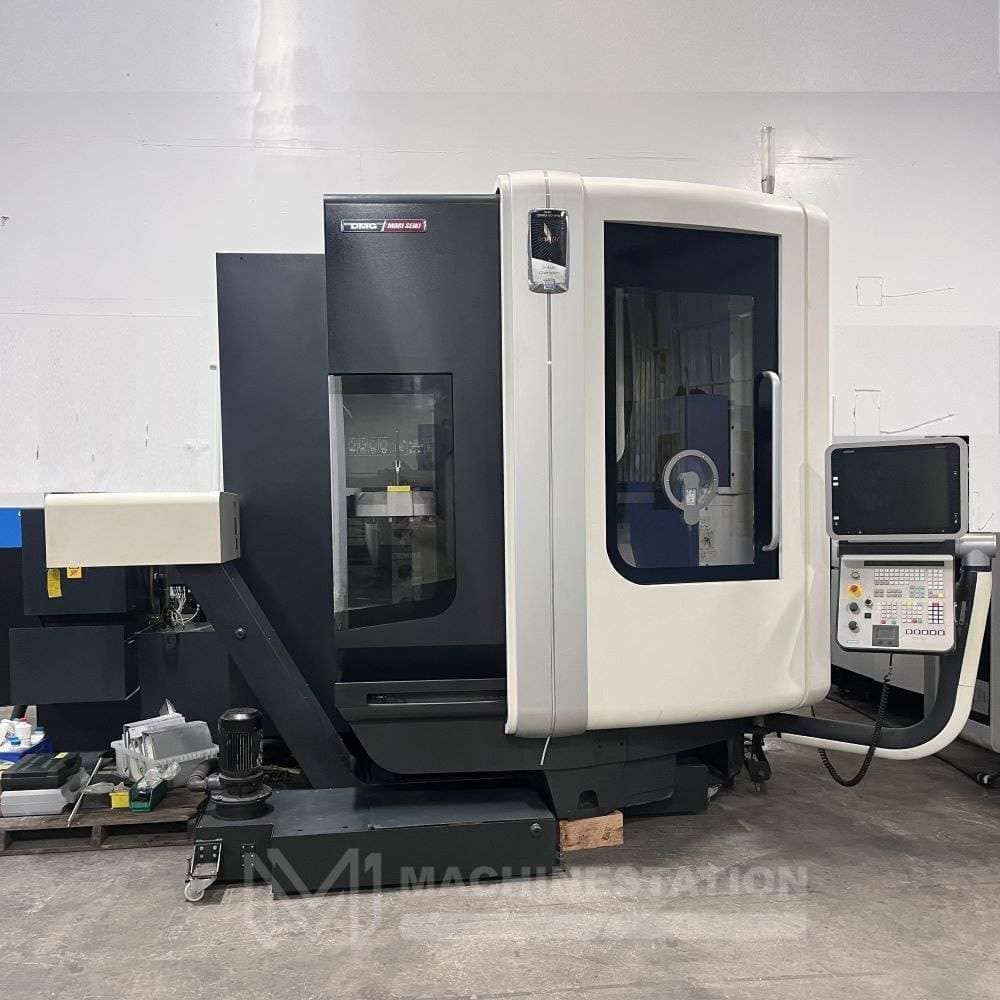

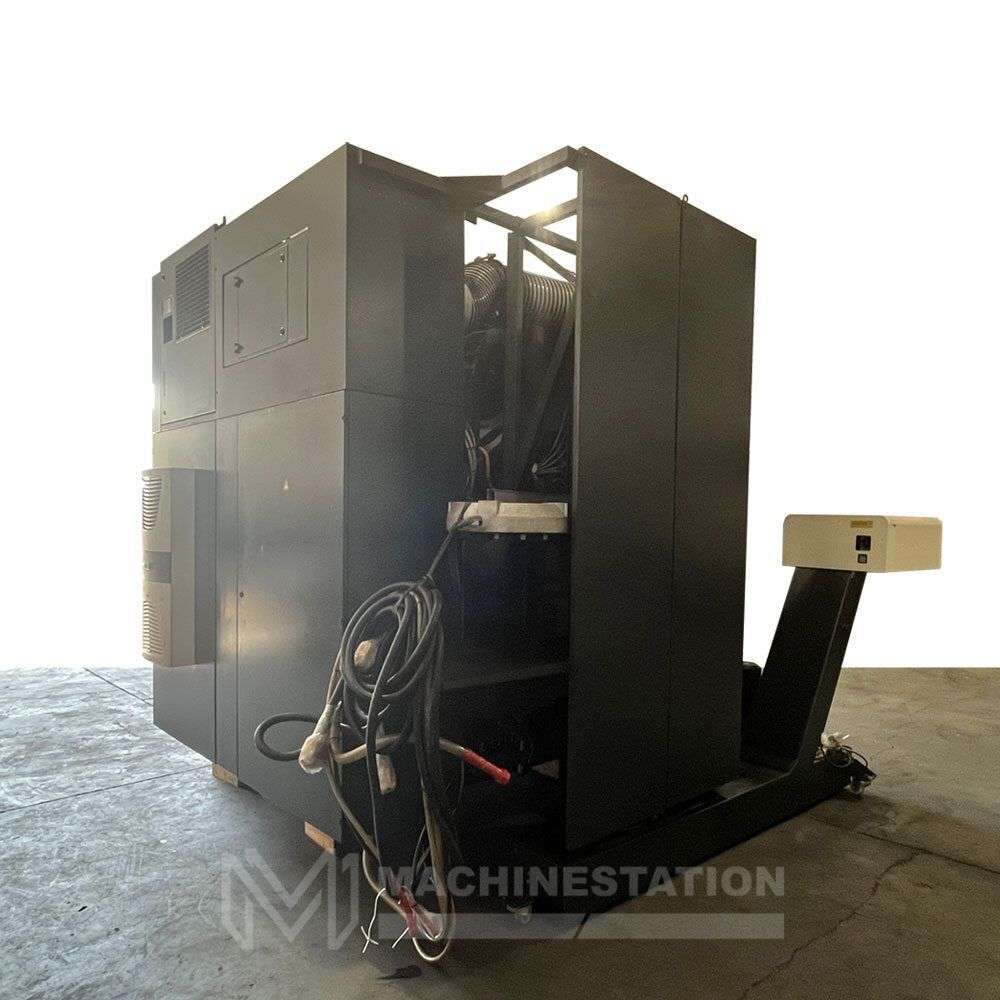

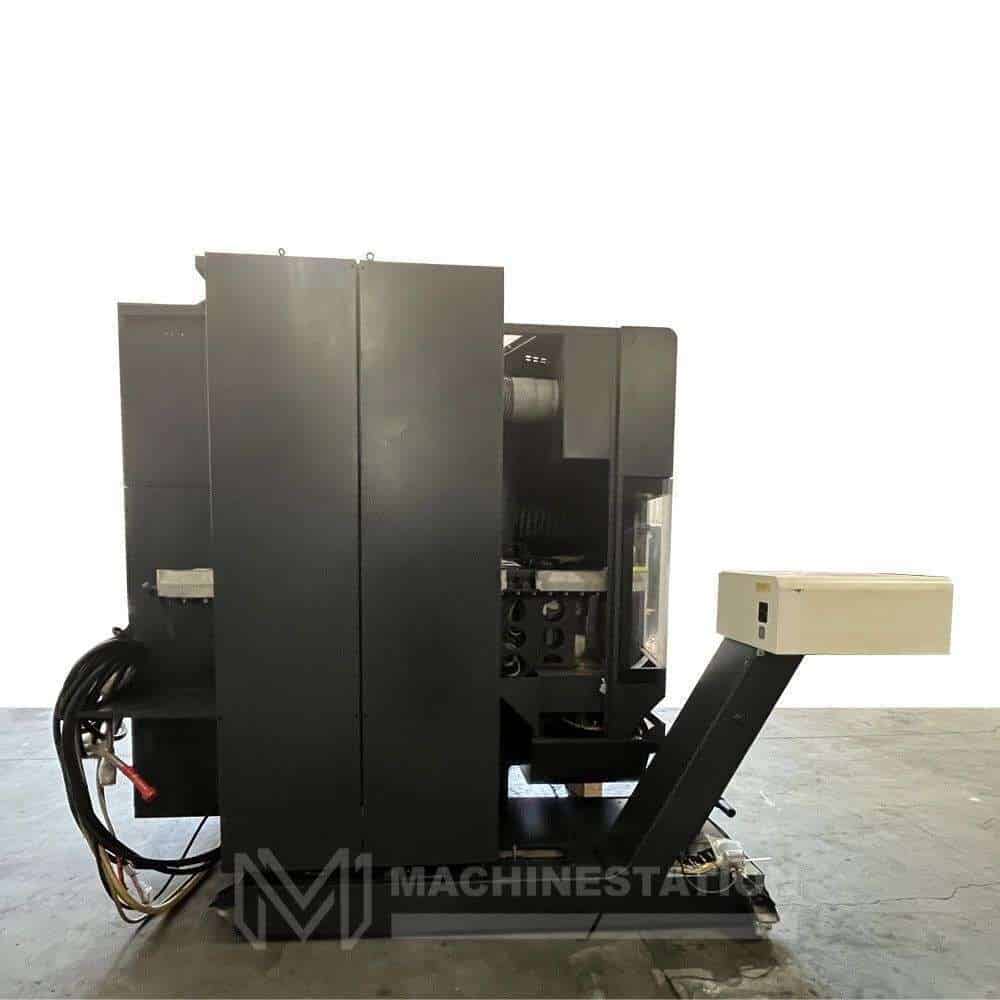

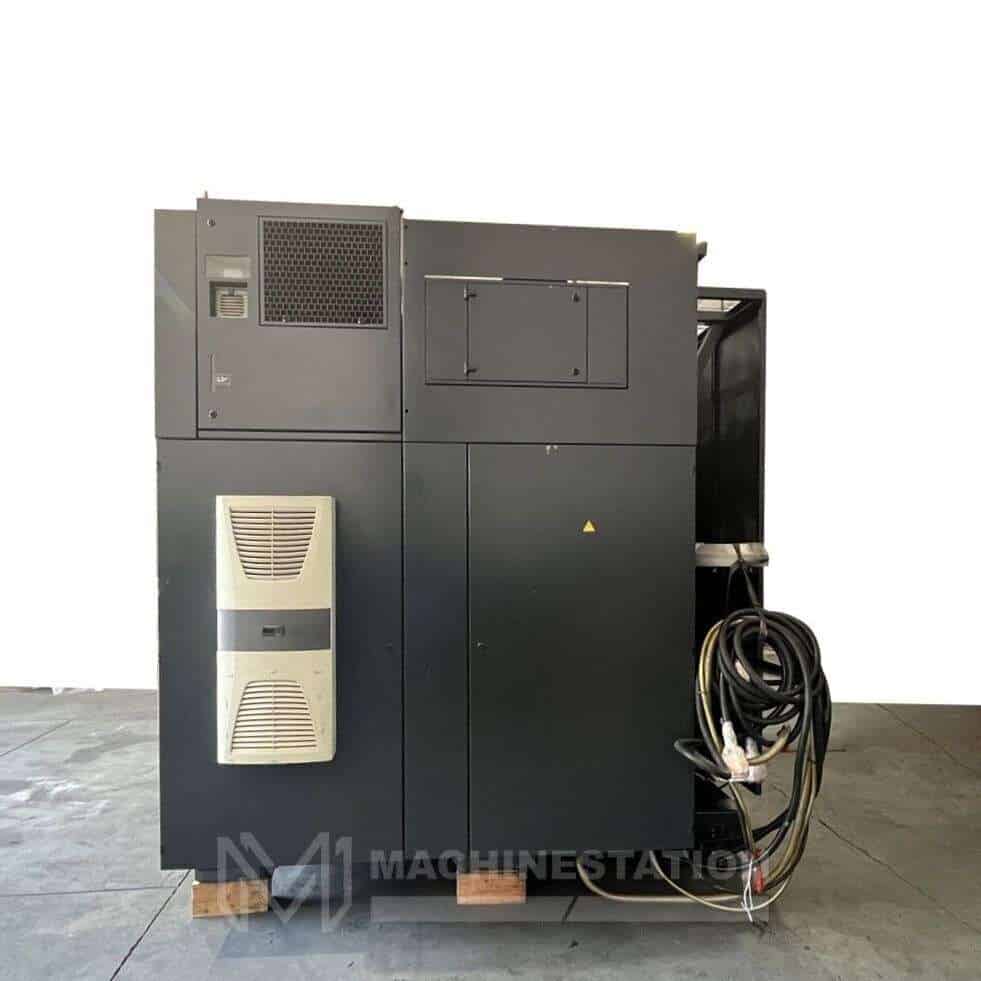

Used DMG Mori DMU 60 eVo linear 5-Axis CNC Mill For Sale

Location: Lake Elsinore, CA
SKU: 2531
Make/Model: DMG MORI DMU 60 eVo
Year: 2013

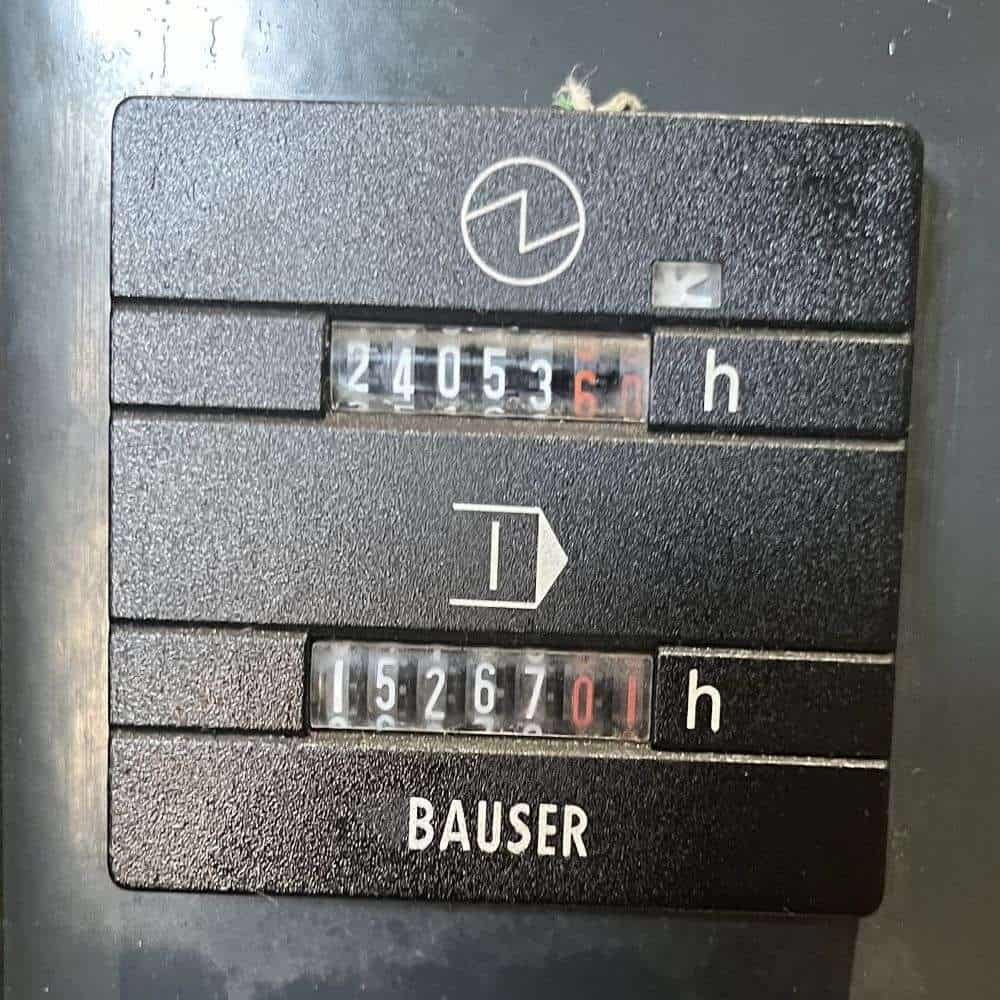

Cutting Time: 15,267 Hours
Video: On Request



SKU: 2531

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: DMG Mori
Model: DMU 60 eVo
Year: 2013
Condition: Used – Good



Features:

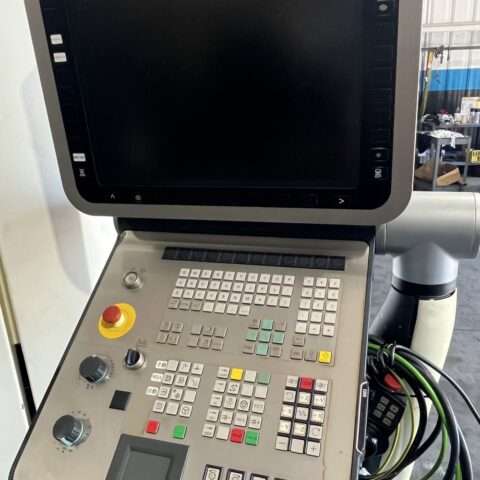

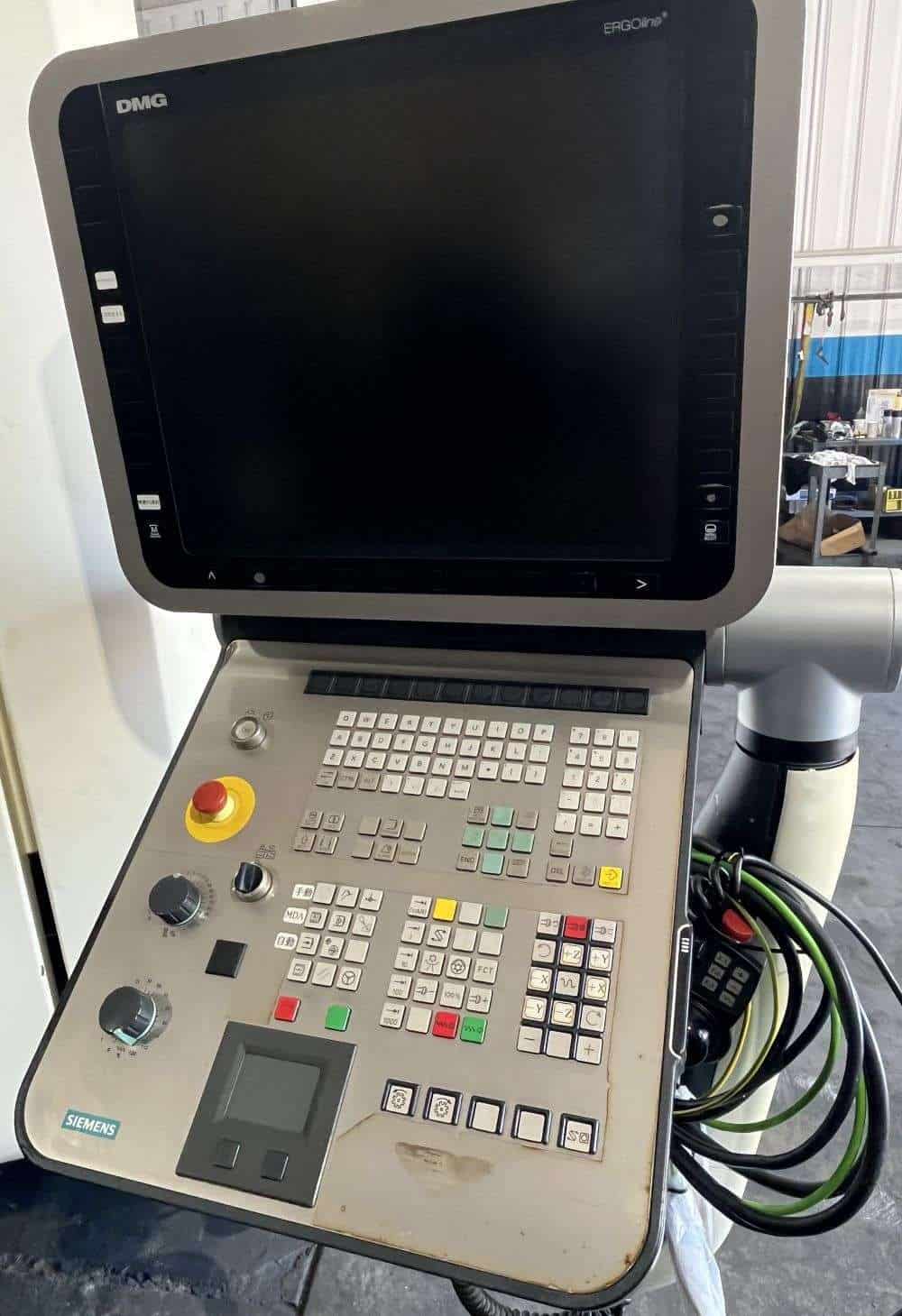

CELOS With Siemens 840D ERGOline CNC Control
5 Axis Simultaneous Machining
Programmable Swiveling Trunnion Table
18,000 RPM High Speed Spindle
60 Station Automatic Tool Changer
Mill-Turn Operation Up to 12,00 RPM on C Axis
High Pressure Through Spindle Coolant – 1000 PSI

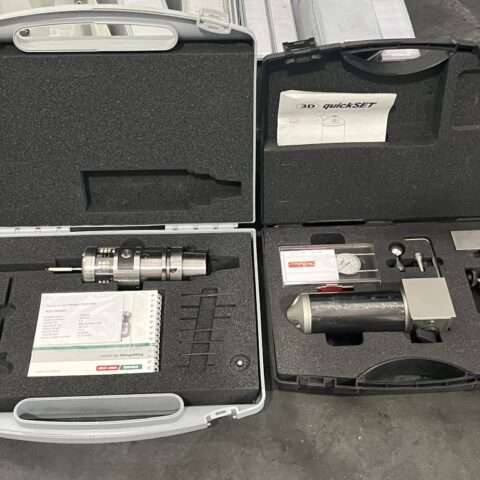

Infrared Measuring Probe OMP60 Optical
Laser Tool Measuring
MPC Machine Protection
Spray Gun For Swarf Removal
Programable Coolant Nozzle
Air Blast Through Spindle Center
High Speed Settings
CSA Specifications
Chip Conveyor
Internal Coolant Supply

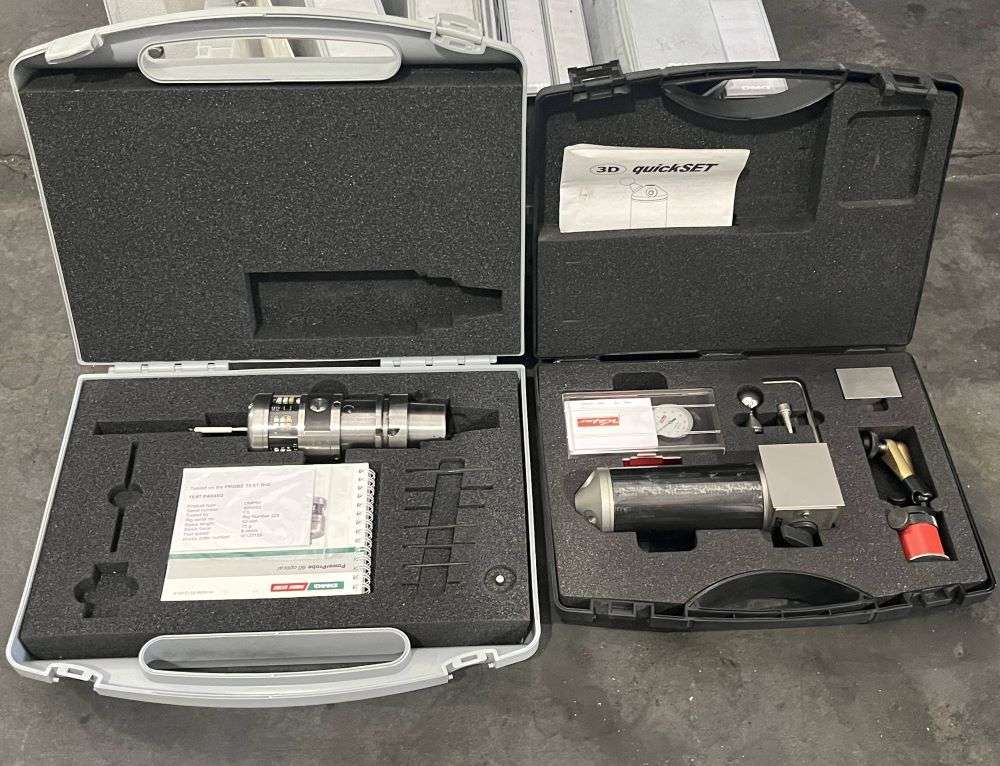

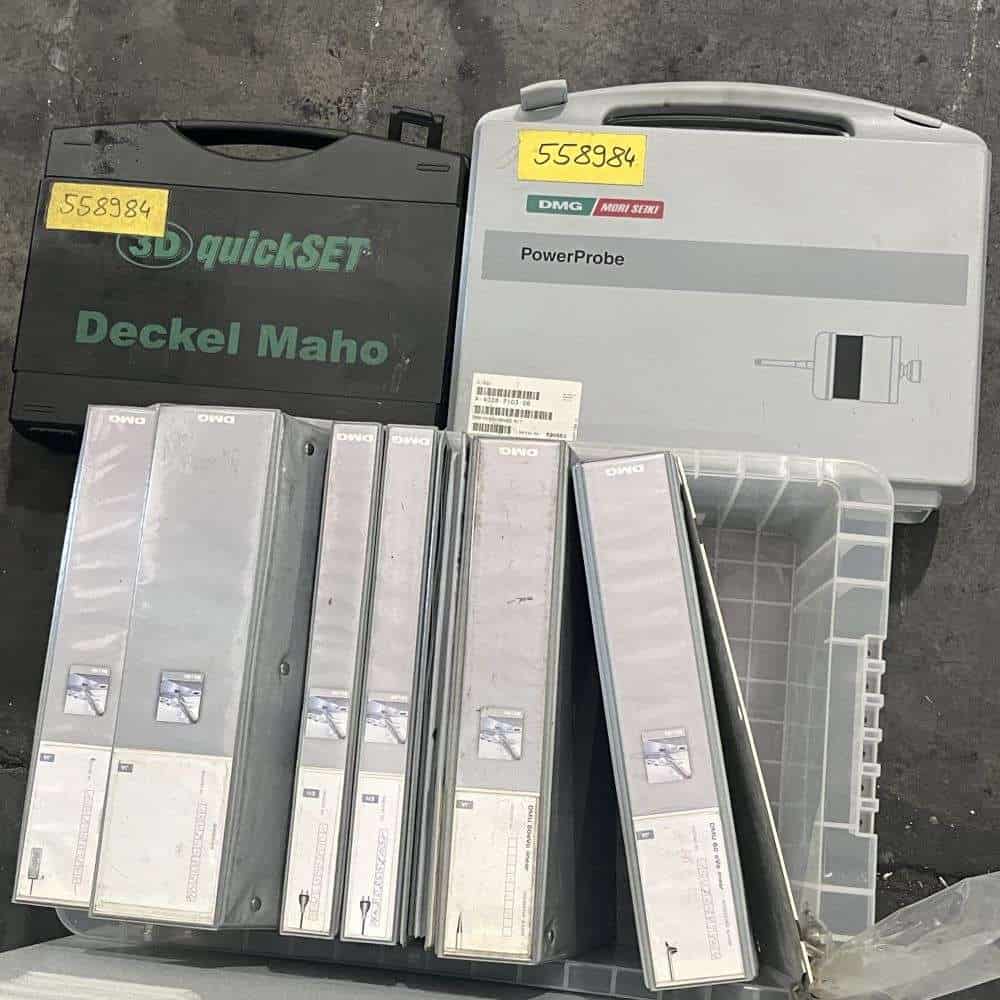

3D Quick Set



Travels:
X – Axis: 23.6″
Y – Axis: 19.7″
Z – Axis: 19.7″
Distance Between Spindle Nose and Table: 4.92″ – 24.60″
Swivel range (B-axis):  –5 / +110 Degrees
Turning range (C-axis):  360 degrees
Rapid Traverse Rates: 1,968 ipm
Max Cutting Feedrate: 590 ipm

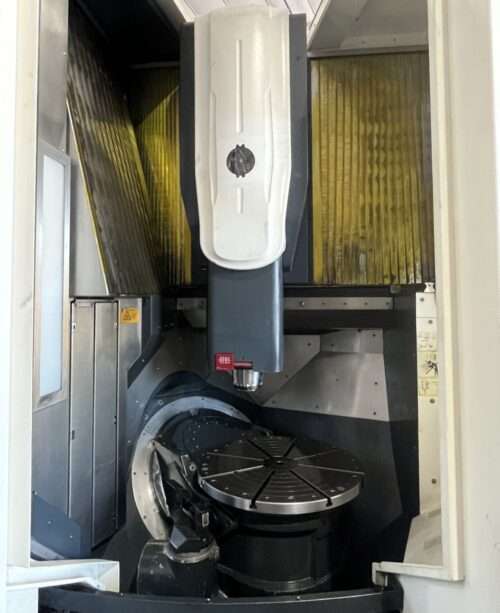

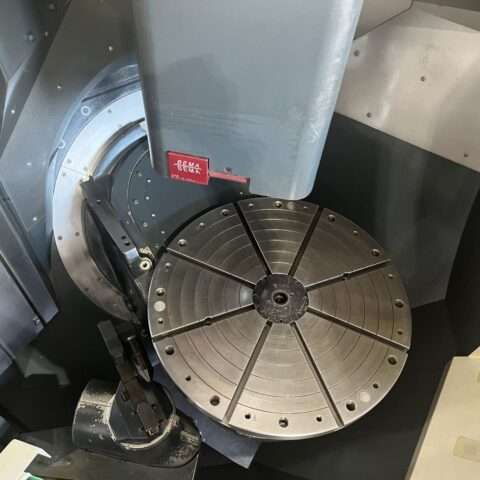

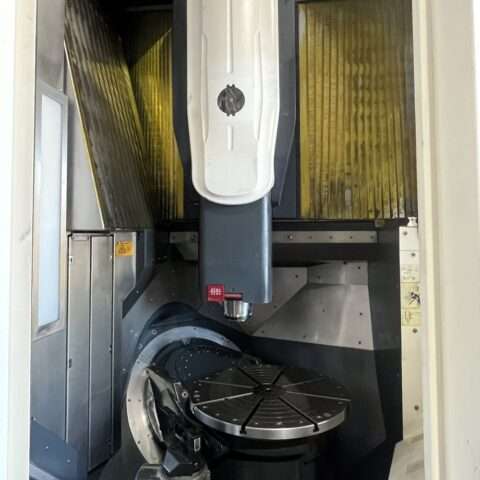

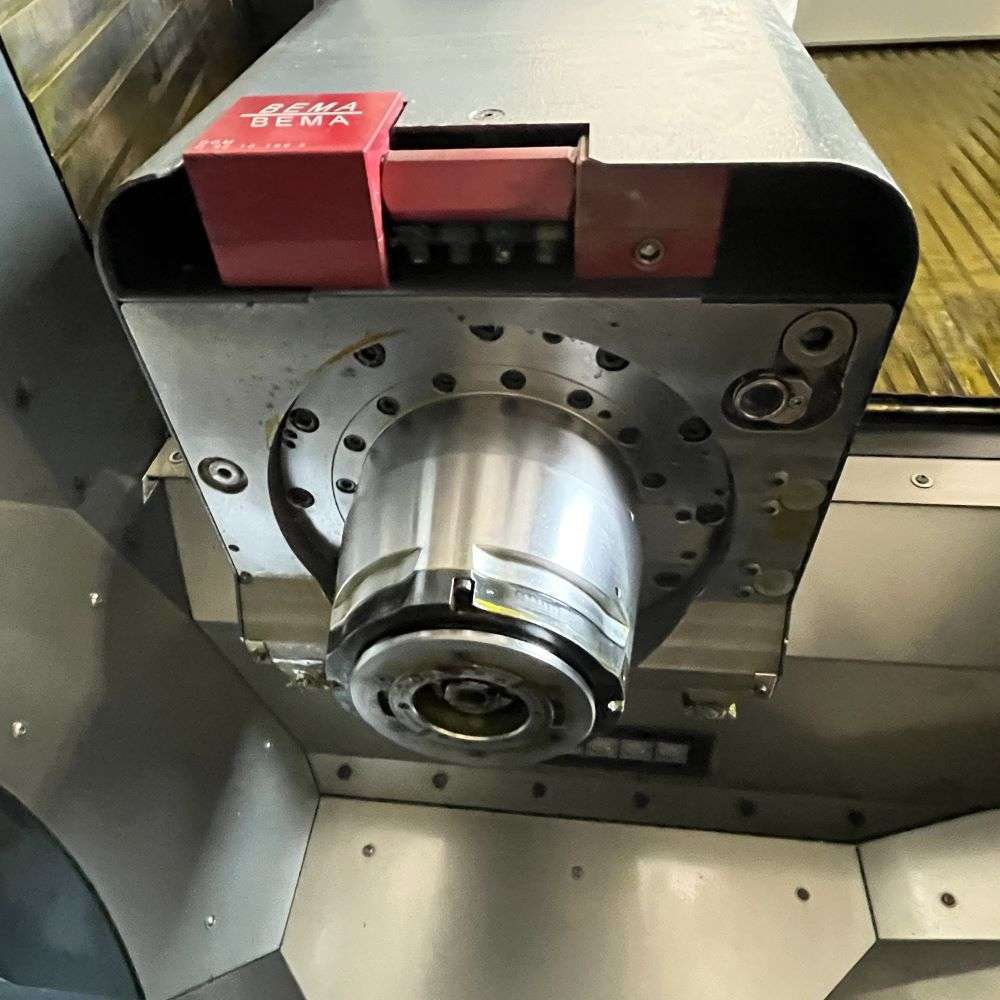

NC Swivelling Rotary Table:
Table Size: ⌀ 25.0″
Workpiece Diameter: 23.6″
Workpiece Height: 19.7″
Max Weight on Table: 881.8 lbs
Mill-Turn Table Speed: 1,200 RPM



Spindle:
Taper Size: HSK-A63
Speed Range: 18,000 RPM
Spindle Power: 50 hp



Automatic Tool Changer
Capacity: 60
Taper: HSK-A63
Max Tool Size: 6.3″ x 12.4″
Max Tool Weight: 17.7 lbs.



General:
Air Required: 100 psi, 4 scfm

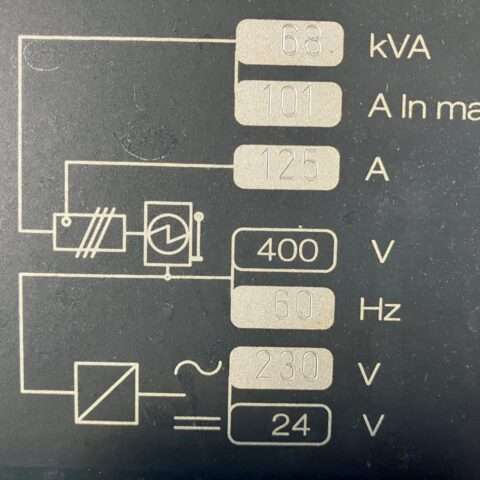

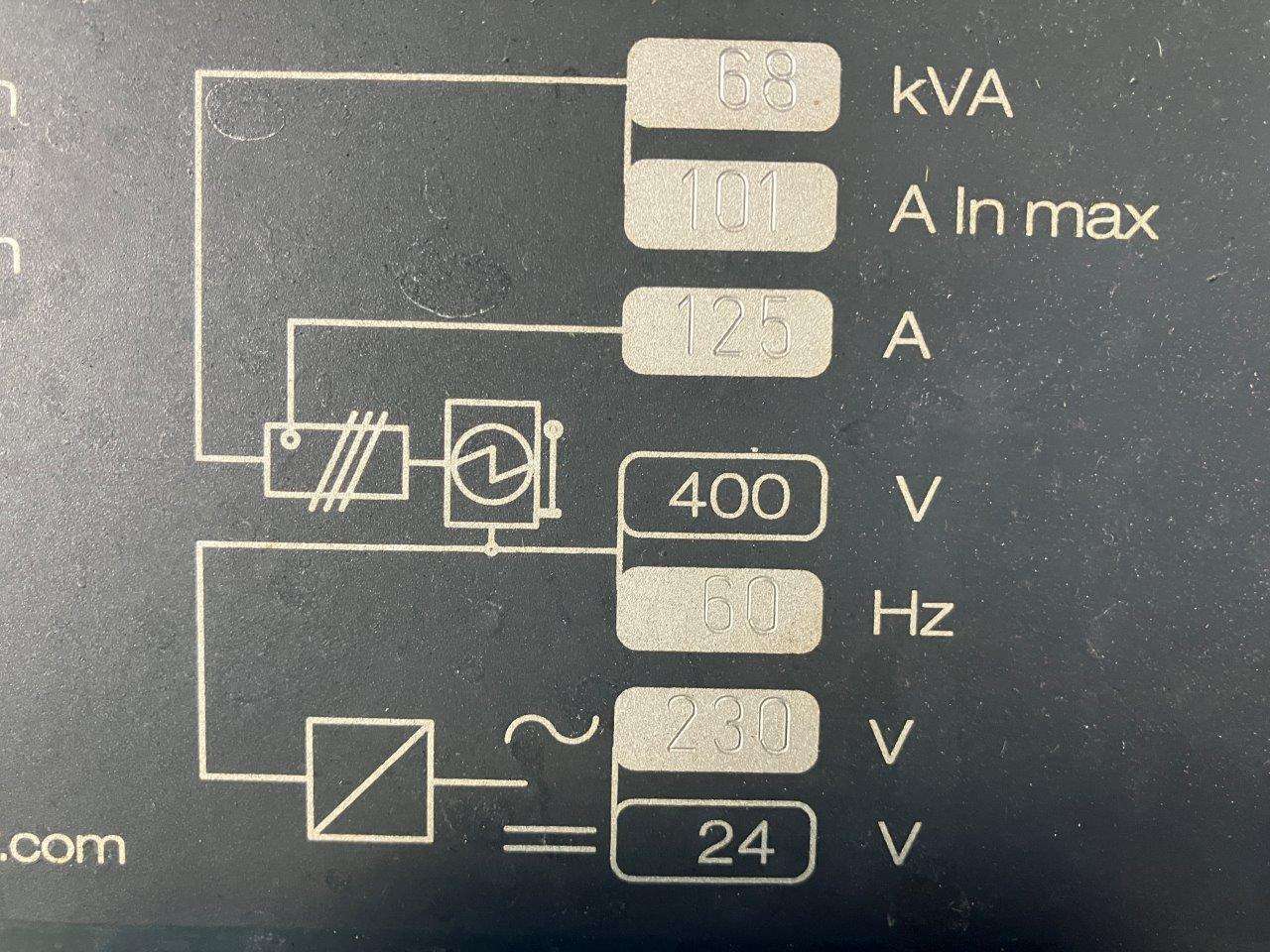

Power: 68 kva / 440v / 3-Phase
Overall Dimensions: 112″ x 84″ x 110″ High
Machine weight: 21715 lbs. Approx.
