*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

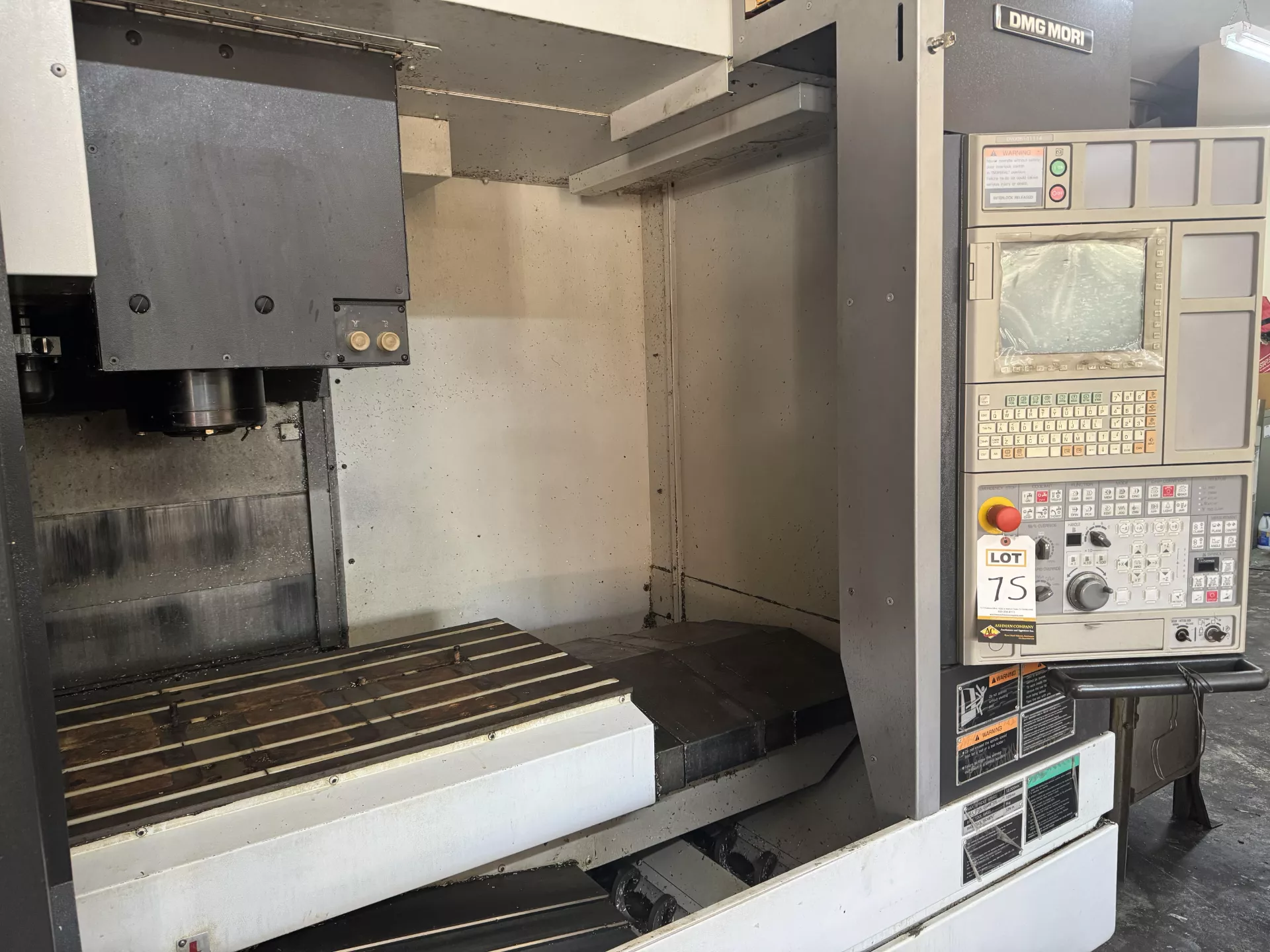

| Make: | DMG MORI |
| Model: | DuraVertical 5100 |
| Year: | 2014 |
| Features: |
|---|
| Fanuc CNC Control |
| 30-Station Automatic Tool Changer |
| LNS Chip Conveyor |
| Fully Enclosed Splash Guard |
| Automatic Lubrication System |
| Coolant System |
| Rigid Tapping |
| Work Light |
| Travels: |
|---|
| X-Axis Travel: 20.08″ |
| Y-Axis Travel: 16.14″ |
| Z-Axis Travel: 18.11″ |
| Table: |
|---|
| Table Size: 27.56″ × 15.75″ |
| Maximum Table Load: 660 lbs. |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Tool Shank: CAT 40 |
| Automatic Swing Arm Tool Changer |
| General: |
|---|

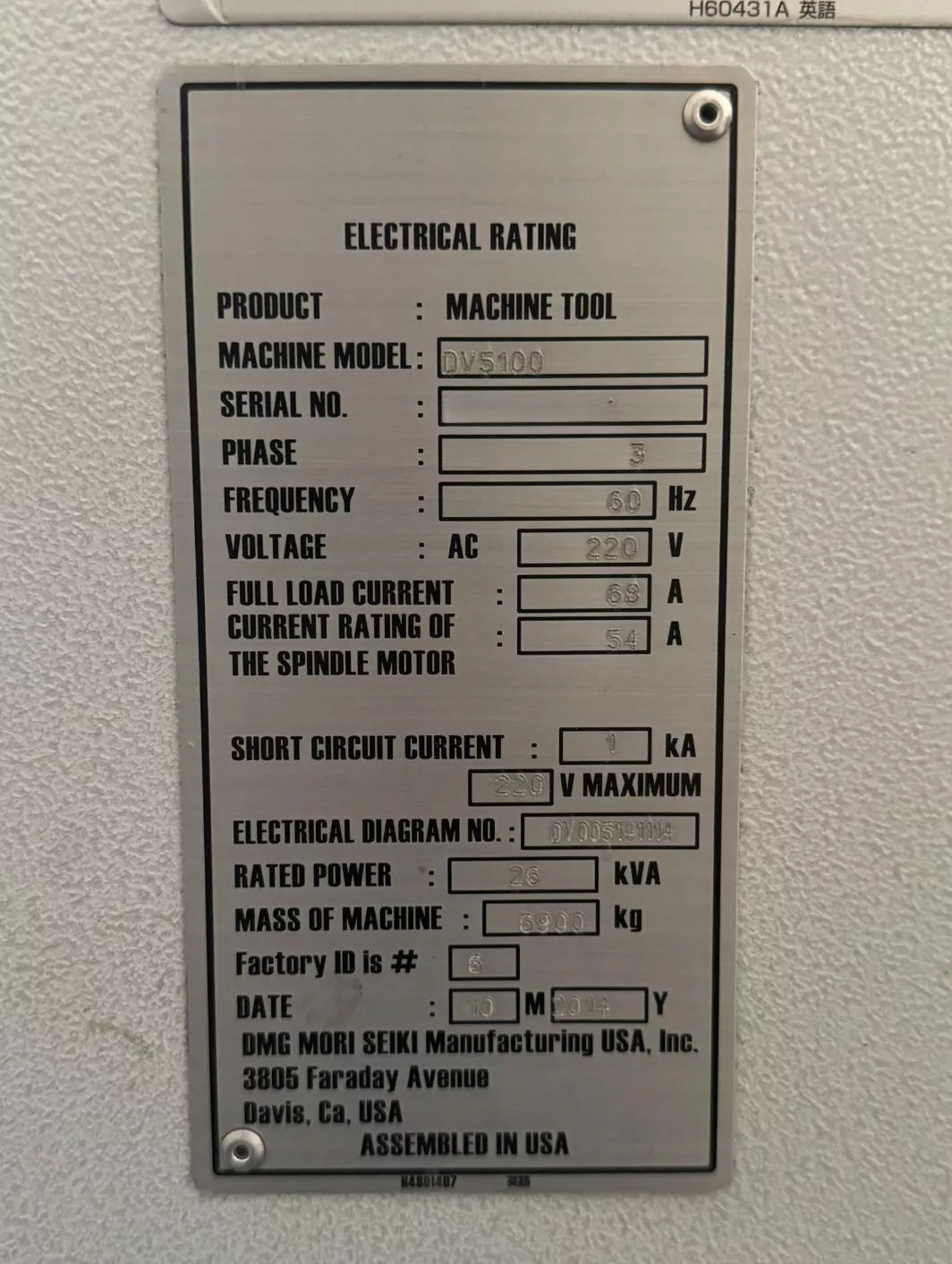

| Power Requirement: 220V / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 98″ × 91″ × 105″ |
| Machine Weight (Approx.): 15,212 lbs. |
