*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

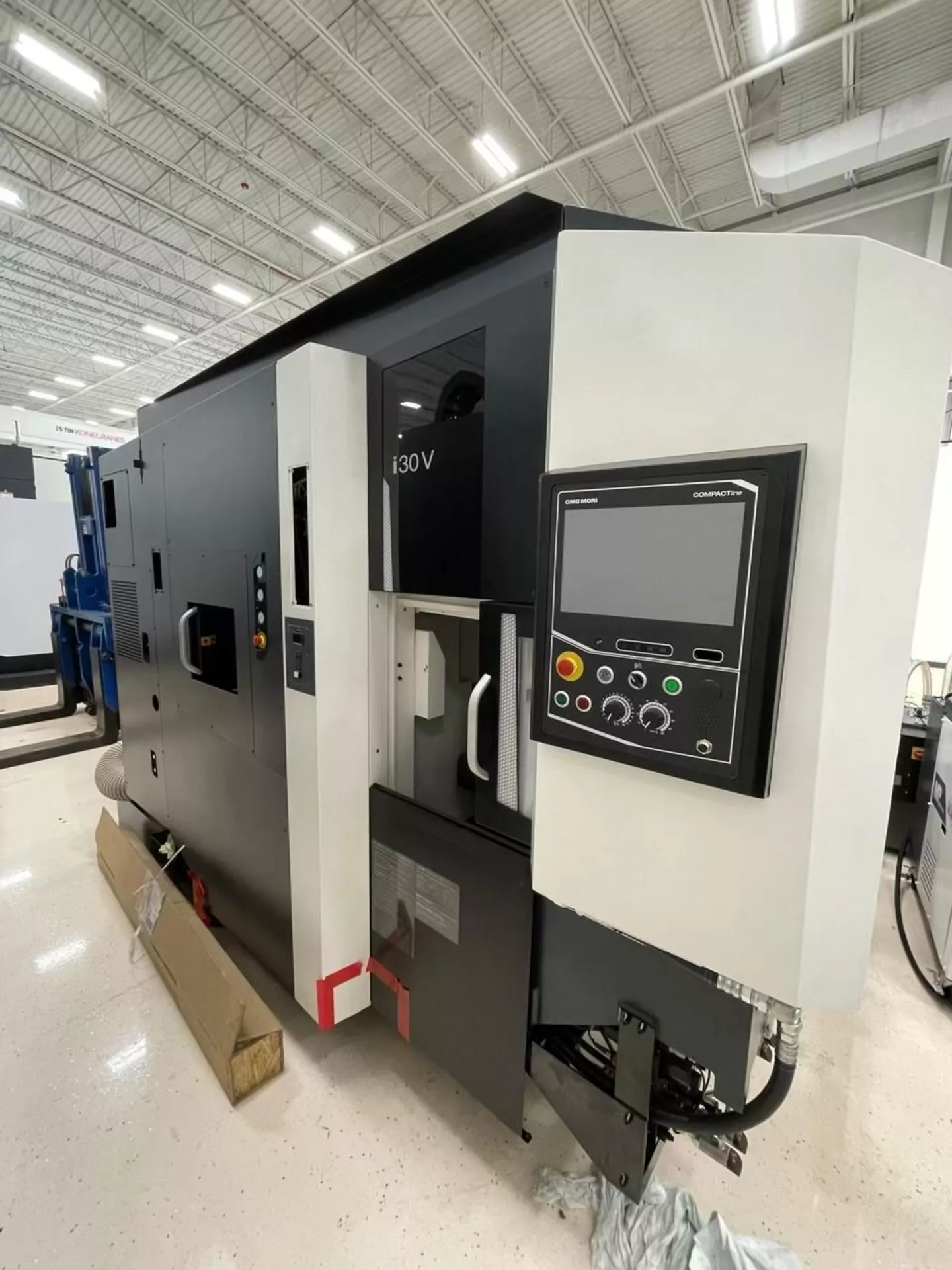

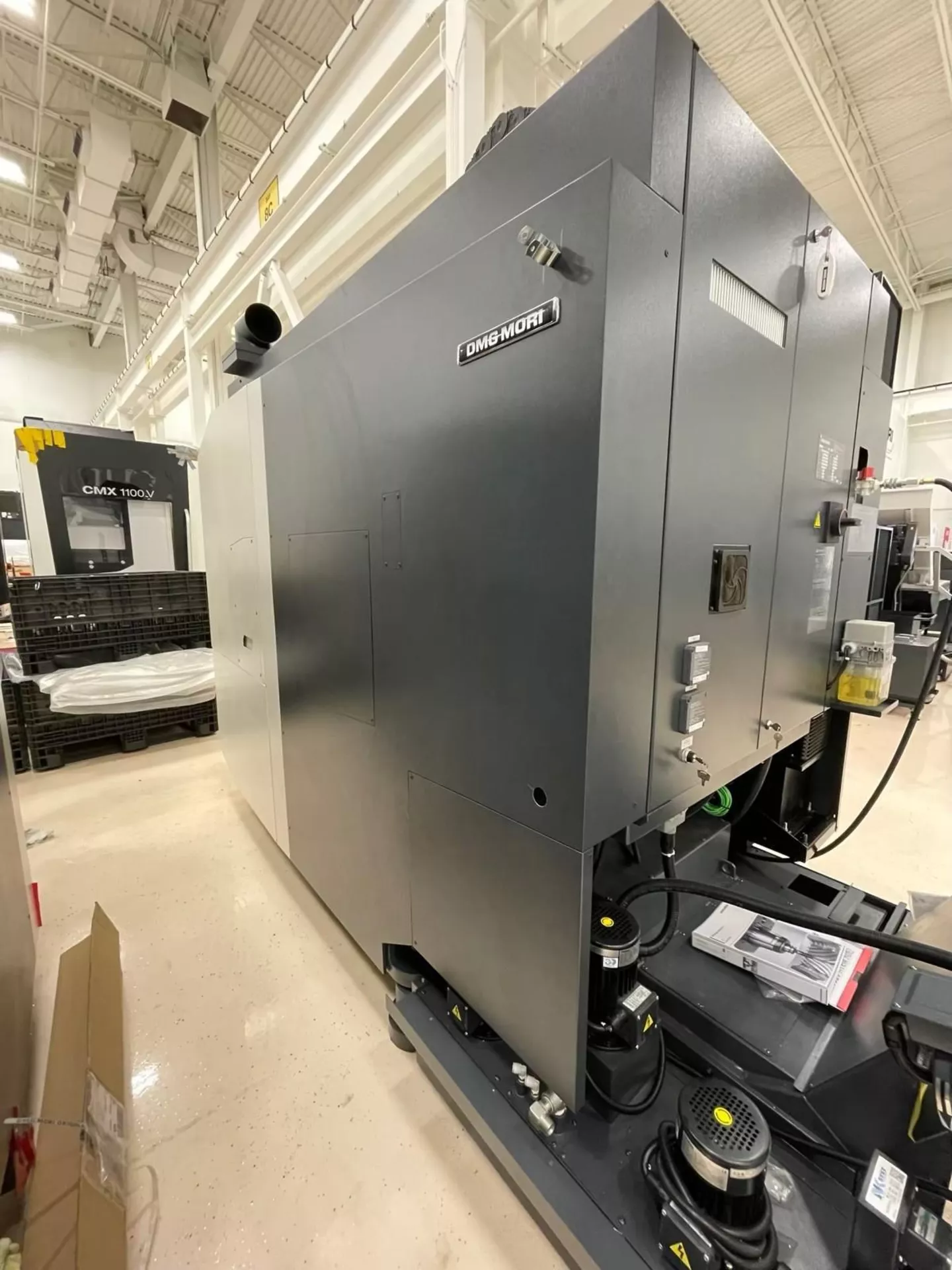

| Make: | DMG MORI |
| Model: | i30V |
| Year: | 2019 |
| Features: |
|---|
| Mitsubishi Electric M730UM CNC Control |
| 12,000 RPM #40 Dual Contact Spindle |
| 14-Station Automatic Tool Changer |
| Two-Pallet Automatic Pallet Changer |
| Chip Conveyor |
| Through-Spindle Coolant Preparation |
| ChipBlaster High-Pressure Coolant System |
| Mist Collector |
| Automatic Door |
| Hydraulic Fixture Interface |
| MAPPS Tool Management System |
| Tool Breakage Detection |
| EtherNet/IP Interface |
| English Screen Display |
| Travels: |
|---|
| X-Axis Travel: 15.7″ |
| Y-Axis Travel: 10.6″ |
| Z-Axis Travel: 11.0″ |
| Rapid Traverse (X/Y/Z): 2,441 IPM |

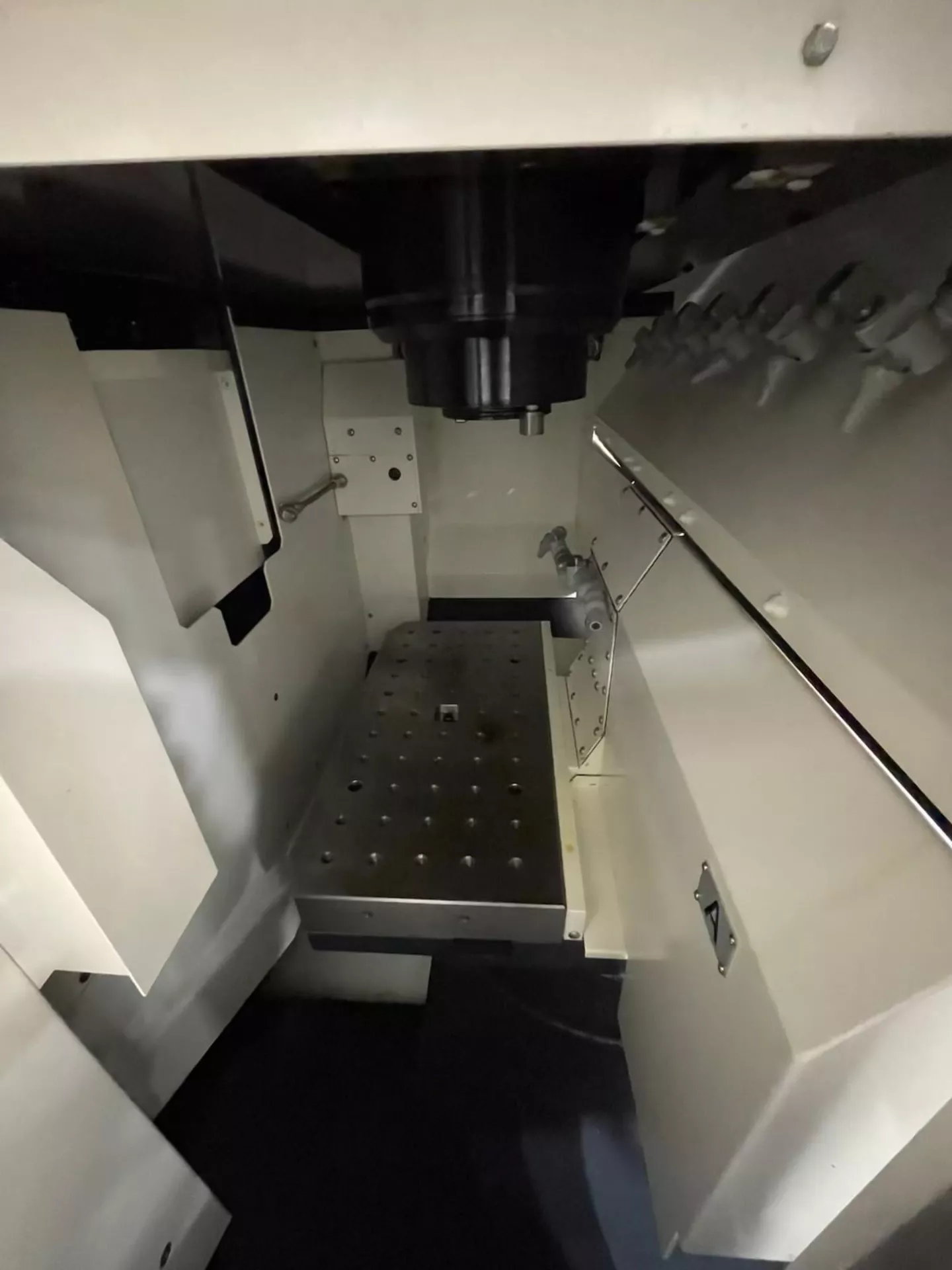

| Table: |
|---|
| Table Size: 23.6″ × 11.8″ |
| Maximum Table Load: 150 lbs |
| Pallet Configuration: 2-Pallet Automatic Pallet Changer |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 7.5 HP |
| Spindle Taper: CAT 40 |
| Retention Knob: Special Center-Through Type |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 14 Tools |
| Tool Change Time: 3 Seconds |
| General: |
|---|
| Country of Manufacture: Japan |
| Machine Dimensions (Approx.): 61.3″ × 128.9″ × 104.3″ |
| Machine Weight (Approx.): 10,846 lbs |
