*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |
| Model: | DBM 2550 |
| Condition: | Used |
| Standard Features: |
|---|

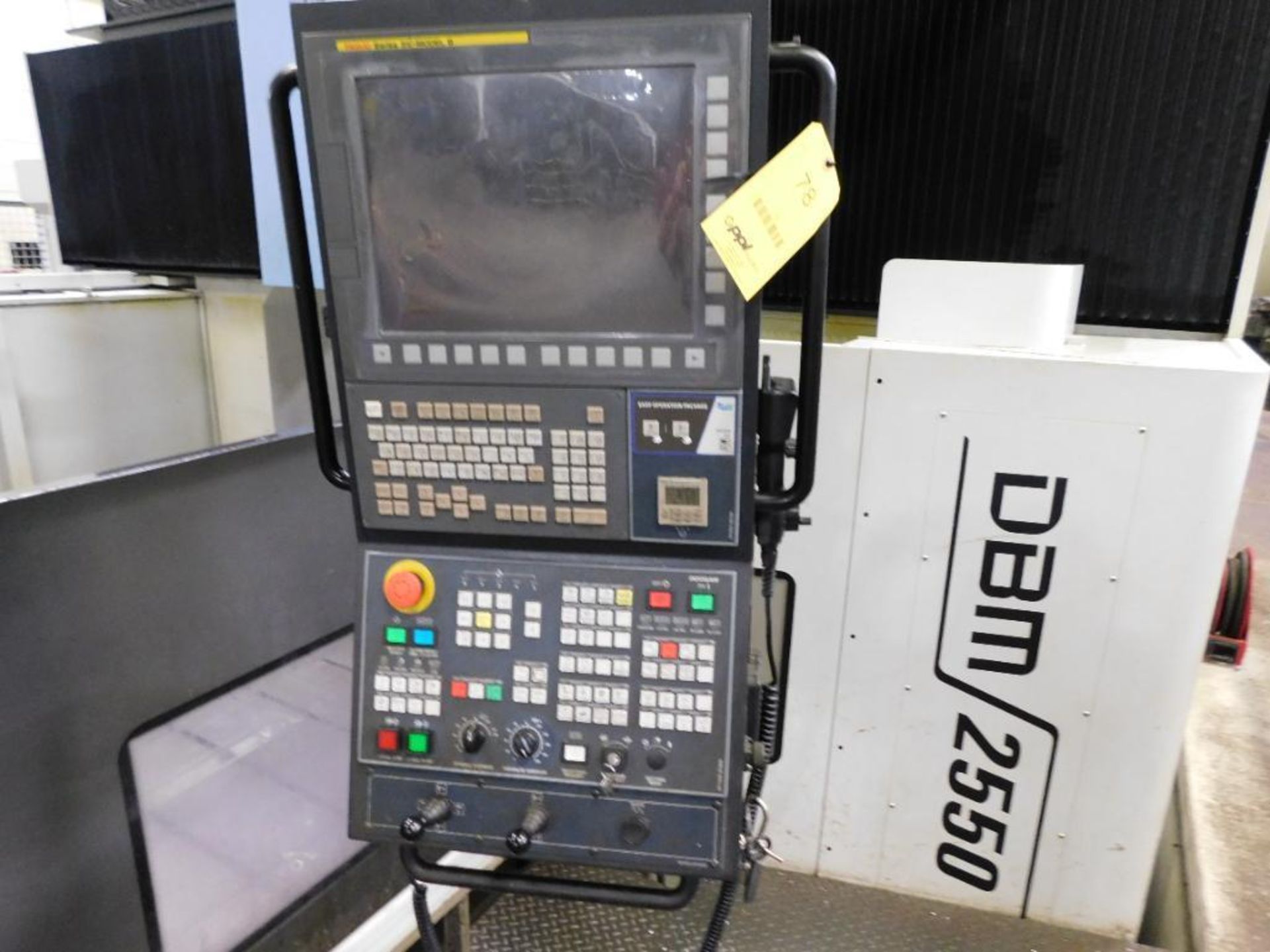

| Fanuc CNC Control |
| Double Column Heavy-Duty Structure |
| Roller-Type LM Guideways |
| BT50 Spindle Taper |
| Ram-Type Spindle Design |
| Automatic Tool Changer |
| Spindle & Structure Thermal Compensation |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Work Lights & MPG Handwheel |
| Travels: |
|---|
| X-Axis Travel: 206.7″ |
| Y-Axis Travel: 118.1″ |
| Z-Axis Travel: 31.5″ (43.3″ Optional) |
| Distance Between Columns: 98.4″ |
| Spindle Nose to Table: 39.4″ (51.2″ Optional) |
| Table: |
|---|
| Table Size: 78.7″ × 196.9″ |
| Max Table Load: 55,115 lbs |
| Spindle: |
|---|
| Spindle Taper: BT50 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 74 HP / 50 HP (Continuous) |
| Spindle Torque: 745 ft-lbs |
| Feedrates: |
|---|
| Rapid Traverse X/Y: 787 IPM |
| Rapid Traverse Z: 591 IPM |
| Cutting Feedrate (X/Y/Z): 394 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 40 Tools |
| Max Tool Weight: 66 lbs |
| Tool Change Time (T-T): 5.5 Seconds |
| General: |
|---|

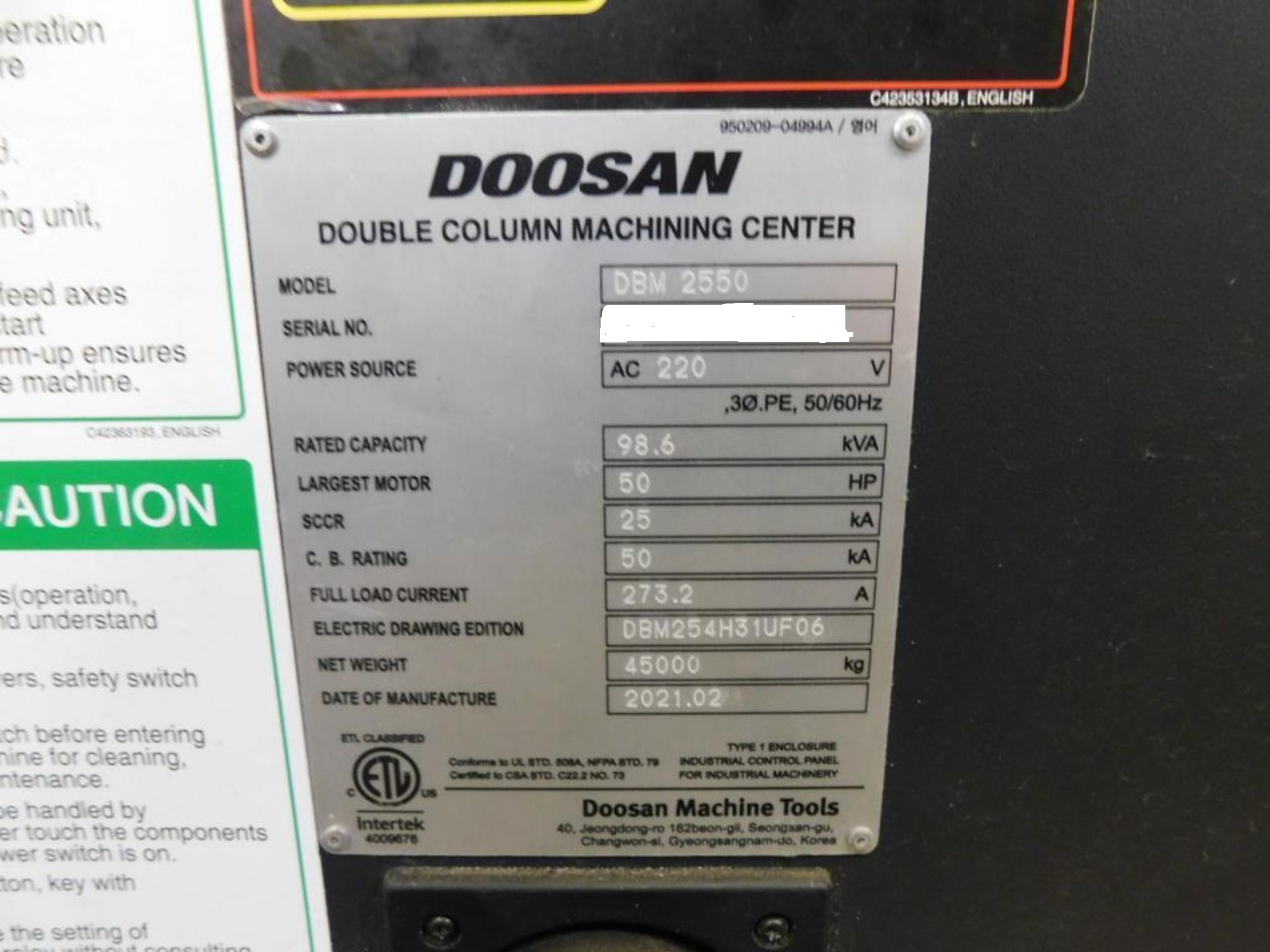

| Power Requirement: 220V / 3-Phase |

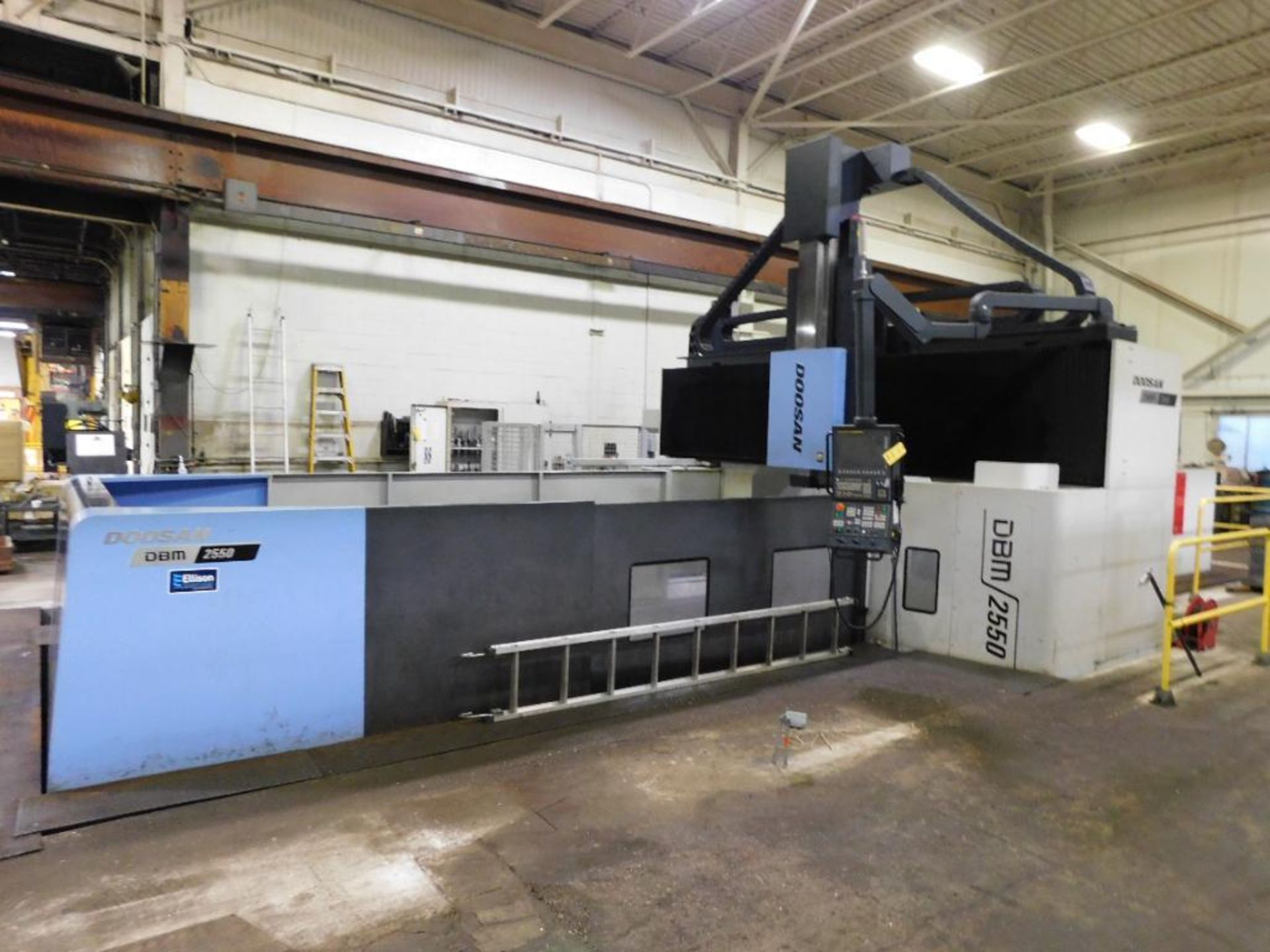

| Machine Type: Double Column Machining Center |
| Application: Heavy-Duty & Large Mold Machining |
