*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |
| Model: | DMP 500/2SP |
| Condition: | Used |
| Equipped With: |
|---|

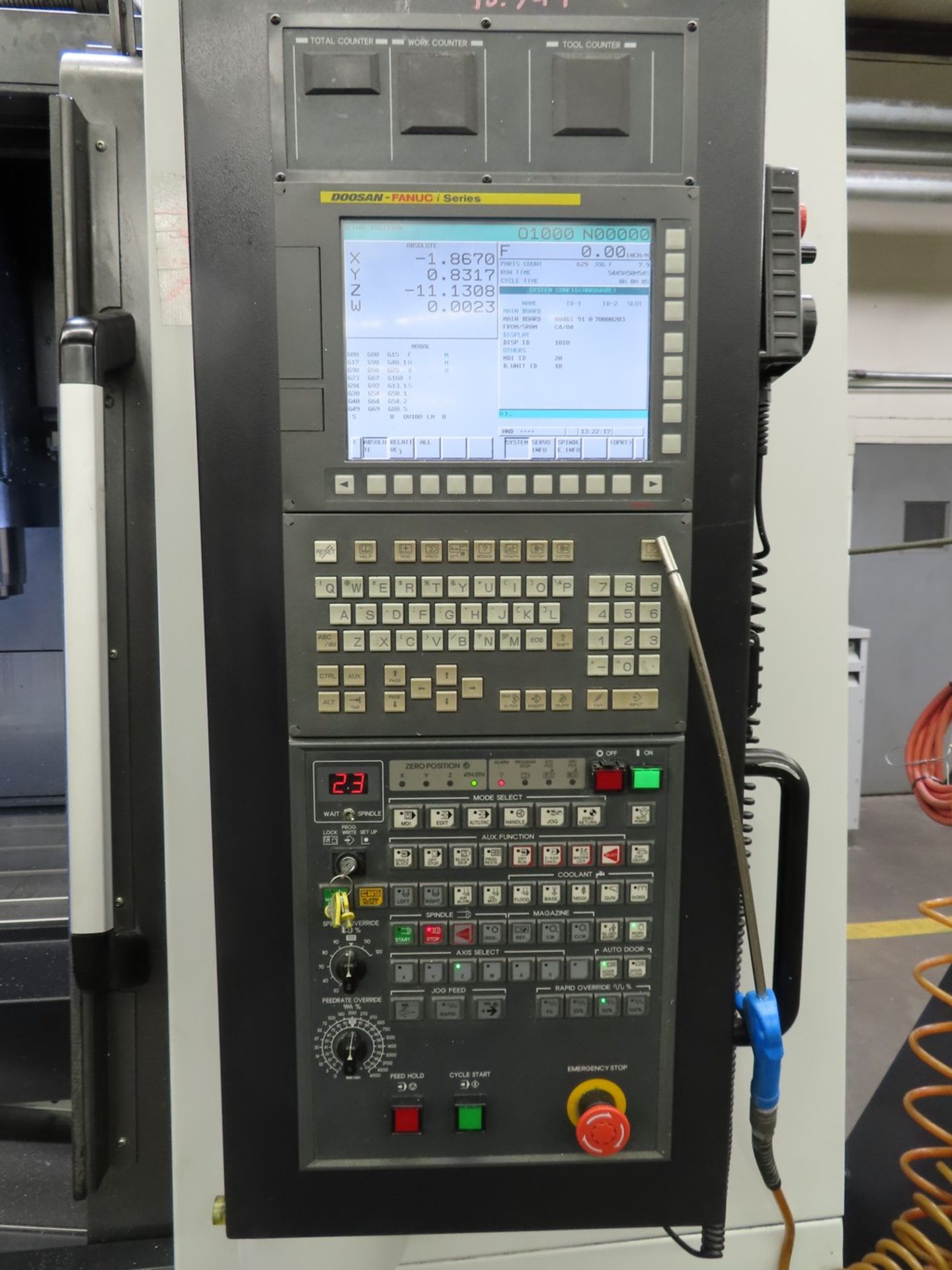

| Fanuc 31i CNC Control |
| Simultaneous 5-Axis Machining |
| Dual Spindle Rotary Table (2-Station) |
| Integrated Trunnion Table |
| Linear Roller Guideways |
| Automatic Tool Changer |
| Spindle Chiller Unit |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Table Diameter: 19.7″ (Each Station) |
| Max Workpiece Diameter: 24.0″ |
| Max Workpiece Height: 15.7″ |
| Max Table Load: 882 lbs (Per Station) |
| Travels: |
|---|
| X-Axis Travel: 28.0″ |
| Y-Axis Travel: 31.5″ |
| Z-Axis Travel: 24.0″ |
| A-Axis Travel: ±120° |
| C-Axis Travel: 360° |
| Spindle: |
|---|
| Spindle Taper: HSK-A63 |
| Spindle Speed: 18,000 RPM |
| Spindle Motor: 35 HP |
| Integral Motor Spindle |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 2,362 IPM |
| Cutting Feedrate: 0 – 787 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 60 Tools |
| Max Tool Diameter: 3.15″ (6.3″ Adjacent Empty) |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| General: |
|---|

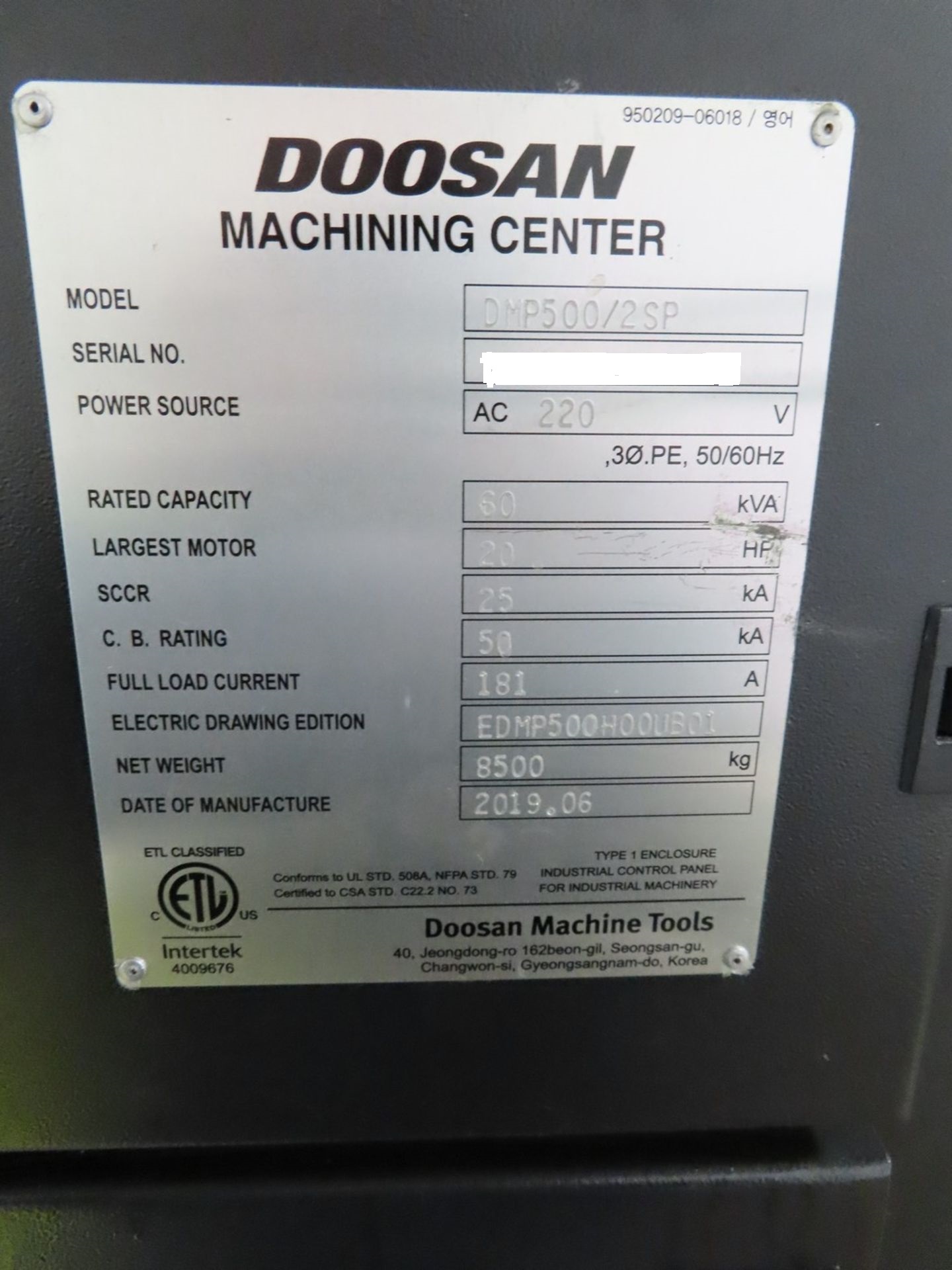

| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 157″ × 126″ × 138″ |
| Machine Weight (Approx.): 35,000 lbs |
