*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |
| Model: | DNM 4500 |
| Condition: | Used |
| Equipped With: |
|---|

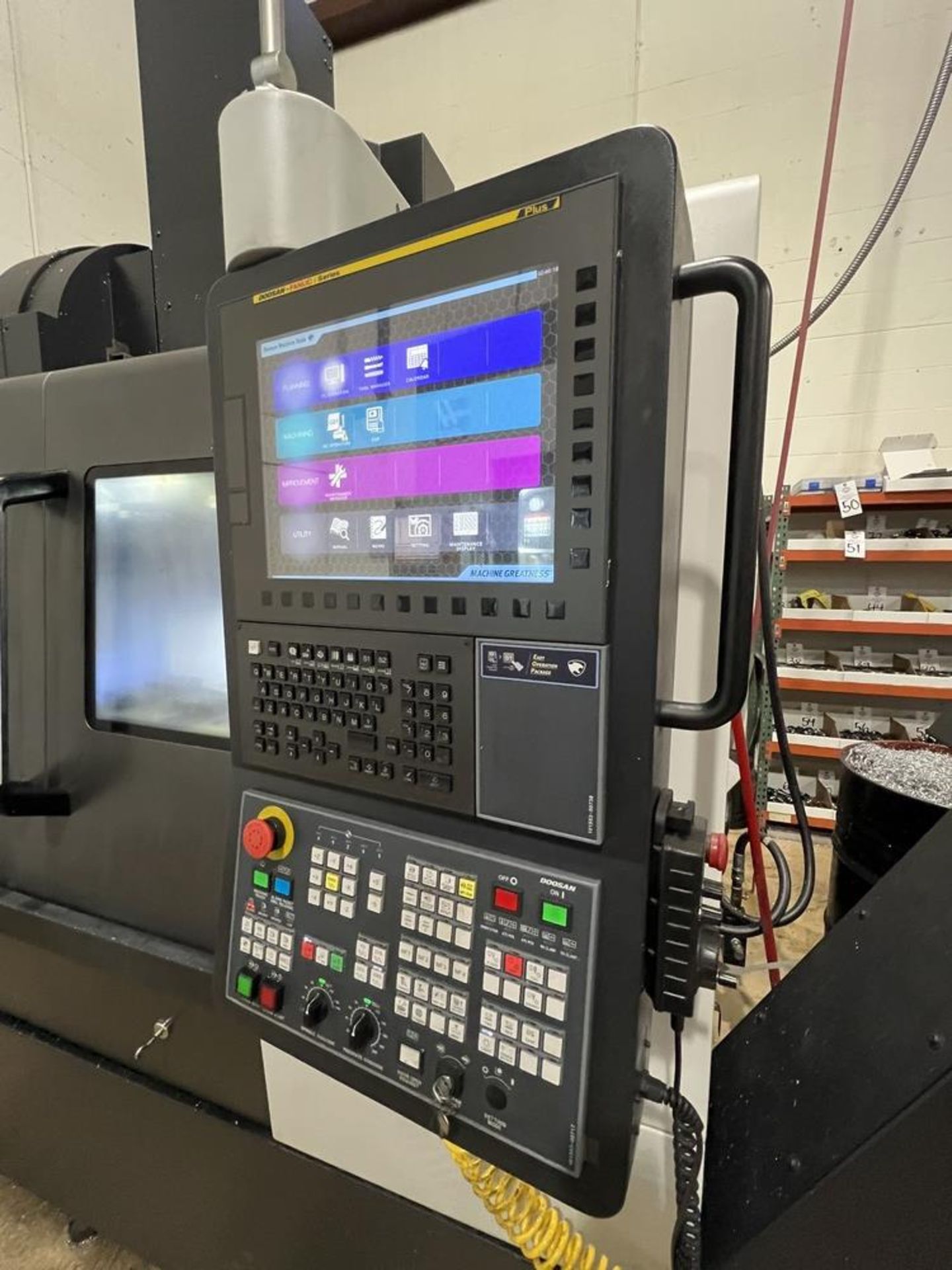

| Fanuc i-Series CNC Control |
| Rigid Tapping |
| High-Speed Linear Guideways |
| 24-Station Automatic Tool Changer |
| Flood Coolant System |
| Automatic Lubrication System |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 17.7″ |
| Z-Axis Travel: 20.5″ |
| Spindle Nose to Table: 5.9″ – 25.6″ |
| Table: |
|---|
| Table Size: 39.4″ × 17.7″ |
| Max Table Load: 1,323 lbs |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 8,000 RPM |
| Spindle Motor: 20 HP |
| Direct-Coupled Spindle |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,181 IPM |
| Cutting Feedrate: 0 – 472 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Max Tool Diameter: 3.15″ (6.3″ Adjacent Empty) |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| General: |
|---|

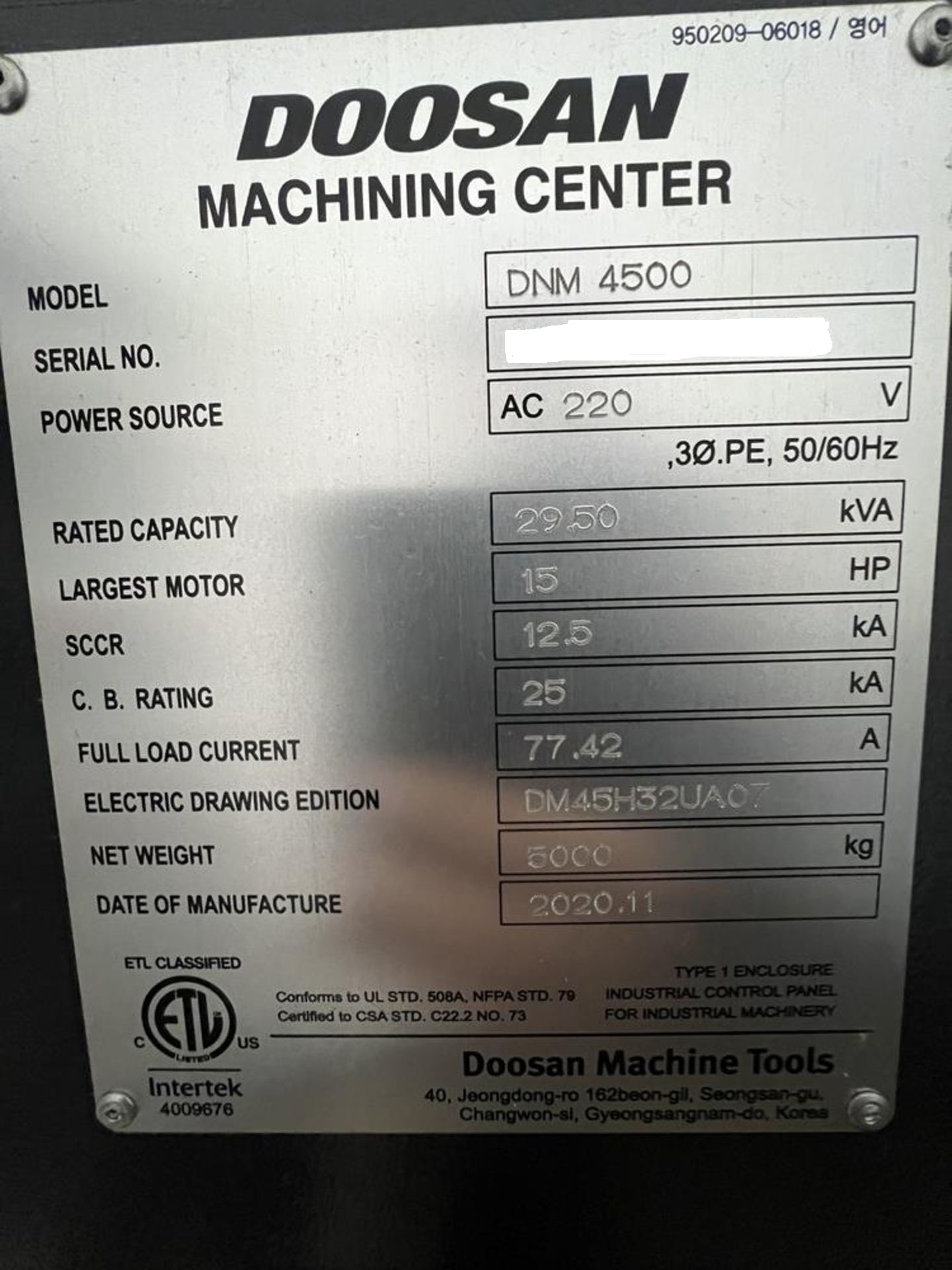

| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 11,900 lbs |
| Overall Dimensions (Approx.): 102″ × 91″ × 110″ |
