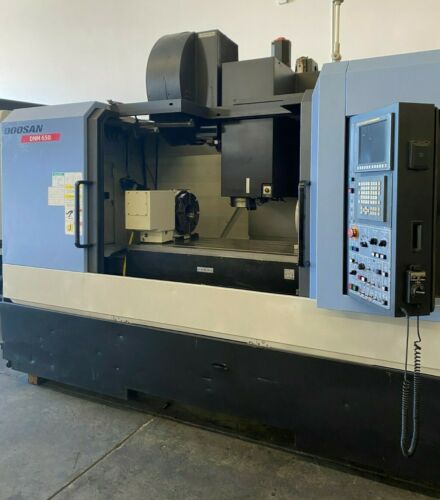

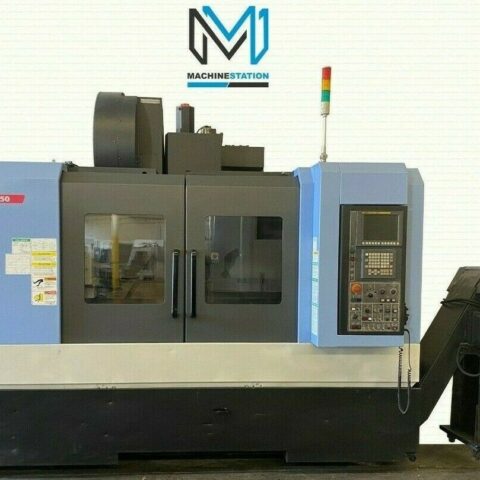

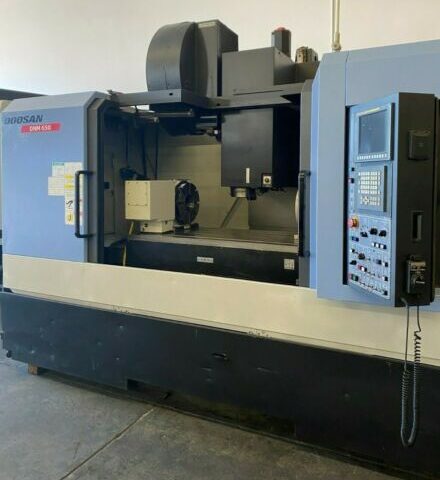

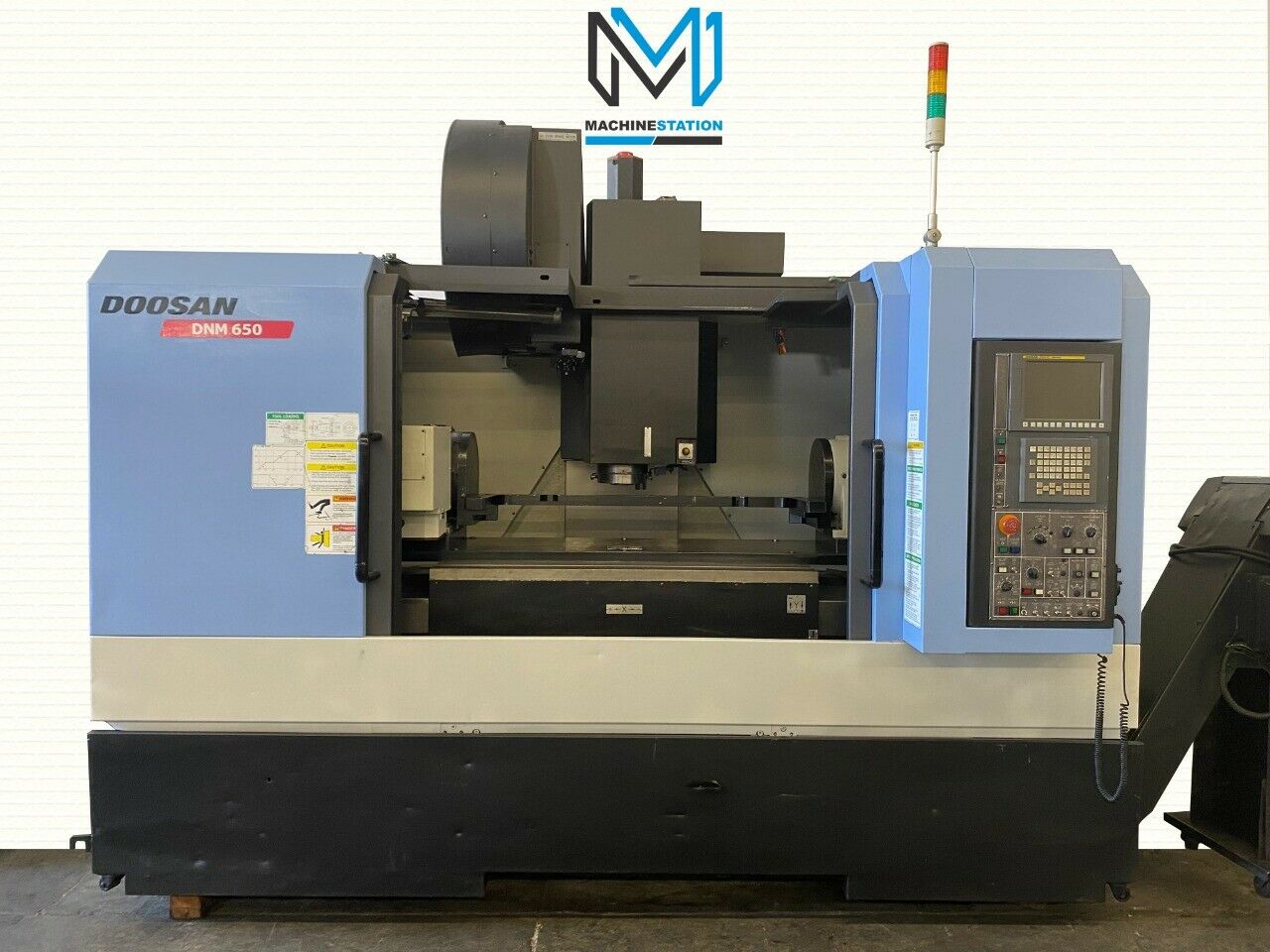

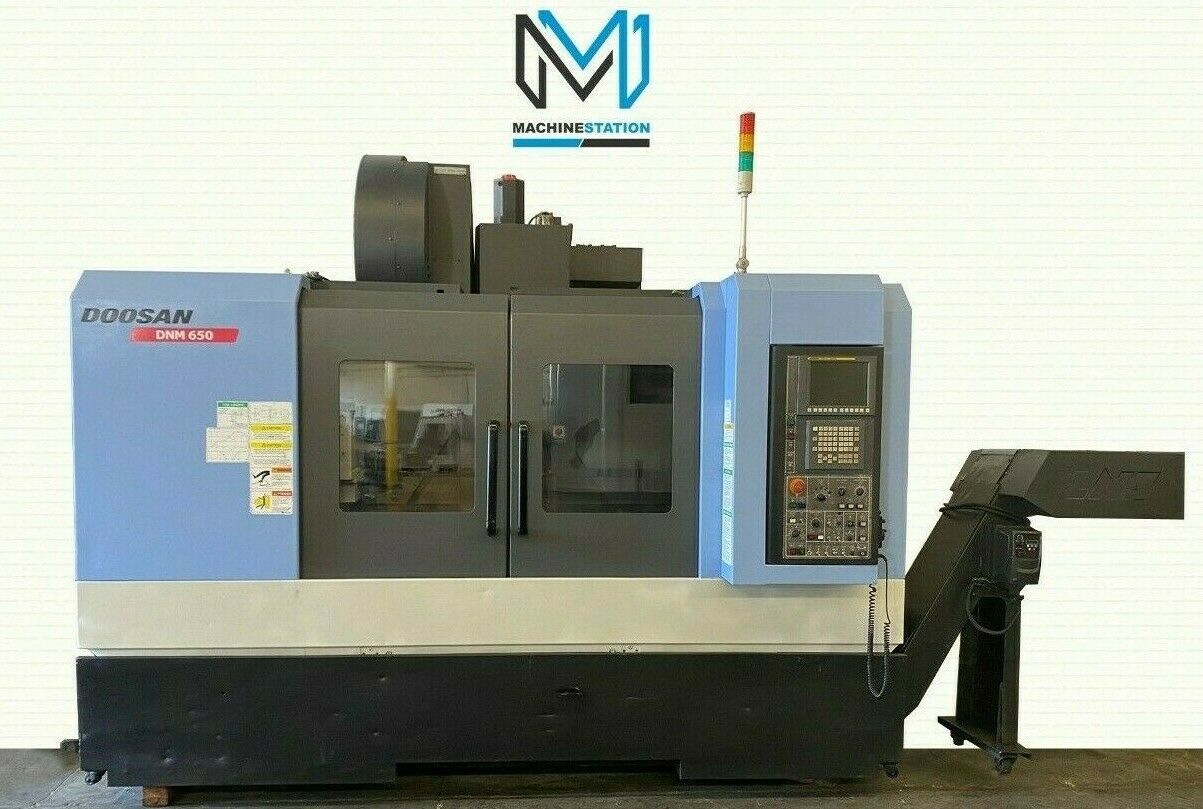

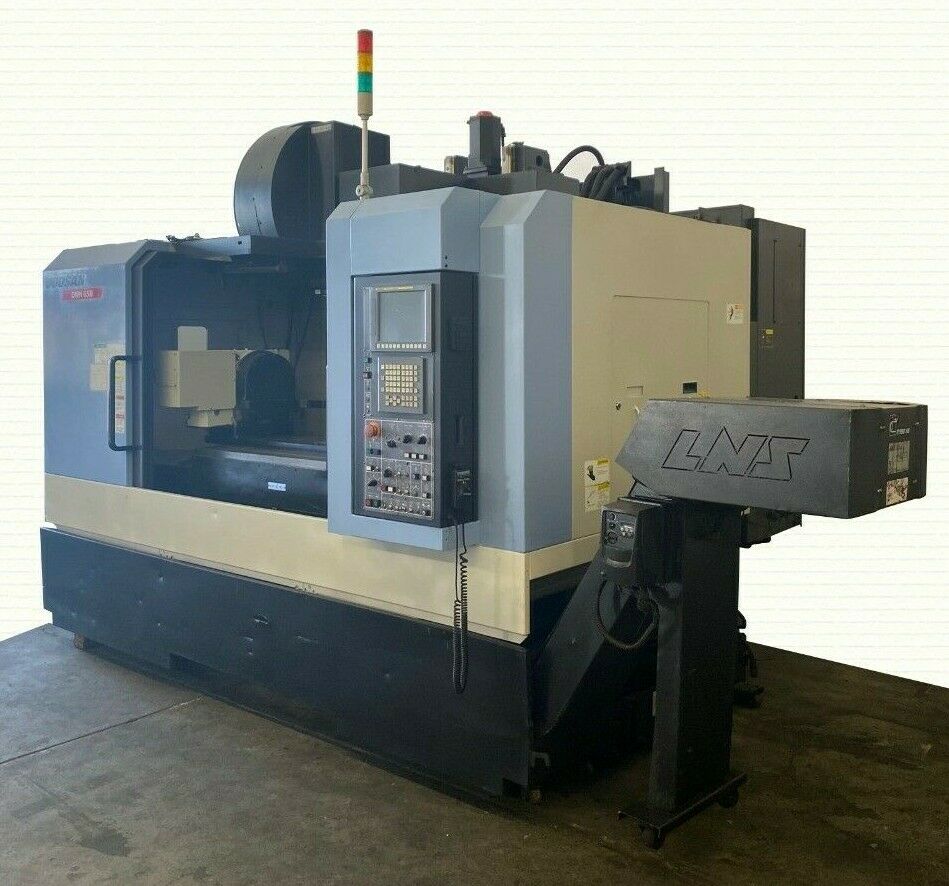

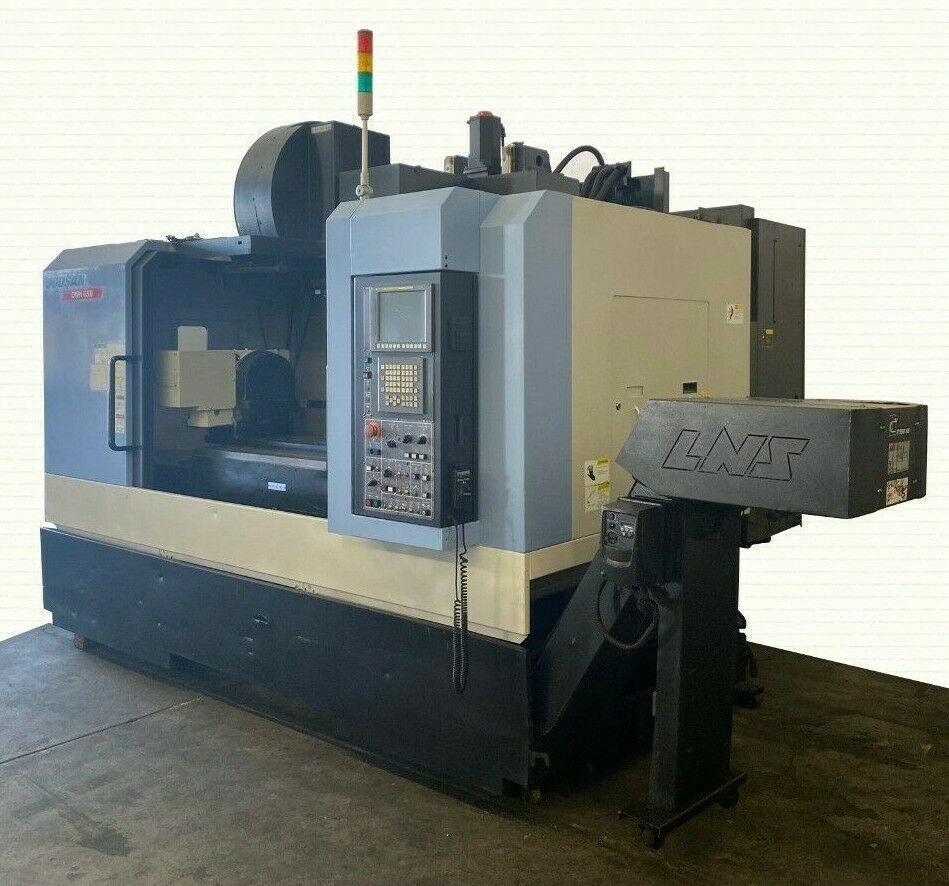

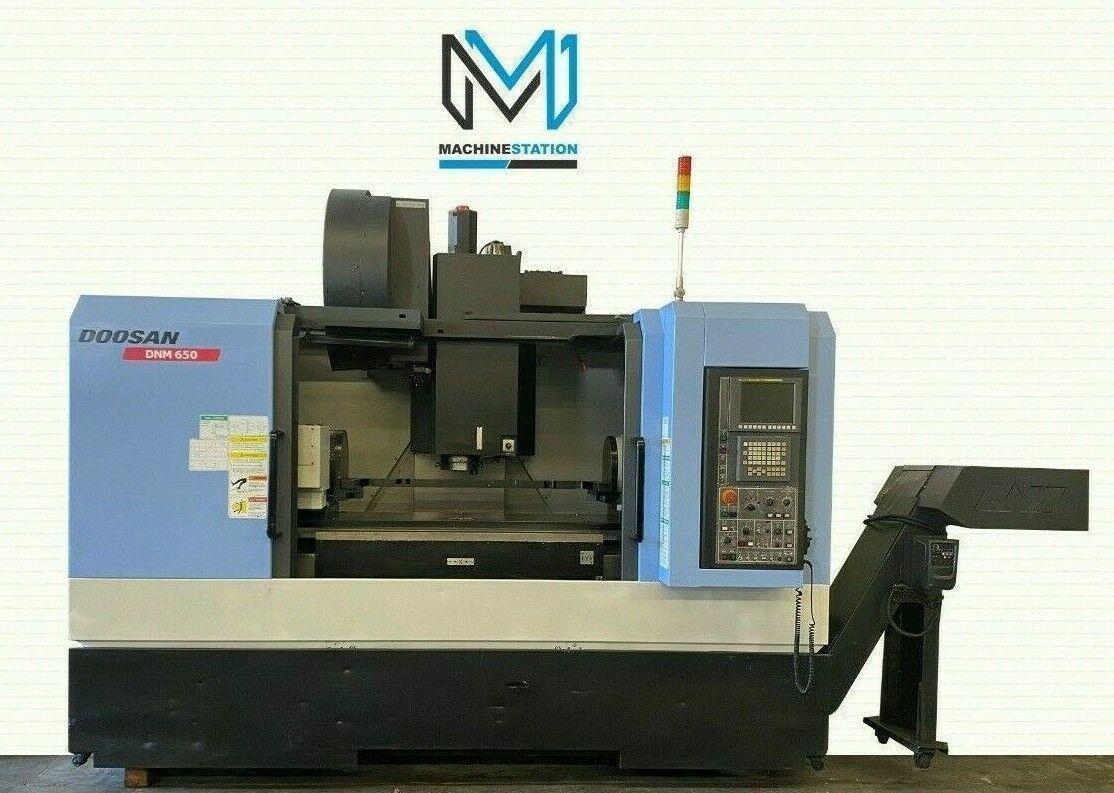

DOOSAN DNM-650 Vertical Machining Center
Out of stock
| SKU | 1970 |
| Make | DOOSAN |
| Model No. | DNM-650 |

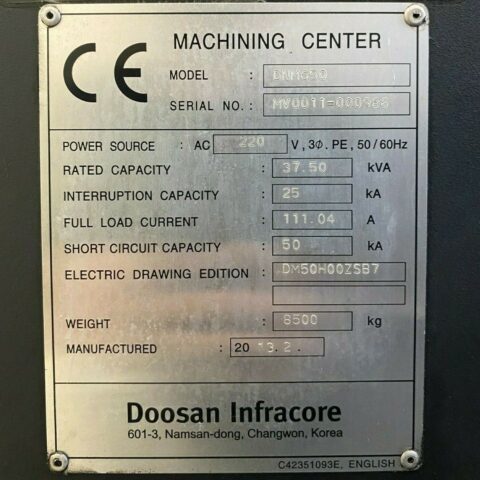

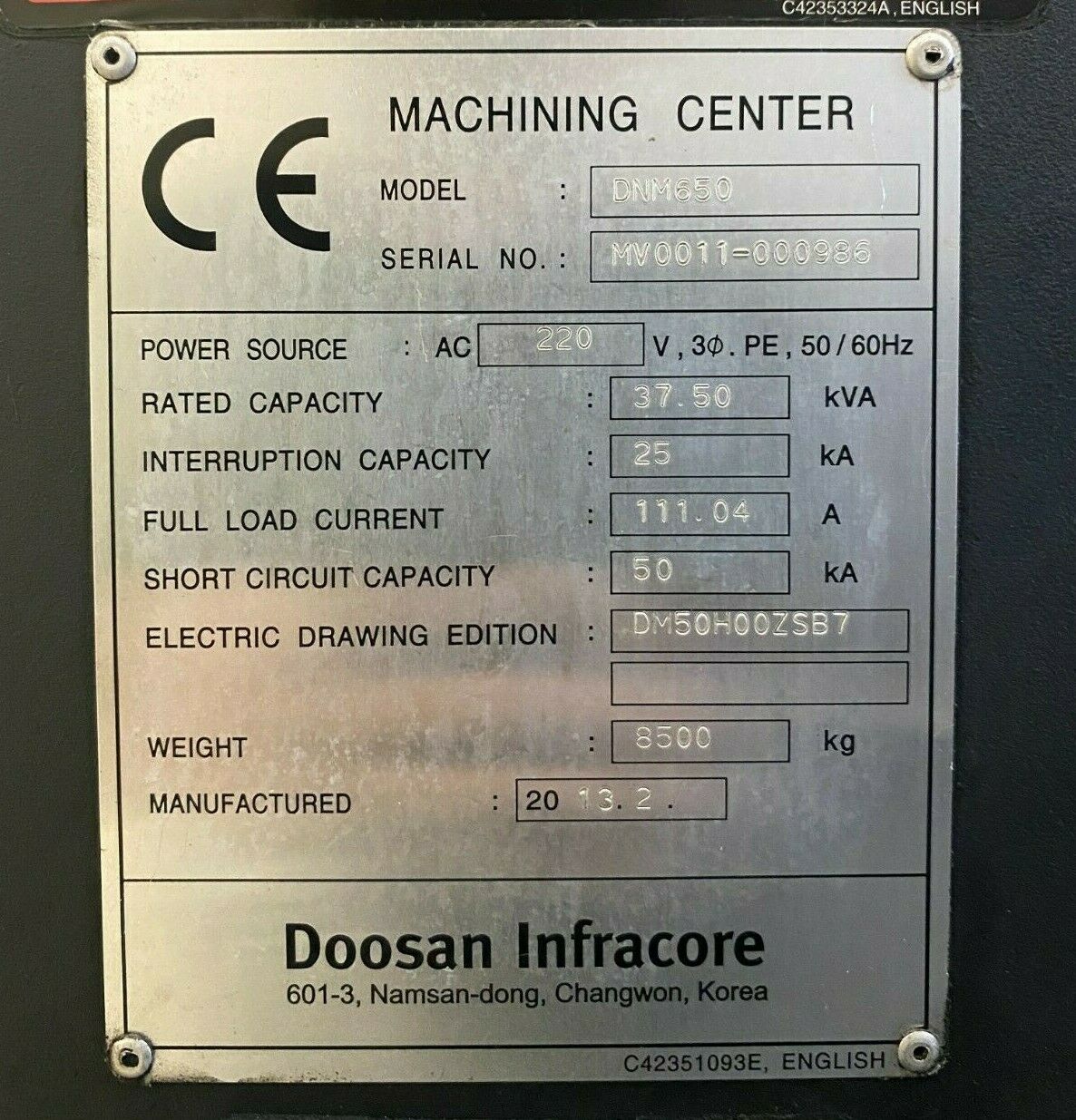

| Serial # | MV0011-000986 |
| Year | 2013/2014 |
| Cutting Hours | |
| Condition | Good Working |
| SKU | 1970 |
| Make | DOOSAN |
| Model No. | DNM-650 |
| Serial # | MV0011-000986 |
| Year | 2013/2014 |
| Cutting Hours | |
| Condition | Good Working |
| DOOSAN DNM-650 Features: |
|---|

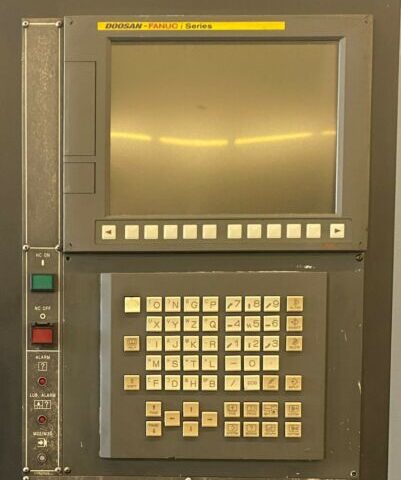

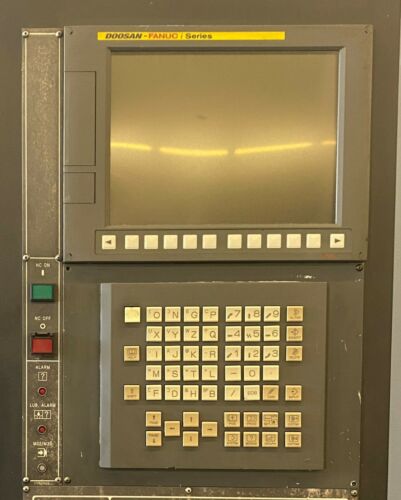

| Doosan Fanuc i Series CNC Control |
| Through Spindle Coolant |
| 8,000 RPM Big Plus Spindle |

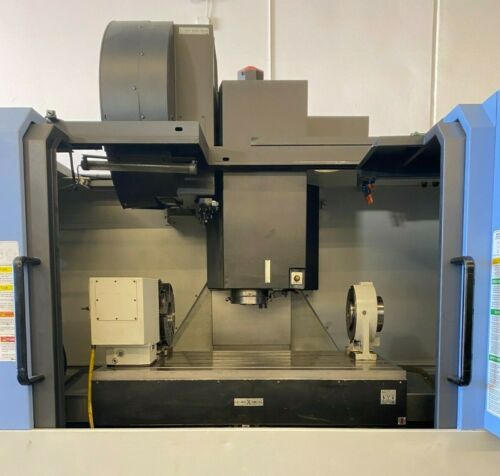

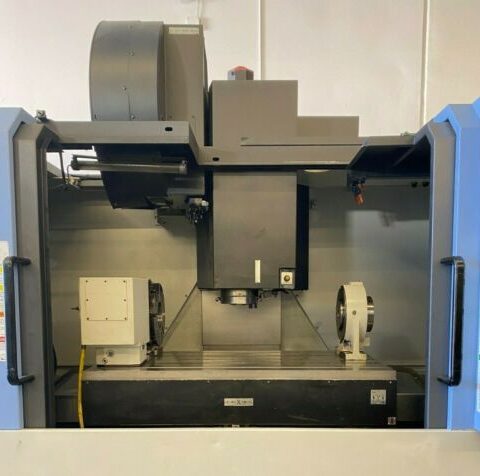

| RBA-320L Big Bore Rotary Table ( $37,000 Option ) |
| Rotary Support Spindle W/Fixture Plate ($14,400 Option ) |
| USB & PCMCIA Interface |
| 1417 Inch Per Min Rapids |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| 30 Automatic high speed tool changer |

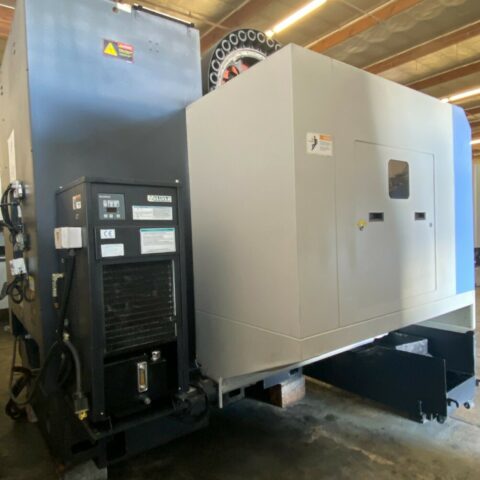

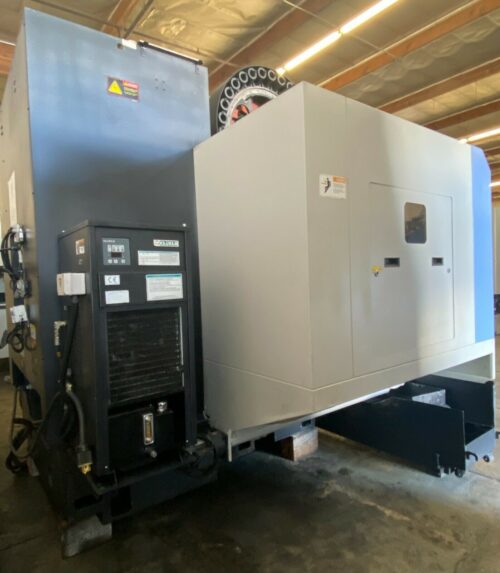

| Spindle Chiller |
| High Pressure Coolant System |

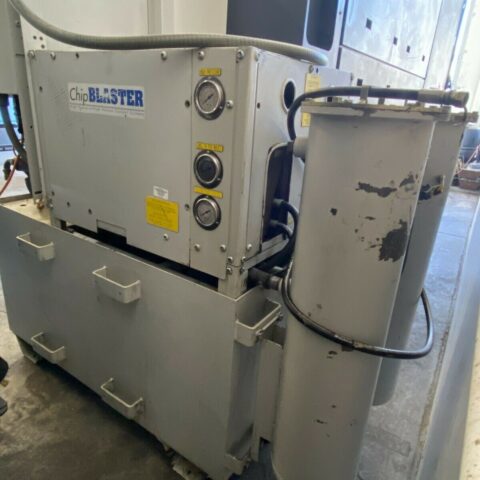

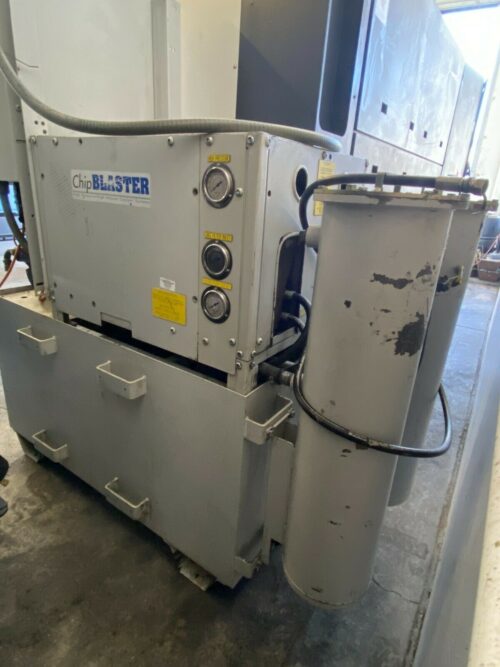

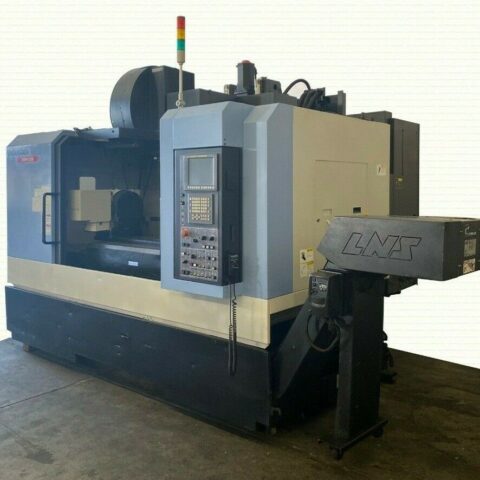

| Chip Blaster Unit |
| Chip Conveyor |
| Specifications: |
|---|
| Travels |
| X-Axis: 50.7″ |
| Y-Axis: 26.1″ |
| Z-Axis: 25.0″ |
| Rapid Traverse Rates: 1417″ Per Minute |
| Feed Rates: 590″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″ |
| Table: |
|---|
| Length: 51.2″ |
| Width: 26.37″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2200 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 0 – 8,000 RPM |
| Spindle Type: Belt Drive |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 35 kva / 3-Phase |
| Overall Dimensions: 150″ x 100″ x 110″ High |
| Weight: 16,500 lbs |
