*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

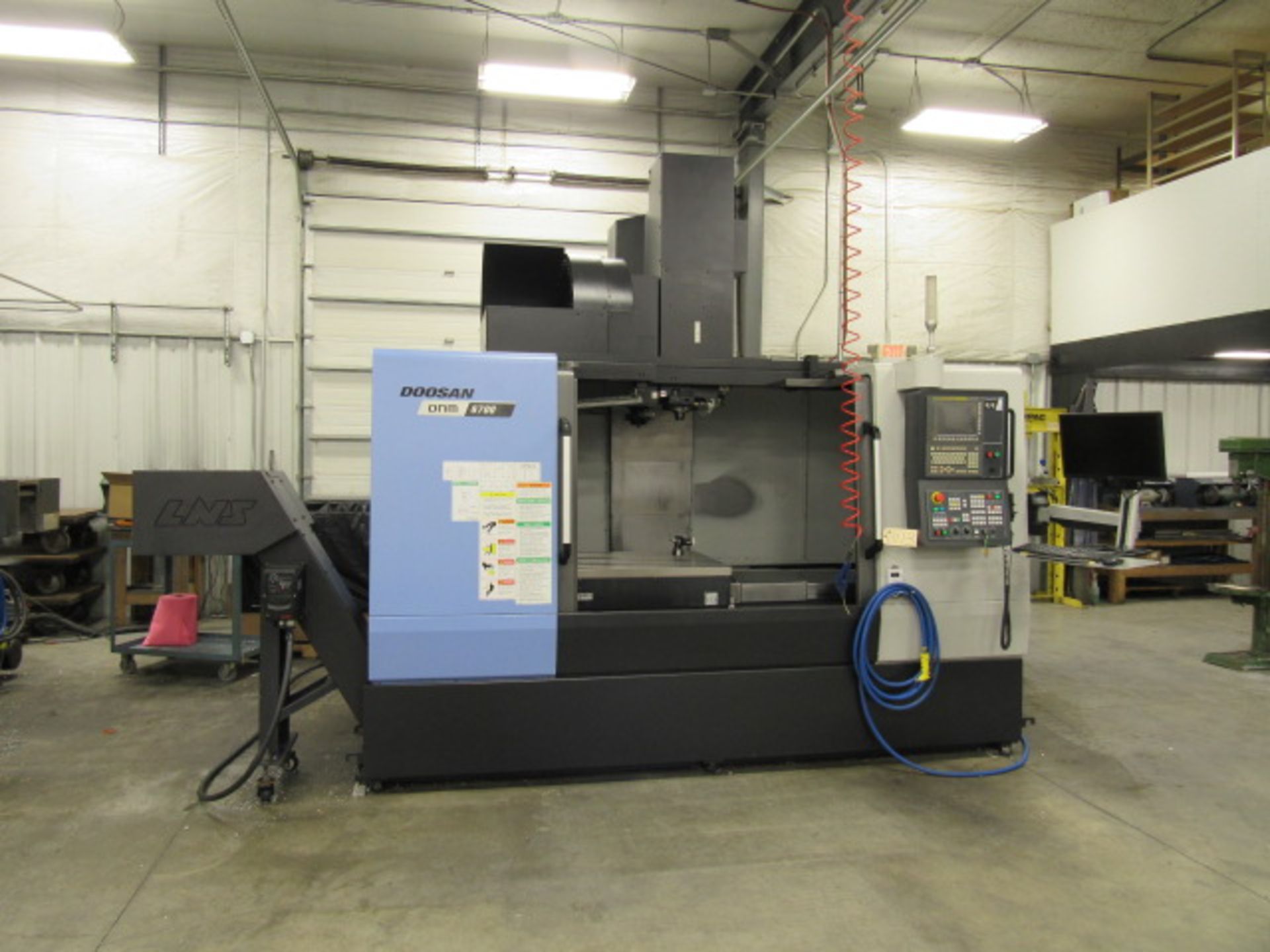

| Make: | Doosan |
| Model: | DNM 6700 |
| Condition: | Used |
| Equipped With: |
|---|

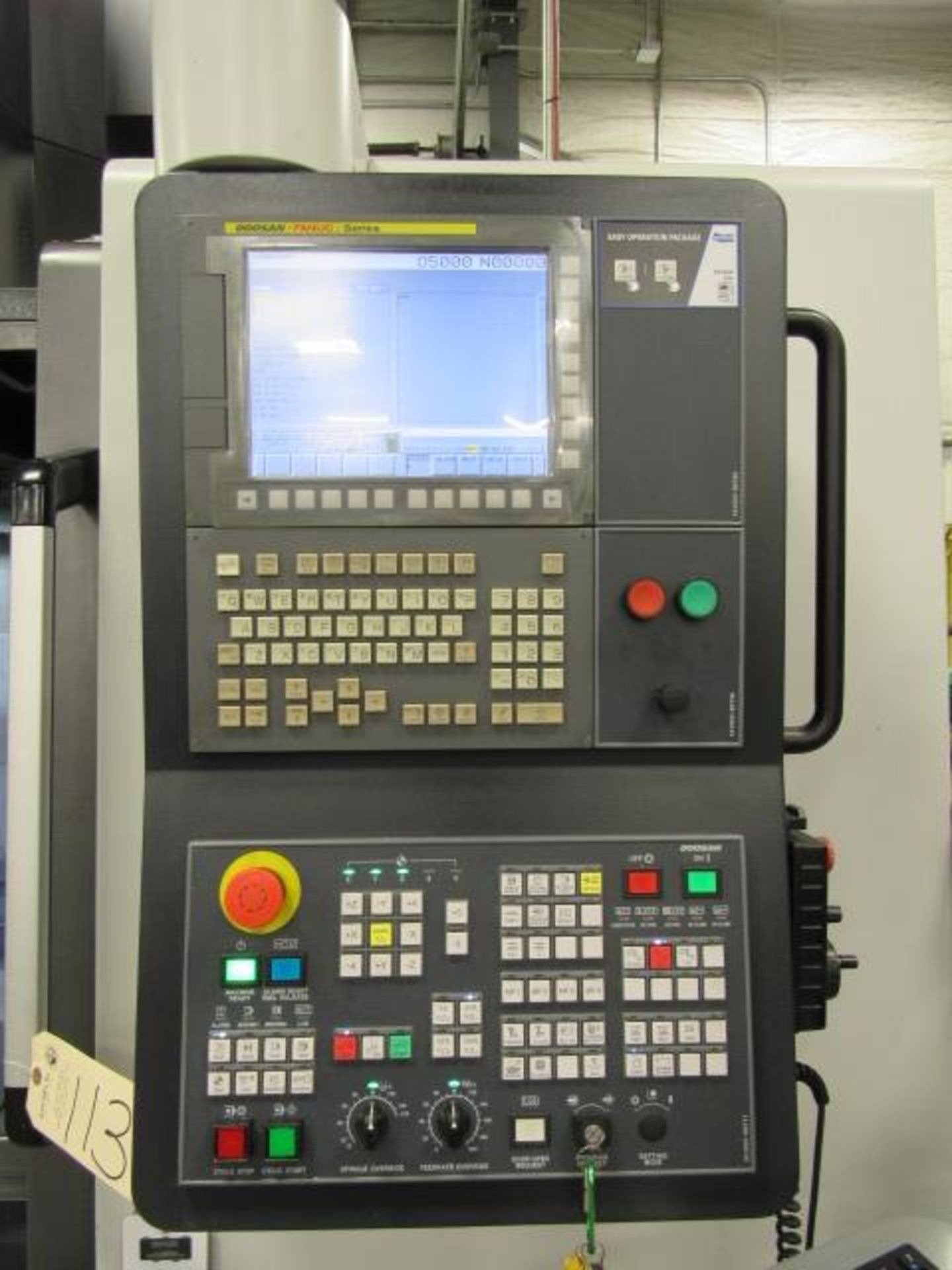

- Fanuc i-Series CNC Control
- Rigid Tapping
- High-Speed Linear Guideways
- 24-Station Automatic Tool Changer
- Direct-Coupled Spindle
- Flood Coolant System
- Automatic Lubrication System
- Full Enclosure
|
| Travels: |
|---|
- X-Axis Travel: 51.2″
- Y-Axis Travel: 26.0″
- Z-Axis Travel: 25.6″
- Spindle Nose to Table: 5.9″ – 31.5″
|
| Table: |
|---|
- Table Size: 59.1″ × 26.0″
- Max Table Load: 2,205 lbs
|
| Spindle: |
|---|
- Spindle Taper: CAT-40
- Spindle Speed: 8,000 RPM
- Spindle Motor: 30 HP
|
| Feedrates: |
|---|
- Rapid Traverse X/Y/Z: 1,181 IPM
- Cutting Feedrate: 0 – 472 IPM
|
| Automatic Tool Changer: |
|---|
- Tool Capacity: 24 Tools
- Max Tool Diameter: 3.15″ (6.3″ Adjacent Empty)
- Max Tool Length: 11.8″
- Max Tool Weight: 17.6 lbs
|
| General: |
|---|

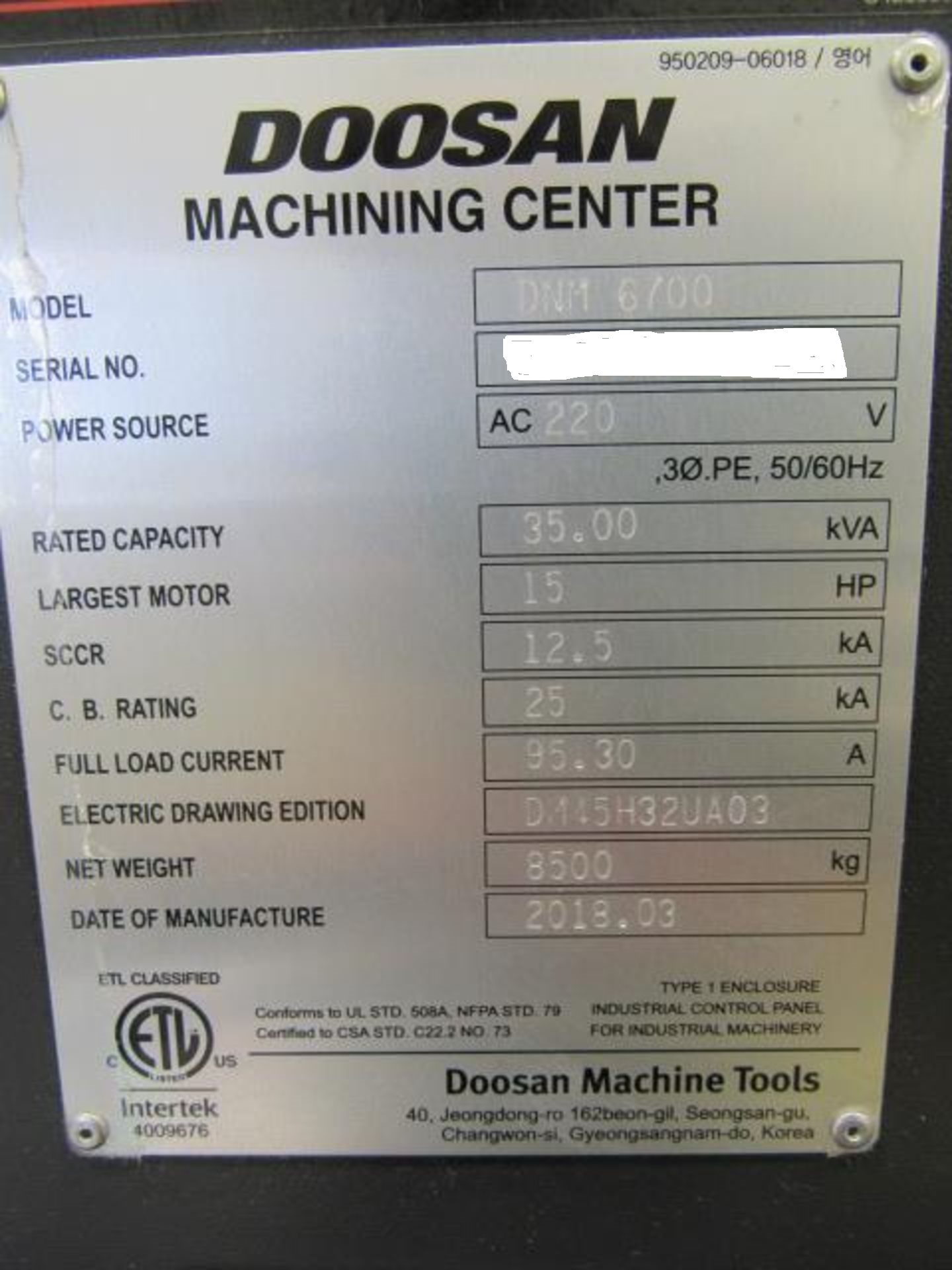

- Power Requirement: 220V / 3-Phase
- Machine Weight (Approx.): 16,100 lbs
- Overall Dimensions (Approx.): 120″ × 104″ × 112″
|
