*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

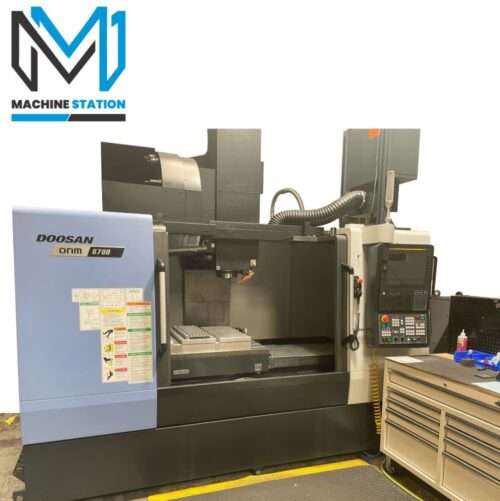

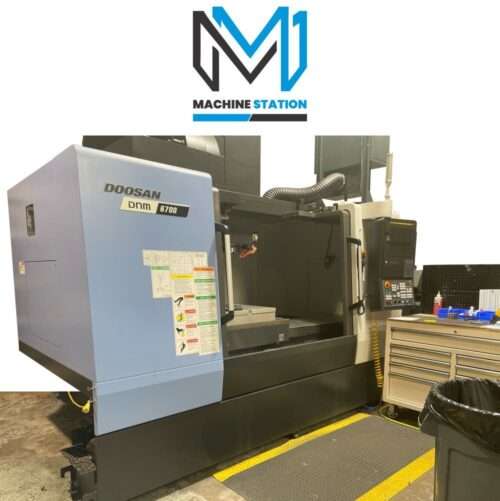

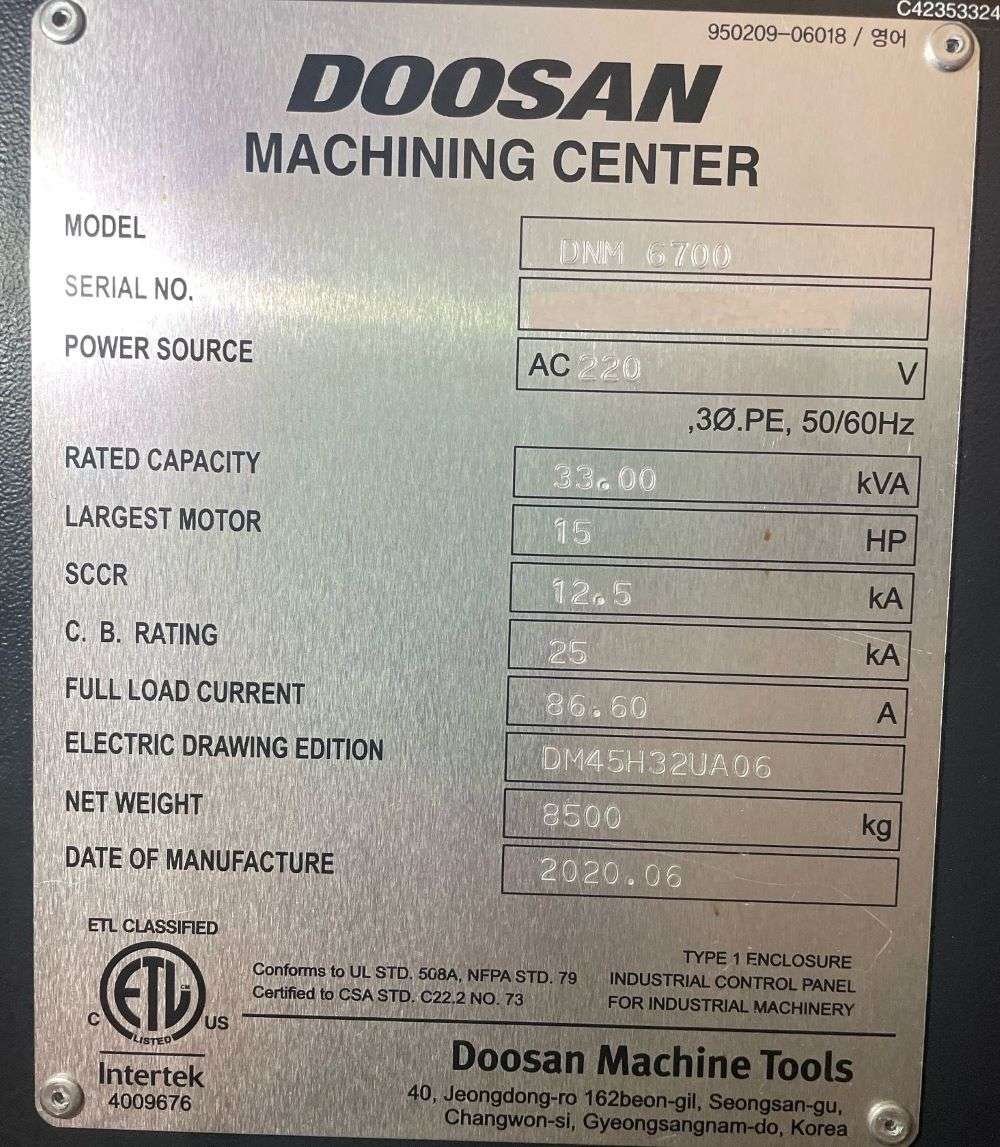

| Make: | Doosan |
| Model: | DNM-6700 |
| Year: | 2020 |

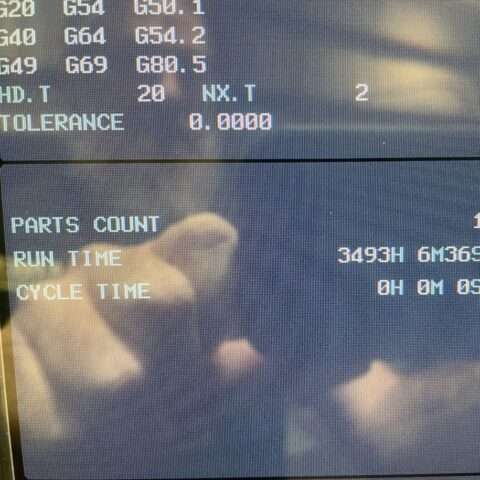

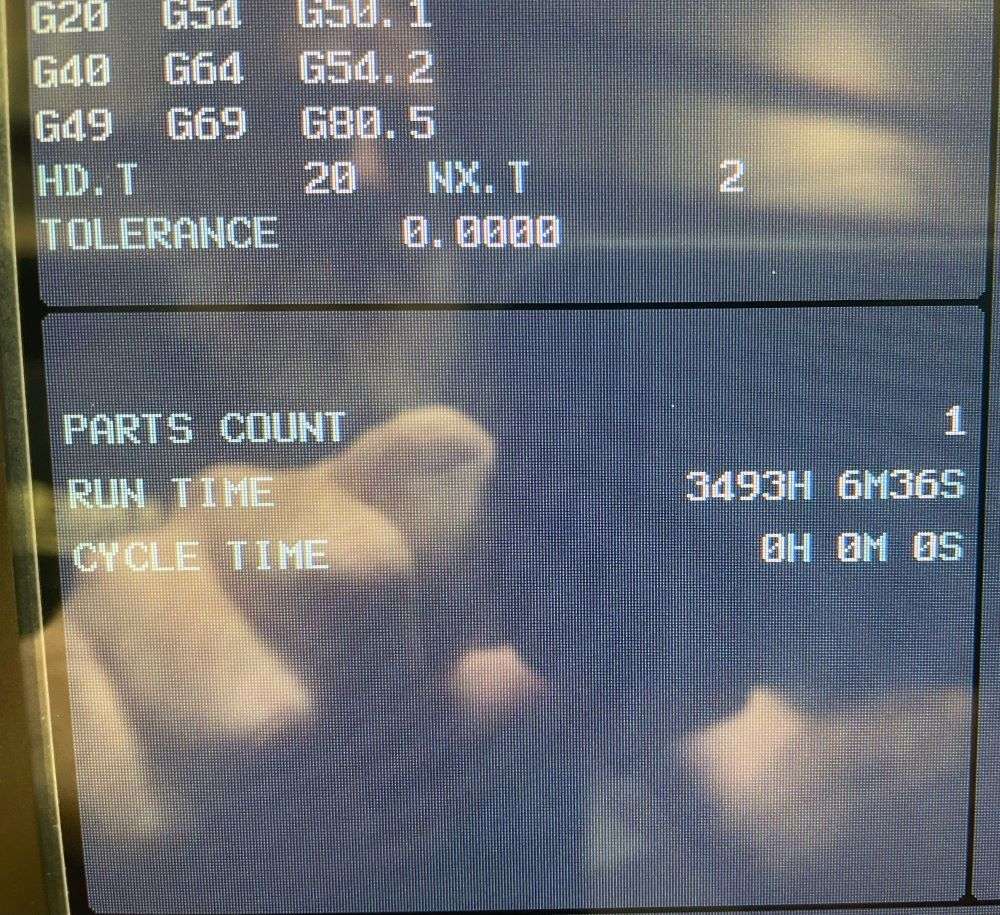

| Run Time: | 3493 Hours |
| Equipped With: |
|---|

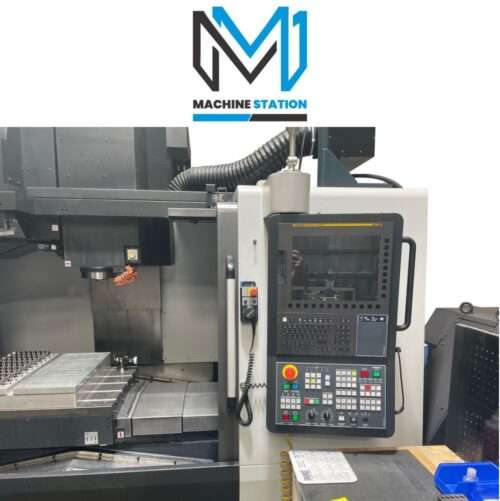

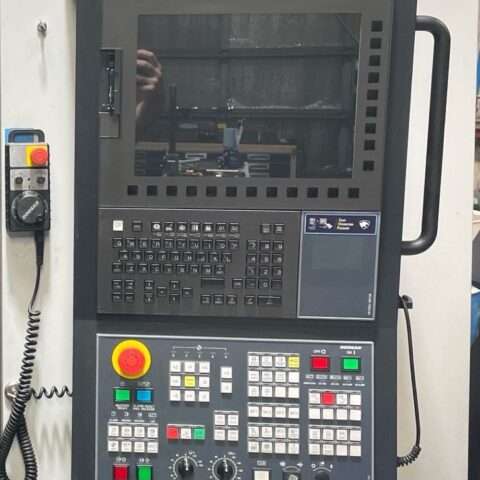

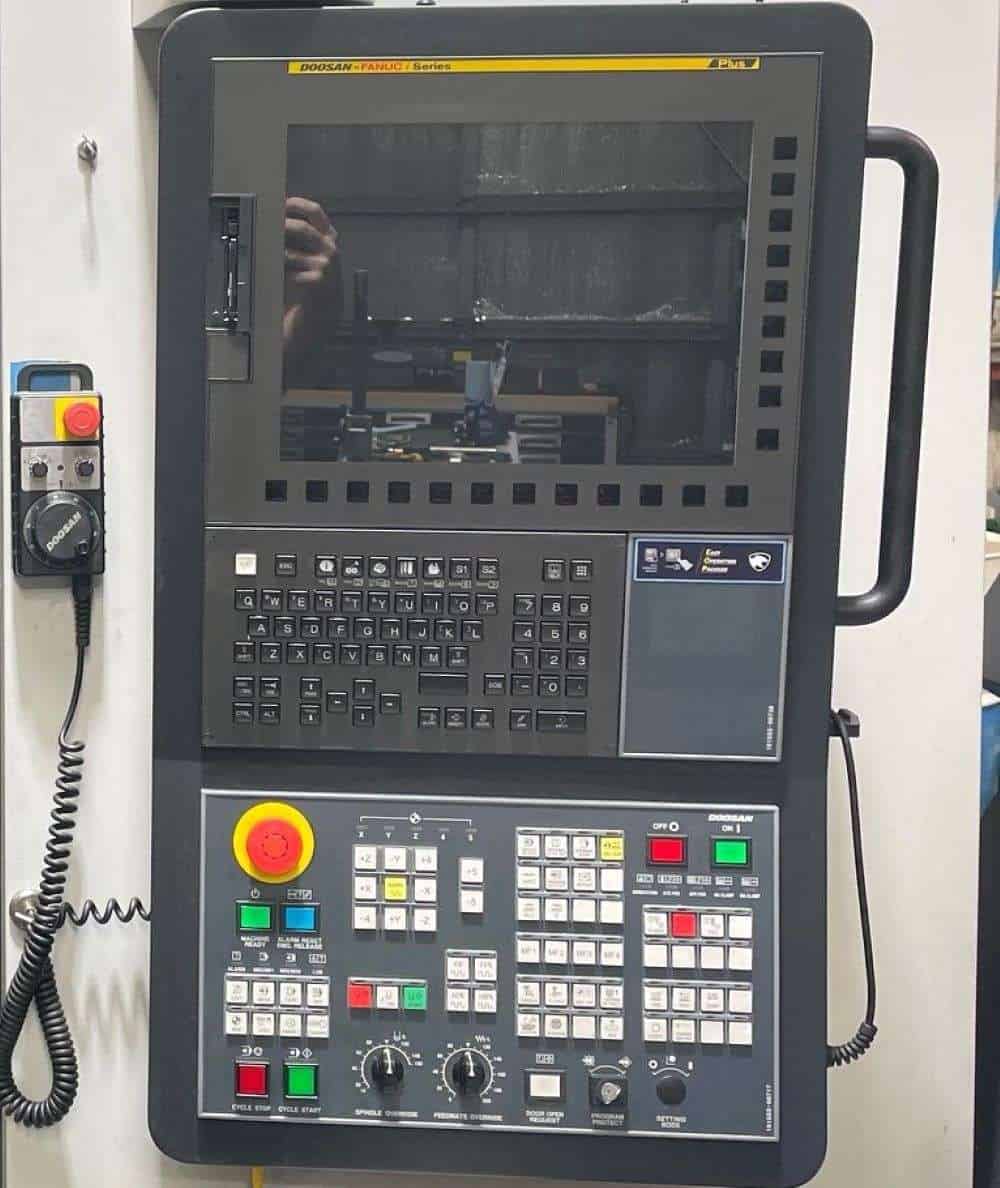

| Doosan-Fanuc i Series CNC Control |
| 12,000 RPM High Speed Spindle |
| 1417 IPM Fast Rapids Traverse Rate |
| Through Spindle Coolant |
| 30 Station Automatic Tool Changer |

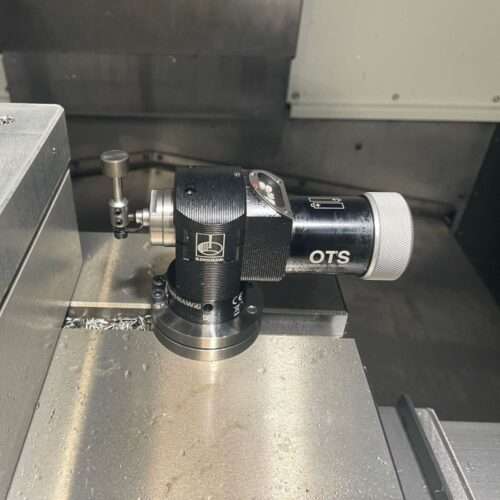

| Renishaw Probe |
| Mist Buster |
| CAT 40 Big Plus Taper Spindle |
| Easy Operation Package |
| USB Drive |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |

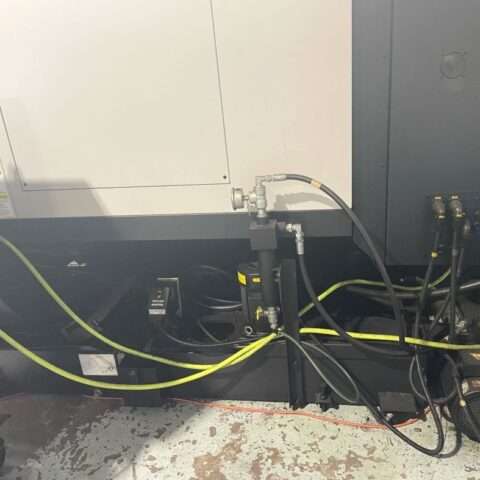

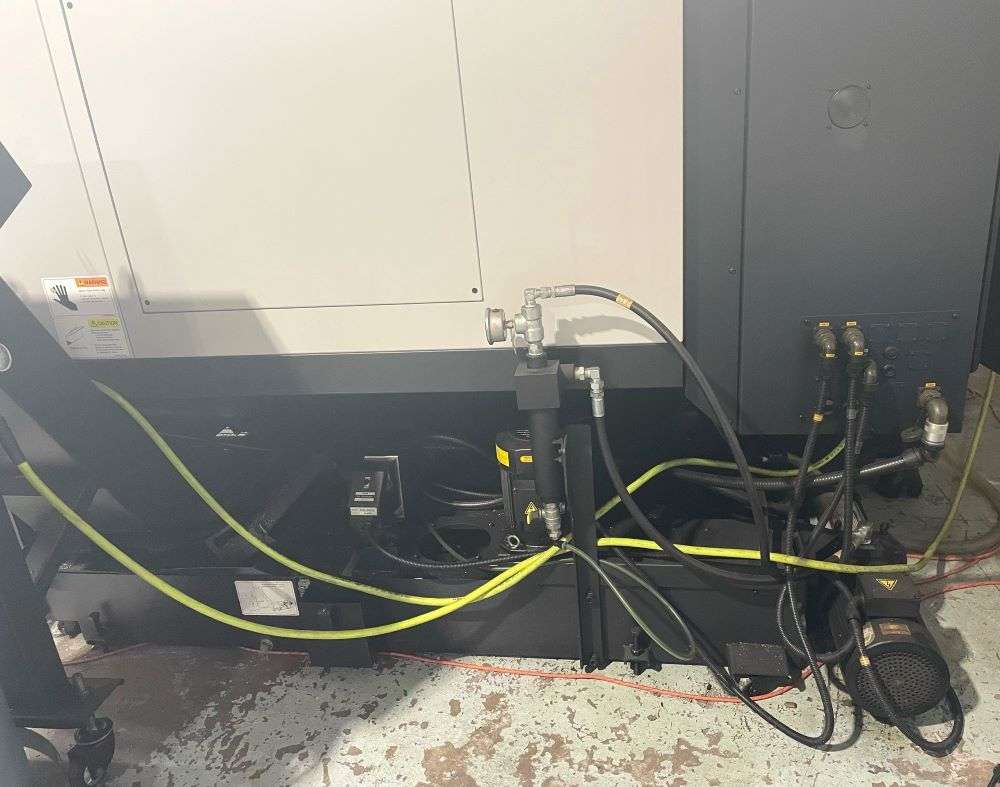

| High Pressure Coolant System |
| Telescopic Way Covers |
| Spindle Chiller |
| Chip Augers |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 51.2″ |
| Y-Axis: 26.4″ |
| Z-Axis: 24.6″ |
| Rapid Traverse Rates X & Y Axis: 1417 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Cutting Feed Rates: 590 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.5″ |

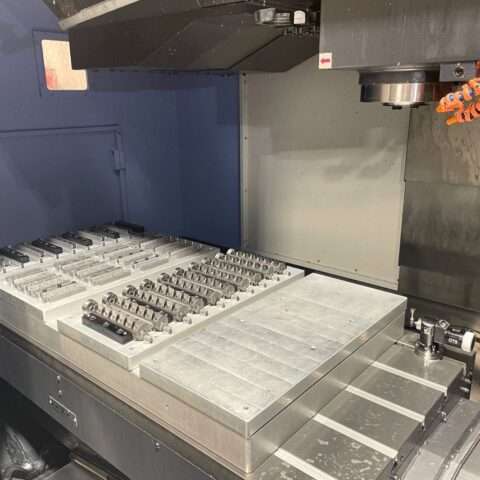

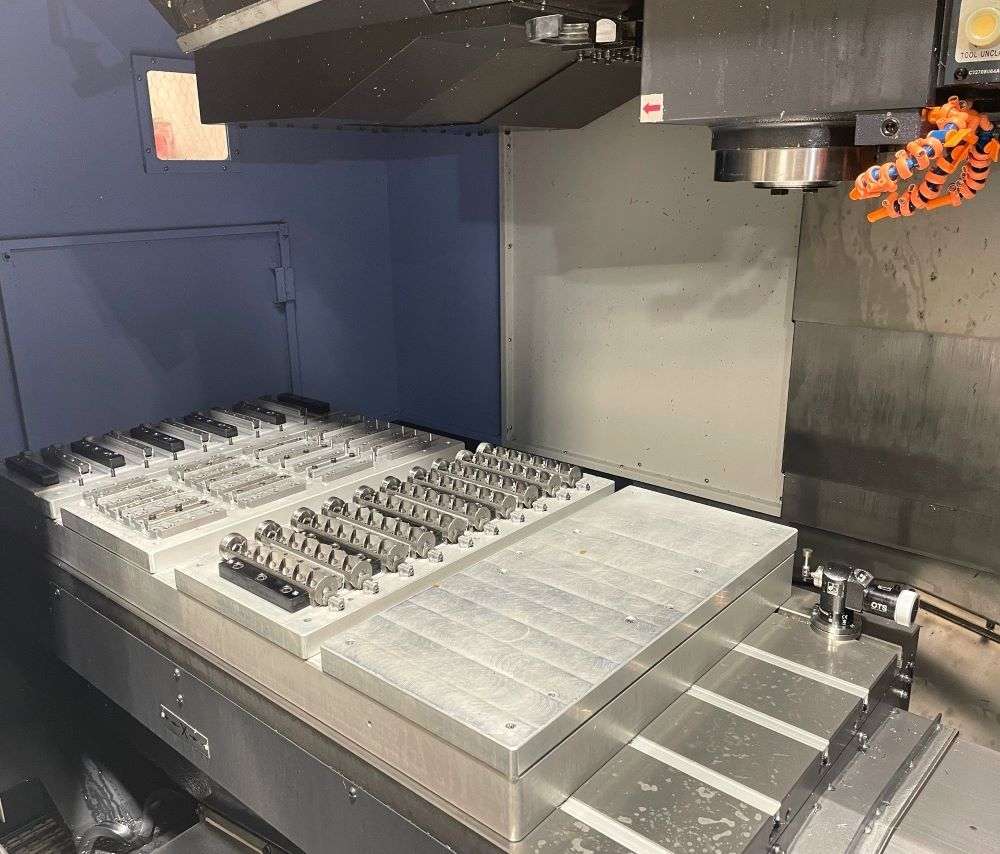

| Table: |
|---|
| Length: 59.1″ |
| Width: 26.4″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 2866 lbs |

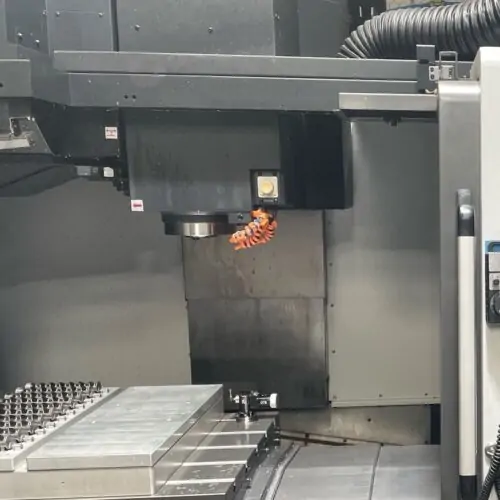

| Spindle: |
|---|
| Taper Size: CAT 40 Big Plus |
| Speed Range: 12,000 RPM |
| Spindle Power: 15 HP |

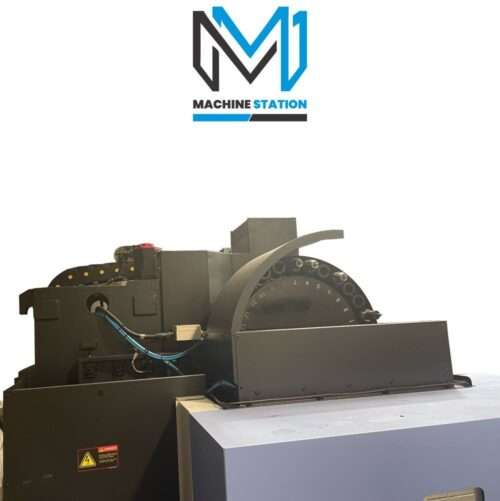

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.2 Seconds |
| General: |
|---|

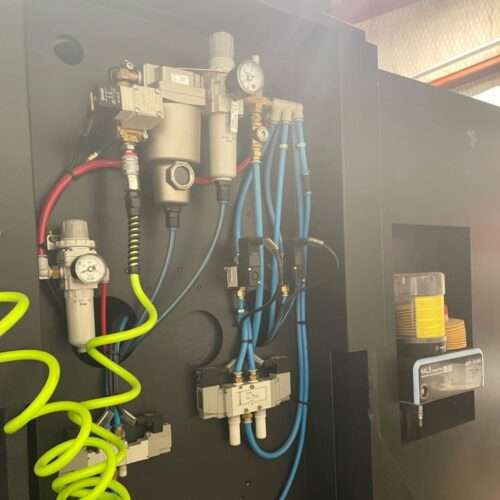

| Air Required: 80 psi, 4 scfm |

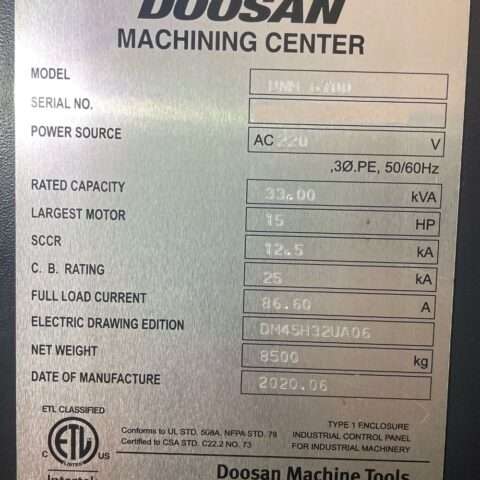

| Power: 220v / 33 kva / 3-Phase |
| Overall Dimensions: 102.2″ x 131.9″ x 122.8″ High |
| Weight: 18,739 lbs |
