*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

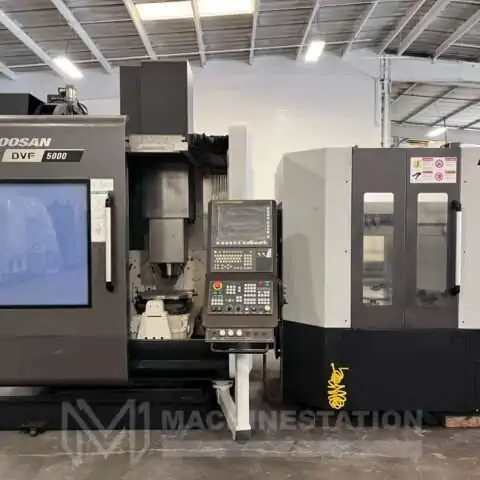

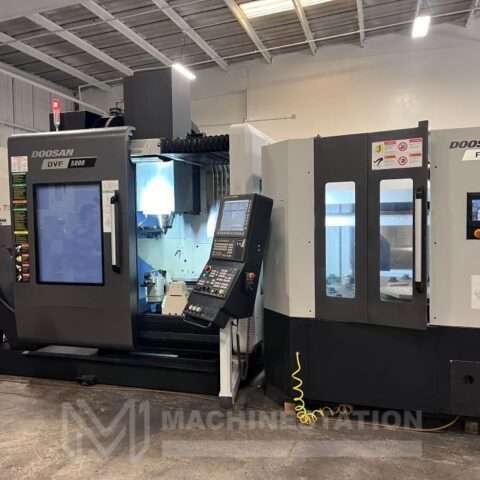

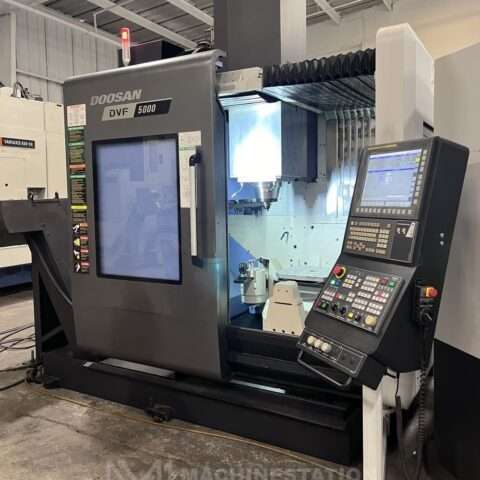

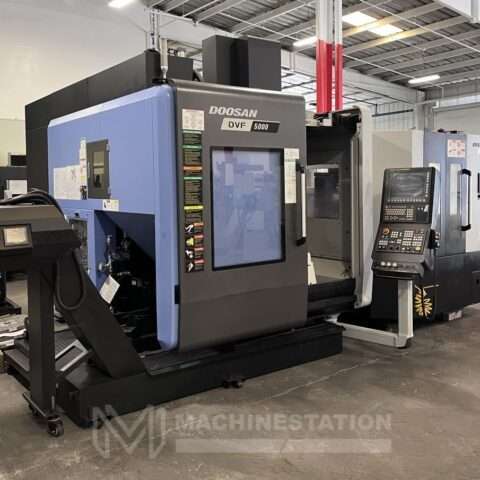

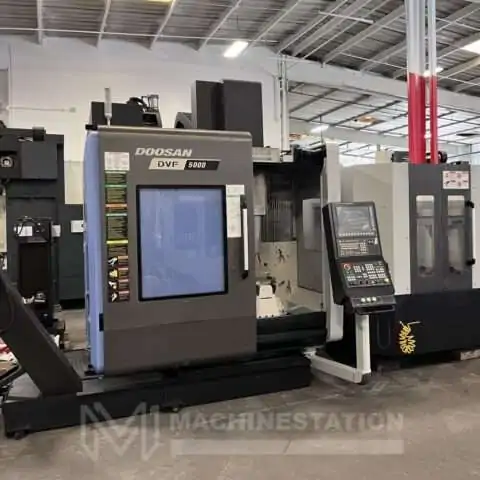

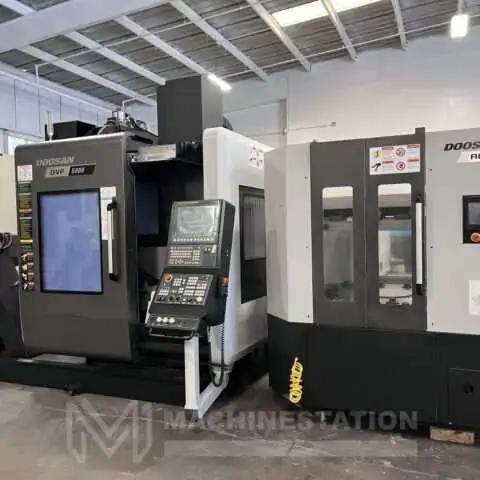

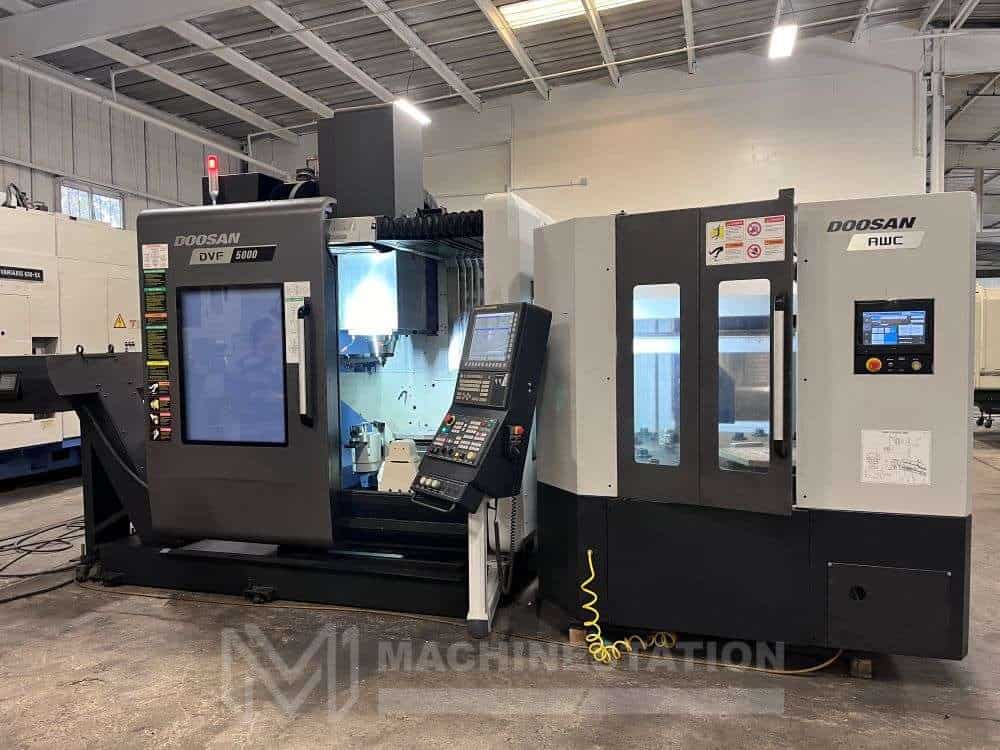

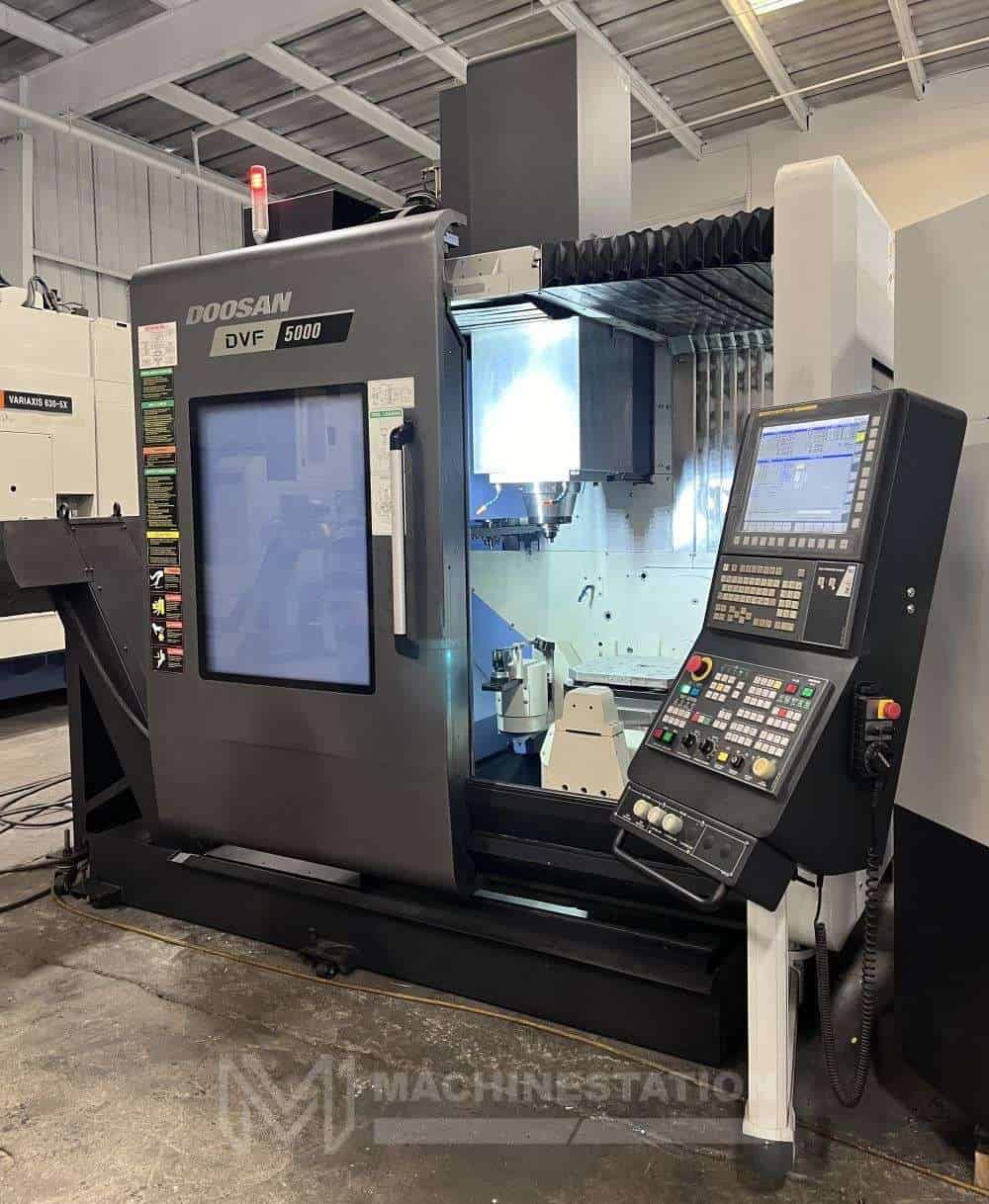

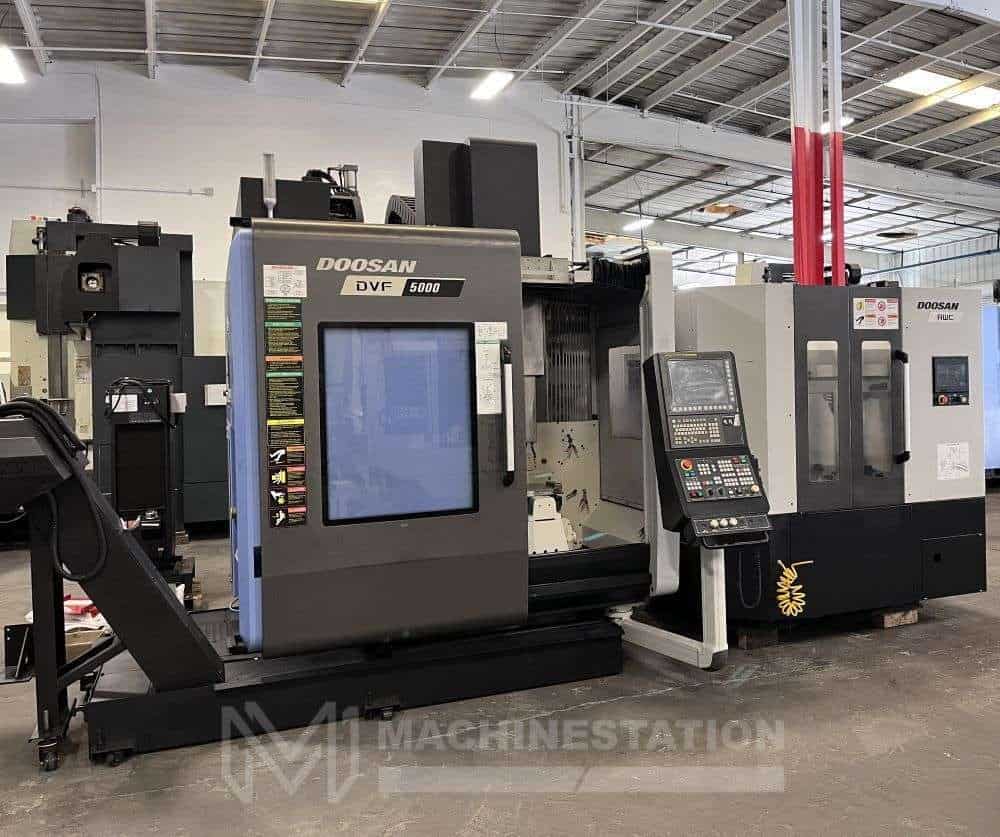

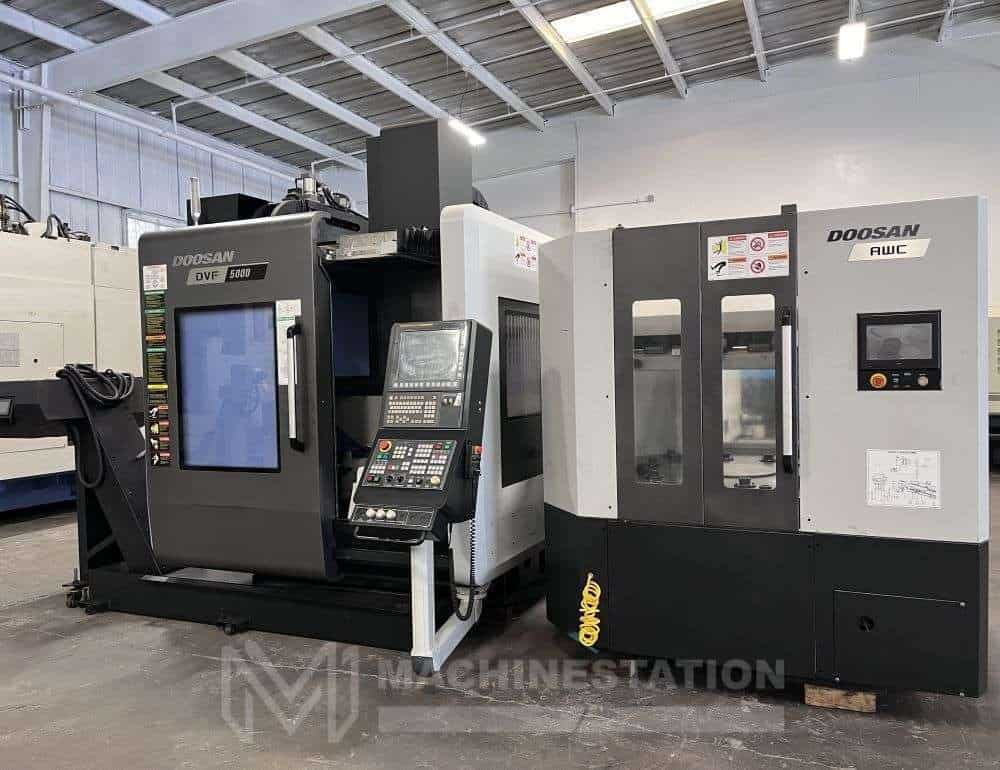

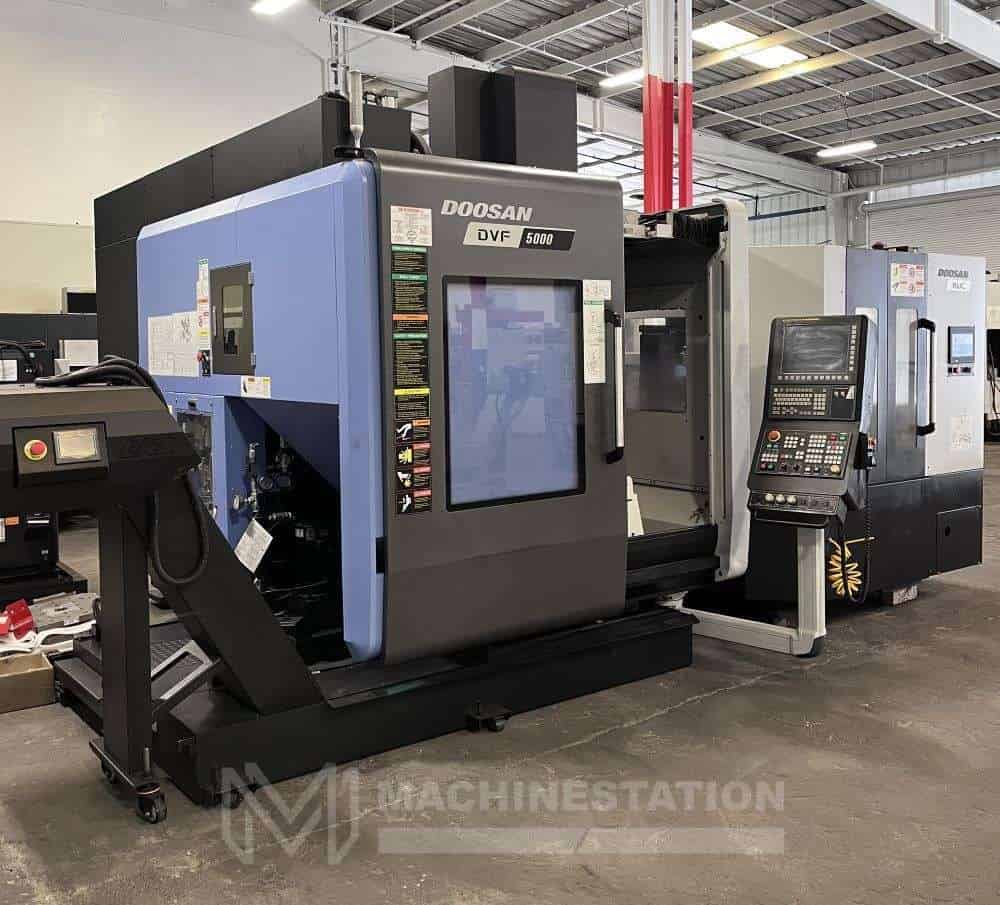

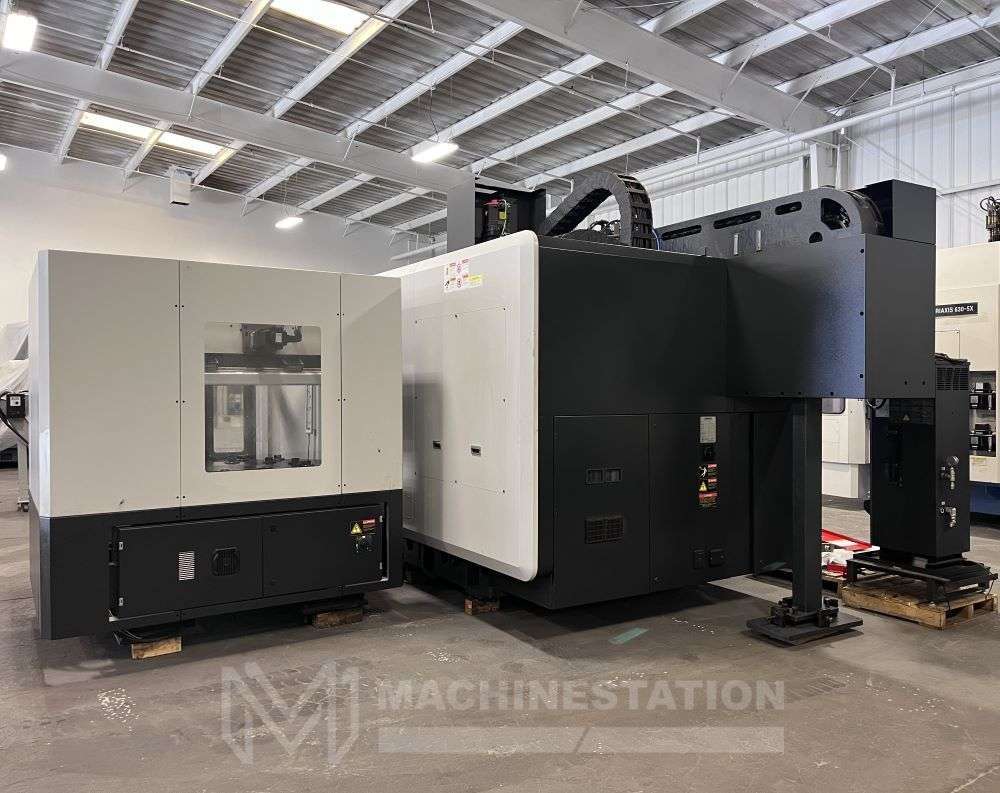

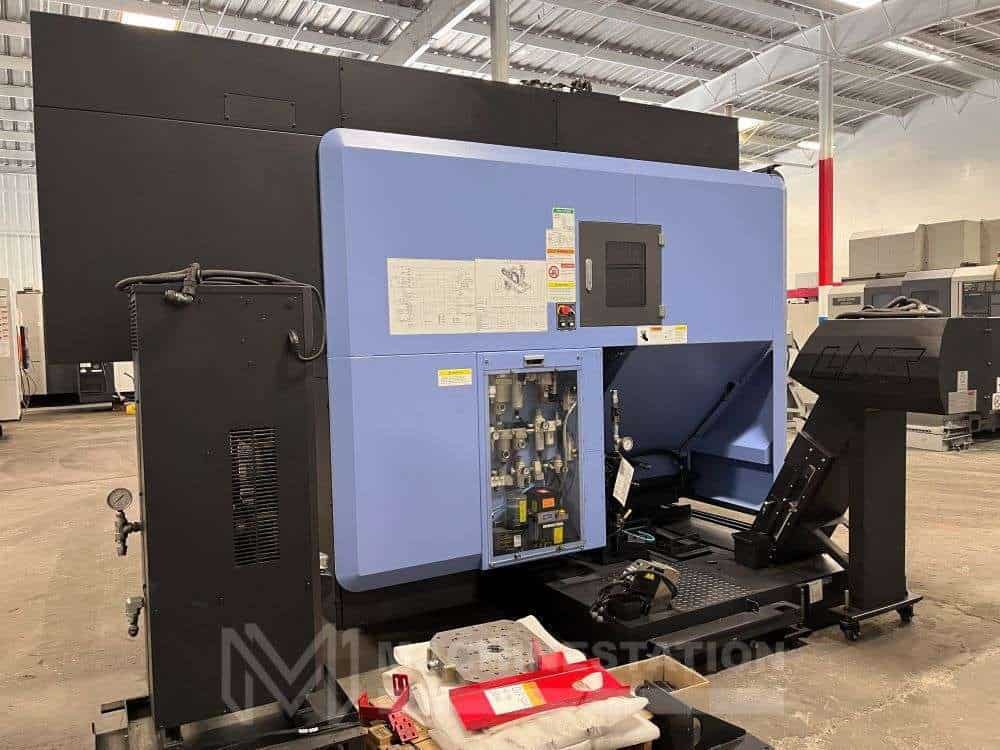

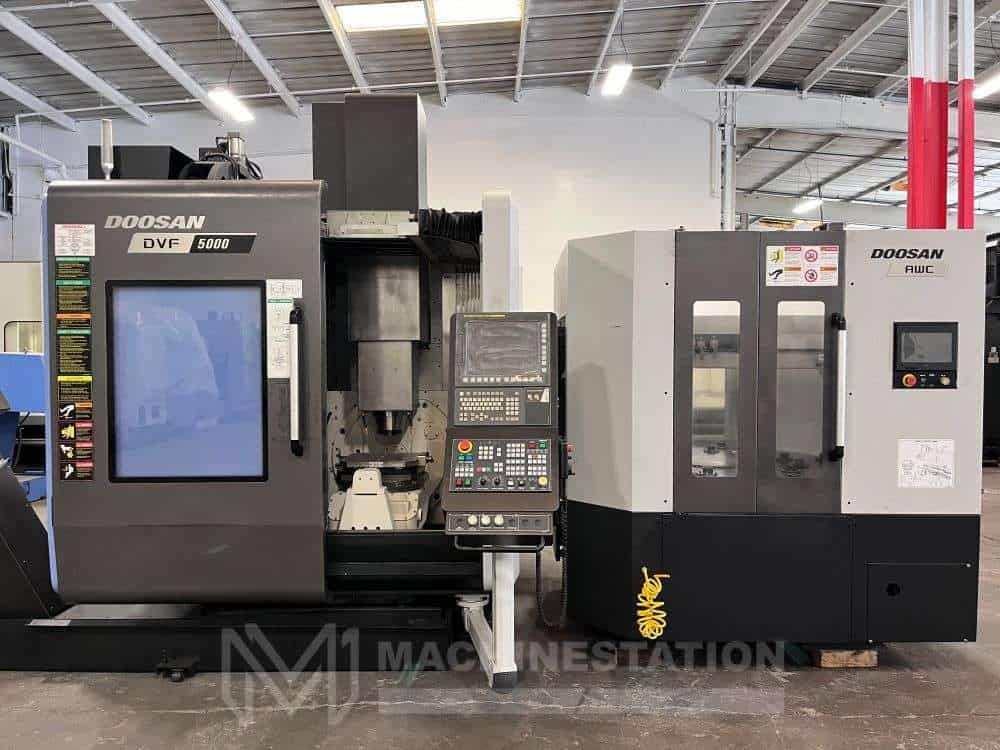

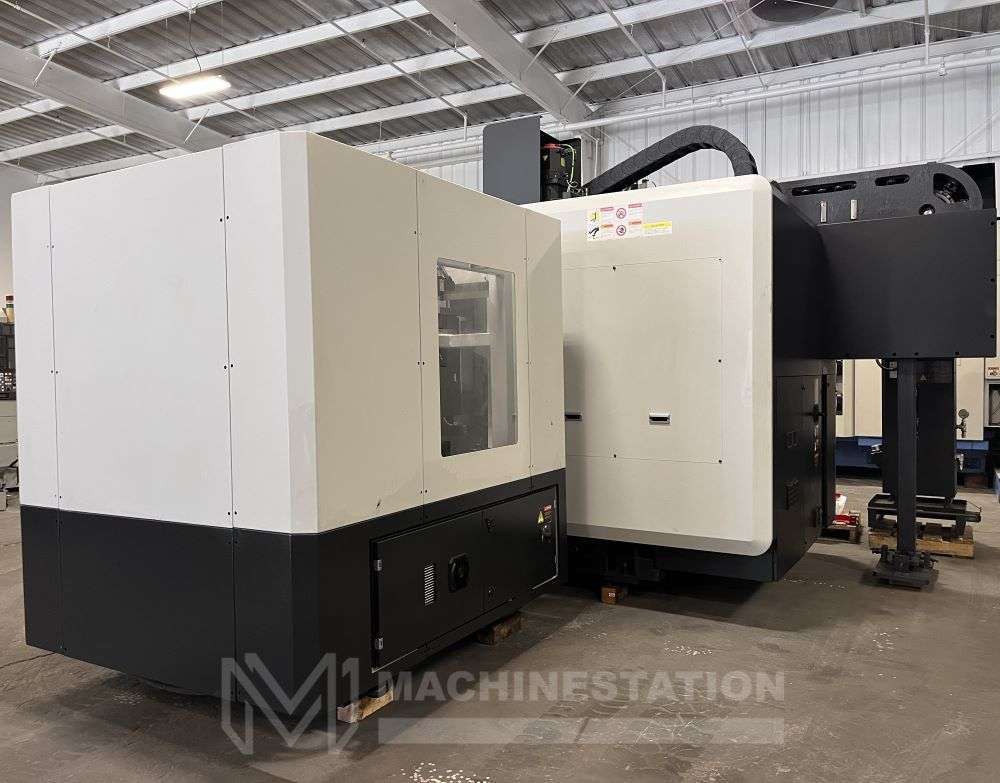

| Make: | Doosan |
| Model: | DVF-5000 |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Features: |
|---|

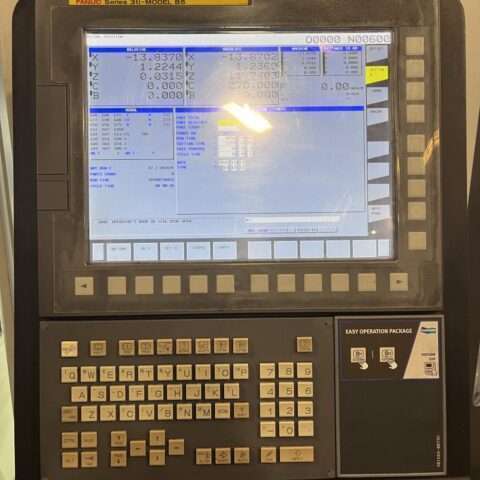

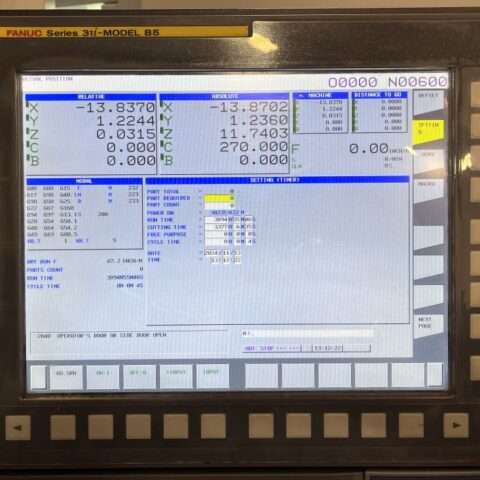

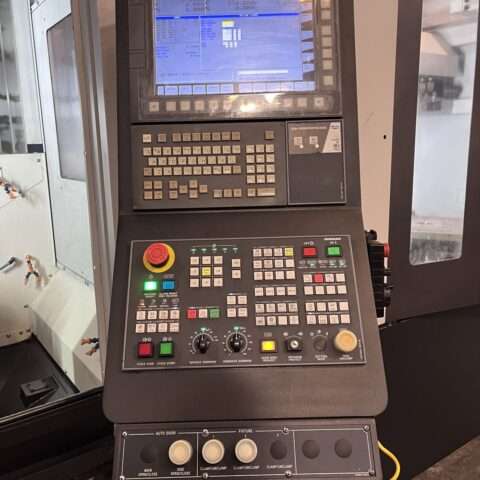

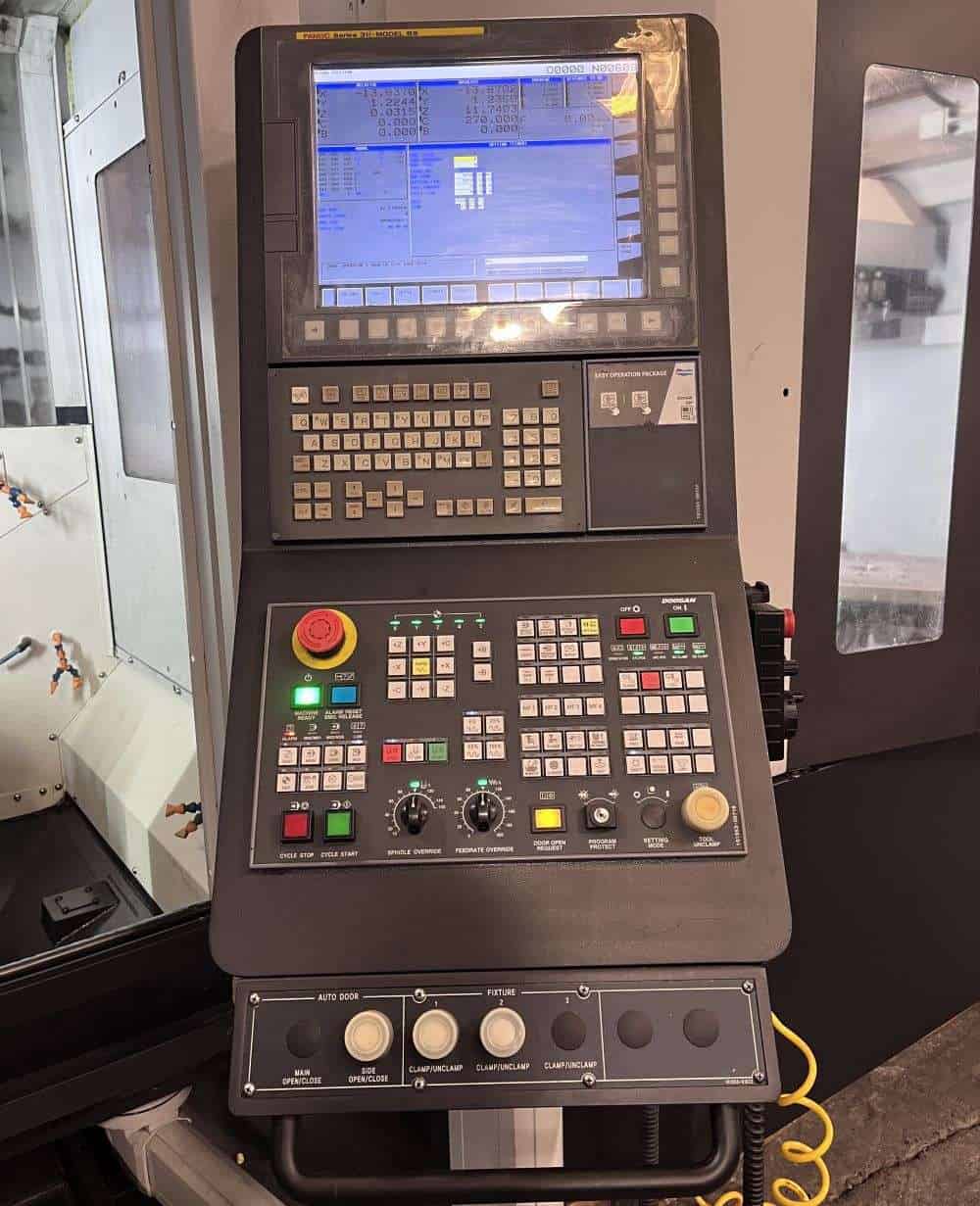

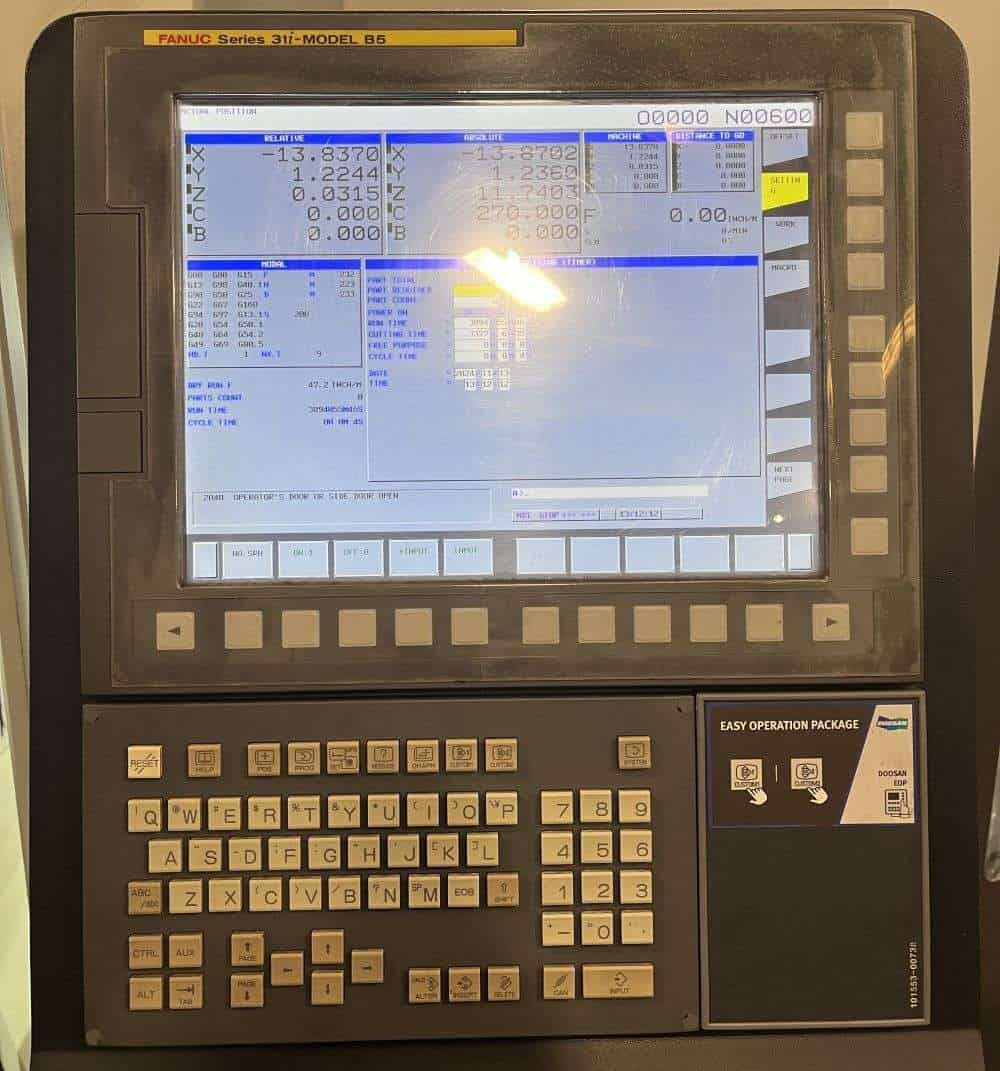

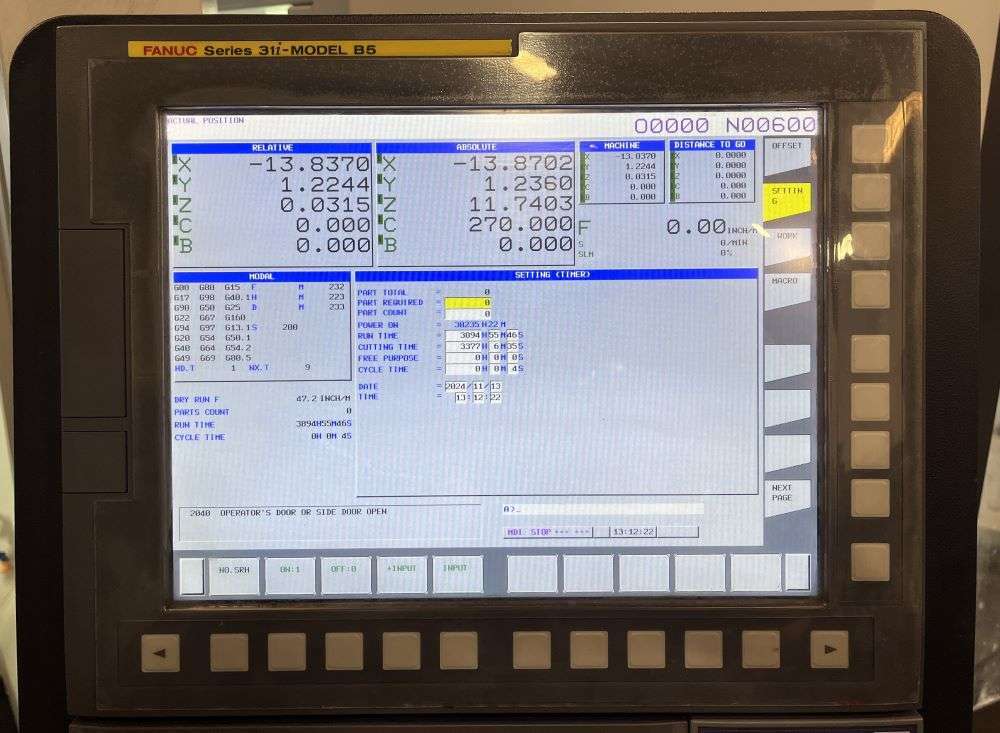

| Fanuc 31i Model B5 Series CNC Control |
| 5 Axis Simultaneous Machining |

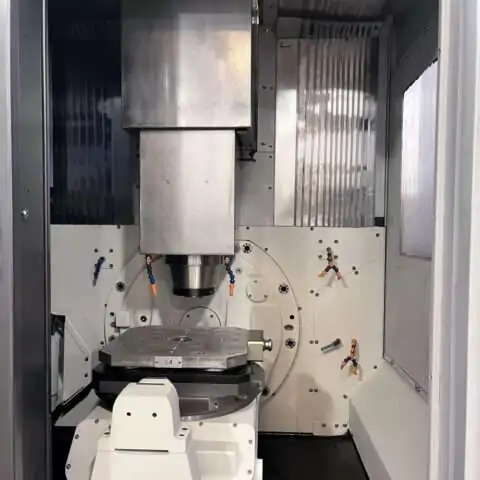

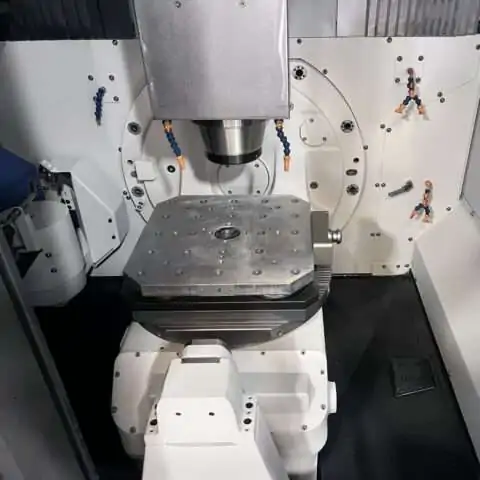

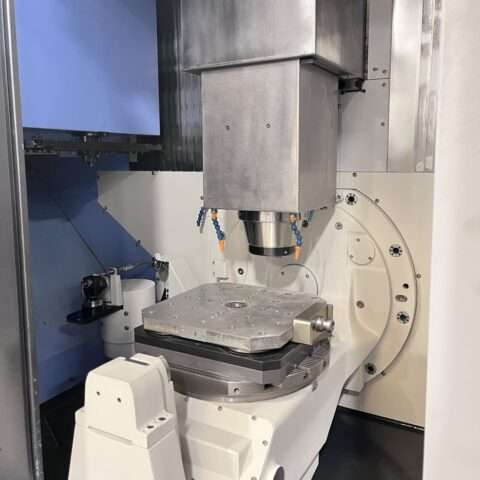

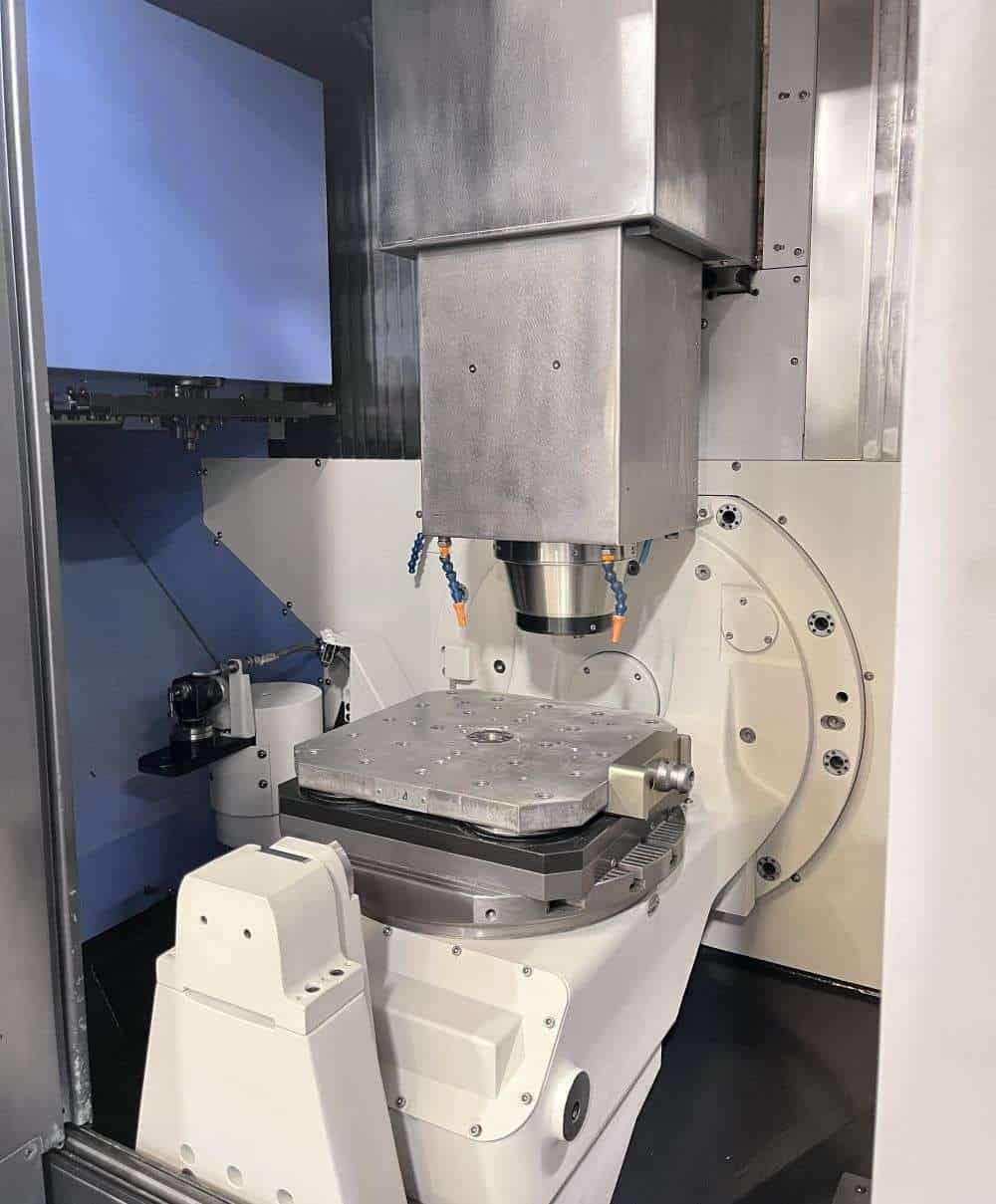

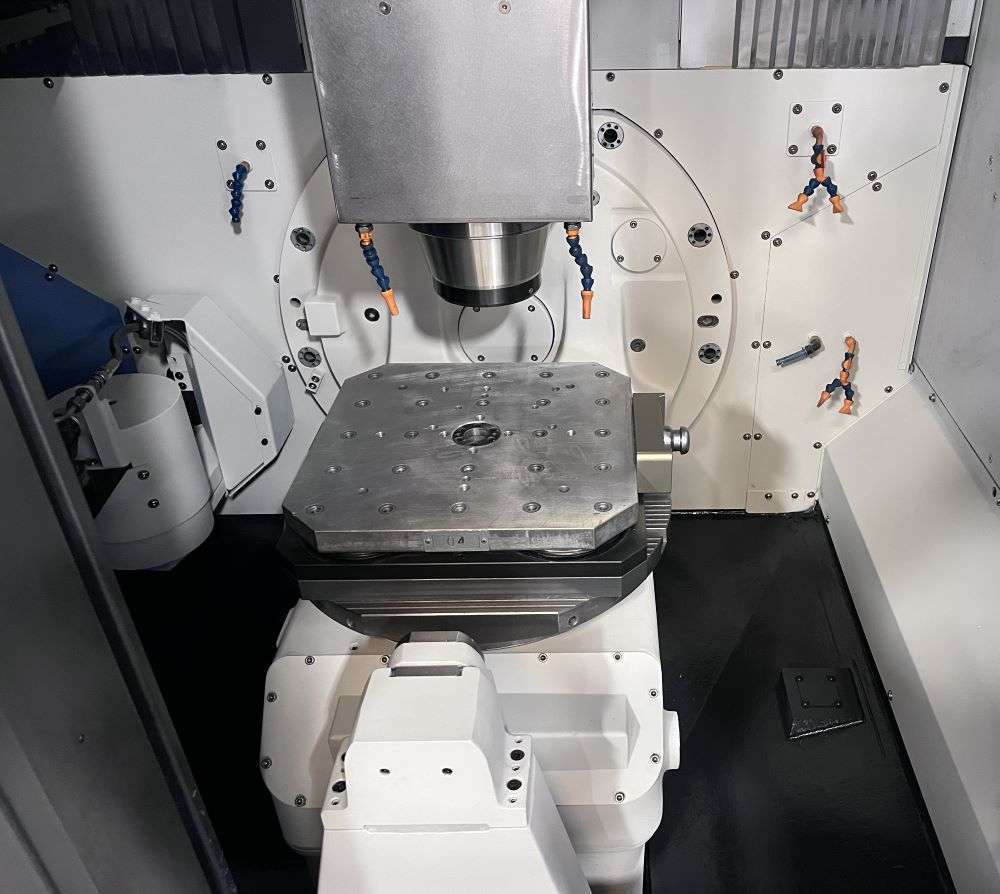

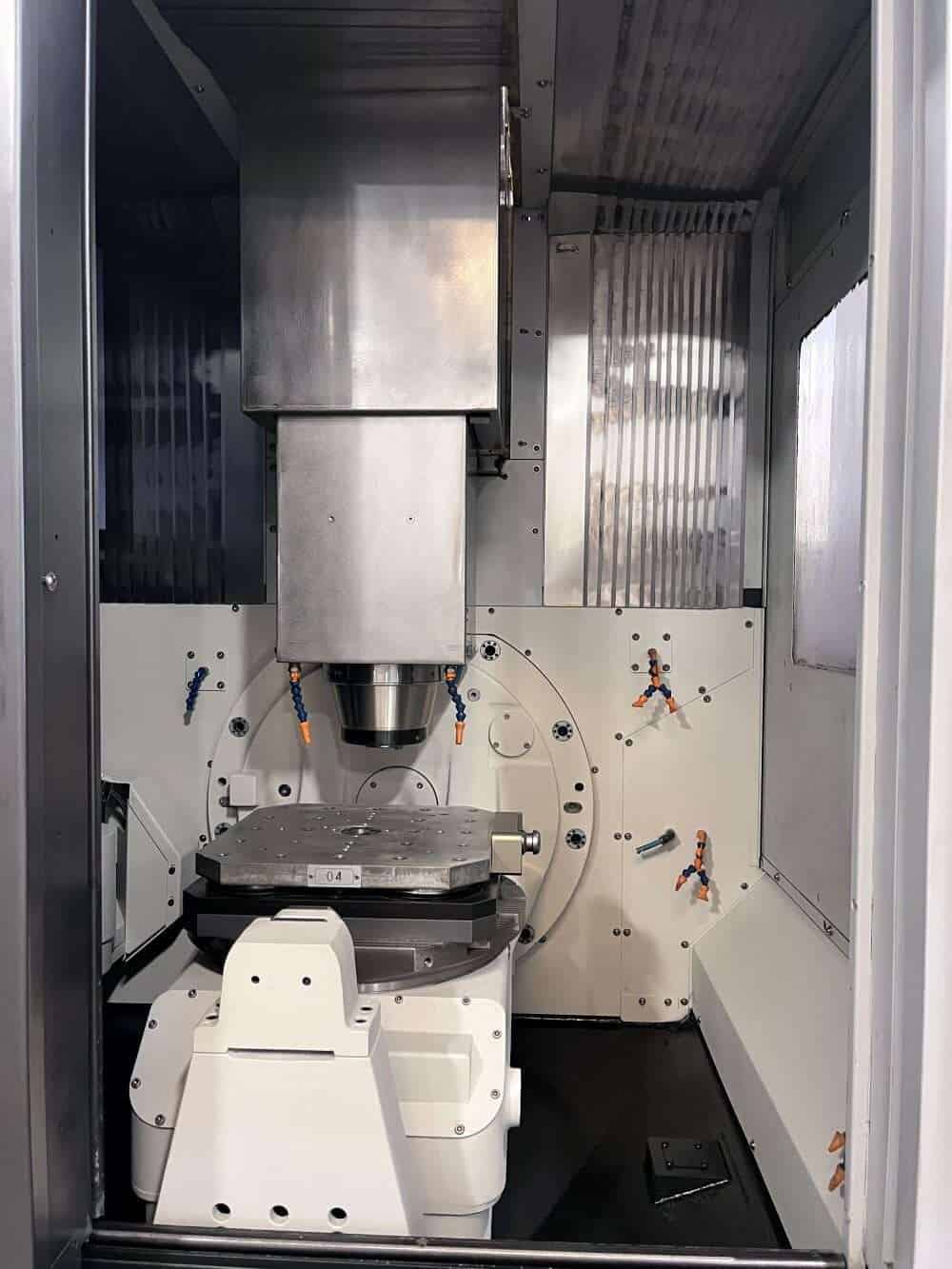

| ø 19.7″ Trunnion Table |

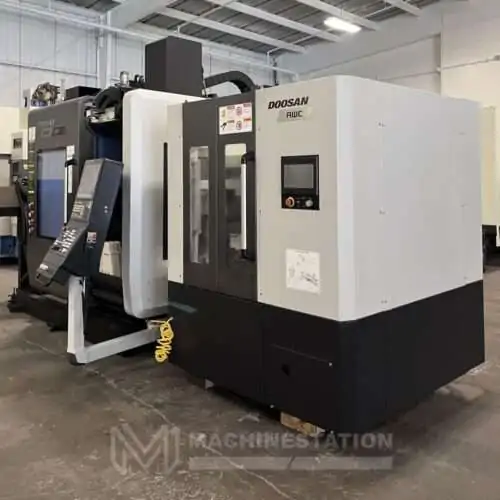

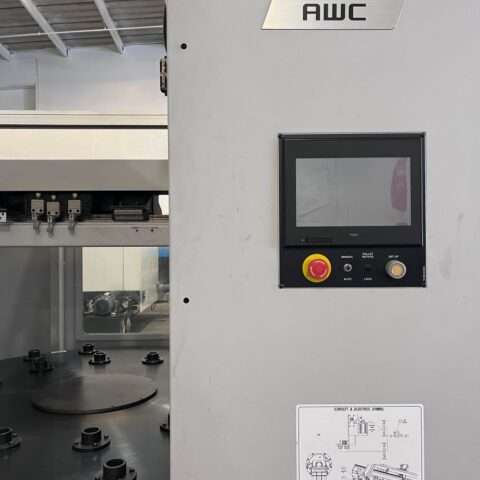

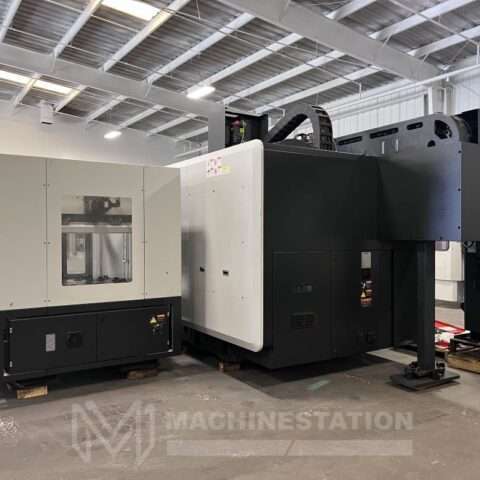

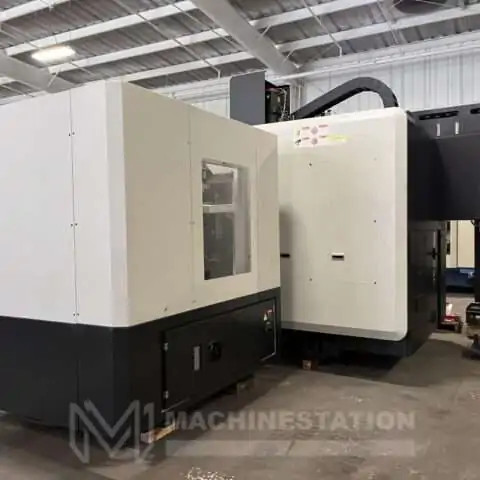

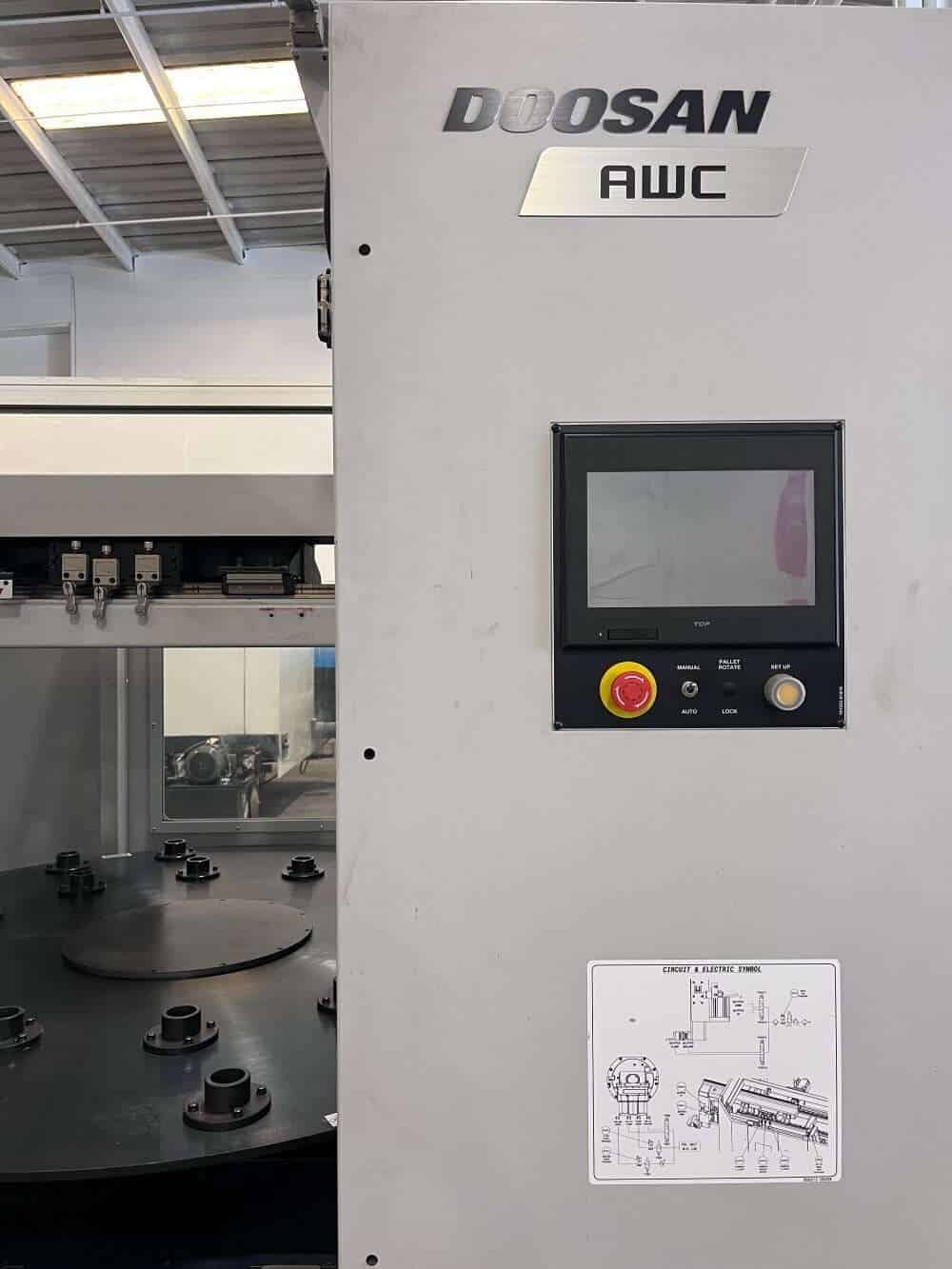

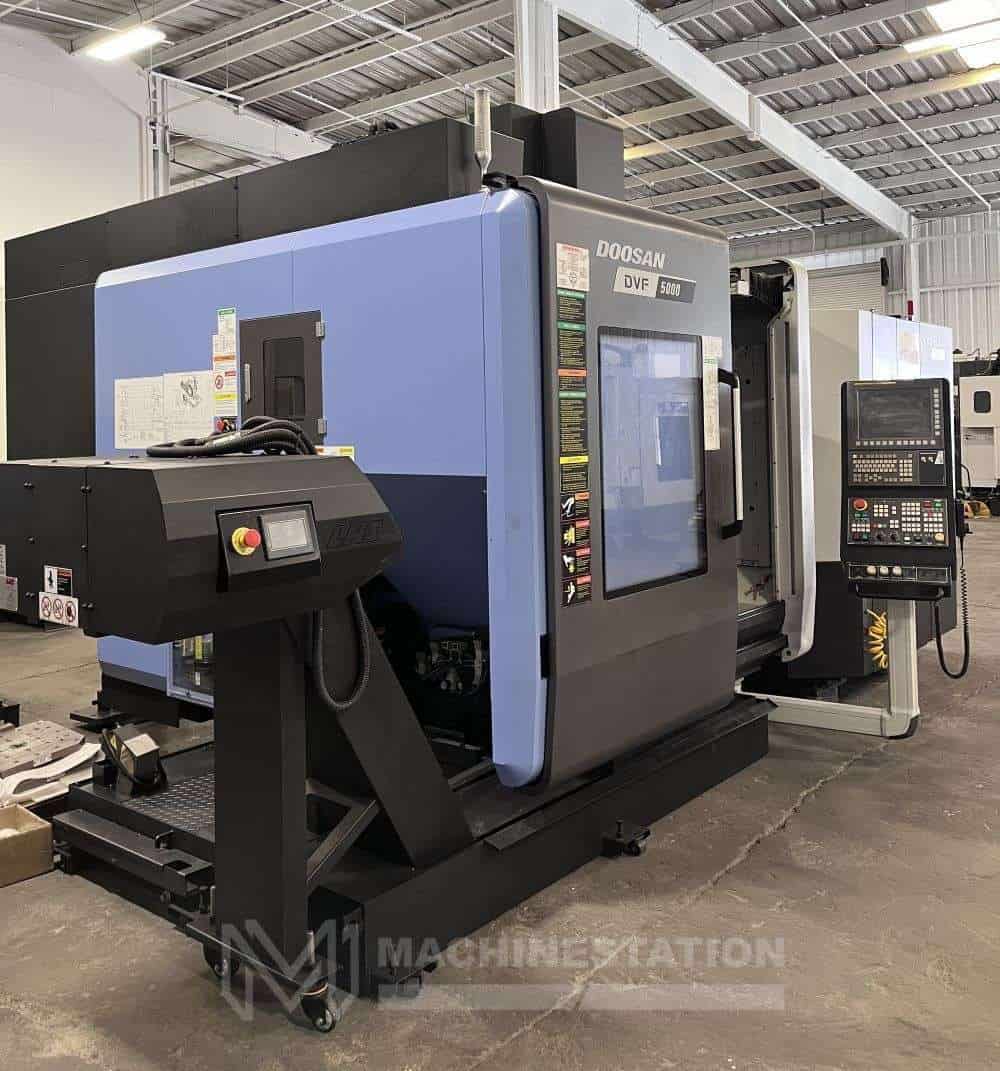

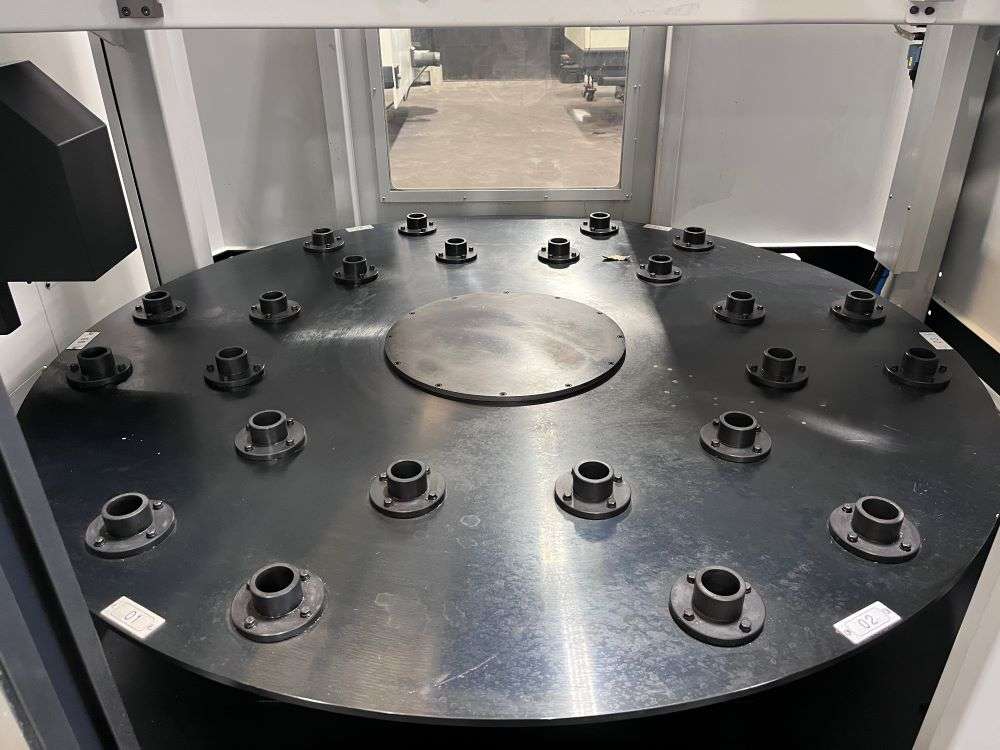

| 6 Automatic Workpiece Changer – AWC |
| 120 Station Automatic Tool Changer |
| 18,000 RPM High Speed Spindle |
| Coolant Through Spindle |

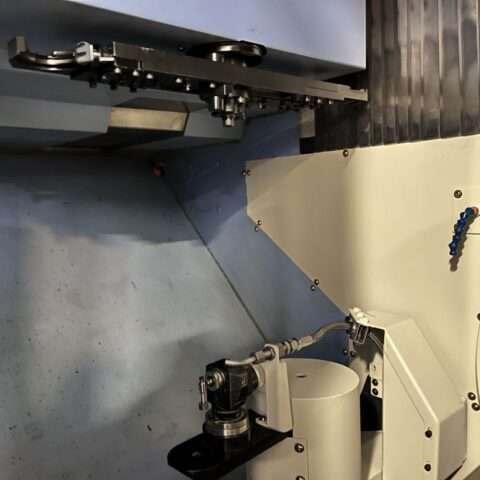

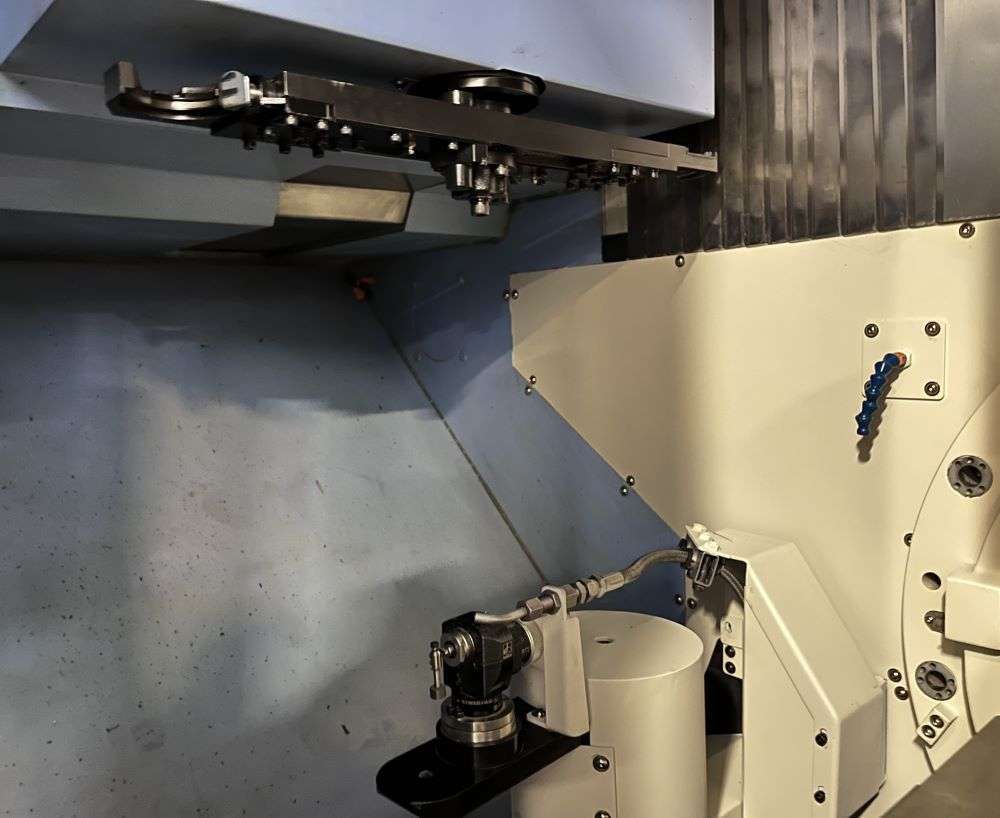

| Renishaw Probing System |
| Tool Presetter |

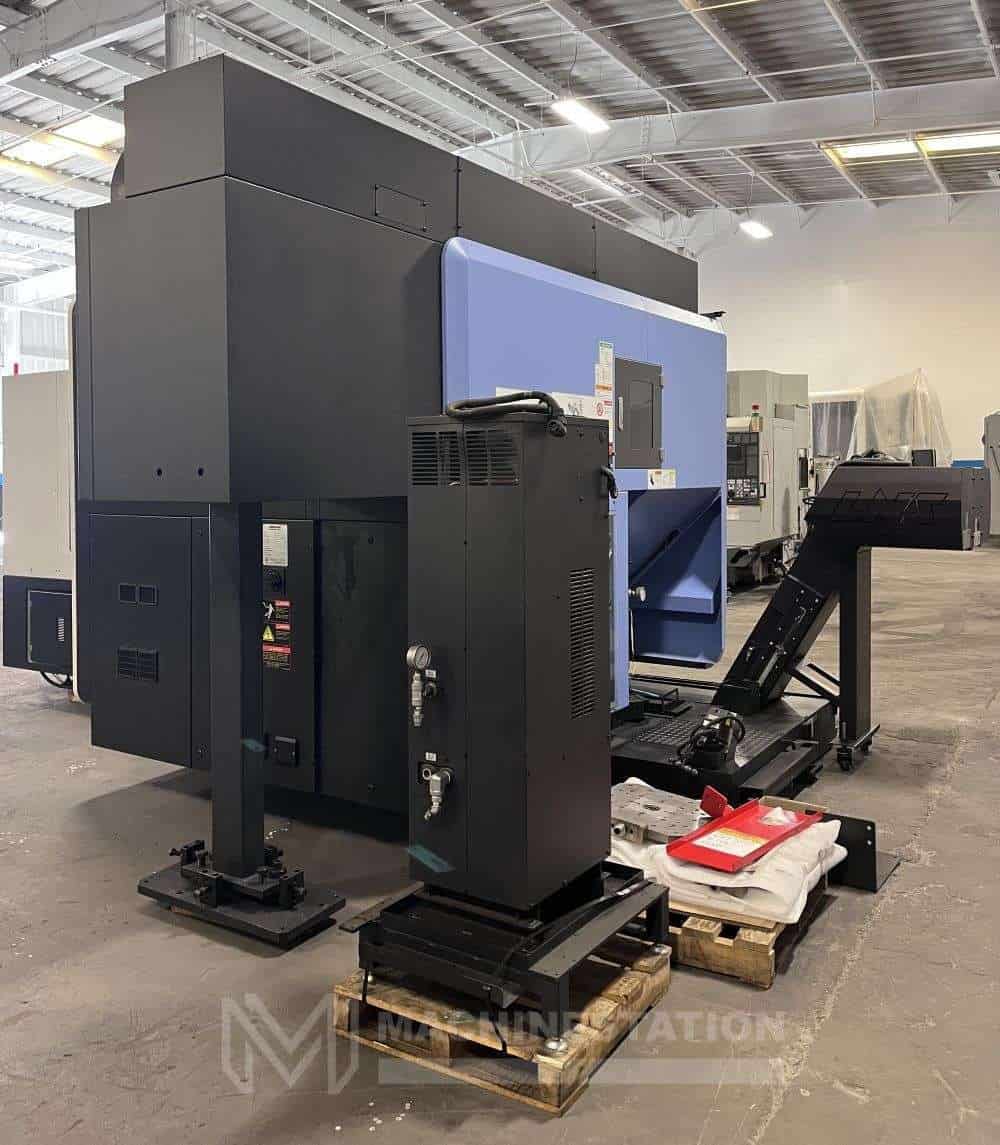

| Spindle Chiller Unit |
| PCMCIA Card Slot |
| Thermal Compensation |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Coolant System |

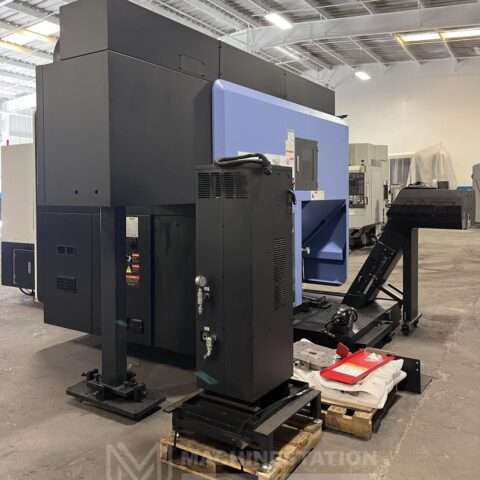

| LNS Chip Conveyor |
| Table: |
|---|
| Table size: ø 19.7″ |
| Max Part Diameter: 21.7″ |
| Max Part Height: 17.7″ |
| Max Weight on Table: 882 lbs |
| Travel: |
|---|
| X Axis: 24.6″ |
| Y Axis: 17.7″ |
| Z Axis: 15.7″ |
| B Axis: +110° -30° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Feed Rates: |
|---|
| Rapid X, Y, Z Axis: 1575 Inch Per Minute |
| Rapid B Axis : 20 RPM |
| Rapid C Axis : 20 RPM |
| Spindle: |
|---|
| Taper Size: Big Plus CAT-40 |
| Speed Range: 18,000 RPM |
| Spindle Power: 25 HP |
| Tool Changer: |
|---|
| Capacity: 120 Tools |
| Taper: Big Plus CAT-40 |
| Max Tool Diameter: 4.9″ |
| Max Tool Height: 11.8″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

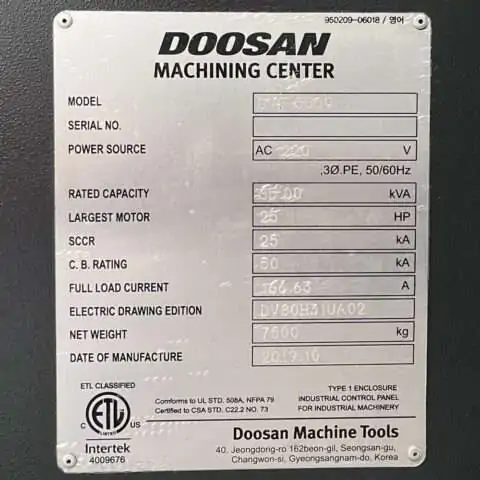

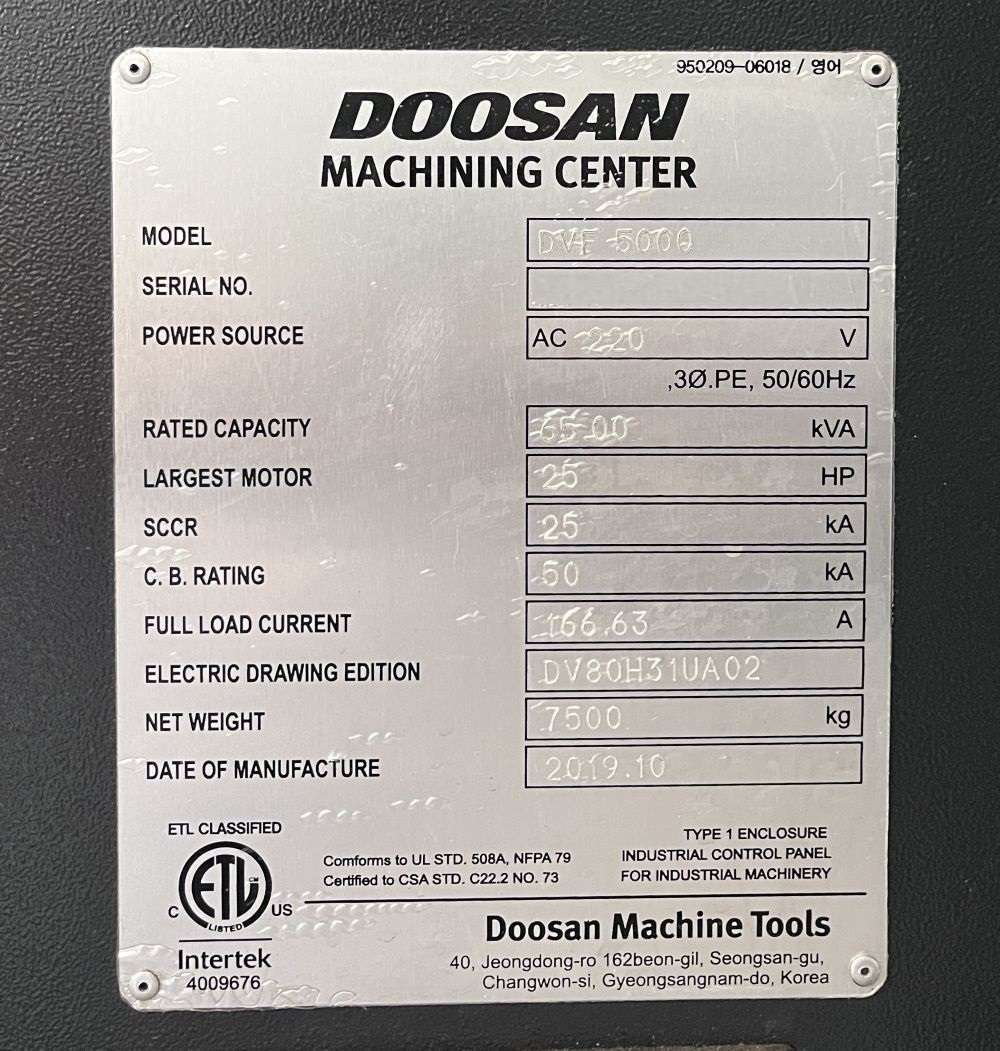

| Power: 65 kva / 220v / 3-Phase |
| Machine Dimensions: 114″ x 87″ x 114″ High (Without AWC) |
| Weight: 16,534 lbs (Without AWC) |
