Doosan HM 630 Horizontal Machining Center

$2,852.00

*Payment shown is based on 60 month Financing Terms. Please ask the Sales Manager for more details*

“On Our Floor, Fully powered/tested & in Good working condition.”

SKU:
2051
Categories: ,
Qty =

Product Description

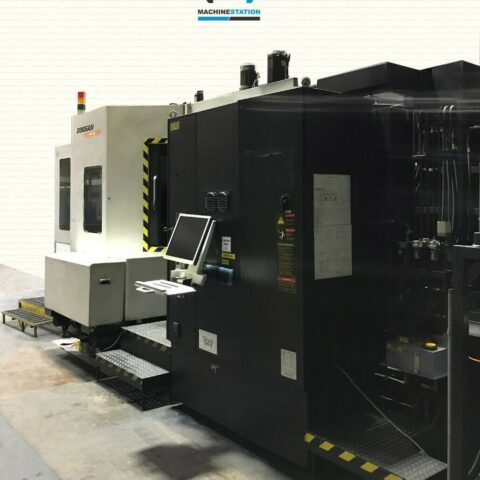

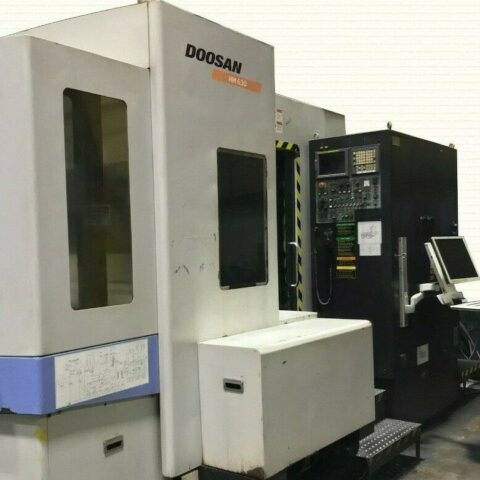

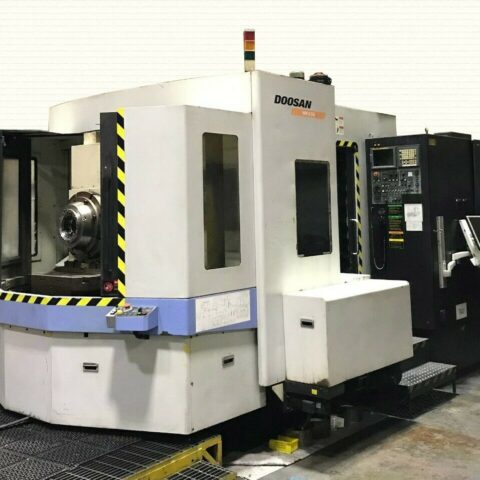

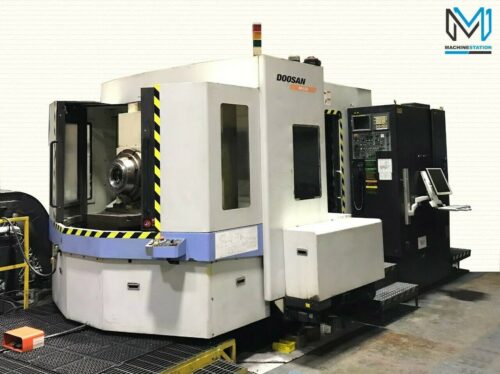

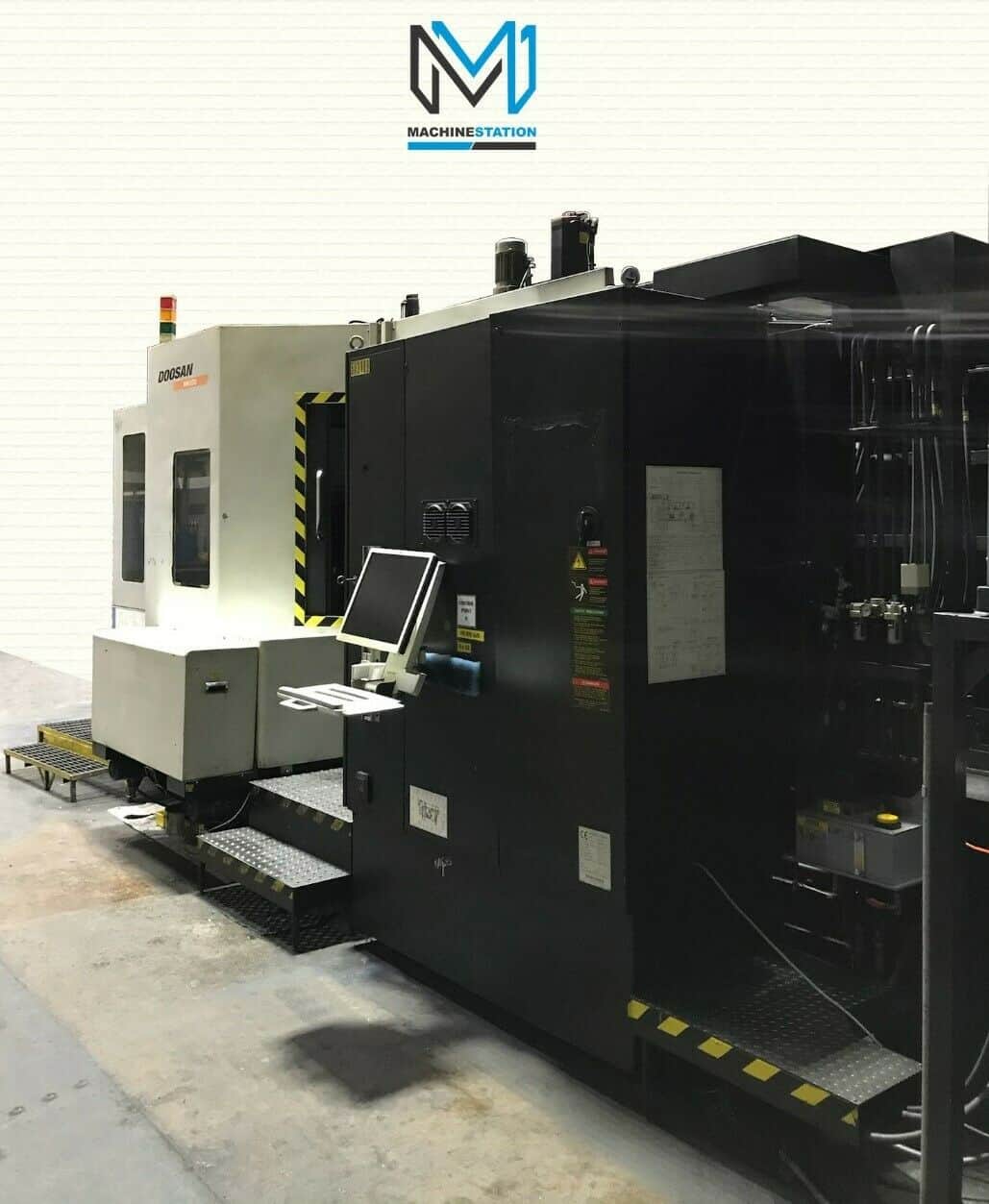

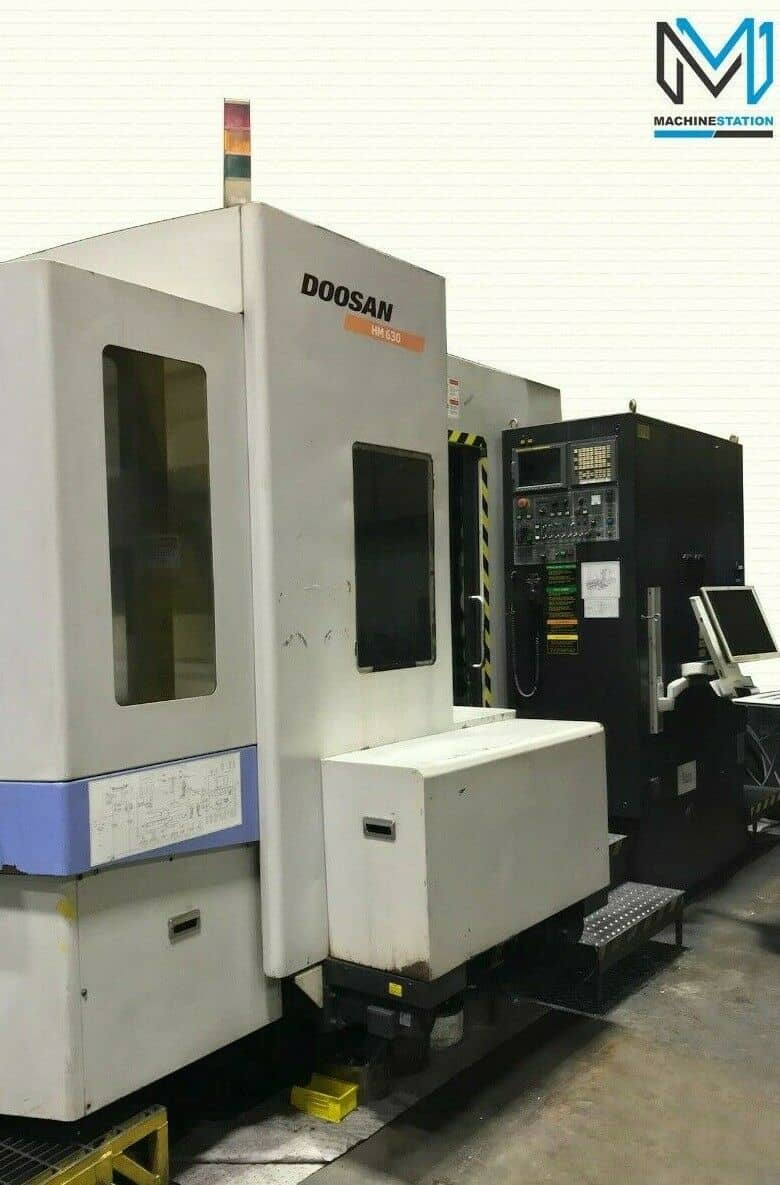

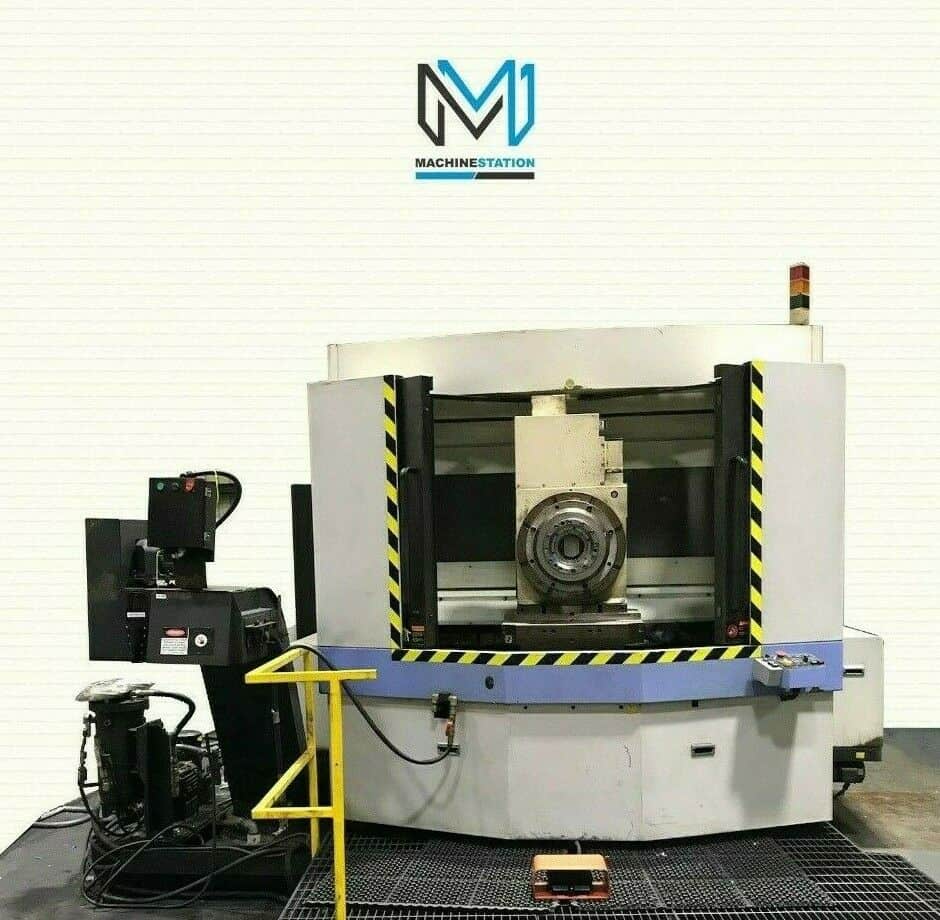

DOOSAN HM 630 HORIZONTAL MACHINING CENTER
SKU: 2051

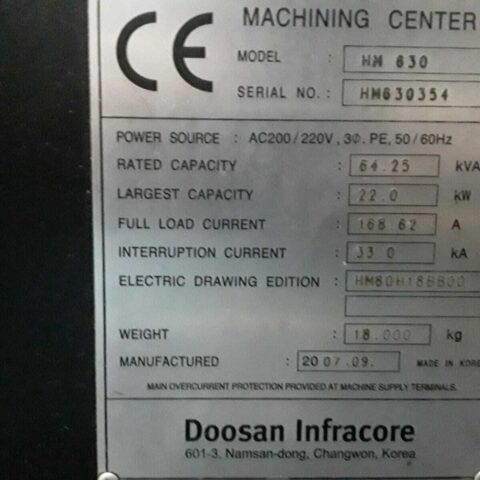

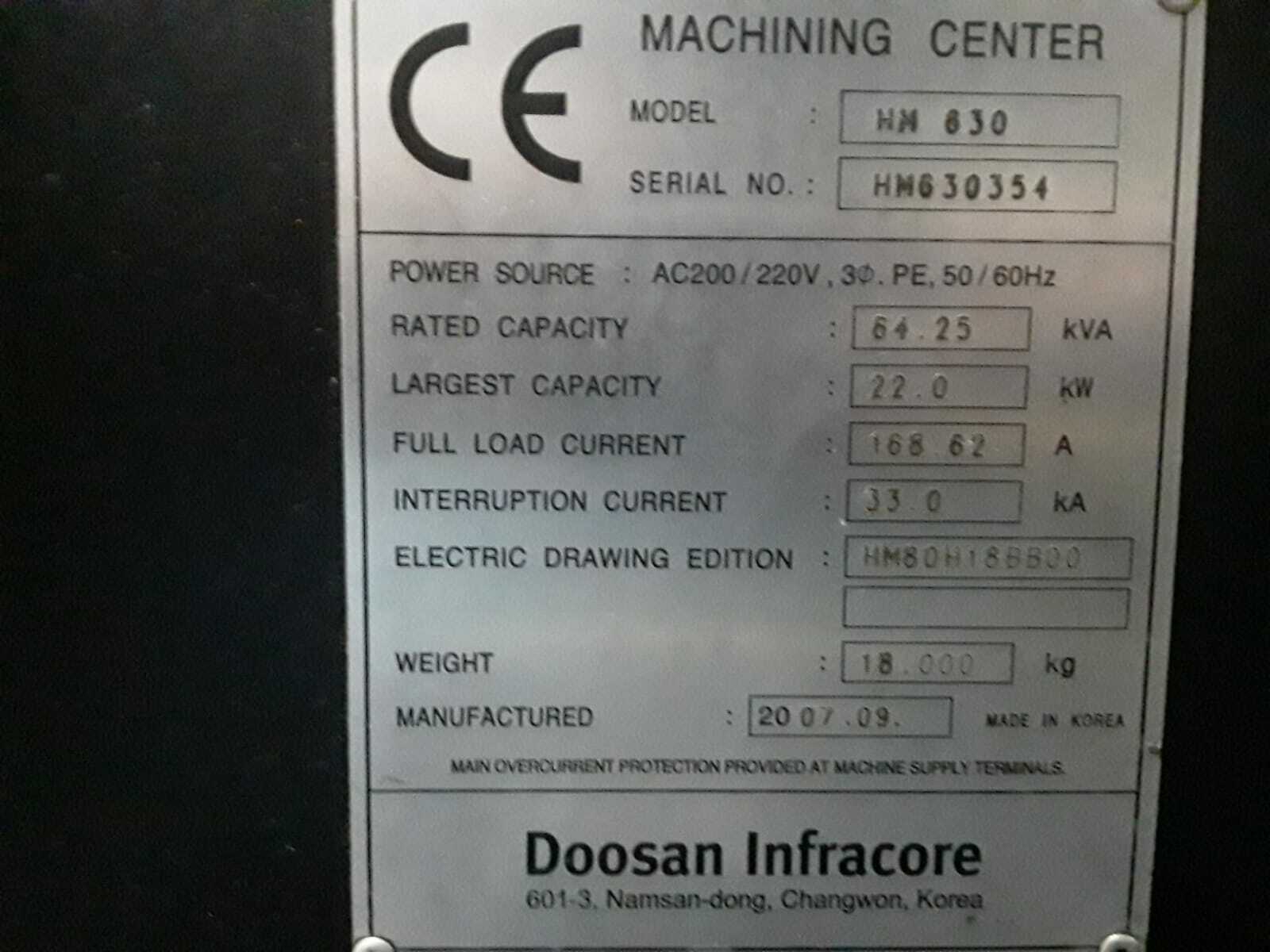

Make: DOOSAN
Model No.: HM-630
Serial #: HM630354
Year: 2007/09
Cutting Time: 32652 Hours
Condition: Very Good

All specifications are approximations, and are subject to verification.

“on our Floor now. Fully powered / tested & is in Great working condition.”

DOOSAN HM 630 Equipped With:

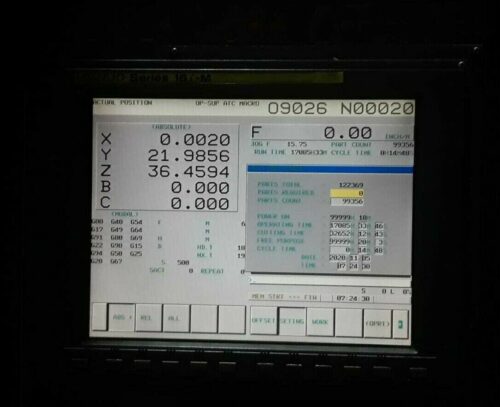

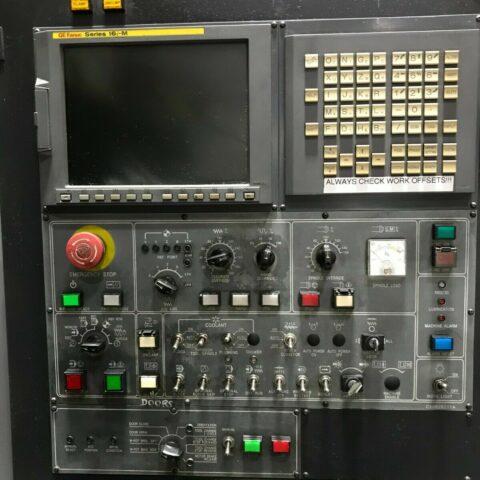

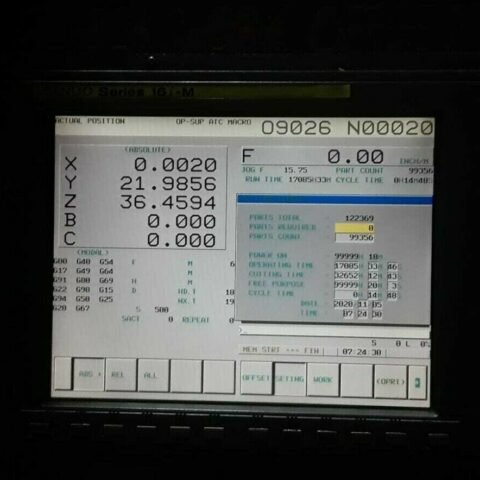

Fanuc 18-iM CNC Control ( Upgrade for 5th Axis )

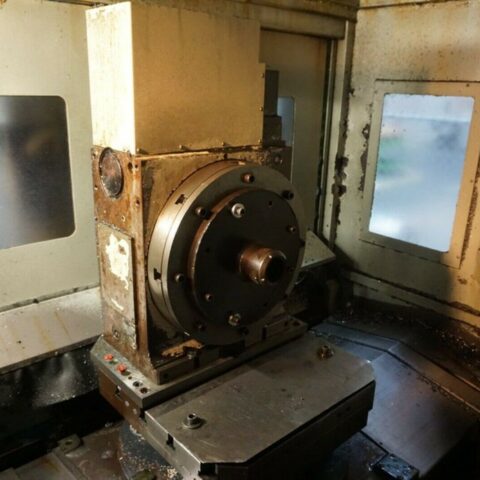

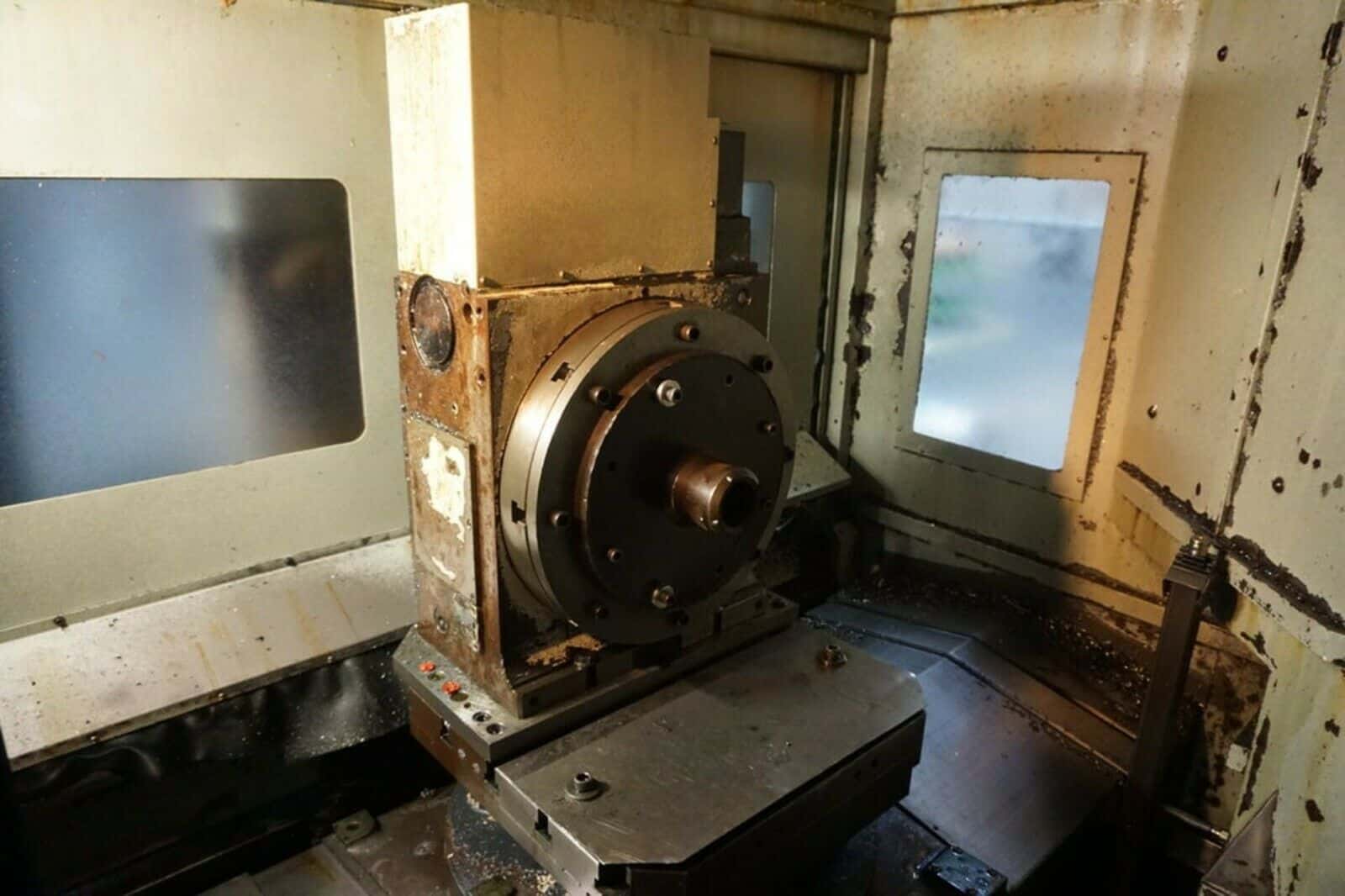

Full 4th & 5th Axis ( Upgrade )TSUDAKOMA RB-500 Rotary Table ( Included )
6,000 RPM High Torque Spindle
Through Spindle Coolant
Twin Pallet Changer

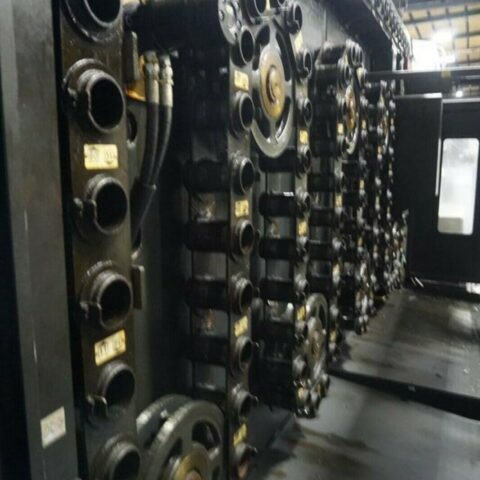

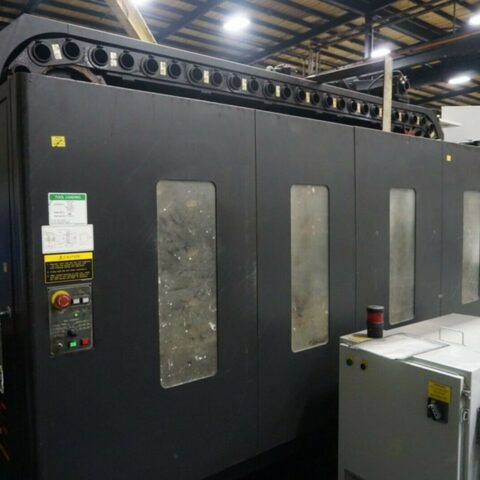

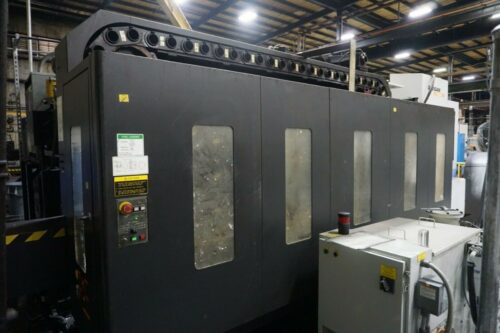

120 Station Tool Changer ( Upgrade )
Box Ways on the Axis
PCMCIA Card Interface
Upgraded Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Helical Interpolation
Fast Rapid Traverse Rate
Flood coolant with large coolant tank
Chip Blaster Unit
Chip Conveyor
Work light

Travels:
X Axis: 39.4″
Y Axis: 31.5″
Z Axis: 33.4″
B Axis: 0.001° ( Full 4th )
Spindle Nose to Table Center: 3.9″ – 43.3″
Spindle Center to Table Top: 2.9″ – 36.4″

Table:
Length: 24.8″
Width: 24.8″
Max Weight on Table: 2640 lbs
Max Workpiece Width X Height: 41.3″ X 53.1″
Index Time: 8.5 seconds

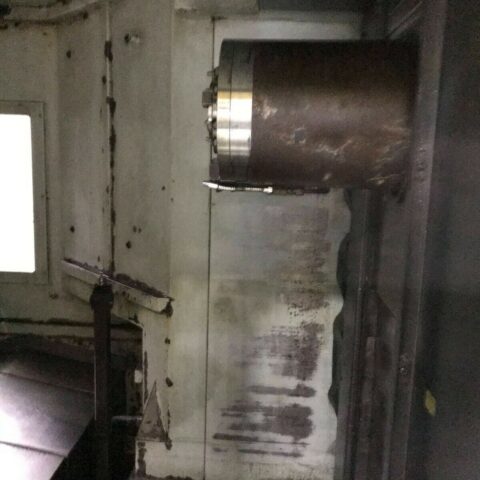

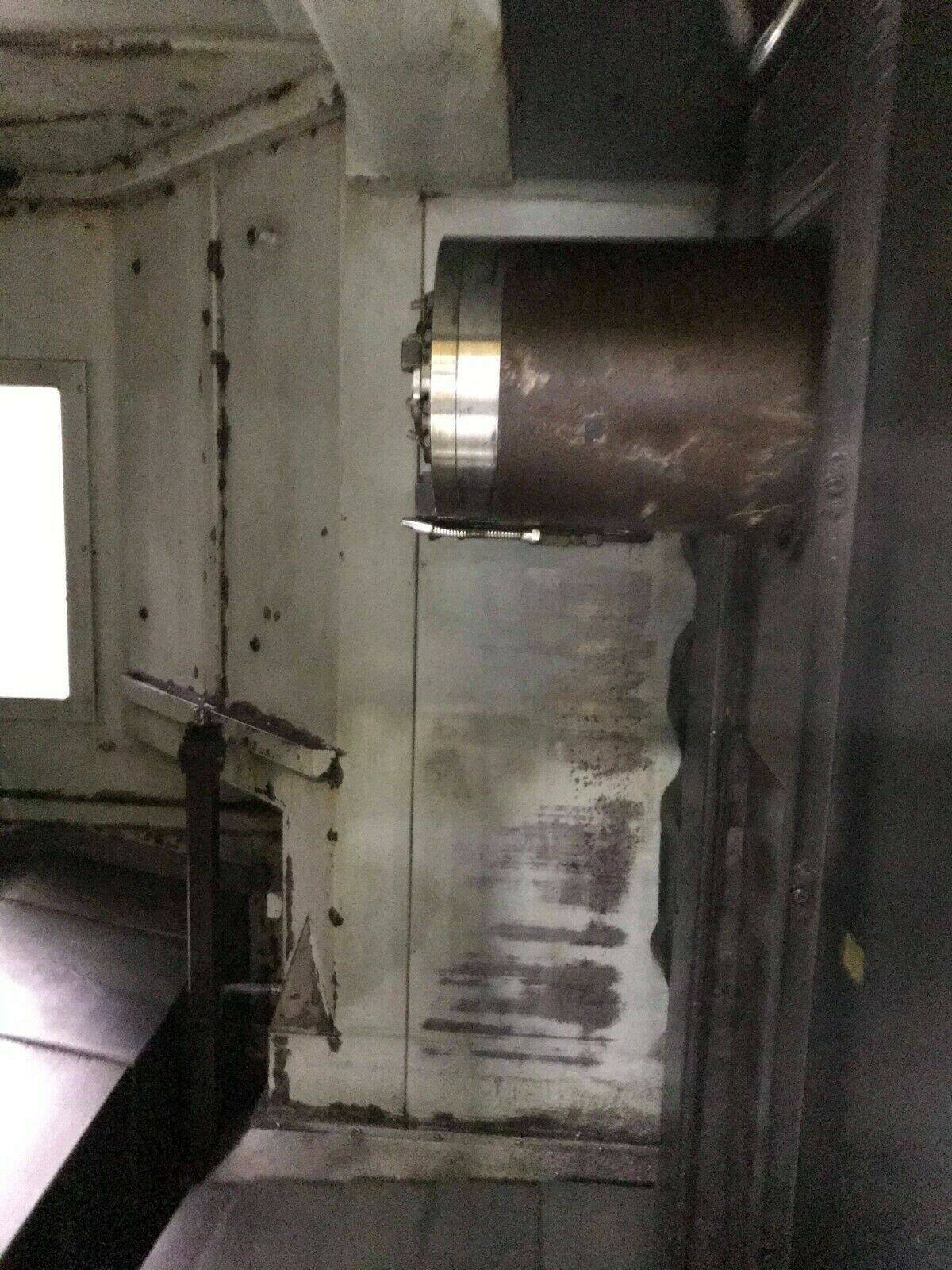

Spindle:
Taper Size: 50
Max. Speed: 6,000 RPM
Power: 50 HP
Torque: 1278 ft/lb

Feed rates:
Rapid X & Y : 1417 Inch Per Minute
Rapid Z : 1417 Inch Per Minute
Cutting Feedrate: 945 Inch Per Minute

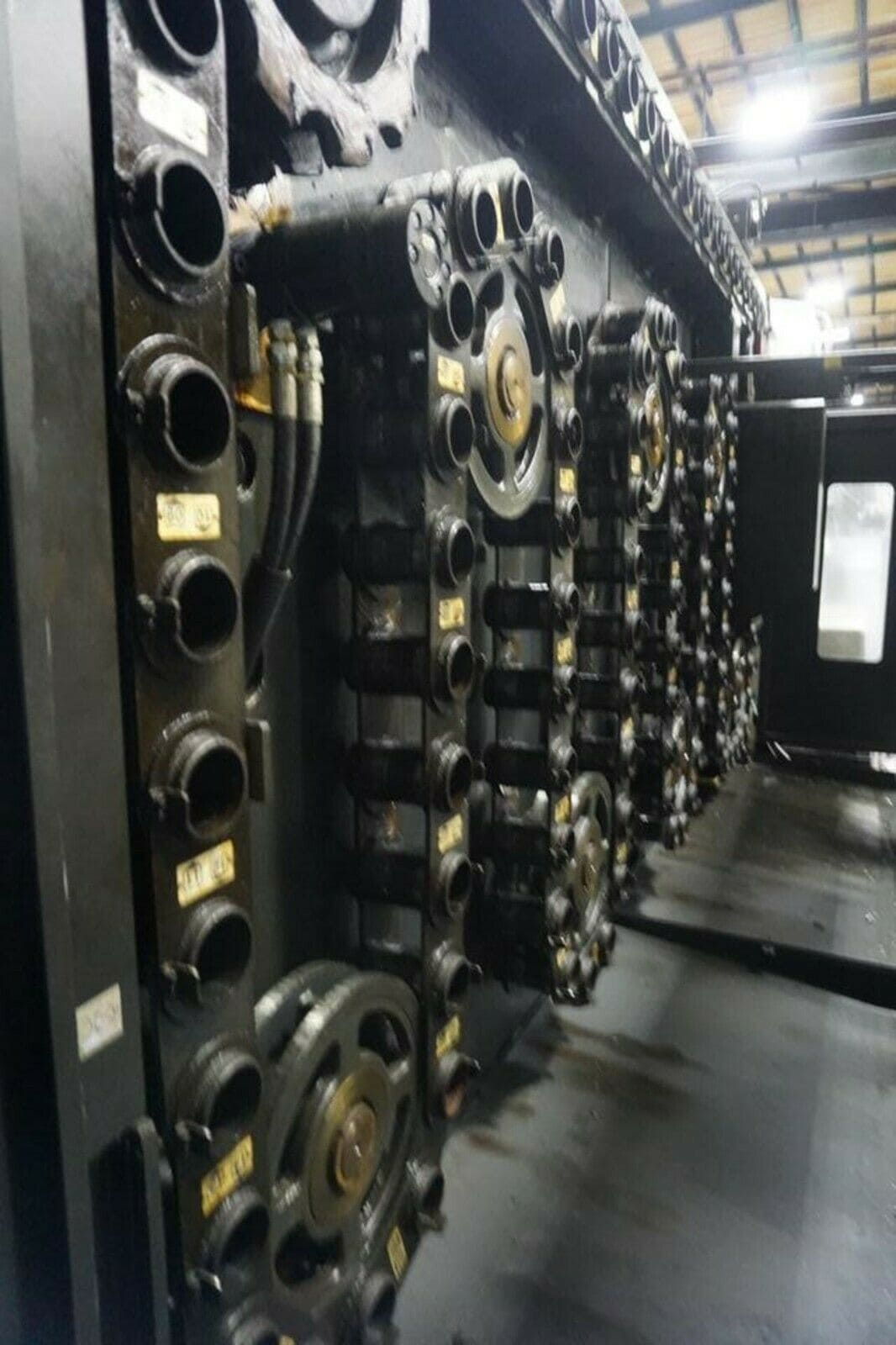

Tool changer:
Capacity: 120 Tools
Taper: 50
Max Tool Size: 12.6″
Max Tool Length: 24.8″
Max Tool Weight: 66.5 lbs.
Tool Change Time: 2 Second

General:
Air Required: 90 psi, 4 scfm
Power: 75kva / 480v / 3-Phase
Overall Dimensions: 270″ X 144″ x 130″ High ?
Weight: 41,000 lbs

“No Charges for loading at list Price”

Comes as shown in pictures..
