*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

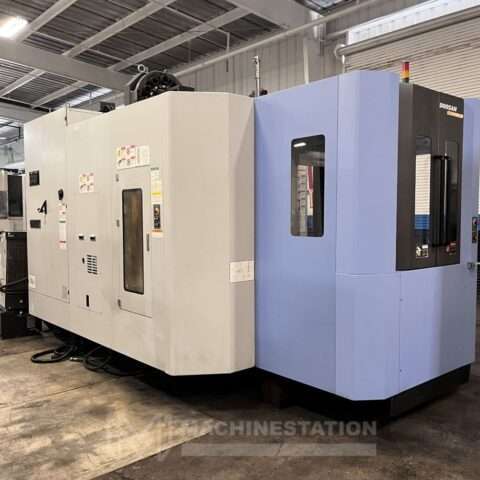

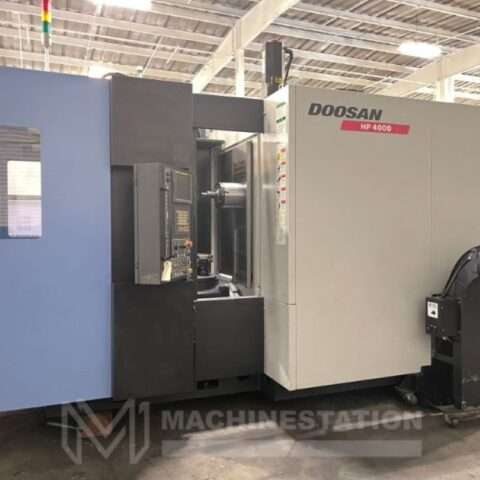

| Make: |

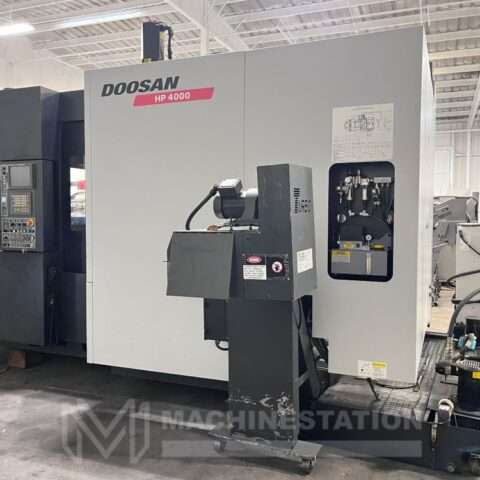

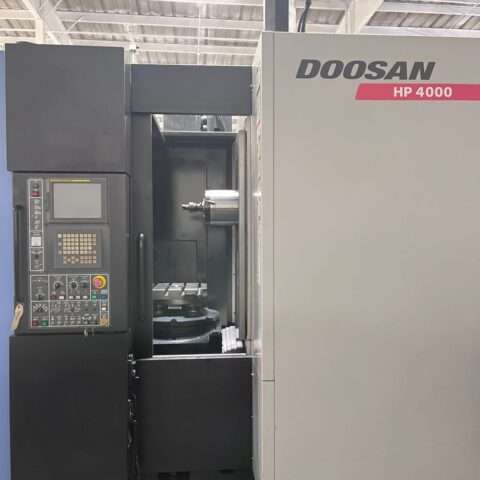

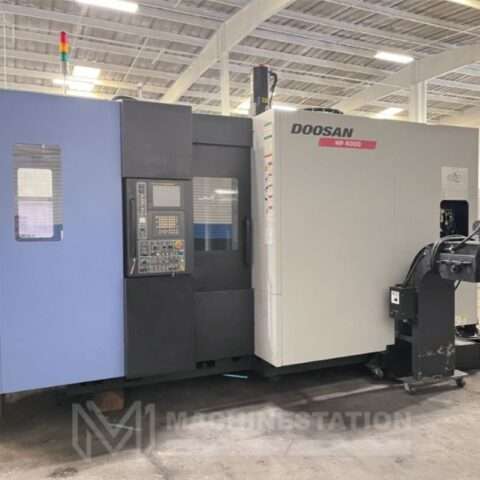

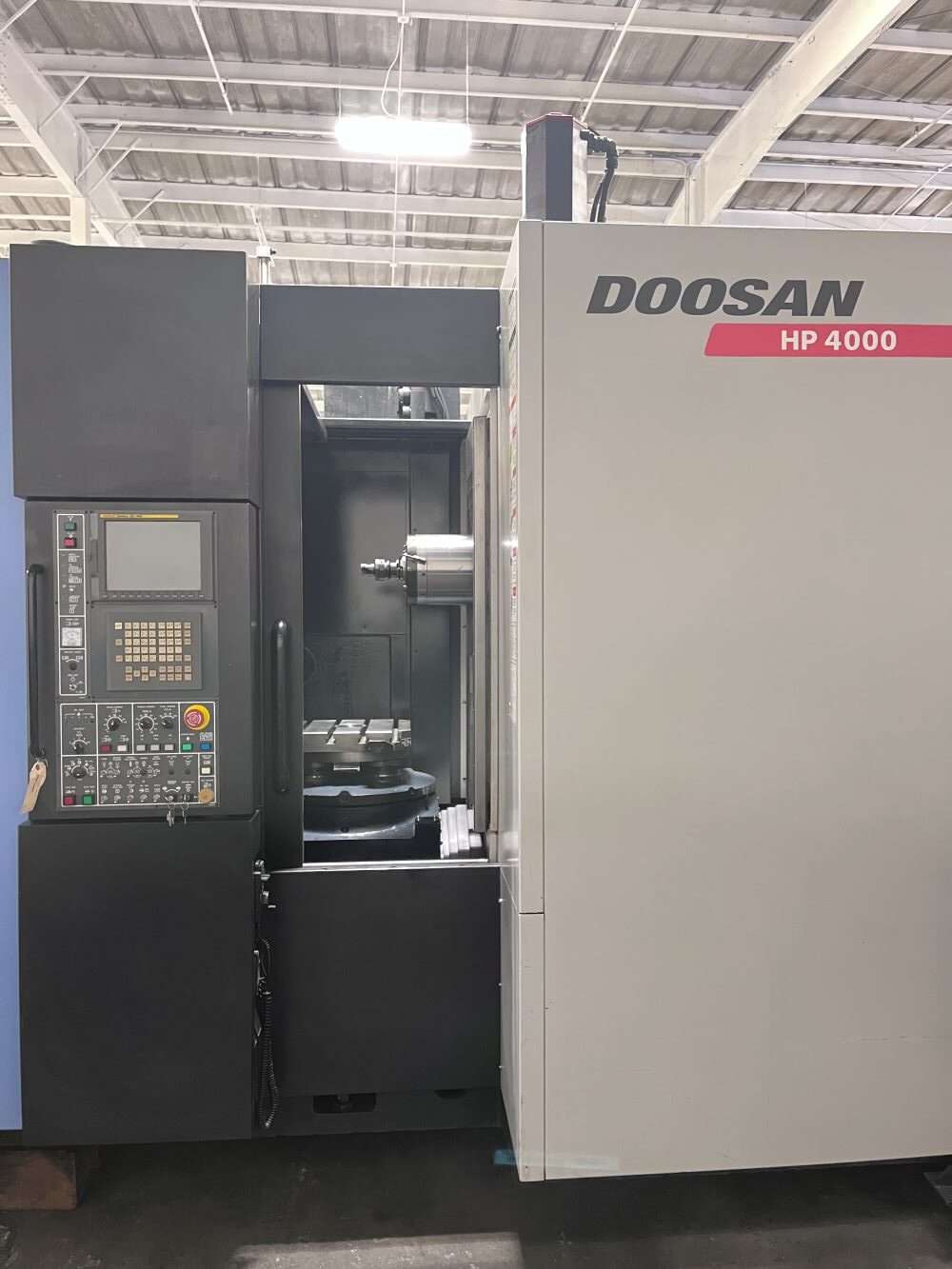

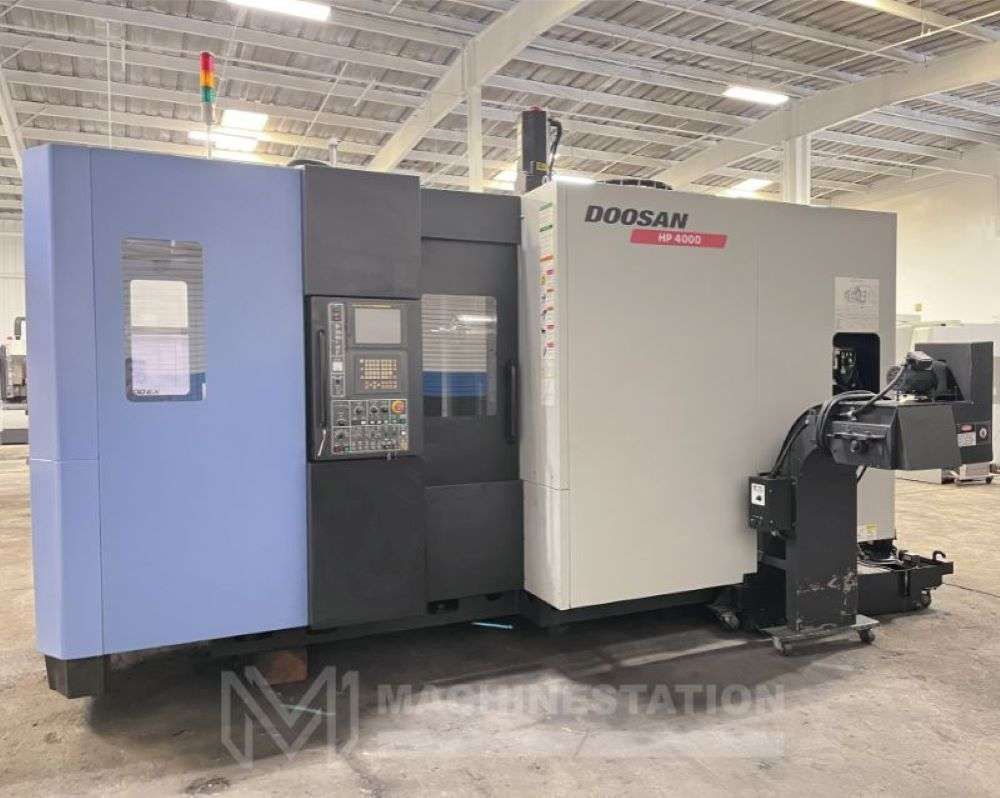

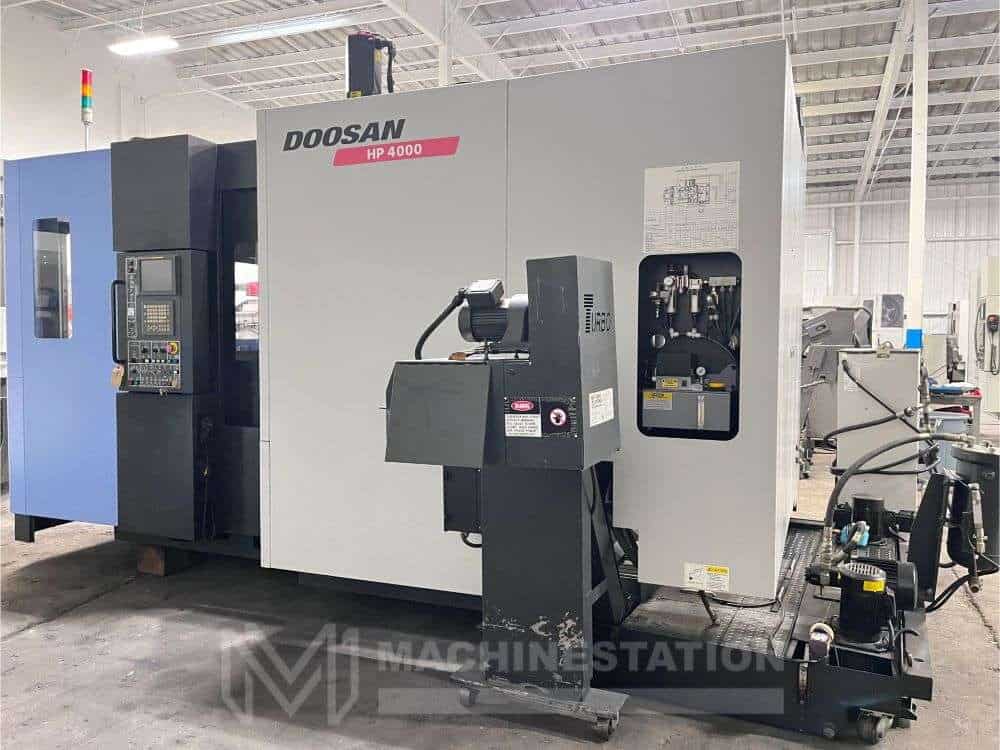

Doosan |
| Model: |
HP-4000 |
| Year: |
2007 |
| Condition: |
Used – Good |
| Features: |

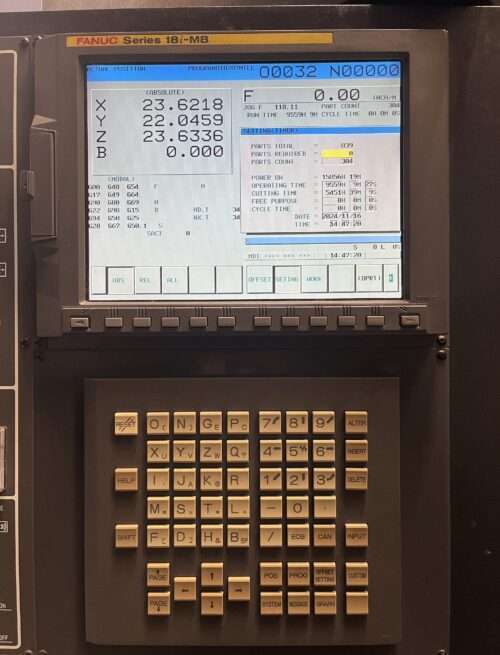

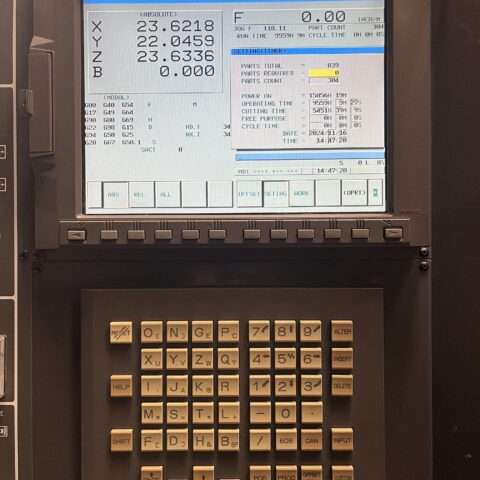

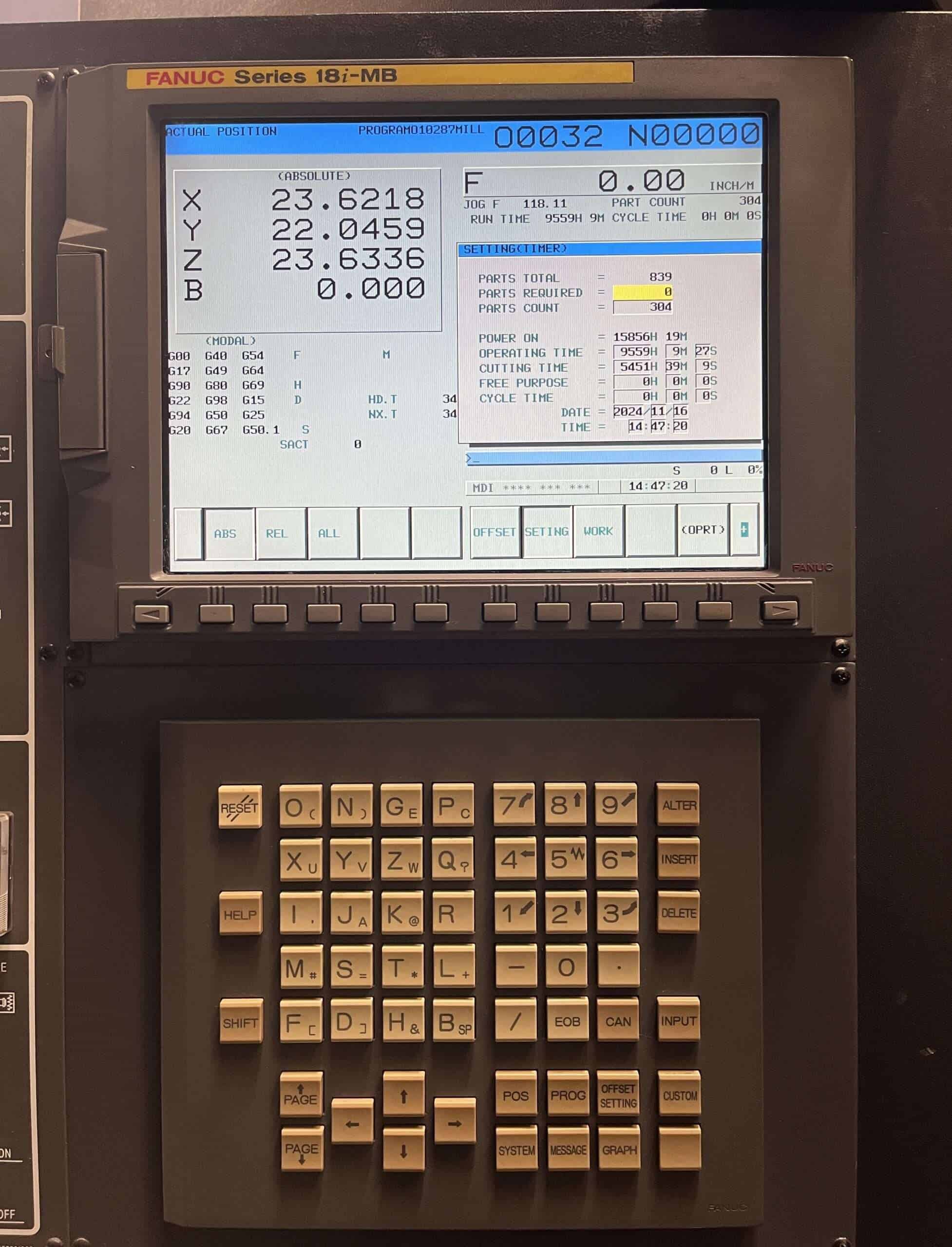

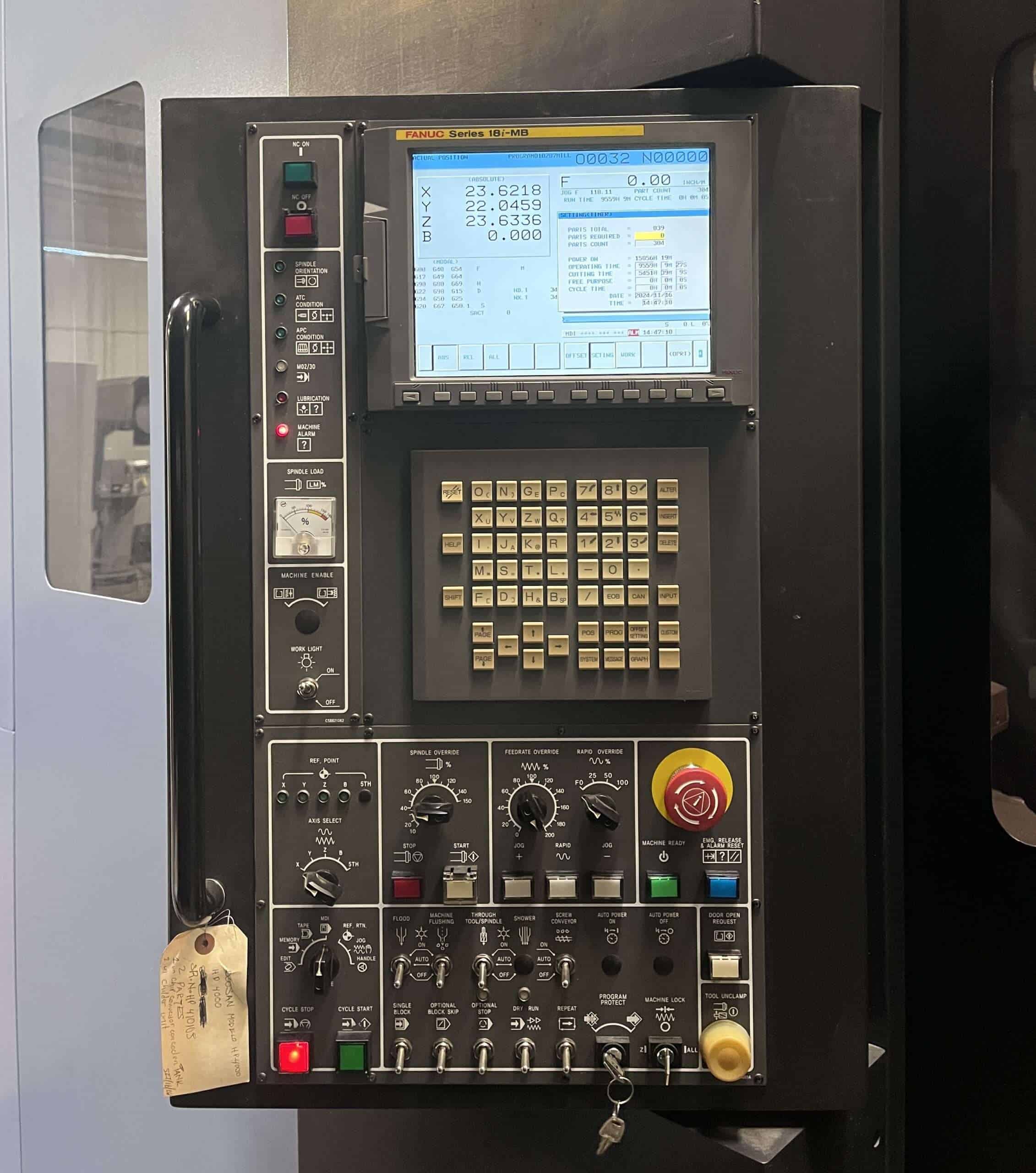

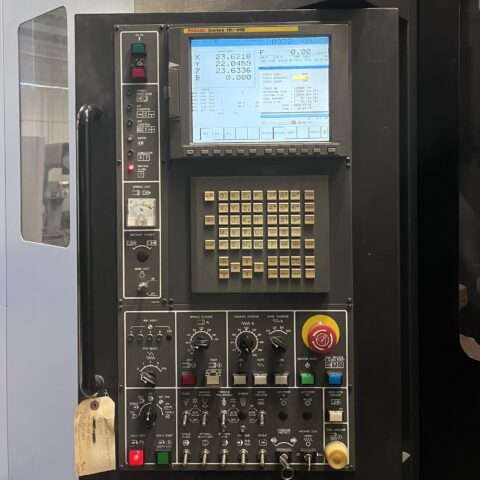

- Fanuc 18i-MB CNC Control
- Full 4th Axis

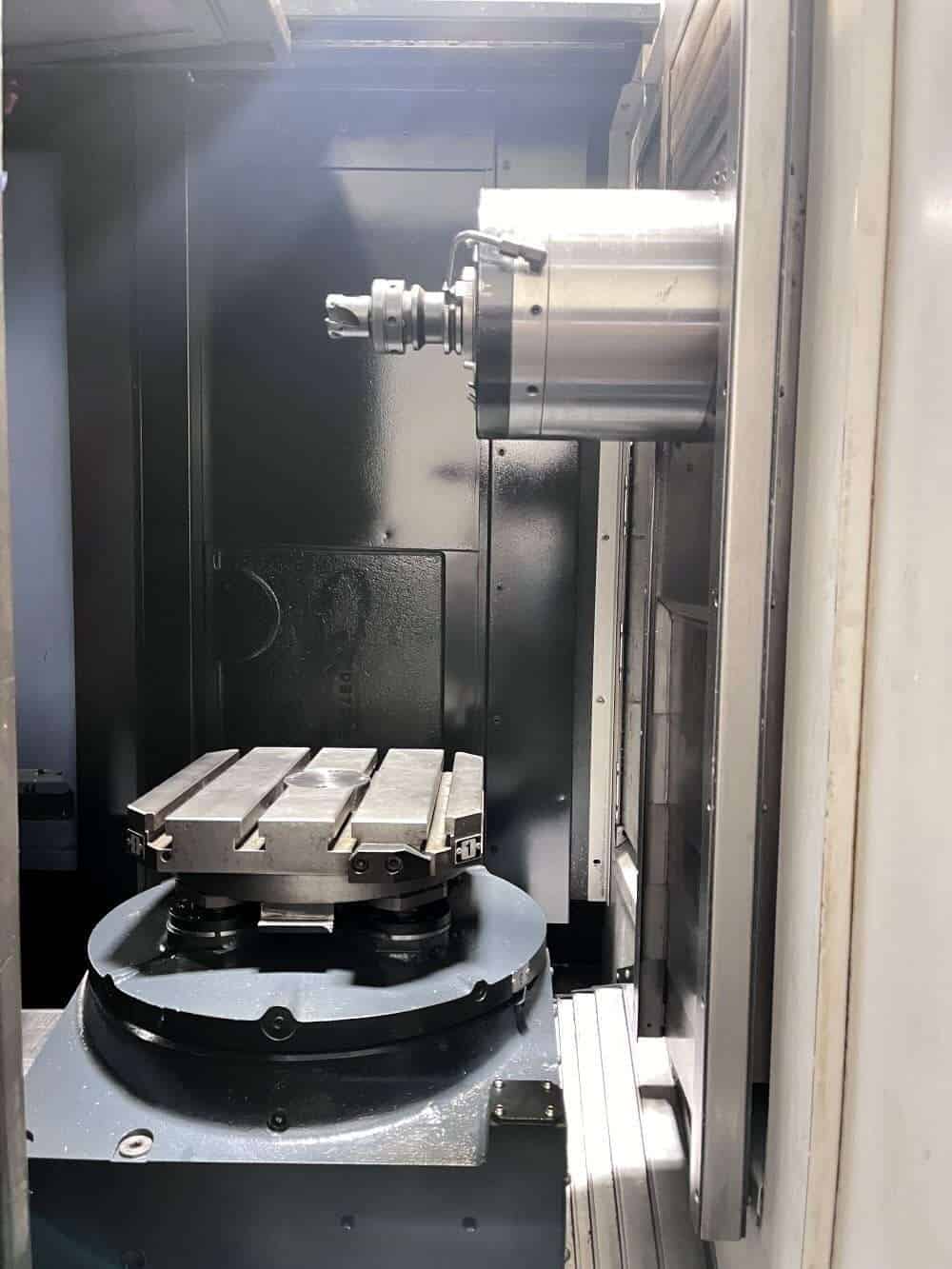

- 14,000 RPM High Precision Spindle

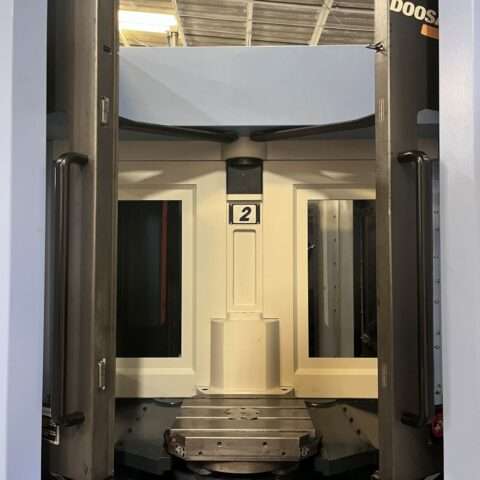

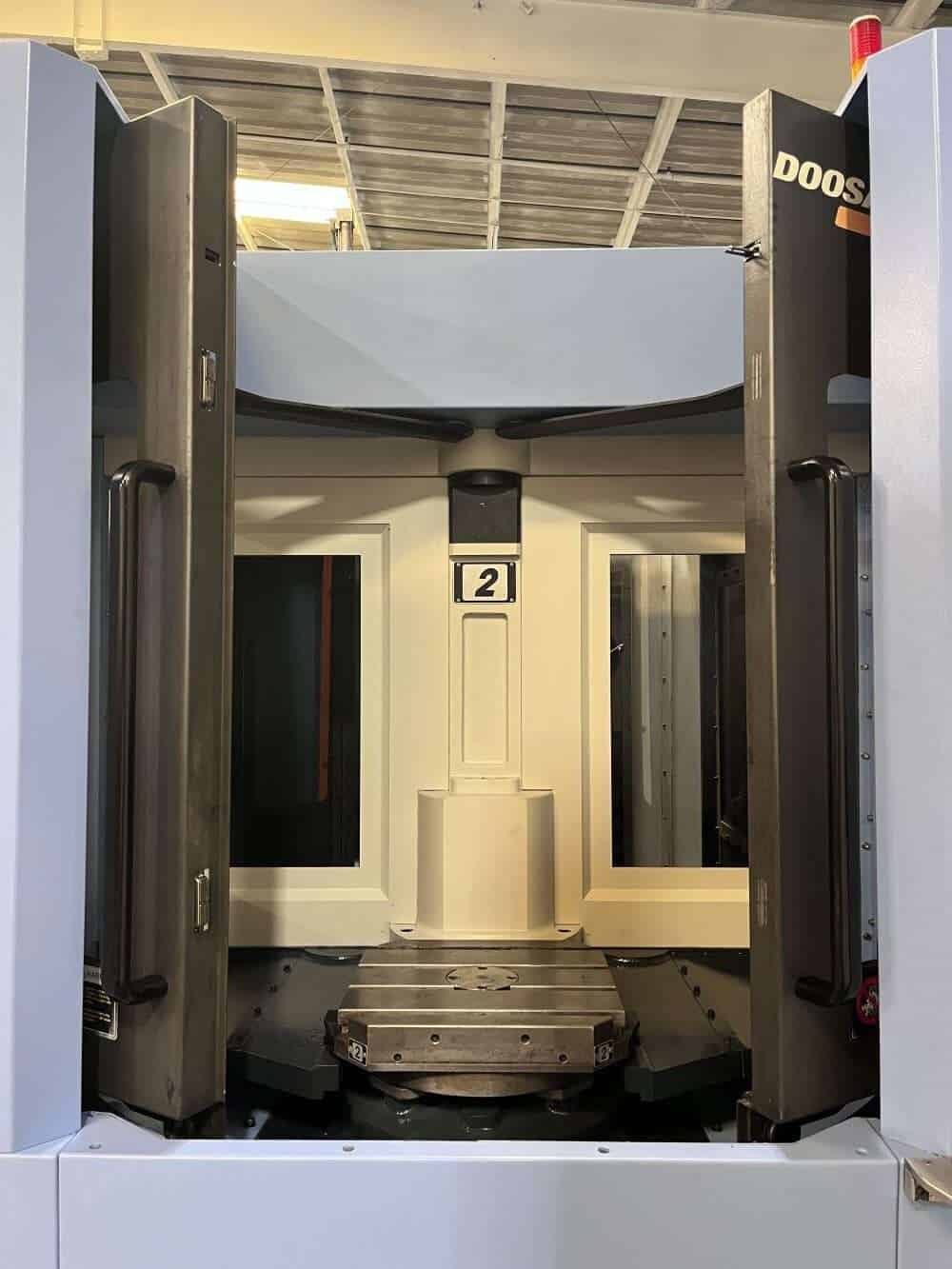

- Twin Pallet Changer

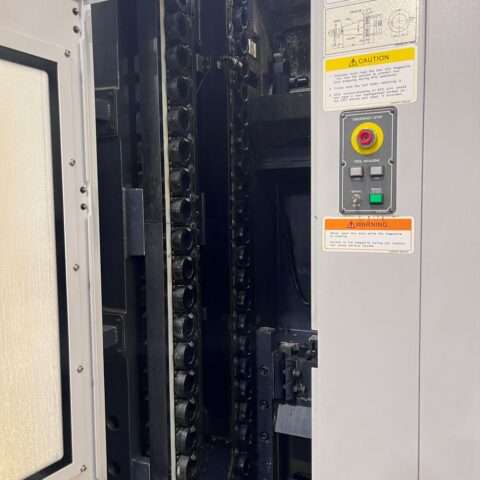

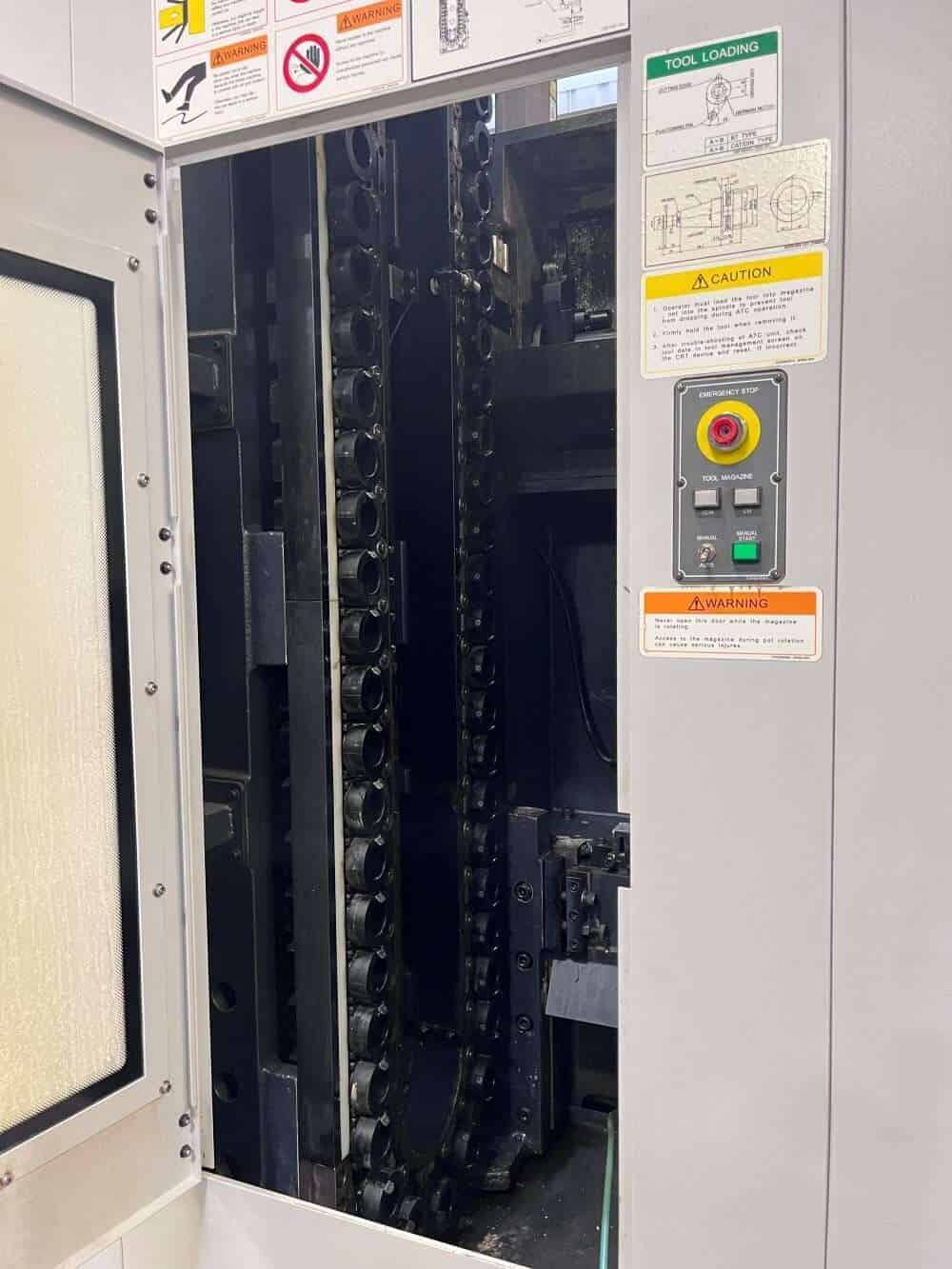

- 60 Station Automatic Tool Changer

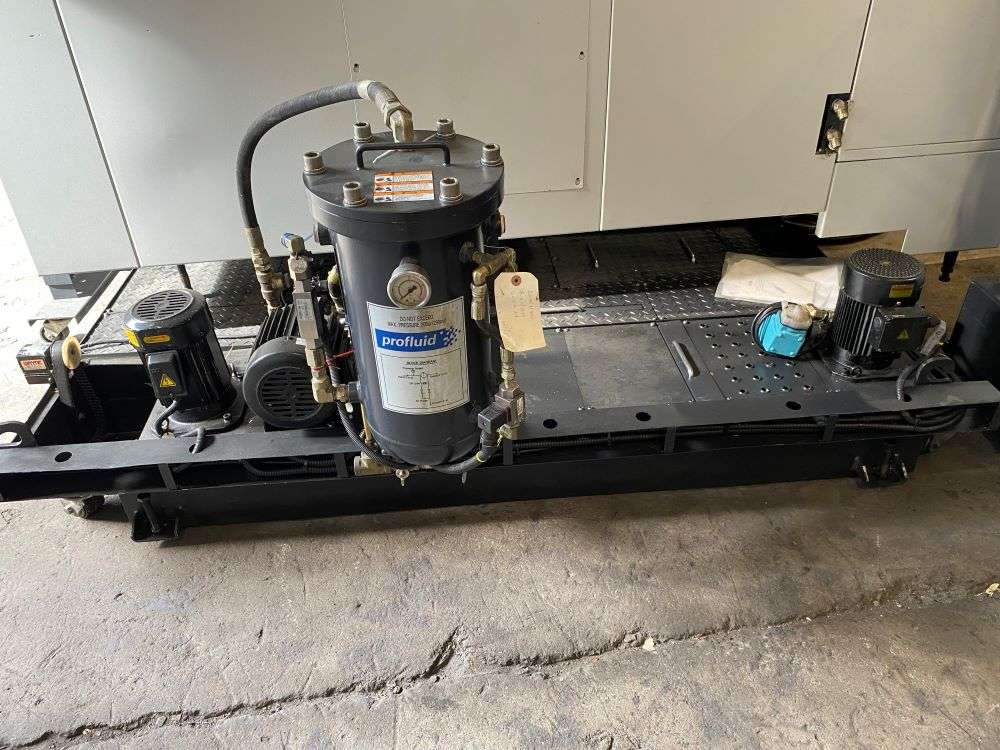

- Through Spindle Coolant
- High Speed Machining
- Pallet Seat Detection
- Spindle Orientation
- Rigid Tapping
- PCMCIA Card Slot
- Fast Rapid Traverse Rate

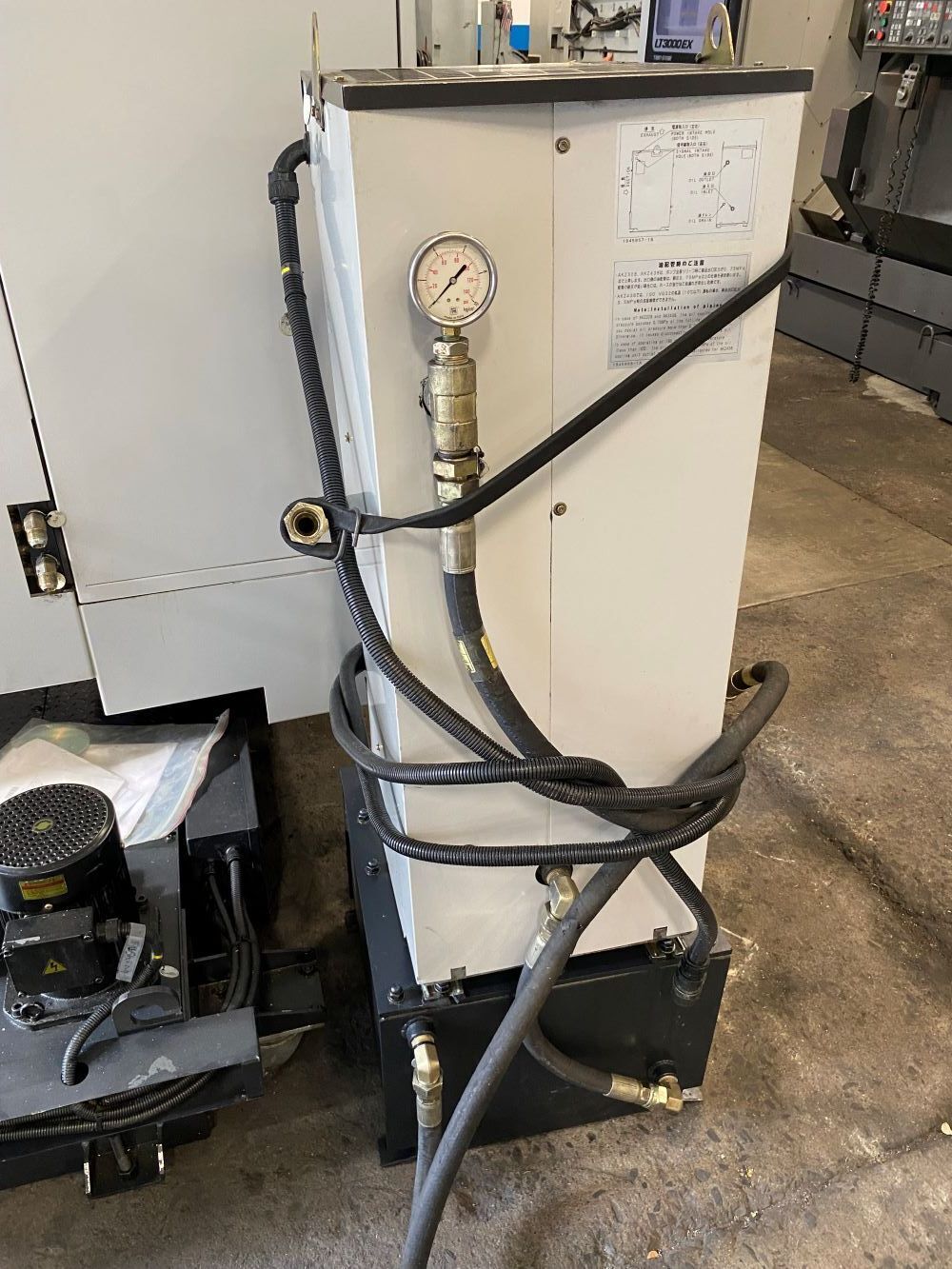

- Spindle Chiller

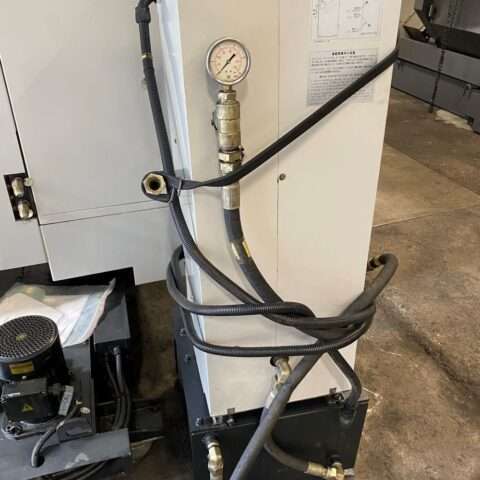

- Coolant System
- Chip Conveyor
- Books & Manuals
|
| Travels: |
- X Axis: 23.6″
- Y Axis: 22.0″
- Z Axis: 23.6″
- B Axis: 0.001° ( Full 4th )
|

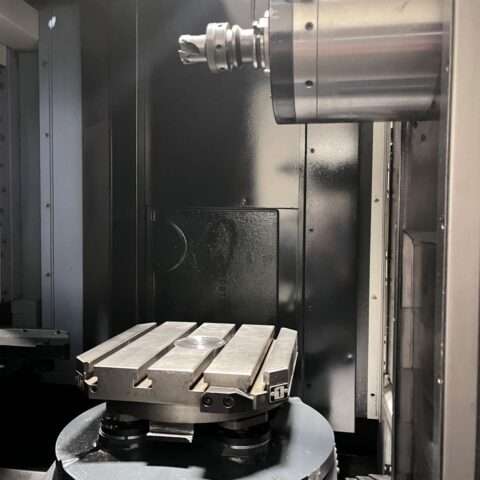

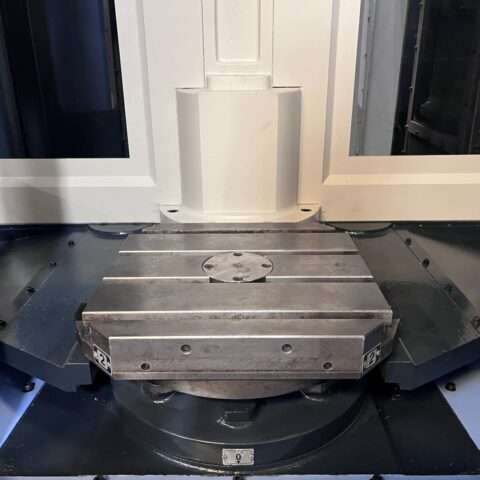

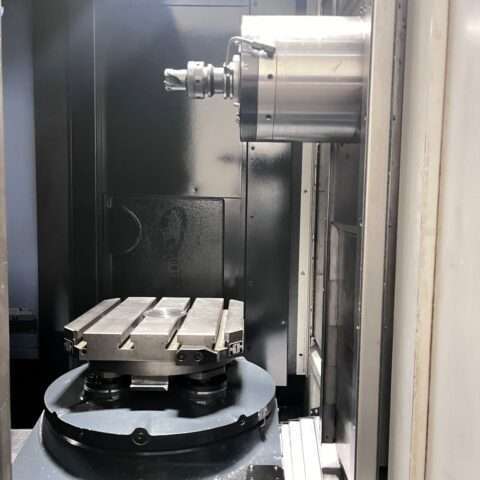

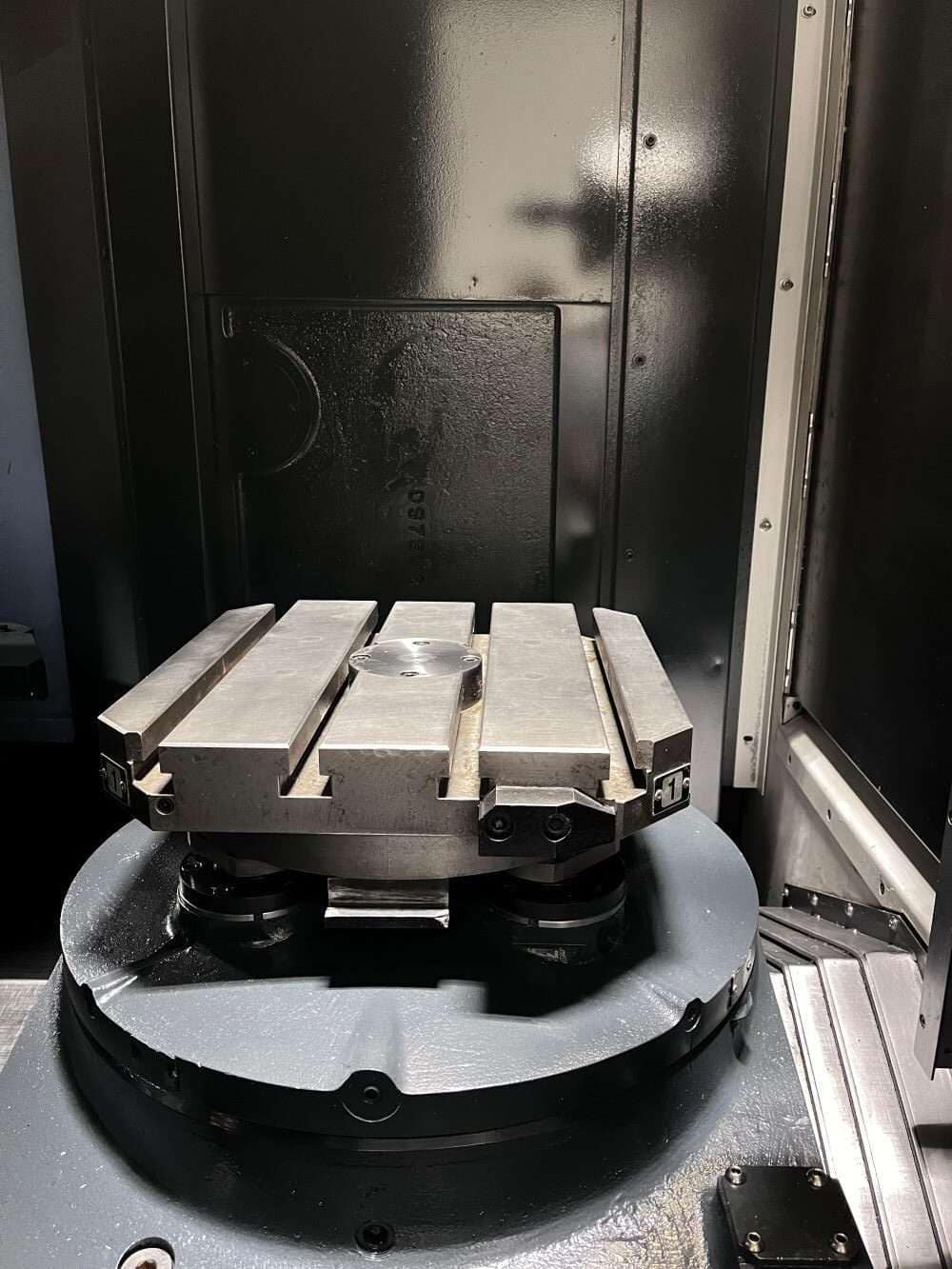

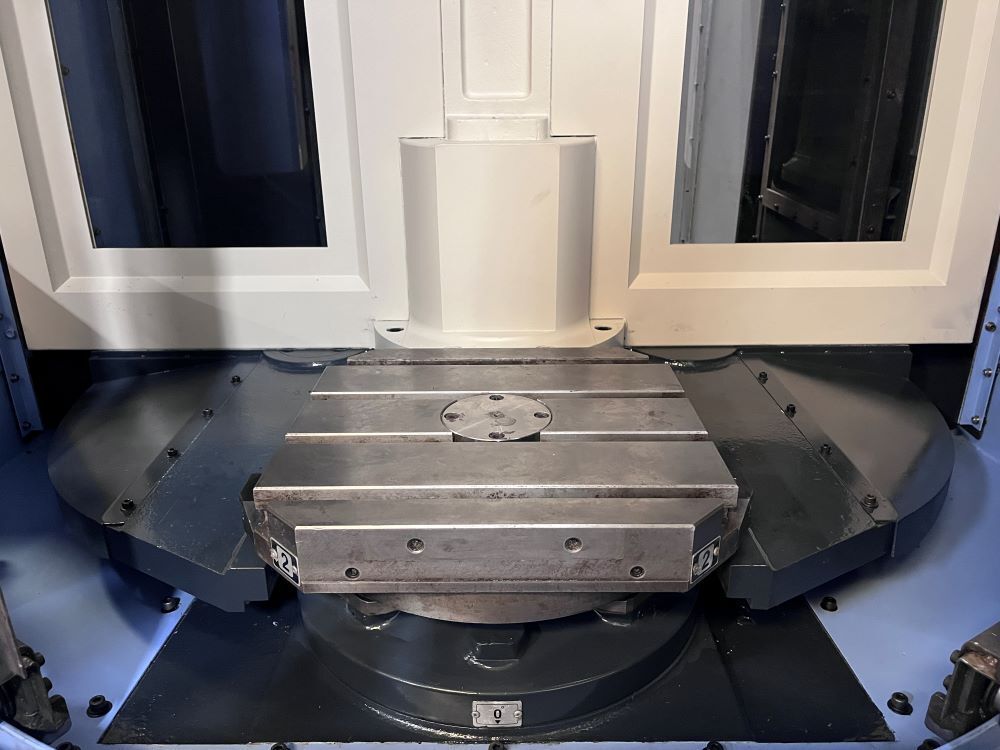

| Table: |
- Length: 15.75″
- Width: 15.75″
- Max Weight on Table: 882 lbs
- Max Workpiece Height: 31.5″
- Max Workpiece Diameter: 23.6″
- Pallet Indexing Time: 1.2 Seconds (90°)
|

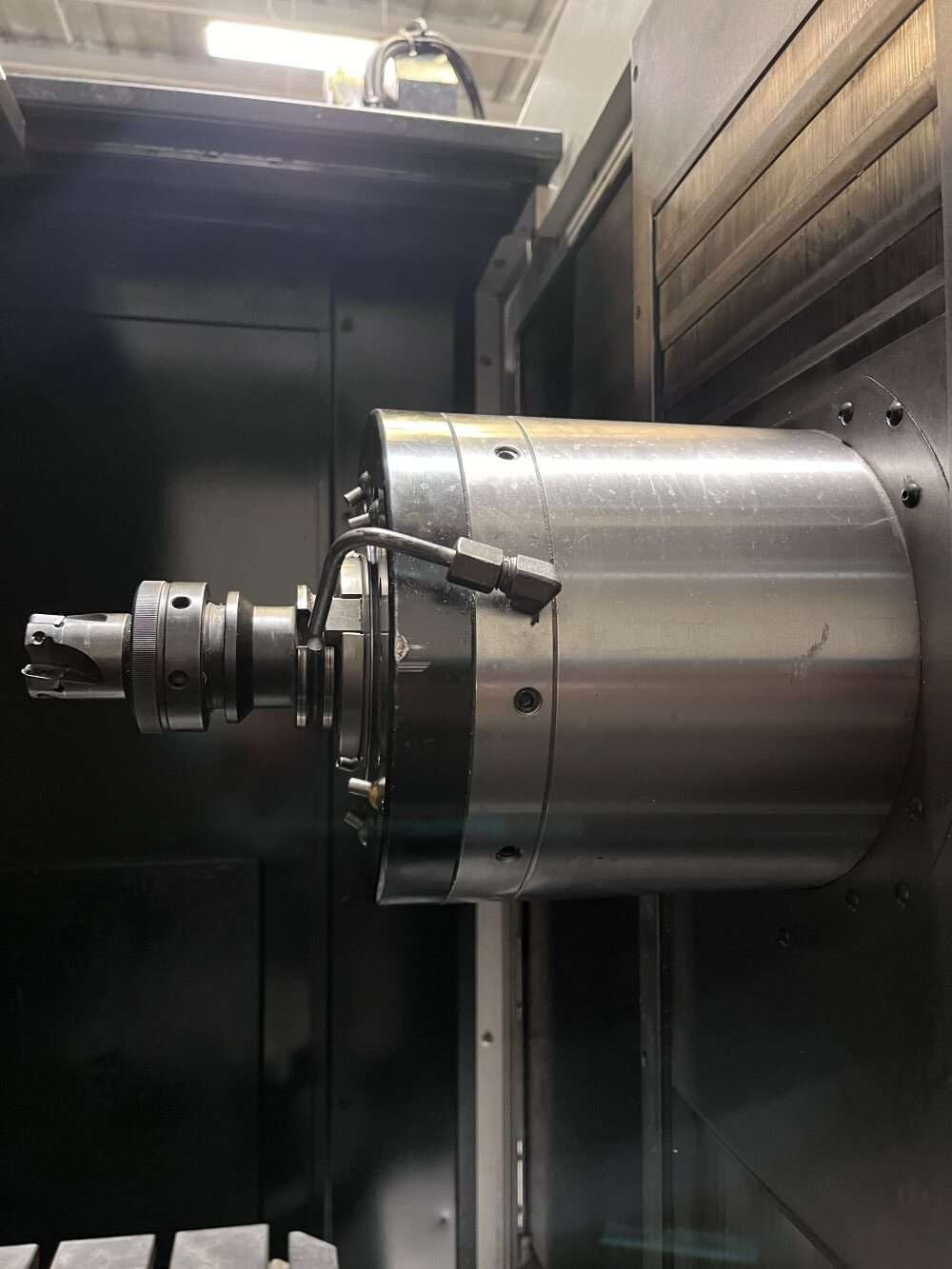

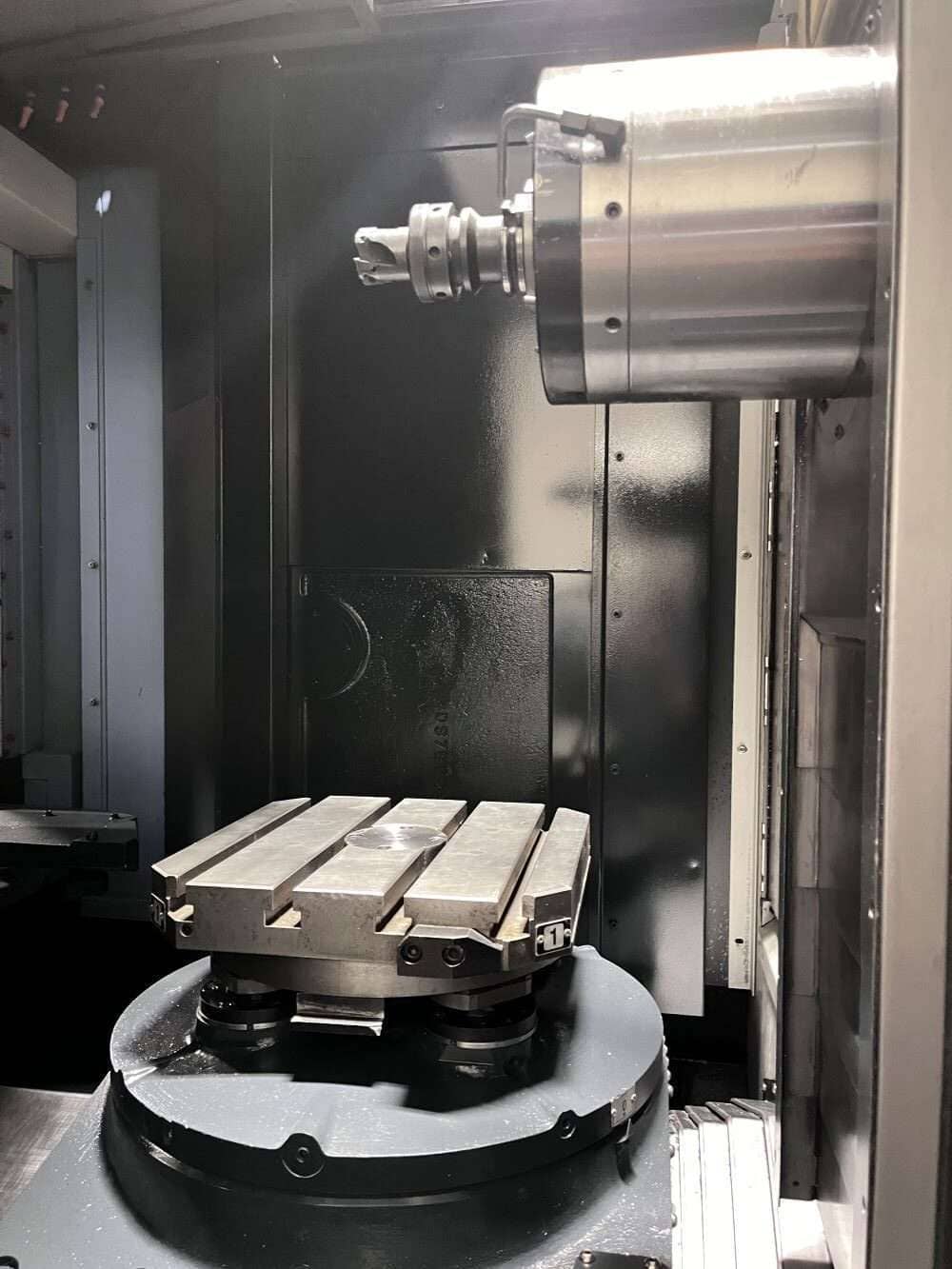

| Spindle: |
- Taper Size: CAT-40
- Max. Speed: 14,000 RPM
- Power: 25 HP
|
| Feed rates: |
- Rapid Traverse Rate: 2362 Inch Per Minute
- Cutting Feedrate : 1181 Inch Per Minute
|

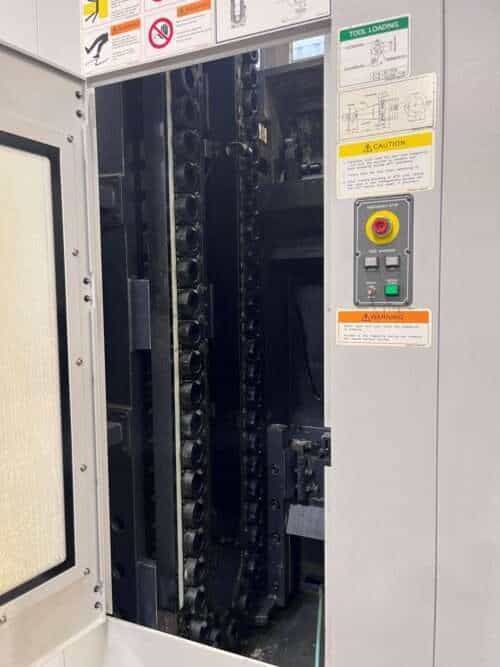

| Tool changer: |
- Capacity: 60 Tools
- Taper: CAT-40
- Max Tool Size: 3.0″ – 5.5″
- Max Tool Length: 13.0″
- Max Tool Weight: 22 lbs.
- Tool Change Time: 1 Second
|
| General: |
- Air Required: 90 psi, 4 scfm

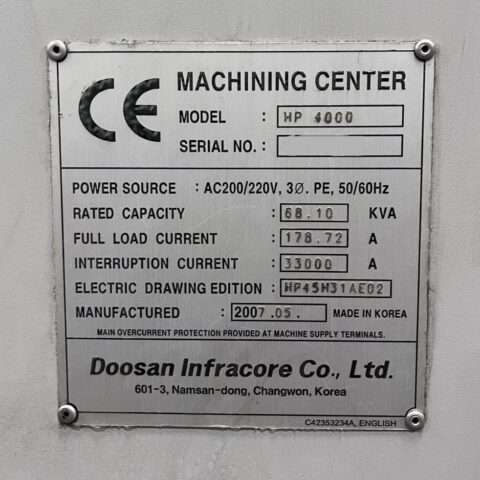

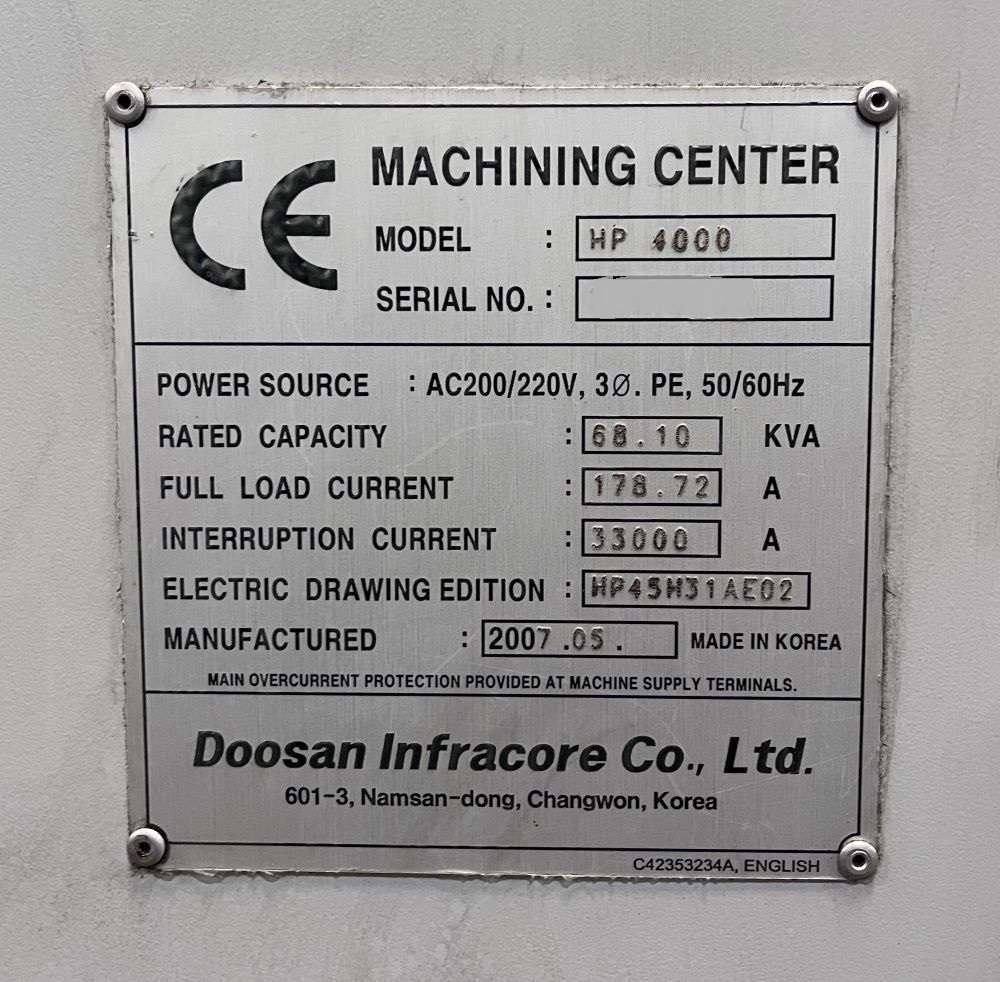

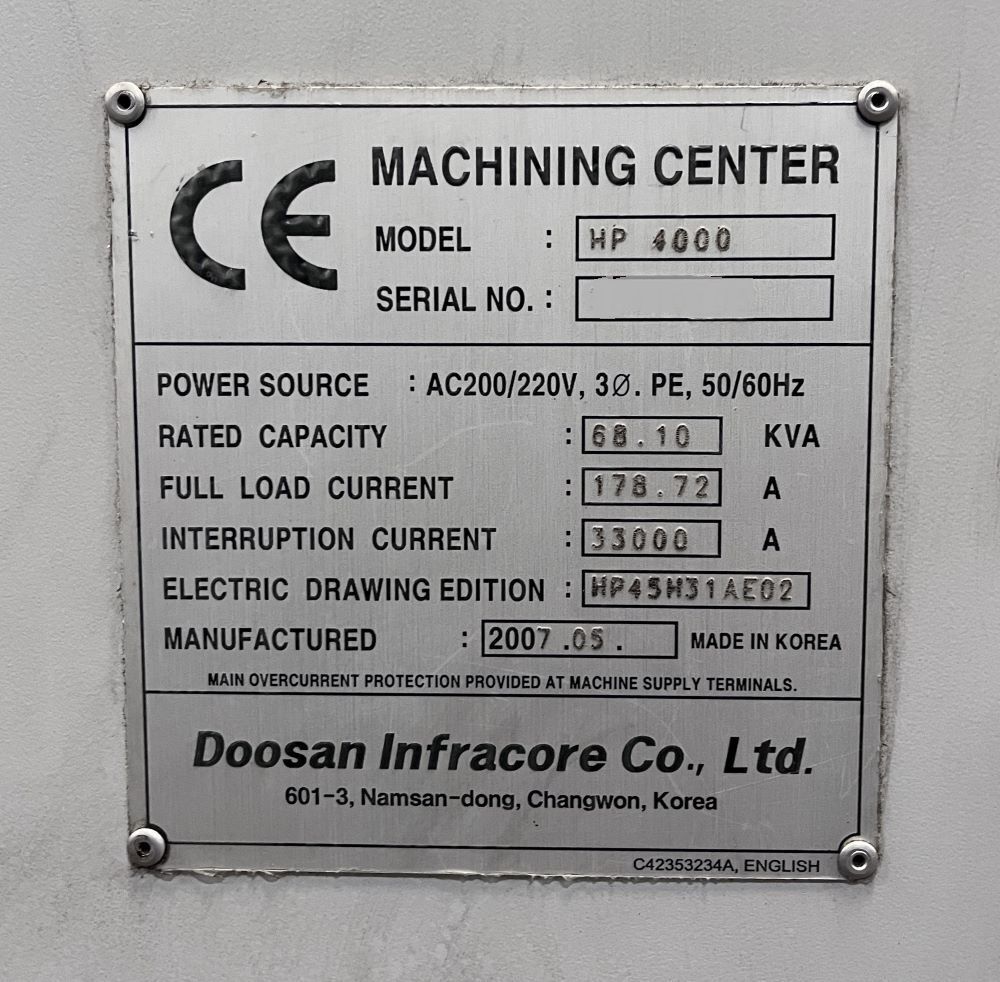

- Power: 68.1 kva / 205-220v / 3-Phase
- Overall Dimensions: 200″ X 102″ x 113″ High
- Weight: 28,557 lbs
|
