*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | Lynx 300 |
| Condition: | Used |
| Equipped With: |
|---|

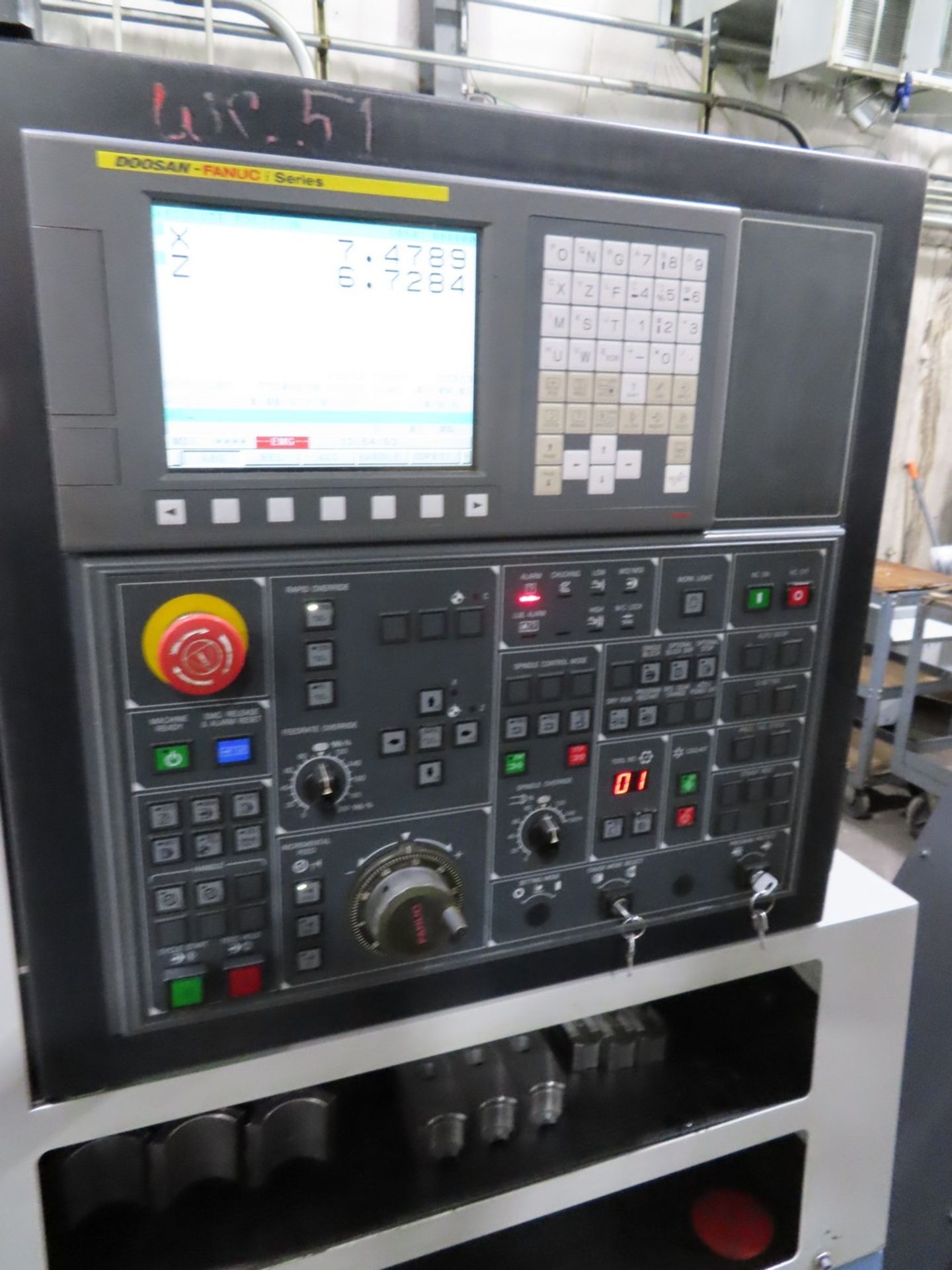

- Fanuc CNC Control
- Heavy-Duty Slant Bed Construction
- C-Axis Control
- 12-Station Servo Turret

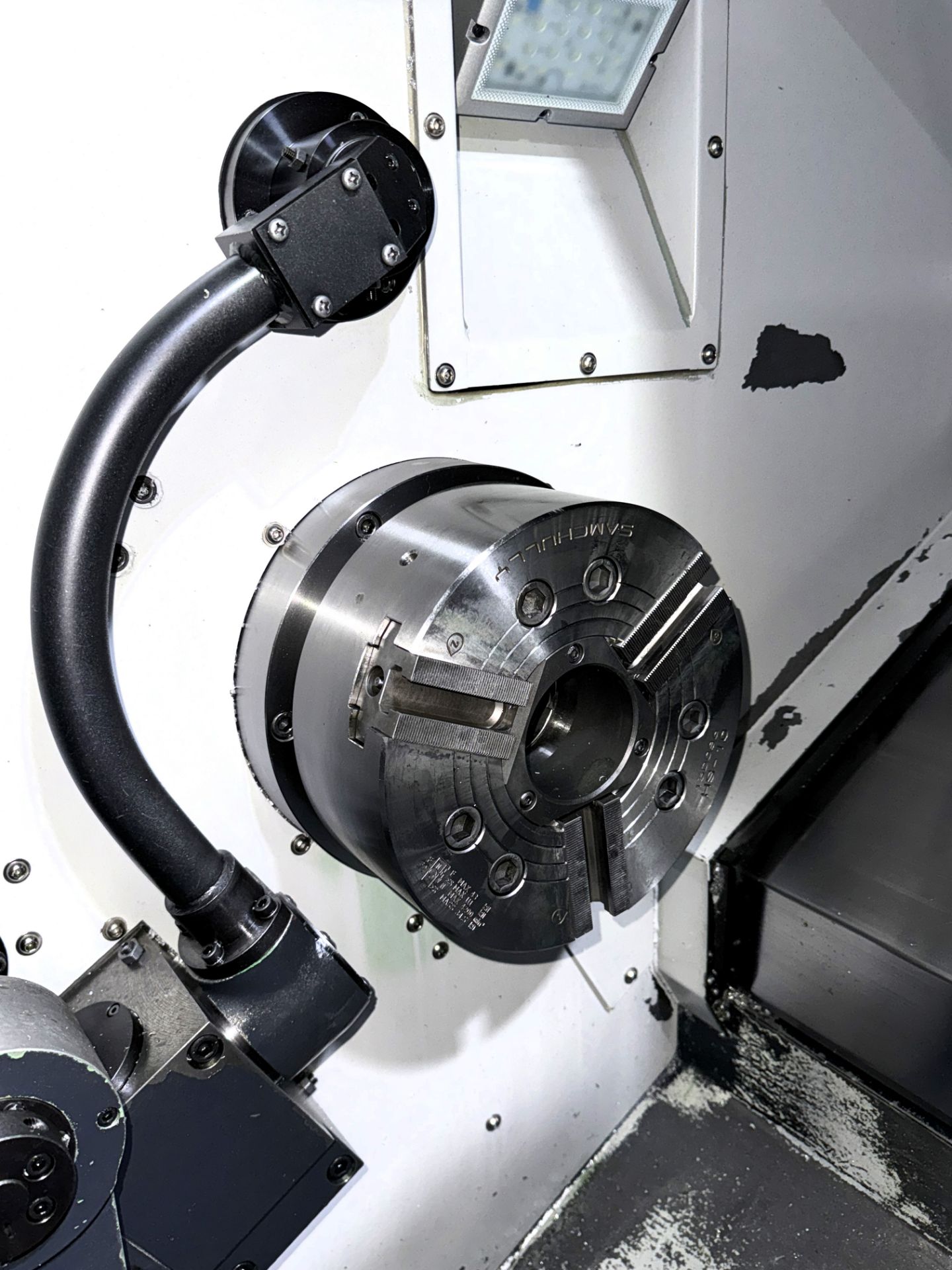

- Hydraulic Chuck
- Programmable Tailstock
- Automatic Tool Presetter
- Flood Coolant System
- Chip Conveyor
- Full Enclosure
|
| Capacity: |
|---|
- Max Turning Diameter: 16.5″
- Max Turning Length: 31.5″
- Swing Over Bed: 26.0″
- Swing Over Saddle: 19.7″
- Bar Capacity: 3.15″
|
| Travels: |
|---|
- X-Axis Travel: 10.6″
- Z-Axis Travel: 33.1″
|
| Spindle: |
|---|
- Spindle Nose: A2-8
- Spindle Speed: 4,000 RPM
- Spindle Motor: 30 HP
- Spindle Bore: 3.54″
|
| Feedrates: |
|---|
- Rapid Traverse X-Axis: 1,181 IPM
- Rapid Traverse Z-Axis: 1,417 IPM
- Cutting Feedrate: 0 – 472 IPM
|
| Turret: |
|---|
- Turret Capacity: 12 Stations
- OD Tool Size: 1.25″ × 1.25″
- Boring Bar Capacity: 2.5″
|
| General: |
|---|

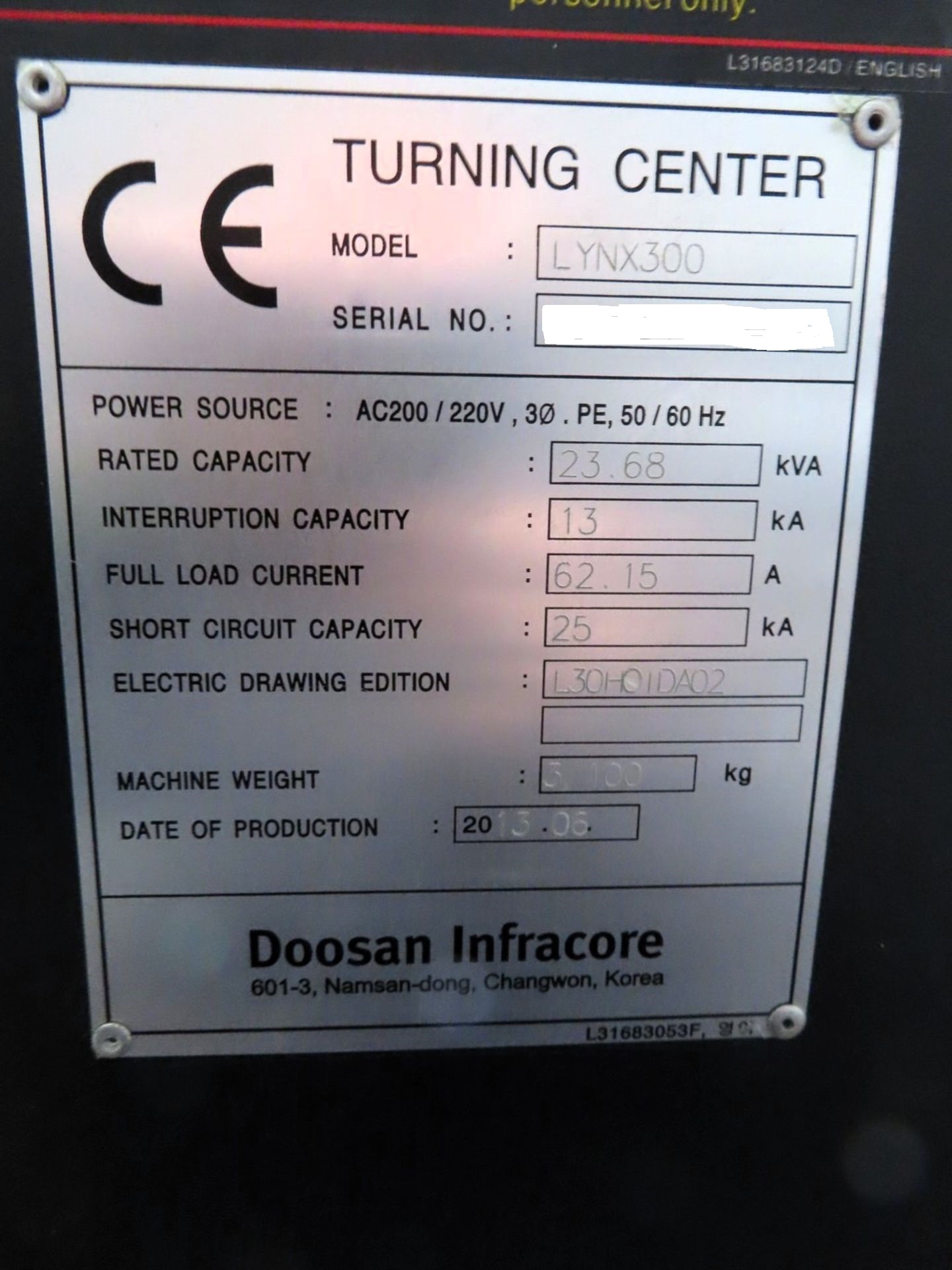

- Power Requirement: 220V / 3-Phase
- Machine Dimensions (Approx.): 118″ × 76″ × 82″
- Machine Weight (Approx.): 13,800 lbs
|
