*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | MV-4020D |
| Year: | 2008 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | FANUC Series 21i-MB |
| Features: |
|---|
| FANUC Series 21i-MB CNC Control |
| 30-Position Automatic Tool Changer |
| CAT40 Spindle Taper |
| Hennig 8″ Chip Conveyor |
| Coolant System |
| Enclosed Work Area |
| Automatic Lubrication System |
| Remote/Manual Jog Control |
| Spindle Orientation |
| Rigid Tapping |
| Work Light |
| Table: |
|---|
| Table Size: 47.2″ × 19.7″ |
| Table Capacity: 1,764 lbs. |
| Table Type: T-Slotted |
| Travels: |
|---|
| X-Axis Travel: 40.2″ |
| Y-Axis Travel: 20.1″–21.1″ |
| Z-Axis Travel: 24.6″ |
| Feedrates: |
|---|
| X/Y Rapid Traverse: 1,181 IPM |
| Z Rapid Traverse: 945 IPM |
| Cutting Feedrate: 0.04–472 IPM |
| Spindle: |
|---|
| Spindle Taper: CAT40 |
| Spindle Speed: Up to 8,000 RPM |
| Spindle Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 30 Positions |
| Tool Taper: CAT40 |
| General: |
|---|

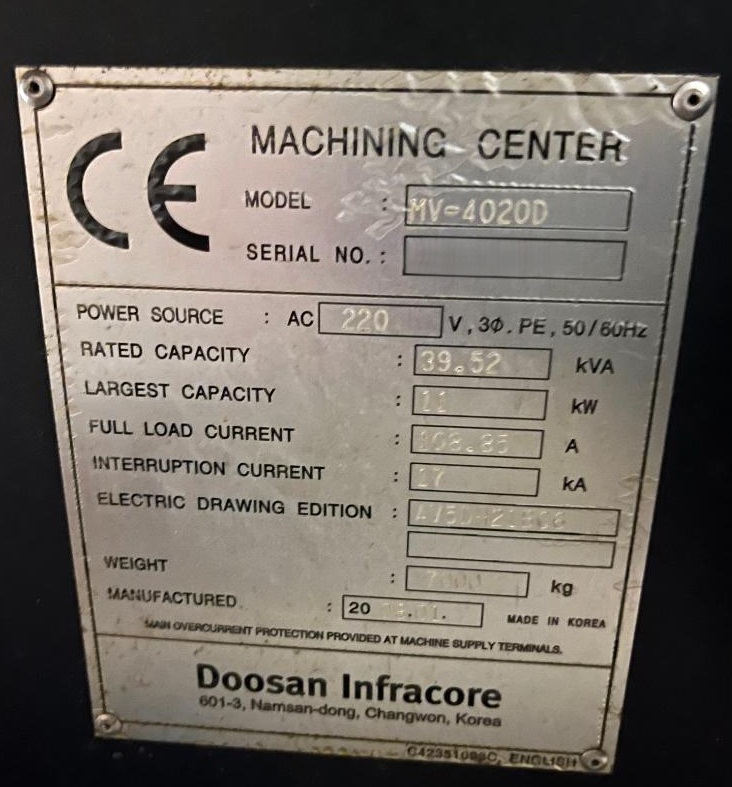

| Power Source: 220v / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 16,000 lbs. |
| Machine Dimensions (Approx.): 128″ L × 126″ W × 118″ H |
