*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | Puma 2100SY |
| Year: | 2014 |
| Condtion: | Used – Good |
| Equipped With: |
|---|

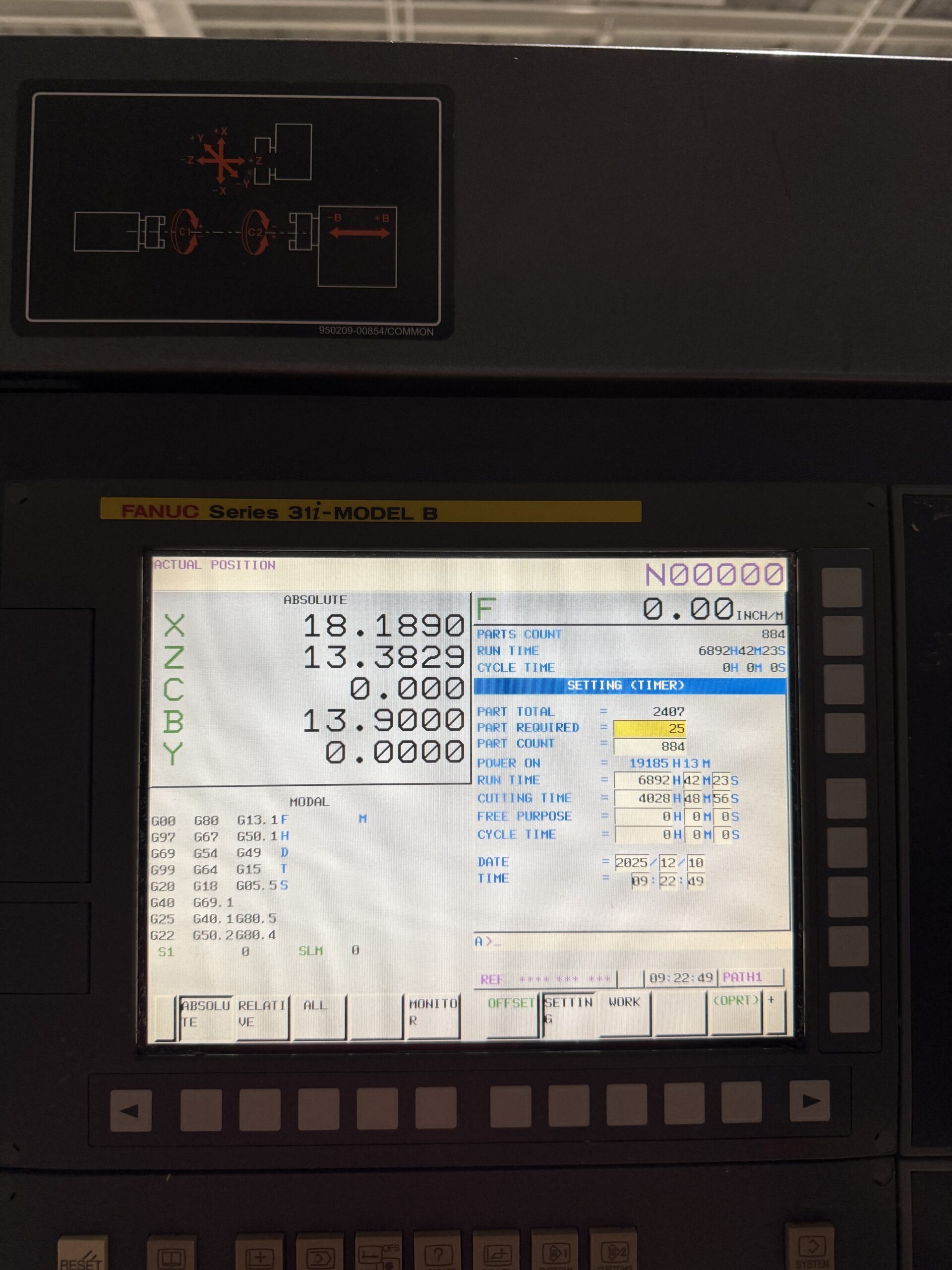

| Fanuc 31-iMB Series CNC Control |
| Box Ways Consturction |

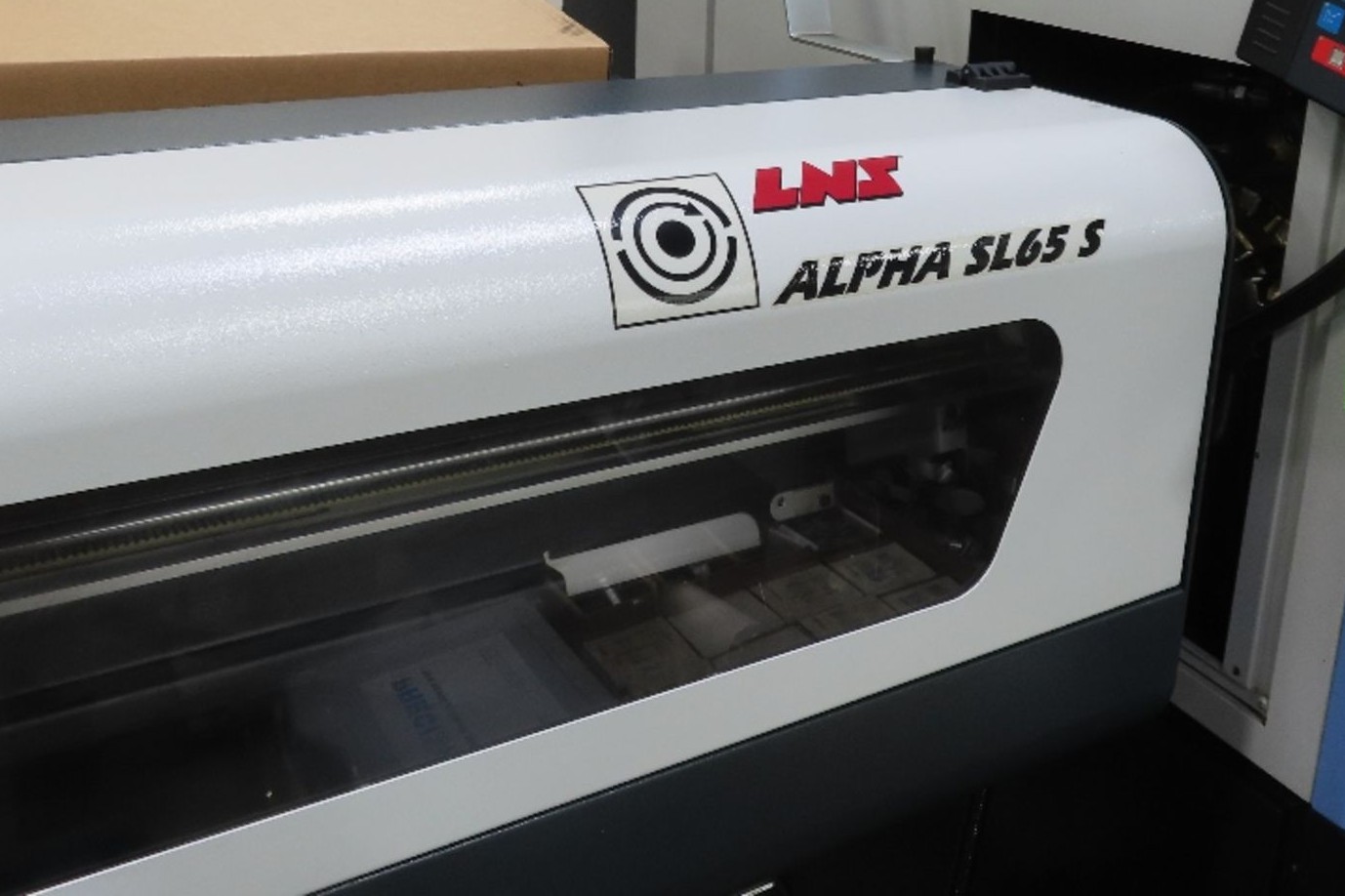

| LNS Alpha SL65S Bar Feeder |

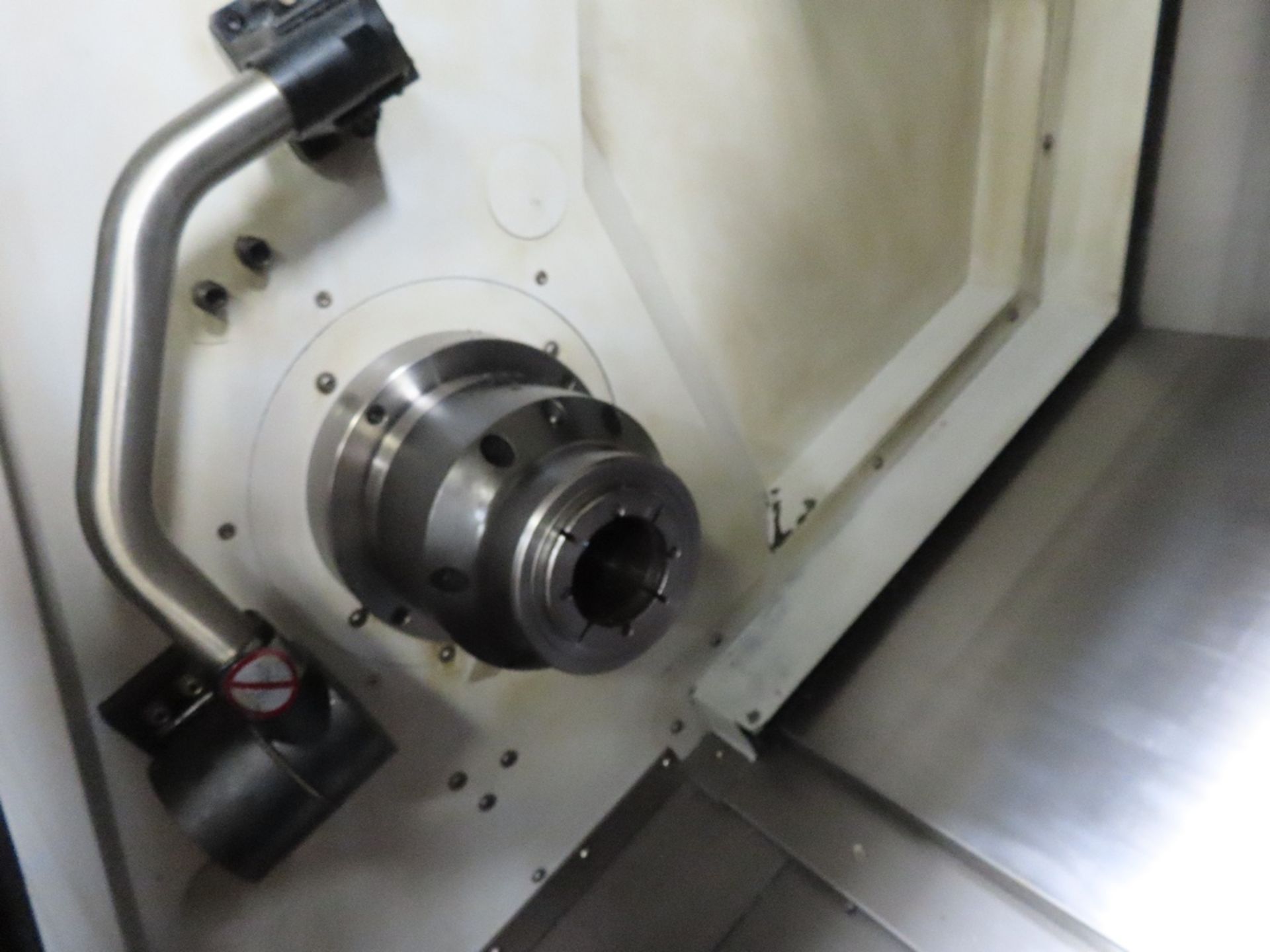

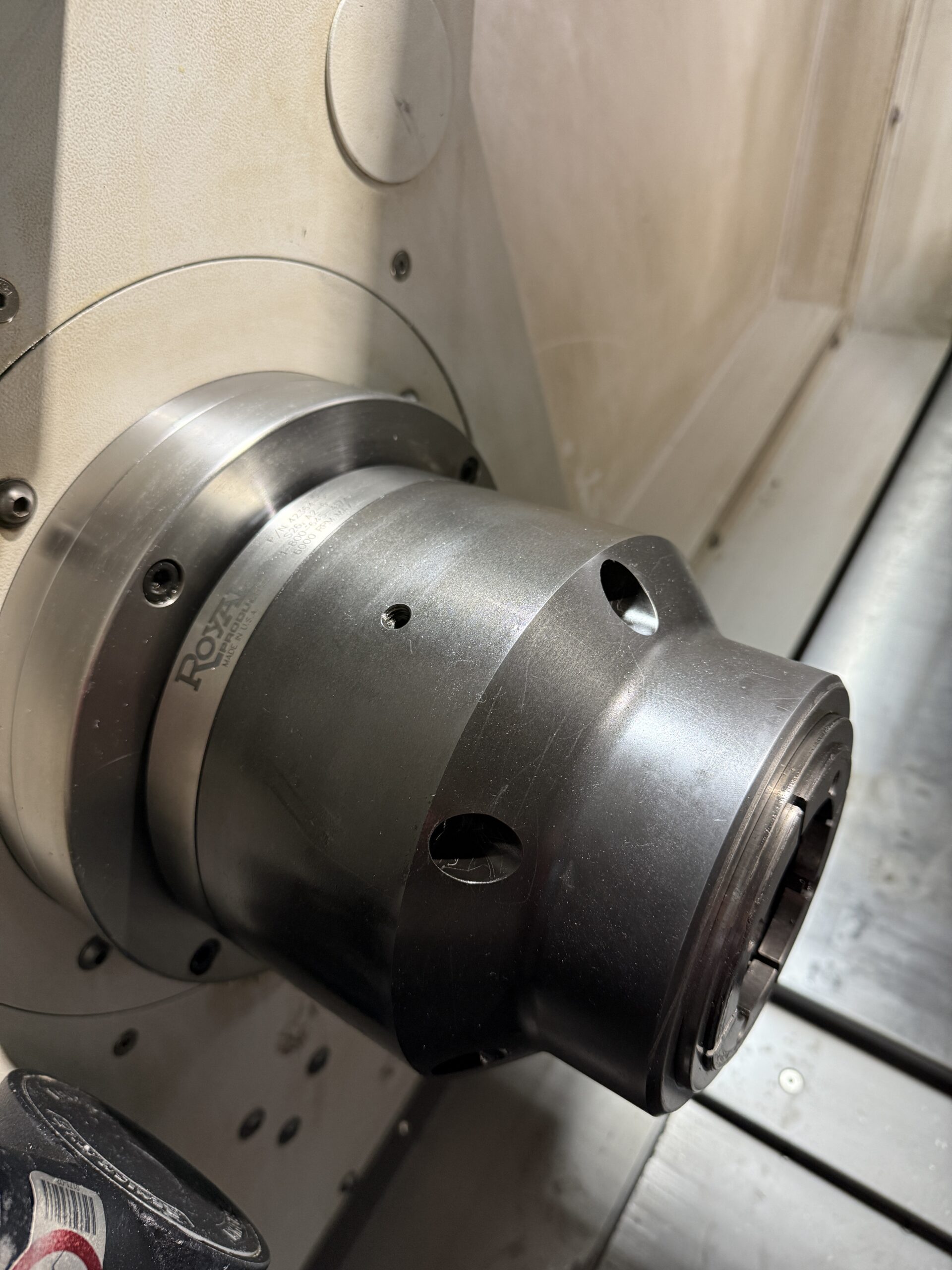

| Royal S26 A2-6 Collet Chuck on Main Spindle (Capable 8″ Chuck) (Upgraded $4,499 value Included) |
| Royal S26 A2-6 Collet Chuck on Main Spindle (Capable 8″ Chuck) (Upgraded $4,499 value Included) |
| Servo Controlled Full C-Axis on Both Spindles |

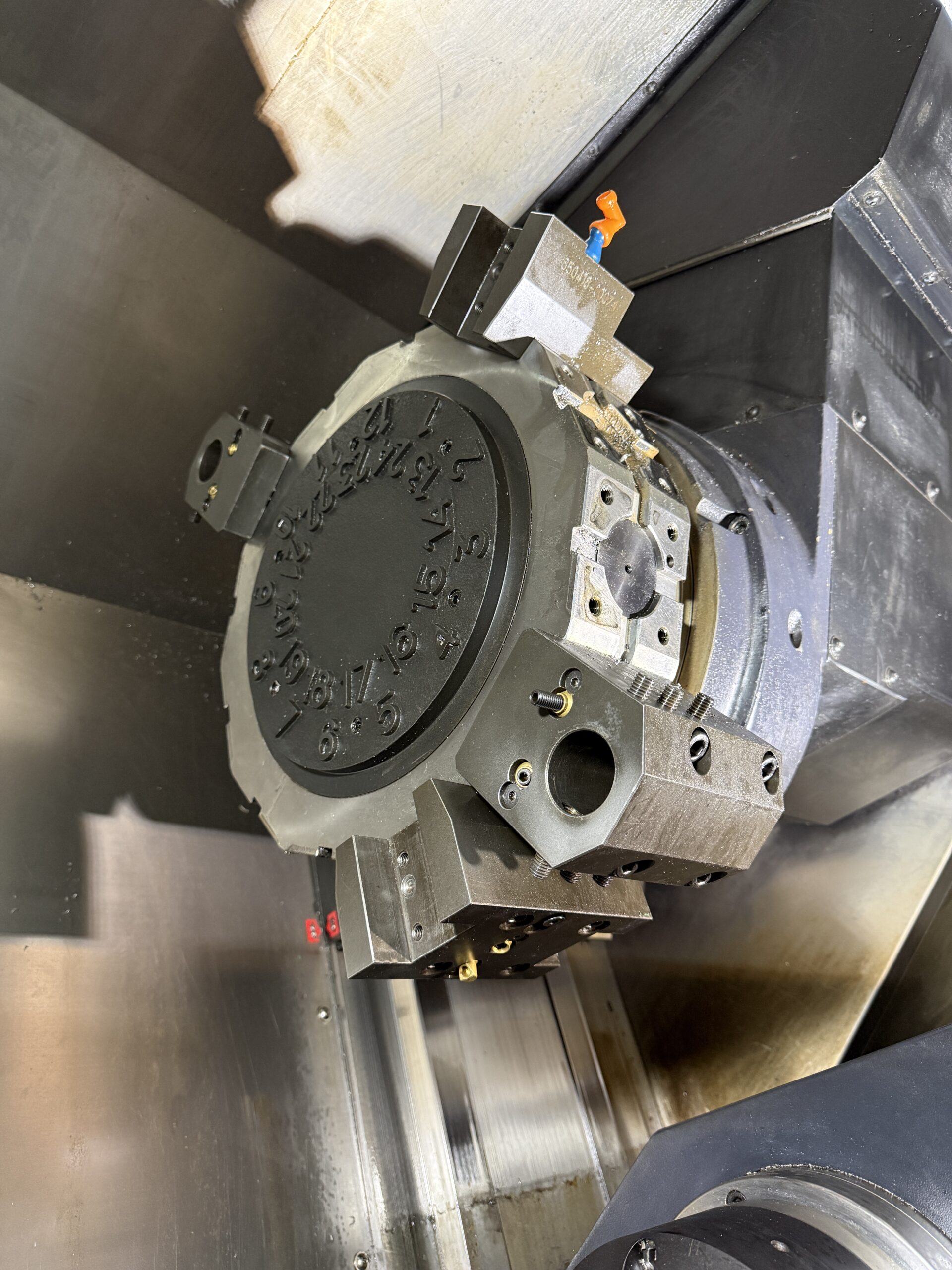

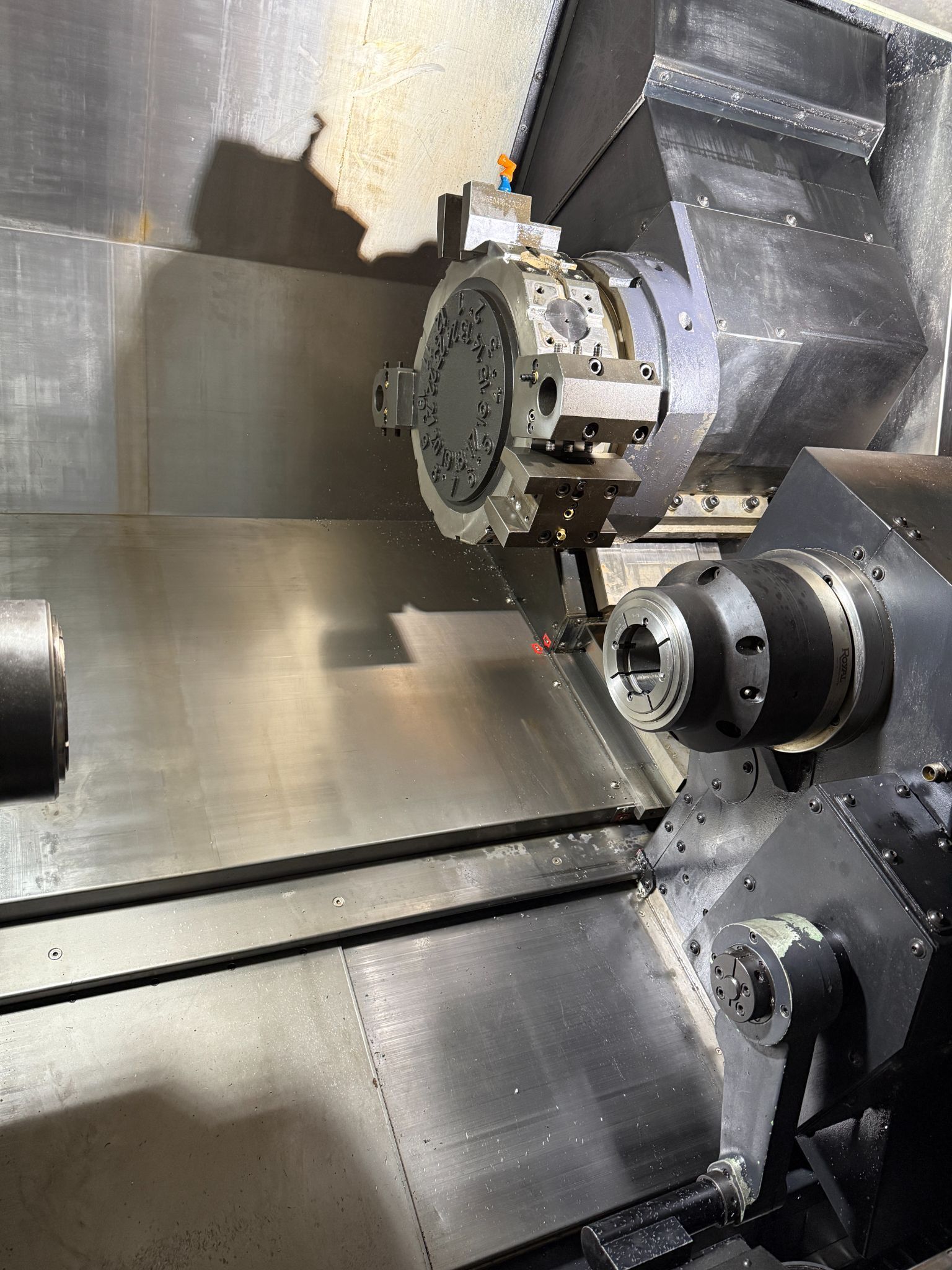

| 12 Station (24 Positions) BMT-55 Live Tool Turret |
| Y Axis On Turret |
| Tool Pre-setter |
| Parts Catcher |
| Parts Conveyor |
| PCMCIA Card Slot & USB Port |
| Rigid Tapping |
| Coolant System |
| LNS Chip Conveyor |
| Foot Switches |
| (2) Boring Tool Holders & (2) Square Tool Holders (Dual side working) |
| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter : 16.0″ |
| Max Swing Over Bed : 30.7″ |
| Max Swing Over Saddle : 26.8″ |
| Max Turning Length: 20.5″ |
| Max Bar Capacity : 2.6″ |
| Travels: |
|---|
| X Axis Travel : 10.2″ |
| Z Axis Travel : 23.2″ |
| Y Axis Travel: 4.1″ |
| B Axis Travel: 23.2″ |
| C Axis: 360° (0.001°) |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 393 IPM |
| Rapid Traverse B Axis: 1181 IPM |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 25 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 10 HP |
| Turret: |
|---|
| Turret Capacity: 12 Station (24 Positions) |
| Turret Index Time: 0.15 Second |
| Live Tool Speed: 5,000 RPM |
| Live Tool Power: 7.5 HP |
| Turret Type: BMT-55 |
| General: |
|---|

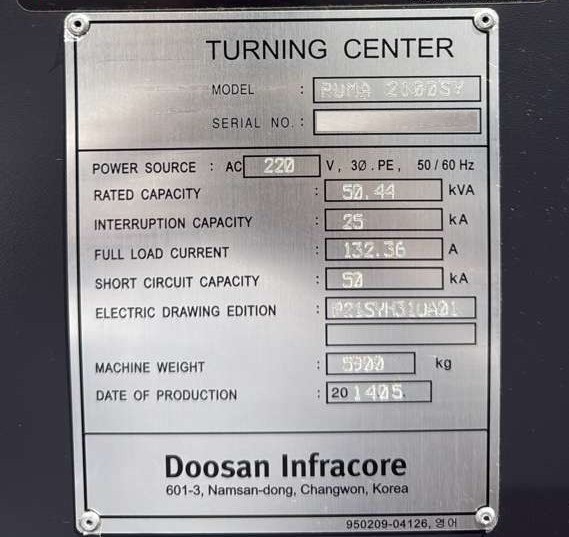

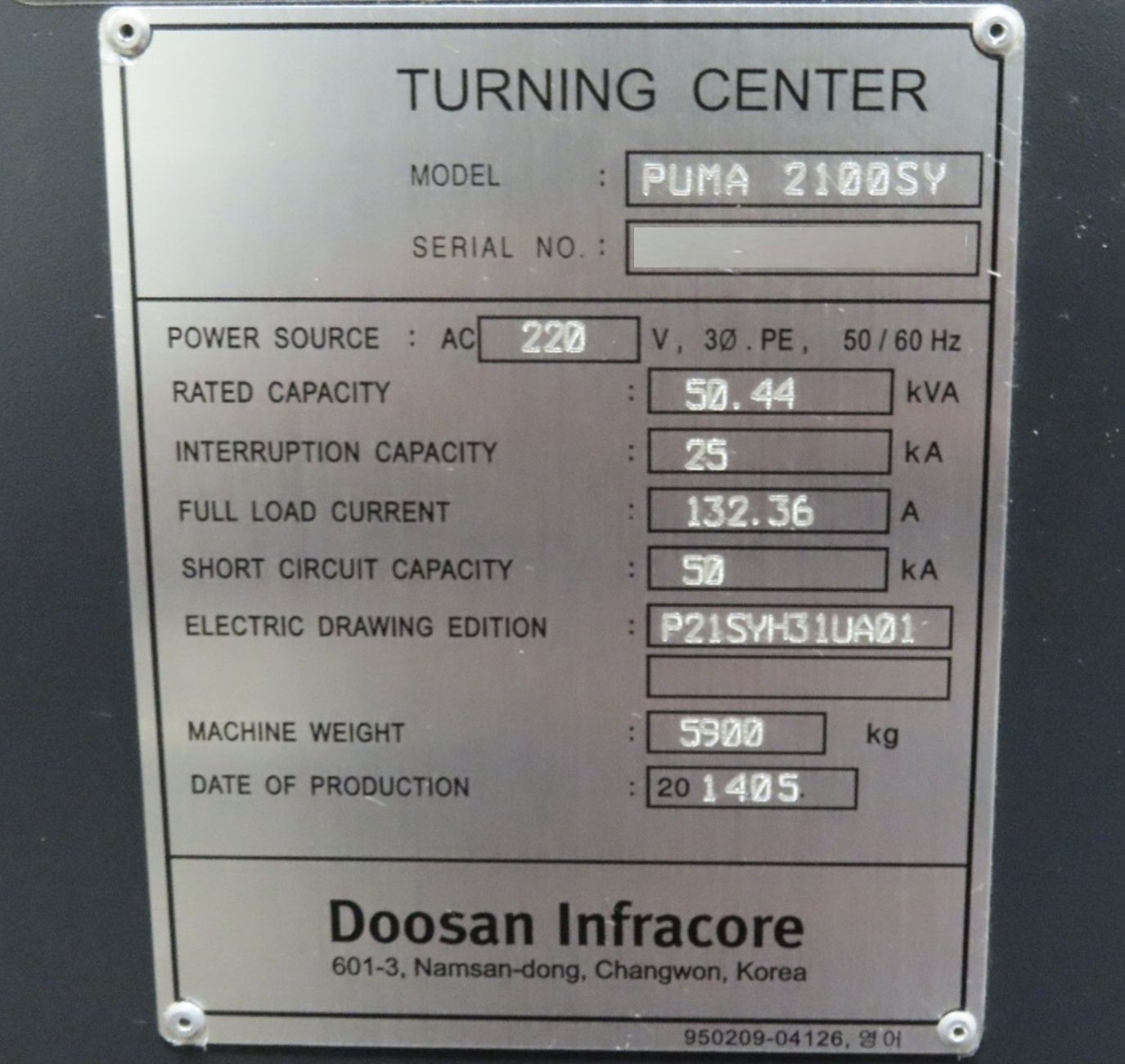

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 50.44 kva |
| Overall Dimensions: 139.0″ x 73.3″ x 85.2″ High |
| Machine Weight: 13,000 lbs Approx. |
