*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 113503 |

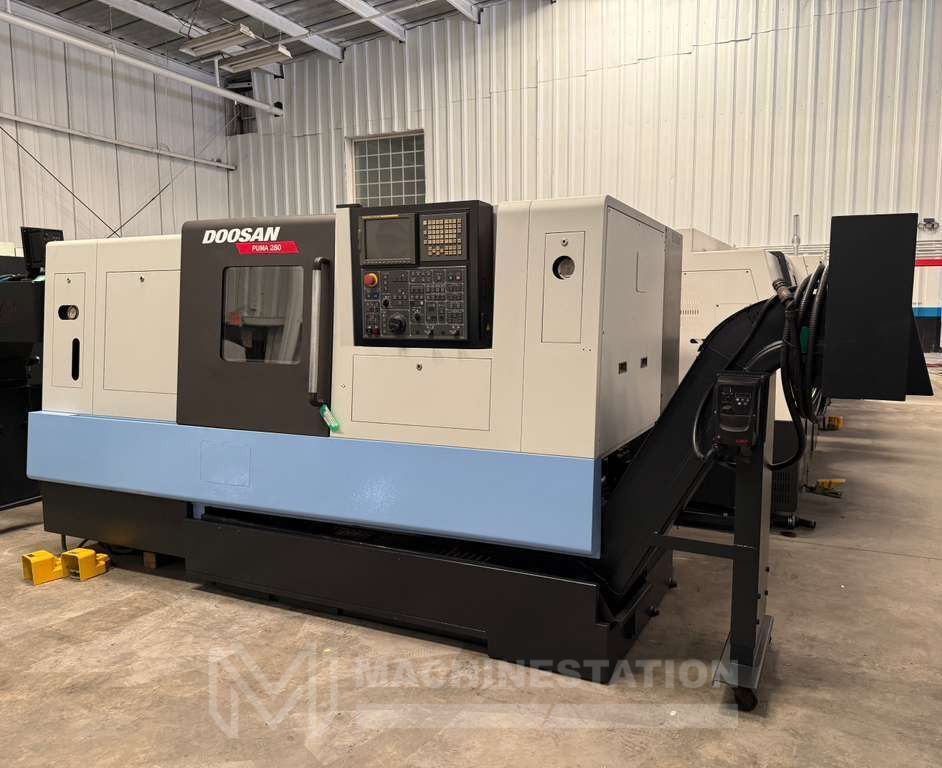

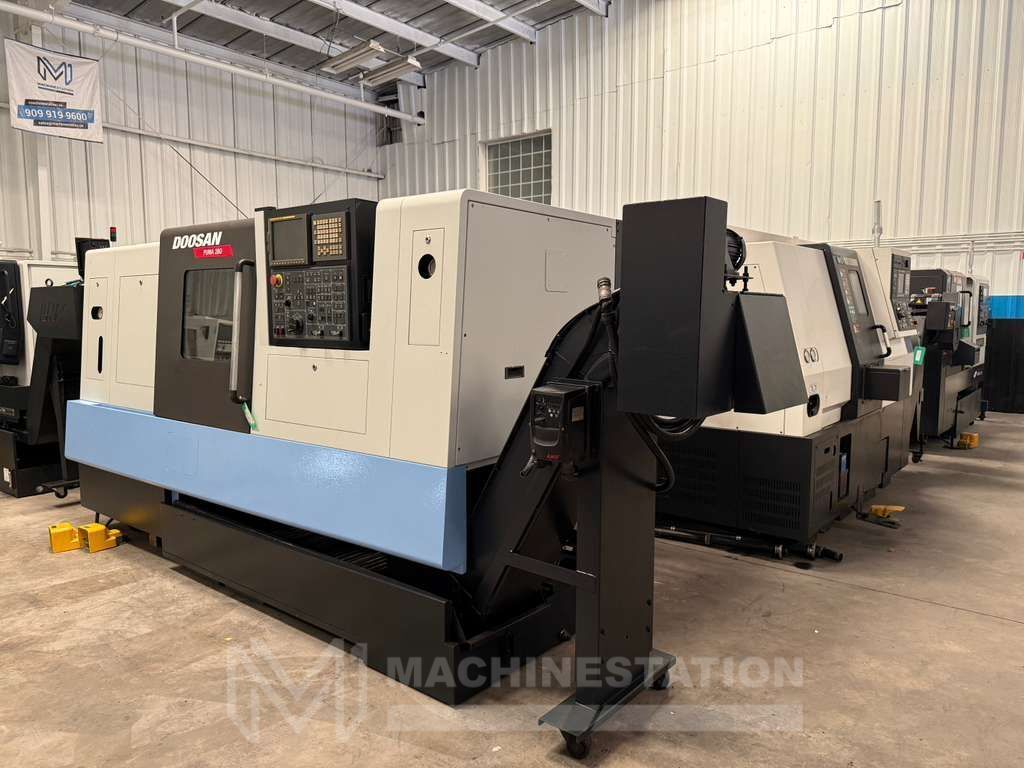

| Make: | Doosan Puma 280 |
| Condition: | Used – Good |
| Equipped With: |
|---|

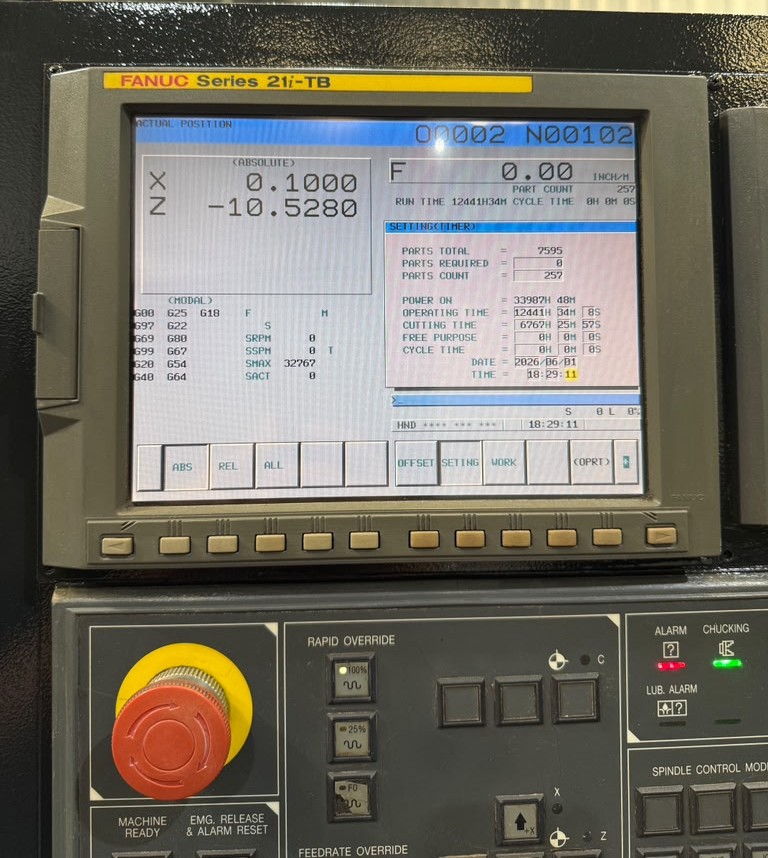

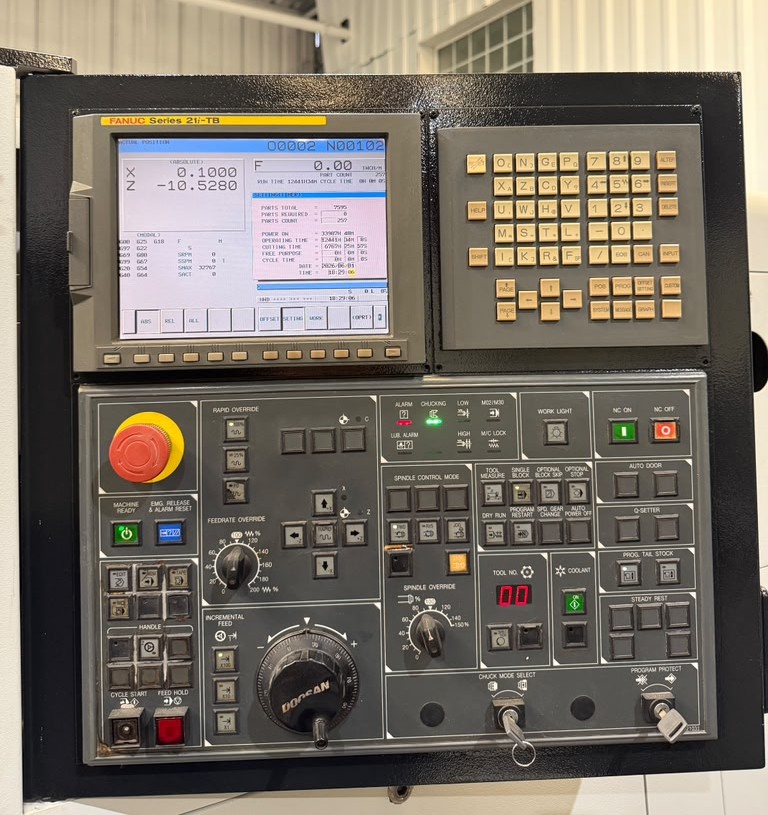

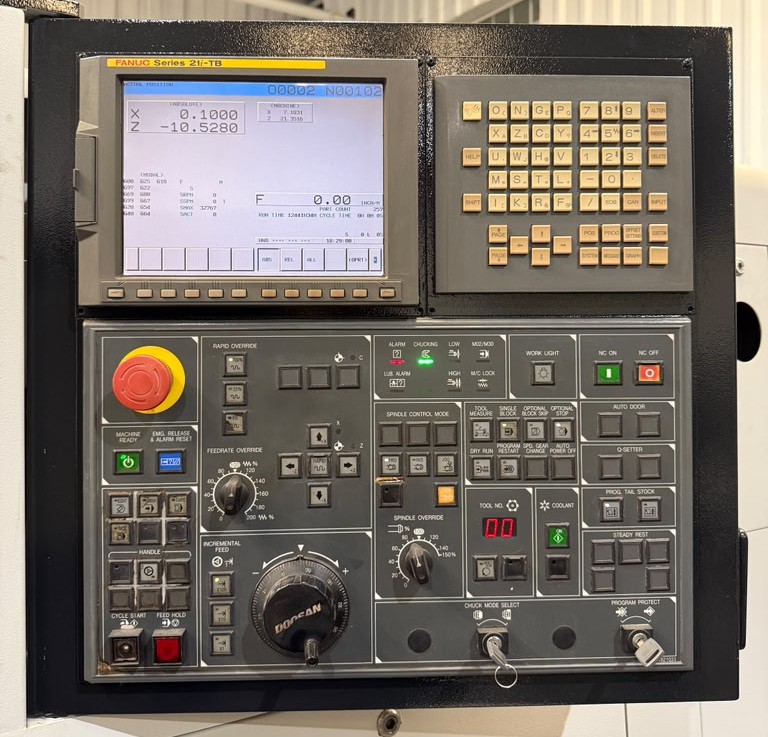

| Fanuc 21i-TB Series CNC Control |
| Heavy Duty Box Way Contruction |

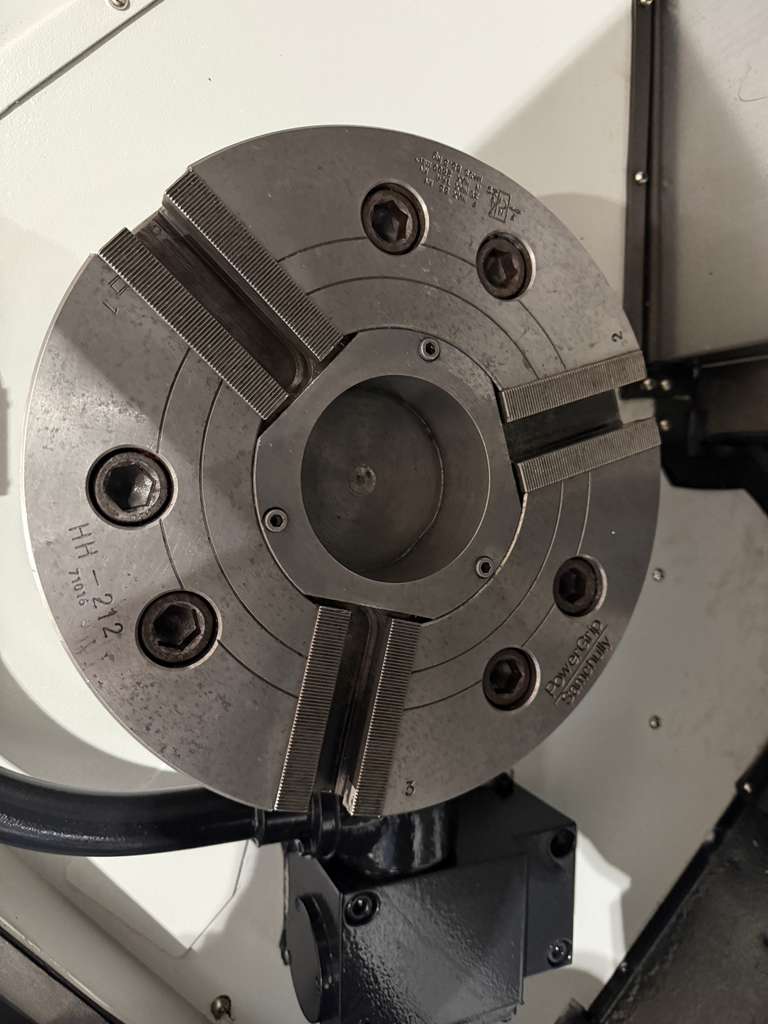

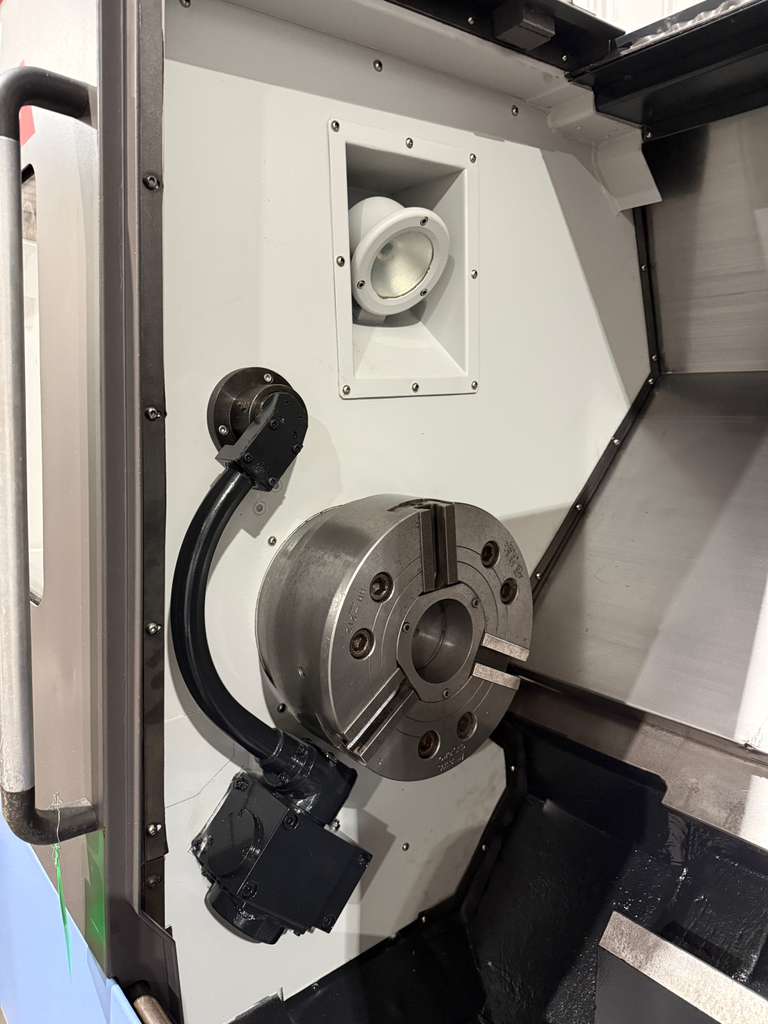

| 12″ 3-Jaw Samchully HH-212 Hydraulic Chuck |
| A2-8 Spindle Nose |

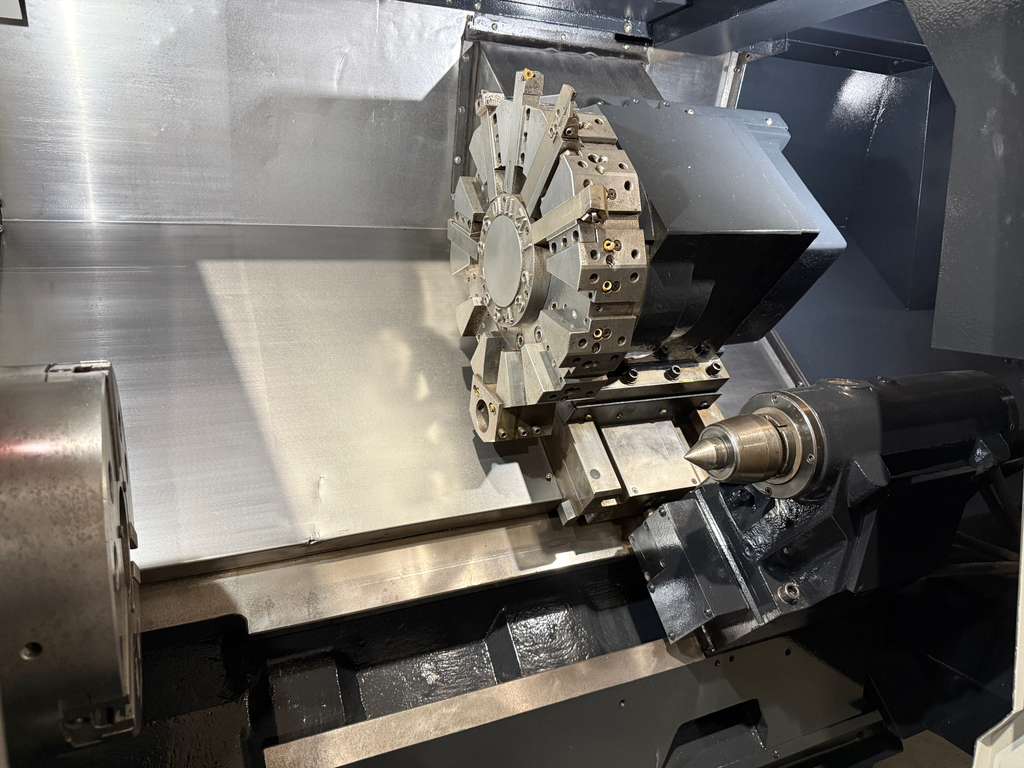

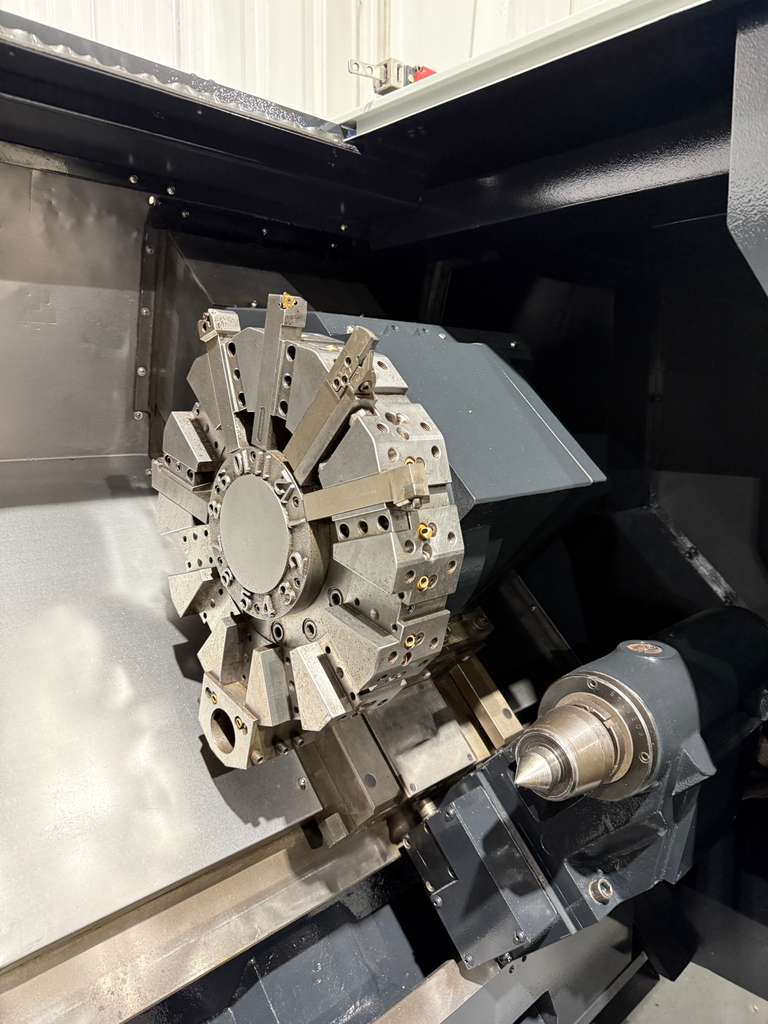

| 12 Station Automatic Turret |
| Tool Presetter |

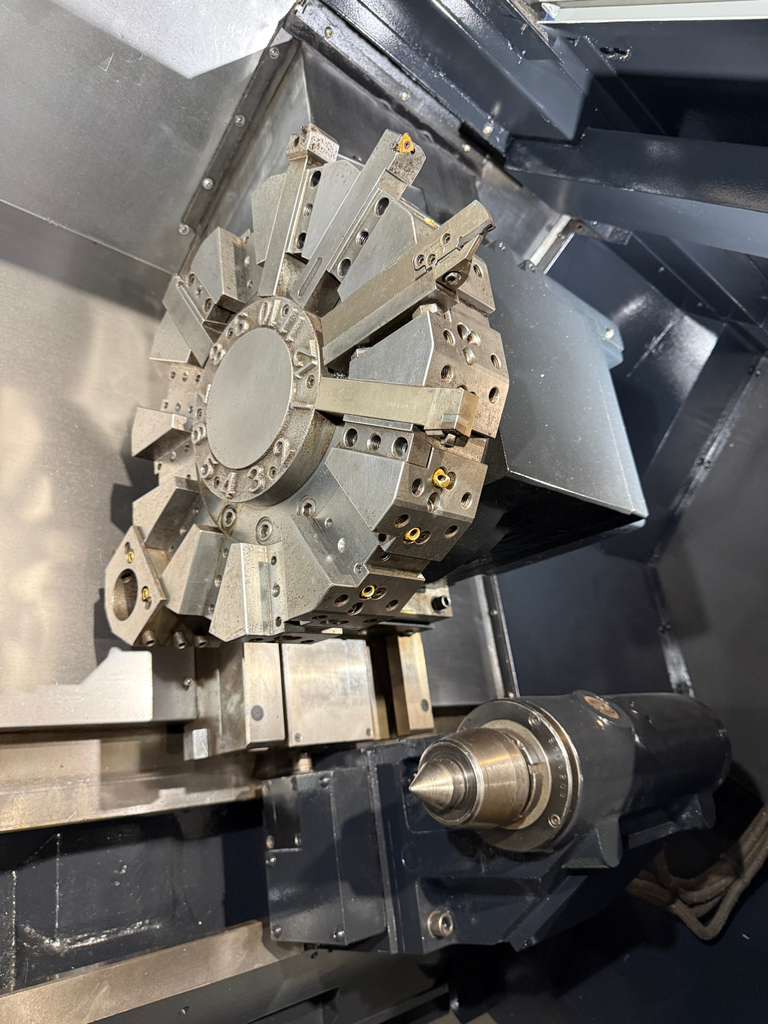

| Hydraulic Tailstock and Quill |
| Rigid Tapping |
| PCMCIA Card Interface |

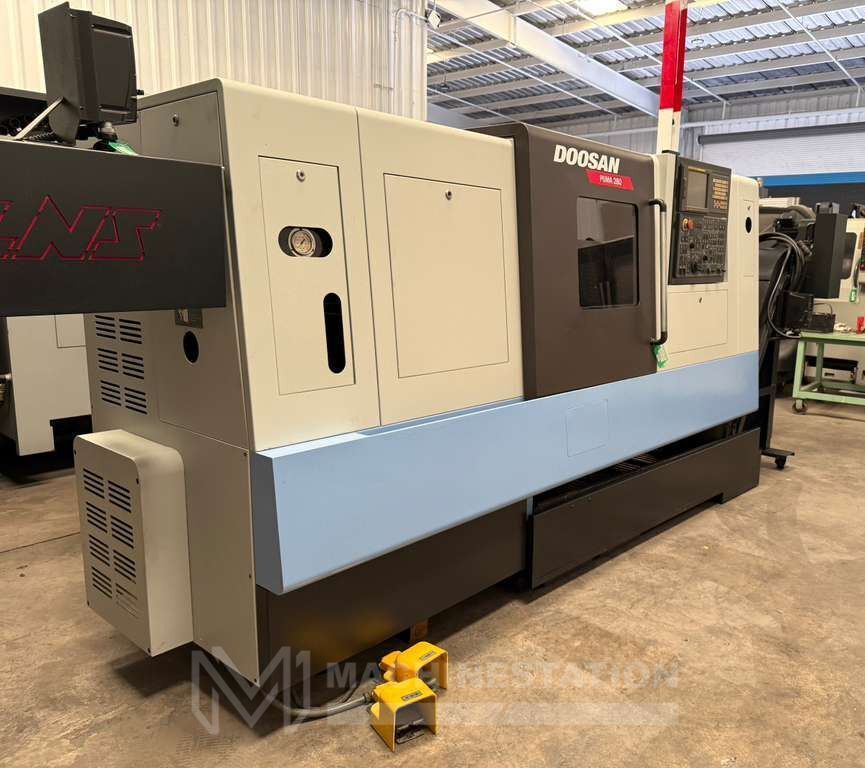

| Foot Switches |
| Coolant System |
| Chip conveyor |

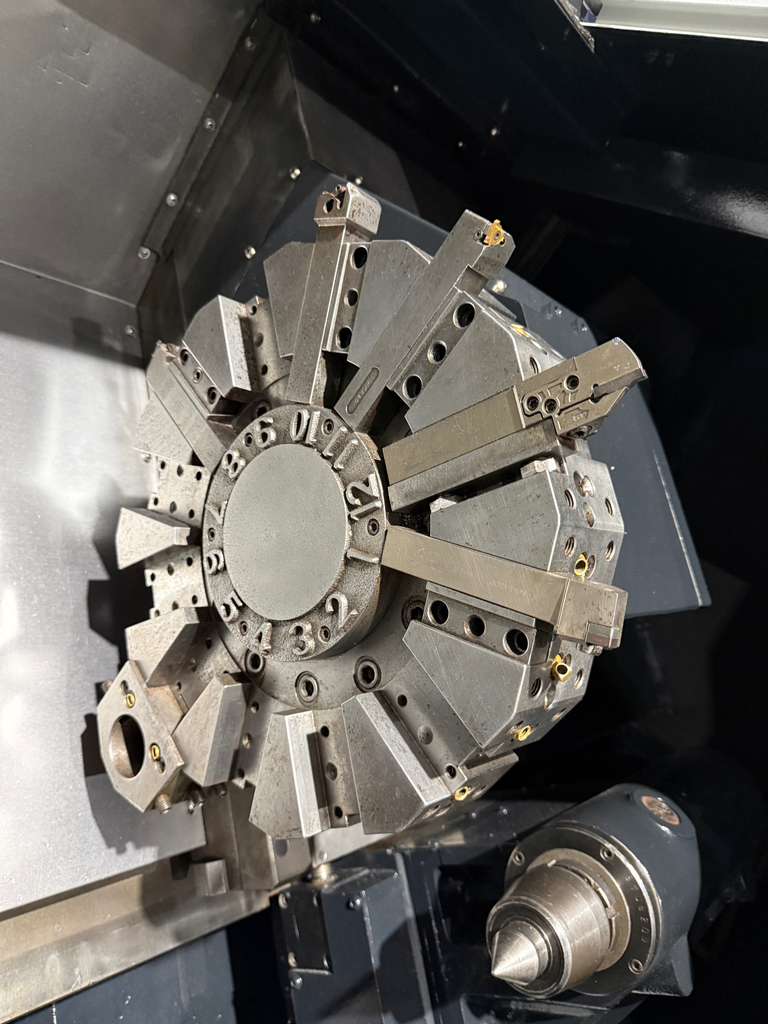

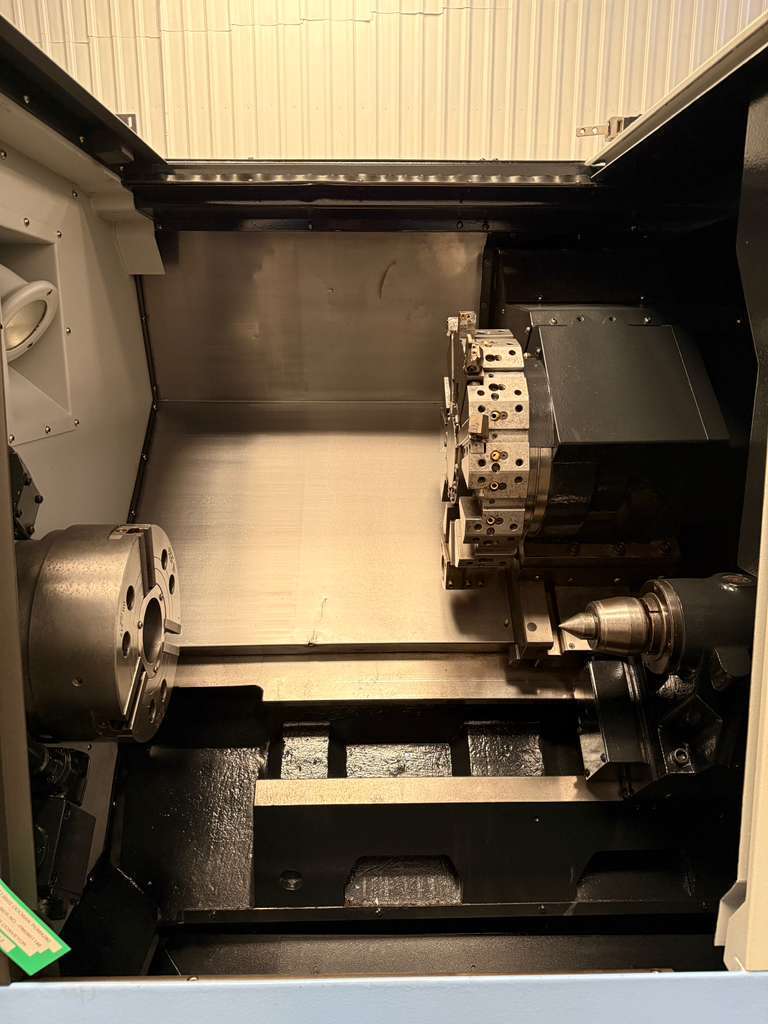

| (1) Boring Tool Holder, (4) Turning Tools Are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 16.53″ |
| Max Turning Length: 25.90″ |
| Swing Over Bed: 24.80″ |
| Swing Over Saddle: 19.68″ |
| Max Bar Capacity: 2.99″ |
| Travel: |
|---|
| X Axis Travel: 9.52″ |
| Z Axis Travel: 26.77″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.0″ x 1.0″ |
| Boring Tool Diameter: 2.0″ |
| Tailstock: |
|---|
| Tailstock Taper: MT- 5 |
| Tailstock Quill Dia.: 4.0″ |
| Tailstock Quill Travel: 4.0″ |
| General: |
|---|

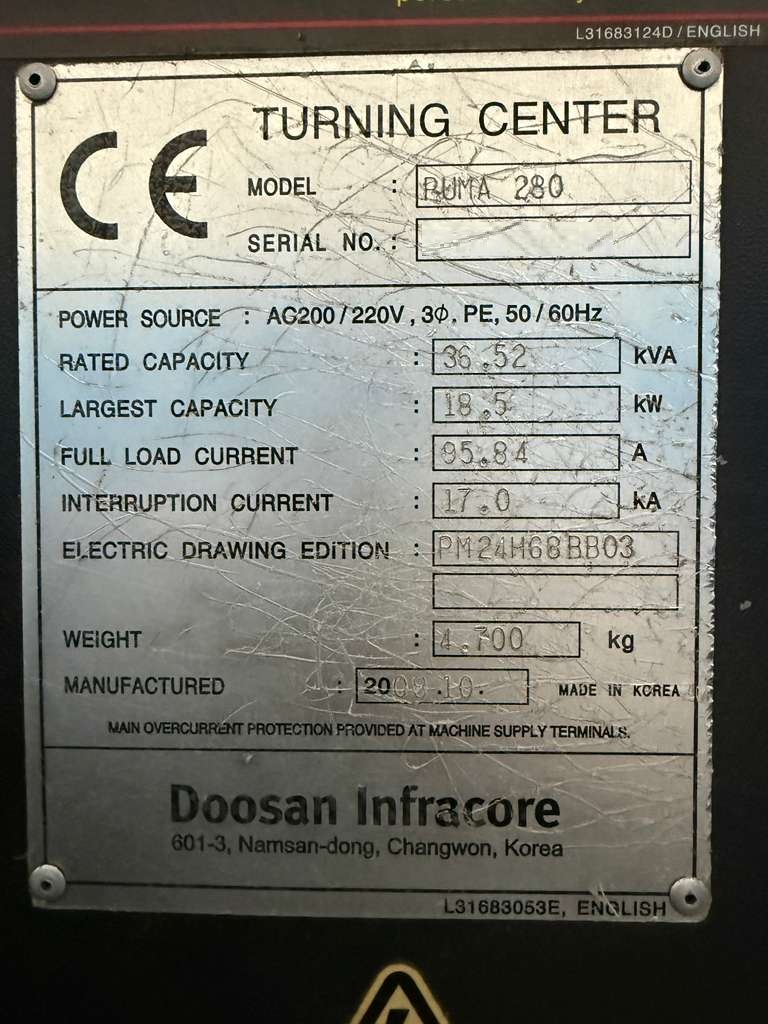

| Power: 36.52 kva / 220v / 3-Phase / 50/60 Hz |
| Overall Dimensions: 135″ x 66″ x 68″ High |
| Weight: 10,360 lbs |
