*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | Puma 400LMC |
| Year: | 2013 |
| Condition: | Used – Good |
| Machine Type: | CNC Lathe / Turning Center |

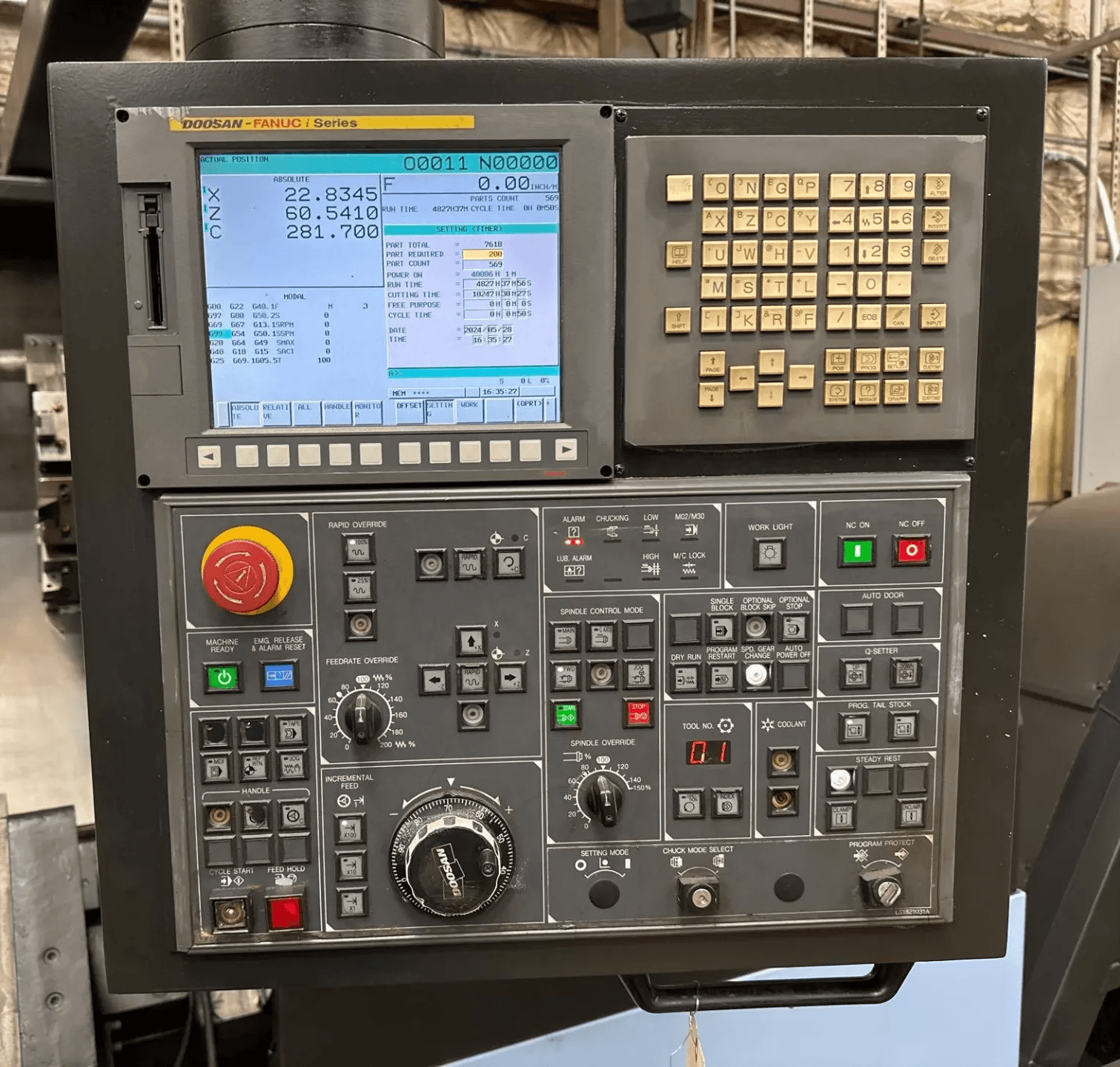

| Control: | Doosan Fanuc i Series CNC Control |
| Country of Origin: | Korea |
| Equipped With: |
|---|
| Doosan Fanuc i Series CNC Control |
| 21″ Hydraulic Chuck |
| 80″ Between Centers |
| 6.5″ Bar Capacity |
| 12 Position Live Tool Turret |
| Live Tool Capability |
| Kitagawa Hydraulic Steady Rest (9.5″ Capacity) |
| Hydraulic Tailstock |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Swing Over Bed: Approx. 33.0″ |
| Maximum Turning Diameter: Approx. 24.8″ |
| Distance Between Centers: 80″ |
| Maximum Turning Length: Approx. 78″ |
| Bar Capacity: 6.5″ |
| Chuck Size: 21″ |
| Travels: |
|---|
| X-Axis Travel: Approx. 15.7″ |
| Z-Axis Travel: Approx. 82″ |
| Spindle: |
|---|
| Main Spindle Speed: Approx. 2,000 RPM |
| Spindle Bore: Approx. 7.9″ |
| Spindle Nose: A2-11 |
| Main Spindle Motor: Approx. 40 HP |
| Turret: |
|---|
| 12 Position Live Tool Turret |
| Live Tool Speed: Approx. 4,000 RPM |
| Tool Size: Approx. 1.25″ |
| Boring Bar Capacity: Approx. 2.0″ |
| Tailstock: |
|---|
| Hydraulic Programmable Tailstock |
| Kitagawa Hydraulic Steady Rest |
| Steady Rest Capacity: 9.5″ |
| Tailstock Quill Diameter: Approx. 4.7″ |
| Tailstock Quill Travel: Approx. 5.9″ |

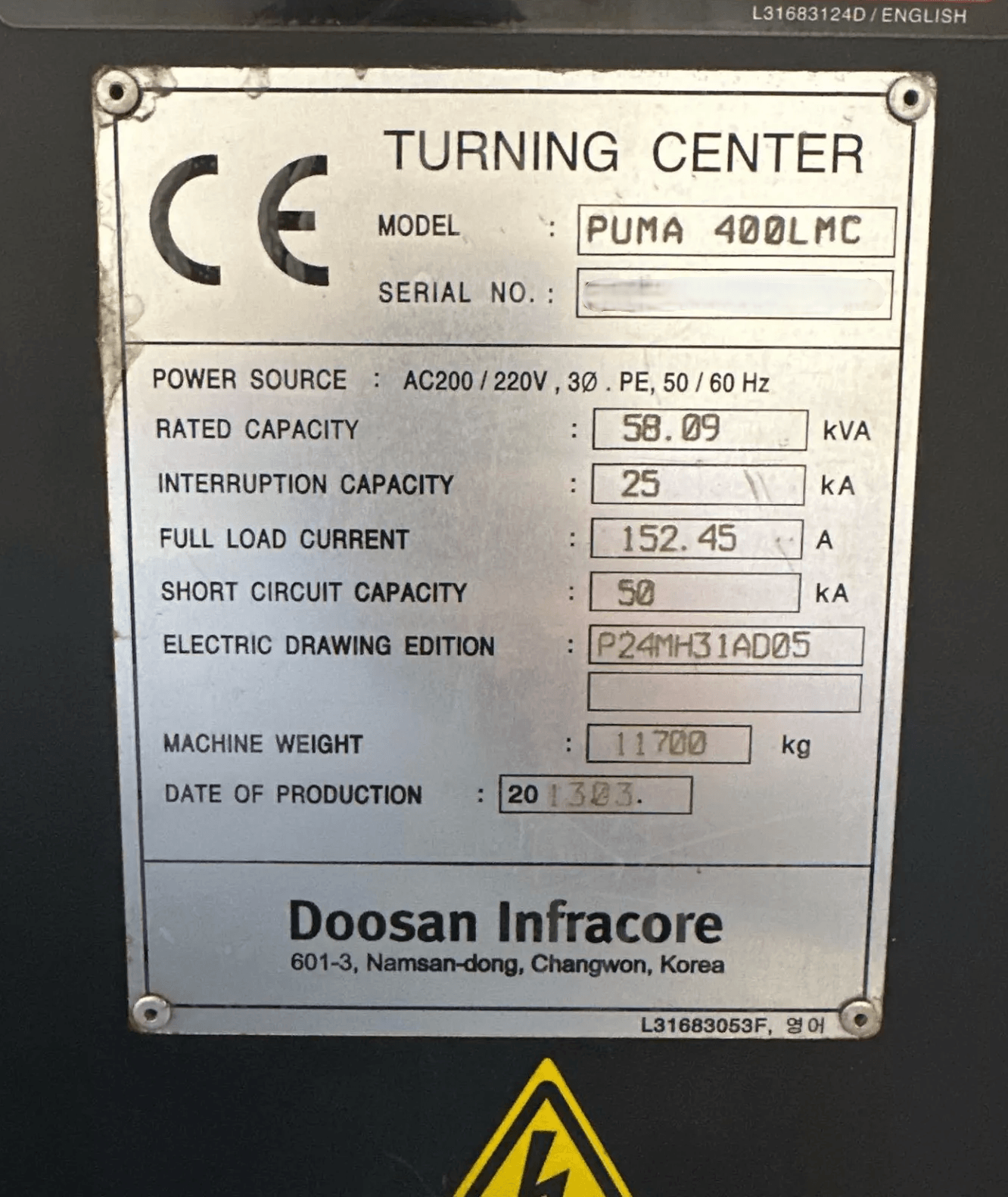

| Electrical: |
|---|
| Voltage: AC 200/220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Rated Capacity: 58.09 kVA |
| General: |
|---|
| Machine Weight: Approx. 25,800 Lbs |
| Overall Dimensions: Approx. 240″ x 92″ x 95″ |
| Made In: Korea |
