*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

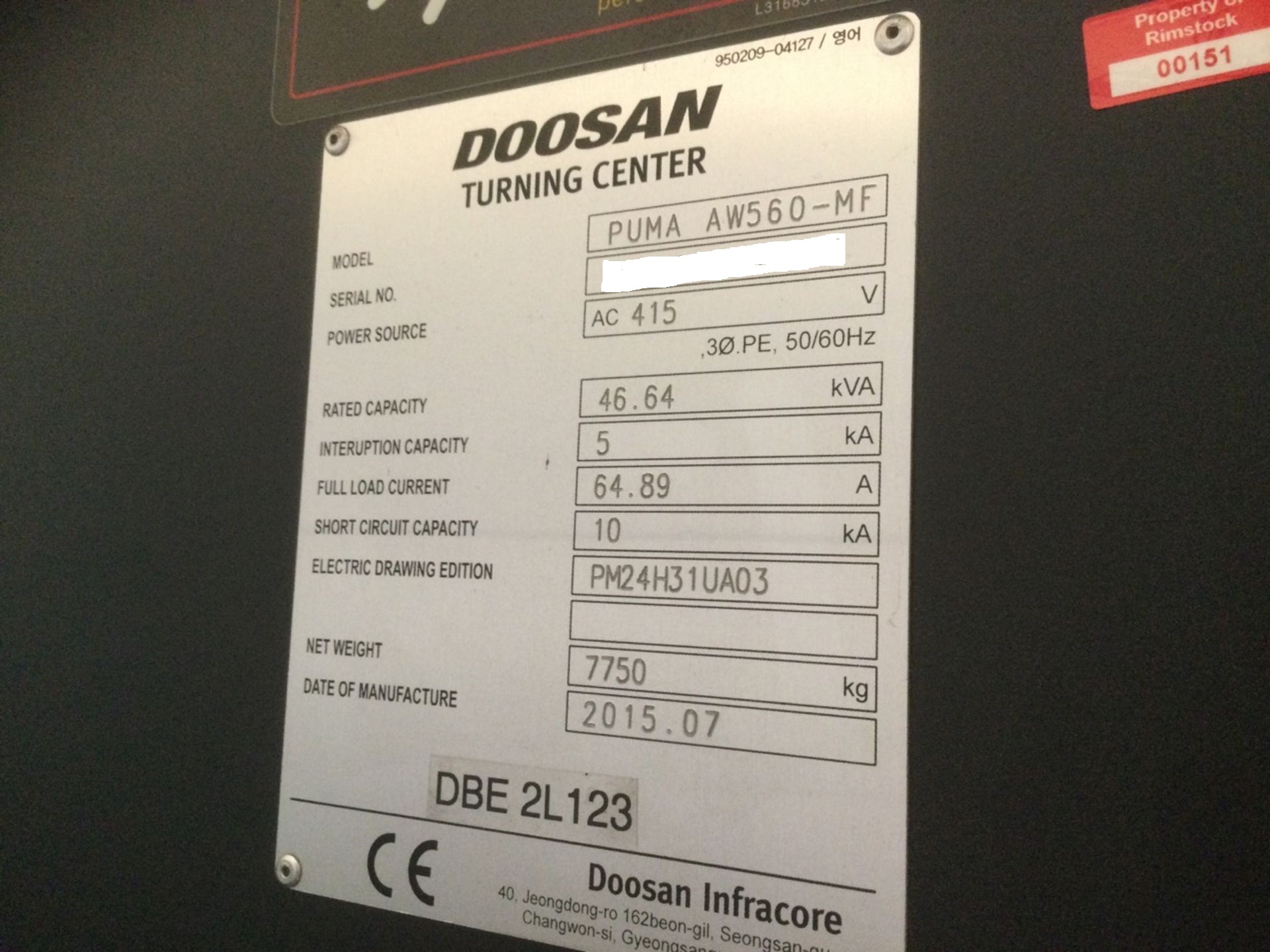

| Make: | Doosan |
| Model: | PUMA AW560MF |
| Condition: | Used |
| Equipped With: |
|---|

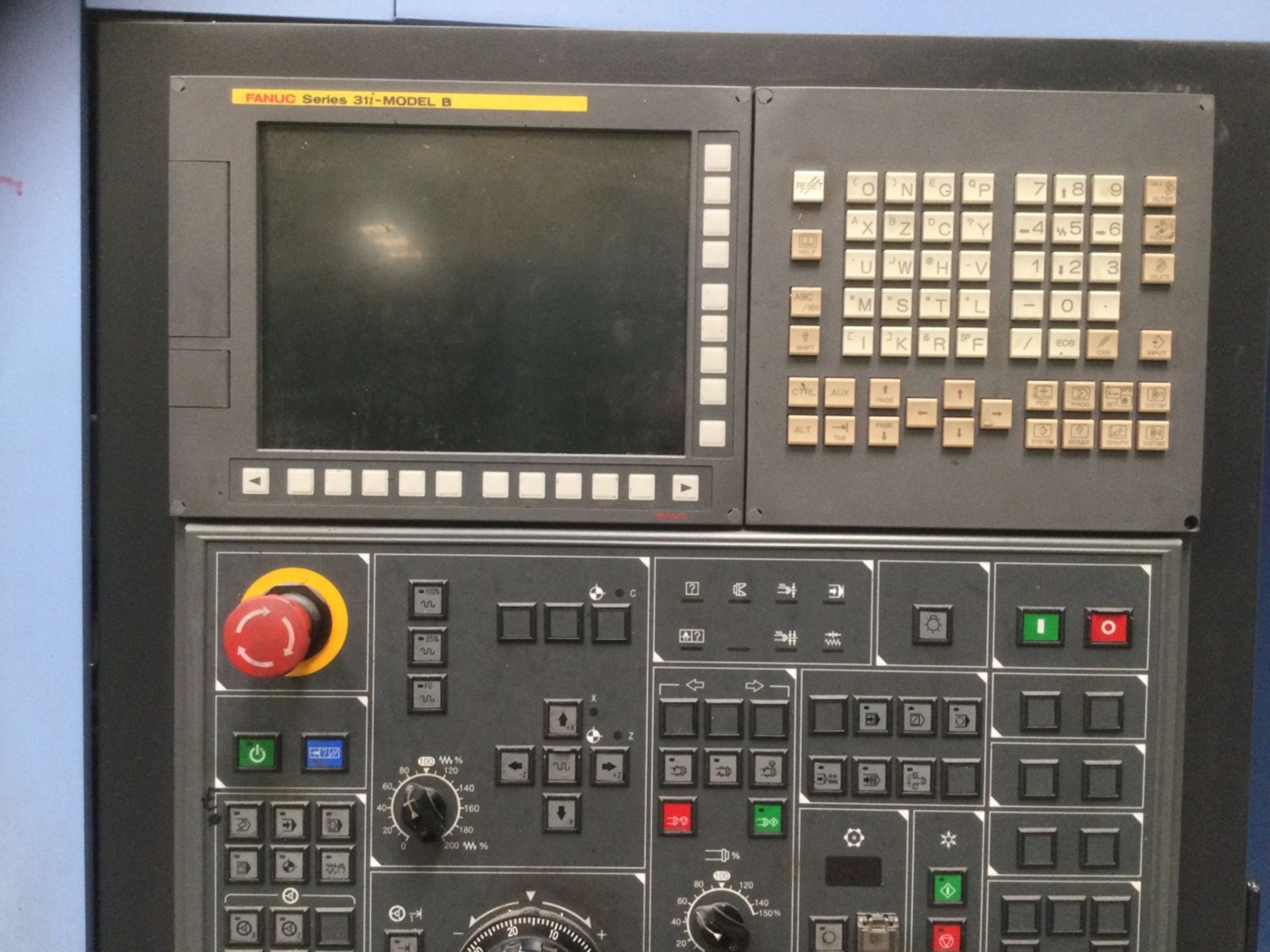

| Fanuc CNC Control |
| Horizontal CNC Turning Center |
| Milling Function |
| C-Axis Control |
| Box-Way Construction |
| Automatic Turret |
| Hydraulic Chuck |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 22.0″ |
| Max Turning Length: 45.3″ |
| Swing Over Bed: 31.5″ |
| Swing Over Saddle: 24.0″ |
| Bar Capacity: 4.1″ |
| Travels: |
|---|
| X-Axis Travel: 12.6″ |
| Z-Axis Travel: 47.2″ |
| Rapid Traverse X-Axis: 945 IPM |
| Rapid Traverse Z-Axis: 1,181 IPM |
| Main Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 40 HP |
| Spindle Bore: 4.9″ |
| Milling Function: |
|---|
| Milling Spindle Speed: 4,000 RPM |
| Milling Motor Power: 15 HP |
| C-Axis Indexing: 0.001° |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Max Tool Size (OD): 1.57″ × 1.57″ |
| Max Boring Bar: 3.15″ |
| Index Time: 0.2 sec |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 27,500 lbs |
| Machine Dimensions (Approx.): 181″ × 93″ × 95″ |
