*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

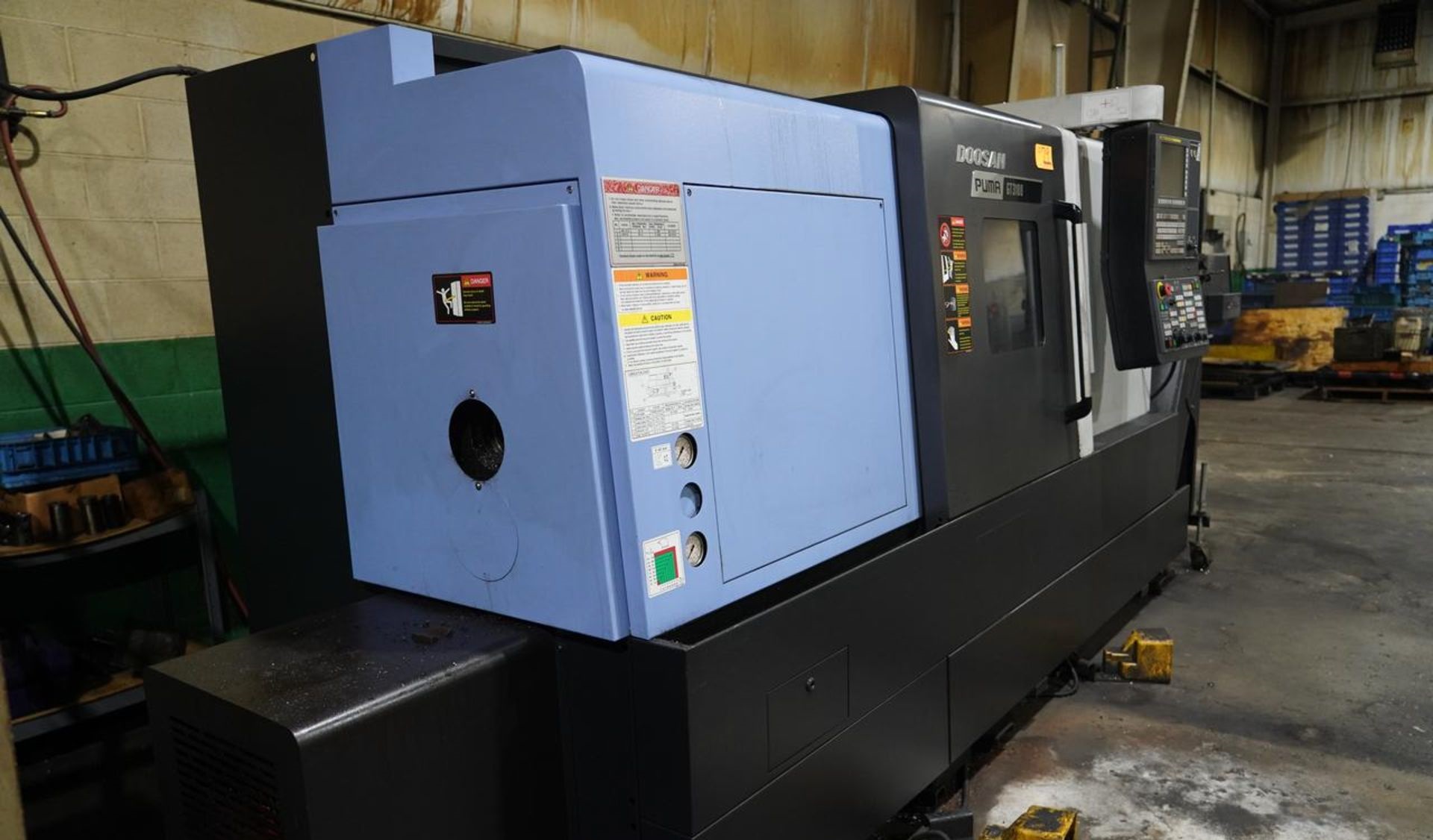

| Make: | Doosan |
| Model: | PUMA GT3100 |
| Condition: | Used |
| Equipped With: |
|---|

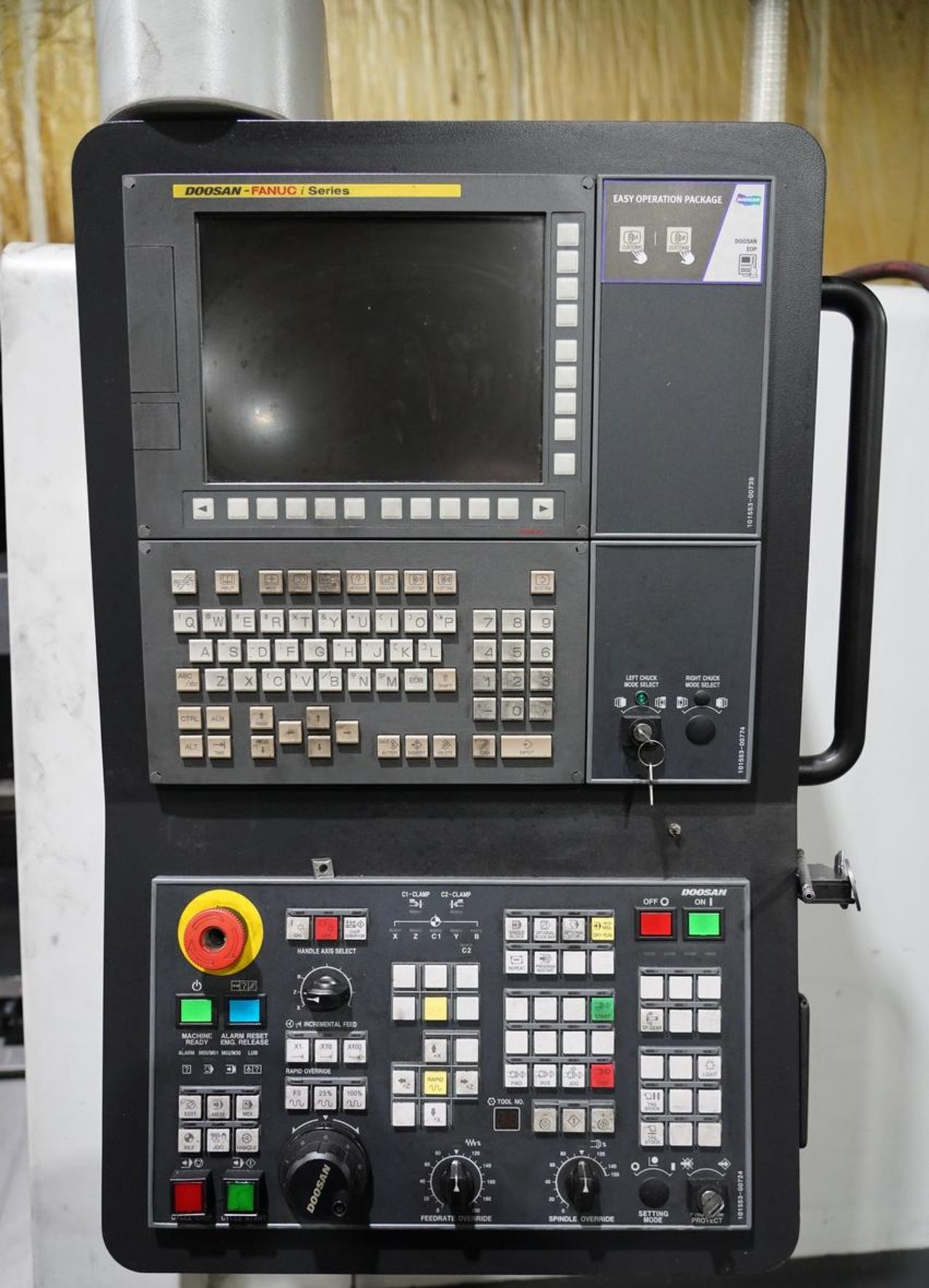

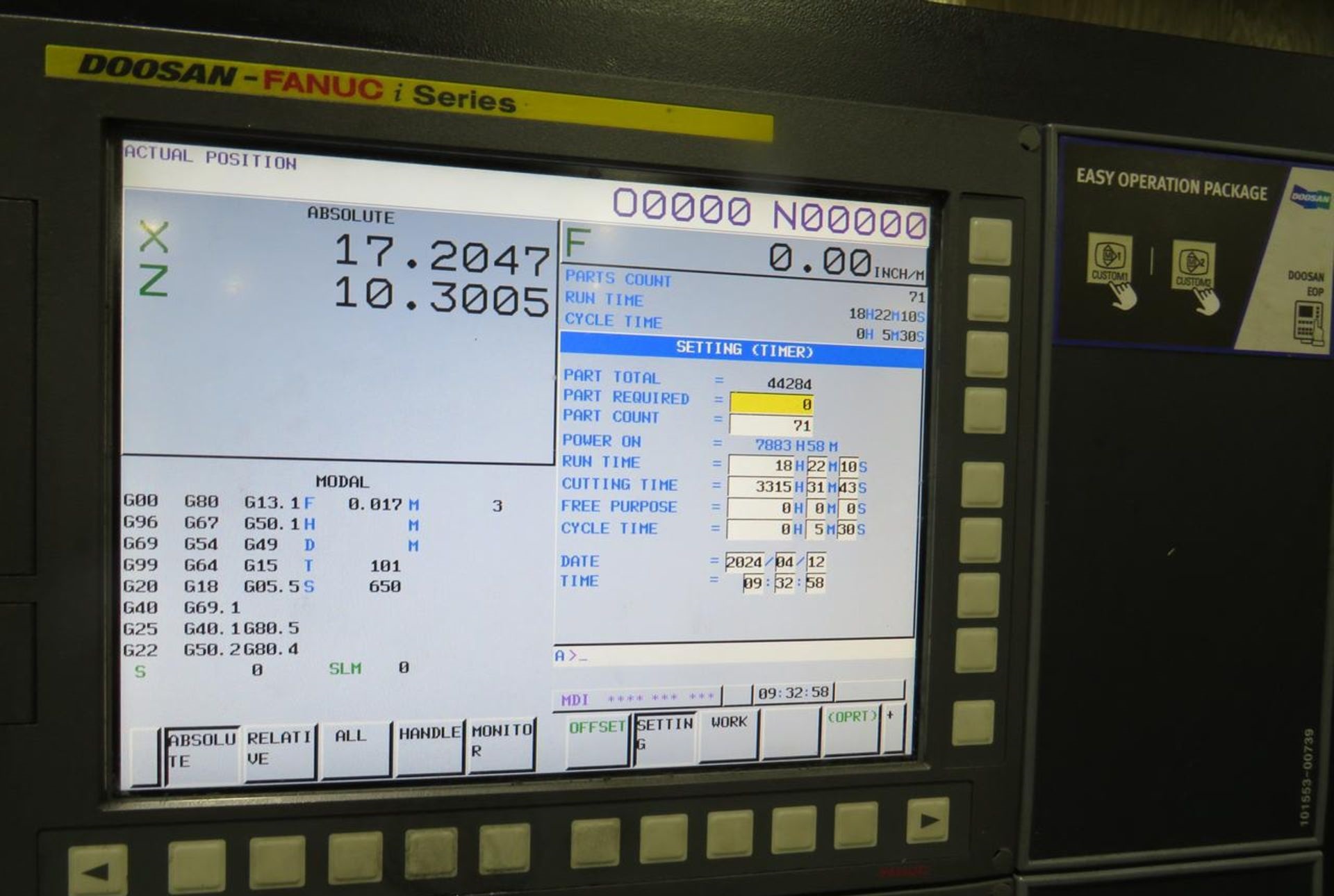

- Fanuc CNC Control
- Heavy-Duty Box Way Construction
- 15″ Hydraulic Chuck
- 12-Station Servo Turret
- C-Axis Control
- Automatic Tool Presetter
- Coolant System

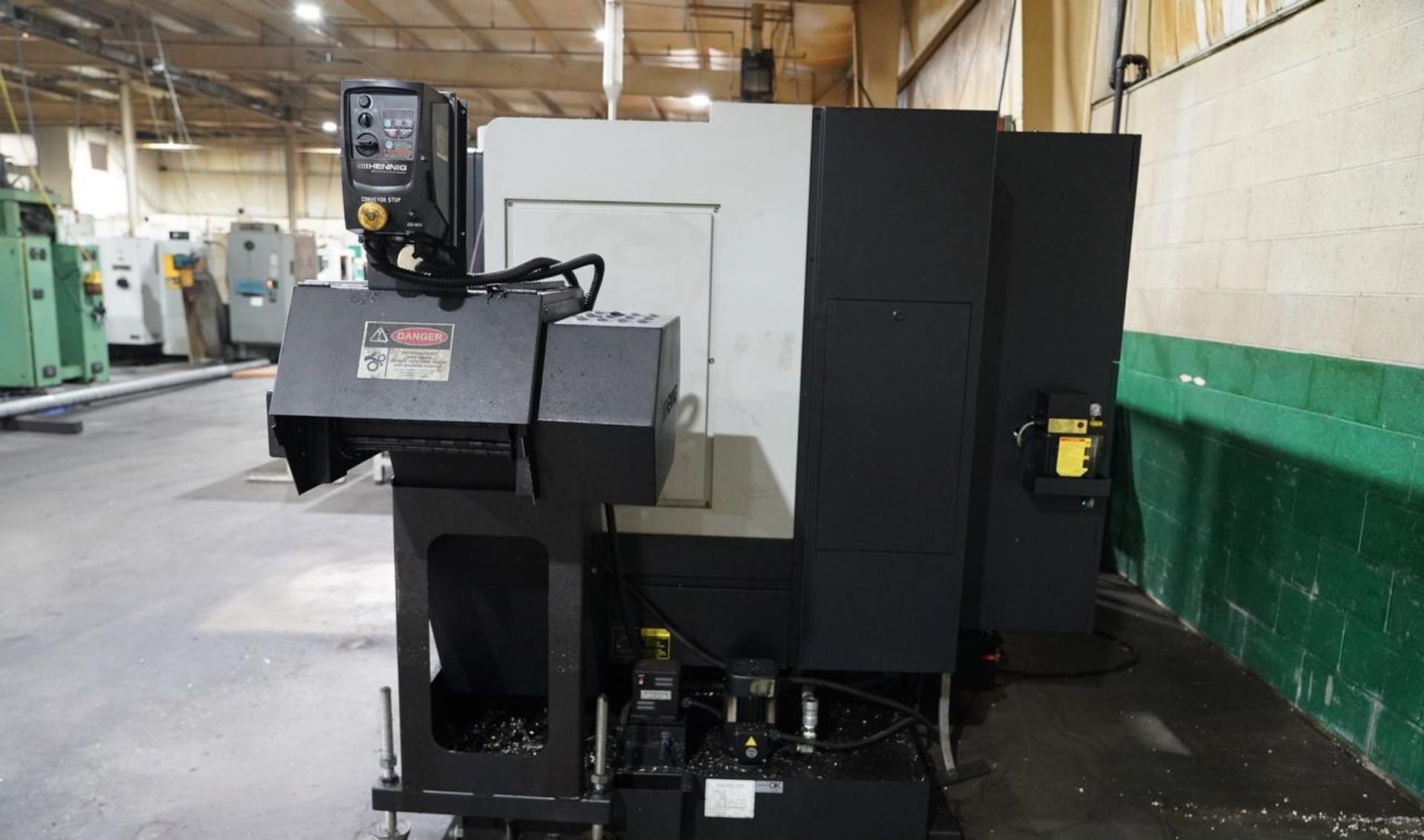

- Chip Conveyor
- Full Enclosure
|
| Capacity: |
|---|
- Max Turning Diameter: 18.9″
- Max Turning Length: 30.7″
- Swing Over Bed: 25.6″
- Swing Over Saddle: 18.1″
- Bar Capacity: 4.1″
|
| Travels: |
|---|
- X-Axis Travel: 11.8″
- Z-Axis Travel: 33.1″
- Rapid Traverse X/Z: 945 IPM
|
| Spindle: |
|---|
- Spindle Nose: A2-8
- Spindle Speed: 3,000 RPM
- Spindle Motor: 30 HP
- Spindle Bore: 4.09″
|
| Feedrates: |
|---|
- Rapid Traverse X/Z: 945 IPM
- Cutting Feedrate: 0.00004″ – 472″/min
|
| Turret: |
|---|
- Turret Capacity: 12 Stations
- Tool Size (OD): 1.25″ × 1.25″
- Boring Bar Capacity: 2.5″
- Index Time: 0.2 sec
|
| General: |
|---|

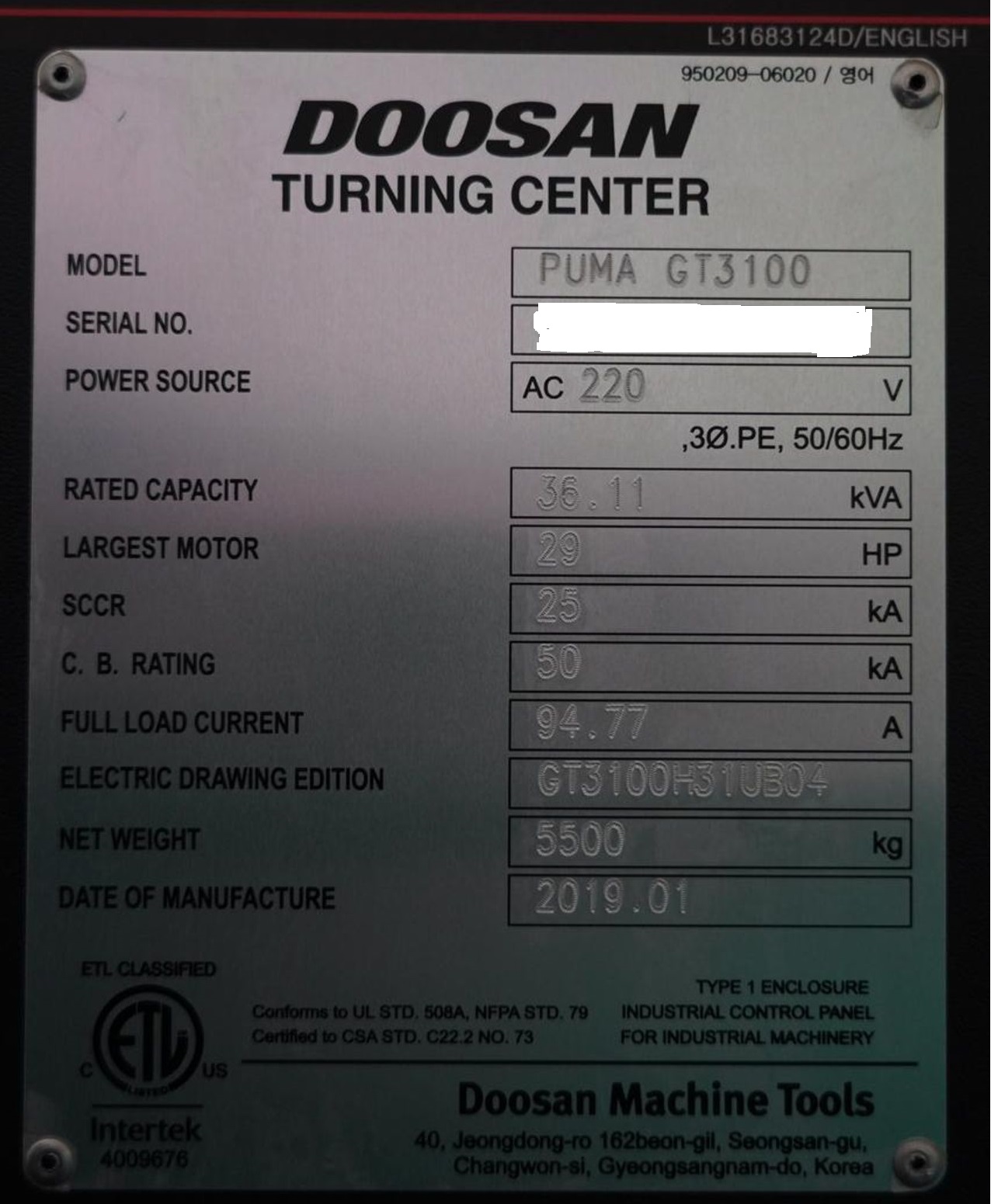

- Power Requirement: 220V / 3-Phase
- Machine Dimensions (Approx.): 132″ × 76″ × 82″
- Machine Weight (Approx.): 15,900 lbs
|
