*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

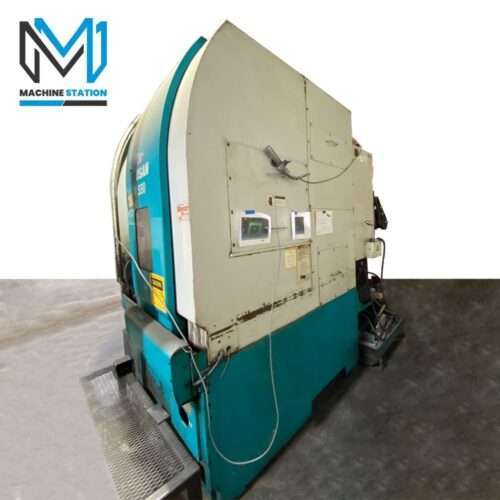

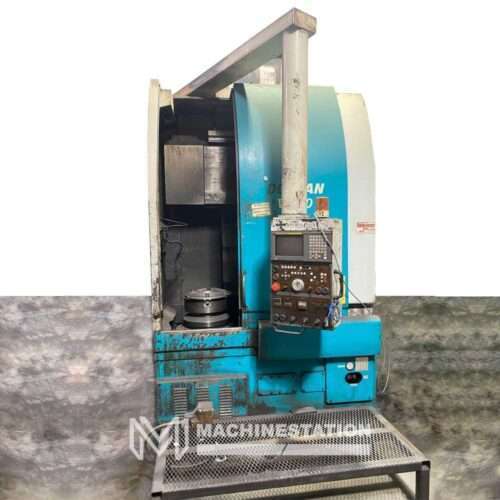

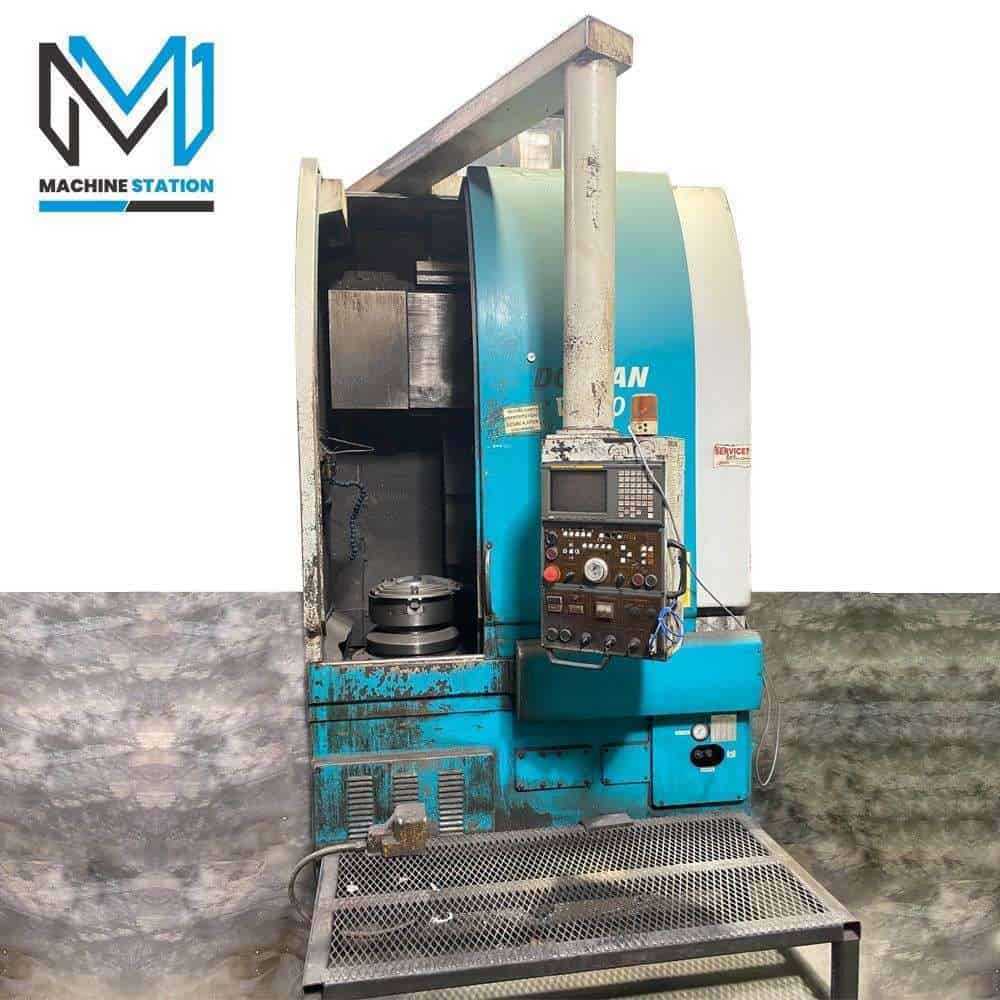

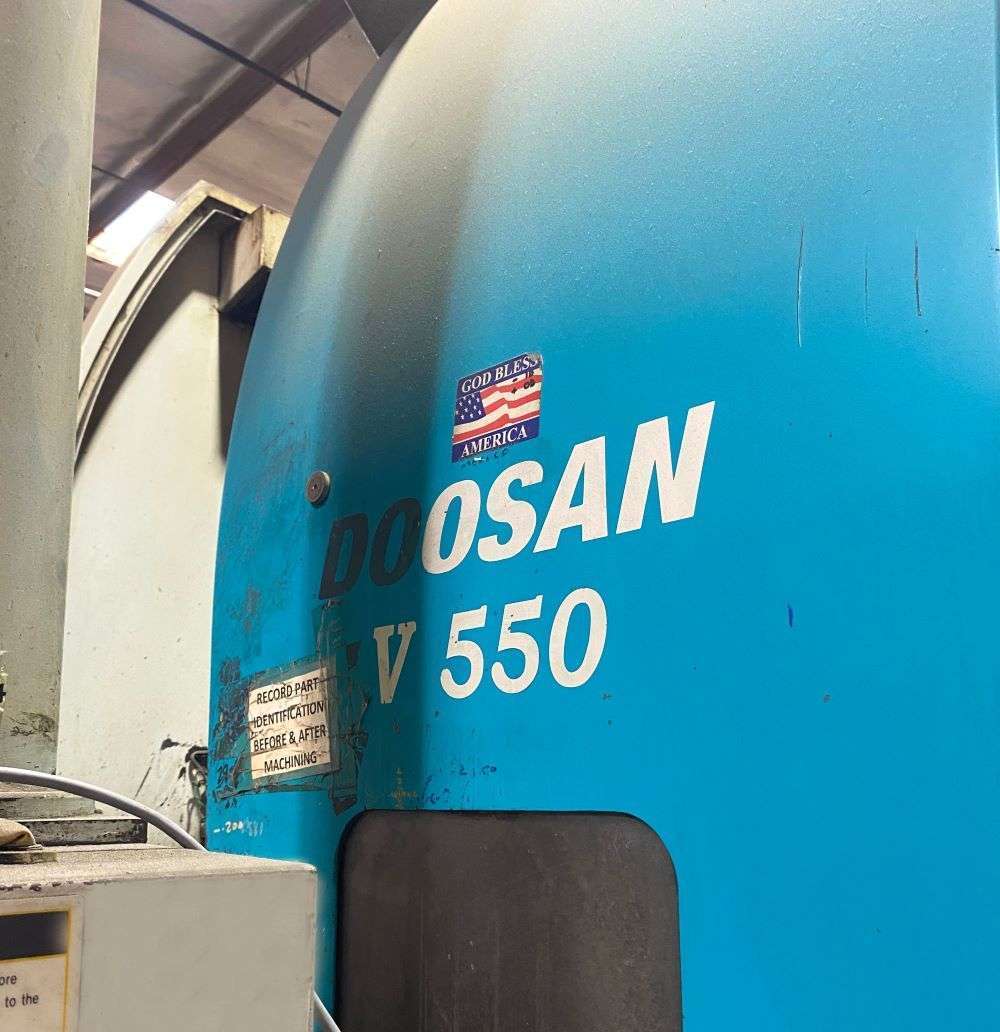

| Make: | Doosan |

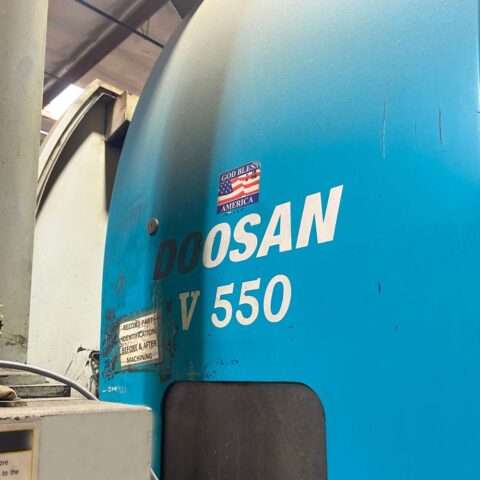

| Model: | V550 |
| Year: | |
| Equipped With: |
|---|

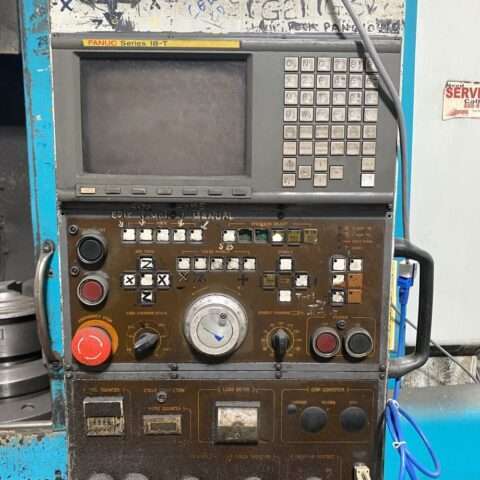

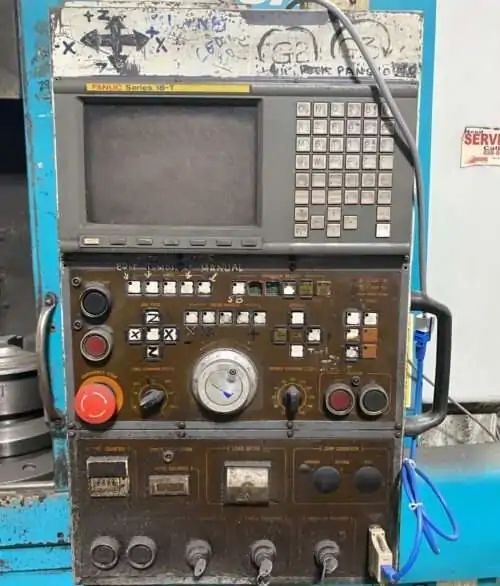

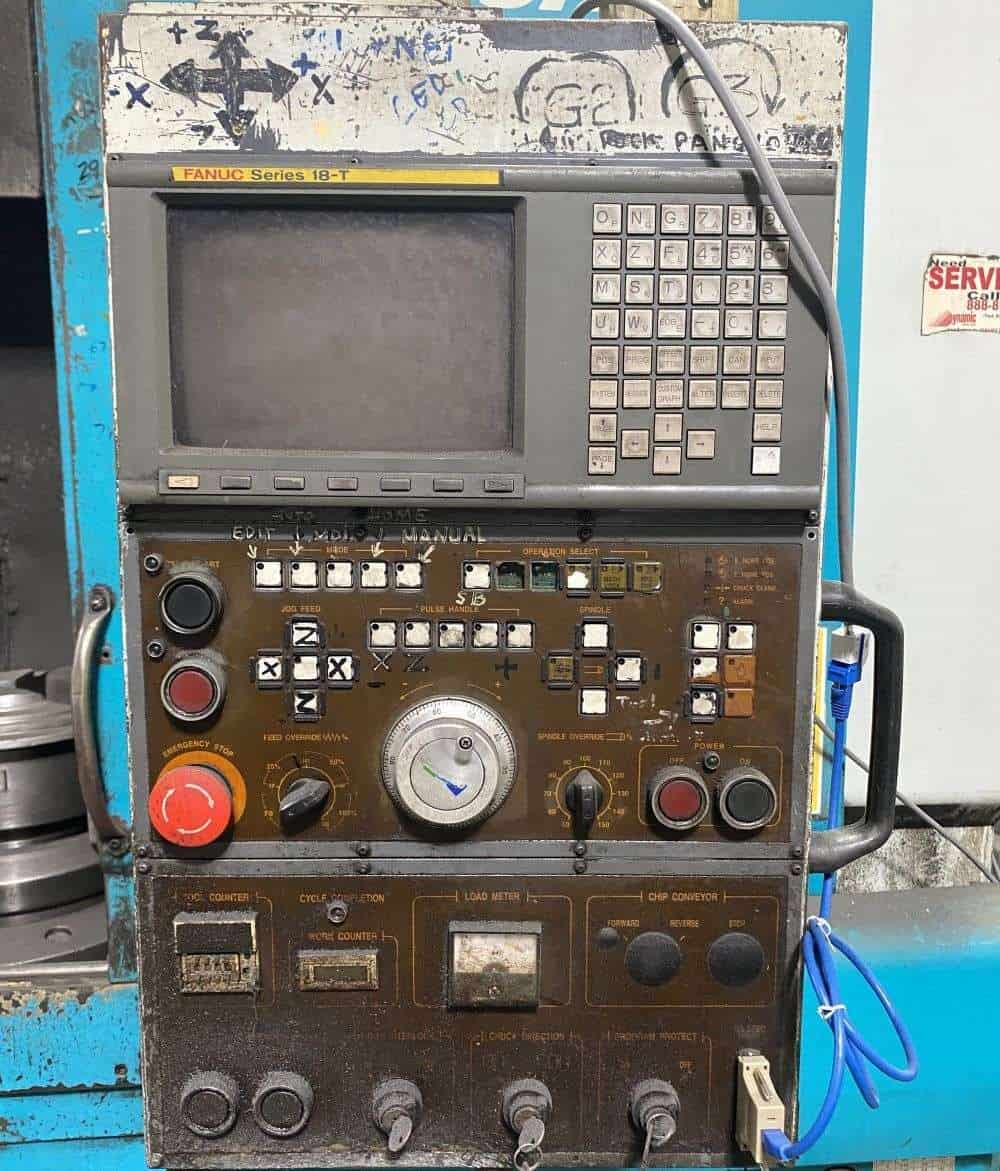

| Fanuc 18-T CNC Control |

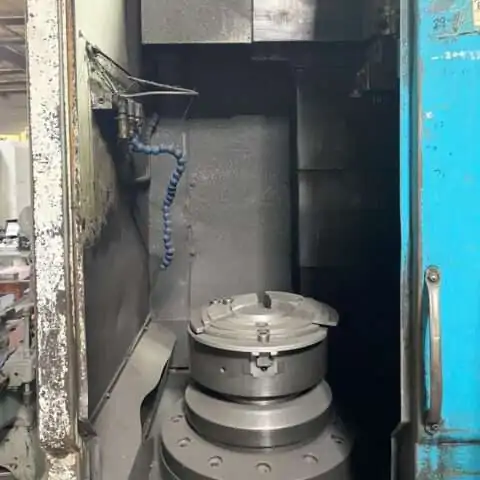

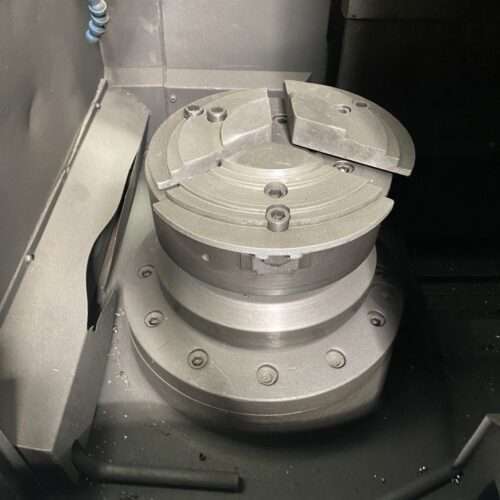

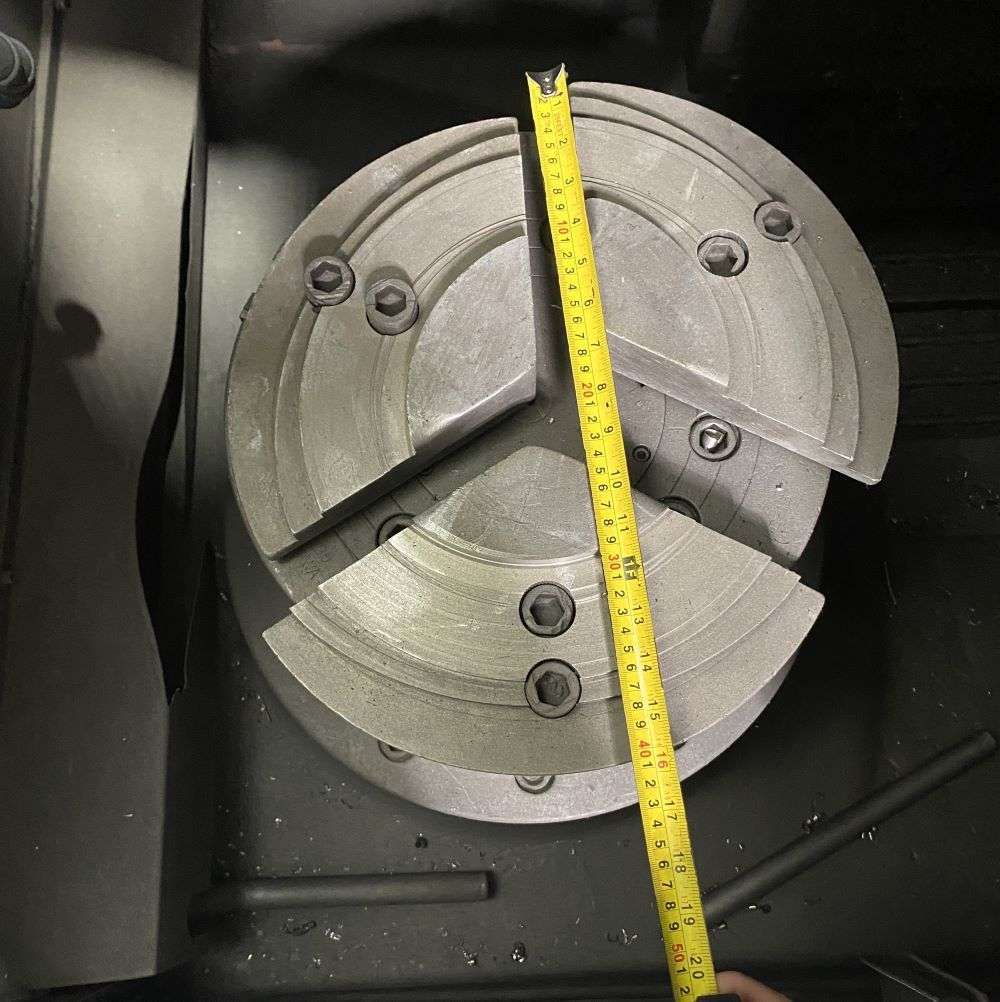

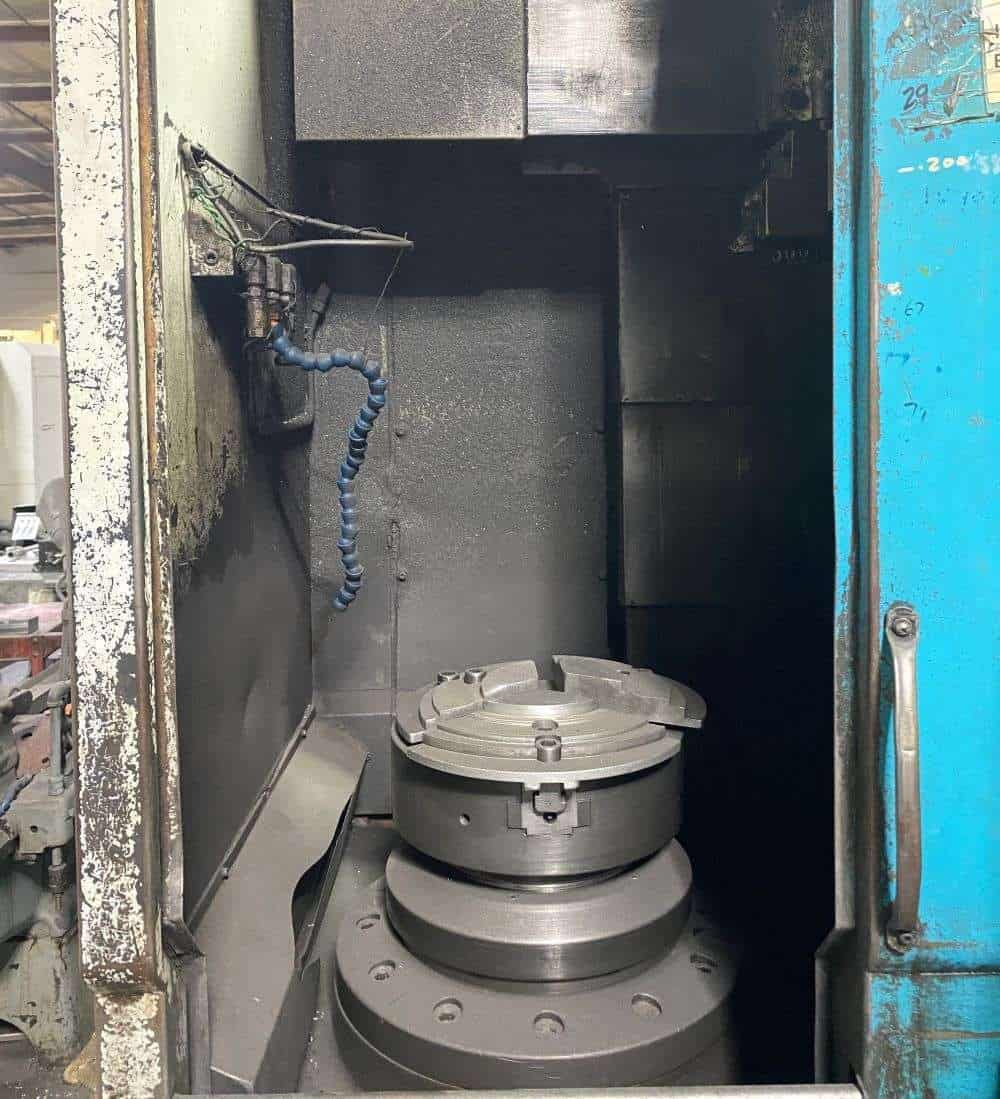

| 15″ 3 jaw Chuck |

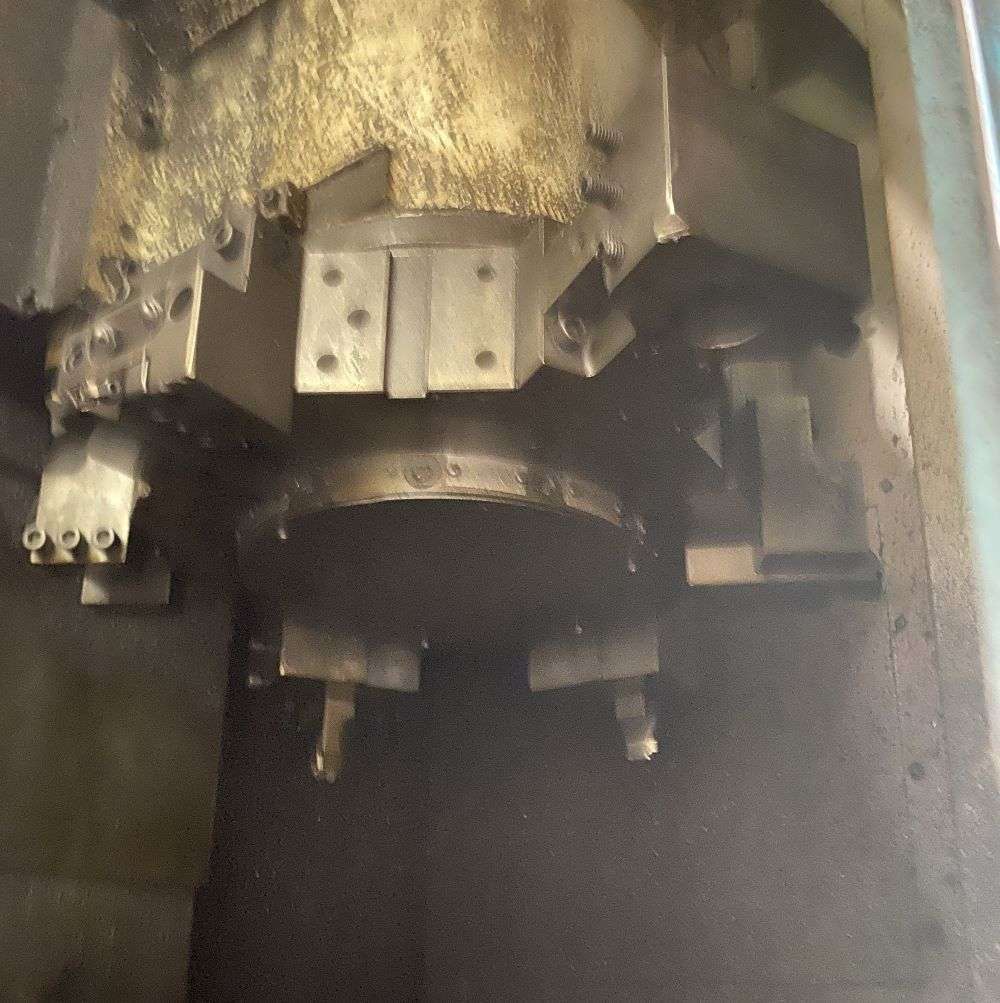

| 10 Station tool Turret |
| RS232 Port |
| Coolant System |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 28.7″ |
| Max Swing Over Bed: 31.5″ |
| Max Swing Over Saddle: 19.3″ |
| Max Turning Height: 29.5″ |
| Travel: |
|---|
| X Axis Travel: 15.7″ |
| Z Axis Travel: 30.7″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 630 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Speed: 2000 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 1.25” |
| Boring Bar Size: 2.4” |
| General: |
|---|
| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 75″ X 107″ X 129” High |
| Weight: 20000 lbs Approx |
