*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | PUMA 240B |
| Year: | 2008 |
| Machine Type: | 2-Axis CNC Turning Center |
| CNC Control: | FANUC 21i-TB |
| Equipped With: |
|---|
| FANUC 21i-TB CNC Control |
| 8″ 3-Jaw Chuck |
| 12-Station Tool Turret |
| Hydraulic Tailstock |
| LNS Hydrobar Bar Feeder |
| Chip Conveyor |
| Fully Enclosed Machine |
| Coolant System |
| Automatic Lubrication |
| Capacity: |
|---|
| Maximum Swing Over Bed: 21.6″ |
| Maximum Turning Diameter: 13.78″ |
| Maximum Turning Length: 22.1″ |
| Swing Over Saddle: 15.3″ |
| Maximum Bar Capacity: 2.64″ |
| Travels: |
|---|
| X-Axis Travel: 9.5″ |
| Z-Axis Travel: 22.8″ |
| Spindle: |
|---|
| Spindle Type: Horizontal |
| Spindle Bore: 2.64″ |
| Maximum Spindle Speed: 4,500 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Type: Automatic Tool Turret |
| Number of Stations: 12 |
| General: |
|---|

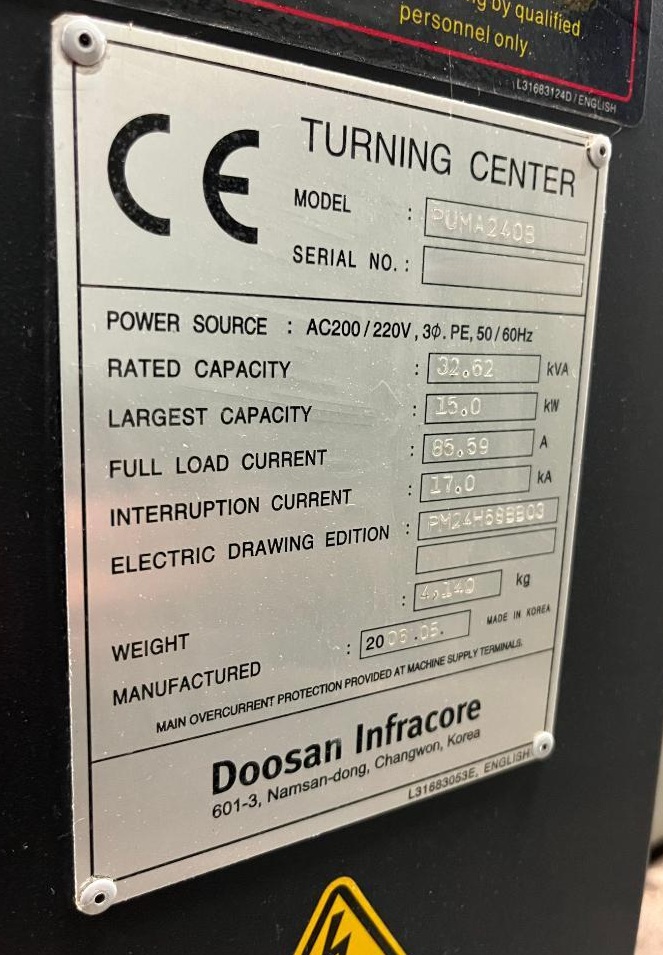

| Power Source: 200–220v / 3-Phase / 50–60 Hz |
| Machine Weight (Approx.): 9,326 lbs. |
