*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | VC 3600 |
| Year: | 2021 |
| Condition: | Used – Good |
| Machine Type: | Dual Pallet CNC Machining Center |

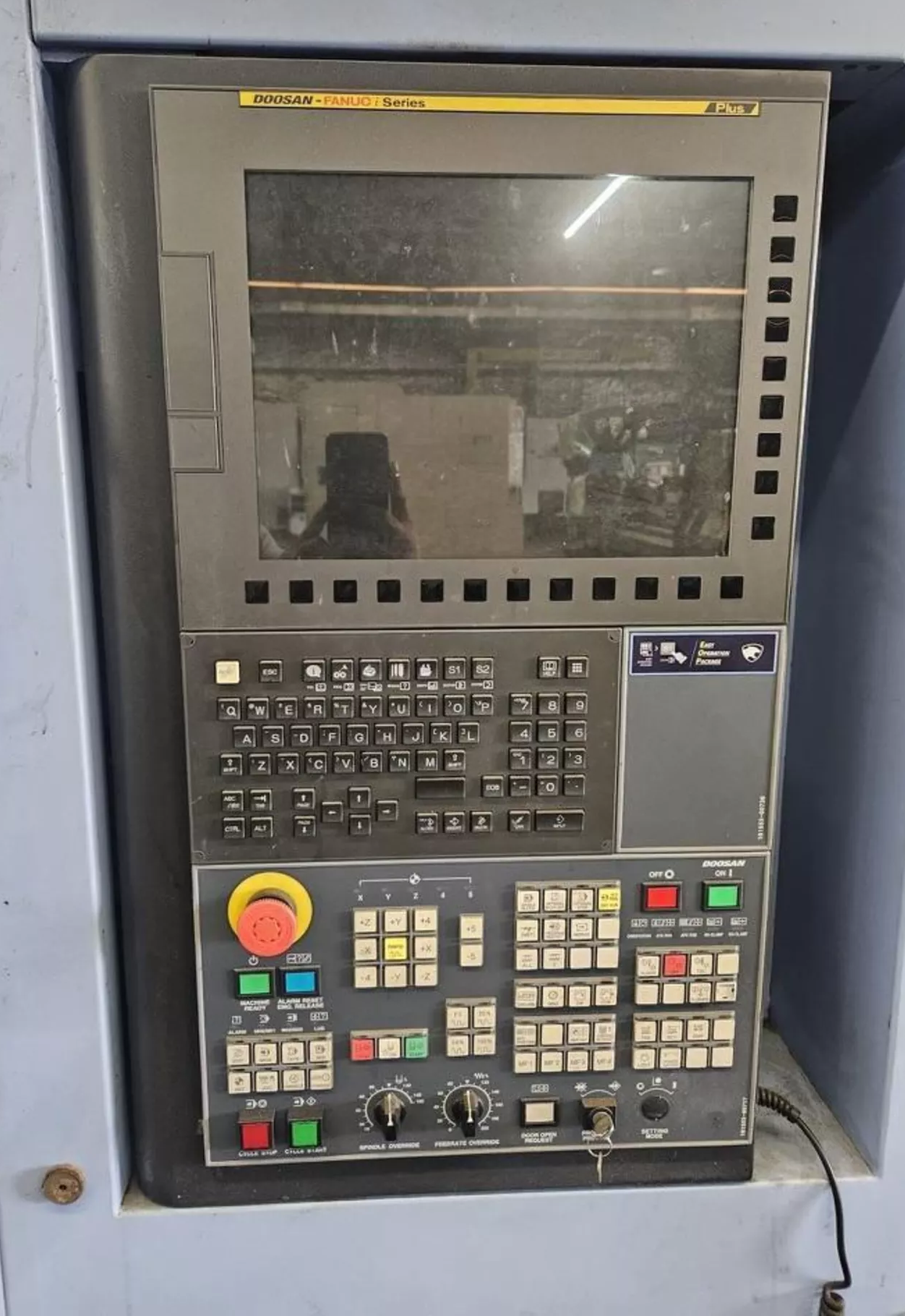

| Control: | Fanuc Oi-M CNC Control |
| Equipped With: |
|---|
| Fanuc Oi-M CNC Control |
| Dual Pallet Changer System |
| LNS Turbo Rear Discharge Chip Conveyor |
| Renishaw RMP60 Spindle Probe |
| Renishaw RTS-AA Touch Trigger Tool Setter |

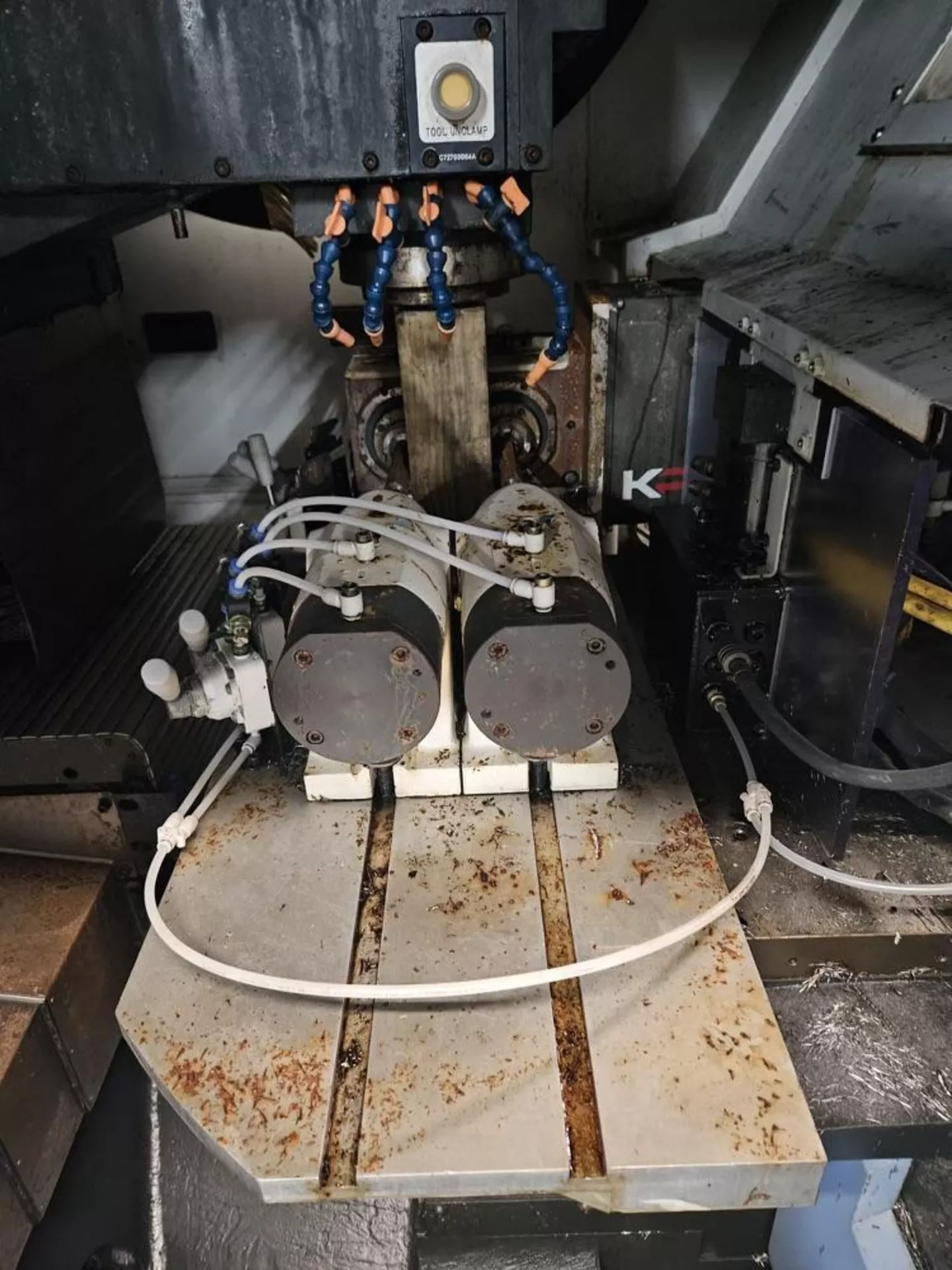

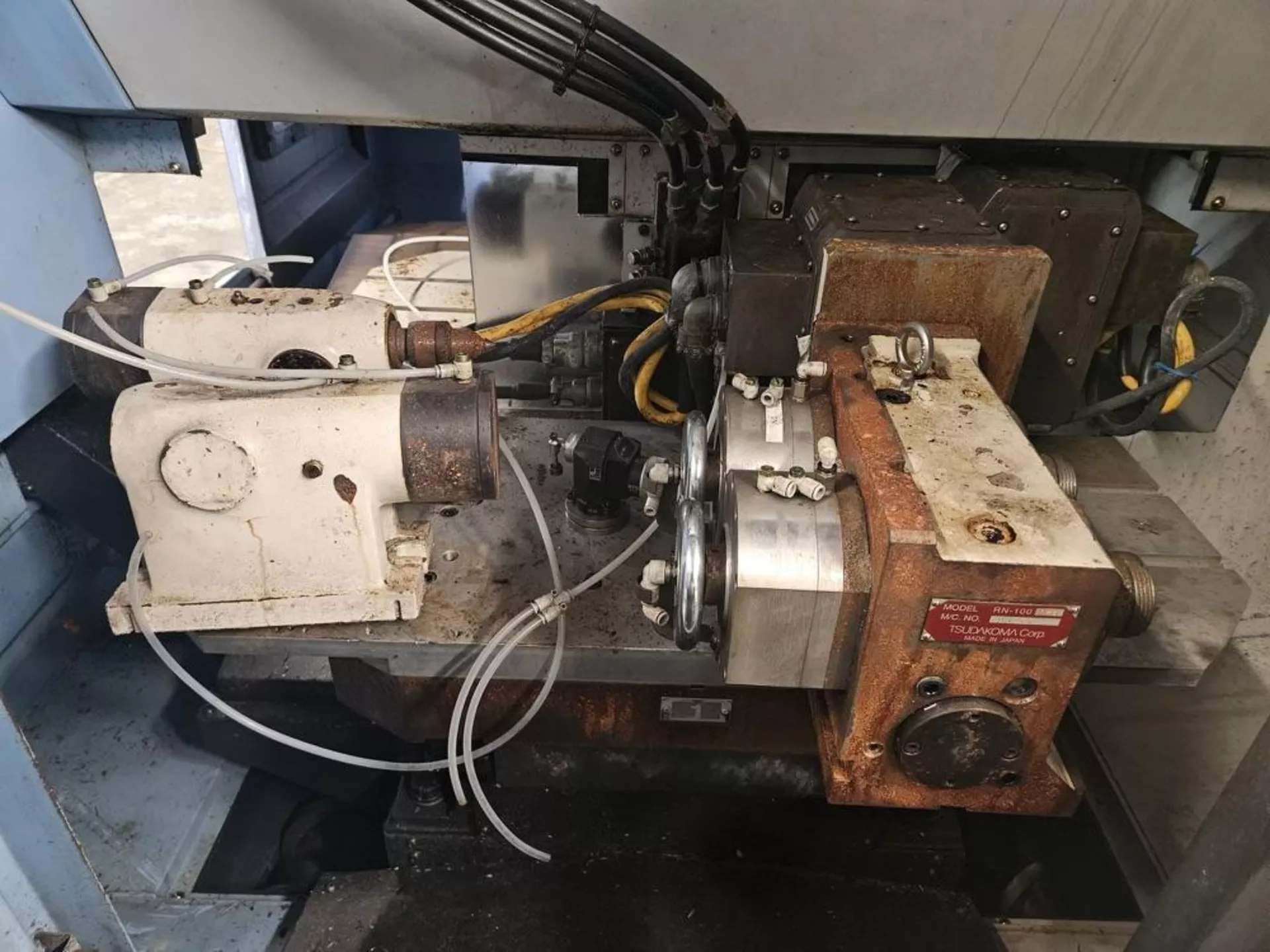

| (2) KOMA RN100R Rotary Tables |
| TLP-135 Tailstock |
| 5C Pneumatic Collet Type System |
| CAT 40 Big Plus Spindle |
| Coolant System |
| Fully Enclosed Guarding |
| Books & Manuals |
| Capacity: |
|---|
| Number Of Pallets: 2 |
| Table Size: 14.8″ X 25.6″ |
| Maximum Table Capacity: 441 LBS |
| Travels: |
|---|
| X-Axis Travel: 20.5″ |
| Y-Axis Travel: 12.6″ |
| Z-Axis Travel: 14.2″ |
| X/Y-Axis Rapid Traverse Rate: 1,890 IPM |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 25 HP |
| Spindle Taper: CAT 40 Big Plus |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 20 ATC |
| General: |
|---|
| Overall Dimensions: 131″ X 80″ X 105″ High Approx. |
| Approximate Weight: 11,250 LBS |
| Power Requirement: 220V / 3-Phase |
| Made In: South Korea |
