*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112399 |

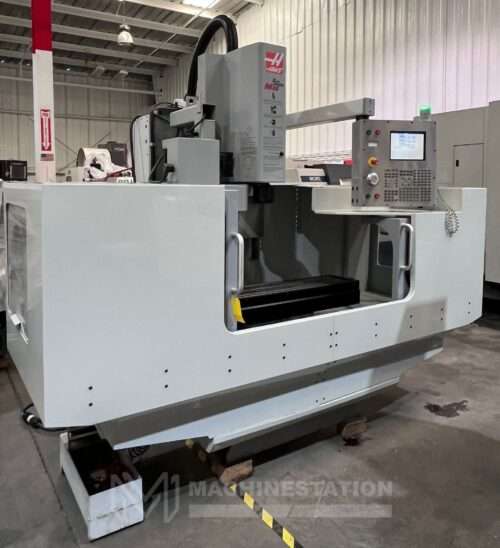

| Make: | Haas |
| Model No.: | TM1 |
| Year of Manufacture: | 2006 |
| Equipped With: |
|---|

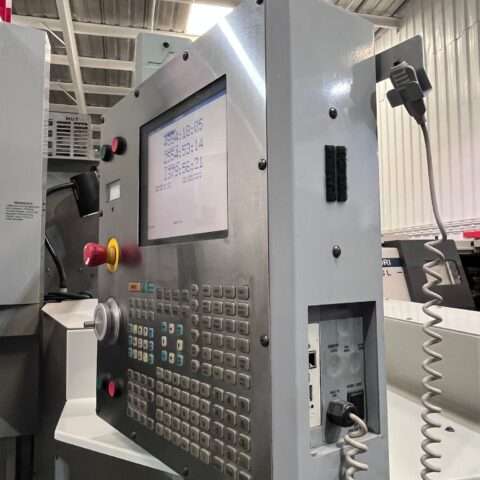

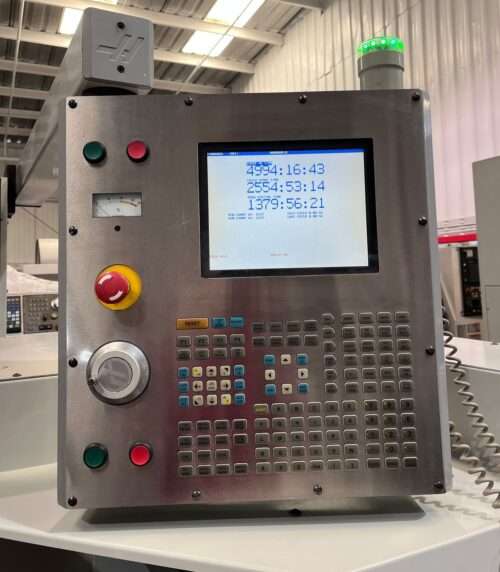

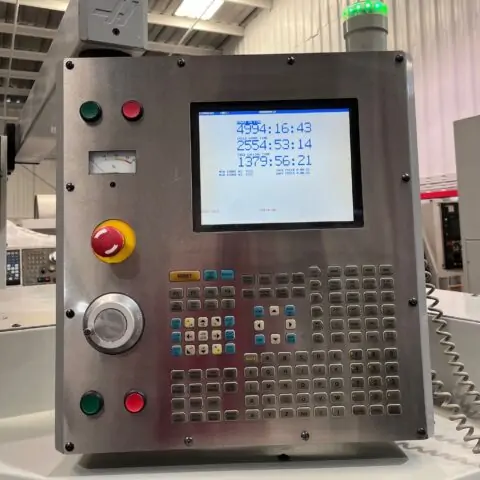

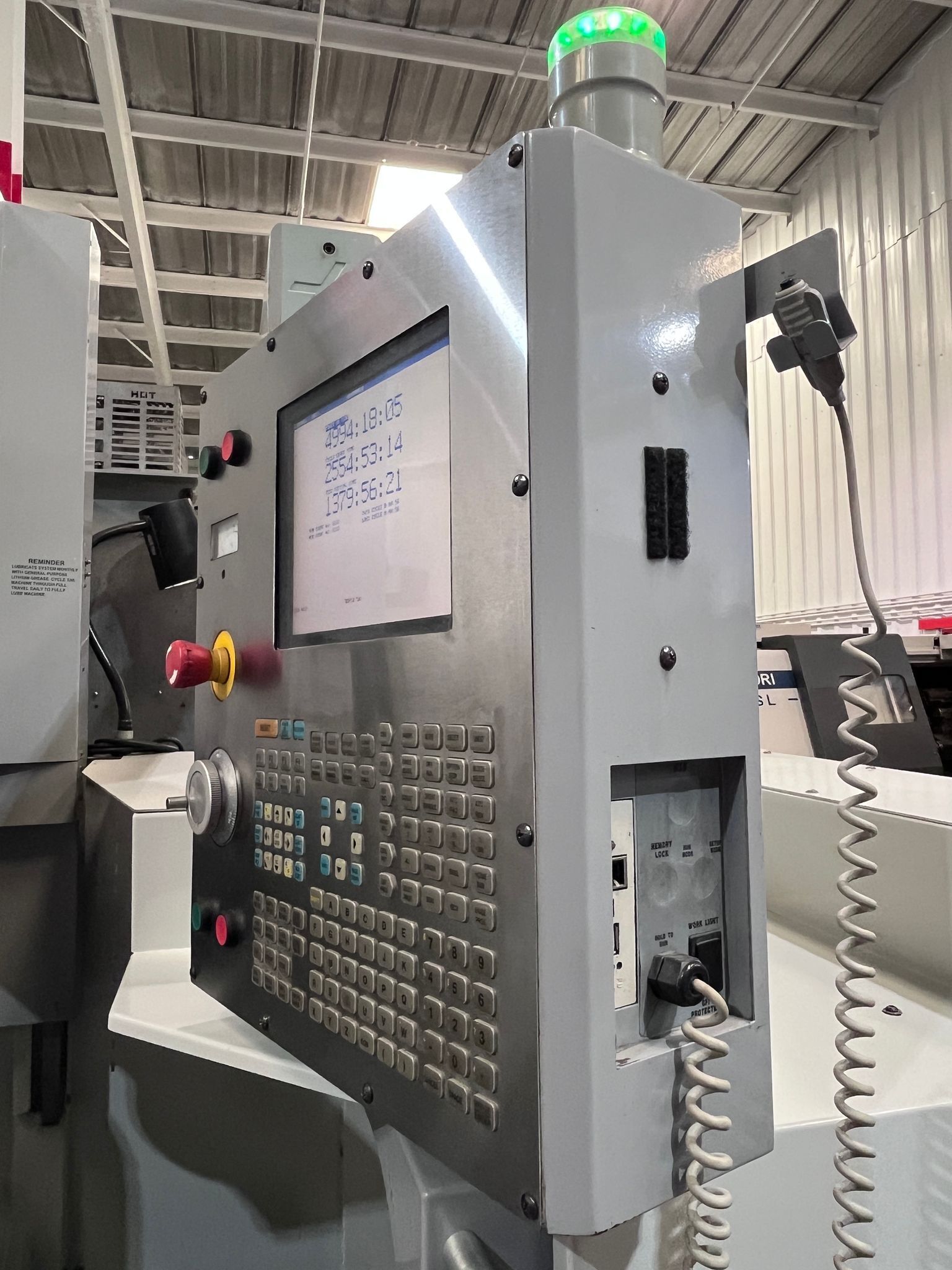

| Haas CNC Control |
| 4000 RPM Spindle |
| 7.5 HP High Torque Spindle |
| 10 Station Automatic Tool Changer |
| Rigid Tapping |
| USB Port |

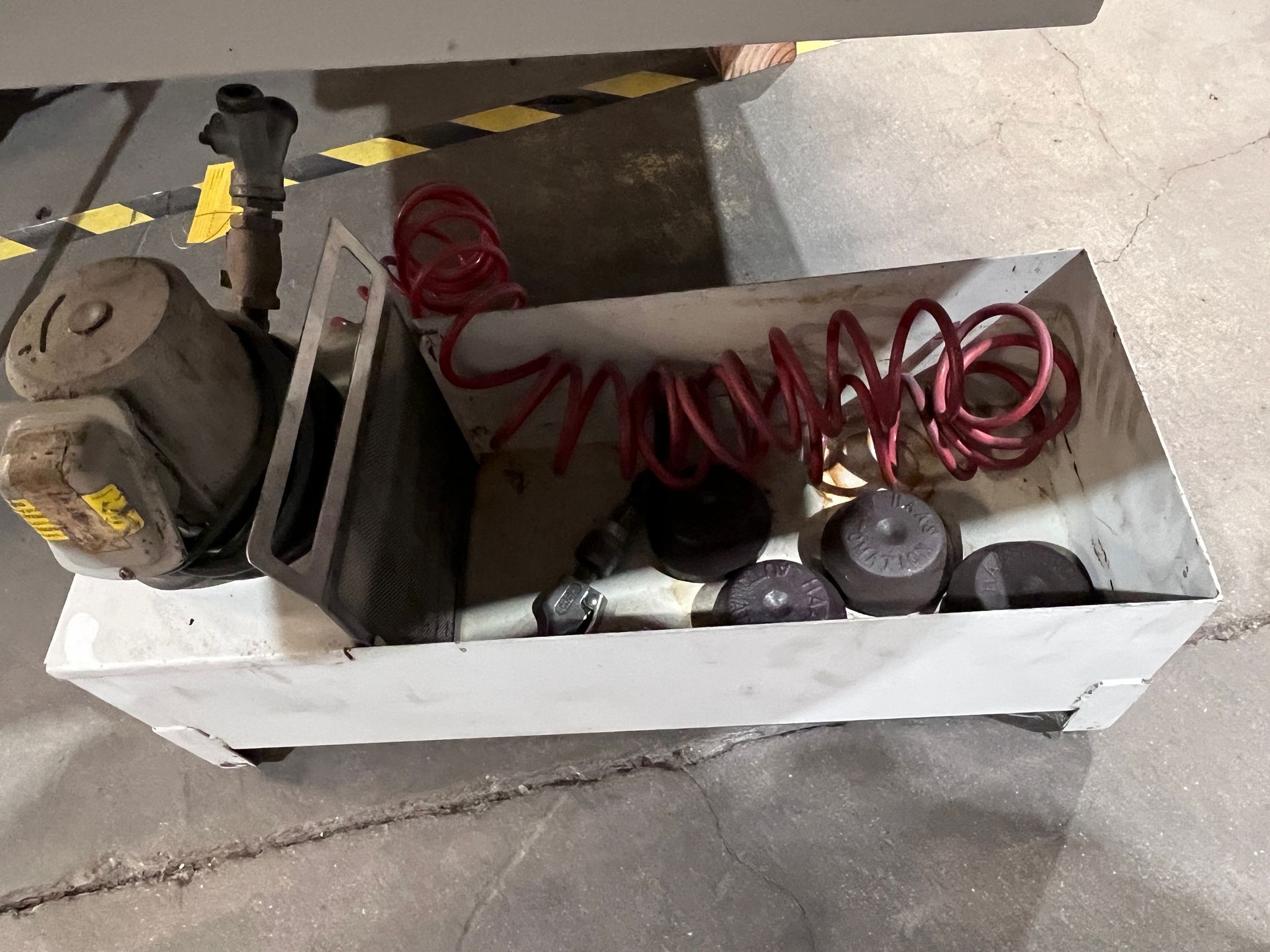

| Coolant System |

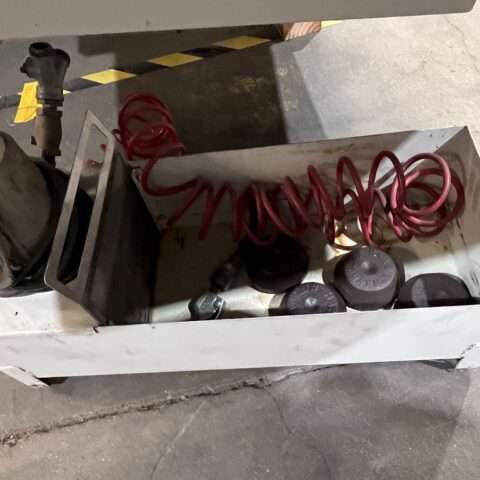

| Levelling Pads |
| Travel: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 16″ |
| Rapid Traverse Rates: 200 Inch Per Minute |
| Cutting Feed Rates: 200 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 20″ |

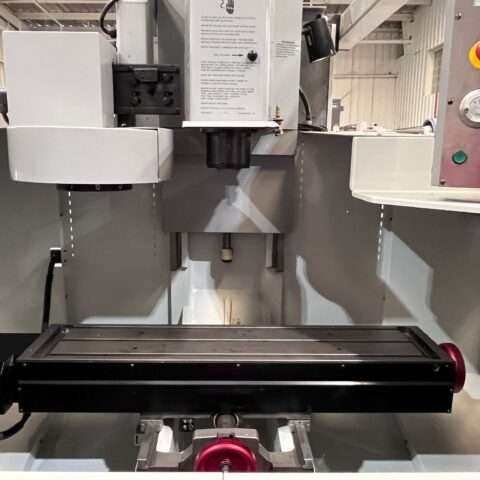

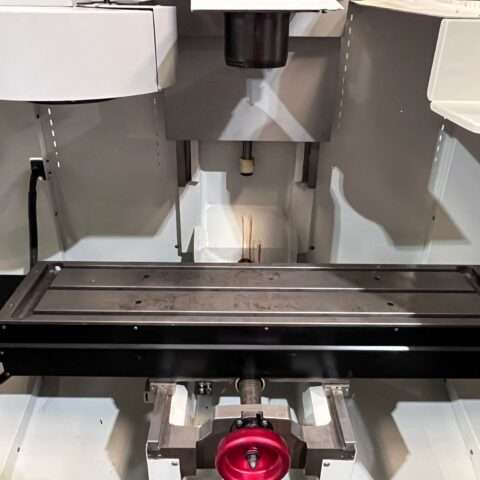

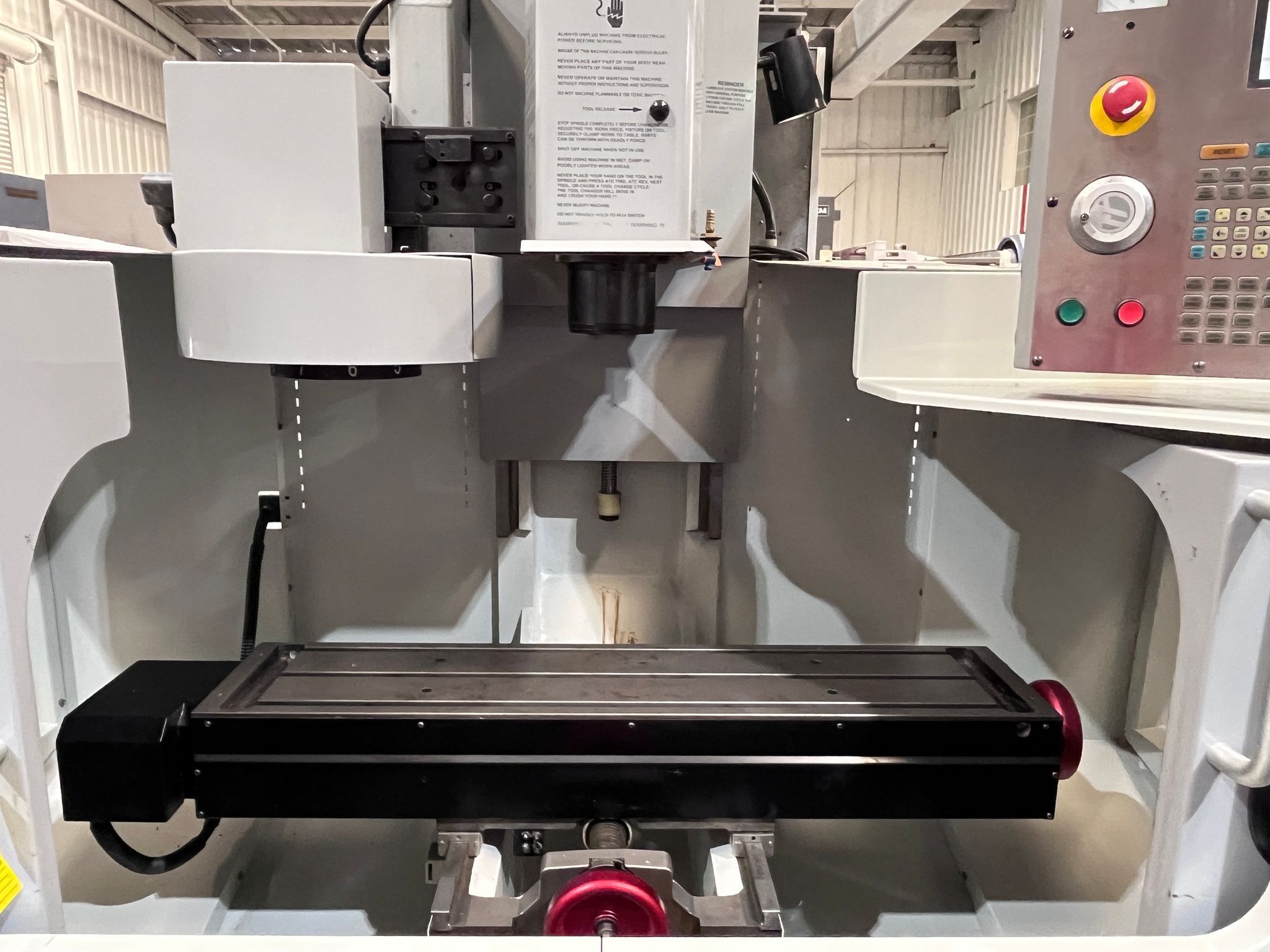

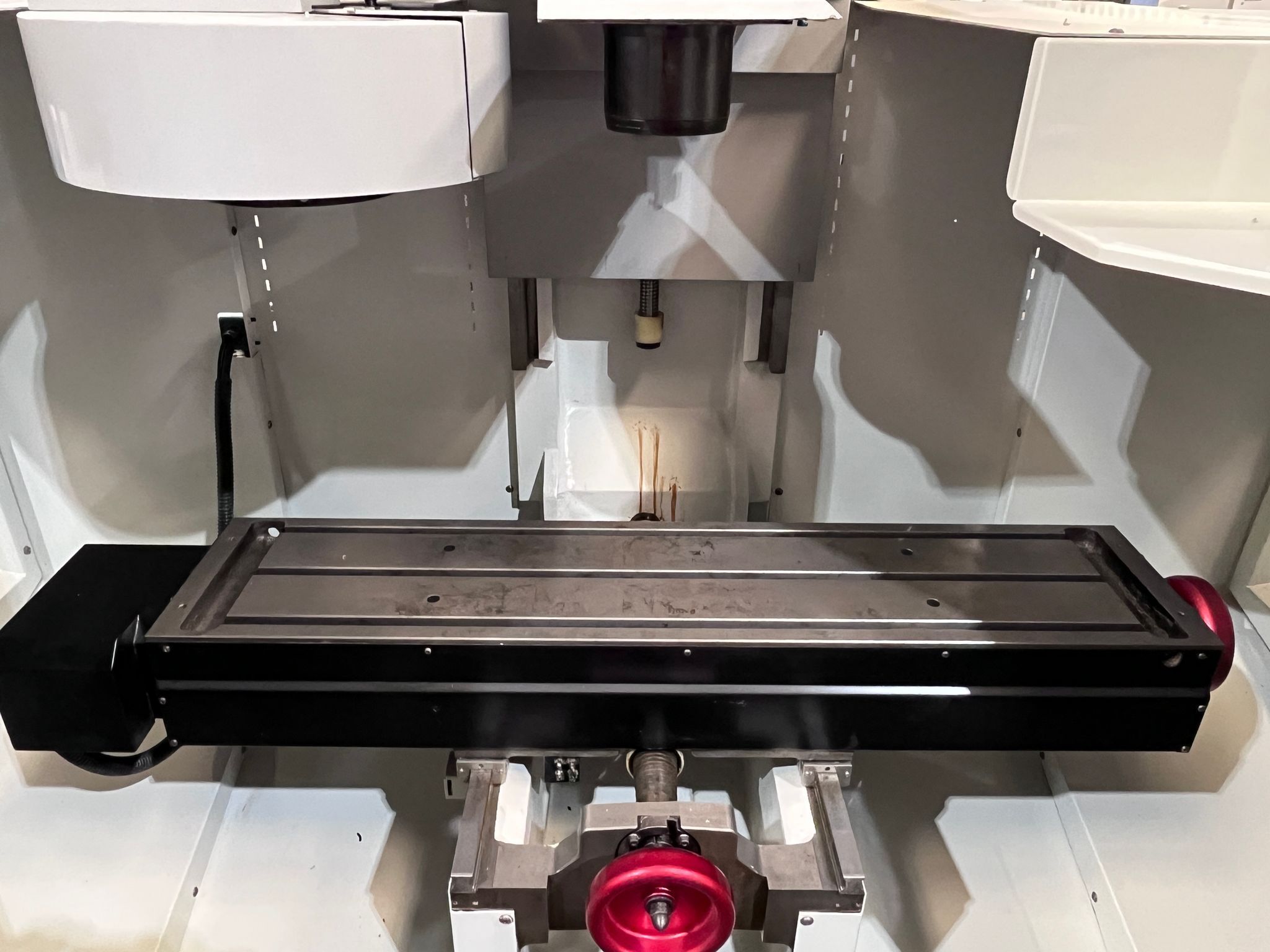

| Table: |
|---|
| Length: 47.8″ |
| Width: 10.5″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 350 lbs |

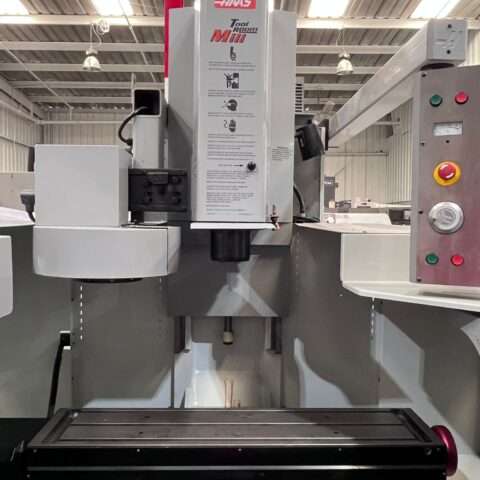

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 4000 RPM |
| Spindle Power: 7.5 HP |

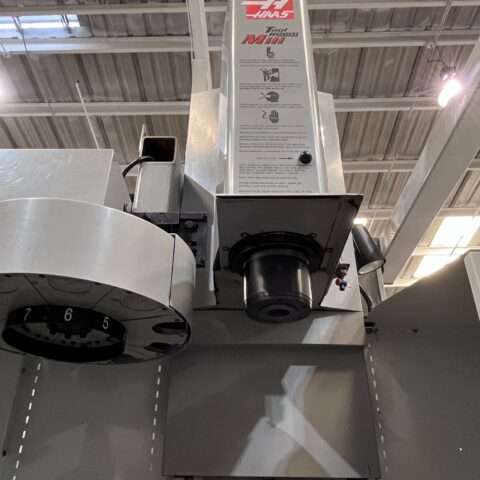

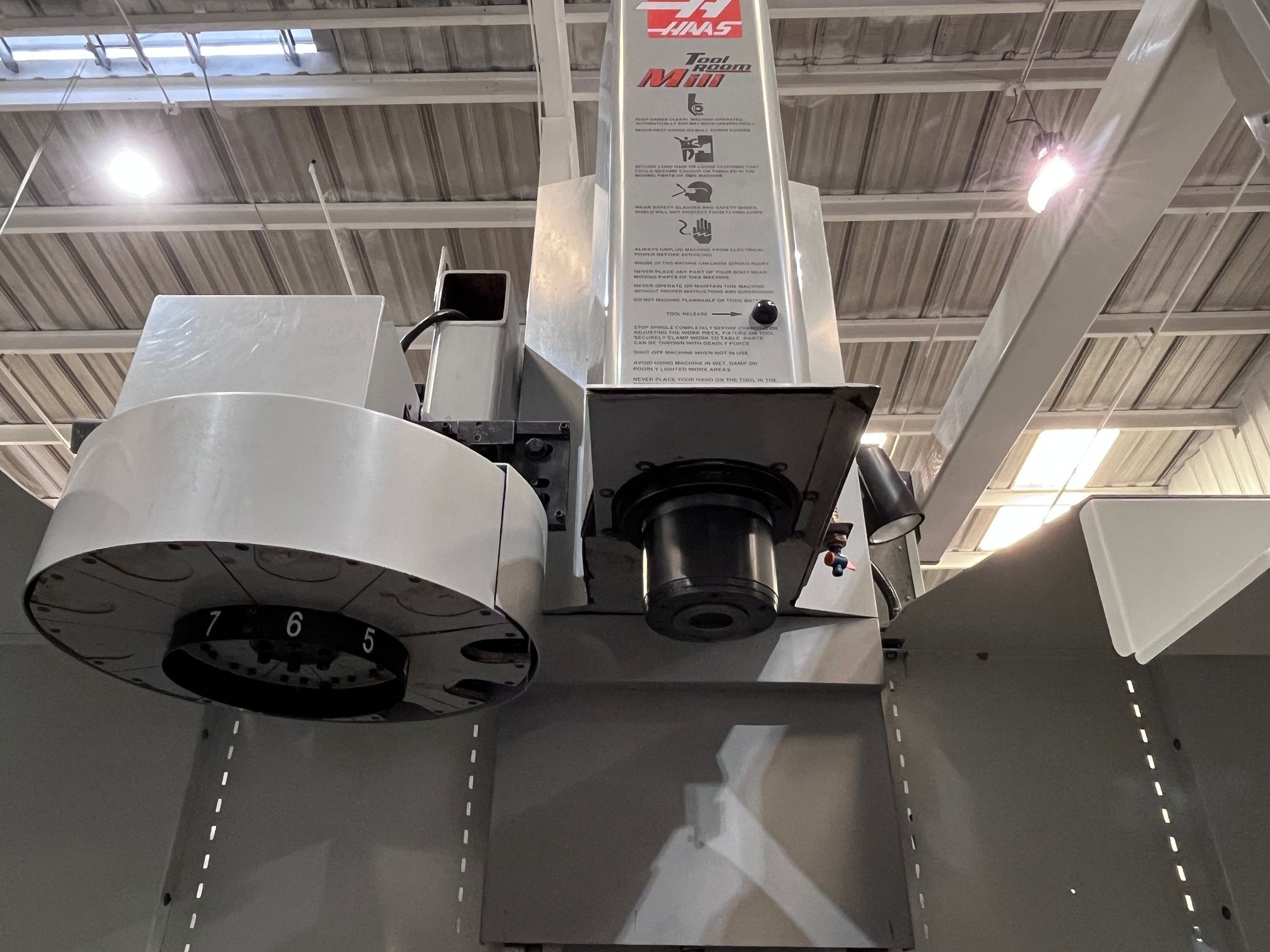

| Automatic Tool Changer: |
|---|
| Capacity: 10 Station Umbrella Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

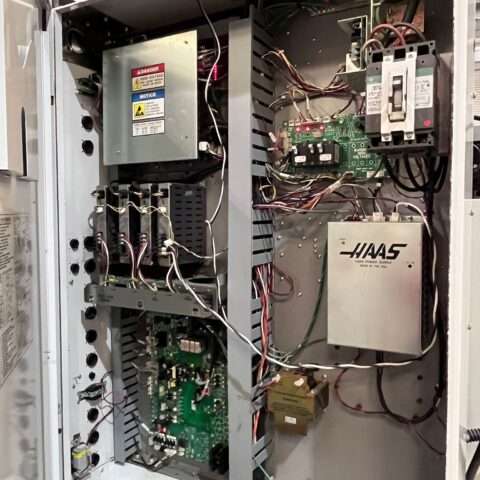

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 112″ x 80″ x 100″ High |
| Weight: 4400 lbs |
