*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112676 |
| Make: | Haas |

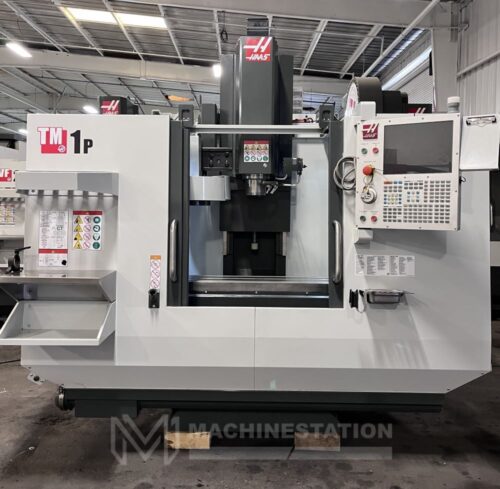

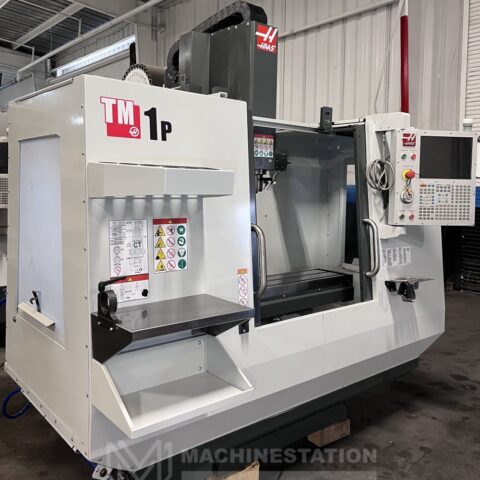

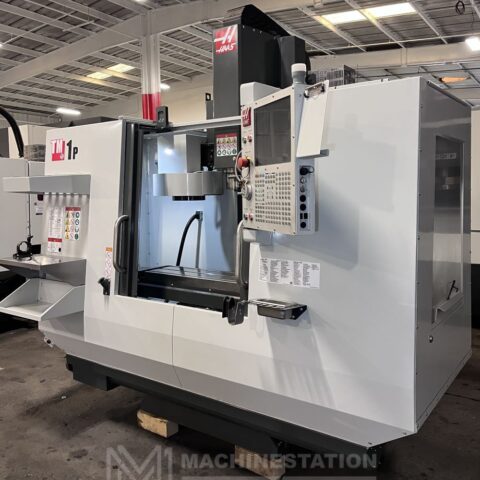

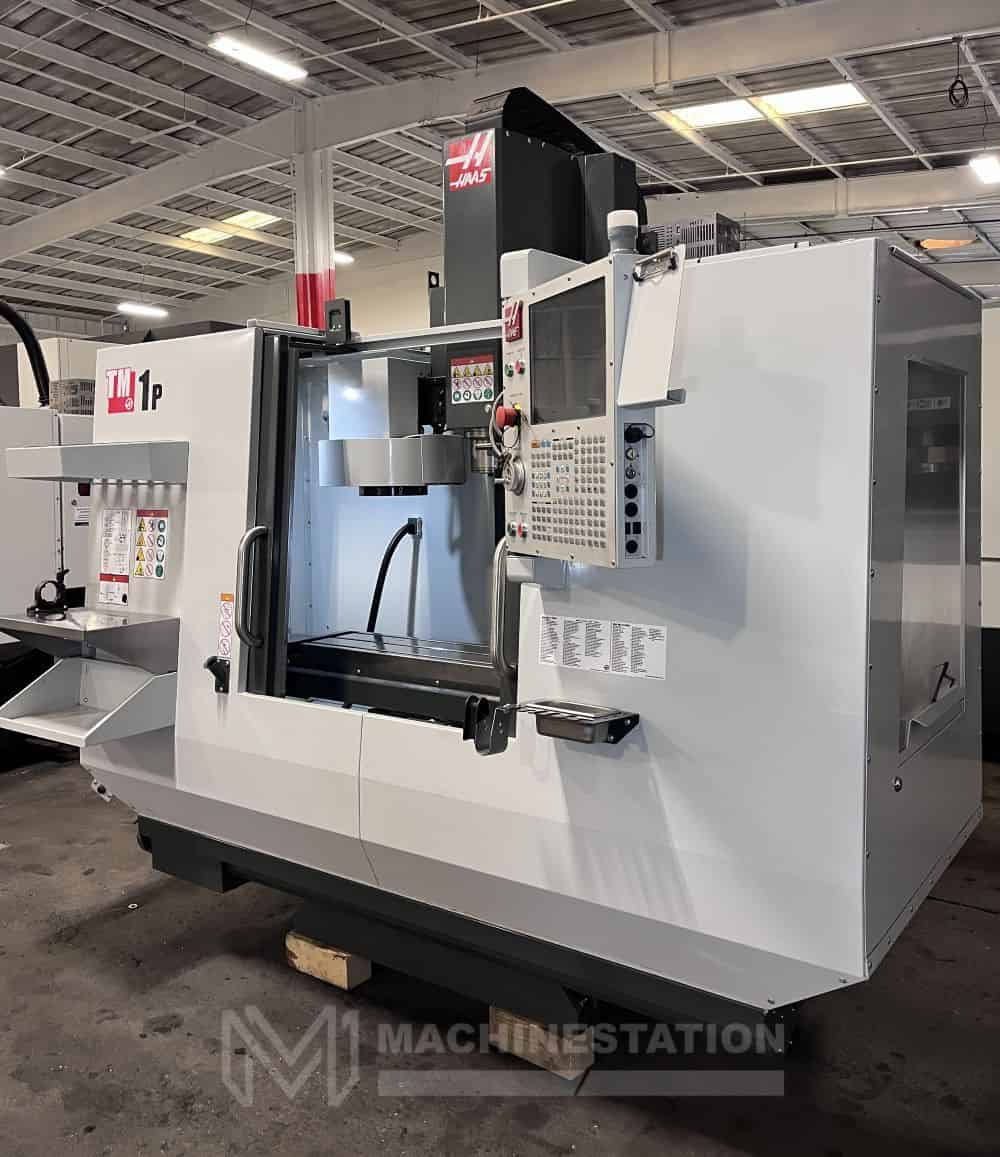

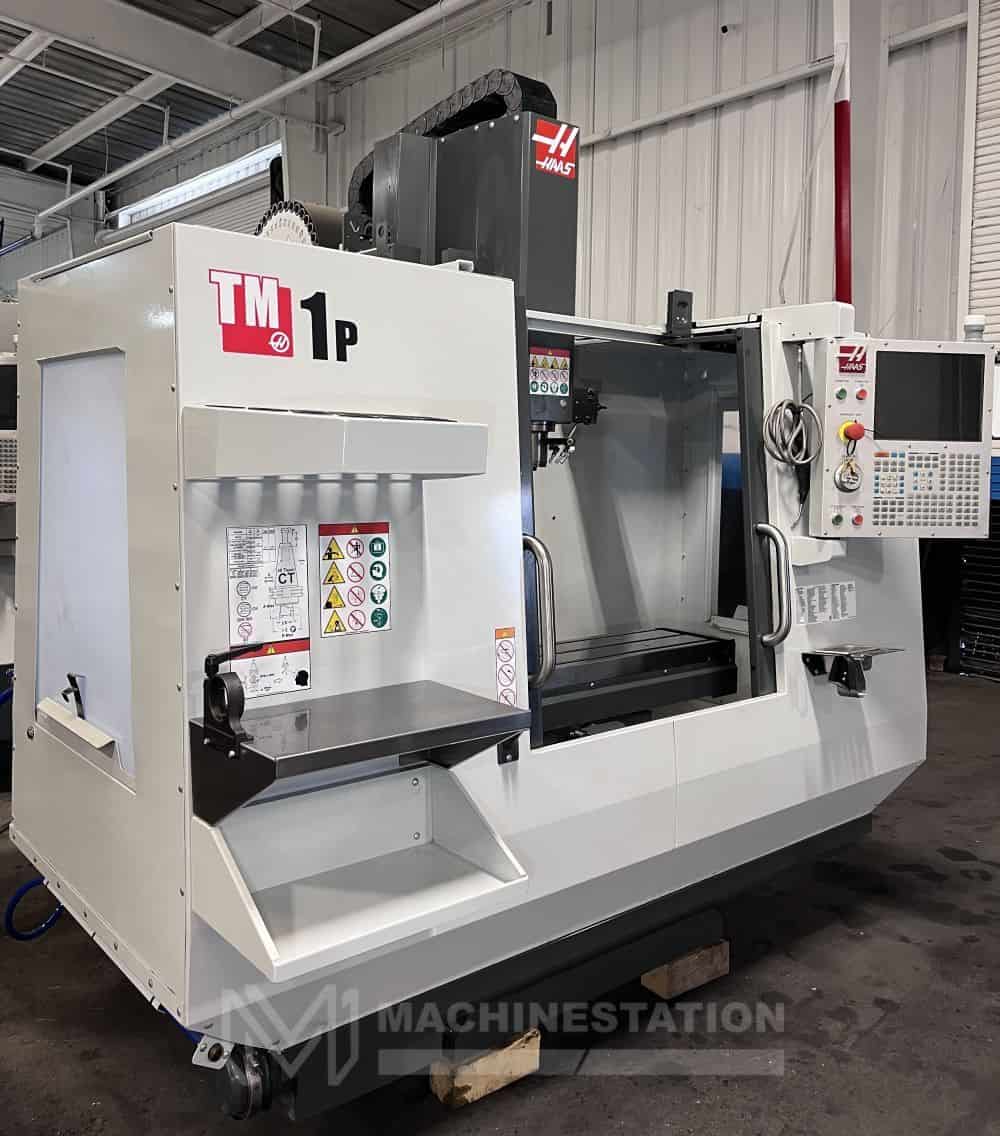

| Model No.: | TM-1P |
| Year of Manufacture: | 2019 |
| Equipped With: |
|---|

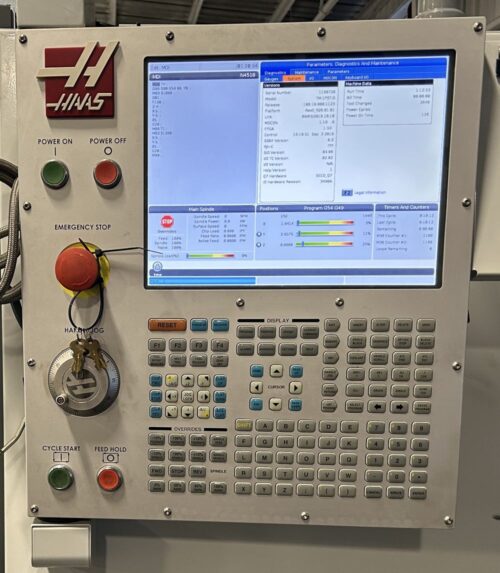

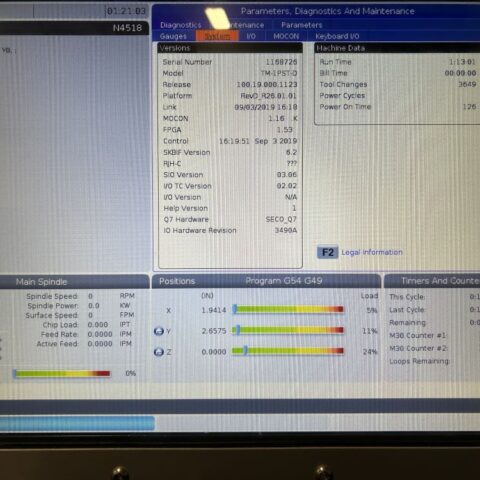

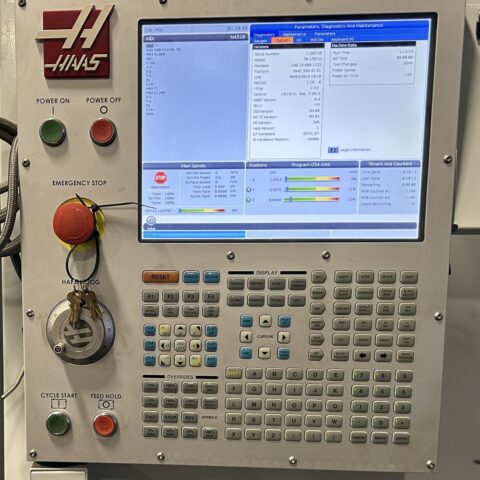

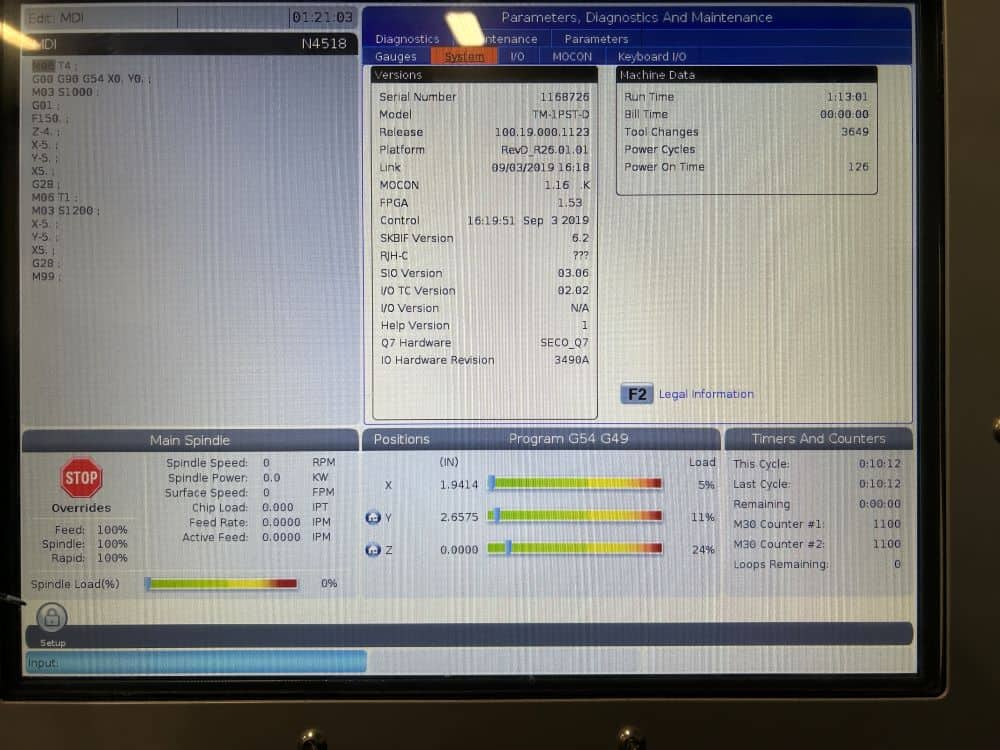

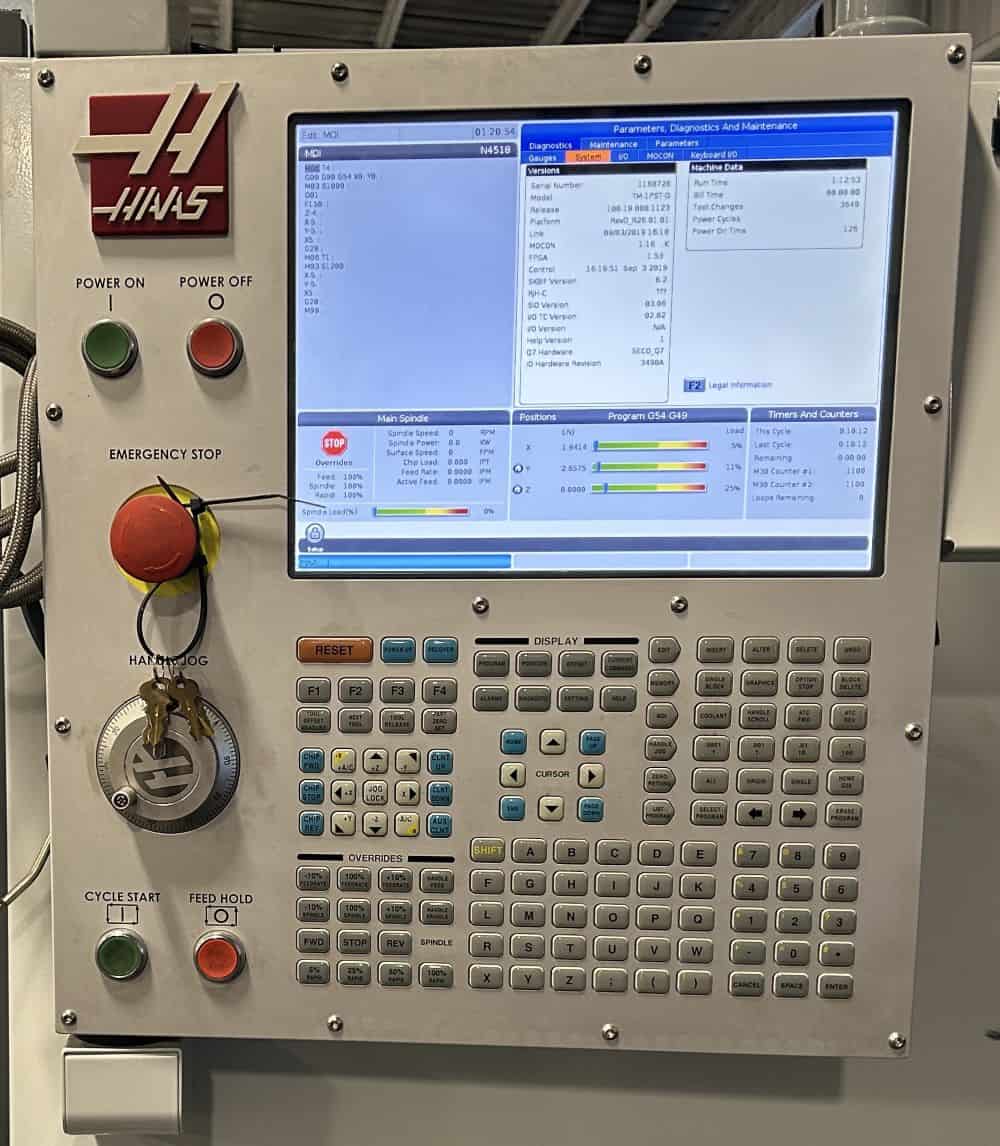

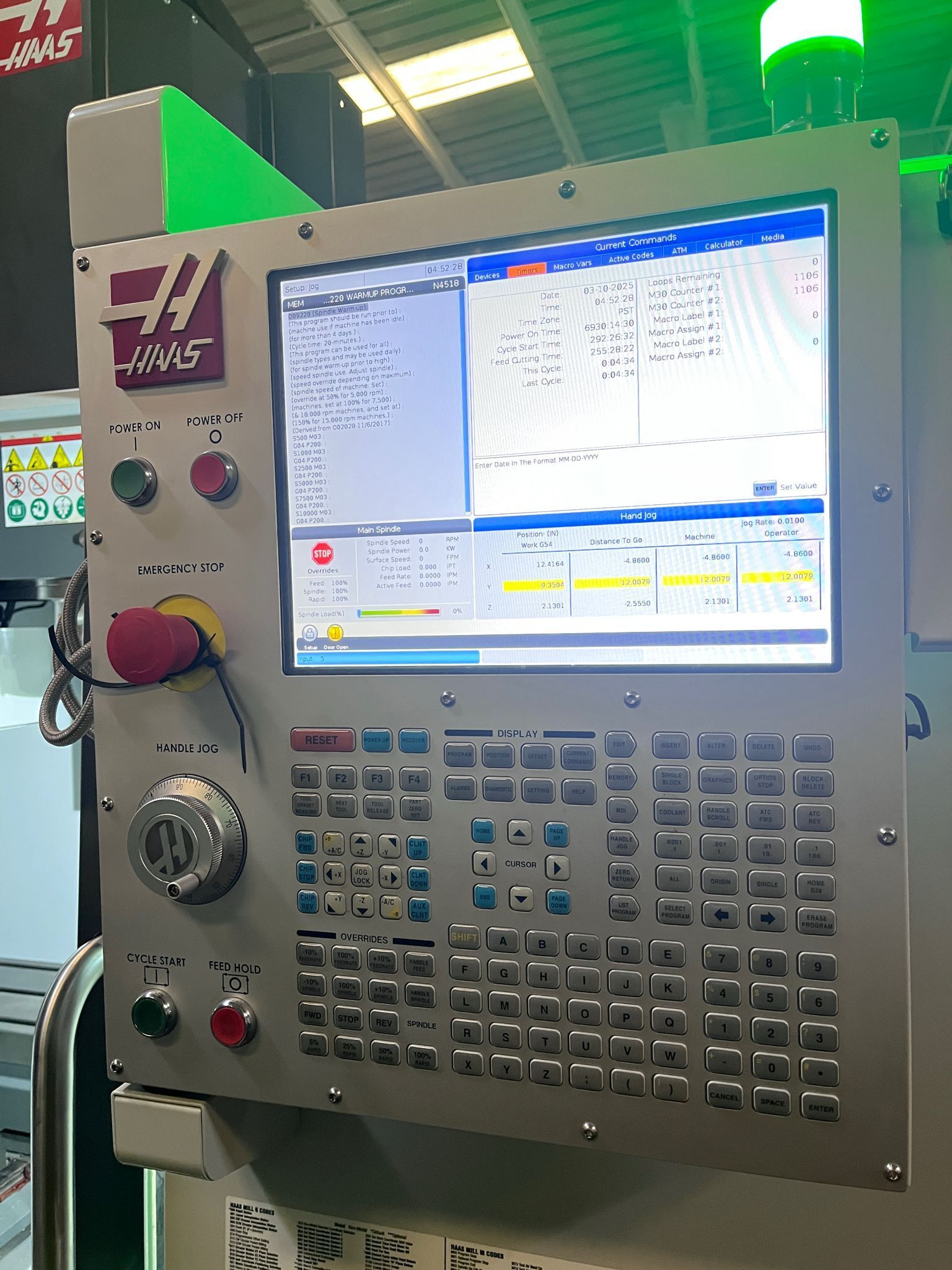

| Haas CNC Control |

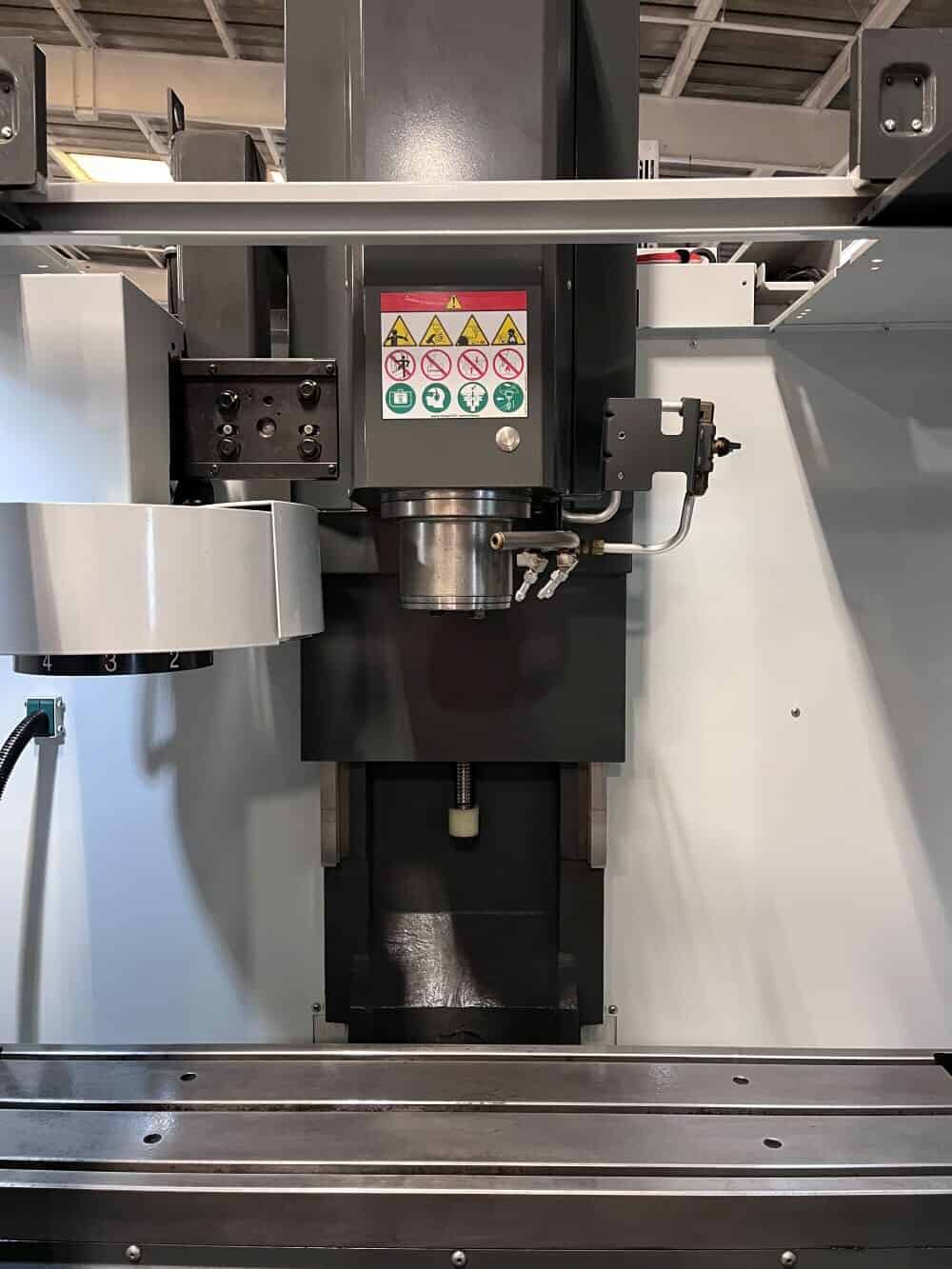

| 6000 RPM Spindle |

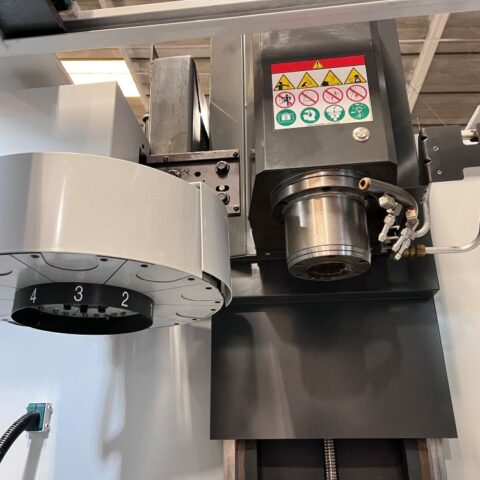

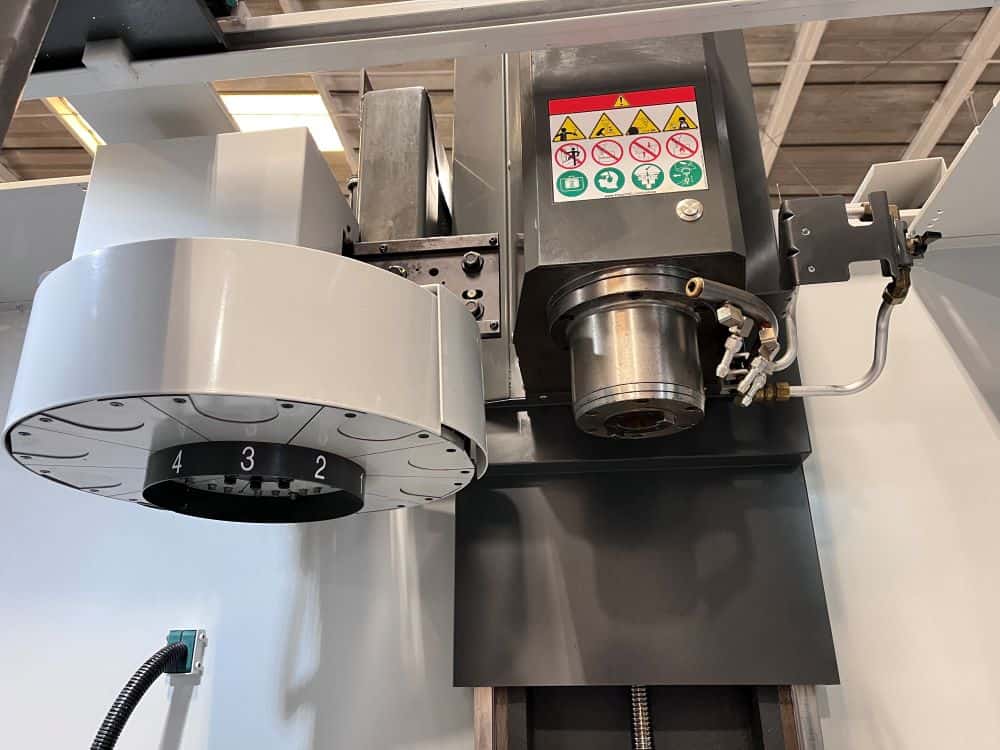

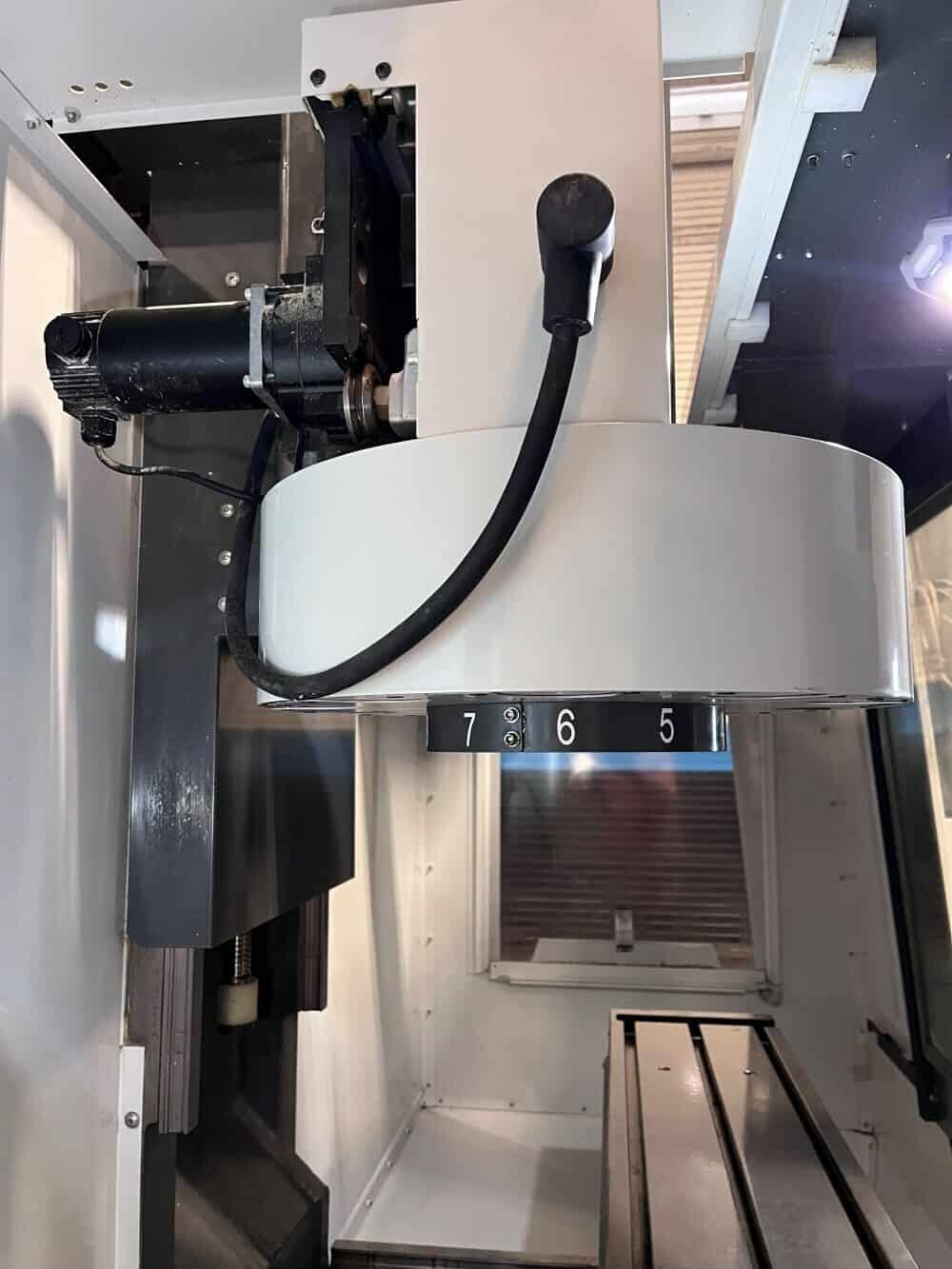

| 10 Station Automatic Tool Changer |
| 7.5 HP High Torque Spindle |
| VPS Editing |
| Media Display |
| 1GB Memory |
| Wireless Networking |
| Compensation Tables |

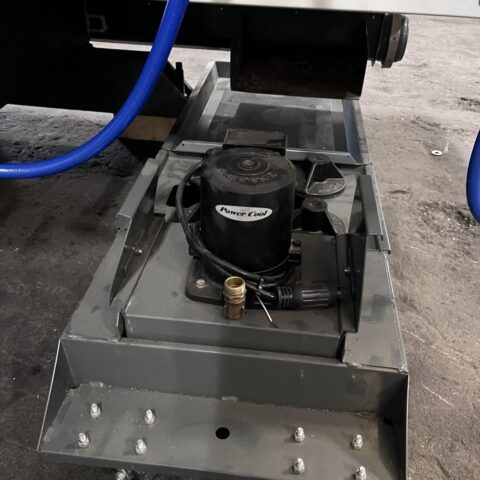

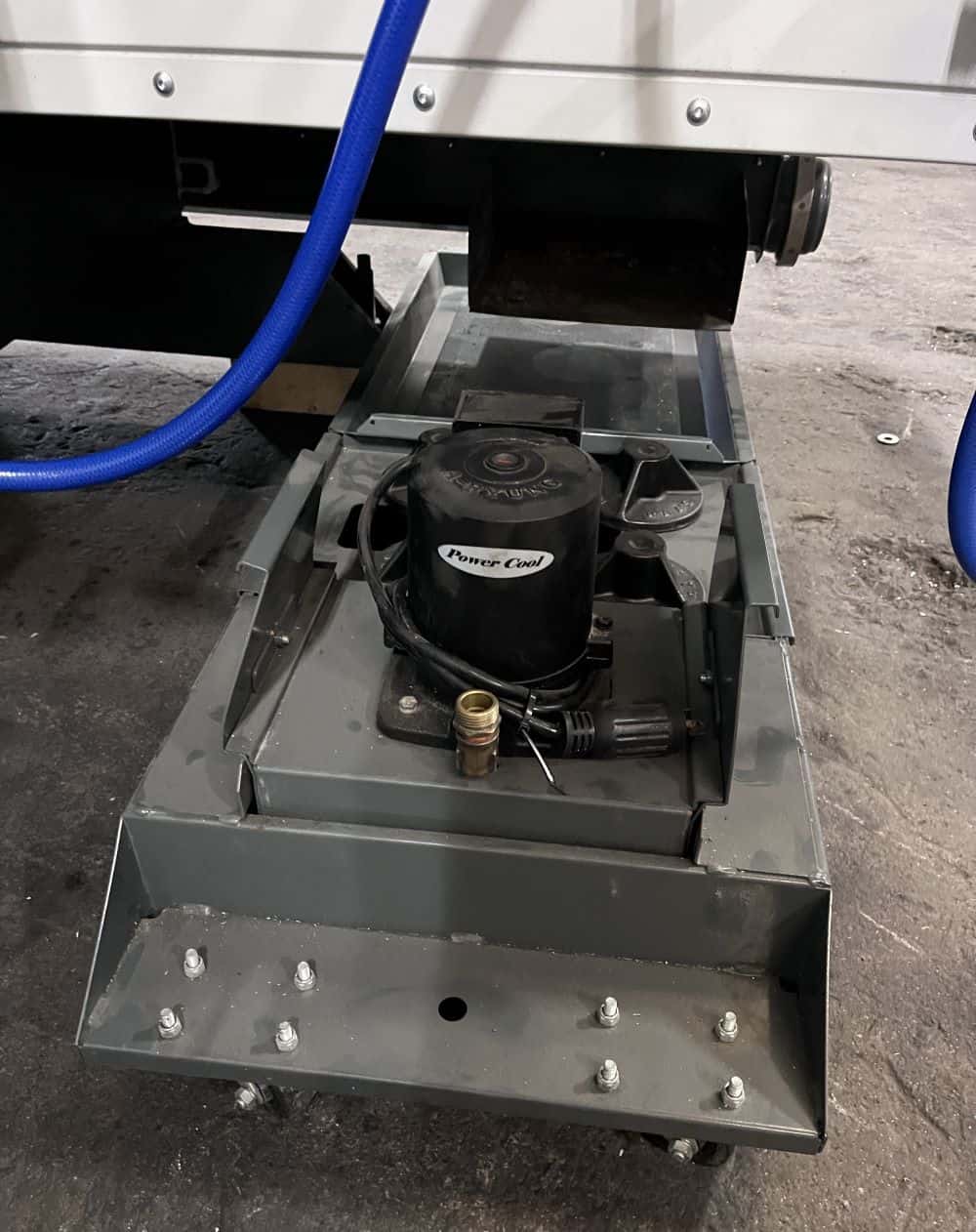

| Coolant Tank |

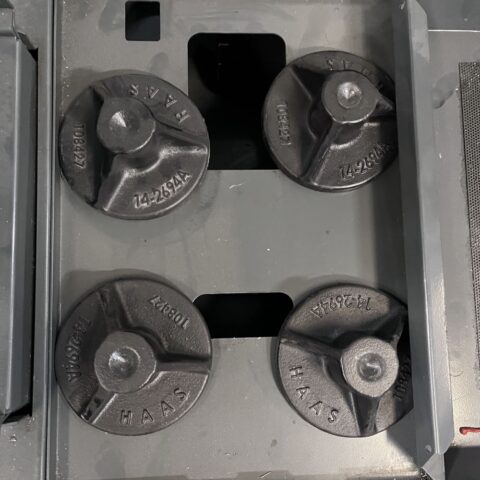

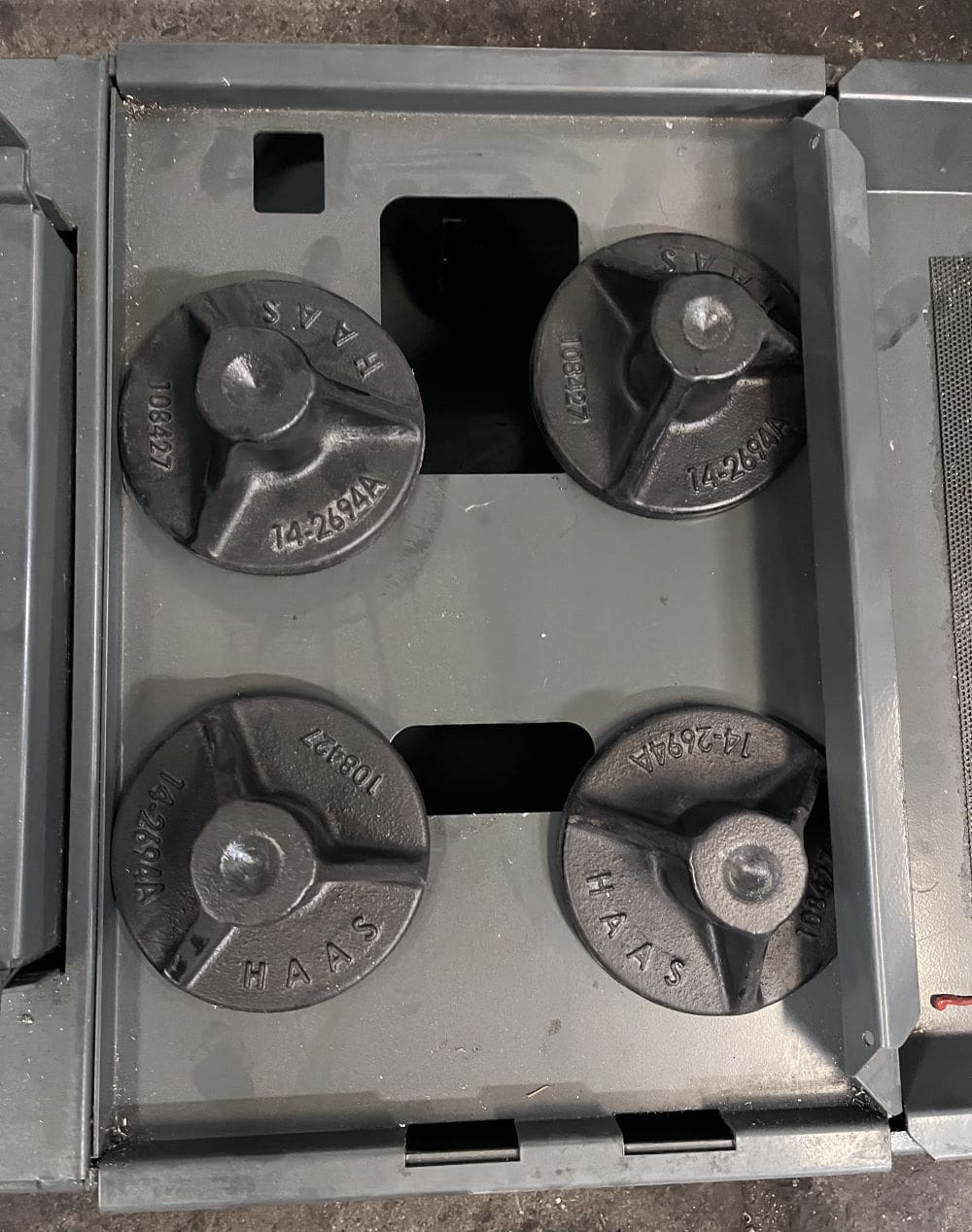

| Levelling Pads |
| Travel: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 16″ |
| Rapid Traverse Rates: 400 Inch Per Minute |
| Cutting Feed Rates: 400 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 20″ |

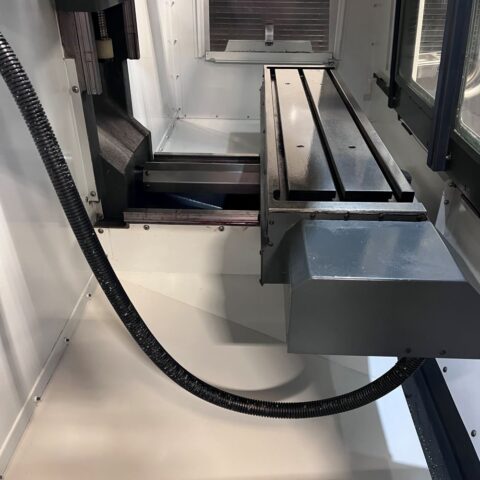

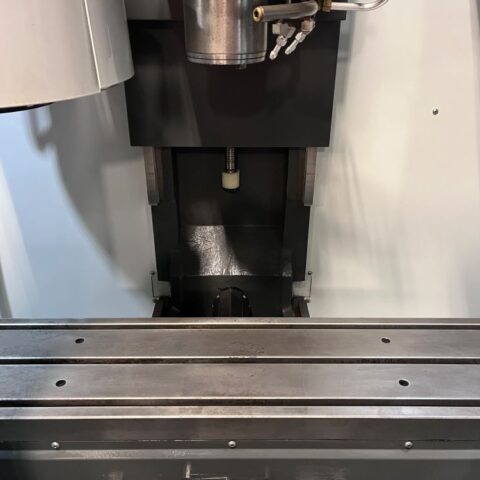

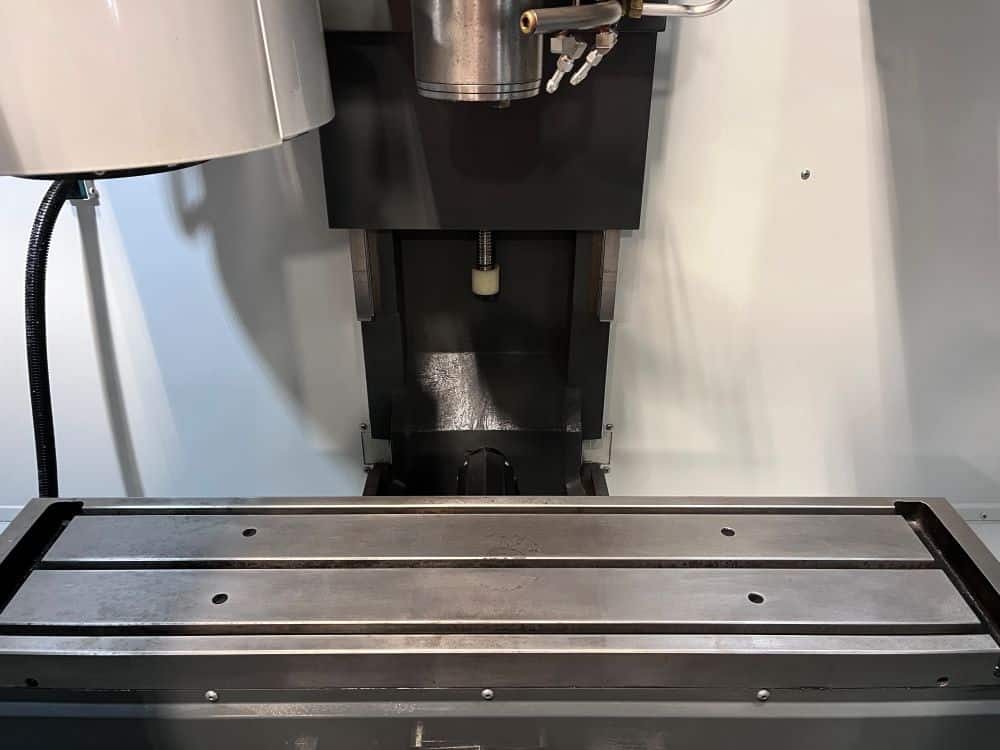

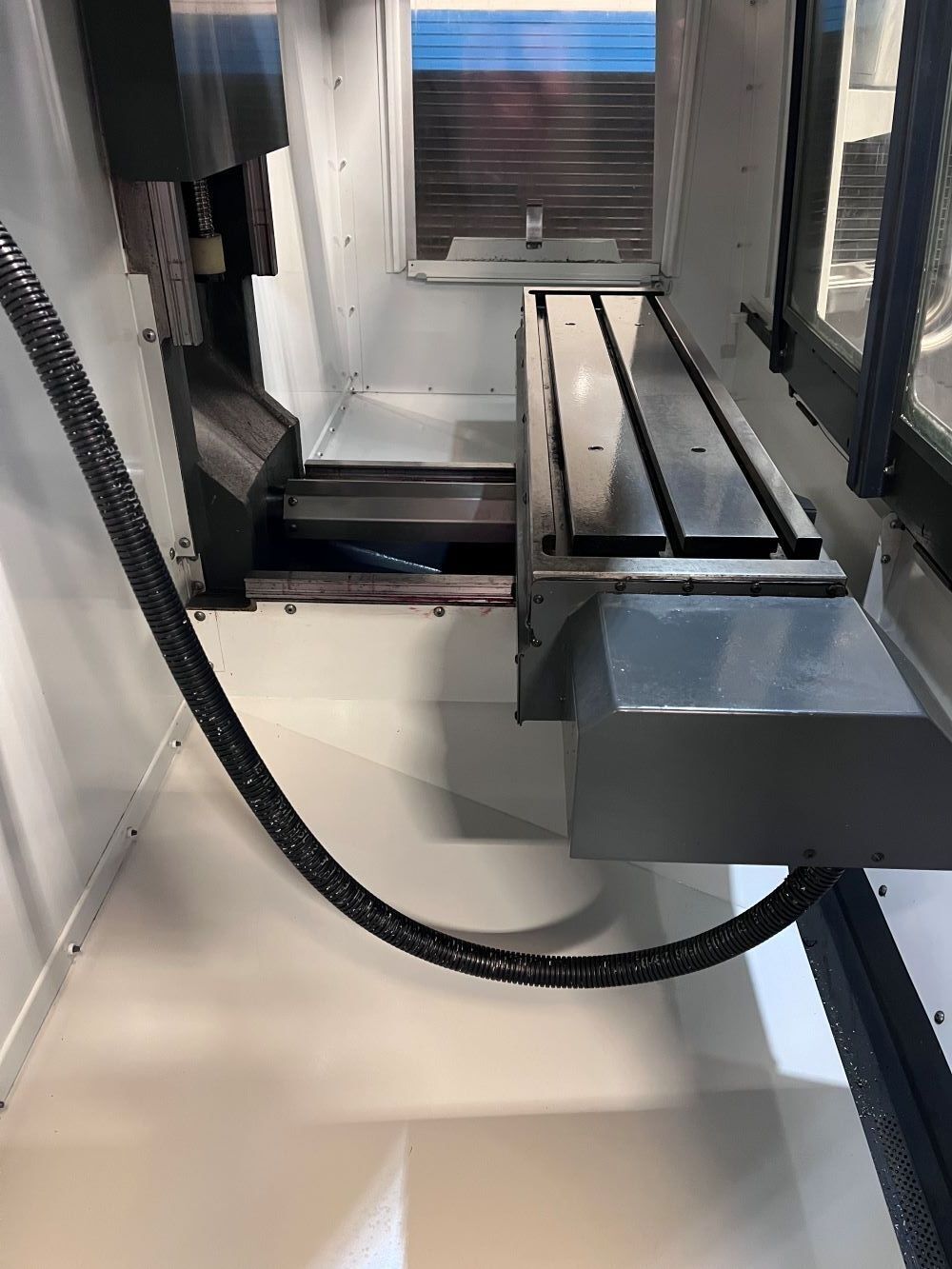

| Table: |
|---|
| Length: 47.8″ |
| Width: 10.5″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 350 lbs |

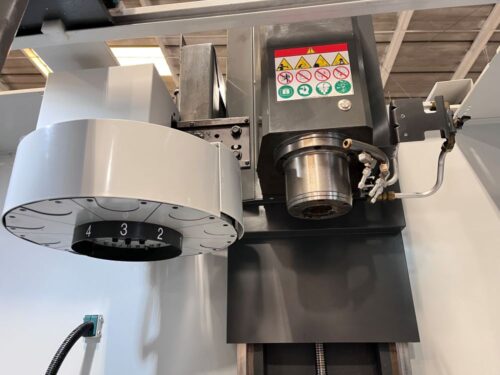

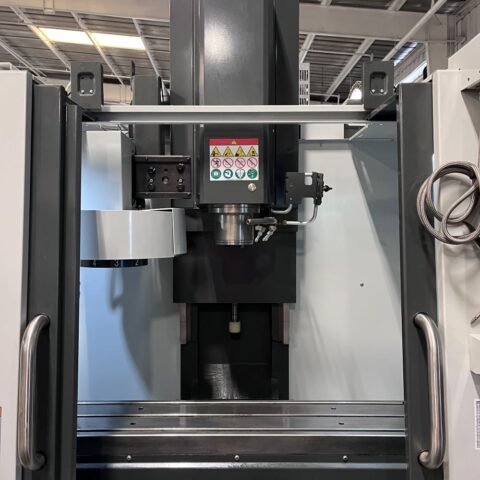

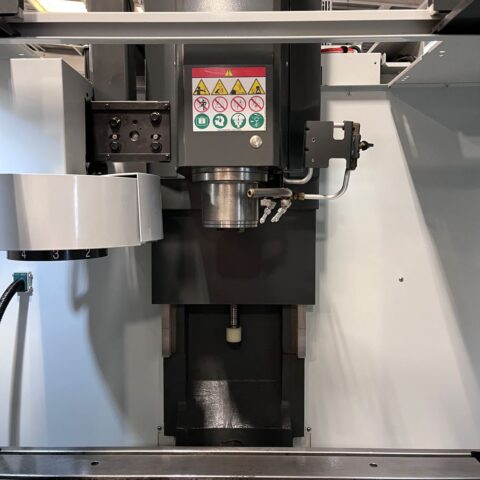

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 6000 RPM |
| Spindle Power: 7.5 HP |

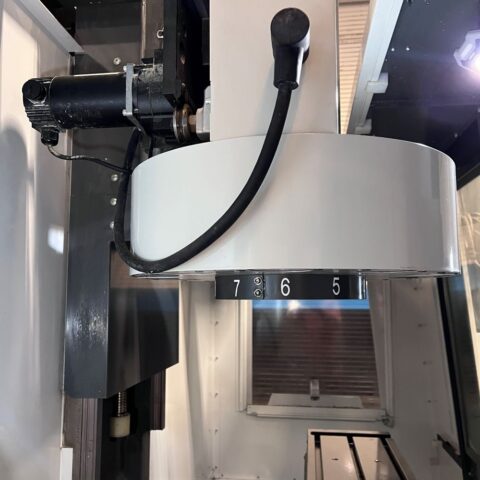

| Automatic Tool Changer: |
|---|
| Capacity: 10 Station |
| Max Tool Diameter: 3.5″ |
| Max Tool Weight: 12 lbs |
| Tool Change Time: 5.7 Sec. |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

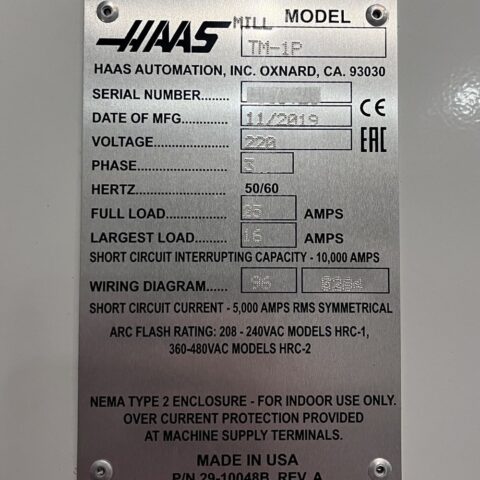

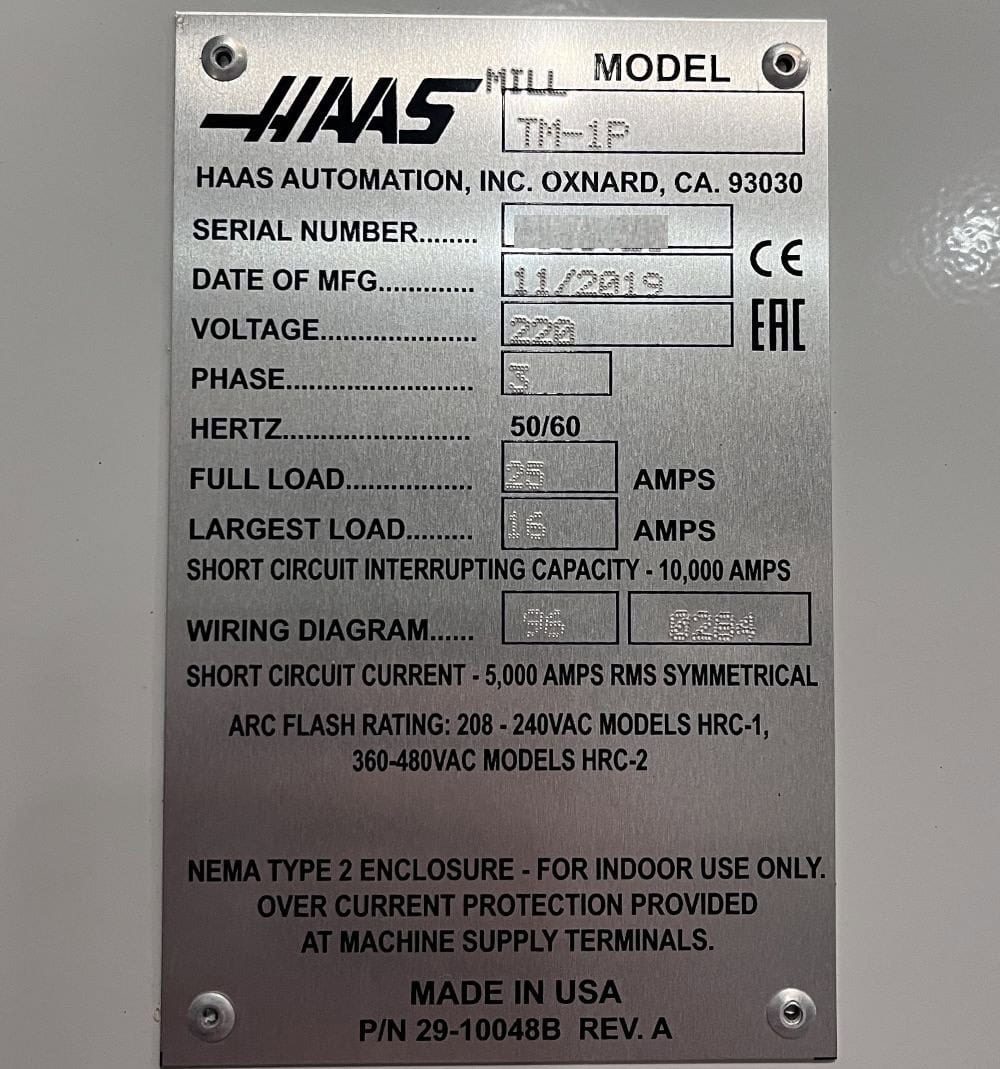

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 112″ x 80″ x 100″ High |
| Weight: 4400 lbs |
