Sold

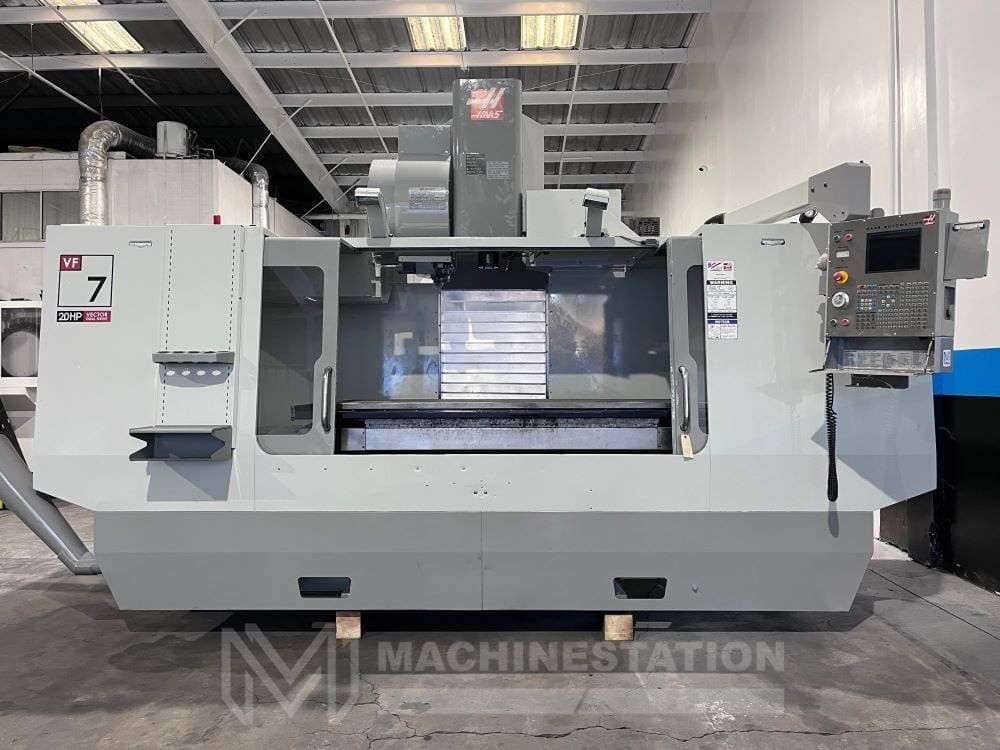

Haas VF-7D/40 CNC Vertical Machining Center – Mill
Location
Santa Fe Springs, CA
SKU
112410
Make
HAAS
Model
VF-7D/40
Year
2006
Cutting Time
17,664 Hours
Video
On Request
Out of stock
| Location: | Santa Fe Springs, CA |
| SKU: | 112410 |
| Make: | HAAS |
| Model: | VF-7D/40 |
| Year: | 2006 |
| Cutting Time: | 17,664 Hours |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112410 |
| Make: | Haas |
| Model: | VF7/40 |
| Year of Manufacture: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Haas CNC Control |
| 7500 RPM High Torque Spindle |
| 20 HP Spindle Motor |
| 24 Station Automatic Tool Changer |
| USB Drive |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Coolant System |
| Telescopic Way Covers |
| Chip Auger |
| Table: |
|---|
| Length: 84″ |
| Width: 28″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |
| Travels: |
|---|
| X-Axis: 84″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5″ – 34″ |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 6″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 3.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 214″ x 102″ x 129″ High |
| Weight: 25,600 lbs |
| Equipped With: |
|---|
| Haas CNC Control |
| 7500 RPM High Torque Spindle |
| 20 HP Spindle Motor |
| 24 Station Automatic Tool Changer |
| USB Drive |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Coolant System |
| Telescopic Way Covers |
| Chip Auger |
| Table: |
|---|
| Length: 2,134 mm |
| Width: 711 mm |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/203 mm |
| Max Weight on Table: 4000 lbs |
| Travels: |
|---|
| X-Axis: 2,134 mm |
| Y-Axis: 813 mm |
| Z-Axis: 762 mm |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 127 mm - 864 mm |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 64 mm |
| Max Tool Diameter (adjacent empty): 152 mm |
| Max Tool Length: 406 mm |
| Tool Changing Time: 3.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 5,436 mm x 2,591 mm x 3,277 mm High |
| Weight: 25,600 lbs |
| Make | Haas |
|---|---|
| Model | VF-7D/40 |
| Categories | CNC Vertical Machining Centers |
