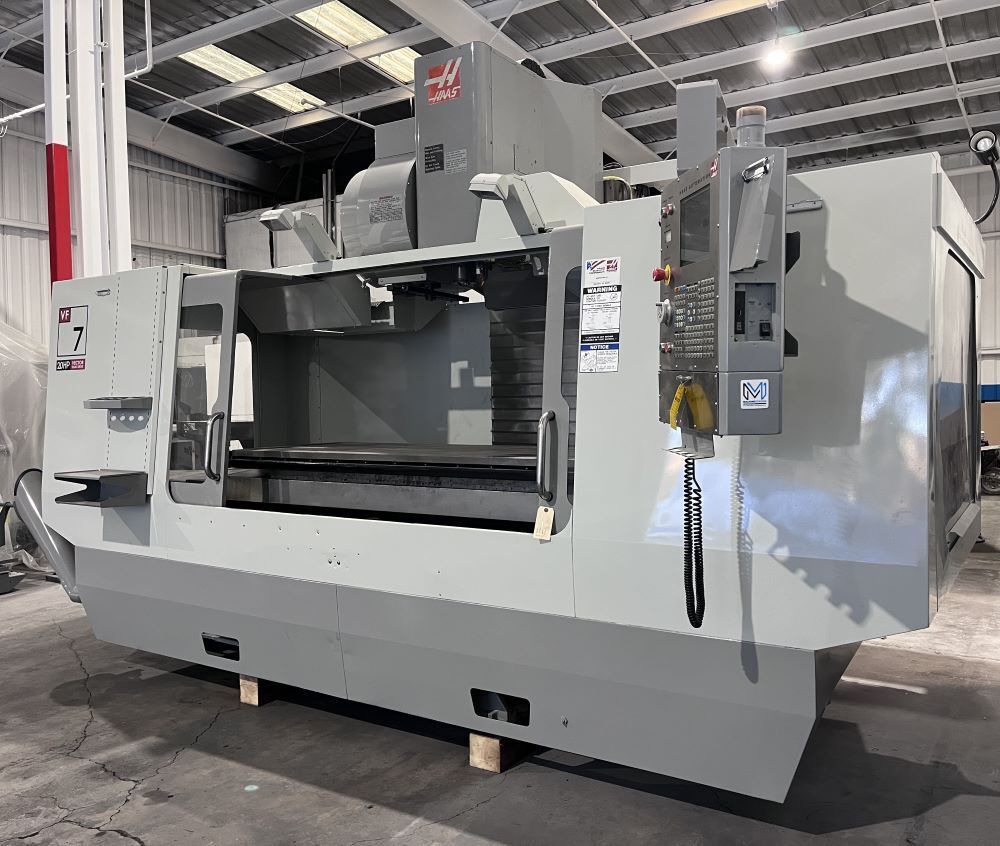

Haas VF-7D/40 CNC Vertical Machining Center – Mill

$959.00

1 in stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

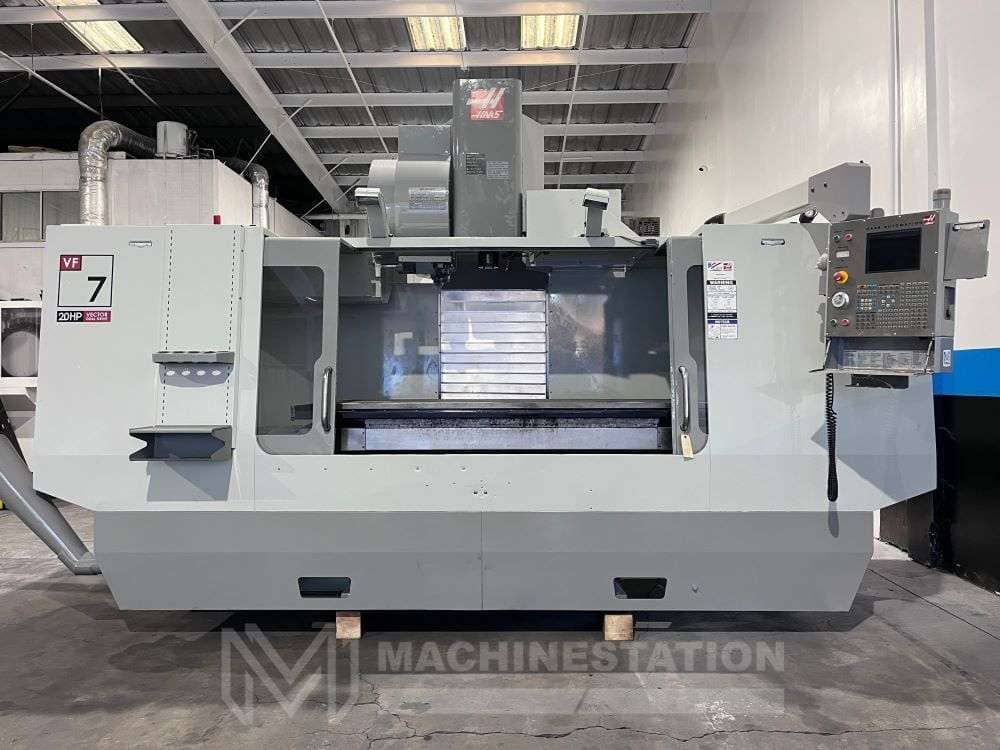

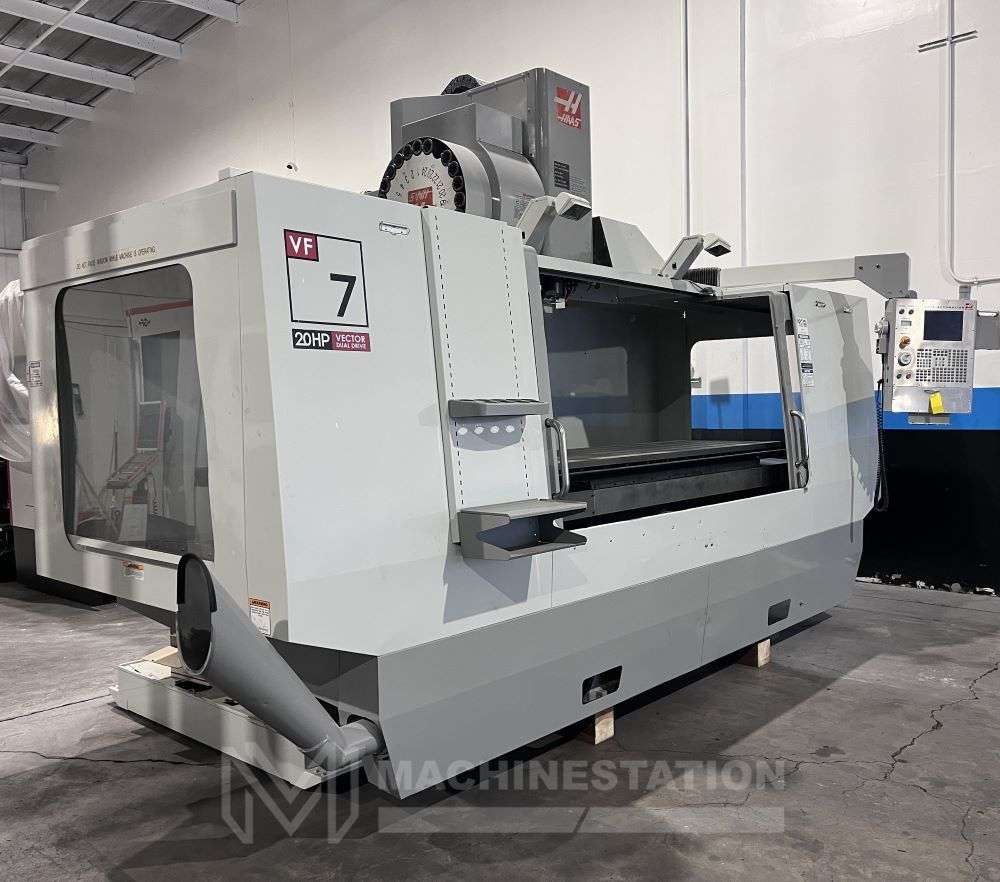

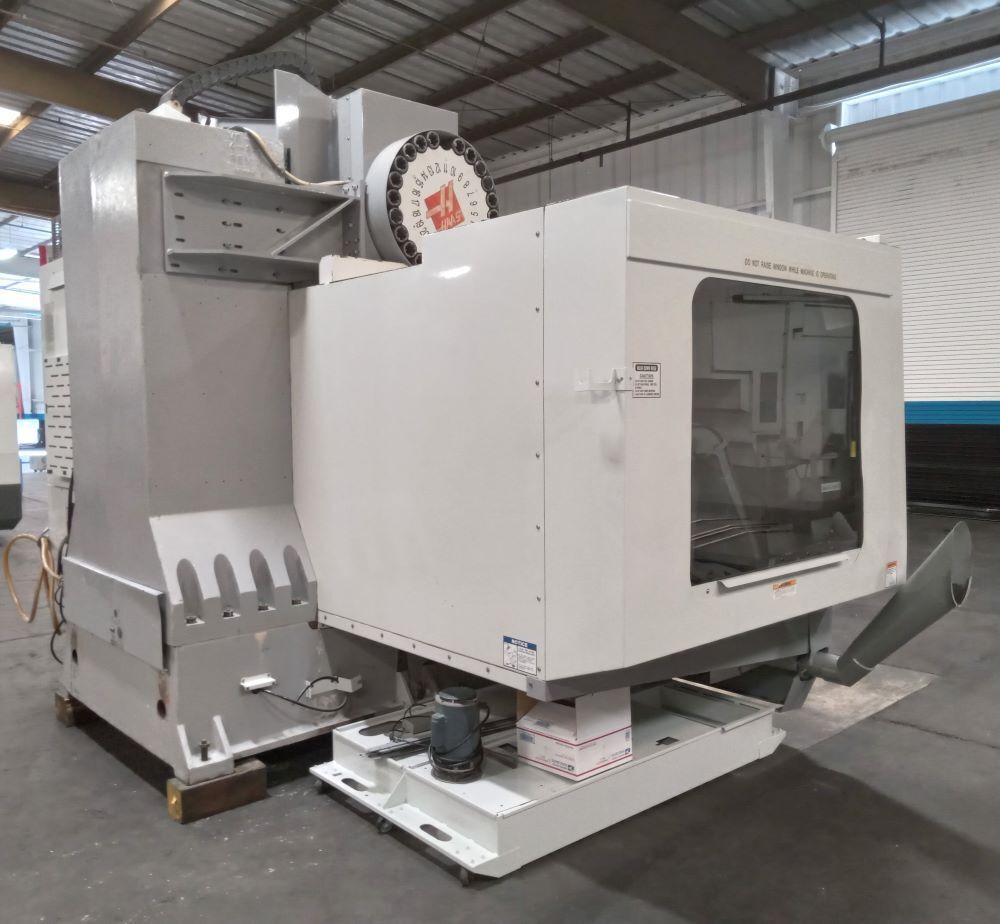

Used Haas VF-7D/40 CNC Vertical Machining Center for Sale.

Location: Lake Elsinore, CA
SKU: 2410
Make/Model: Haas VF-7D/40

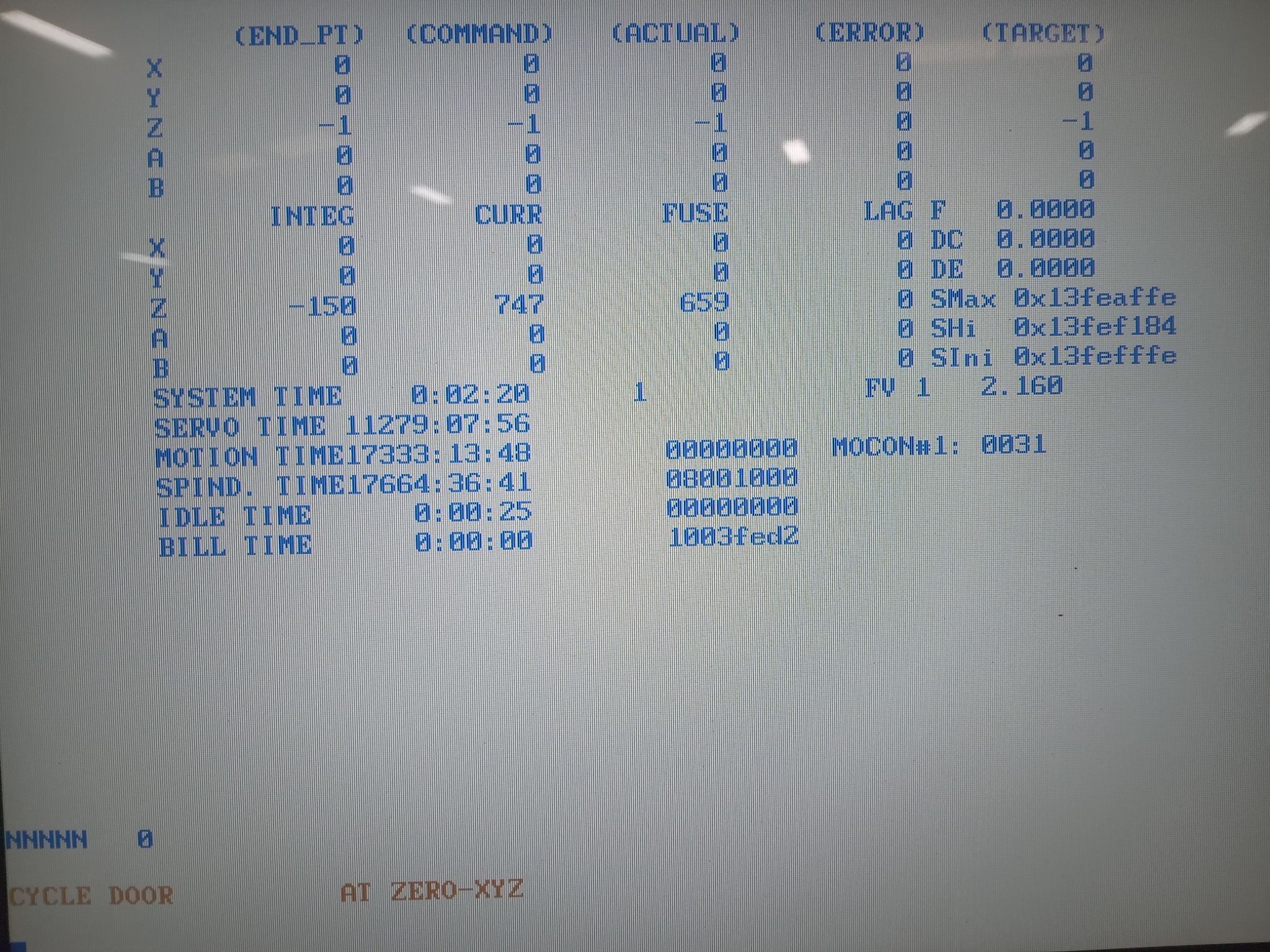

Spindle Time: 17,664 Hours
Video: On Request



SKU: 2410

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2410
Make: Haas
Model: VF-7/40
Year of Manufacture: 2006
Condition: Used – Good



Equipped With:

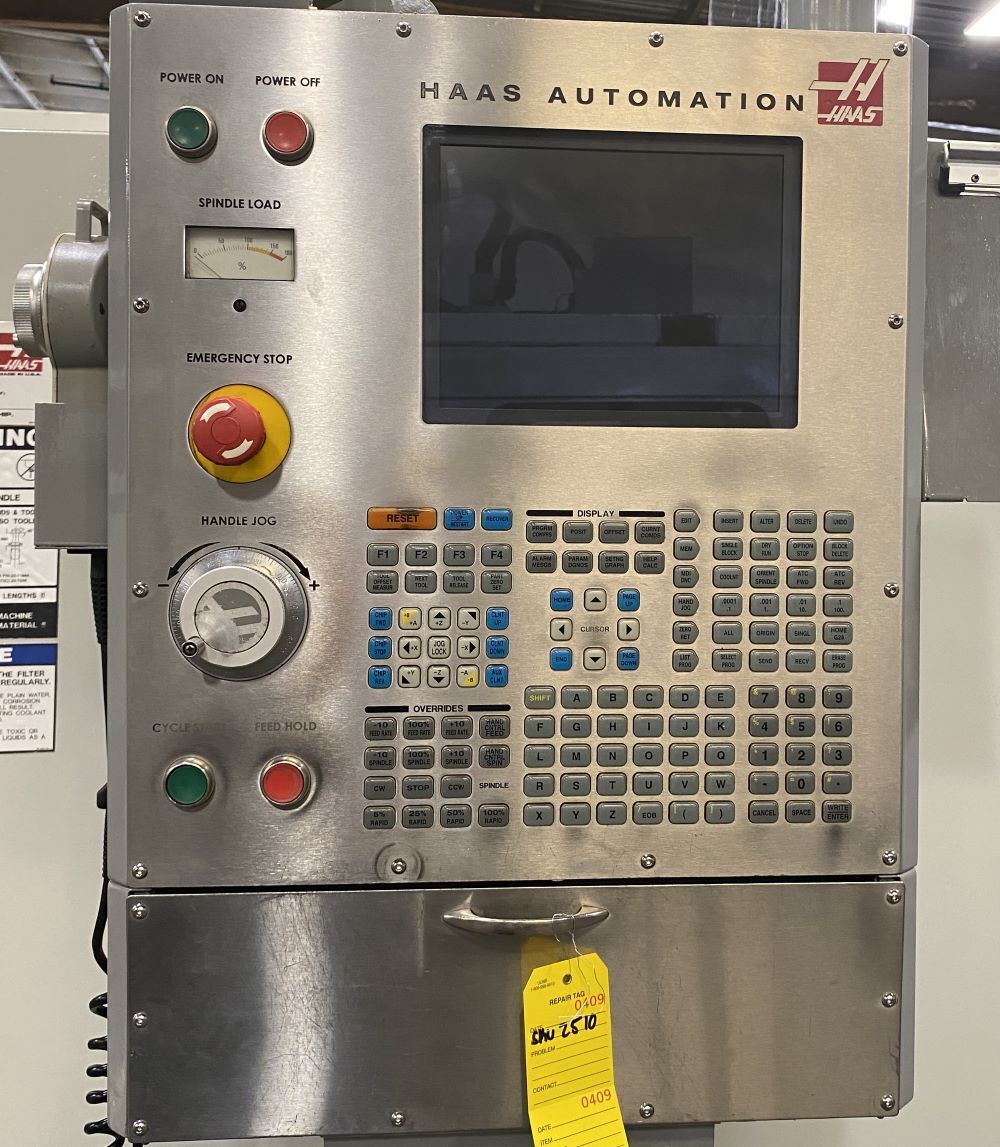

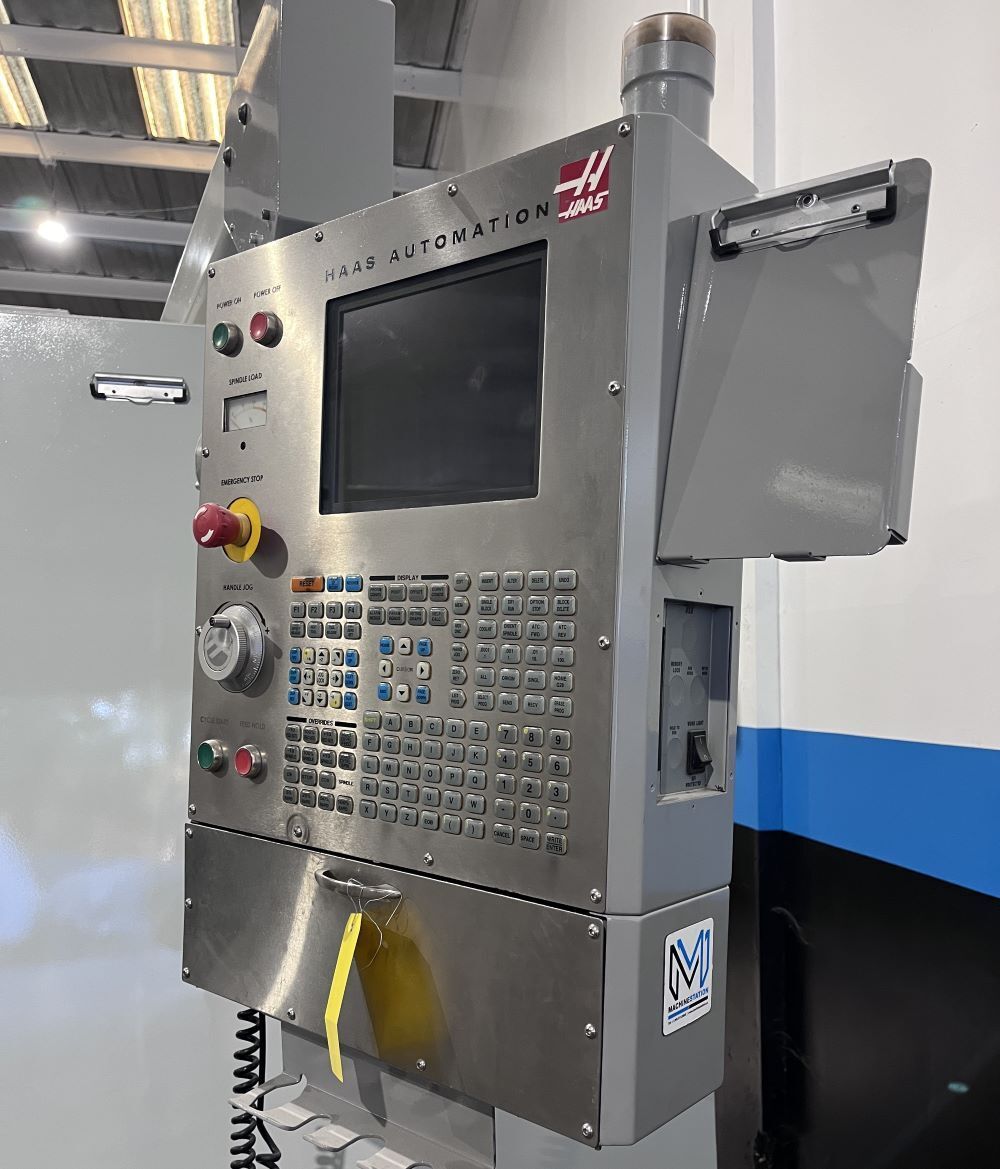

Haas CNC Control
7500 RPM High Torque Spindle
20 HP Spindle Motor
24 Station Automatic Tool Changer
USB Drive

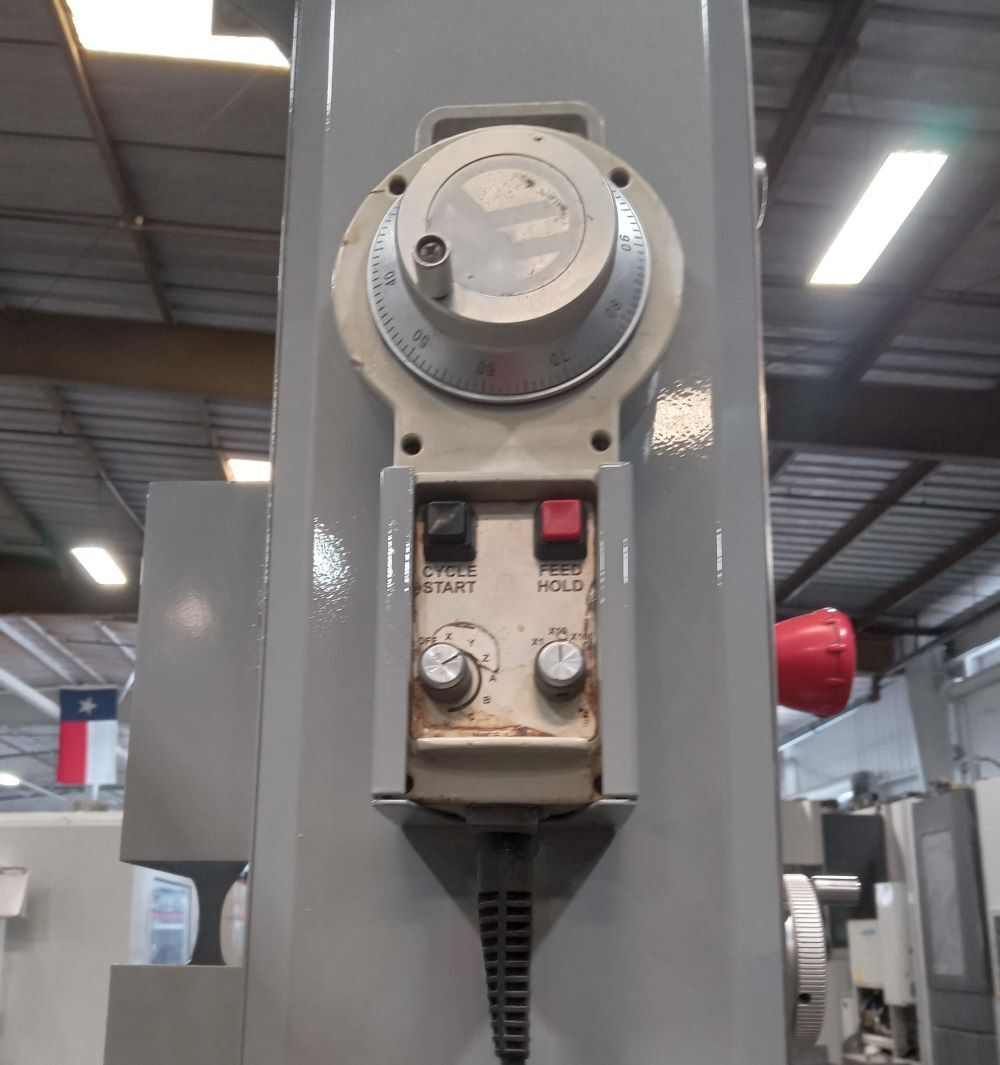

MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Programmable Coolant

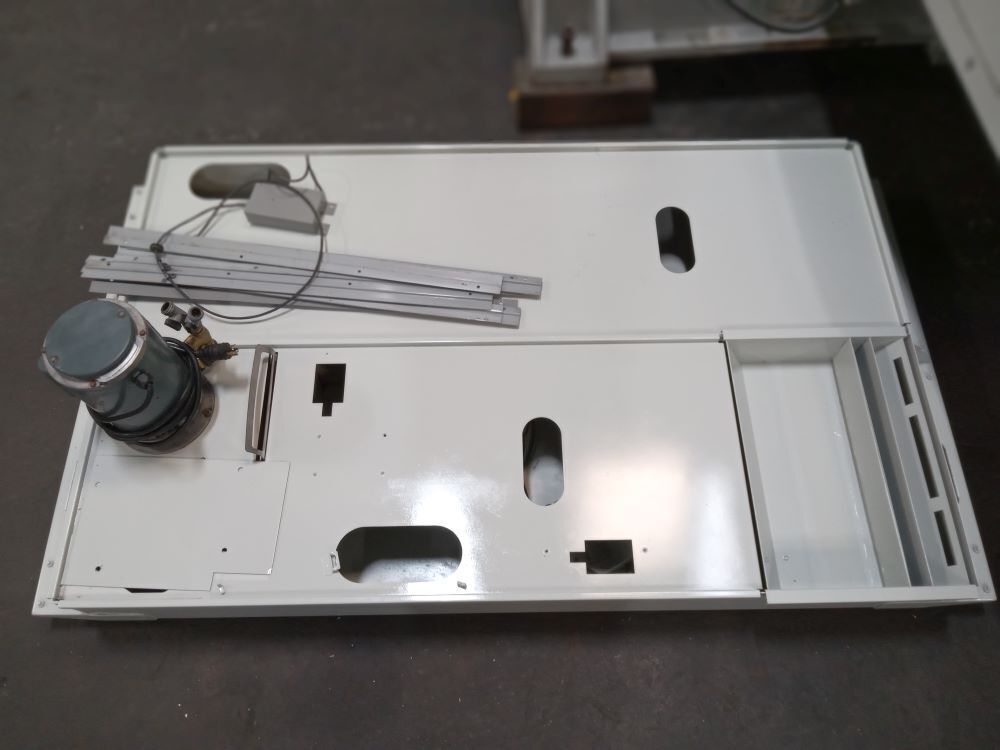

Coolant System
Telescopic Way Covers

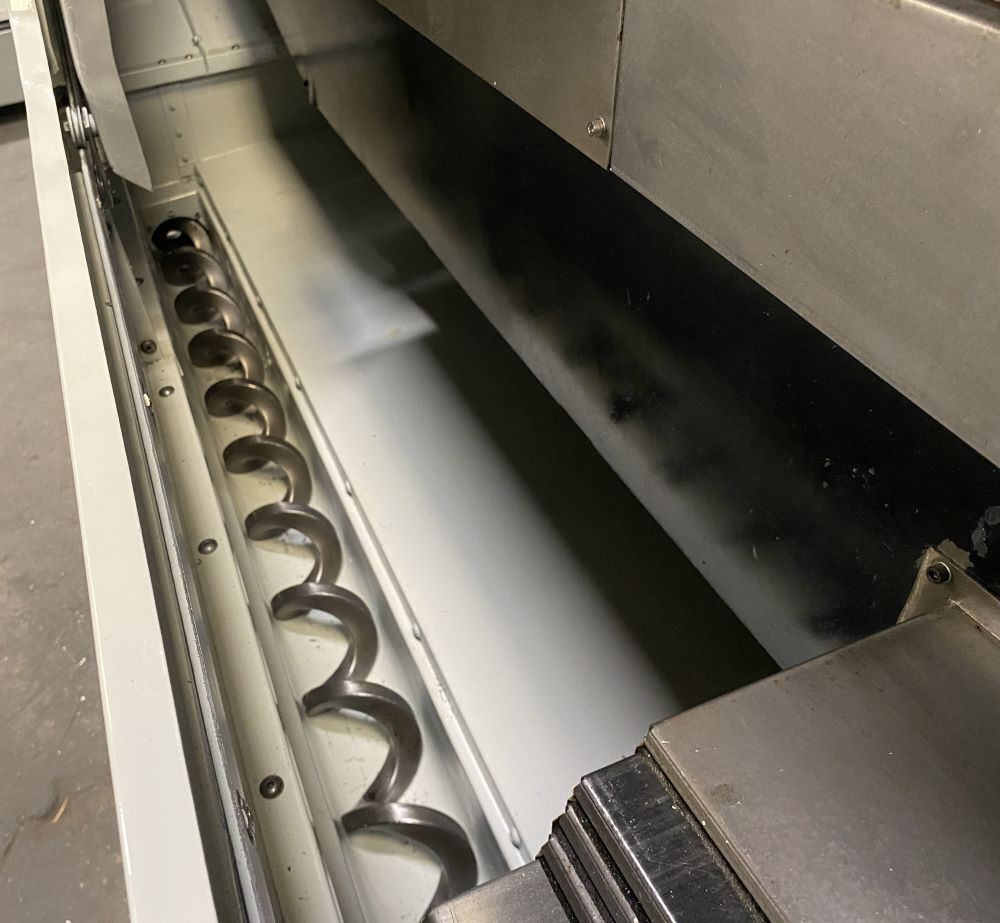

Chip Auger

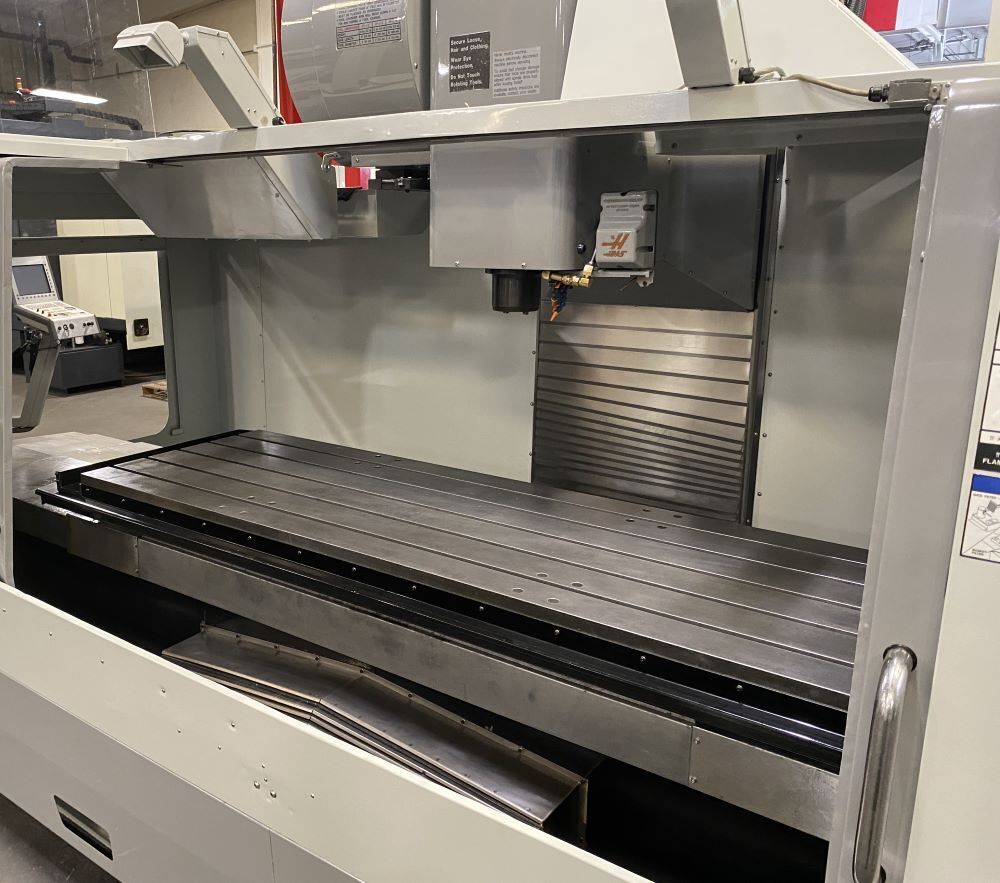

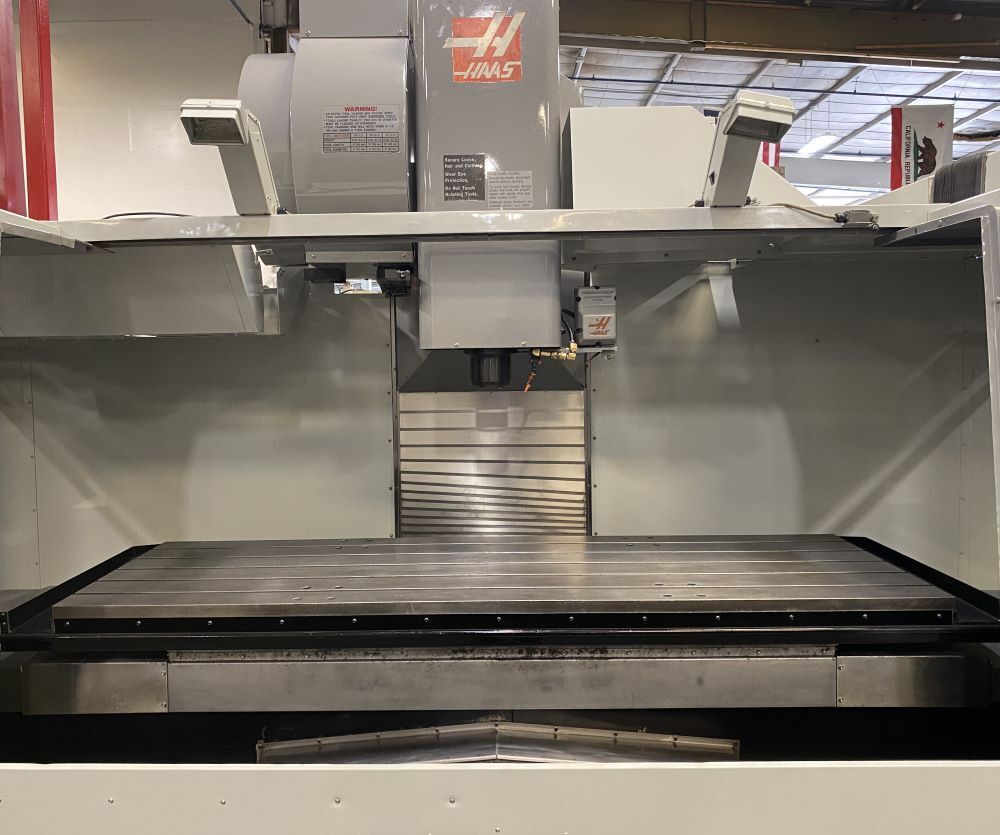

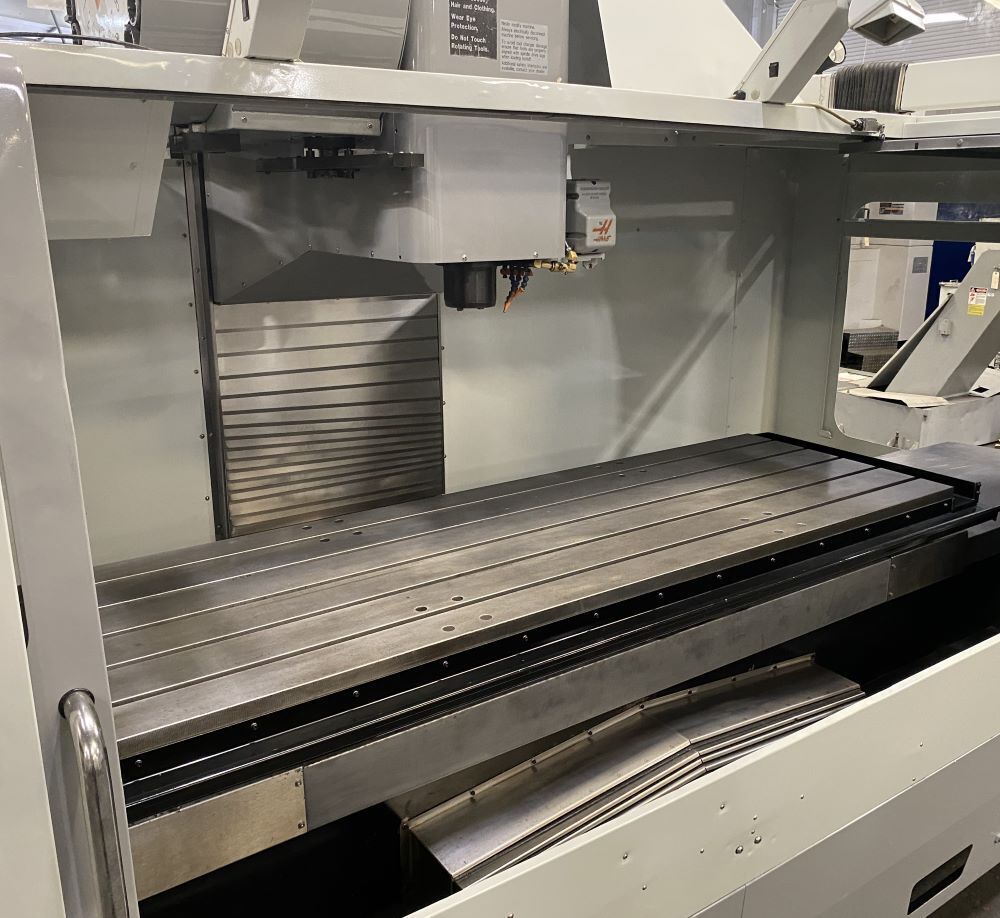

Table:
Length: 84″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs



Travels:
X-Axis: 84″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 34″

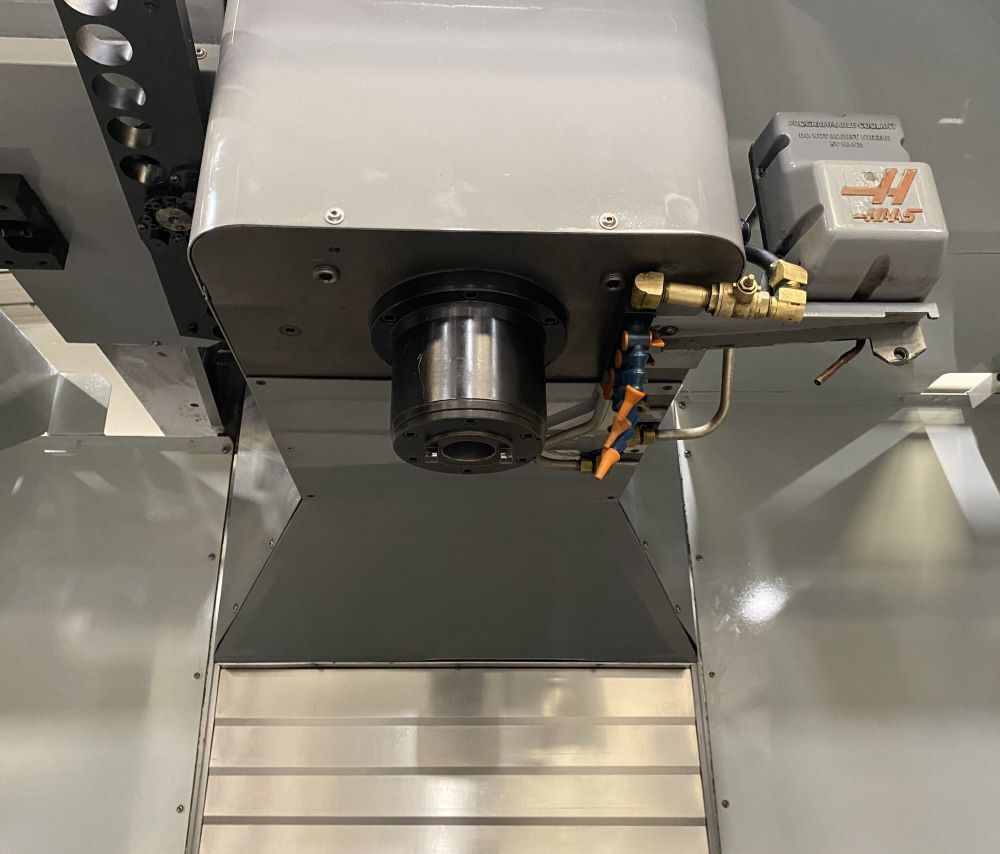

Spindle:
Taper Size: 40
Speed Range: 7500 RPM
Spindle Power: 20 HP



Automatic Tool Changer:

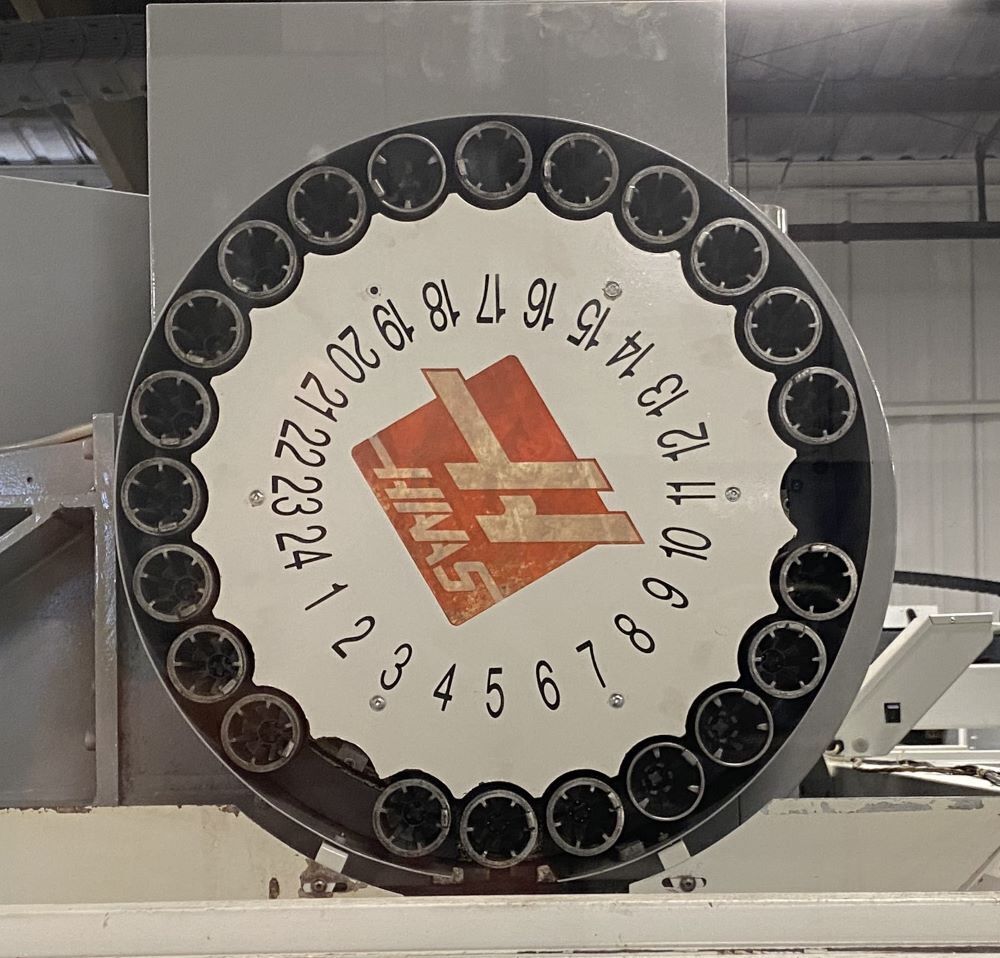

Capacity: 24 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 6″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds



General:
Air Required: 100 psi, 4 scfm

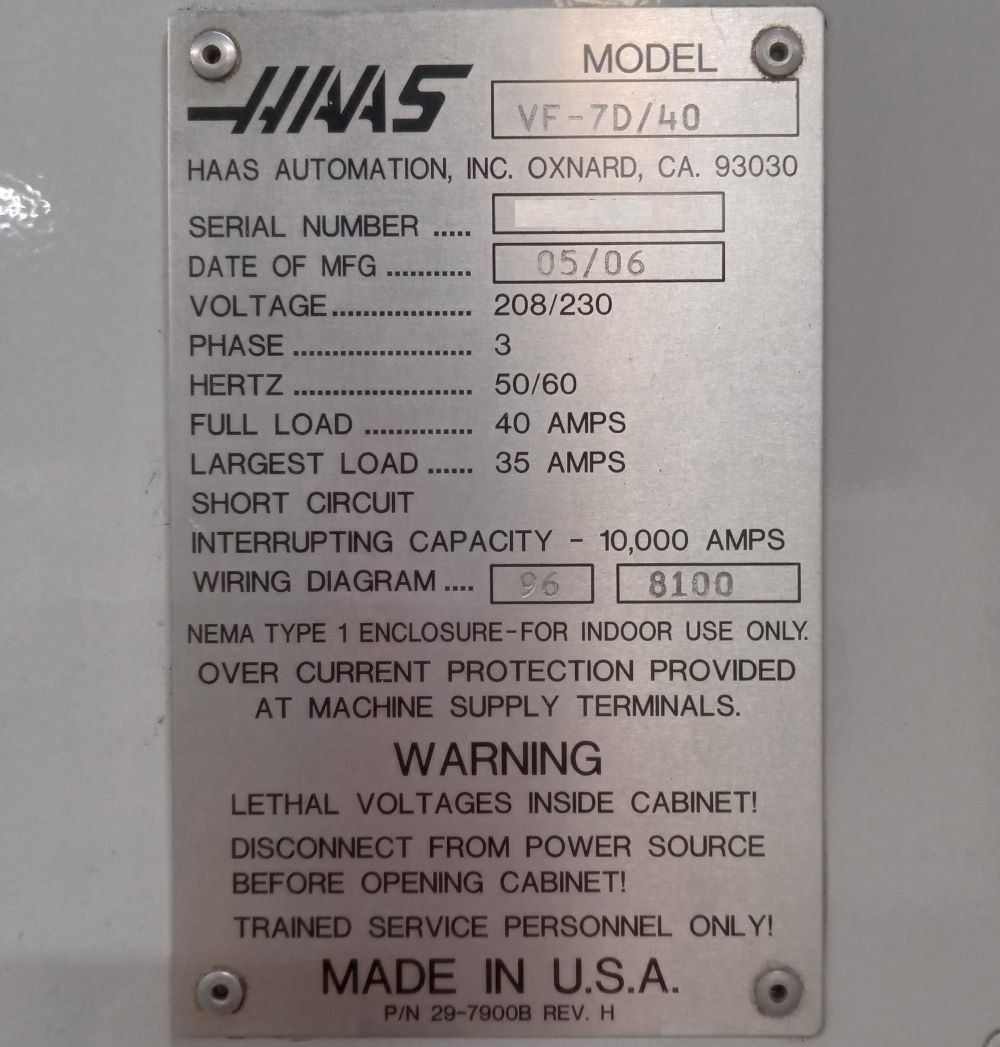

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 214″ x 102″ x 129″ High
Weight: 25,600 lbs
