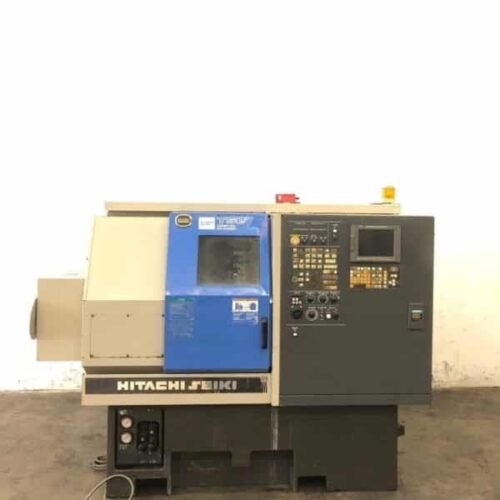

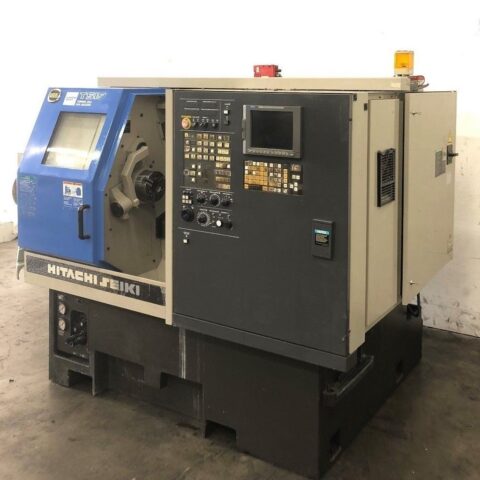

Hitachi Seiki TS-15 CNC Turning Center

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with Collet and 3 Jaw Chuck, Tool holders, Manuals.”

Out of stock

Product Description

HITACHI SEIKI TS-15 CNC TURNING CENTER

Make: Hitachi Seiki
Model #: TS-15

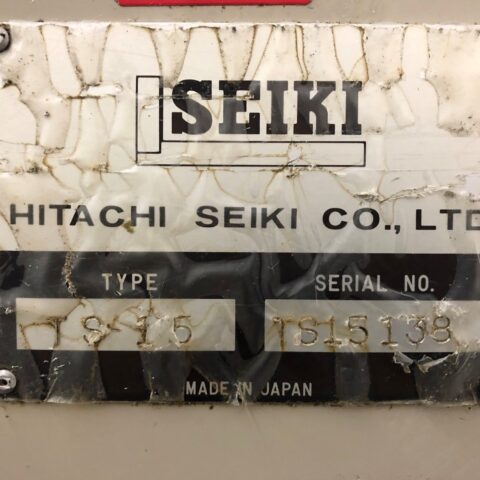

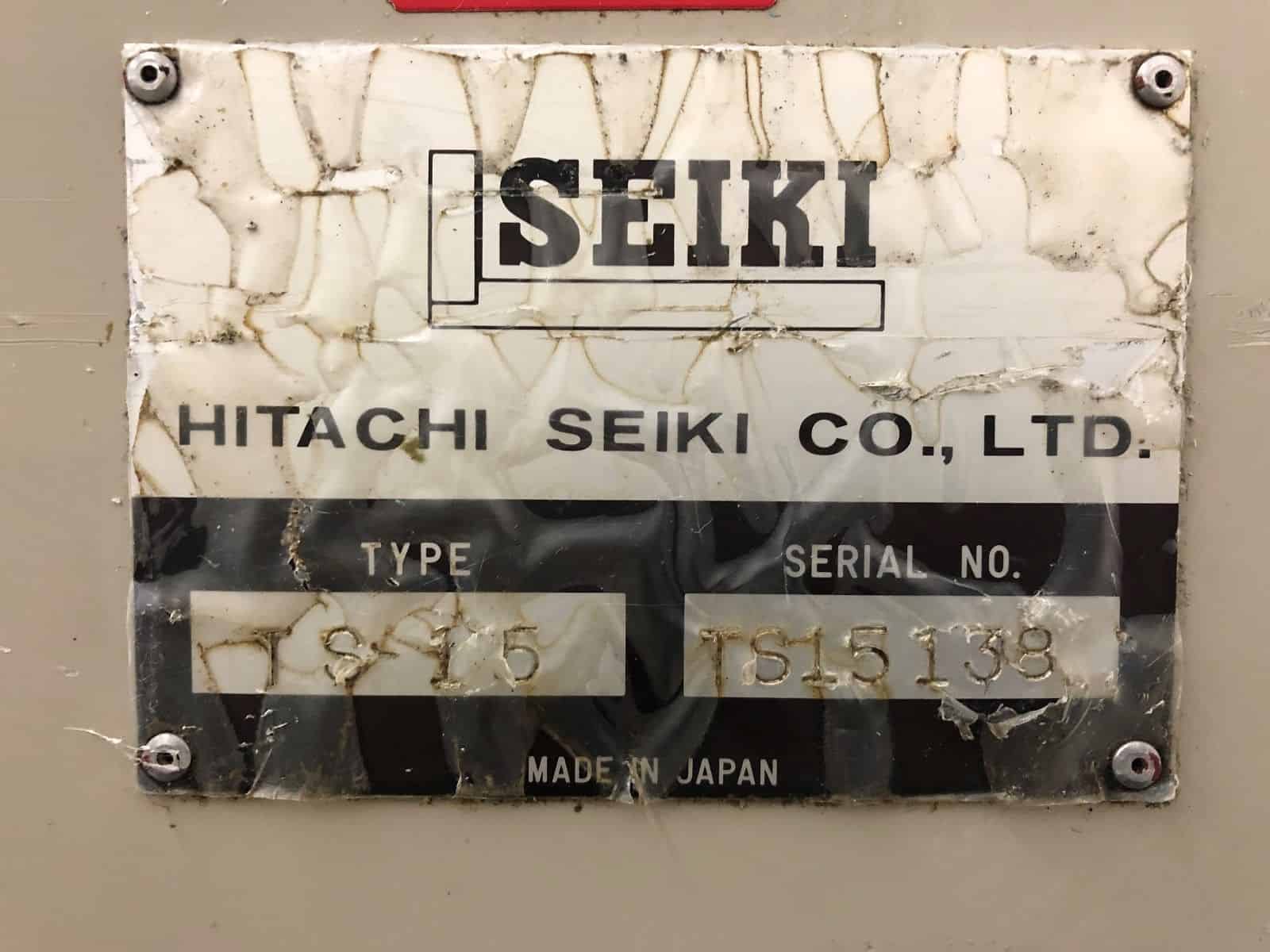

Serial #: TS15138
Country of Origin: Japan
Condition: Very Good

All specifications are approximations, and are subject to verification.

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with Collet and 3 Jaw Chuck, Tool holders, Manuals.”

HITACHI SEIKI TS-15 Equipped With:

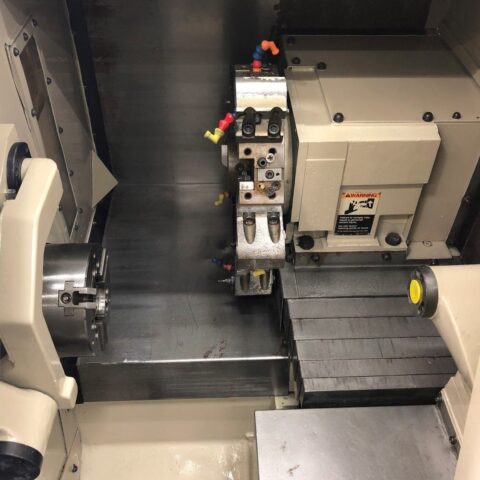

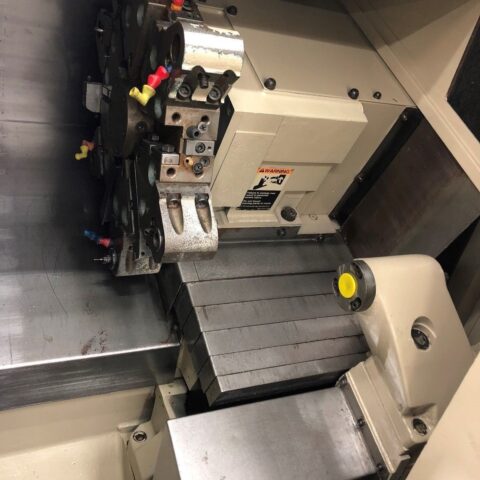

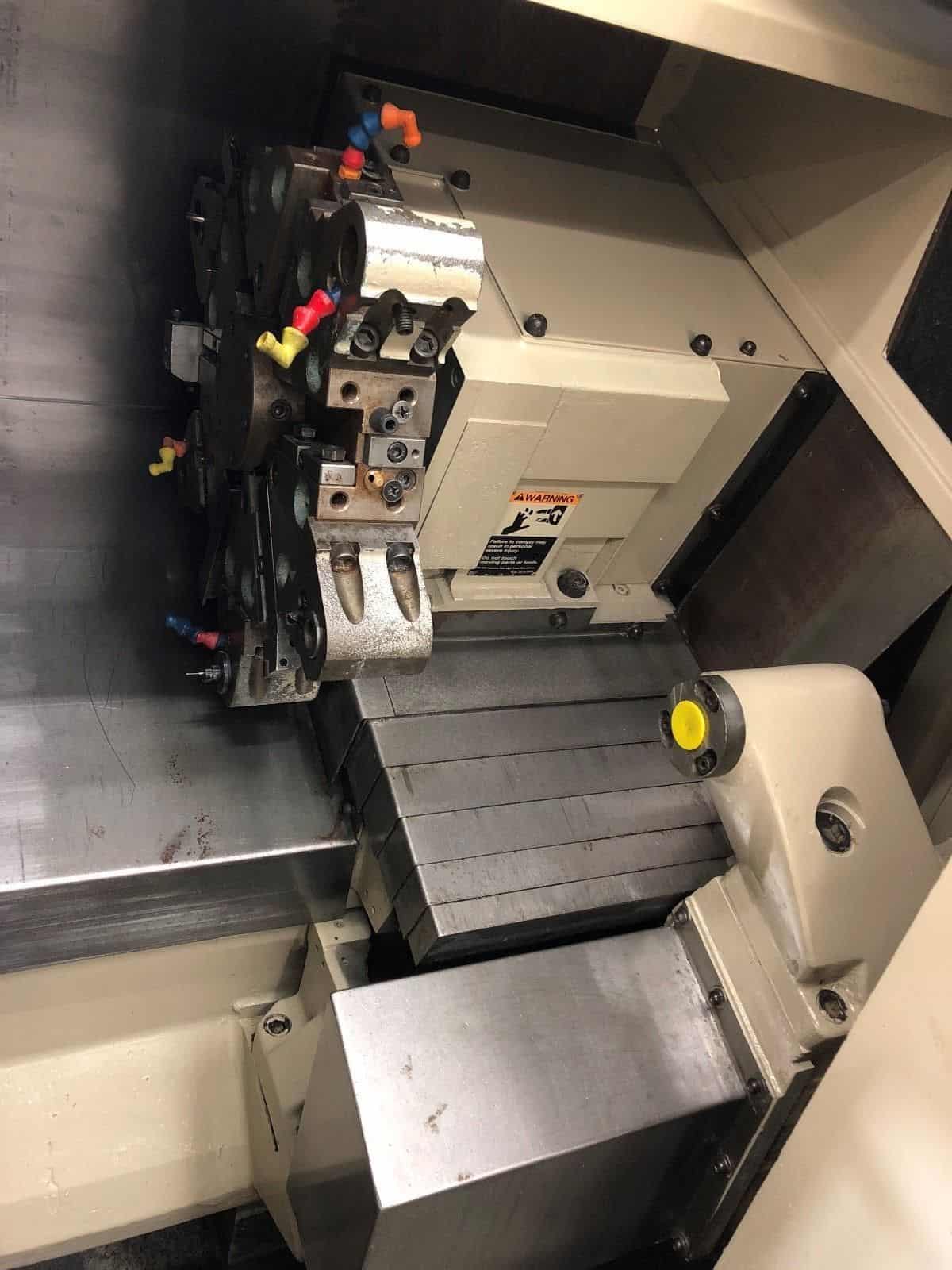

  • 12-Station Turret with Tools

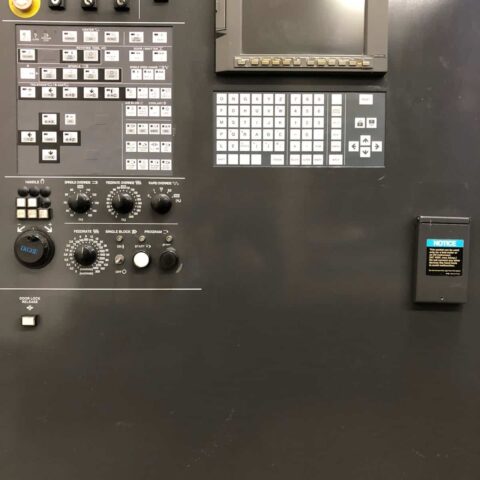

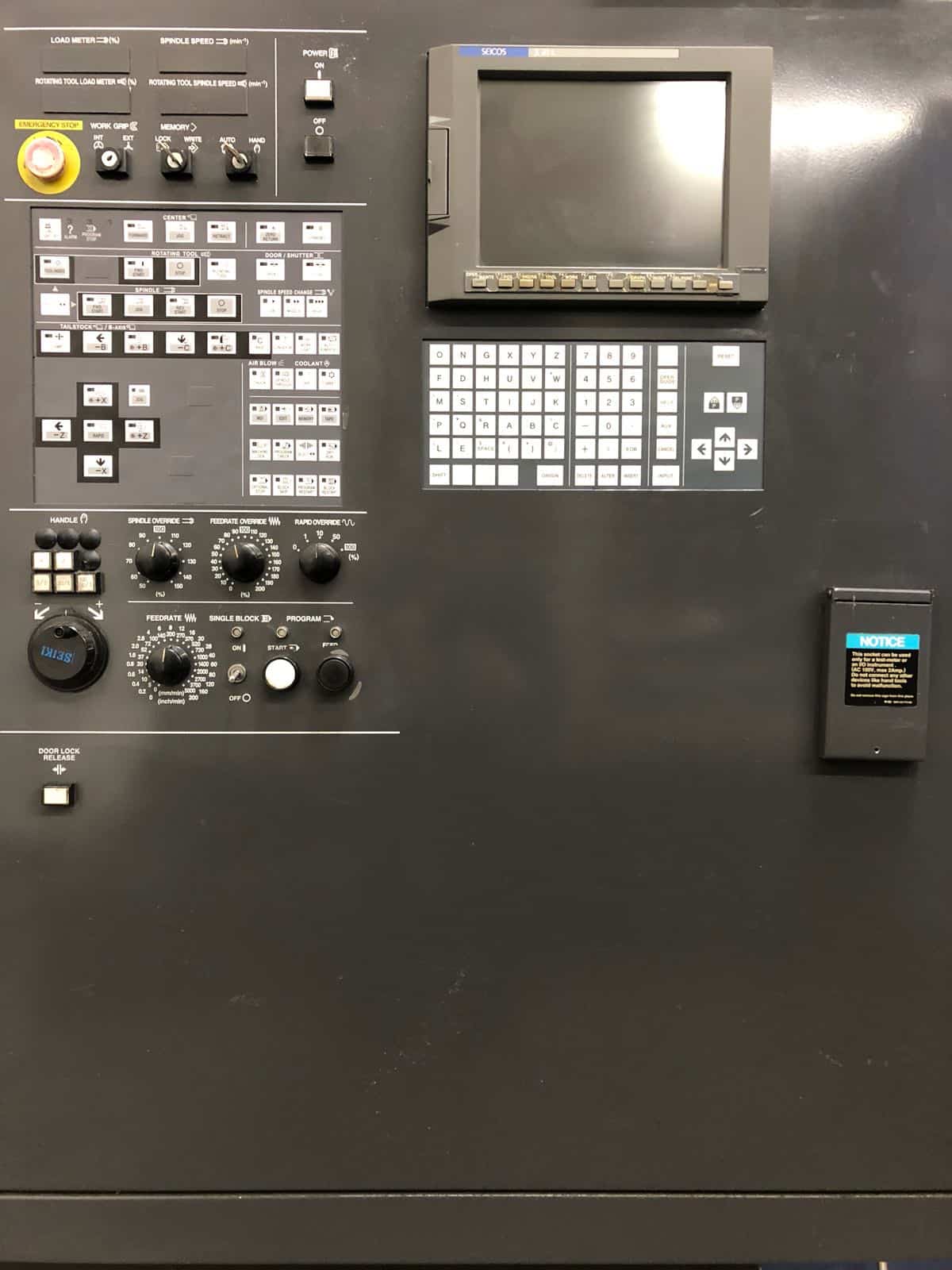

  • Seicos 21L (Fanuc 21-iT) CNC Control

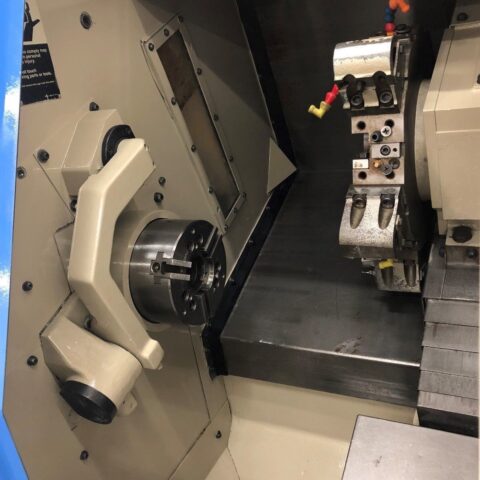

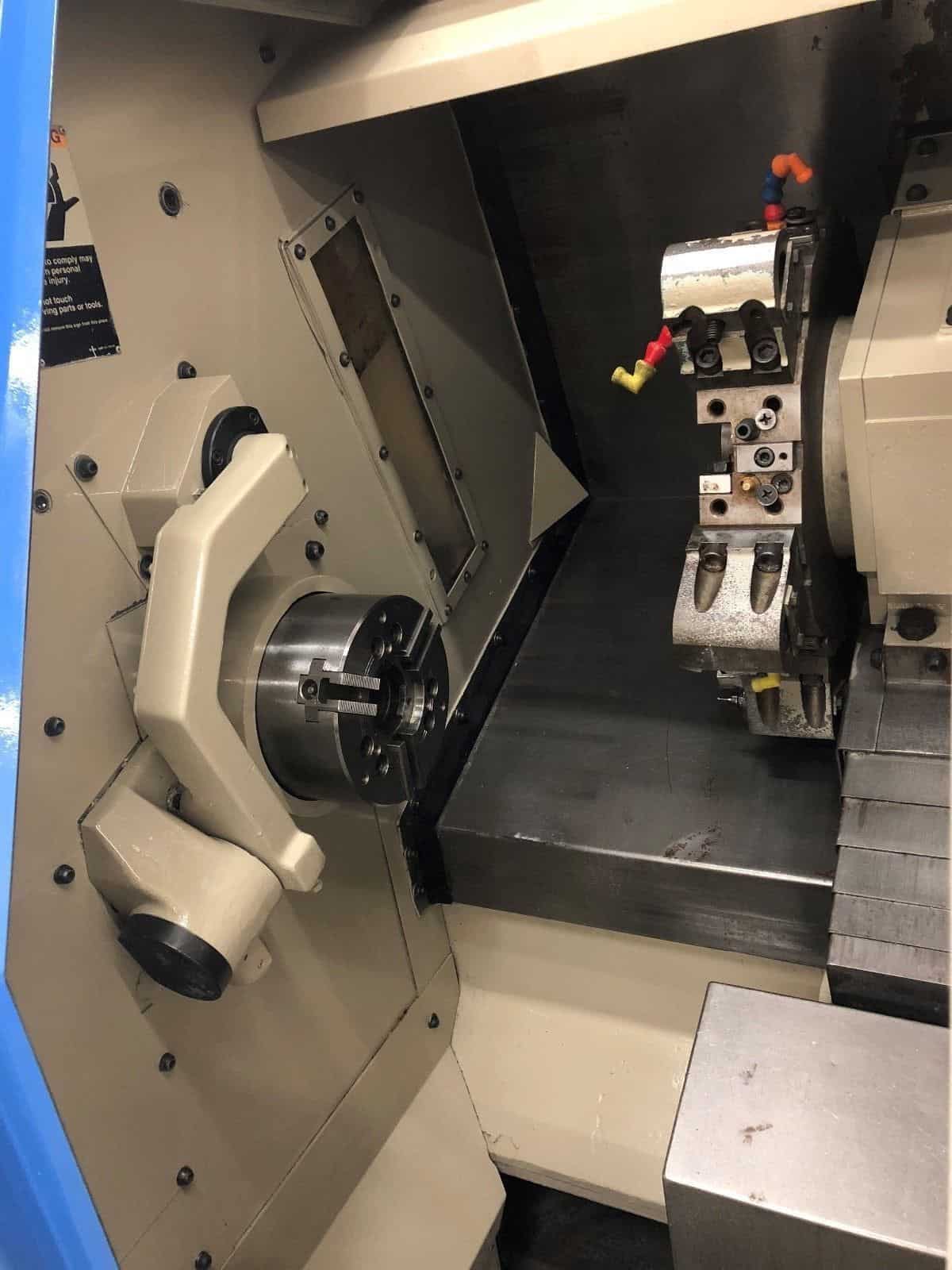

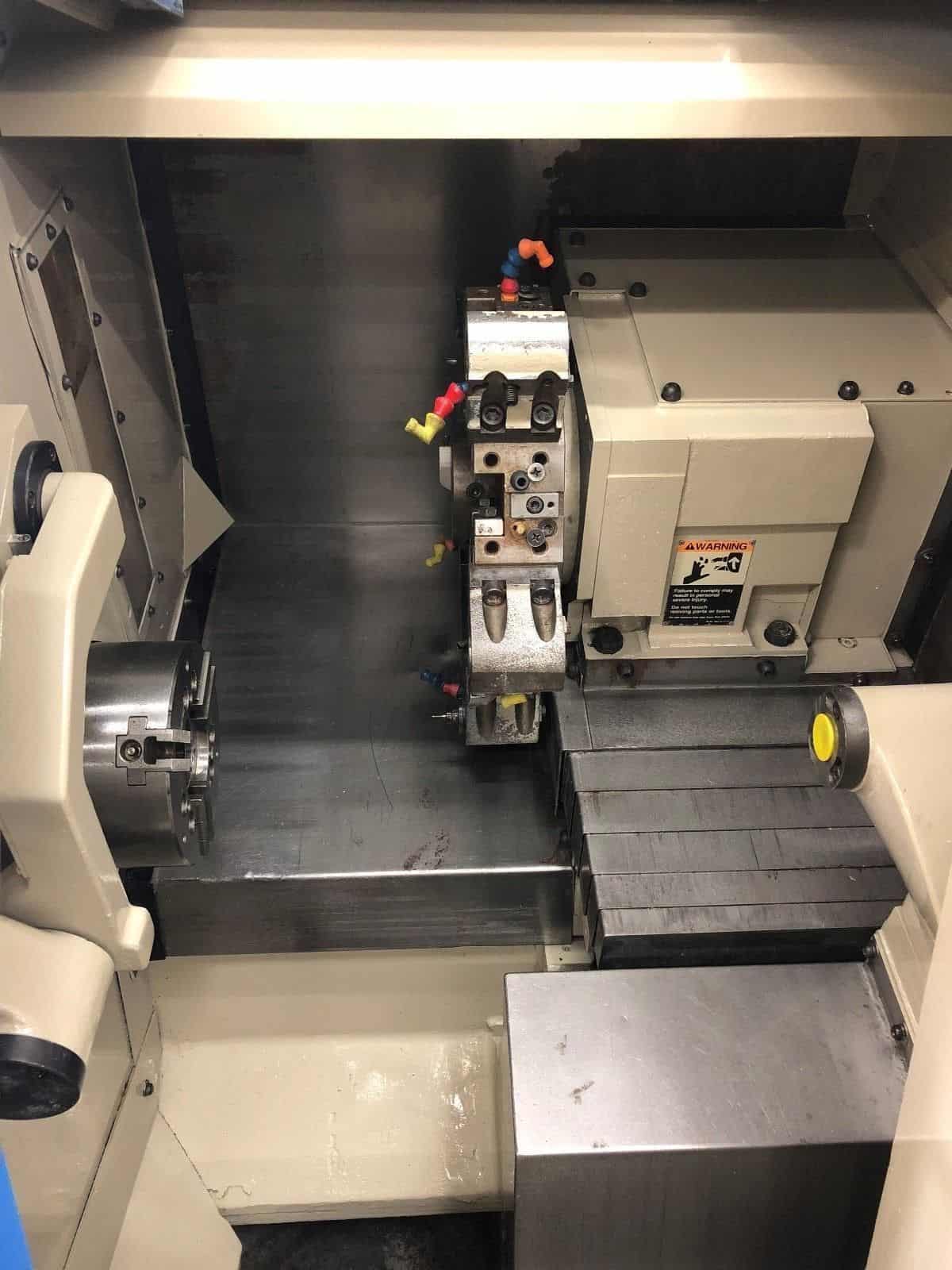

  • MMK 6.5″ 3-Jaw Kitagawa Hydraulic Chuck
  • Tool Presetter
  • PCMCIA Memory Card
  • Programmable Hydraulic Tailstock
  • Chip Pan and Tank
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • Original Books and Manuals, Manuals.

HITACHI SEIKI TS-15 Specifications:

Max Turning Diameter: 6.49″
Max Turning Length: 11.80″
Max Bar Capacity: 1.77″
Distance Between Centers: 14.6″

X Axis Travel: 7.48″
Z Axis Travel: 12.59″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle Nose: A2-5
Spindle Bore: 1.77″
Spindle Speed: 30-6000 RPM
Spindle Motor: 7.5 kw

Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second

Tailstock Body Travel: 11.4″
Tailstock Taper: MT-4

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 15kva
Overall Dimensions: 90″ x 65″ x 72″ High
Weight : 7500 lbs Approx.

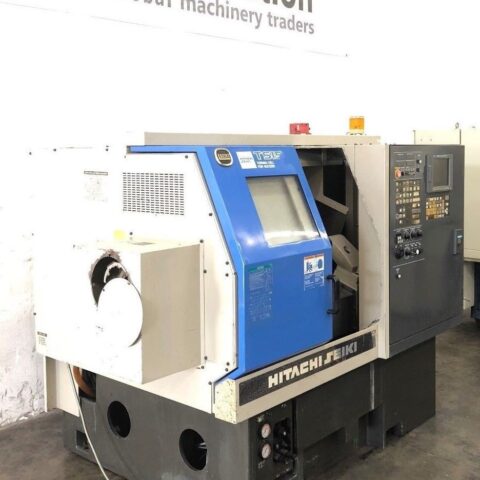

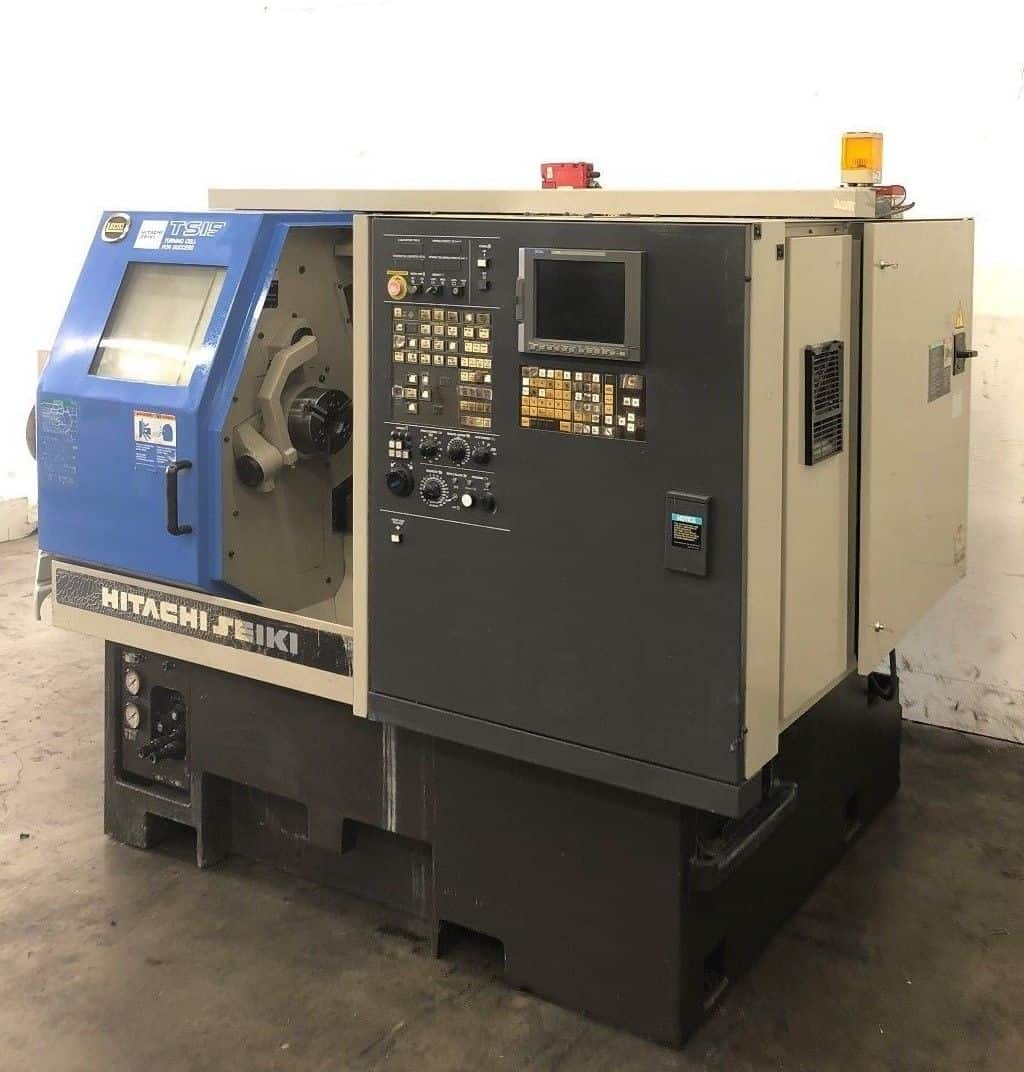

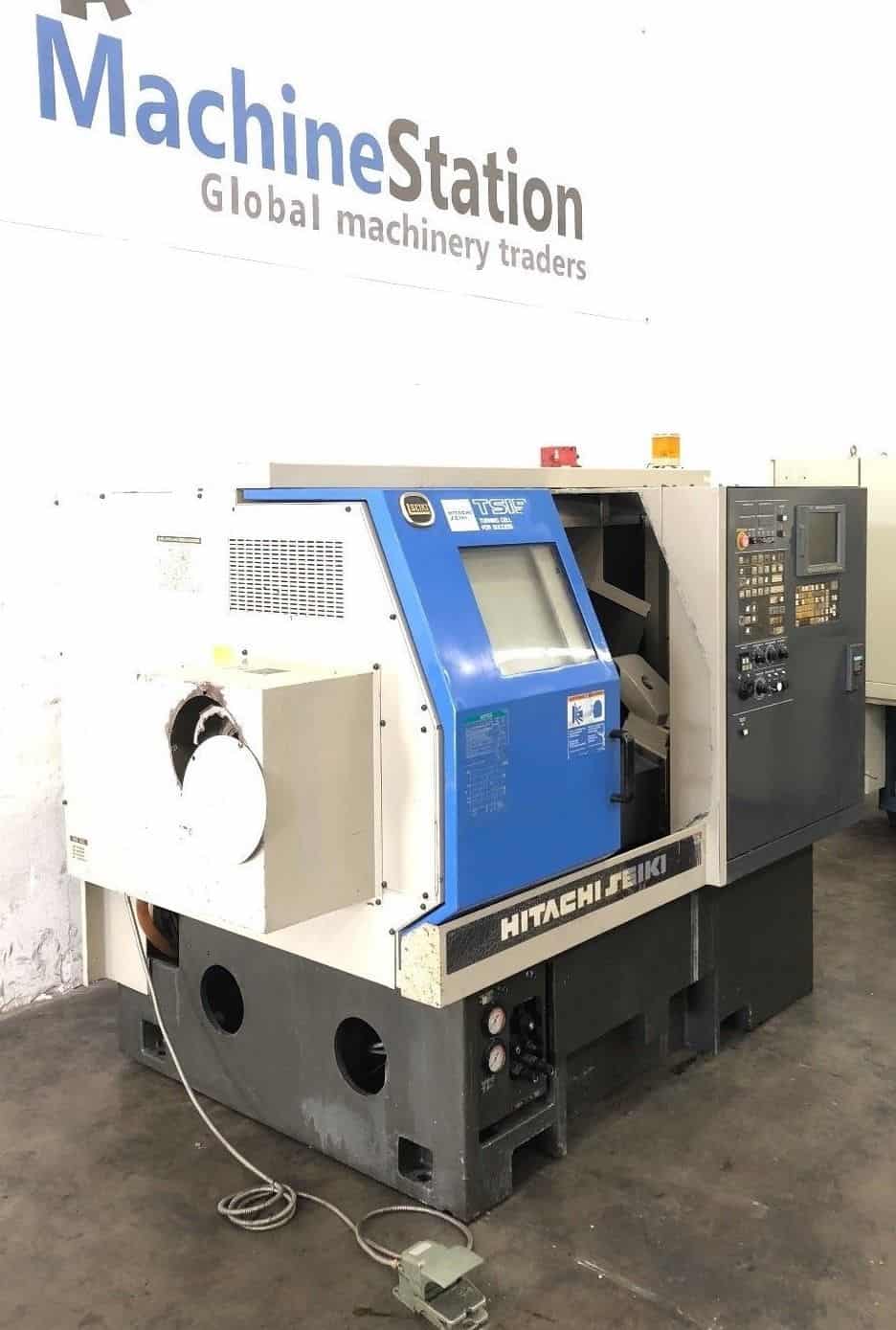

HITACHI SEIKI TS-15 Comes as shown in pictures.
