*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai Kia |
| Model No.: | Hi-V50D |
| Year of Manufacture: | 2005 |
| Machine Type: | CNC Vertical Machining Center (Dual-Pallet Production VMC) |

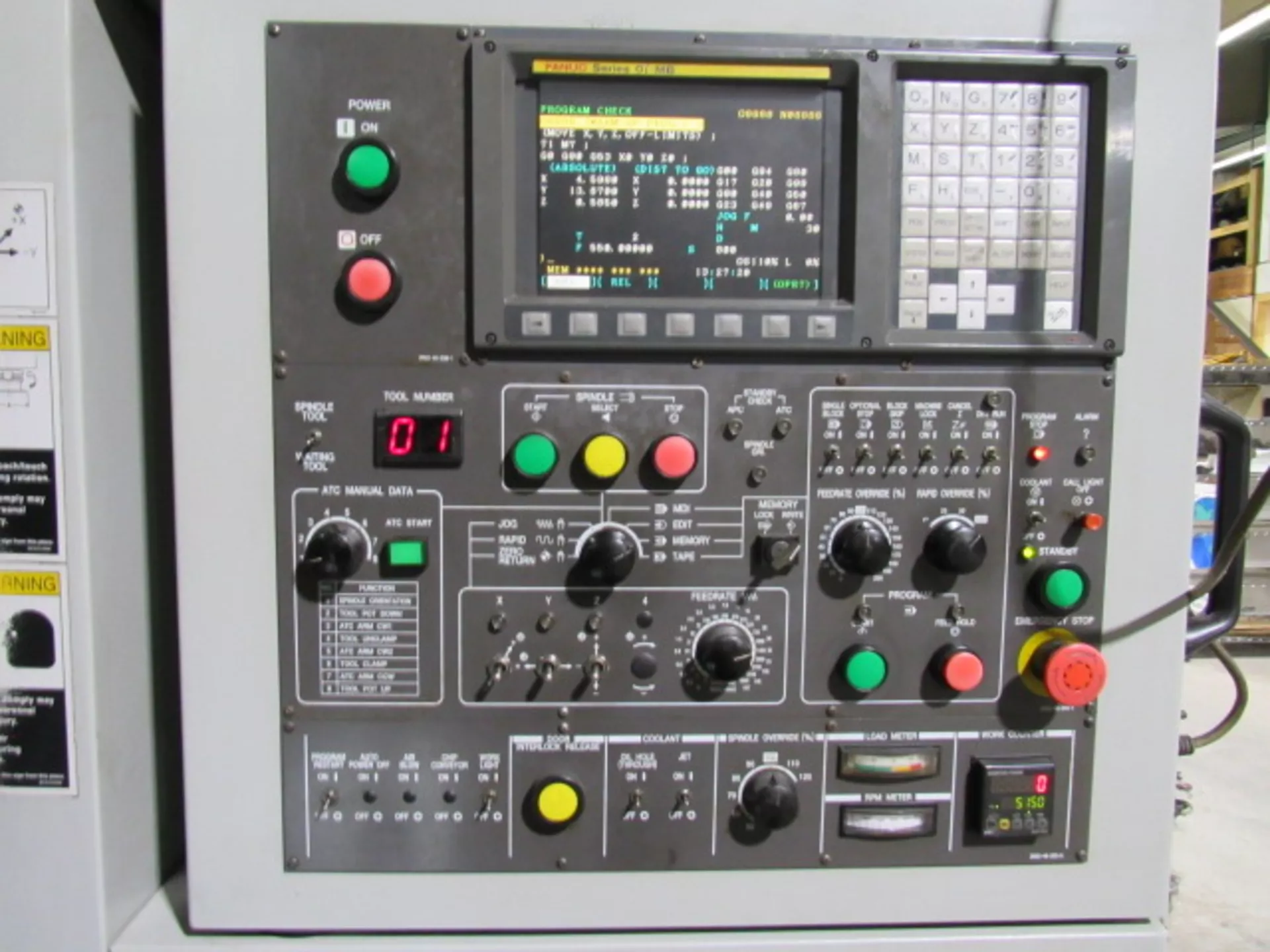

| CNC Control: | Fanuc CNC Control (commonly Fanuc 0i-M / 21i-M) |
| Equipped With: |
|---|
| Fanuc CNC Control System |

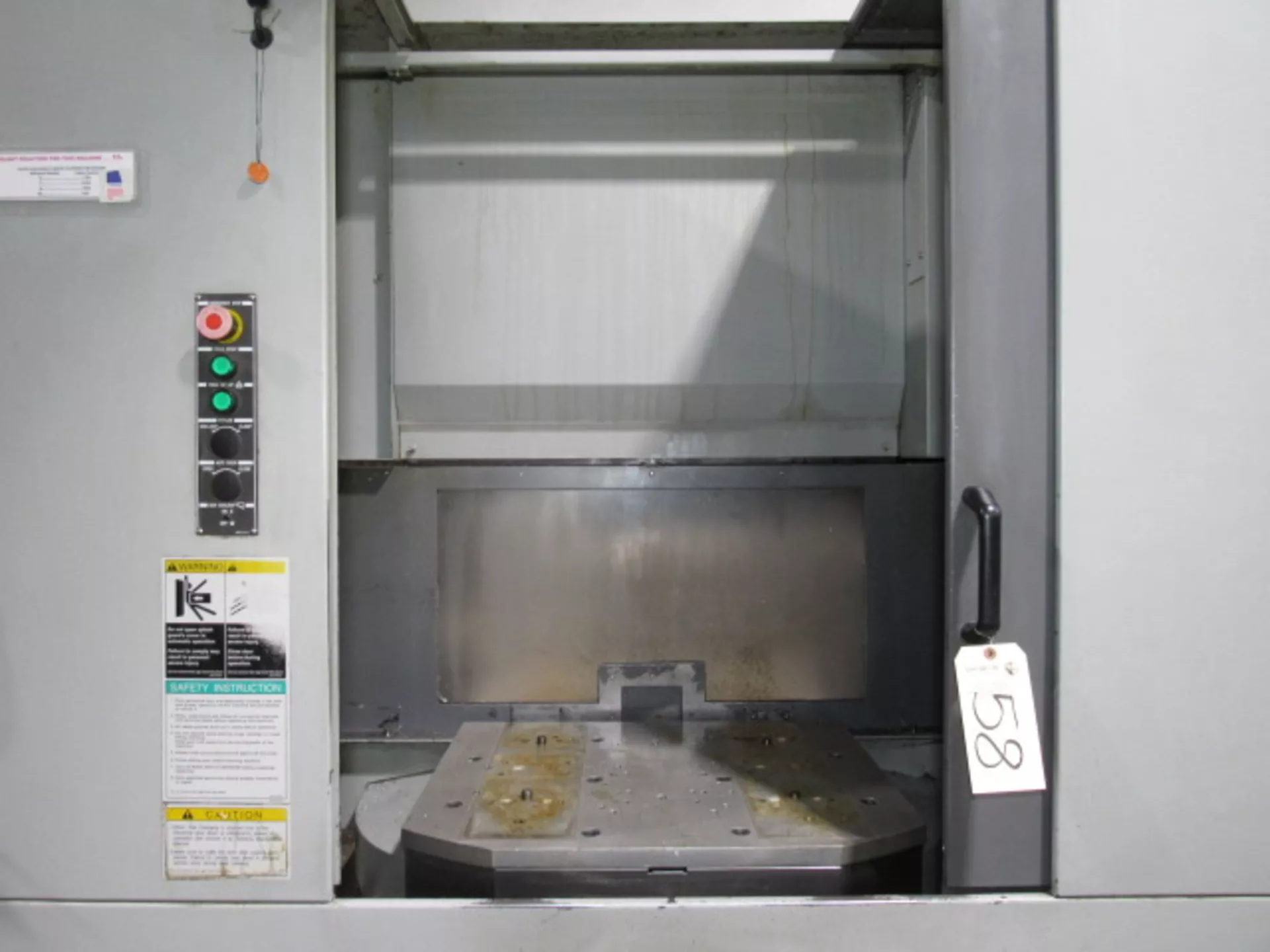

| Dual Pallet Automatic Pallet Changer (APC) |
| 24-Tool Automatic Tool Changer |
| Rigid Tapping Capability |
| Fully Enclosed Splash Guard |
| Coolant System with Tank and Pump |
| Centralized Automatic Lubrication System |
| Spindle Load Meter and Override |
| Work Light and Alarm System |
| Capacity: |
|---|
| Table Size (Dual Pallet): 27.6″ × 19.7″ (700 × 500 mm) |
| Number of Pallets: 2 (Automatic Pallet Changer) |
| Maximum Load Capacity per Pallet: 772 lbs (350 kg) |
| Travel: |
|---|
| X-Axis Travel: 23.6″ (600 mm) |
| Y-Axis Travel: 18.1″ (460 mm) |
| Z-Axis Travel: 22.4″ (570 mm) |
| Rapid Traverse (X/Y/Z): 40 / 40 / 30 m/min |
| Maximum Cutting Feedrate: 10 m/min |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM Standard |
| Optional Spindle Speed: 10,000 RPM |
| Spindle Motor Power: 20 / 15 HP (15 / 11 kW) |
| Spindle Taper: BT40 / CAT40 |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Twin-Arm Automatic Tool Changer (ATC) |
| Tool Capacity: 24 Tools Standard |
| Optional Tool Capacity: 30 Tools |
| Tool-to-Tool Time: Approx. 2.1 Seconds |
| Chip-to-Chip Time: Approx. 4.5 Seconds |
| Machine Construction: |
|---|
| Moving Column Design for Improved Rigidity |
| Meehanite Cast Iron Structure for Vibration Absorption |
| Integral Cast Z-Axis Box Ways for Heavy Cutting Capability |
| Dual-Pallet APC System for Continuous Production |
| General: |
|---|
| Machine Weight: Approx. 20,944 lbs (9,500 kg) |
| Floor Space: Approx. 2710 × 2930 mm |
| Coolant Tank Capacity: Approx. 79 Gallons (300 L) |
| Optional Features: |
|---|
| Through-Spindle Coolant (20–70 Bar Options) |
| Chip Conveyor (Hinge or Scraper Type) |
| Spindle Cooling Unit |
| Automatic Door System |
| 30-Tool Magazine Upgrade |
| Rotary Table Integration |
