Hyundai Wia L150A CNC Turning Center – 2012

SKU 11155
Make/Model Hyundai Wia L150A
Year 2012
Condition Used - Good
Video On Request
Out of stock
SKU: 11155
Make/Model: Hyundai Wia L150A
Year: 2012
Condition: Used – Good
Video: On Request
SKU: 11155

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Hyundai Wia
Model No.: L150A
Year of Manufacture: 2012
Machine Type: CNC Turning Center

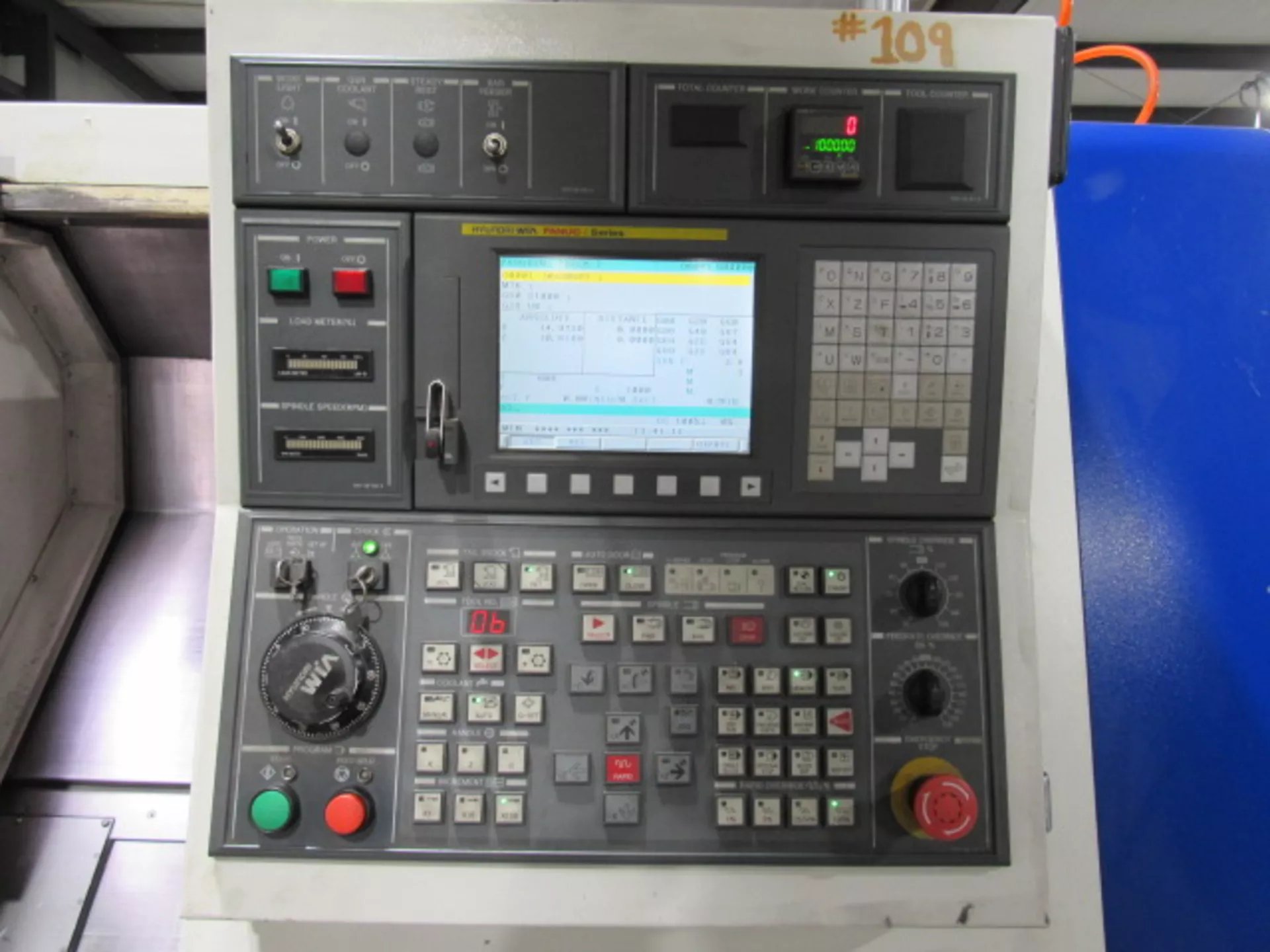

CNC Control: Fanuc i-Series CNC Control
Equipped With:
Fanuc CNC Control System
12-Station Servo Turret
6″ Hydraulic Chuck
Automatic Lubrication System
Coolant System
Fully Enclosed Splash Guard
Rigid Tapping Capability
High-Speed Rapid Traverse Axes
Tool Monitoring Capability
Capacity:
Maximum Turning Diameter: 550 mm (21.65″)
Maximum Turning Length: 410 mm (16.1″)
Chuck Size: 6″ Hydraulic Chuck
Bar Capacity: 45 mm (1.77″)
Travel:
X-Axis Travel: Approx. 220 mm (8.6″)
Z-Axis Travel: Approx. 410 mm (16″)
Rapid Traverse (X/Z): Up to 36 m/min
Spindle:
Maximum Spindle Speed: 6,000 RPM
Spindle Motor Power: 11 / 7.5 kW (15 / 10 HP)
Spindle Bore: 53 mm (2.1″)
Spindle Nose: A2-5
Drive Type: Belt-Driven Spindle
Turret:
Turret Type: Servo-Driven Turret
Turret Capacity: 12 Stations
Turning Tool Size: 25 mm (1″)
Boring Bar Capacity: 32 mm (1.3″)
Turret Index Time: Approx. 0.2 sec/step
Tailstock:
Tailstock Taper: MT #4
Quill Diameter: 56 mm (2.2″)
Tailstock Travel: 400 mm (15.7″)
Operation: Manual / CNC Programmable (Configuration Dependent)
Machine Construction:
45° Slant-Bed Structure for Improved Chip Evacuation
Linear Motion Guideways (LM Guides)
Double-Anchored Precision Ball Screws
Rigid Cast Iron Base for Vibration Reduction
General:
Number of Axes: 2 (X & Z)
Machine Type: High-Speed Small-Parts Production Turning Center
Designed for Precision Machining and High Productivity
Optional Features:
C-Axis Spindle Control
Live Tooling Turret (L150M Models)
Sub-Spindle (S-Type Models)
Bar Feeder Integration
Chip Conveyor
Parts Catcher
Tool Monitoring System
Automation Interface / Robotic Loading
Equipped With:
Fanuc CNC Control System
12-Station Servo Turret
152 mm Hydraulic Chuck
Automatic Lubrication System
Coolant System
Fully Enclosed Splash Guard
Rigid Tapping Capability
High-Speed Rapid Traverse Axes
Tool Monitoring Capability
Capacity:
Maximum Turning Diameter: 550 mm (550 mm)
Maximum Turning Length: 410 mm (409 mm)
Chuck Size: 152 mm Hydraulic Chuck
Bar Capacity: 45 mm (45 mm)
Travel:
X-Axis Travel: Approx. 220 mm (218 mm)
Z-Axis Travel: Approx. 410 mm (406 mm)
Rapid Traverse (X/Z): Up to 36 m/min
Spindle:
Maximum Spindle Speed: 6,000 RPM
Spindle Motor Power: 11 / 7.5 kW (15 / 10 HP)
Spindle Bore: 53 mm (53 mm)
Spindle Nose: A2-5
Drive Type: Belt-Driven Spindle
Turret:
Turret Type: Servo-Driven Turret
Turret Capacity: 12 Stations
Turning Tool Size: 25 mm (25 mm)
Boring Bar Capacity: 32 mm (33 mm)
Turret Index Time: Approx. 0.2 sec/step
Tailstock:
Tailstock Taper: MT #4
Quill Diameter: 56 mm (56 mm)
Tailstock Travel: 400 mm (399 mm)
Operation: Manual / CNC Programmable (Configuration Dependent)
Machine Construction:
45° Slant-Bed Structure for Improved Chip Evacuation
Linear Motion Guideways (LM Guides)
Double-Anchored Precision Ball Screws
Rigid Cast Iron Base for Vibration Reduction
General:
Number of Axes: 2 (X & Z)
Machine Type: High-Speed Small-Parts Production Turning Center
Designed for Precision Machining and High Productivity
Optional Features:
C-Axis Spindle Control
Live Tooling Turret (L150M Models)
Sub-Spindle (S-Type Models)
Bar Feeder Integration
Chip Conveyor
Parts Catcher
Tool Monitoring System
Automation Interface / Robotic Loading
