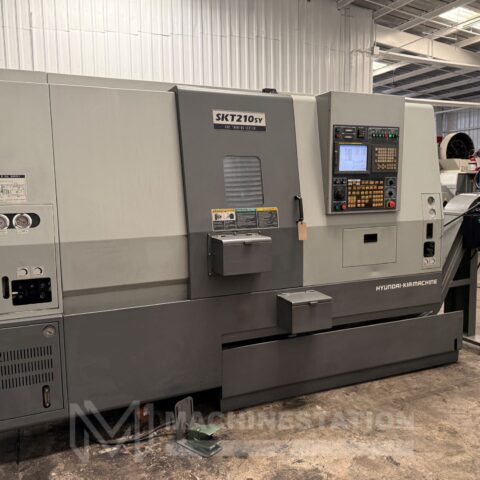

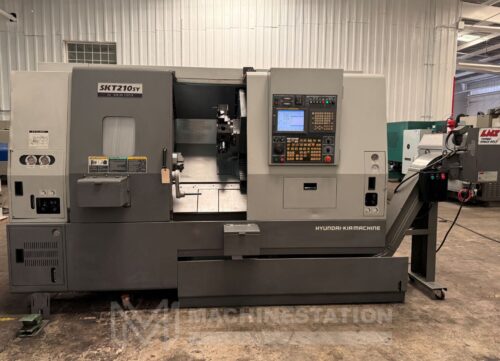

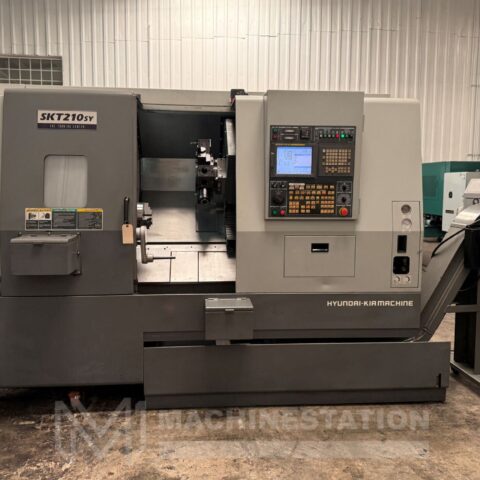

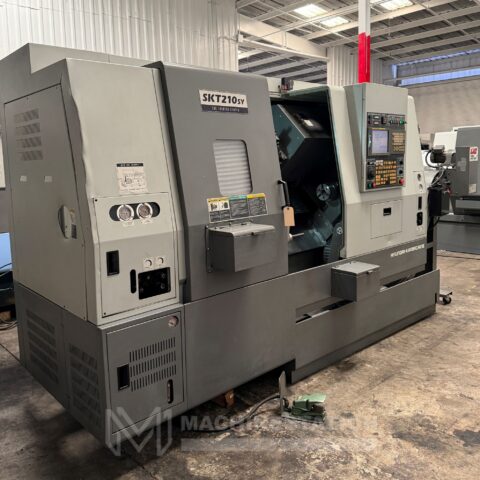

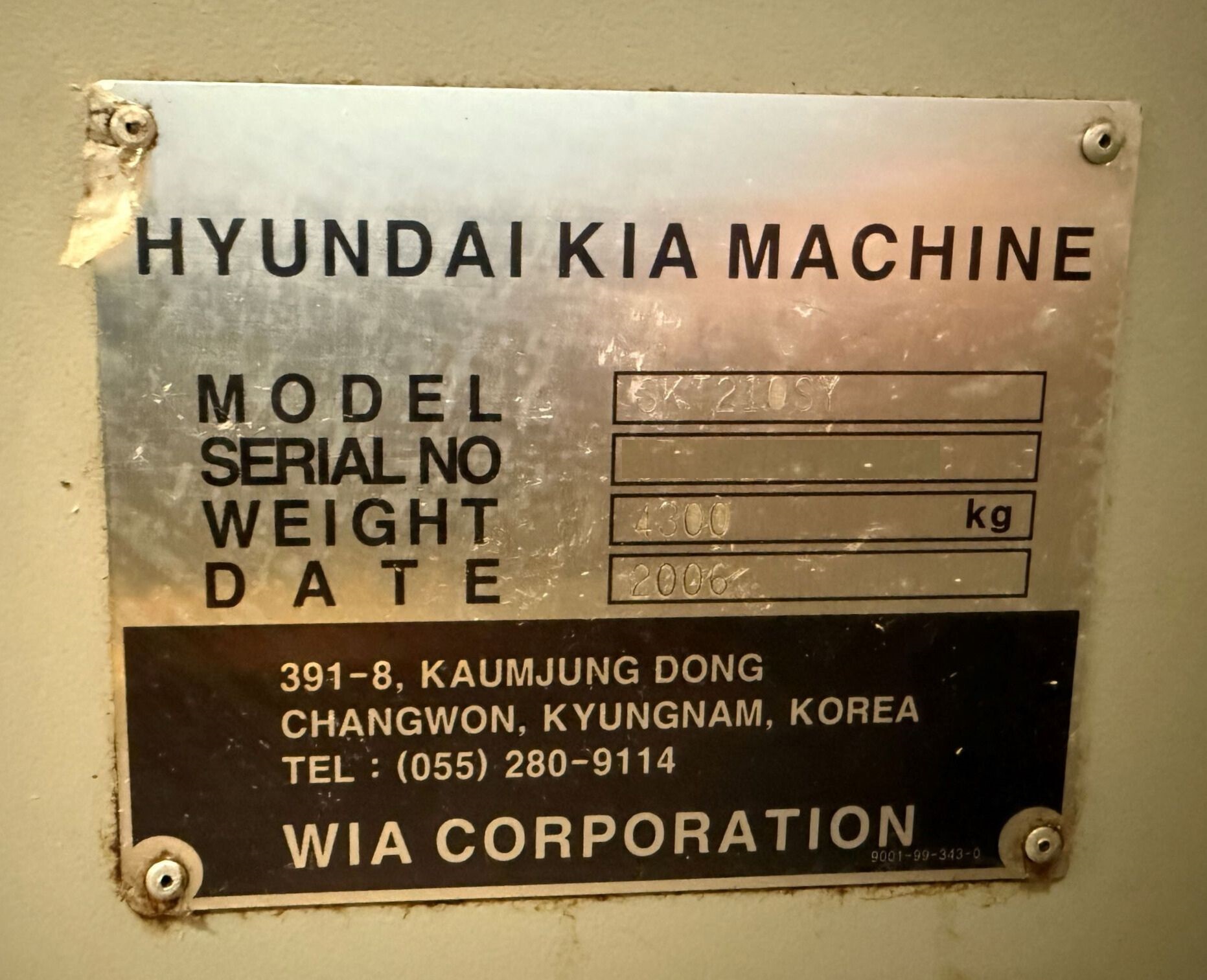

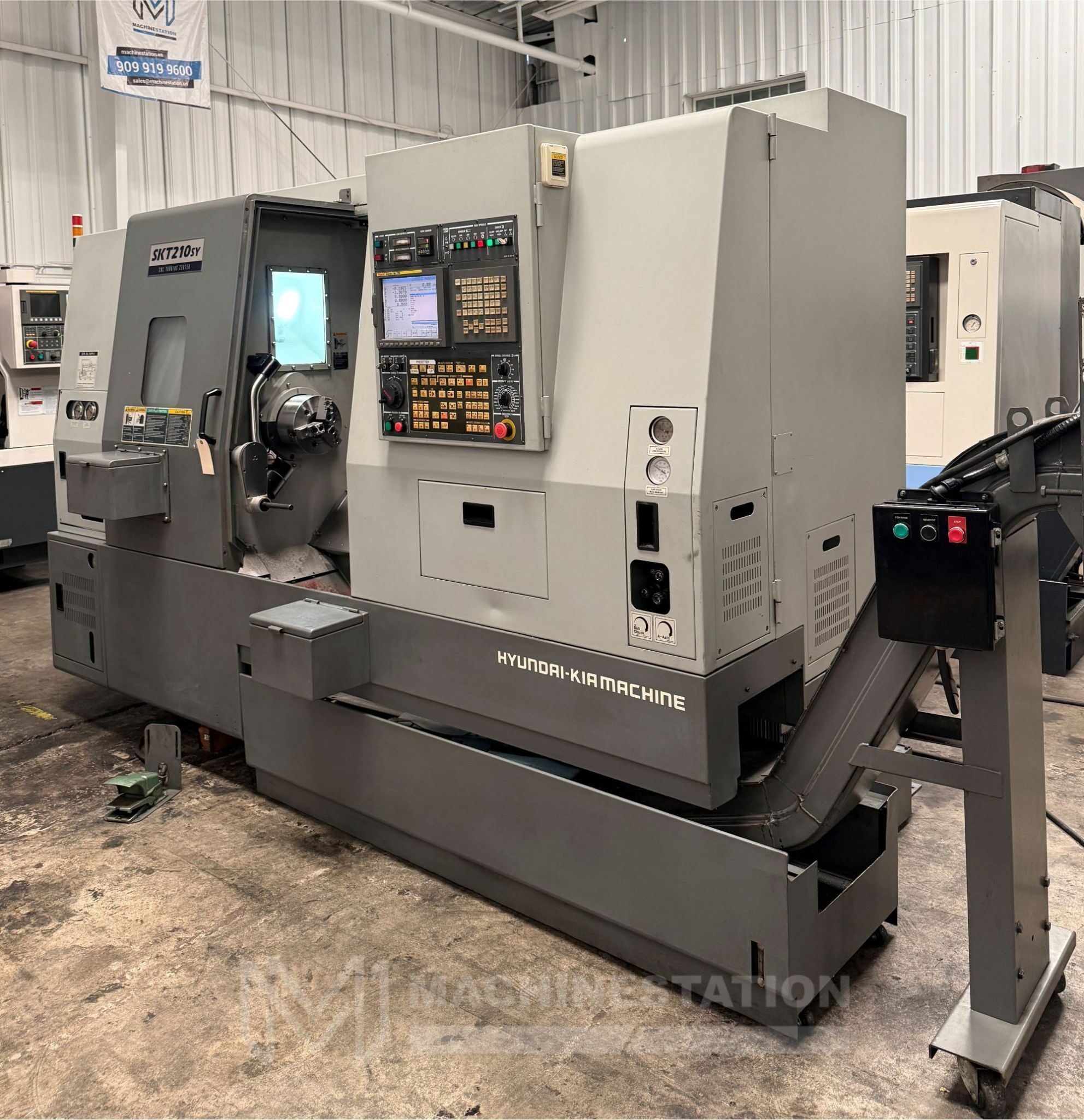

| Make: | Hyundai Kia |
| Model: | SKT-210SY |
| Year: | 2006 |
| Equipped With: |
|---|

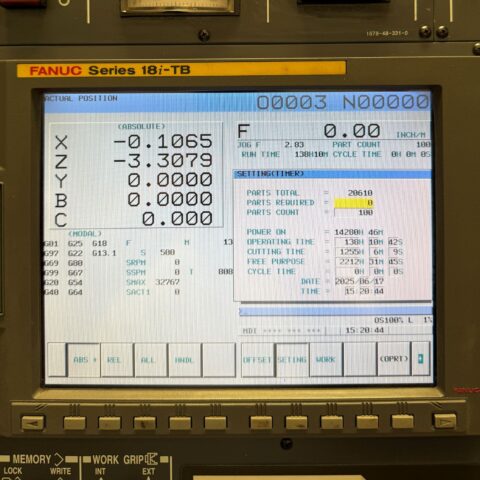

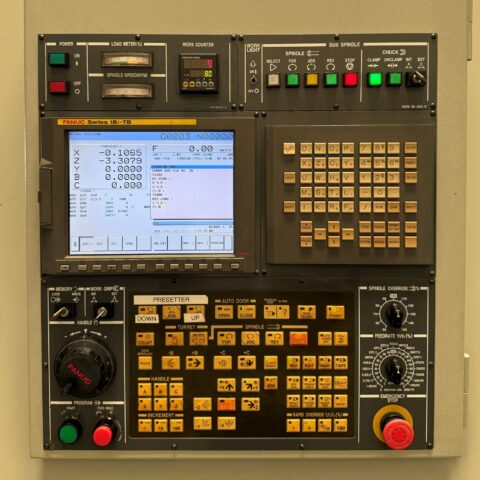

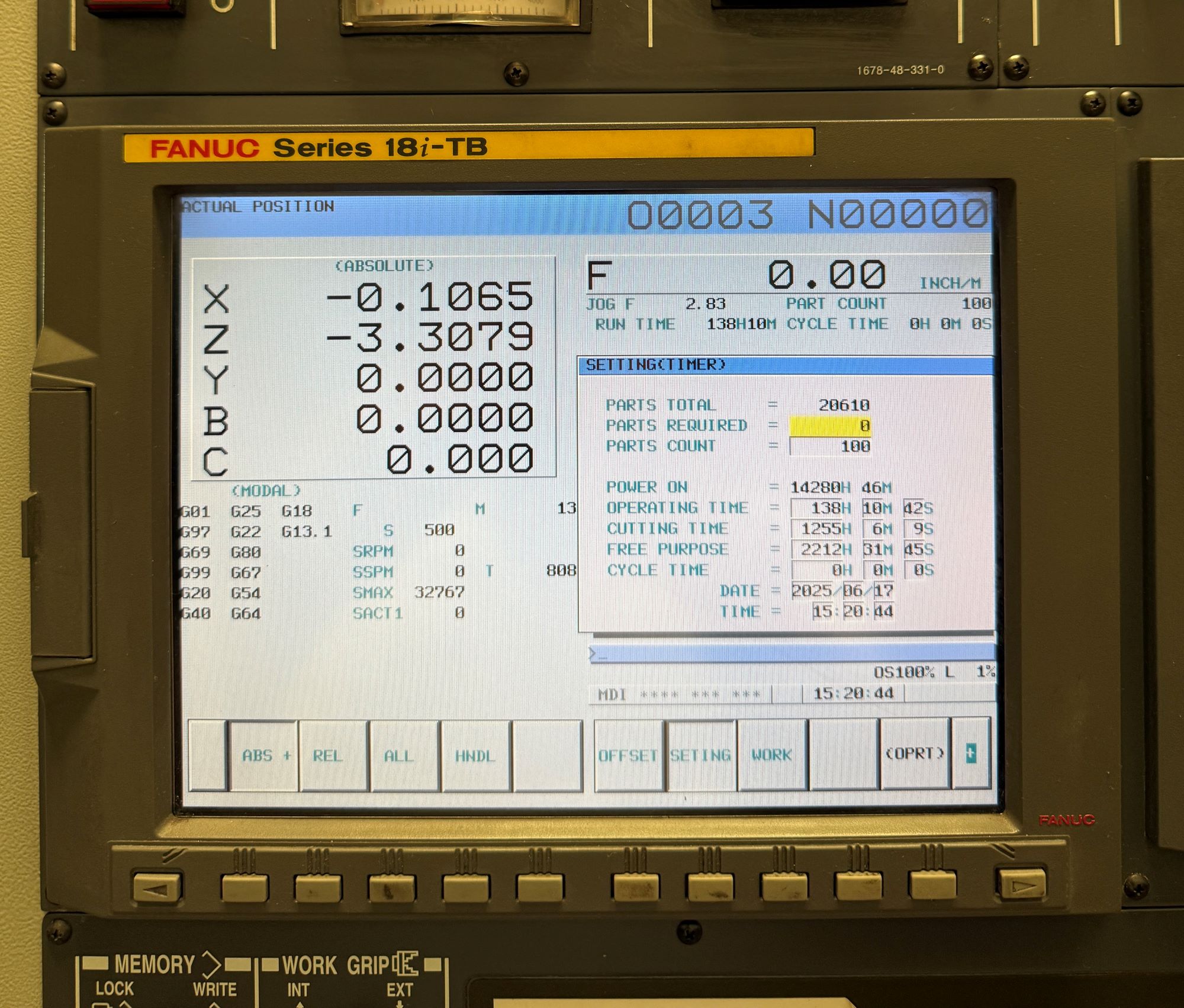

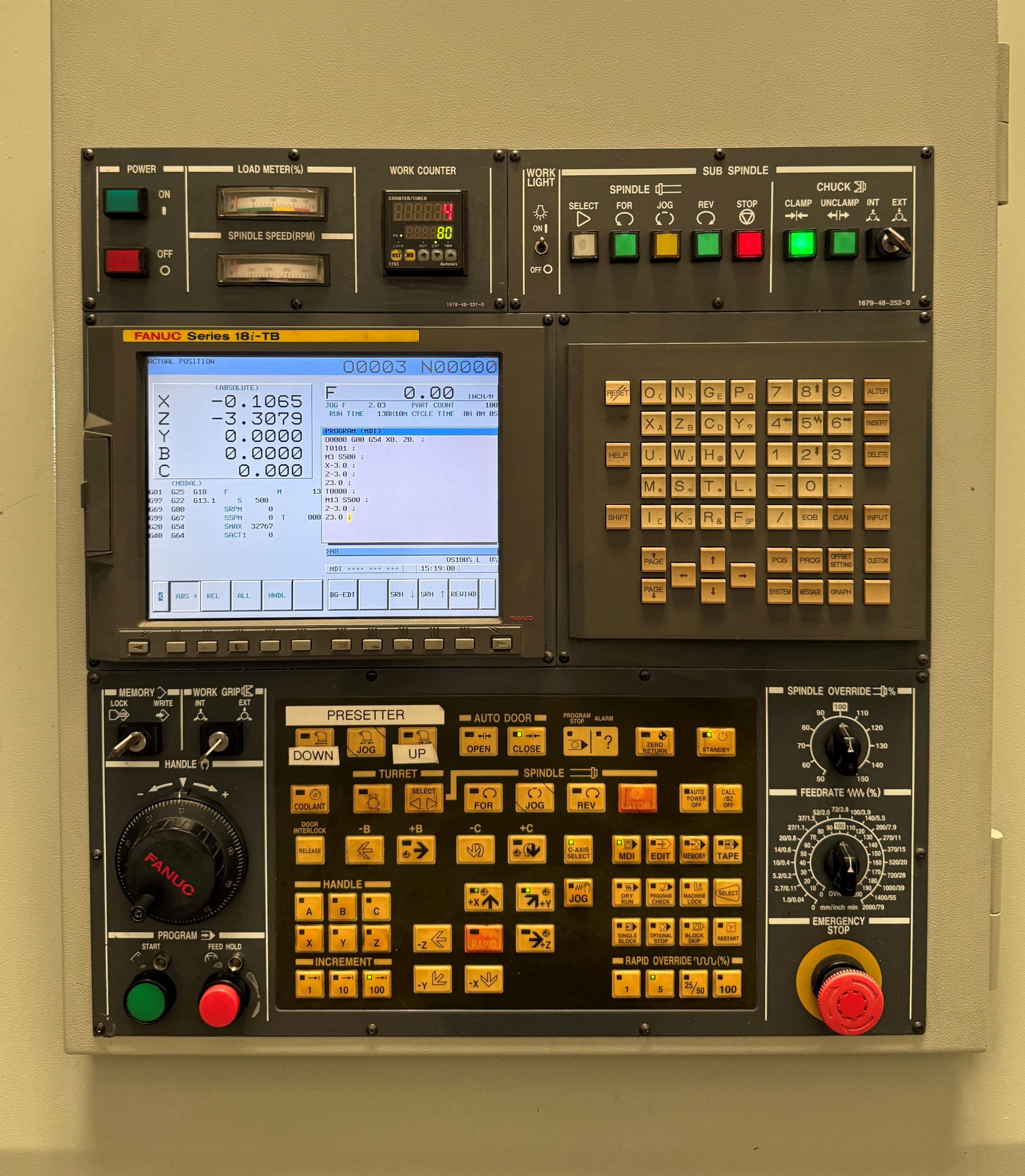

| Fanuc 18i-TB CNC Control |

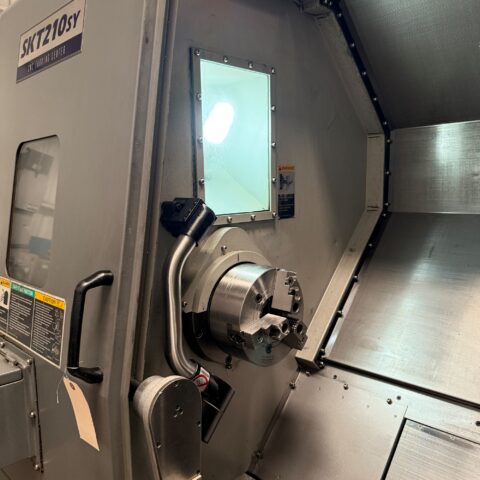

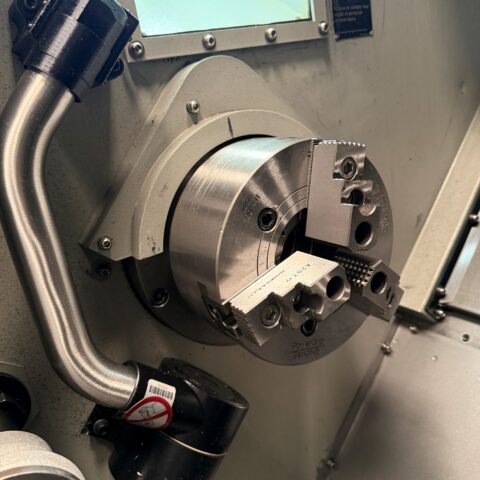

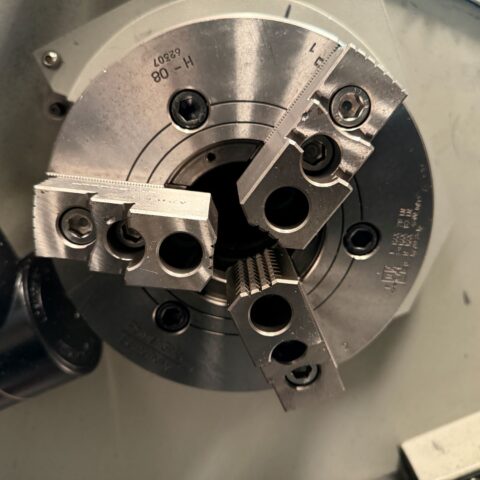

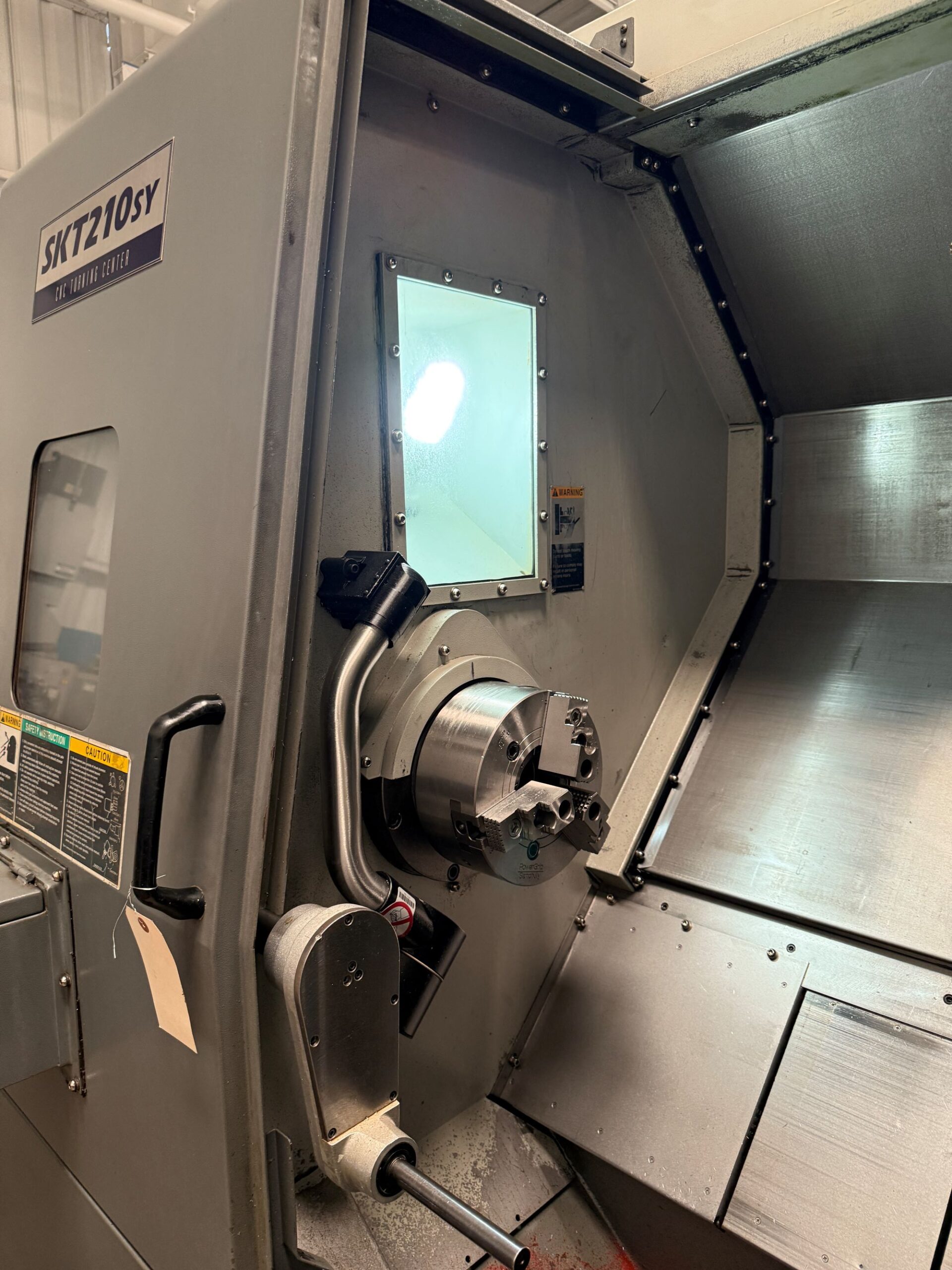

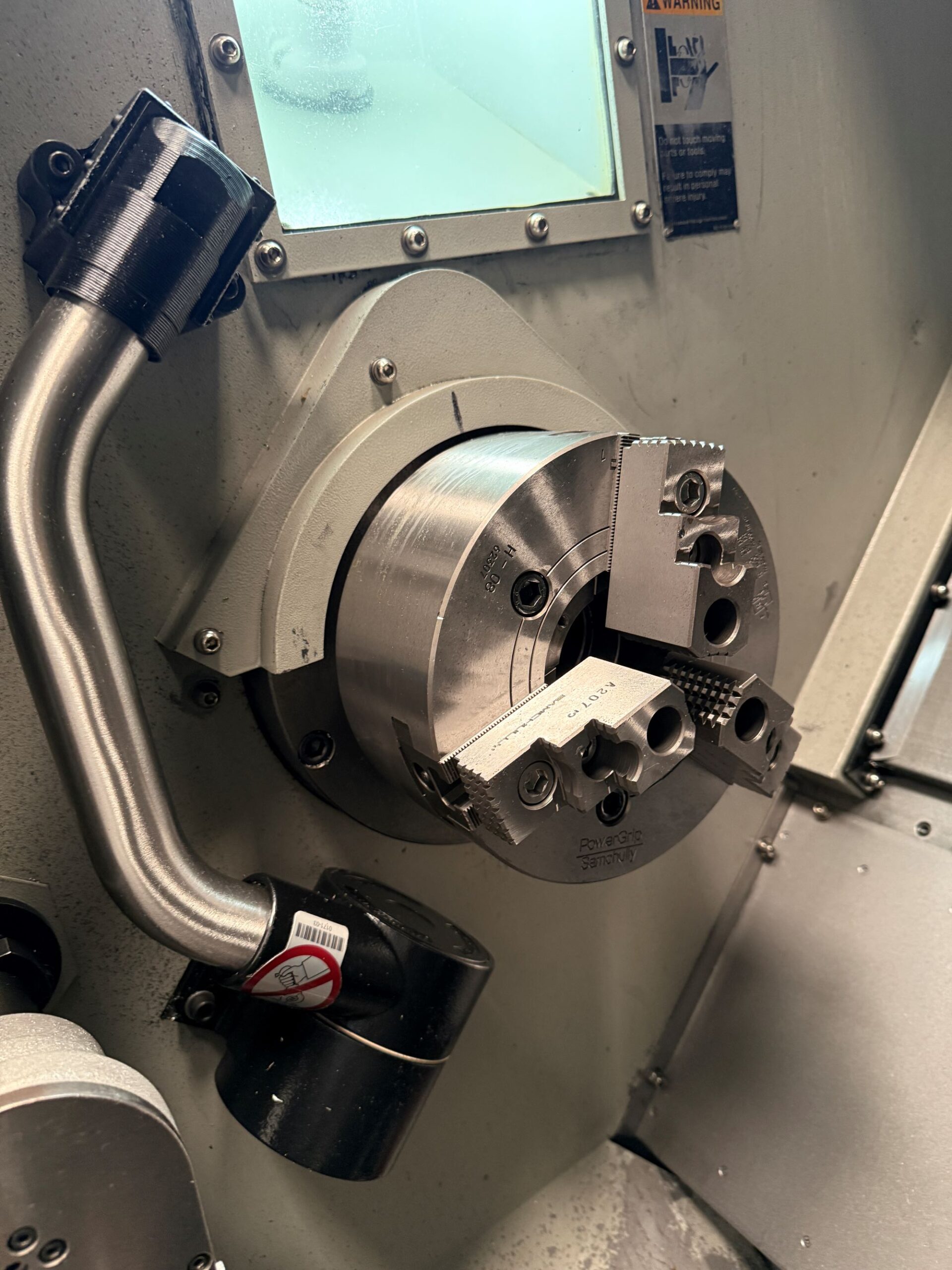

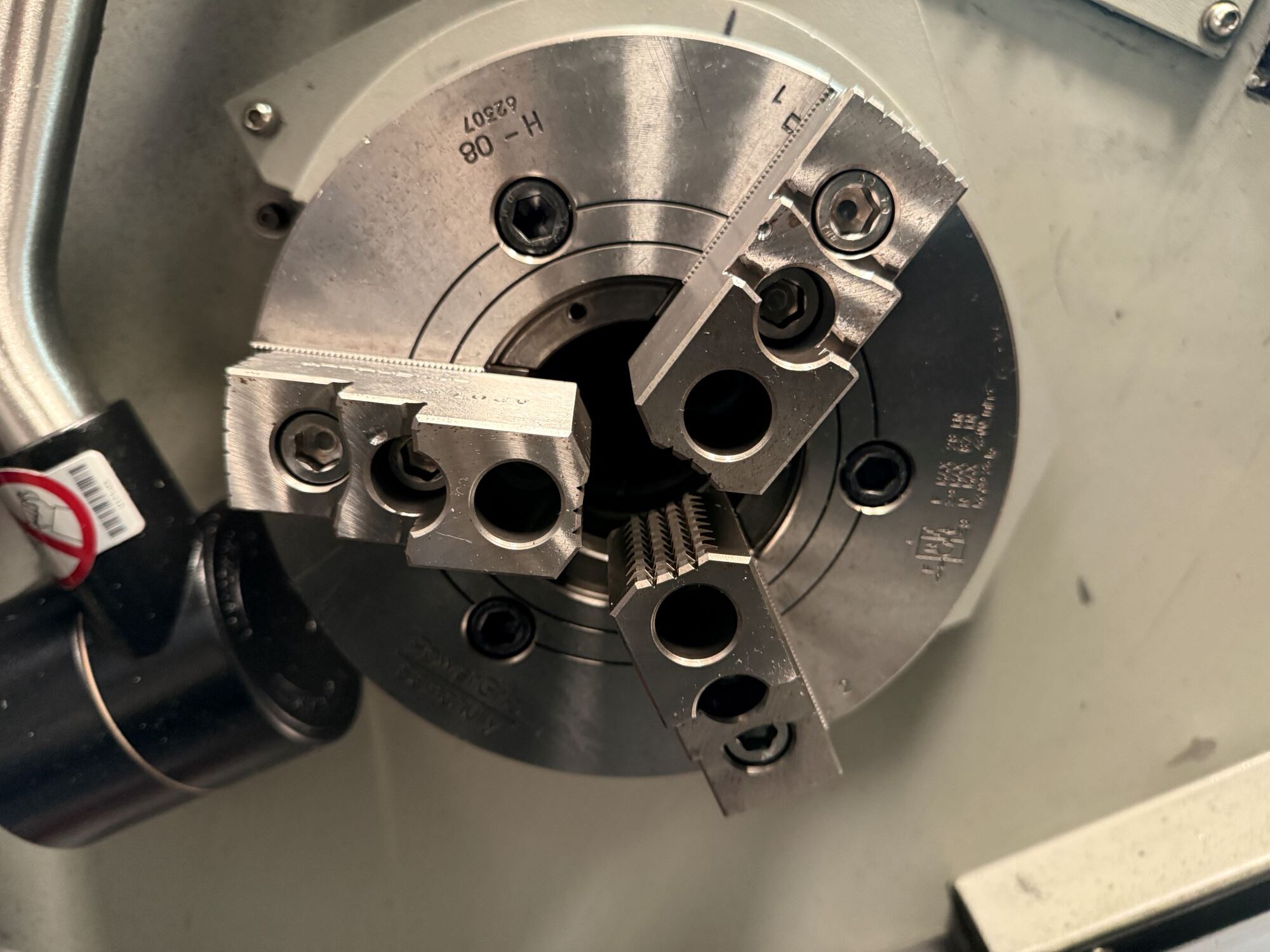

| 8″ 3-Jaw Chuck on Main Spindle |

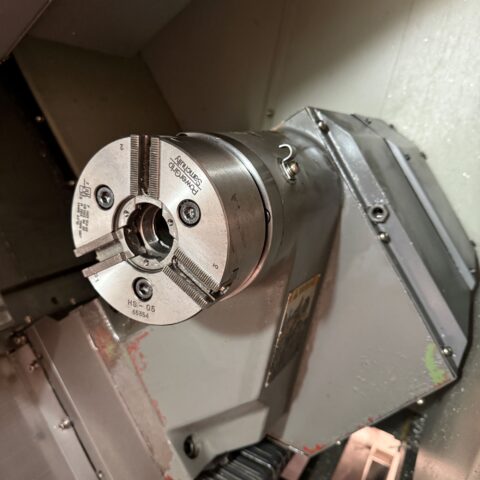

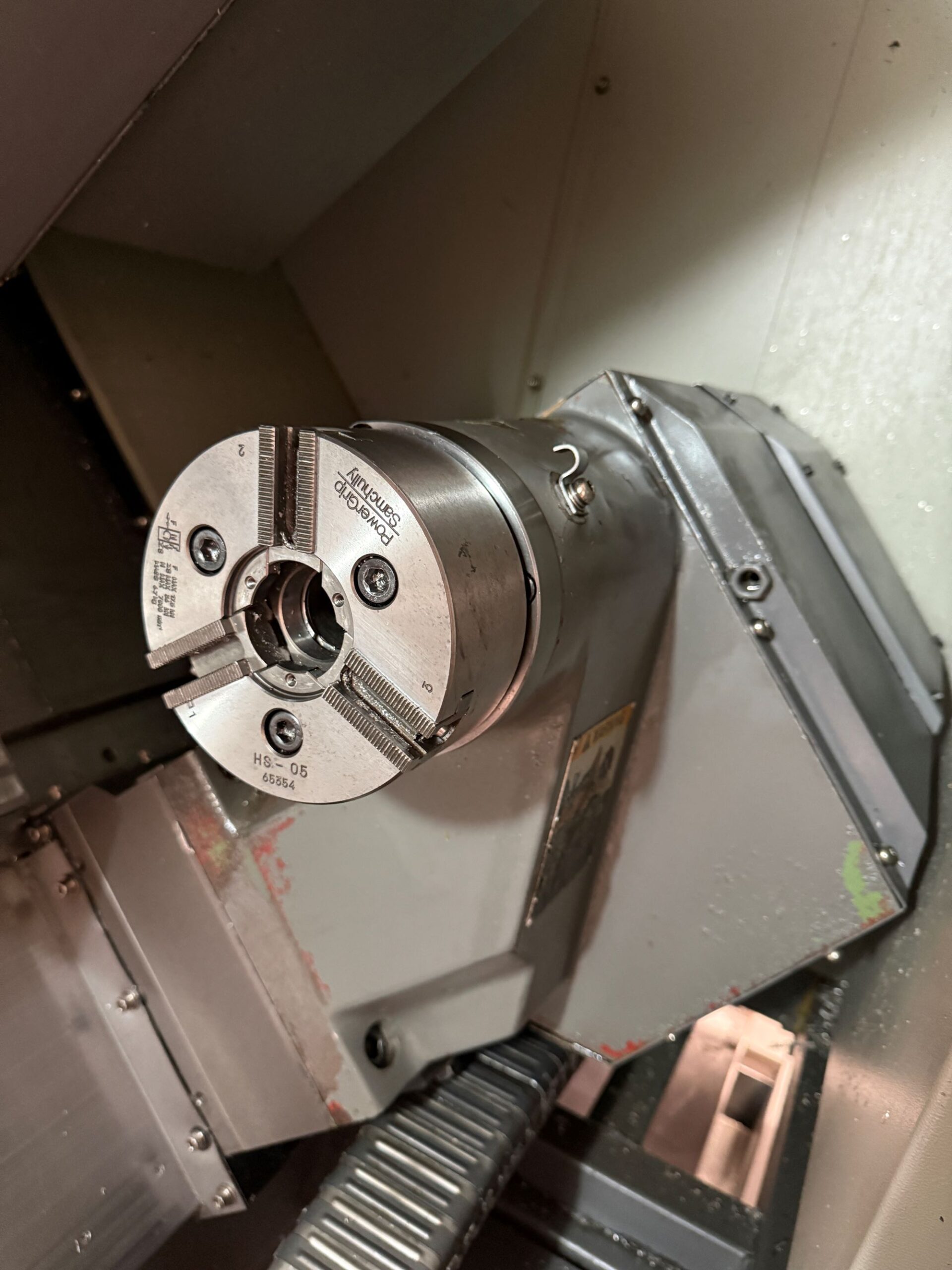

| 6″ 3-Jaw Chuck on Sub Spindle |
| Servo Controlled C Axis on Both Spindles |
| Sub Spindle |
| 12 Station Automatic Turret – Live Tool |
| Y Axis on Turret |
| Tool Presetter |
| Part Catcher |
| Bar Feeder Interface |
| Coolant System |

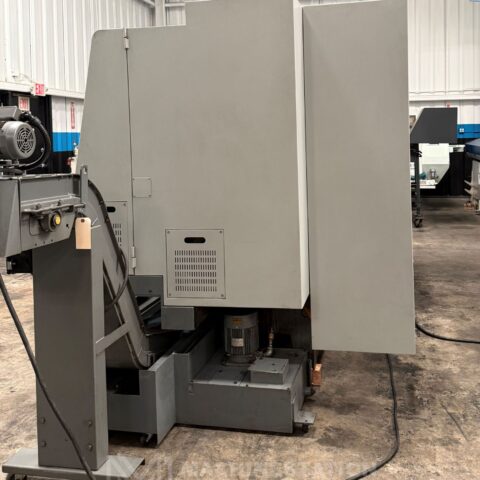

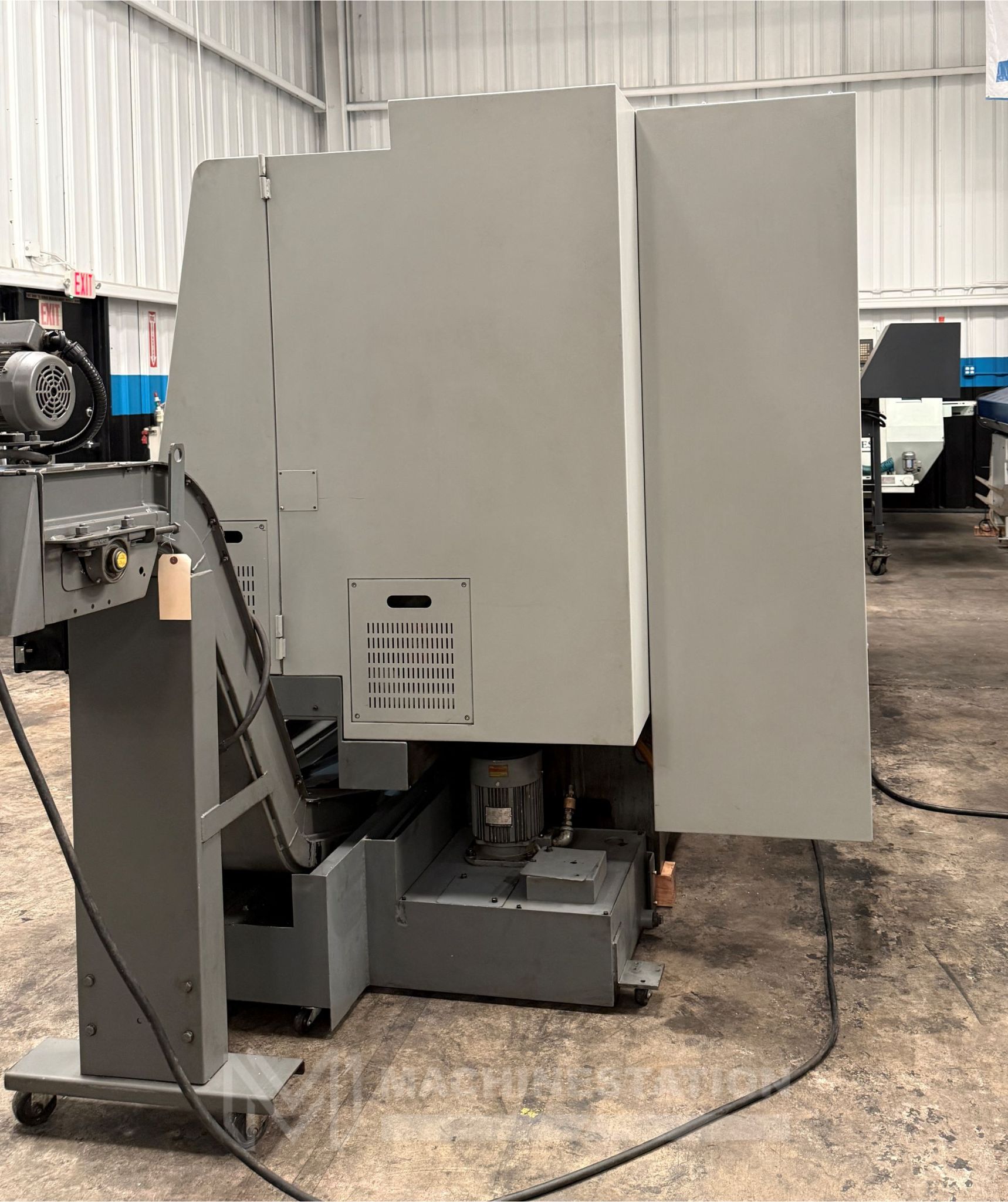

| Chip Conveyor |

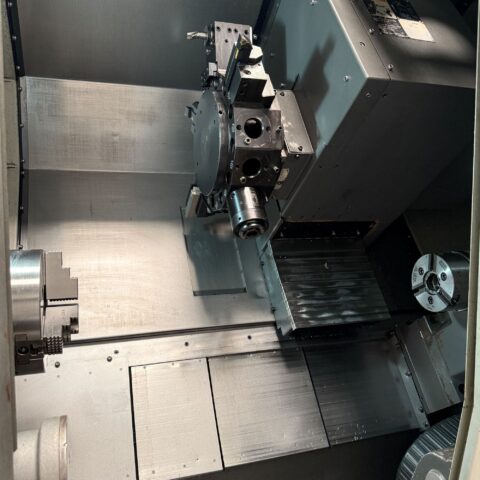

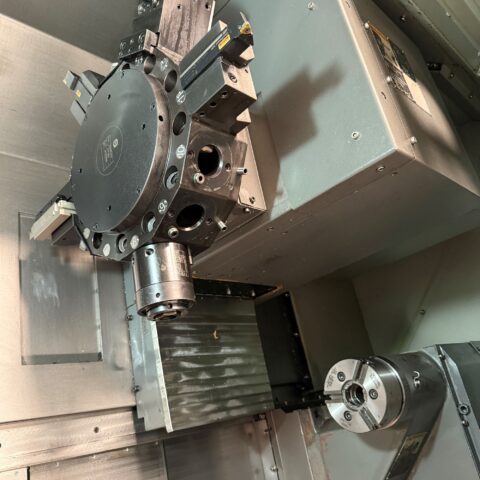

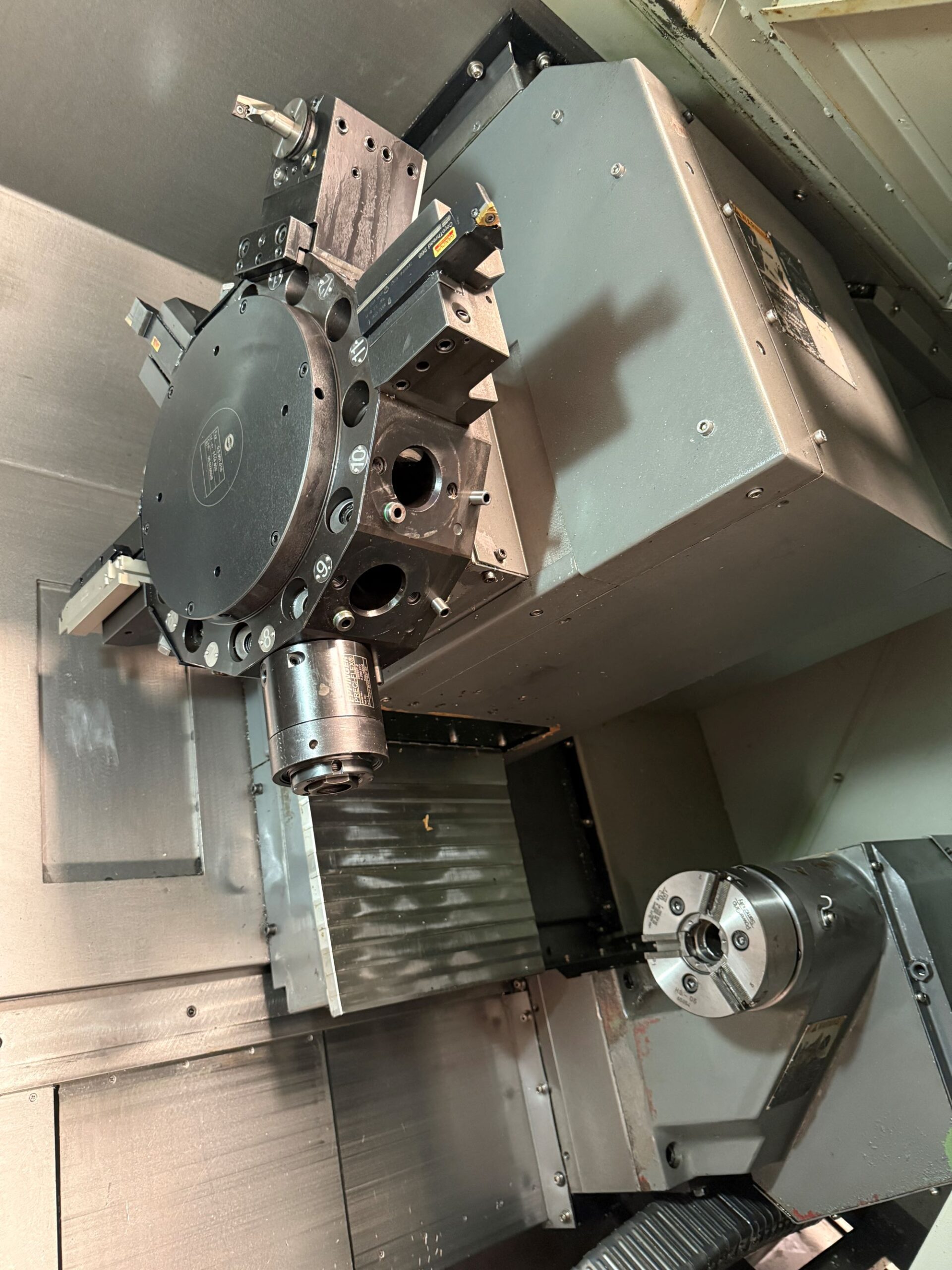

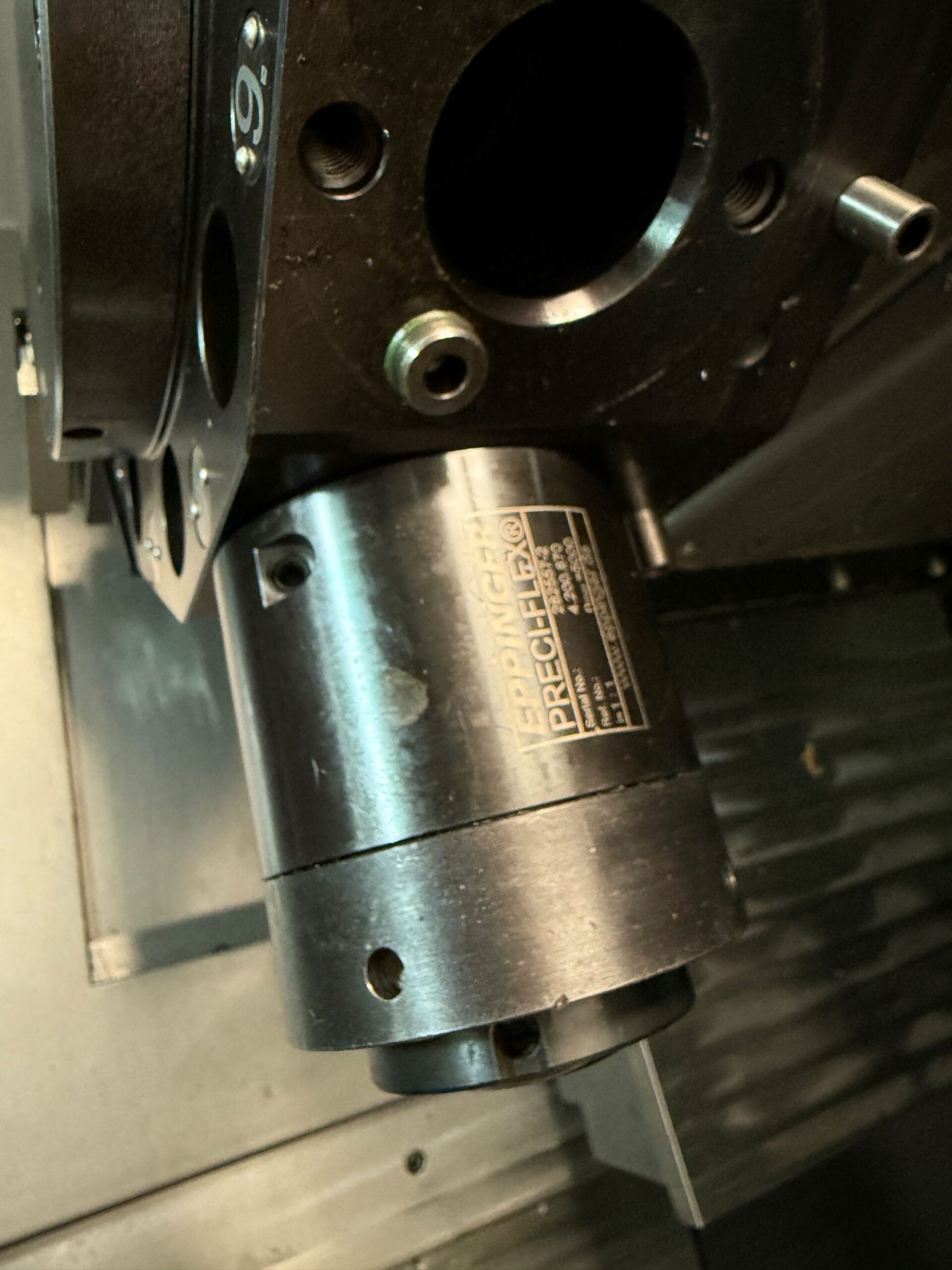

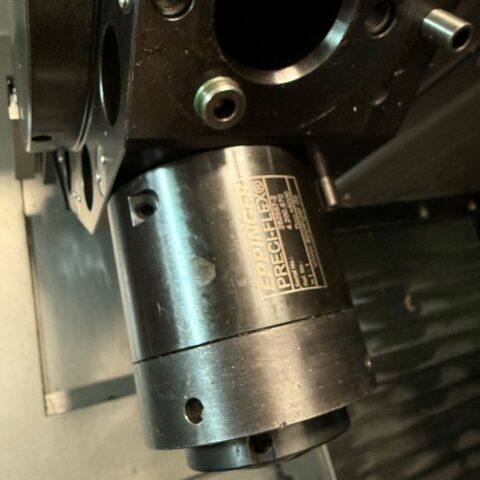

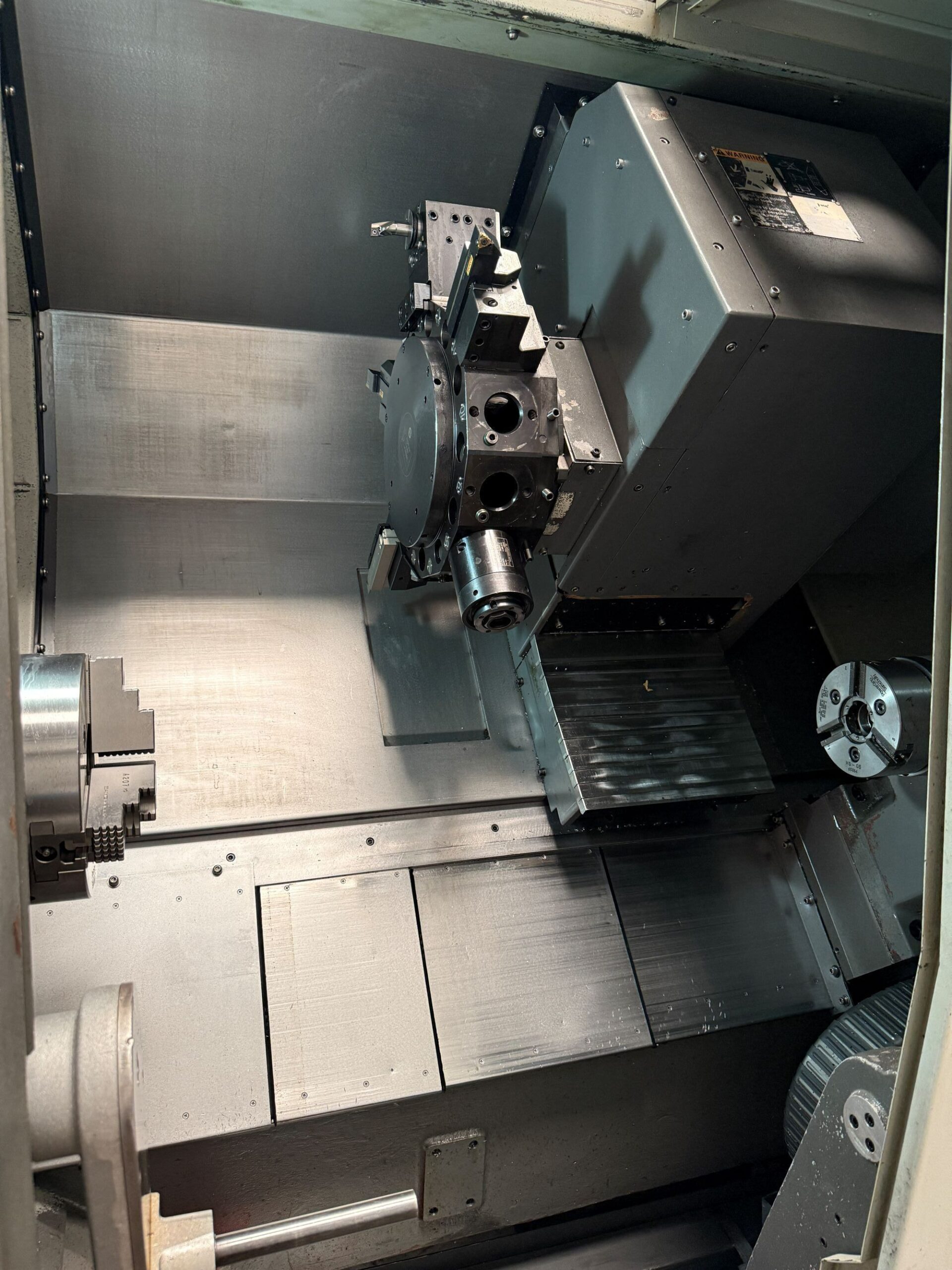

| (4) Statics Tool Holders & (1) Live Tool Holder Equipped on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 9.5″ |
| Max Turning Length: 20.9″ |
| Max Bar Capacity: 2.5″ |
| Max Swing Over Bed: 21.7″ |
| Travels: |
|---|
| X Axis Travel: 8.7″ |
| Y Axis Travel: 3.1″ (+/- 1.55″) |
| Z Axis Travel: 21.7″ |
| B Axis Travel (Sub Spindle): 28.3″ |
| C Axis Indexing: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1417 IPM |
| Rapid Traverse Rate Y Axis: 394 IPM |
| Main Spindle: |
|---|
| Main Spindle Bar Capacity: 2.5″ |
| Main Spindle Speed: 4000 RPM |
| Man Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Sub Spindle Bar Capacity: 1.7″ |
| Sub Spindle Speed: 6000 RPM |
| Sub Spindle Motor: 5 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Rotary Tool Speed: 4,000 RPM |
| Rotary Tool Motor: 7.5 HP |
| General: |
|---|
| Power Source: AC 220 V / Three Phase / 60 Hz |
| Overall Dimensions: 180″ x 84″ x 84″ High Approx. |
| Weight : 12,000 bs Approx. |
