*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai Wia |
| Model No.: | E160LMC |
| Year of Manufacture: | 2015 |

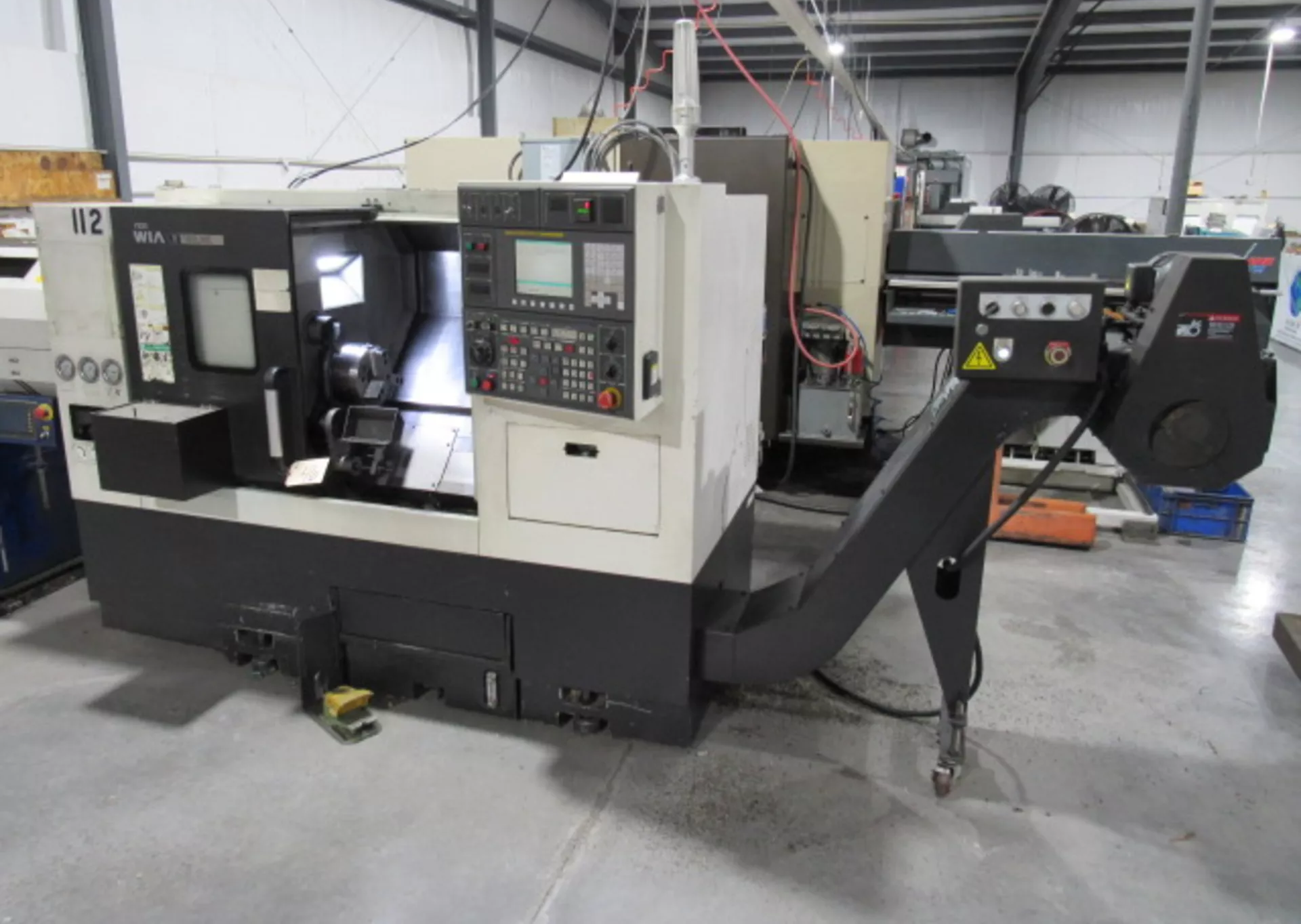

| Machine Type: | CNC Turning Center (Mill-Turn / Live Tool Lathe) |

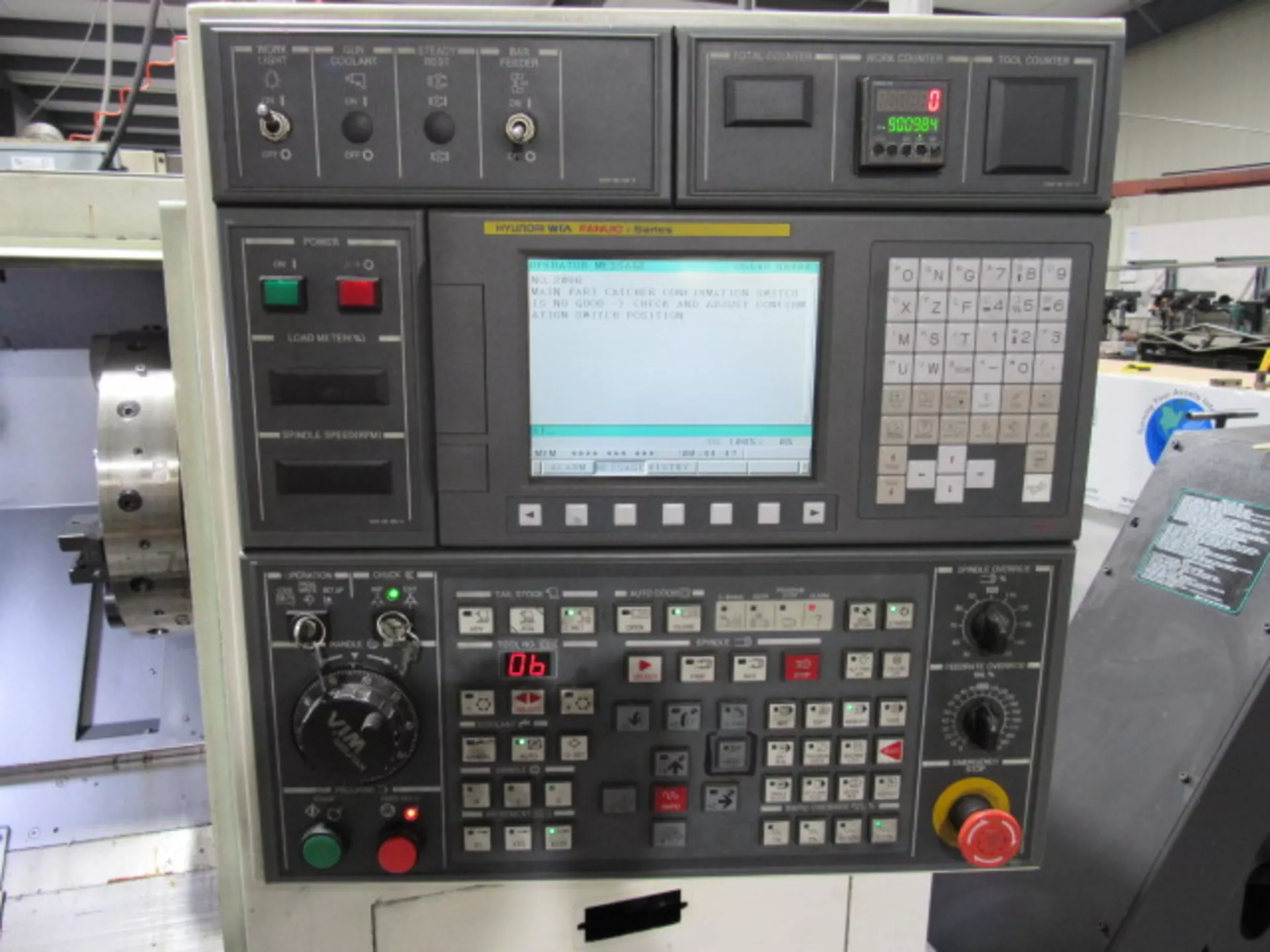

| CNC Control: | Fanuc i-Series CNC Control |
| Equipped With: |
|---|
| Fanuc CNC Control System |
| 12-Station Live Tool Turret |
| C-Axis Spindle Control |

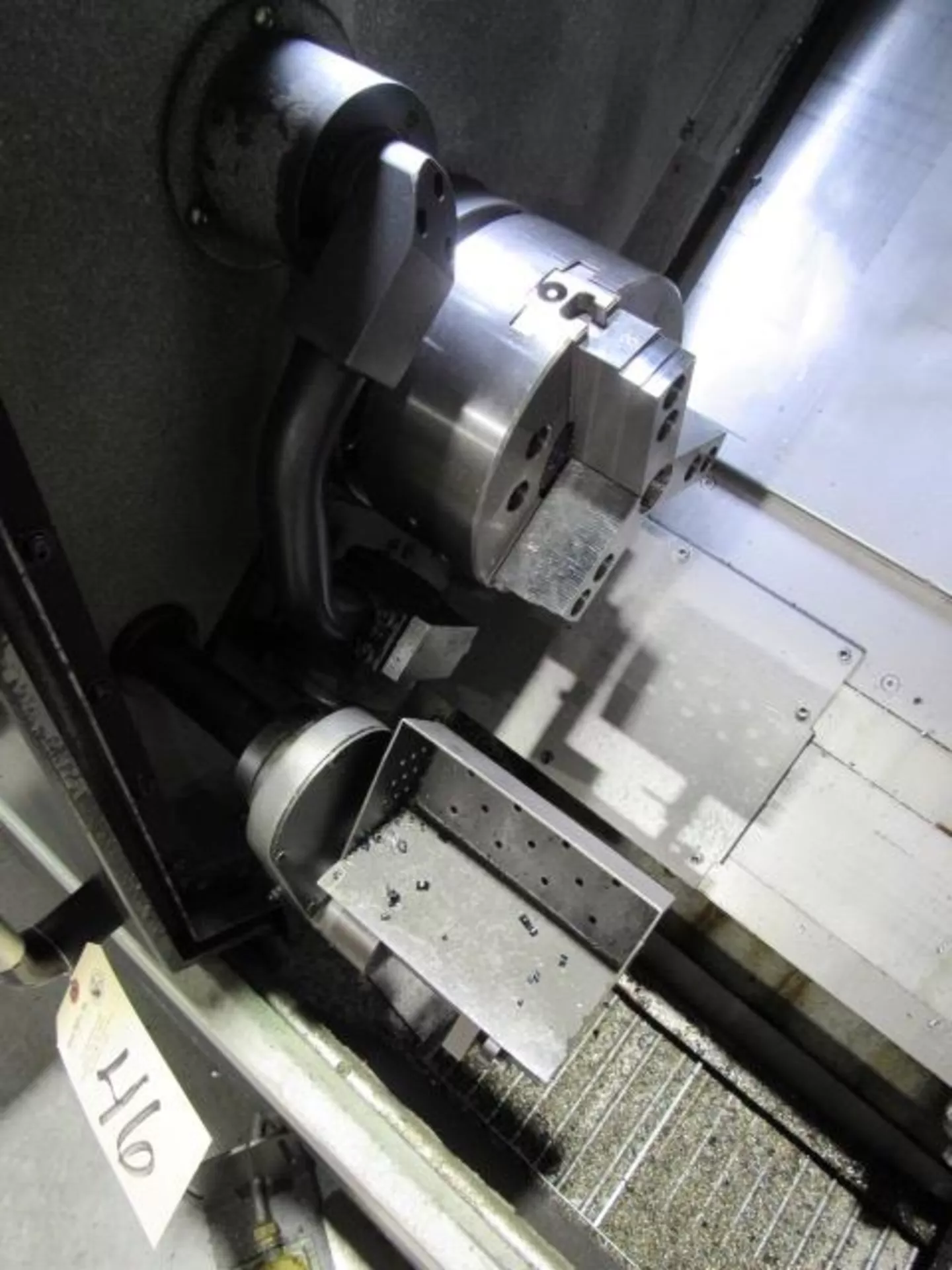

| 6″ Hydraulic Chuck |
| Automatic Lubrication System |
| Coolant System with Pump and Tank |
| Fully Enclosed Splash Guard |
| Rigid Tapping Capability |
| USB / RS-232 Program Input |
| Capacity: |
|---|
| Maximum Turning Diameter: 190 mm (7.5″) |
| Maximum Turning Length: 450 mm (17.7″) |
| Swing Over Bed: 480 mm (18.9″) |
| Chuck Size: 6″ Hydraulic Chuck |
| Bar Capacity: 45 mm (1.77″) |
| Travel: |
|---|
| X-Axis Travel: 165 mm (6.5″) |
| Z-Axis Travel: 460 mm (18.1″) |
| Rapid Traverse (X/Z): 30 m/min (Approx. 1181 IPM) |
| Spindle: |
|---|
| Maximum Spindle Speed: 6,000 RPM |
| Spindle Motor Power: 11 kW (15 HP) |
| Spindle Torque: Approx. 70 Nm |
| Spindle Bore: Approx. 45 mm |
| Drive Type: Belt-Driven Spindle |
| Turret: |
|---|

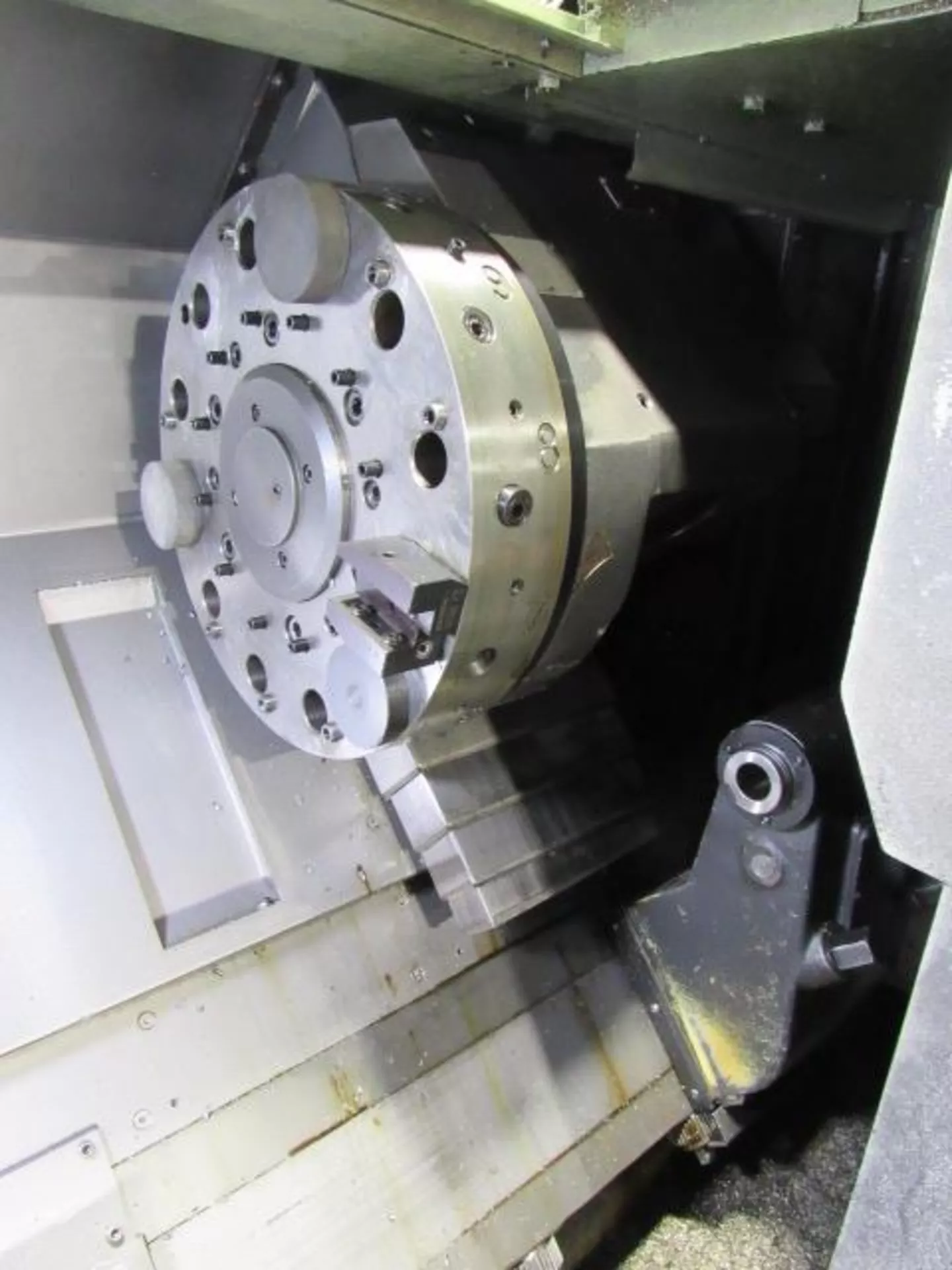

| Turret Type: Servo-Driven Turret with Live Tool Capability |
| Turret Capacity: 12 Stations |
| Turning Tool Size: 20 – 25 mm |
| Boring Bar Capacity: 32 mm |
| Live Tool Speed: Up to 4,500 RPM |
| Milling Capability: |
|---|
| Live Tooling Turret for Milling and Drilling |
| C-Axis Spindle Indexing for Angular Positioning |
| Turn-Mill Combined Machining Capability |
| Machine Construction: |
|---|
| 45° Slant-Bed One-Piece Casting for Rigidity |
| Linear Motion Guideways (LM Guides) |
| High-Rigidity Machine Structure for Reduced Vibration |
| Designed for High-Speed Production of Small Precision Parts |
| General: |
|---|
| Axes: X, Z + C-Axis |
| Slide Type: Linear Guideways |
| Machine Weight: Approx. 2,800 – 3,000 kg |
| Optional Features: |
|---|
| Sub-Spindle (Configuration Dependent) |
| Bar Feeder Integration |
| Chip Conveyor |
| Parts Catcher |
| Tool Presetter |
| High-Pressure Coolant System |
| Robot / Automation Interface |
