Hyundai WIA L230LMSA CNC Turning Center – Sub Spindle Live Tool Lathe

Reserve this machine with a fully refundable $999 deposit

(We'll hold it for 3 business days. Pay at least 10% within that time to lock it in as Sale Pending.)

Or as low as $1,157/month over 72 months (Estimate only, subject to credit approval)

$66,000

SKU 115109
Make HYUNDAI WIA
Model L230LMSA
Year 2012
Condition Used
Cutting Time 4,736 Hours
1 in stock
SKU: 115109
Make: HYUNDAI WIA
Model: L230LMSA
Year: 2012
Condition: Used
Cutting Time: 4,736 Hours



Pay a deposit of $999 per item
Buy Now – $66,000(Pay only 10% today)
SKU: 115109

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Hyundai WIA
Model: L230LMSA
Equipped With:

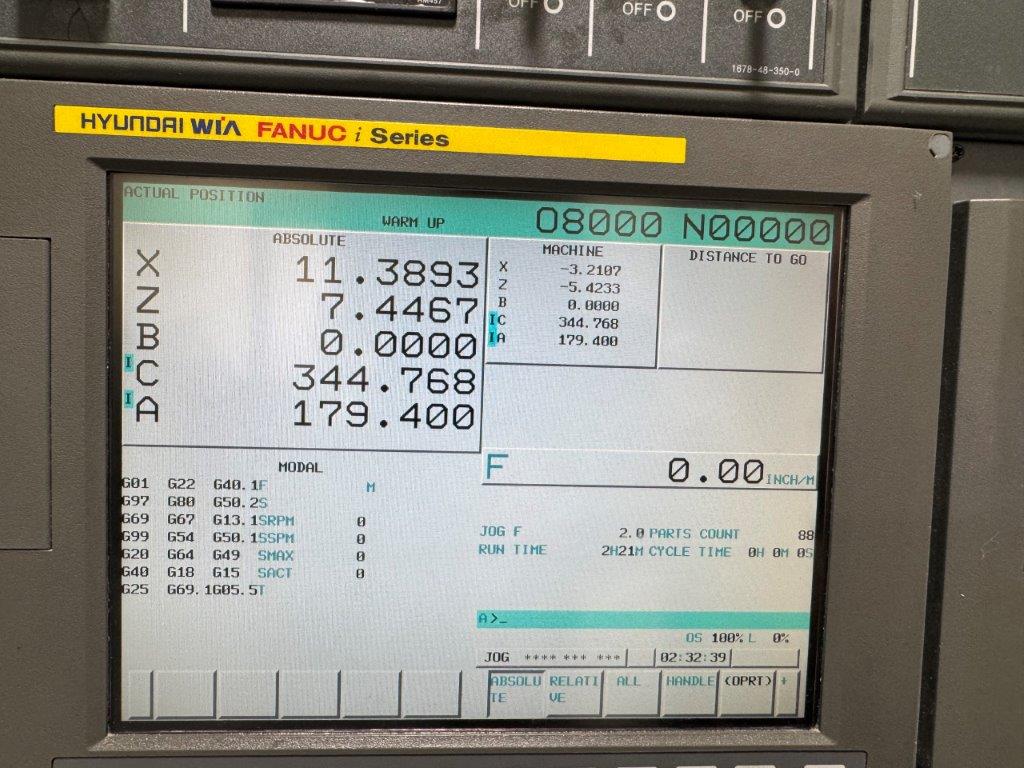

Fanuc i Series CNC Control

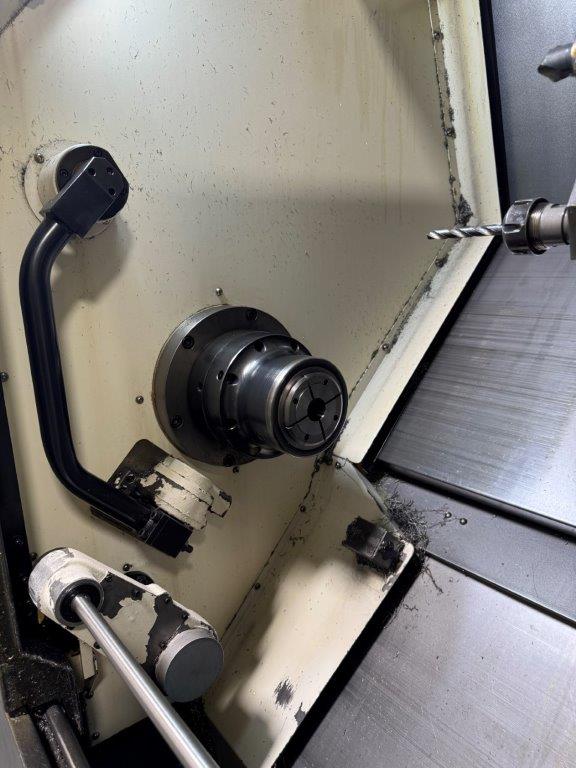

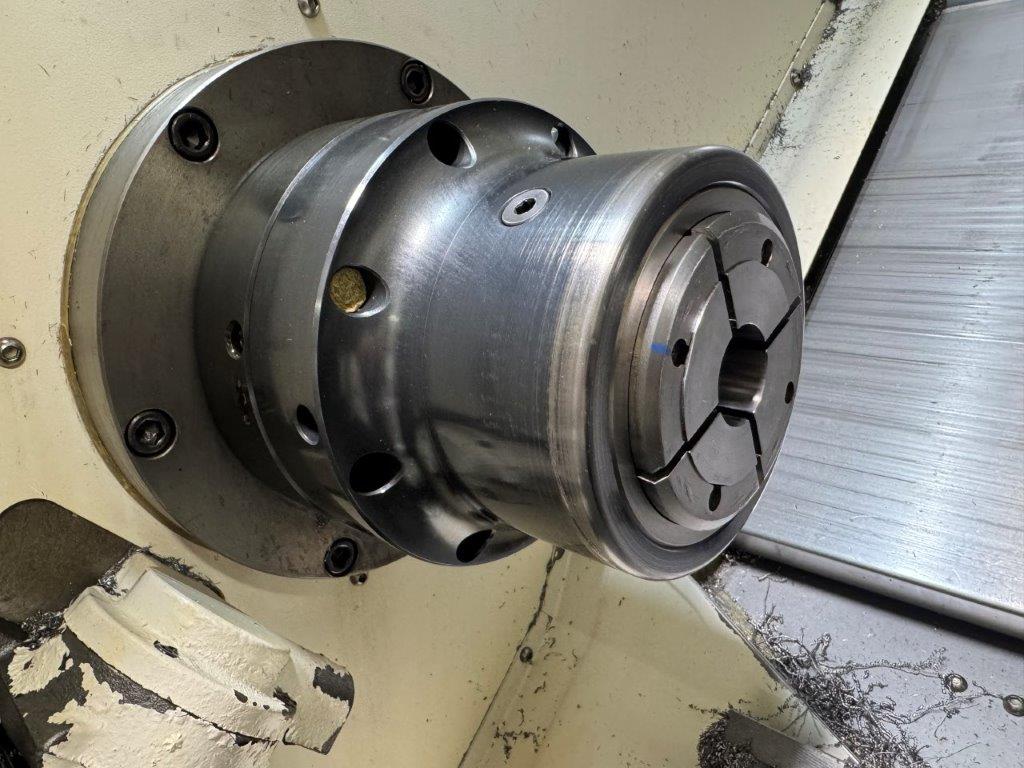

S26 Collet Chuck Equipped on Main Spindle

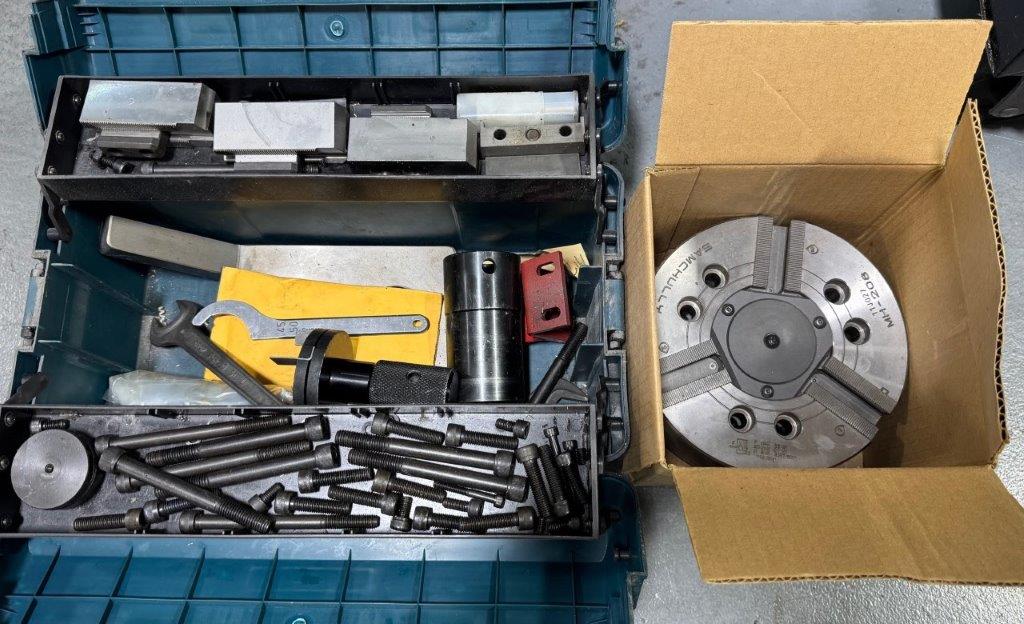

8″ 3-Jaw Samchully MH-208 Chuck For Main Spindle (Extra Chuck)

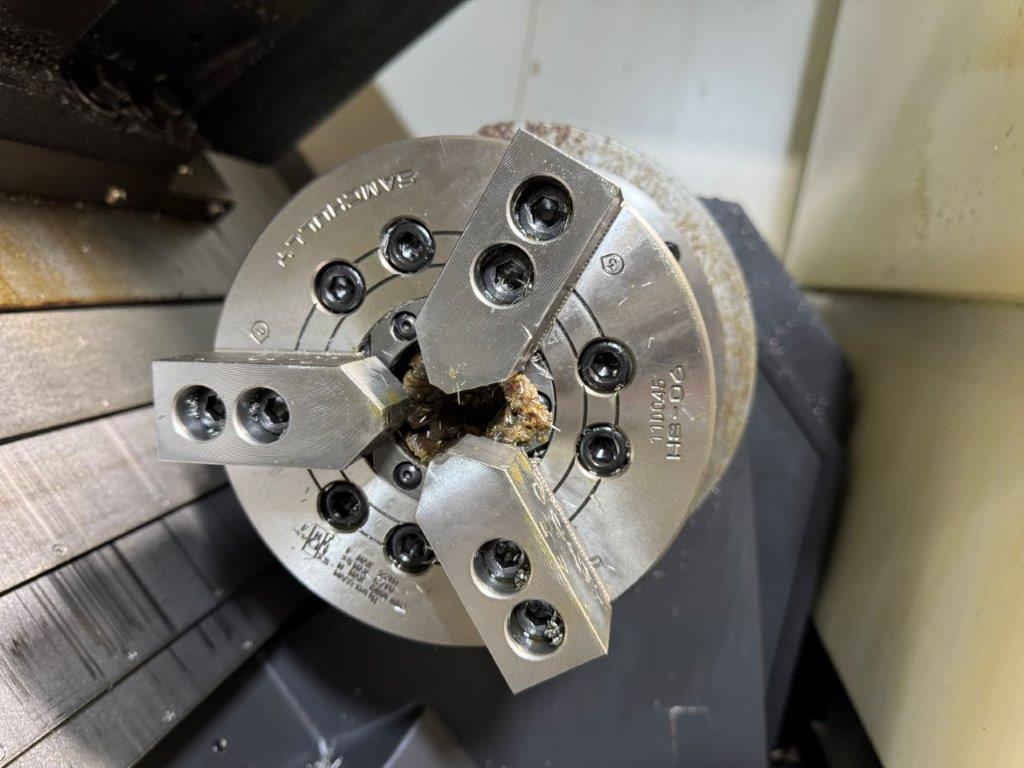

6″ 3-Jaw Samchully HS-06 Chuck Equipped on Sub Spindle
16C Collet Chuck For Sub Spindle (Extra Chuck)
Servo Controlled C Axis on Both Spindles

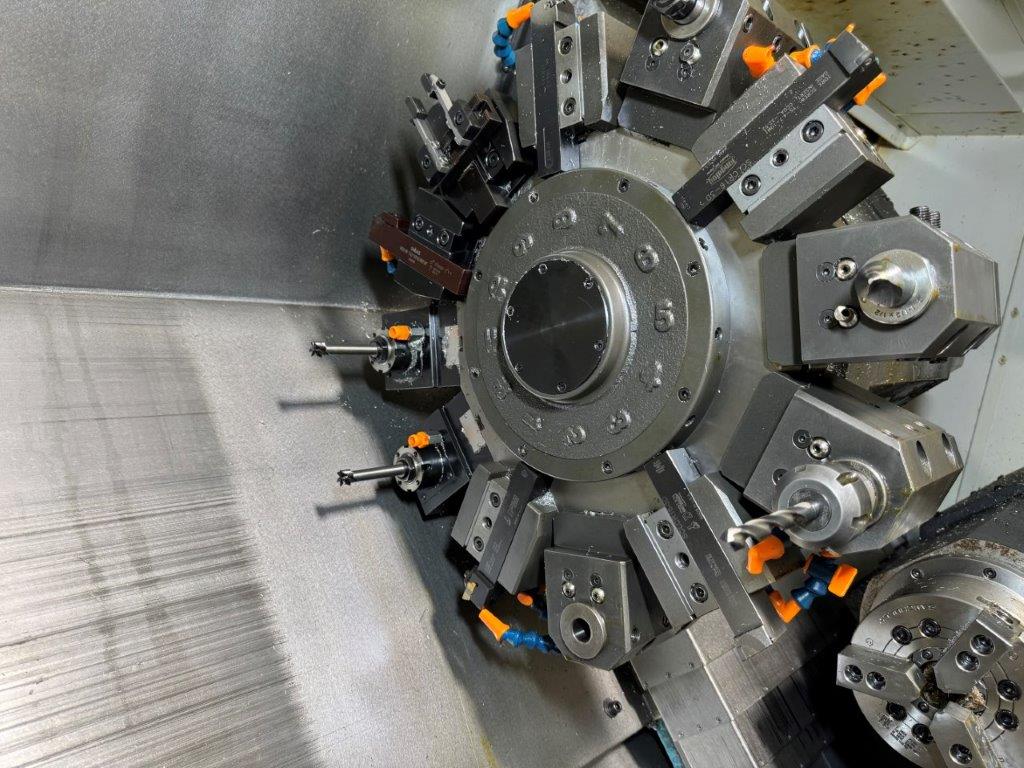

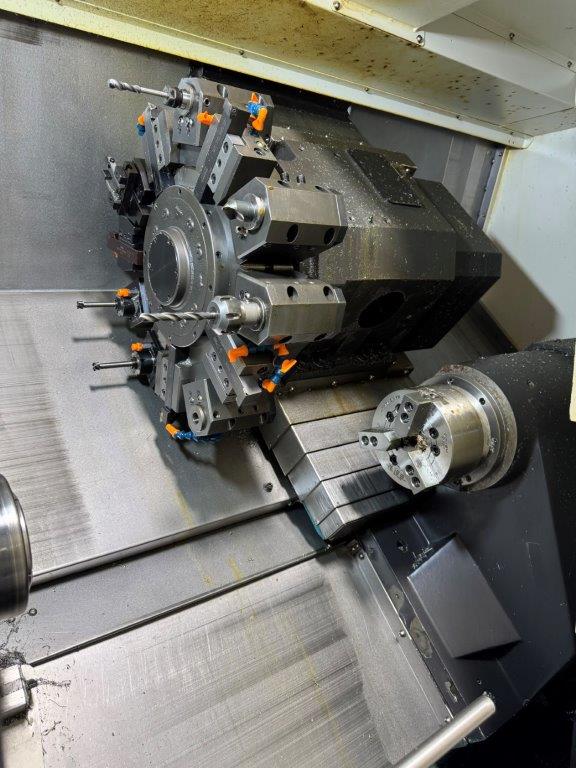

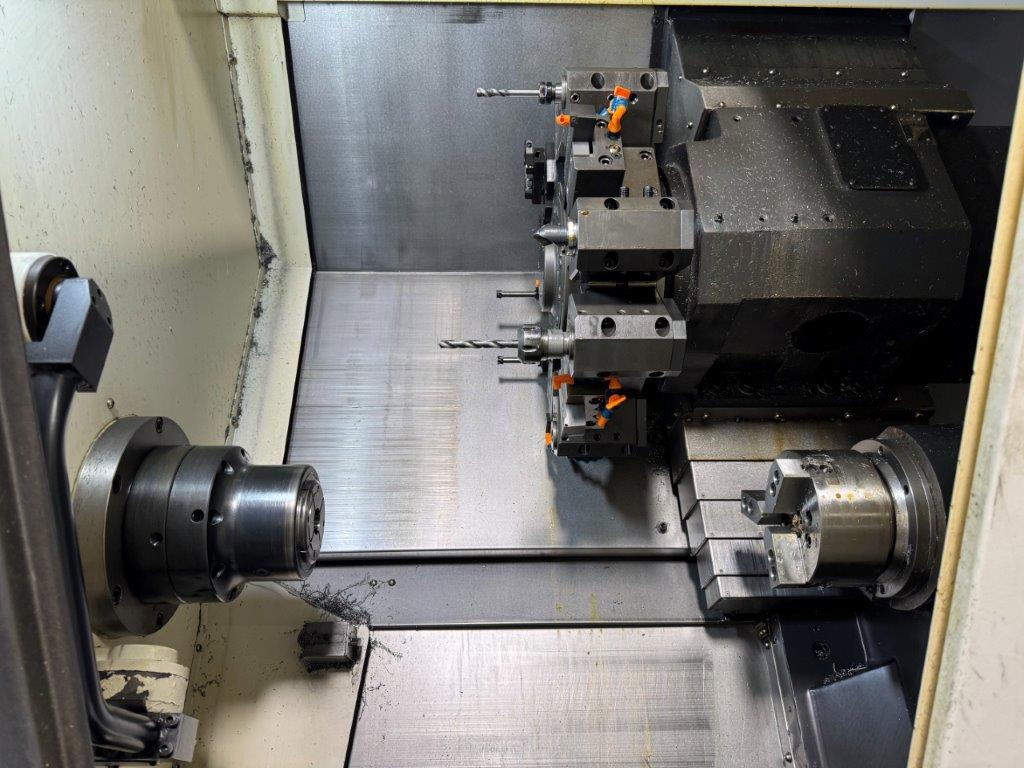

12 Station Live Tool Turret
Tool Presetter
Rigid Tapping
Coolant Tank
Foot Switches
(5) Live Tool Holders
Capacity:
Max Turning Diameter: 12.2″
Max Turning Length: 20.5″
Swing Over Cross Slide: 14.0″
Swing Over Bed: 23.6″
Max Bar Capacity: 2.6″ (Main) / 1.7″ (Sub)
Travels:
X Axis Travel: 8.7″
Z Axis Travel: 22.0″
ZB Axis Travel (Sub Spindle): 23.2″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X / Z / ZB Axis: 1417 / 1417 / 1181 IPM
Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.1″
Spindle Speed: 5000 RPM
Spindle Motor: 7.5 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Second
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor: 5 HP
Turret Type: BMT55
General:
Power Source: AC 220 V / Three Phase / 60 Hz
Power Requirement: 27 kva
Overall Dimensions: 133.5″ x 66.3″ x 73.3″ High
Weight: 10,360 lbs Approx.
Equipped With:
Fanuc i Series CNC Control
S26 Collet Chuck Equipped on Main Spindle
203 mm 3-Jaw Samchully MH-208 Chuck For Main Spindle (Extra Chuck)
152 mm 3-Jaw Samchully HS-06 Chuck Equipped on Sub Spindle
16C Collet Chuck For Sub Spindle (Extra Chuck)
Servo Controlled C Axis on Both Spindles
12 Station Live Tool Turret
Tool Presetter
Rigid Tapping
Coolant Tank
Foot Switches
(5) Live Tool Holders
Capacity:
Max Turning Diameter: 310 mm
Max Turning Length: 521 mm
Swing Over Cross Slide: 356 mm
Swing Over Bed: 599 mm
Max Bar Capacity: 66 mm (Main) / 43 mm (Sub)
Travels:
X Axis Travel: 221 mm
Z Axis Travel: 559 mm
ZB Axis Travel (Sub Spindle): 589 mm
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X / Z / ZB Axis: 1417 / 1417 / 1181 IPM
Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 79 mm
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 53 mm
Spindle Speed: 5000 RPM
Spindle Motor: 7.5 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Second
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor: 5 HP
Turret Type: BMT55
General:
Power Source: AC 220 V / Three Phase / 60 Hz
Power Requirement: 27 kva
Overall Dimensions: 3,391 mm x 1,684 mm x 1,862 mm High
Weight: 10,360 lbs Approx.
