*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

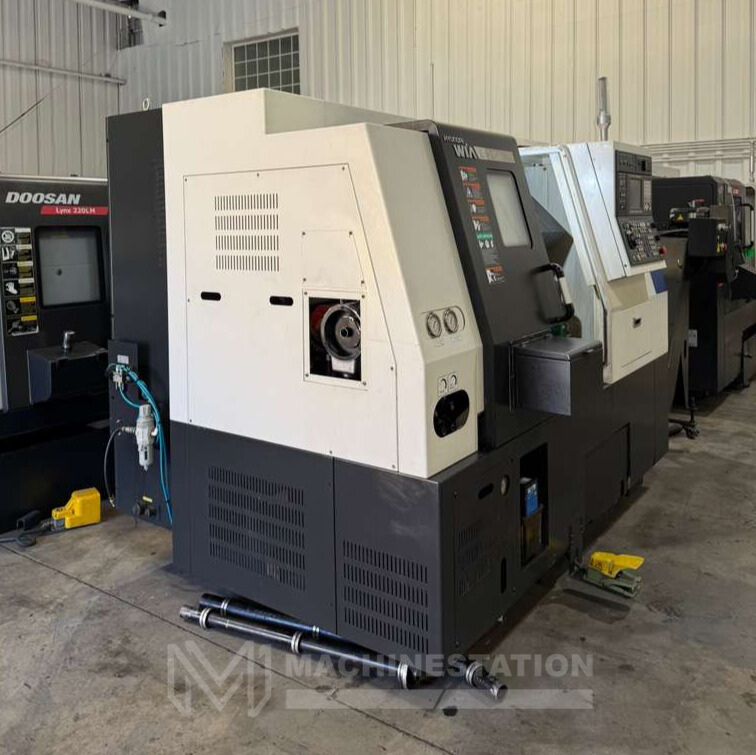

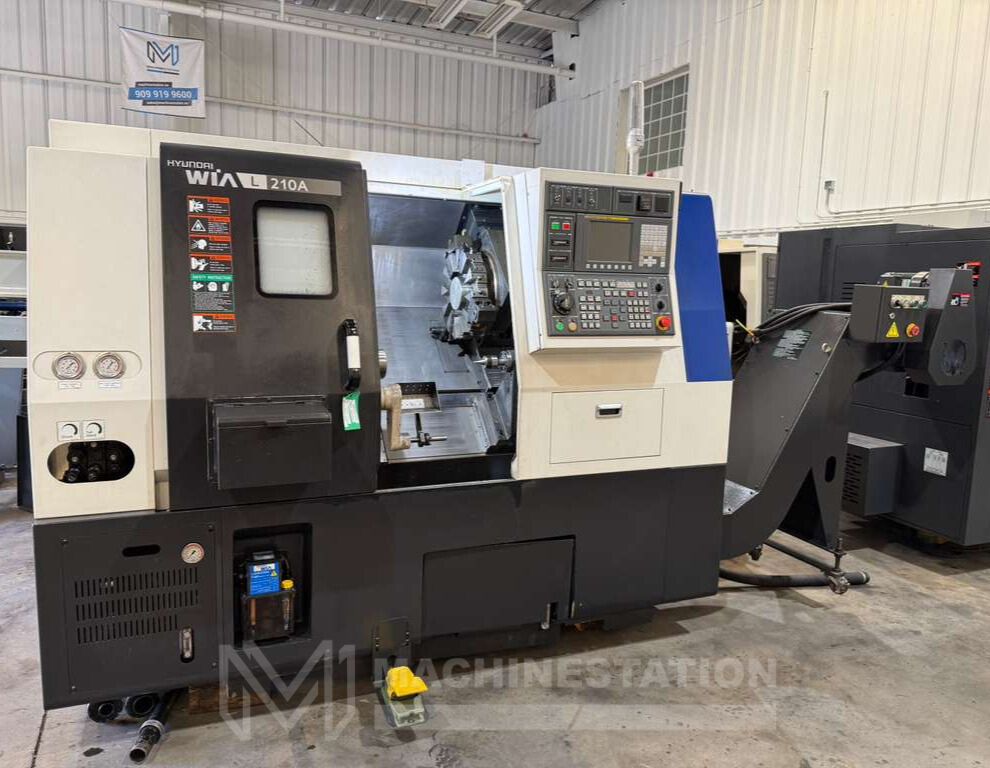

| Make: | Hyundai WIA |
| Model: | L210A |
| Condition: | Used – Good |
| Equipped With: |
|---|

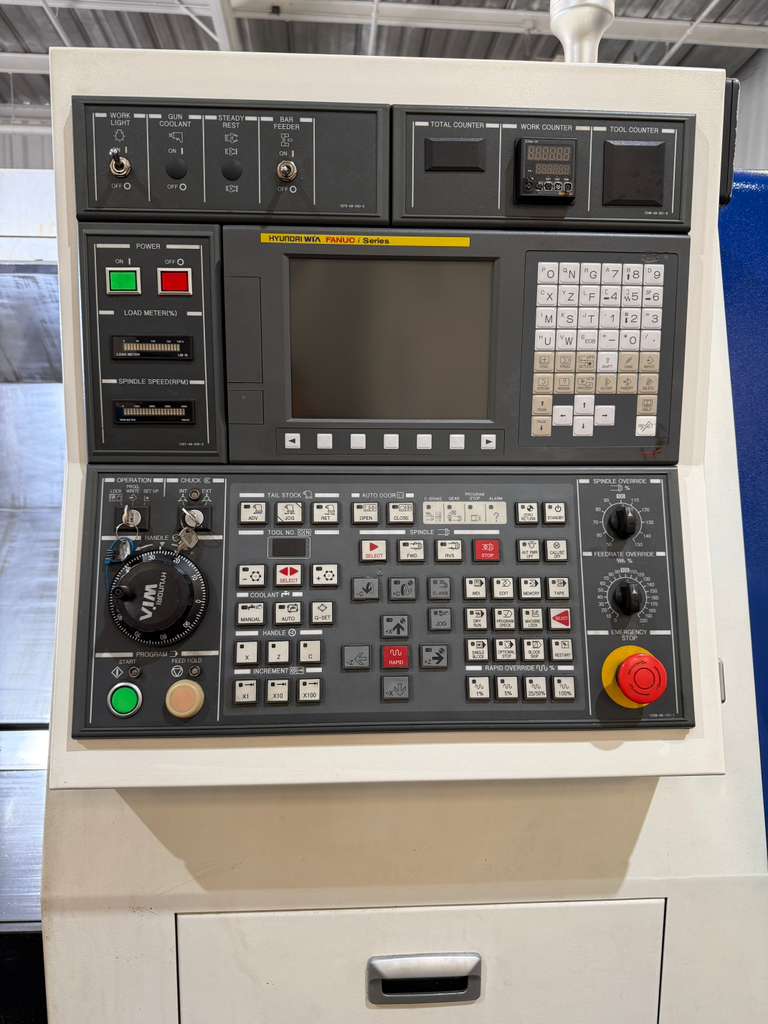

- Hyundai WIA Fanuc i Series CNC Control
- Linear Ways Construction

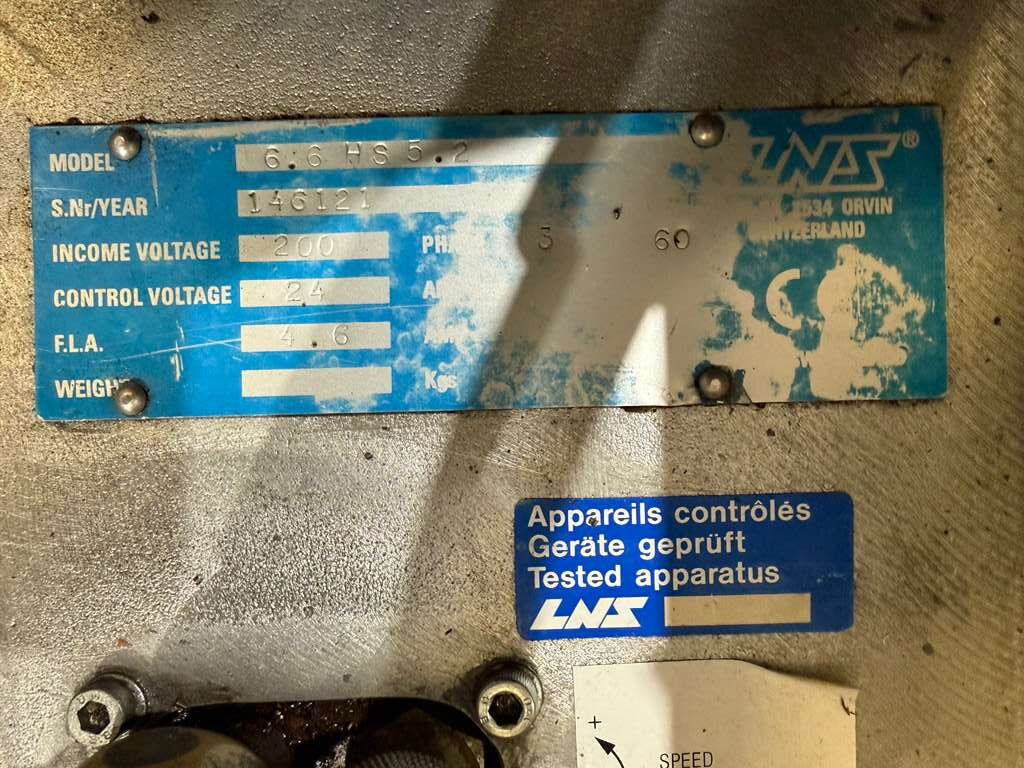

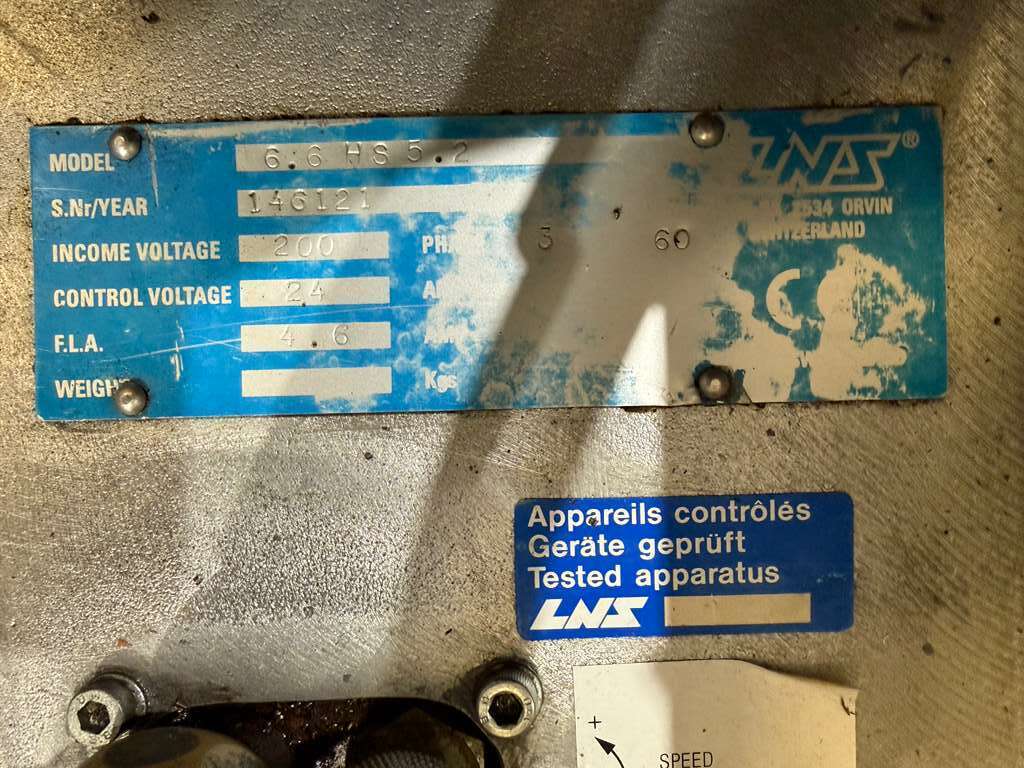

- LNS Super Hydrobar Bar Feeder

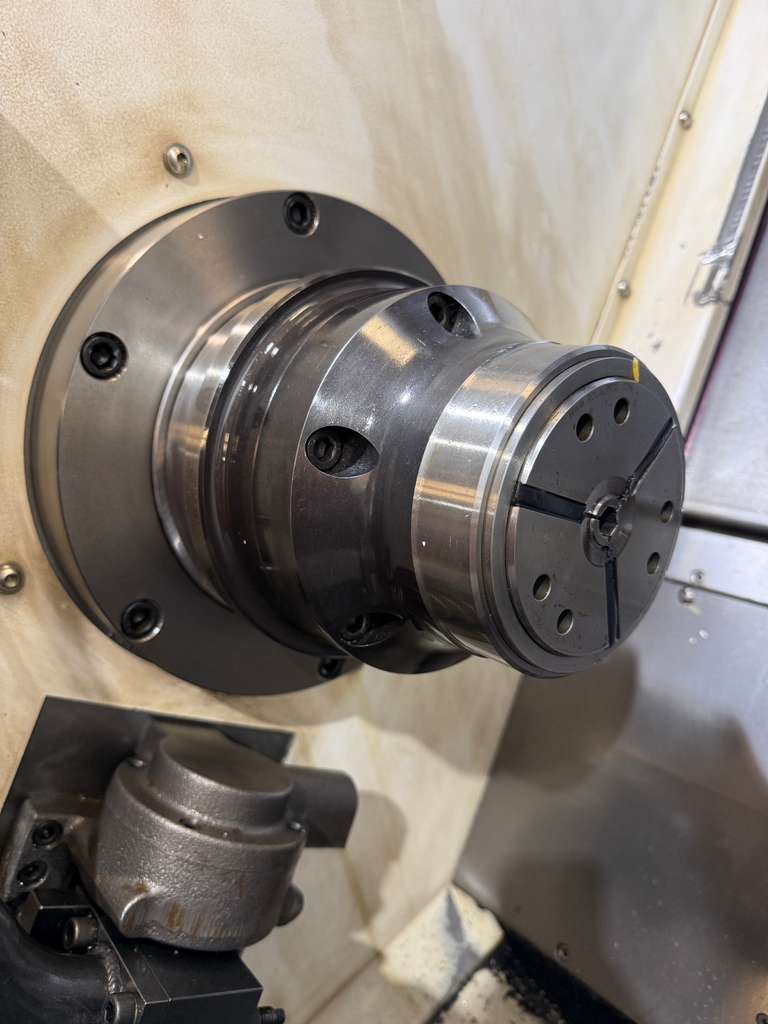

- Collet Chuck (8″ Chuck Capable)

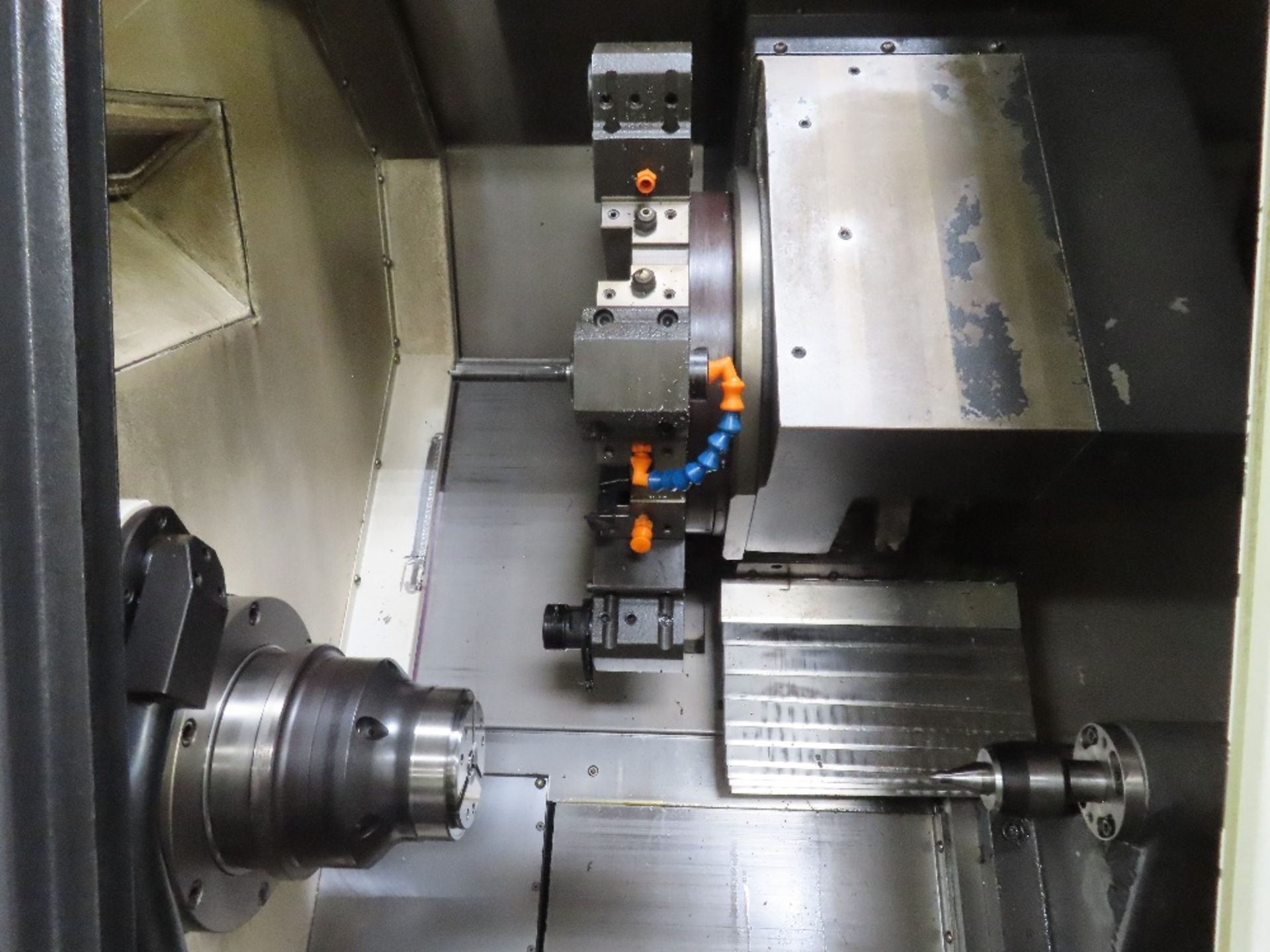

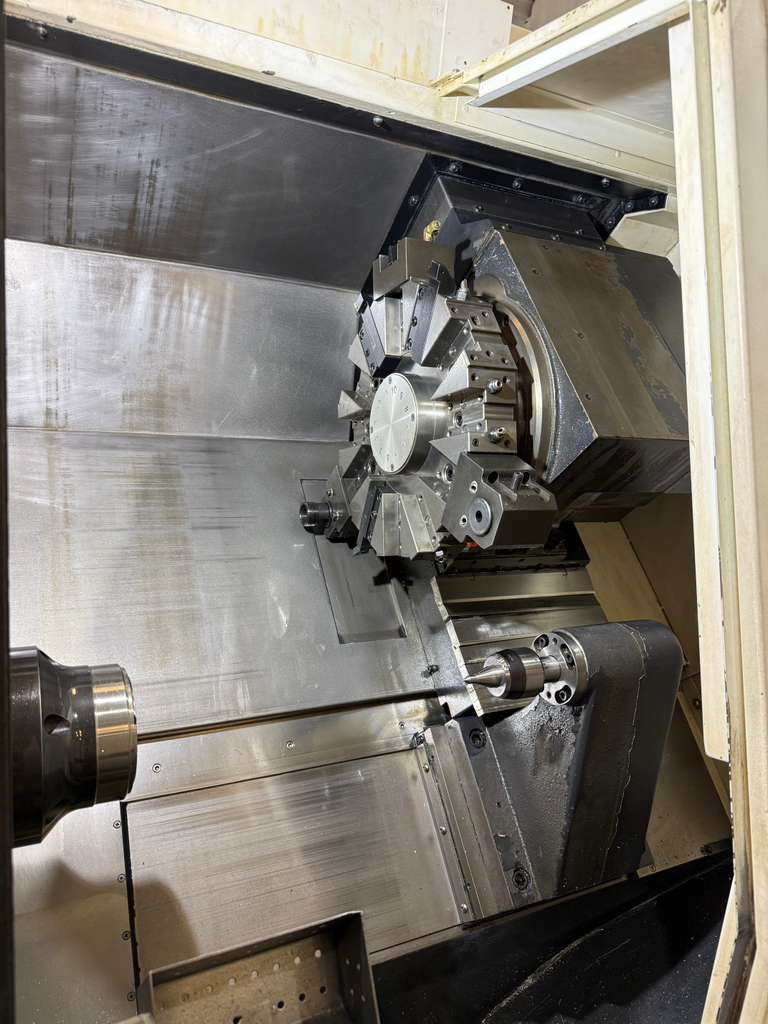

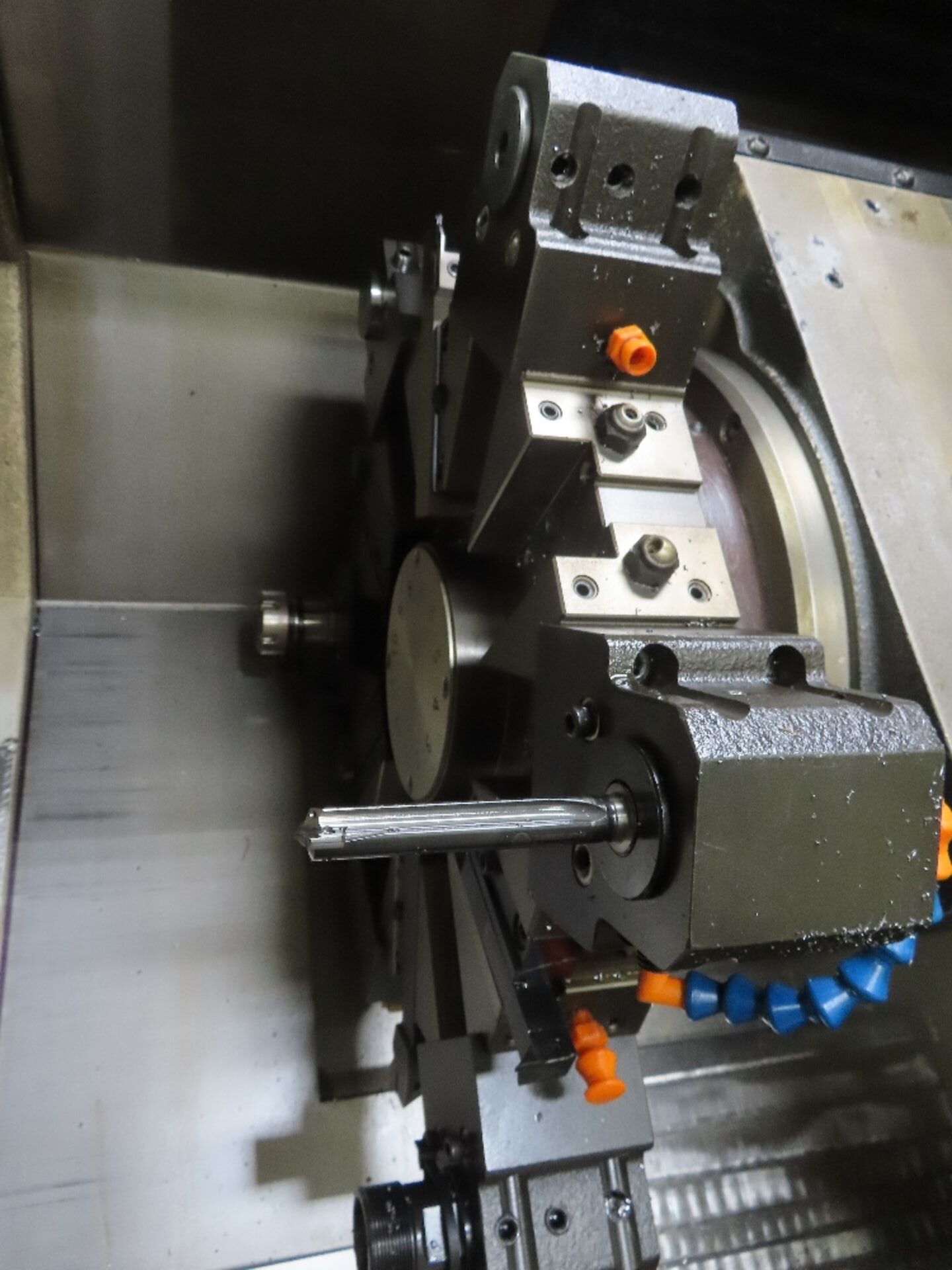

- 12 Station Automatic Turret
- Tool Presetter

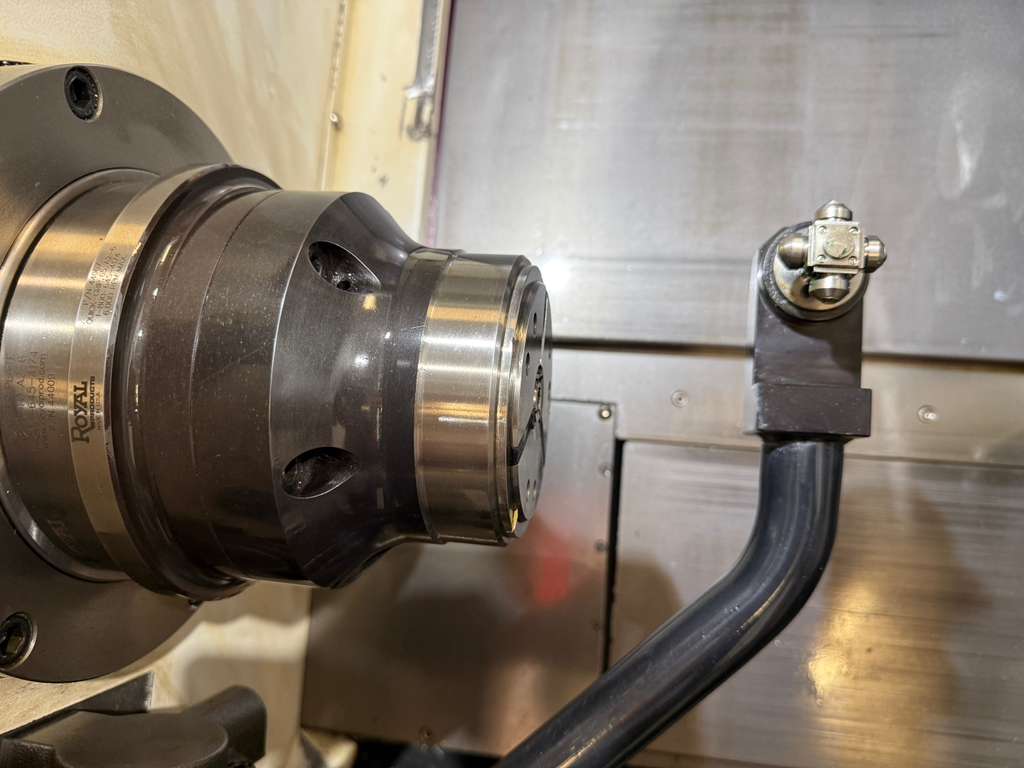

- Parts Catcher
- Programmable Tailstock

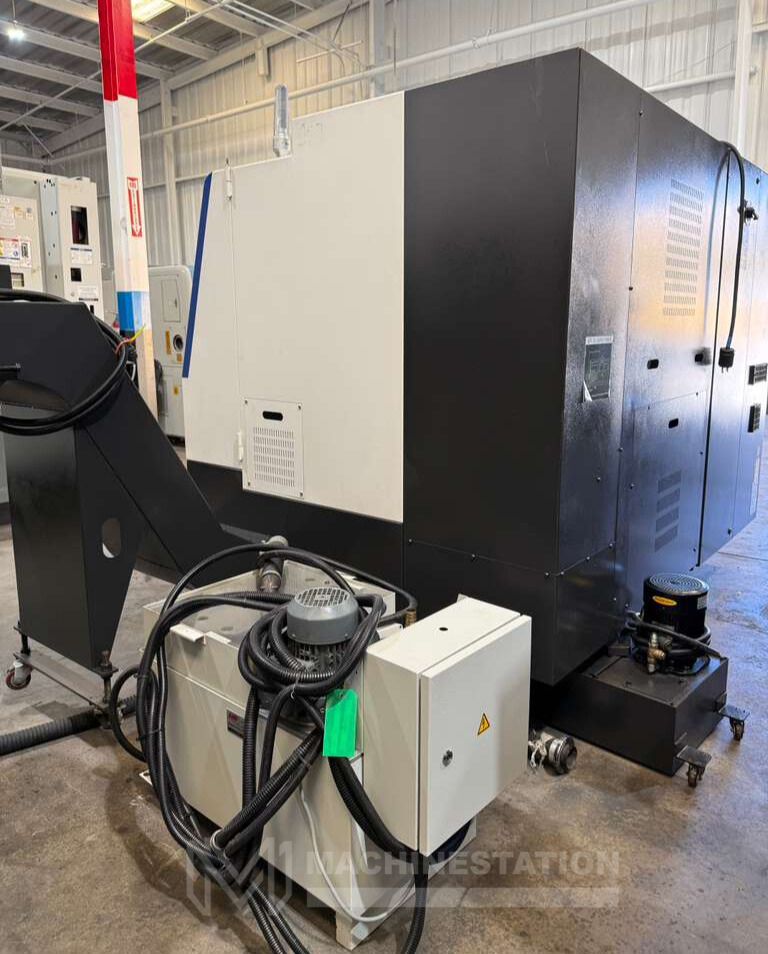

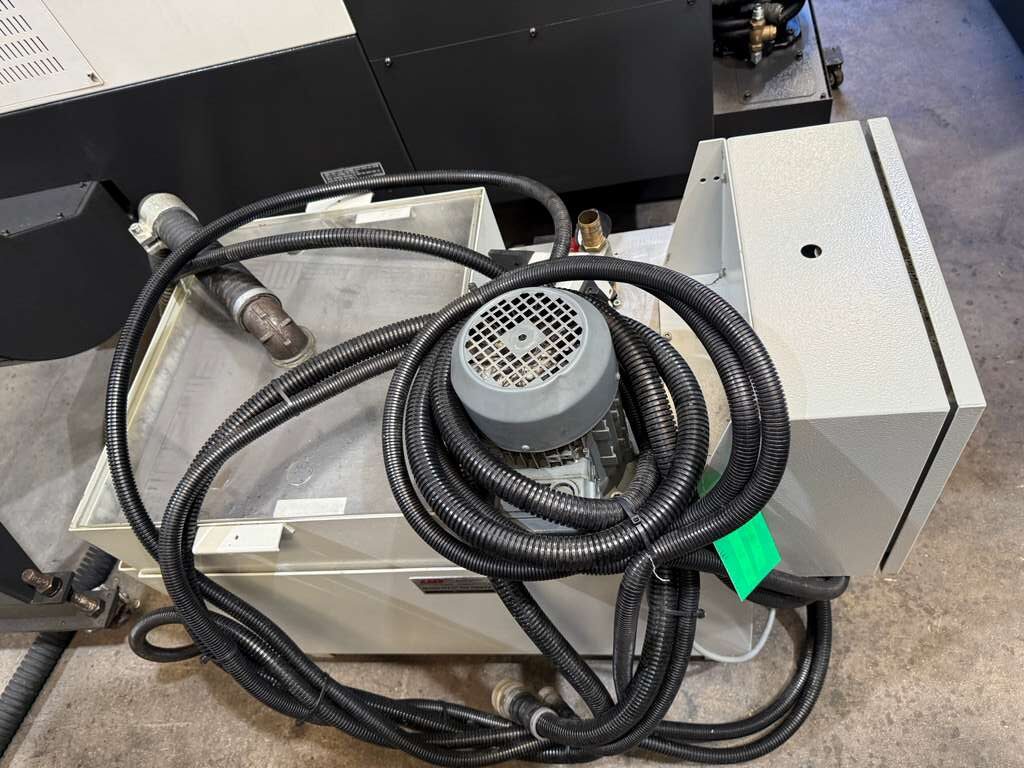

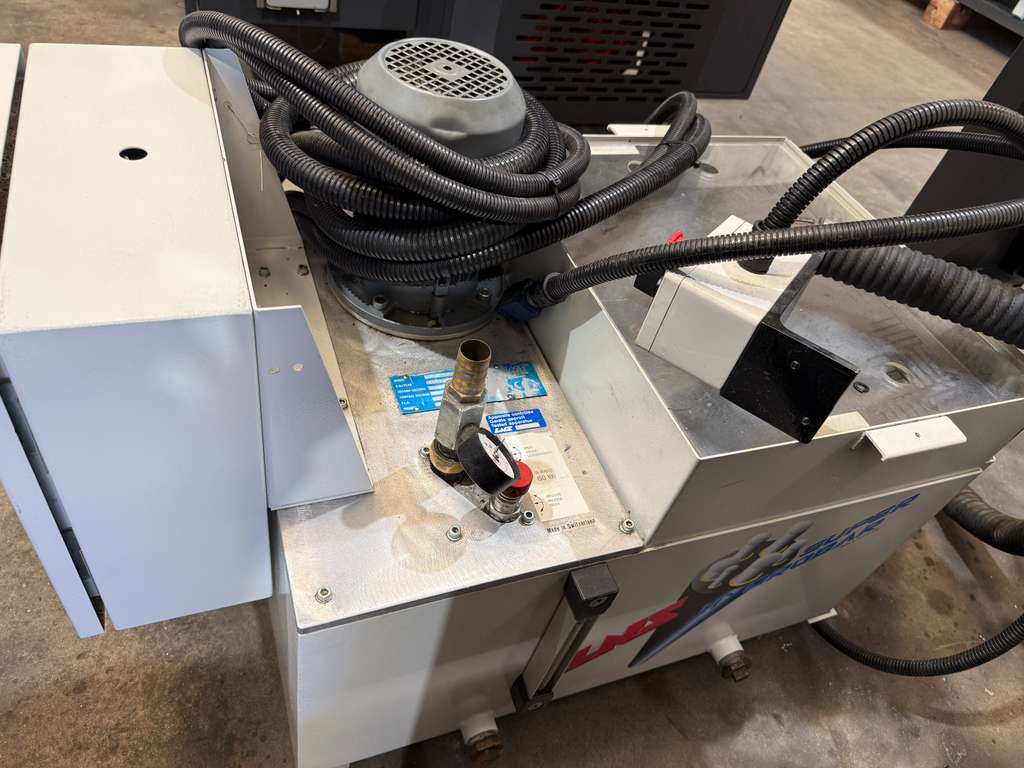

- Coolant System

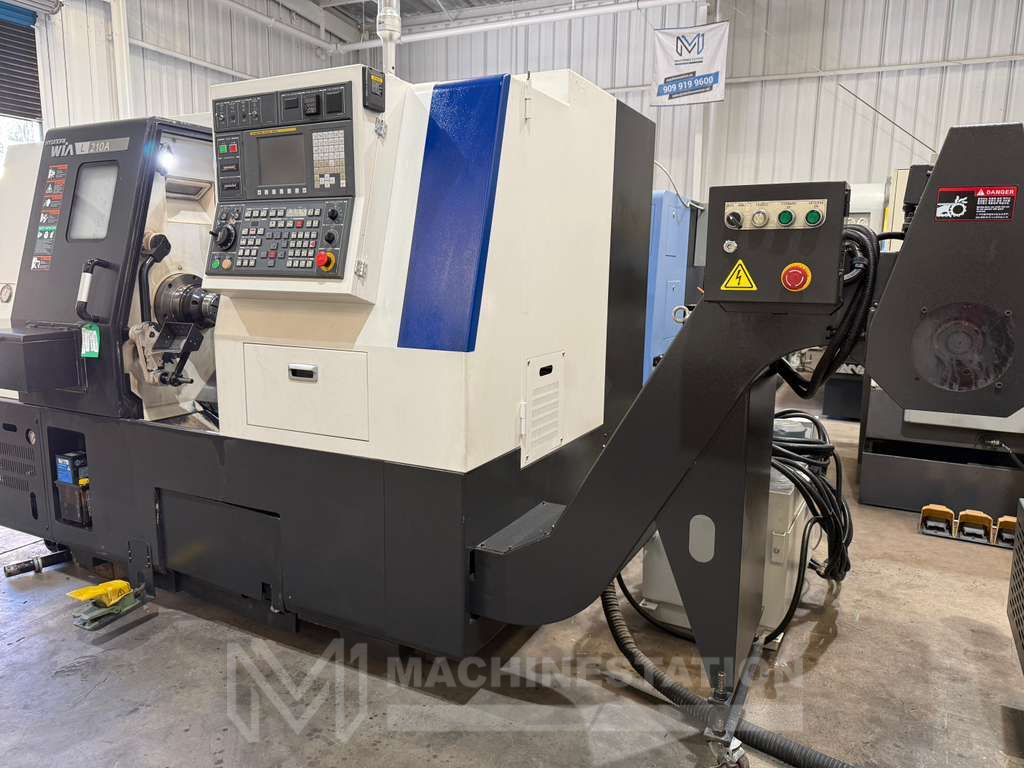

- Chip Conveyor
- Foot Switch
- Note: Tool holders mounted on the turret are not included with the machine.
|
| Capacity: |
|---|
- Max Turning Diameter: 13.8″
- Max Turning Length: 16.1″
- Swing Over Bed: 21.7″
- Swing Over Carriage: 13.8″
- Max Bar Capacity: 2.6″
|
| Travels: |
|---|
- X Axis Travel: 8.3″
- Z Axis Travel: 17″
- Rapid Traverse X Axis: 1,417 IPM
- Rapid Traverse Z Axis: 1,417 IPM
|
| Spindle: |
|---|
- Spindle Nose: A2-6
- Spindle Bore: 3.0″
- Spindle Speed: 4,000 RPM
- Spindle Motor: 20 HP
|

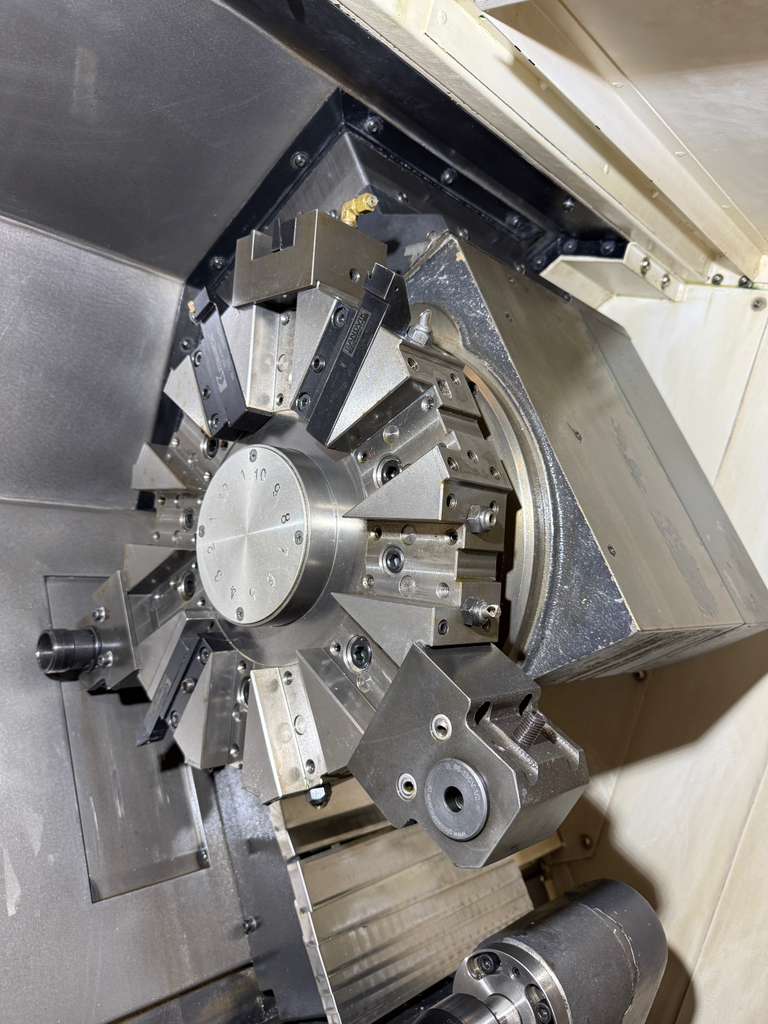

| Turret: |
|---|
- Turret Capacity: 12 Stations
- Turret Index Time: 0.12 Second
- Tool Size: 1″ OD / 1.3″ ID
|

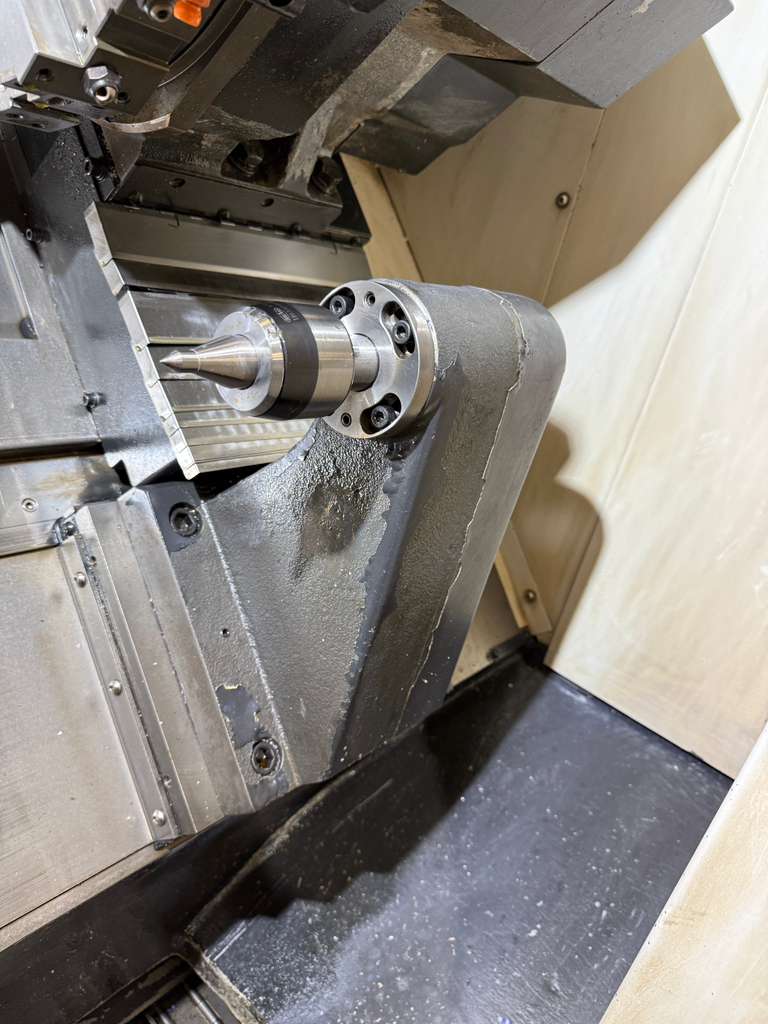

| Tailstock: |
|---|
- Tailstock Taper: MT4
- Tailstock Quill Diameter: 2.2″
- Tailstock Travel: 15.7″
|
| General: |
|---|

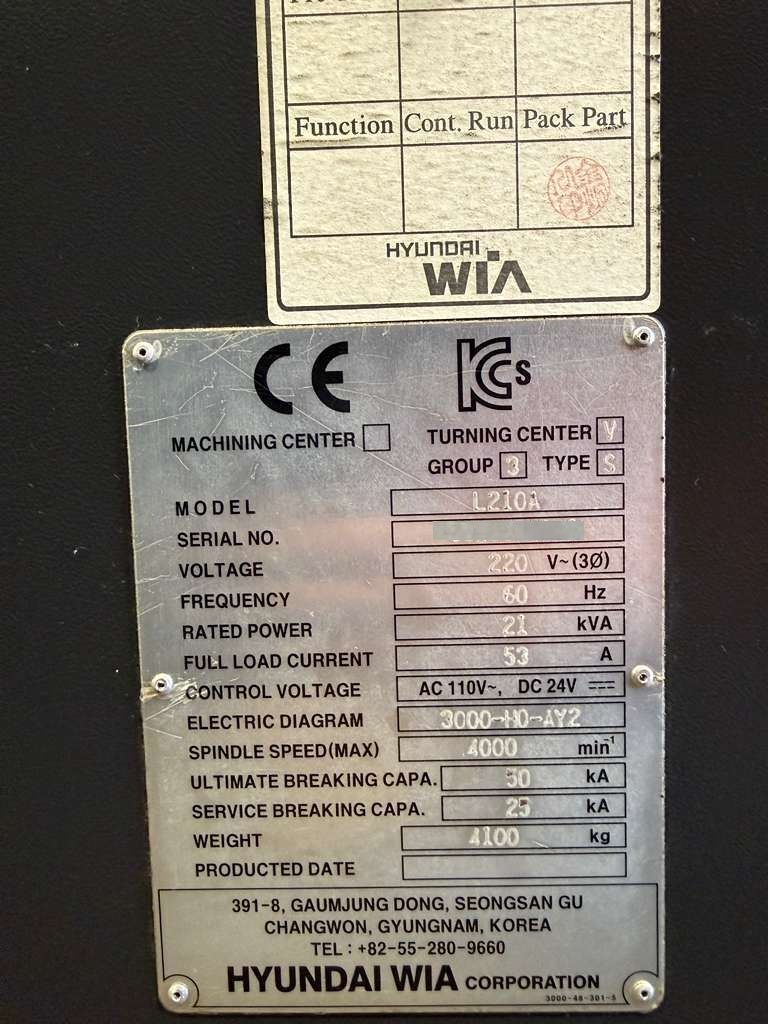

- Power: 21 kVA, 220v / 3-Phase / 60 Hz
- Overall Dimensions: 94.7″ x 65″ x 73.6″ High
- Weight: 9,039 lbs
|
