*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai Wia |
| Model No.: | L300C |
| Year of Manufacture: | 2019 |
| Machine Type: | CNC Turning Center |

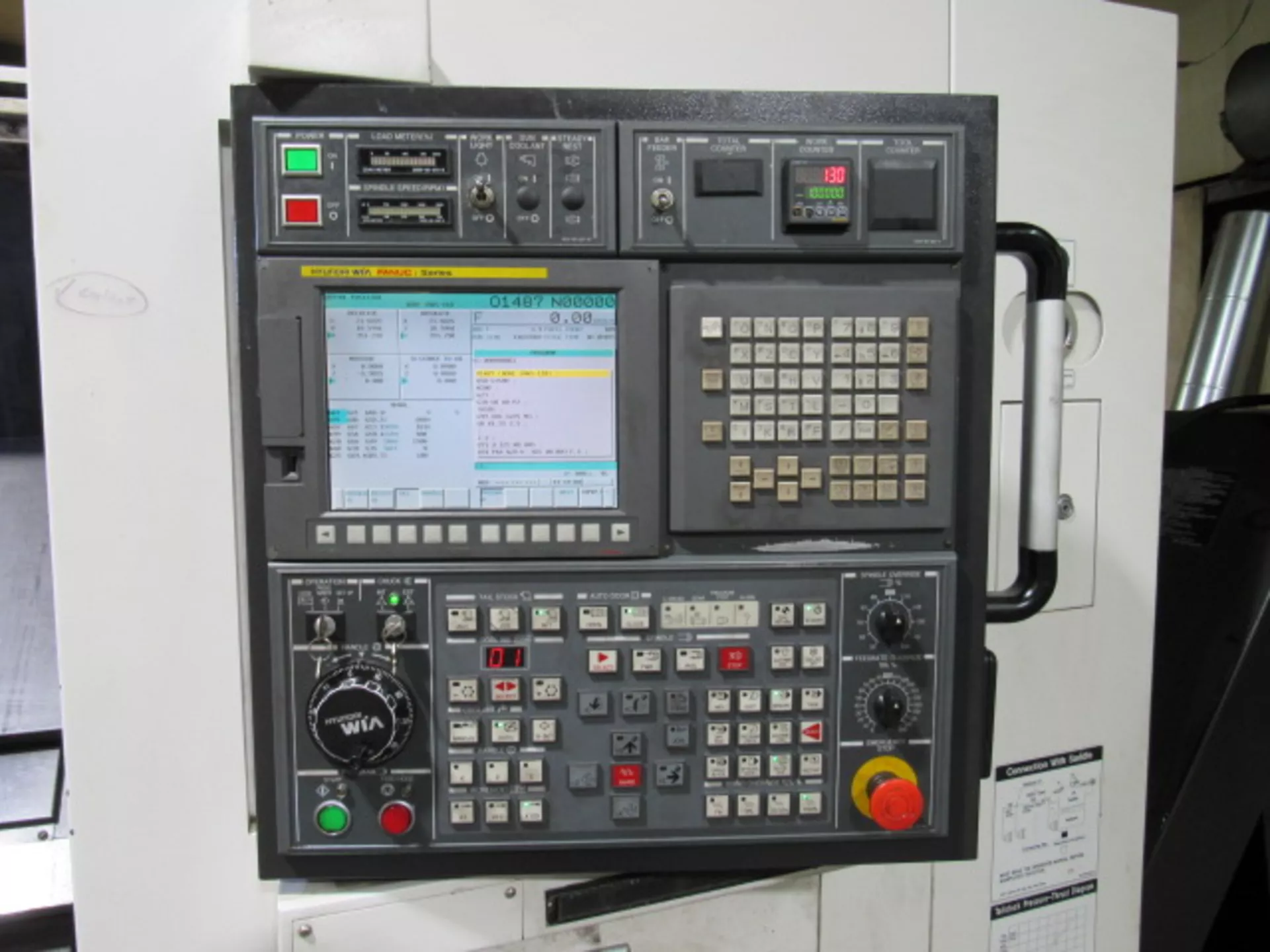

| CNC Control: | Fanuc CNC Control |
| Equipped With: |
|---|
| Fanuc CNC Control System |

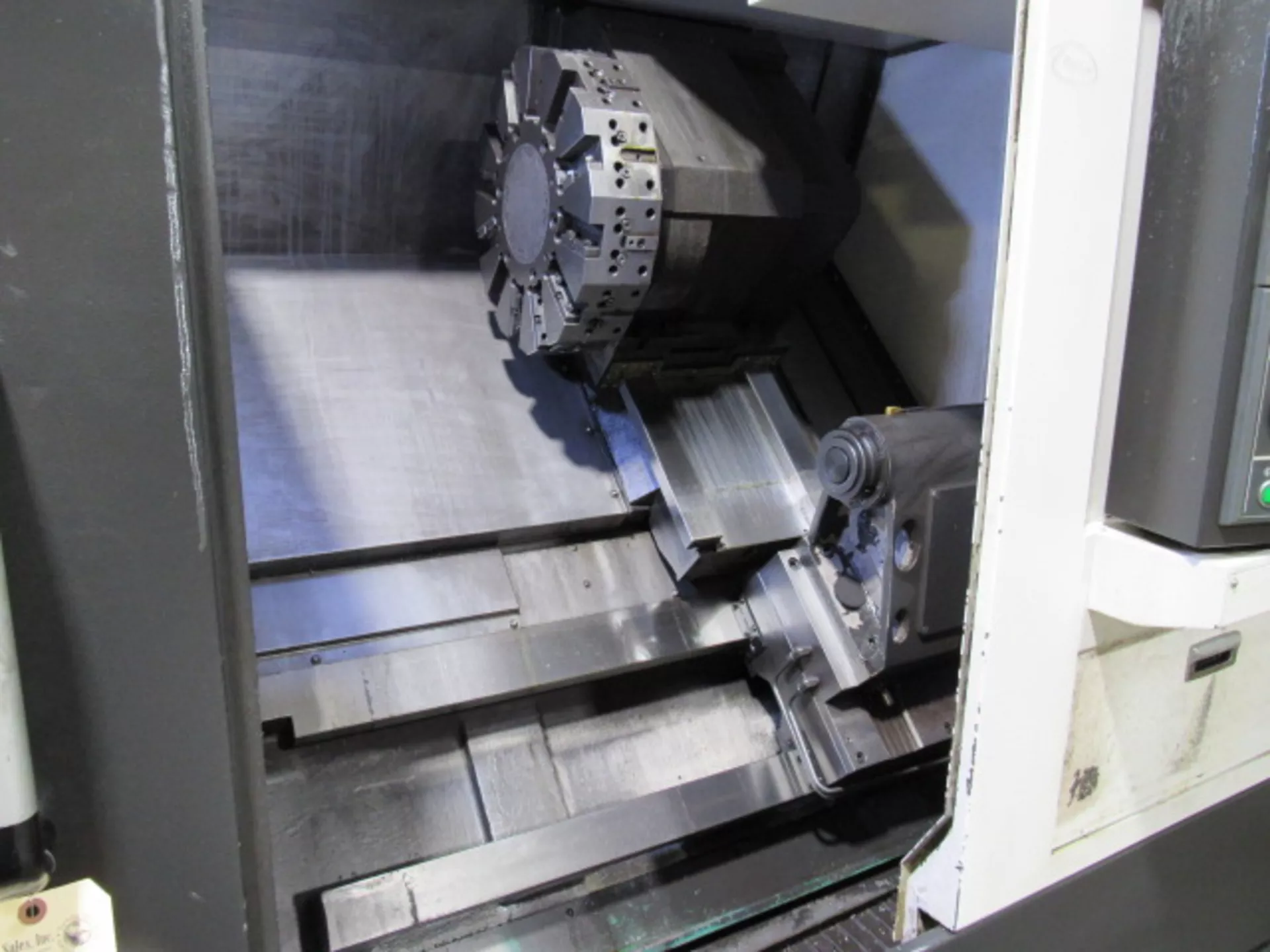

| 12-Station Servo Turret |

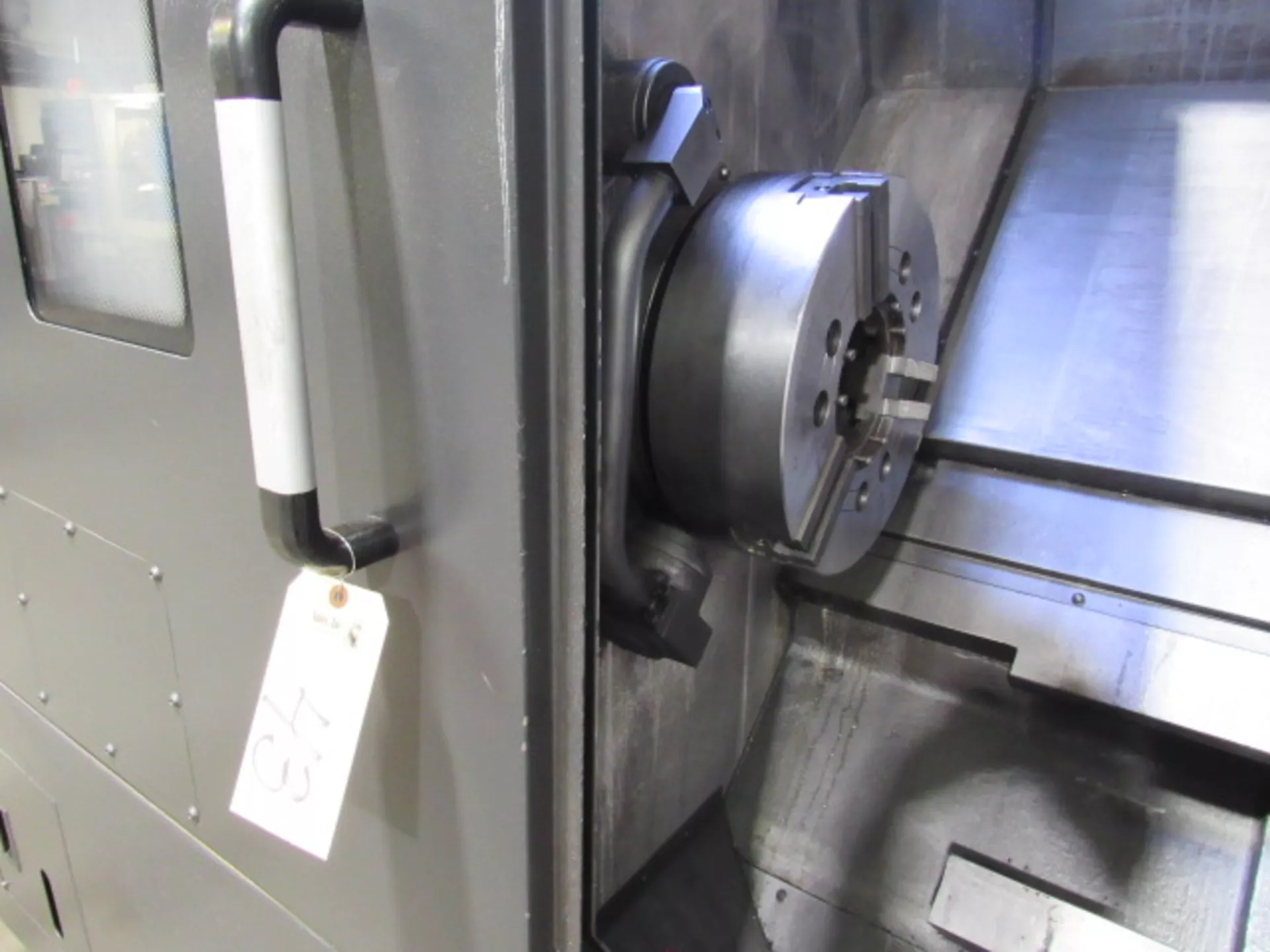

| 12″ Hydraulic Chuck |
| Programmable Hydraulic Tailstock |
| Automatic Lubrication System |
| Coolant System with Tank |
| Fully Enclosed Splash Guard |
| Tool Setter Capability |
| Heavy-Duty Gear-Driven Spindle |
| Capacity: |
|---|
| Maximum Turning Diameter: 560 mm (22″) |
| Maximum Turning Length: 720 mm (28.3″) |
| Swing Over Bed: 750 mm (29.5″ approx.) |
| Swing Over Cross Slide: 480 mm (18.9″) |
| Bar Capacity: 90 mm (3.5″ approx.) |
| Chuck Size: 12″ Hydraulic Chuck |
| Travel: |
|---|
| X-Axis Travel: 355 mm (14″) |
| Z-Axis Travel: 750 mm (29.5″) |
| Rapid Traverse (X-Axis): 20 m/min |
| Rapid Traverse (Z-Axis): 24 m/min |
| Spindle: |
|---|
| Maximum Spindle Speed: 3,000 RPM |
| Spindle Motor Power: 26 / 22 kW (Approx. 35 / 30 HP) |
| Spindle Torque: 1,131 / 957 Nm |
| Spindle Nose: A2-8 |
| Drive Type: 2-Step Gear Drive |
| Turret: |
|---|
| Turret Type: Servo Driven Turret |
| Turret Capacity: 12 Stations |
| Turning Tool Size: 25 mm (1″) |
| Boring Bar Capacity: 50 mm (2″) |
| Tailstock: |
|---|
| Type: Programmable Hydraulic Tailstock |
| Taper: MT #5 |
| Quill Diameter: 100 mm (3.9″) |
| Quill Operation: Foot Pedal or CNC Programmable |
| Machine Construction: |
|---|
| 45° Slant Bed Design for Rigidity and Chip Evacuation |
| One-Piece Heavy Duty Cast Iron Base |
| Box Guideways on All Axes for Heavy-Duty Cutting Stability |
| Large Diameter Ball Screws with Double-Anchor Support |
| Designed to Reduce Thermal Deformation |
| General: |
|---|
| Machine Weight: Approx. 6,400 kg (14,100 lbs) |
| Slide Type: Box Way |
| Drive Method: Gear Driven Spindle |
| Optional Features: |
|---|
| Live Tooling Turret (M-Type Models) |
| C-Axis Spindle Control (0.001° Indexing) |
| Big Bore Spindle for Pipe Machining |
| Chip Conveyor |
| Bar Feeder Interface |
| Parts Catcher |
| Automatic Tool Presetter |
| Workpiece Probing System |
