*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai Wia |
| Model No.: | L300LC |
| Year of Manufacture: | 2012 |
| Machine Type: | CNC Turning Center |

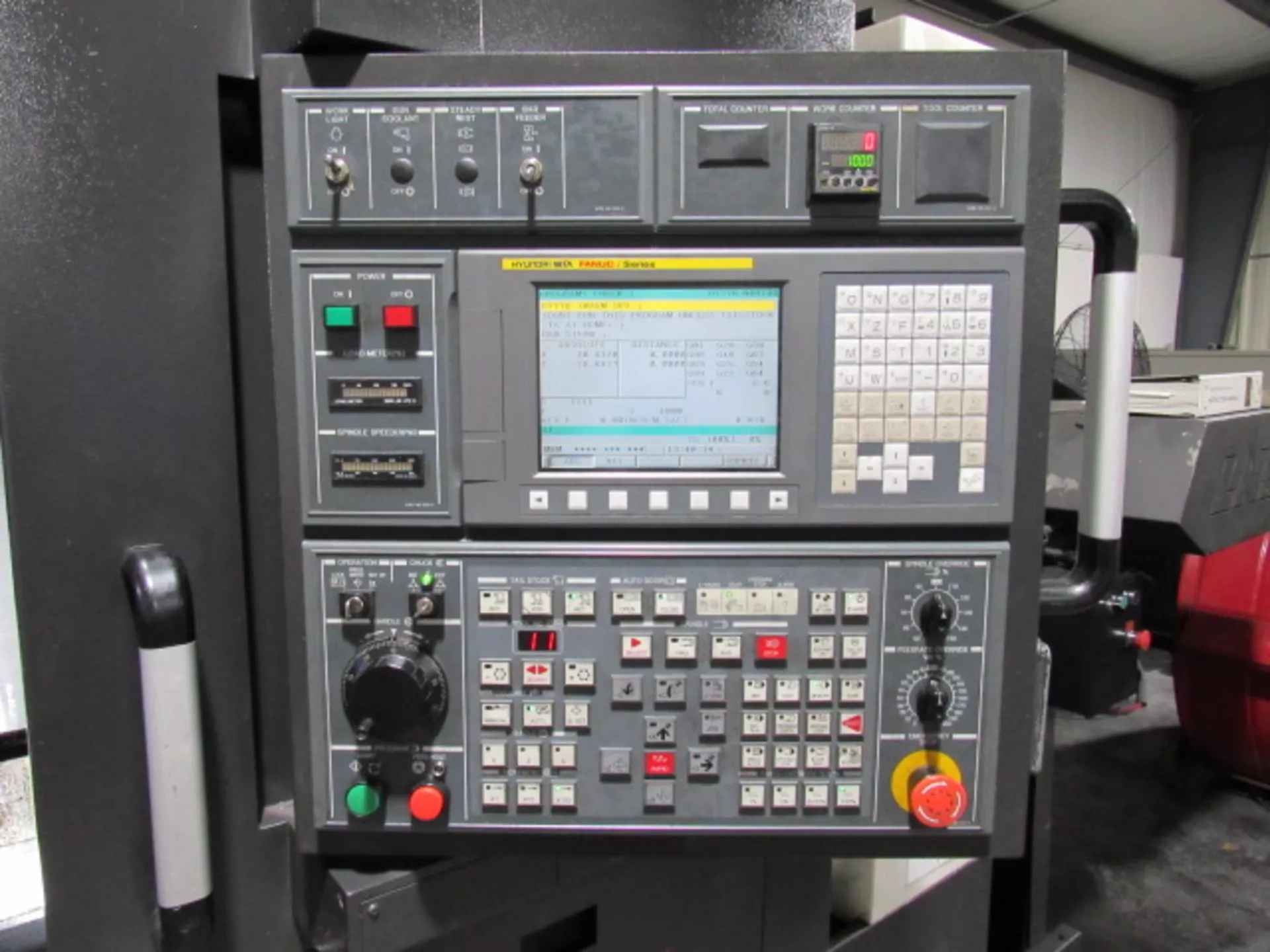

| CNC Control: | Fanuc CNC Control |
| Equipped With: |
|---|
| Fanuc CNC Control System |
| 12-Station Servo Turret |
| 12″ Hydraulic Chuck |
| Programmable Hydraulic Tailstock |
| Automatic Lubrication System |
| Coolant System with Tank and Pump |
| Fully Enclosed Splash Guard |
| Rigid Tapping Capability |
| High-Speed Rapid Traverse Axes |
| Capacity: |
|---|
| Maximum Turning Diameter: 560 mm (22″) |
| Maximum Turning Length: 720 mm (28.3″) |
| Swing Over Bed: 750 mm (29.5″) |
| Swing Over Cross Slide: 480 mm (18.9″) |
| Bar Capacity: 90 mm (3.54″) |
| Chuck Size: 12″ Hydraulic Chuck |
| Travel: |
|---|
| X-Axis Travel: 355 mm (14″) |
| Z-Axis Travel: 750 mm (29.5″) |
| Rapid Traverse (X-Axis): 20 m/min |
| Rapid Traverse (Z-Axis): 24 m/min |
| Spindle: |
|---|
| Maximum Spindle Speed: 3,600 RPM |
| Spindle Motor Power: 26 / 22 kW (Approx. 35 / 30 HP) |
| Spindle Nose: A2-8 |
| Spindle Bore: 102 mm (4.0″) |
| Drive Type: Gear Driven Spindle |

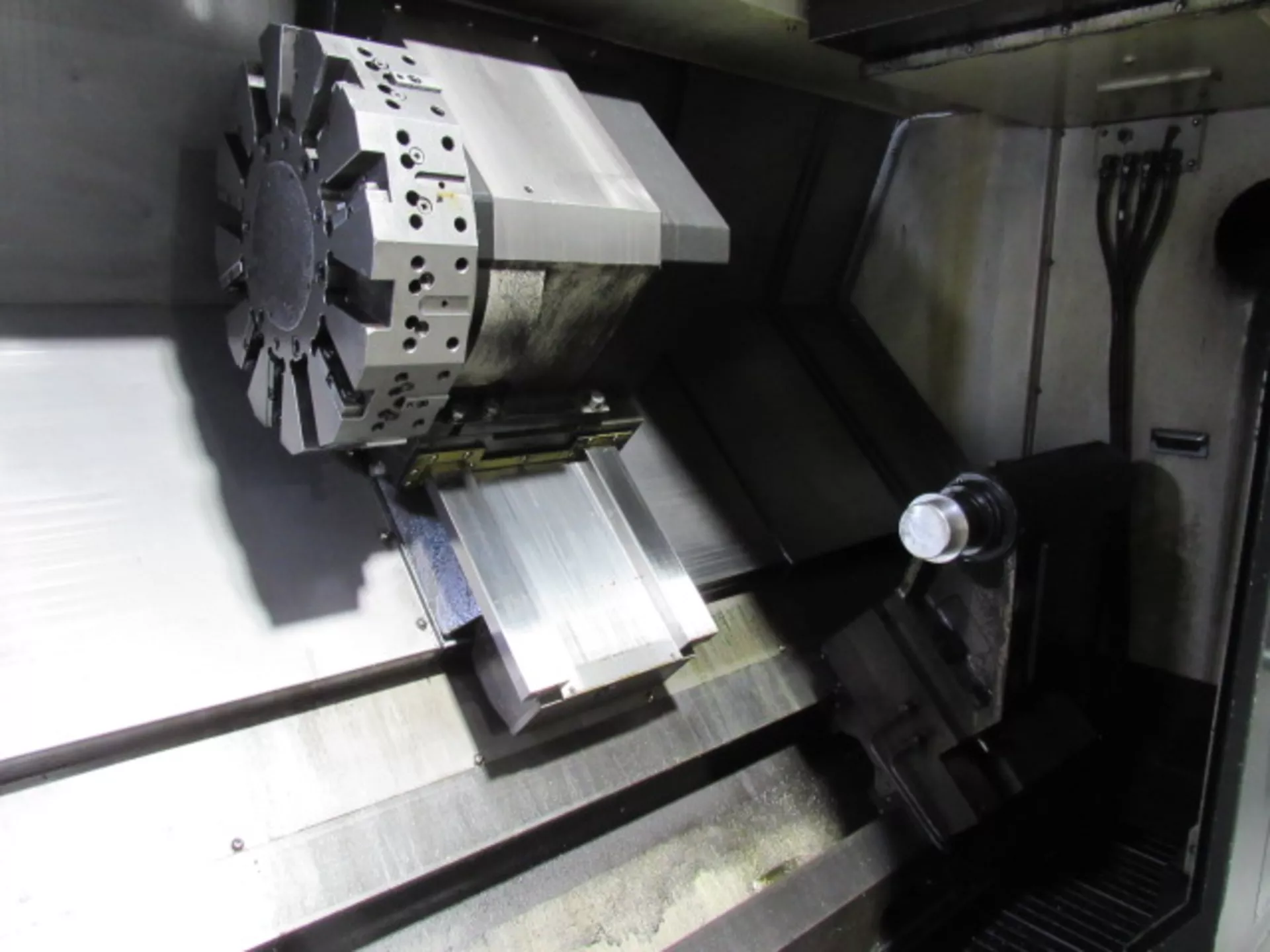

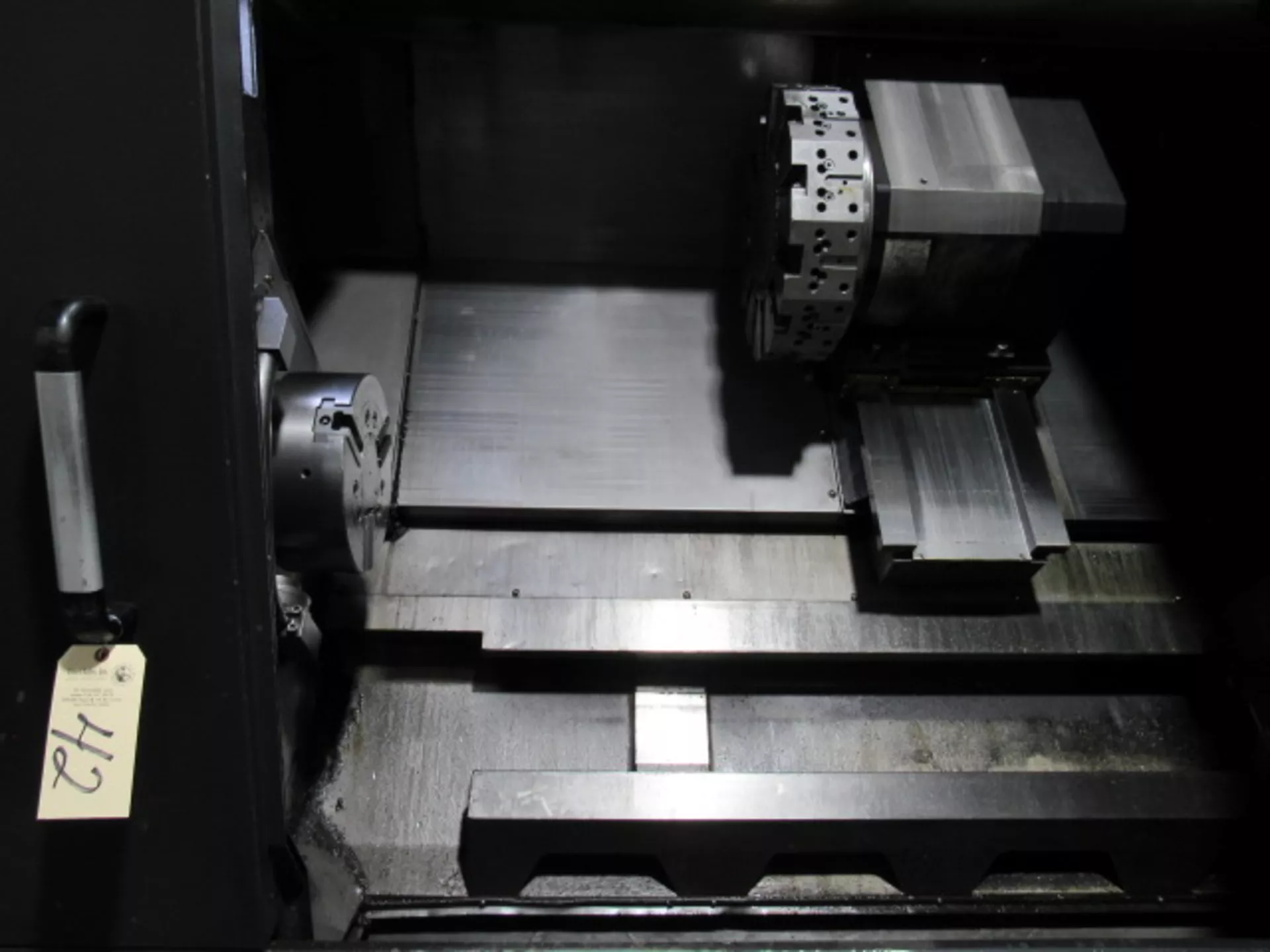

| Turret: |
|---|
| Turret Type: Servo-Driven Turret |
| Number of Stations: 12 |
| Turning Tool Size: 25 mm (1″) |
| Boring Bar Capacity: 50 mm (2″) |
| Tailstock: |
|---|
| Type: Programmable Hydraulic Tailstock |
| Taper: MT #5 |
| Quill Diameter: 100 mm |
| Tailstock Operation: Foot Pedal / CNC Programmable |
| Machine Construction: |
|---|
| 45° Slant-Bed Structure for Rigidity and Chip Evacuation |
| Heavy-Duty Cast Iron Base for Vibration Reduction |
| Box Guideways for Heavy Cutting Stability |
| High-Precision Ball Screws with Thermal Compensation |
| General: |
|---|
| Machine Weight: Approx. 6,400 kg (14,000 lbs) |
| Machine Type: Long-Bed Heavy-Duty Turning Center |
| Slide Type: Box Guideways |
| Optional Features: |
|---|
| Live Tooling Turret (M-Type Models) |
| C-Axis Spindle Control |
| Chip Conveyor |
| Bar Feeder Interface |
| Parts Catcher |
| Tool Presetter |
| High-Pressure Coolant System |
