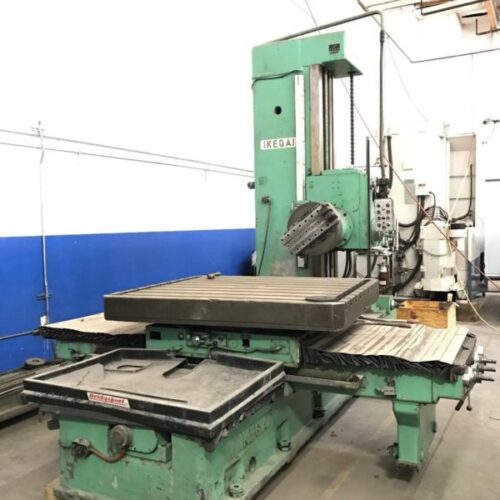

Ikegai DA2115T Horizontal Boring Mill

$14,400.00

This Solid Japanese Boring Mill is in Good condition, it was fully Working before it was disconnected from Power & moved to our Facility.

SKU:
1199
Categories: ,
Qty =

Product Description

IKEGAI DA2115T 4.53″ HORIZONTAL BORING MILL W/ ROTARY TABLE


Make: Ikegai
Model #: DA2115T
Year of Manufacture: 1967

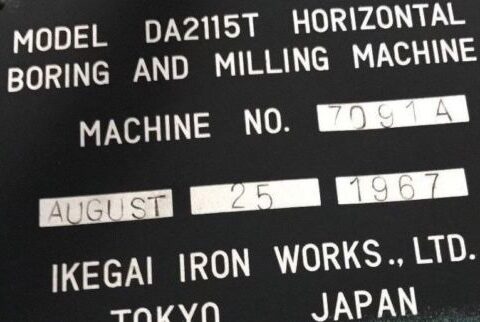

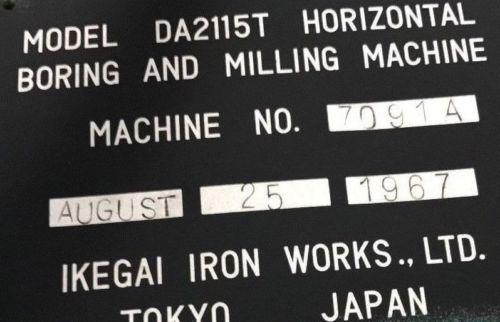

Serial #: 7091A
Condition: Good

All specifications are approximations, and are subject to verification.
This Solid Japanese Boring Mill is in Good condition, it was fully Working before it was disconnected from Power & moved to our Facility.

Equipped with:

Facing Chuck
360 Degree Rotary Table

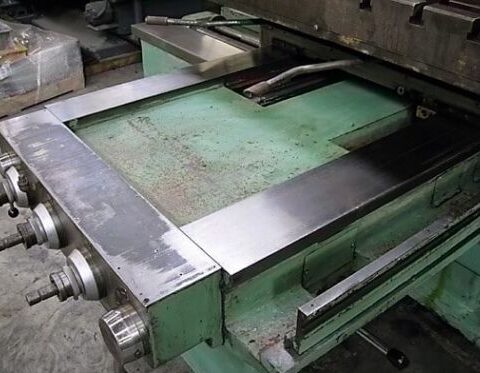

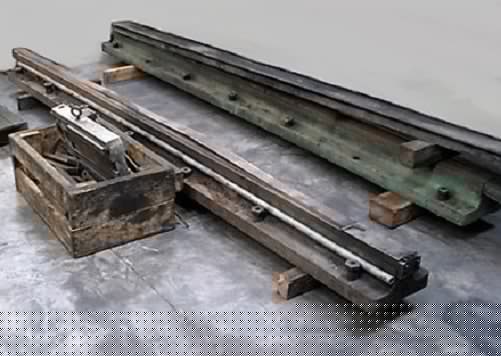

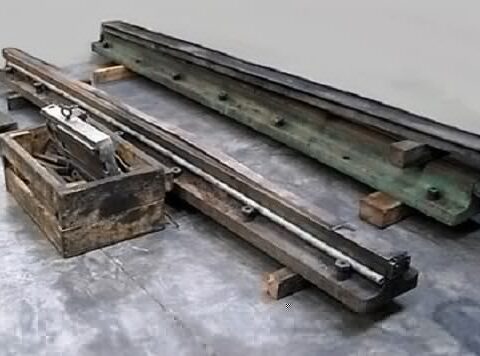

Table ways outboard supports.
Longitudinal & Cross Ways Covers
IKEGAI DA2115T Specifications:
Spindle Diameter: 4.53″
Spindle Taper: MT-6
Power Rotary Table: 55″ x 63″
Spindle Speed: 5 – 1500 rpm
24 Step
Spindle Travel: 27½”
Vertical Height above Table: 58″
Longitudinal Travel: 80″
Table Cross Travel: 64″
Motor Drive 15 KW

General:

Power: 205-235v  3-Phase 45 Kva
Overall Dimensions:  High
Weight: 38500 lbs
IKEGAI DA2115T Comes as shown in pictures.
