Ikegai TU-30LL CNC Long Bed Turning Center - MachineStation
  • Ikegai TU-30LL CNC Long Bed Turning Center

Ikegai TU-30LL CNC Long Bed Turning Center

$825.00

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

Rare Machine to find !! 80″ Long Bed with Tailstock and Steady Rest in good running condition. Low hours, It is equipped with 15″ Chuck, Tailstock , Steady Rest, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.

Qty =

Video

Product Description

IKEGAI TU-30LL CNC LONG BED TURNING CENTER

Make: Ikegai
Model No.: TU-30LL

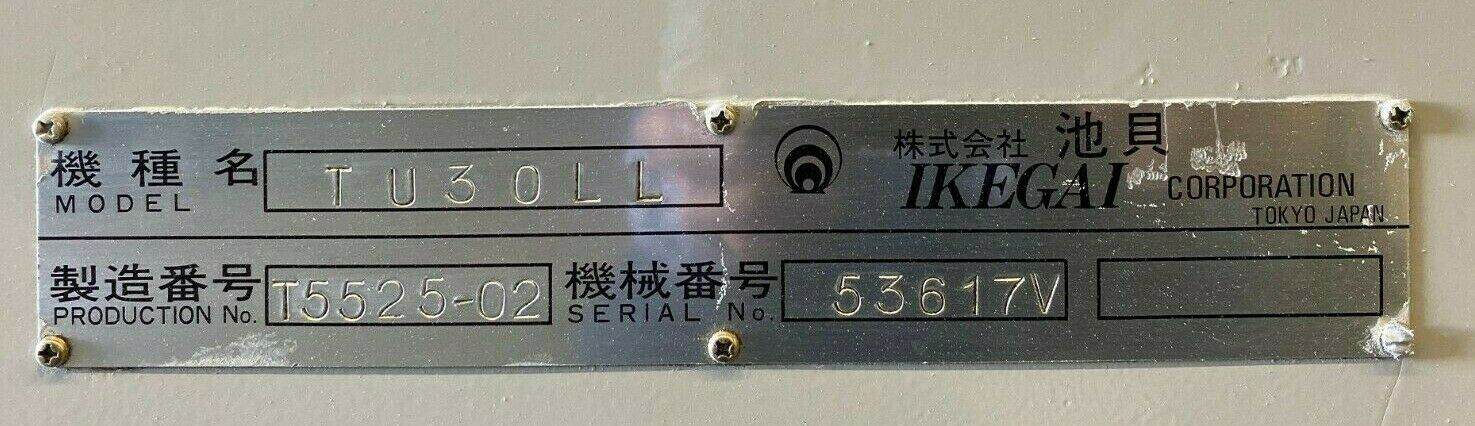

Serial No.: 53617V
Condition: Very Good

Comes with 15″ Chuck, Tailstock & Steady Rest.
Cutting Time: 10723 Hours

All specifications are approximations, and are subject to verification.

Rare Machine to find !! 80″ Long Bed with Tailstock and Steady Rest in good running condition. Low hours, It is equipped with 15″ Chuck, Tailstock , Steady Rest, Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.

Ikegai CNC Lathe Equipped With:

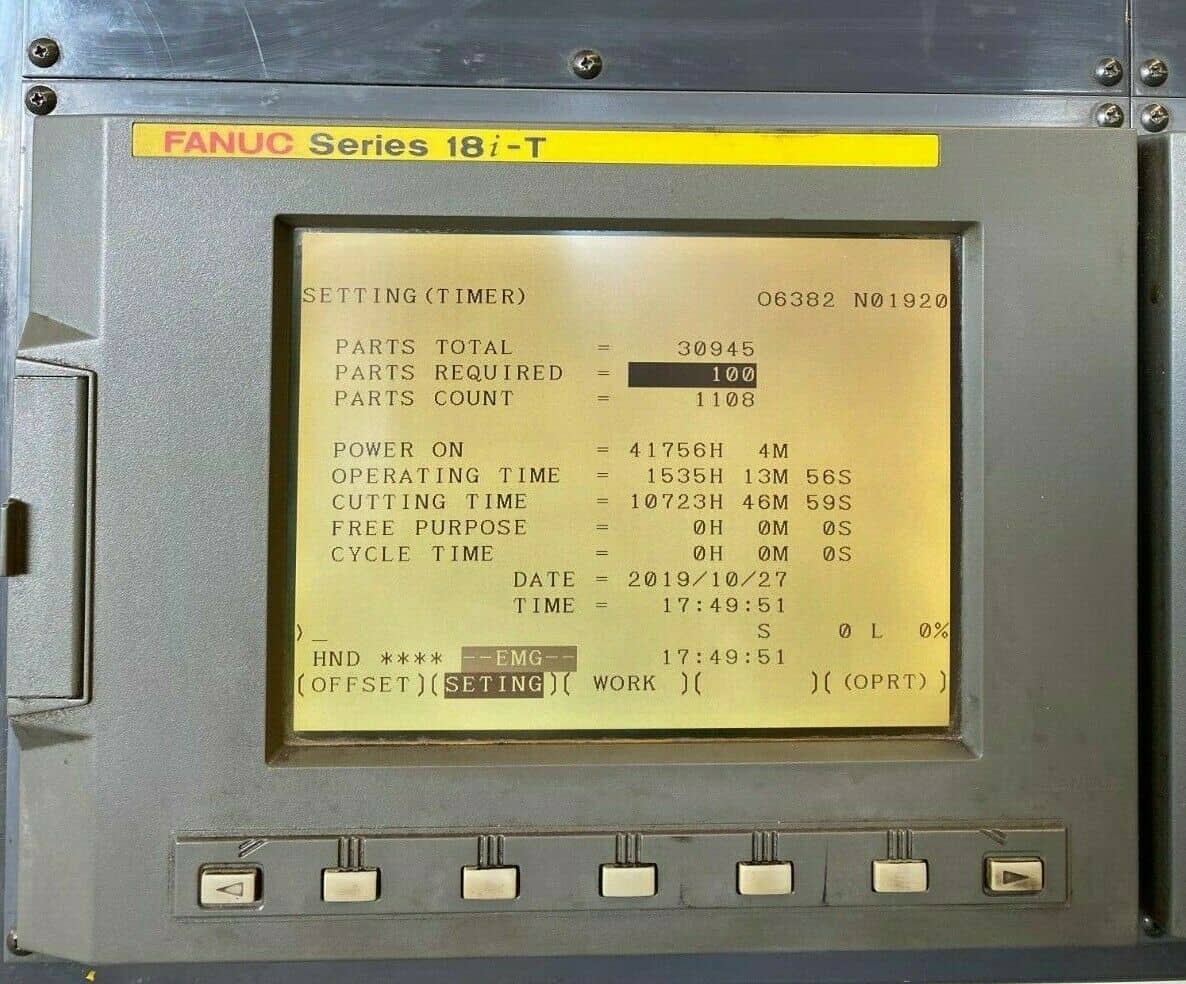

Fanuc 18iT CNC Control
15″ 3 Jaw Kitagawa Hydraulic Chuck
30HP Gearbox Spindle with 4″ Bore

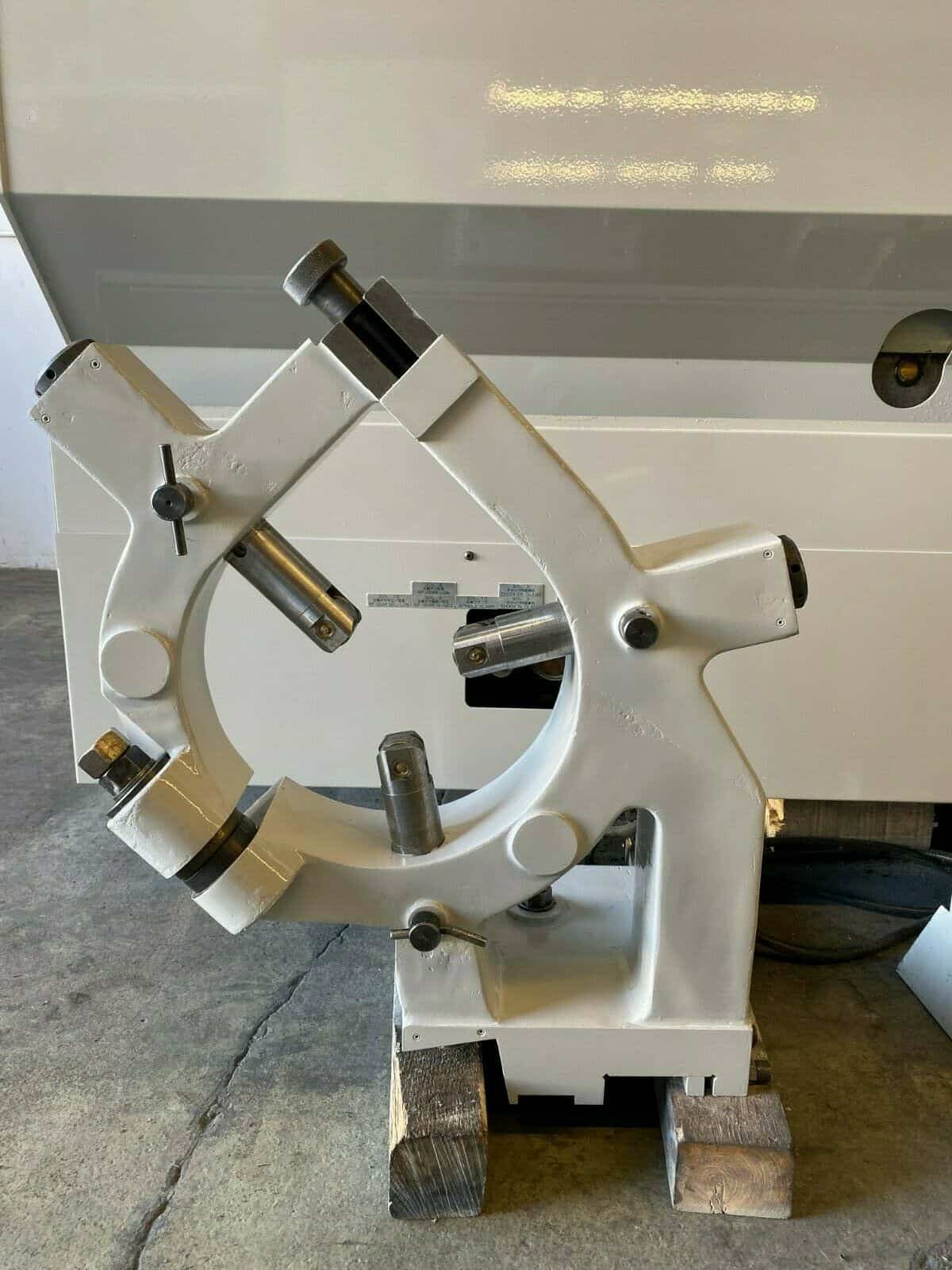

3 Point Steady Rest

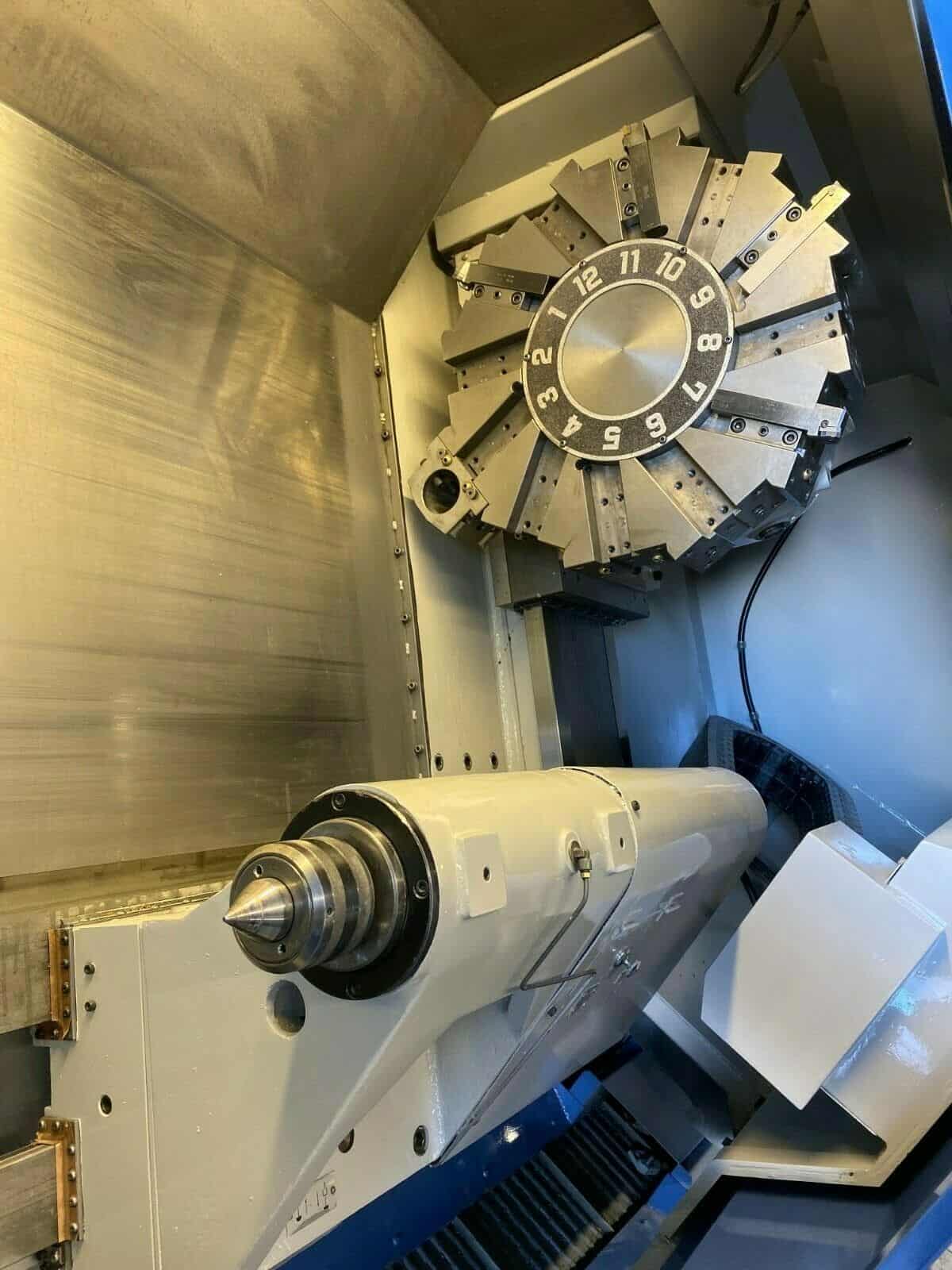

12 Station Turret
Hydraulic Tailstock
Rigid Tapping
PCMCIA Card Slot
Coolant System
Foot Switch
Chip Conveyor
Books

Ikegai TU-30LL Specifications:

Capacity:
Max Turning Diameter: 23.5″
Max Turning Length: 77.0″
Max Bar Capacity: 4.05″
Swing Over Bed: 25.19″
Distance Between Centers: 84.0″

Travels:
X Axis Travel: 13.0″
Z Axis Travel: 87.0 “
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.02″
Spindle Speed: 24 – 2500 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations Turret
Index Time: 1 Second

Tailstock:
Tailstock Taper: MT-5
Tailstock Body Travel: 80.0″

General:
Power: 45 kva, 220v / 3-Phase Overall
Dimensions: 230″ X 102″ X 104 ” High
Weight: 25,000 lbs

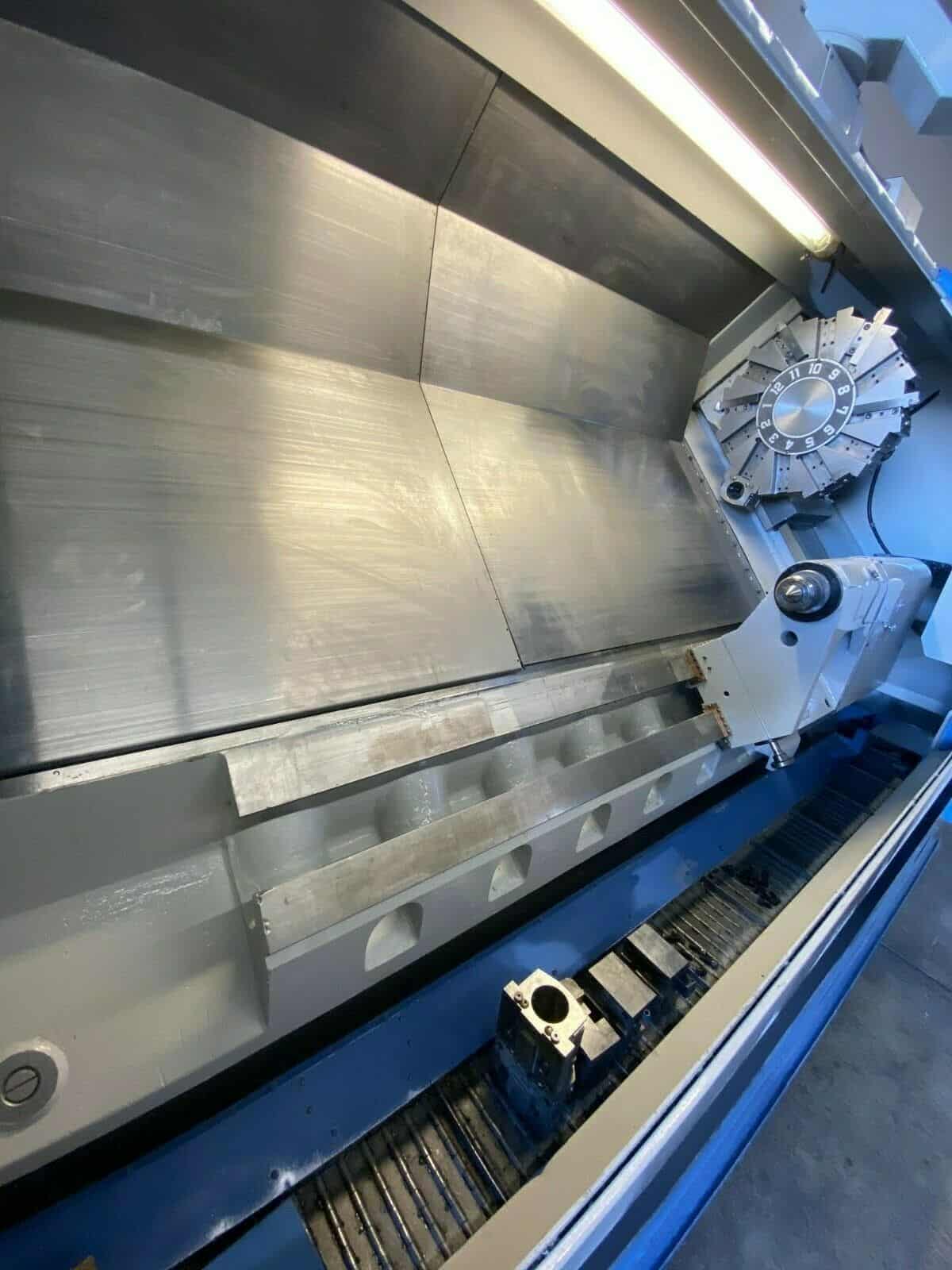

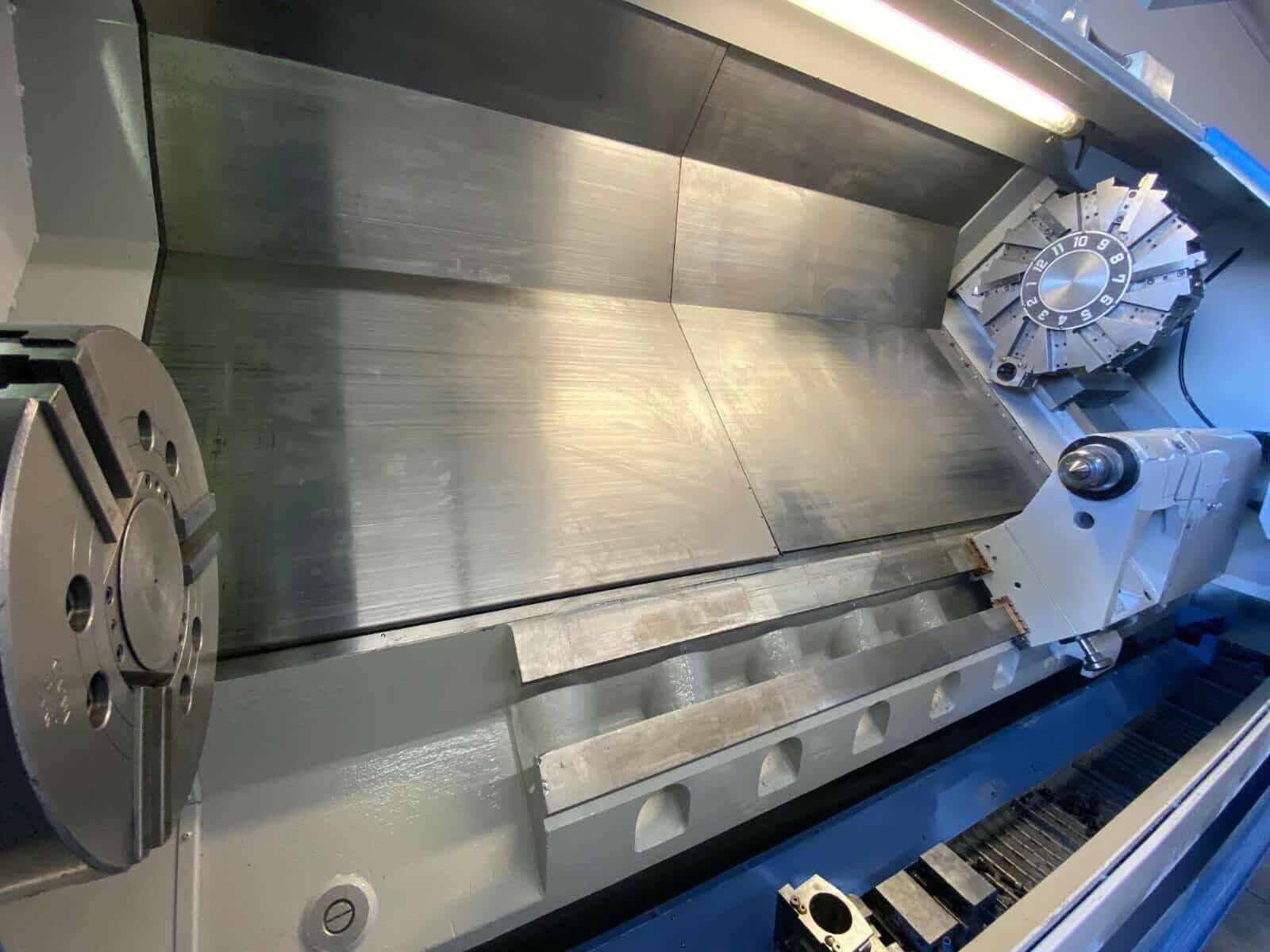

Ikegai TU-30LL Comes as shown in Pictures.
