“This machine has 6″ Kia Chuck, Toolsetter, Programmable Tailstock. It’s been fully powered / tested & is in Great working condition. check *VIDEO*”
Kia Turn 15 CNC Turning Center
Out of stock
Description
| KIA TURN 15 CNC TURNING CENTER | |
|---|---|
| Make | Kia |
| Model No. | Super Turn 15 |
| Year of Manufacture: | 1995.7 |

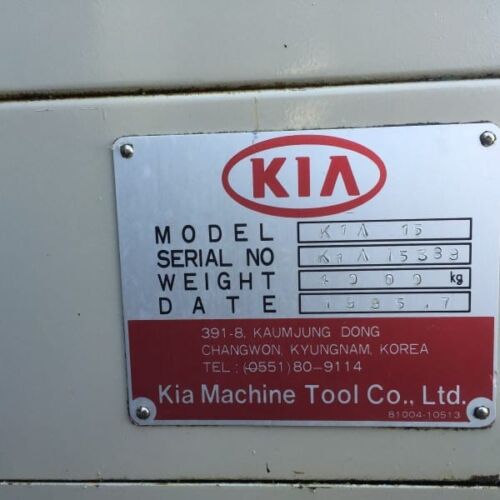

| Serial # | SKT 15389 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This machine has 6″ Kia Chuck, Toolsetter, Programmable Tailstock. It’s been fully powered / tested & is in Great working condition. check *VIDEO*”
- KIA TURN 15 Equipped with:

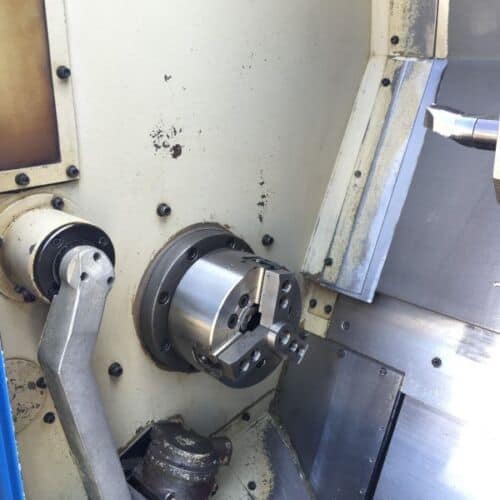

- Kia 6″ Hydraulic Chuck
- Programmable Hydraulic Tailstock
- Tool Pre-setter
- Foot Pedal
- Extended Memory
- Barfeed Interface
- RS-232 ports

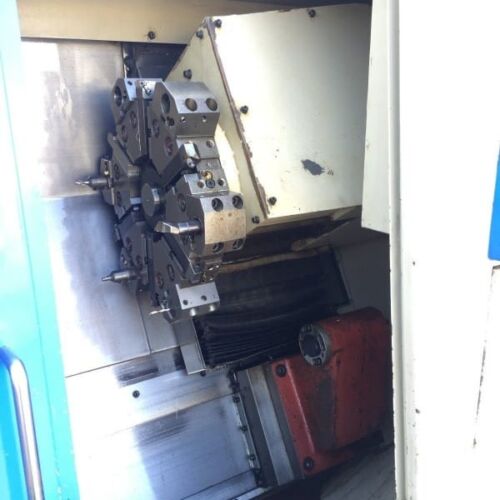

- 12 Station Automatic Turret
- Tooling as shown on Turret
- Coolant Tank
- Comes with Original Manuals
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 85″ x 70″ x 75″ High
- Weight: 9000 lbs
- KIA TURN 15 Specifications:
- Max Turning Diameter: 10.6″
- Max Turning Length: 16.14″
- Max Bar Capacity: 1.73″
- Swing Over Bed: 21.65″
- X Axis Travel: 6.25″
- Z Axis Travel: 14.98″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-5
- Spindle Bore: 1.89″
- Spindle Speed: 40 – 4,000 RPM
- Spindle Motor: 15/20 hp
- Turret Capacity: 12 Stations
- Turret Index Time: 0.6 Second
- Tailstock Quill Taper: MT #4
- Tailstock Travel: 12.75″
- Tailstock Quill Travel: 4.0″
- Tailstock Quill Thrust: 225 – 900 LB

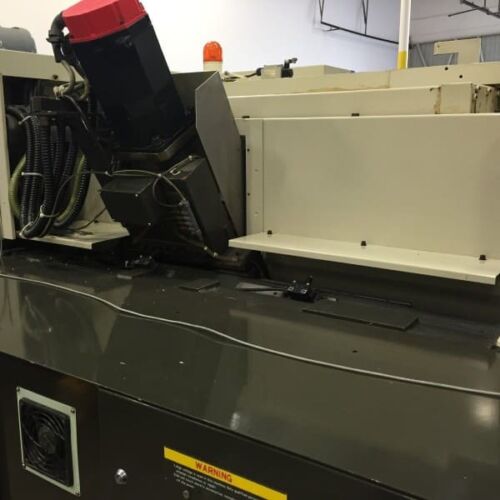

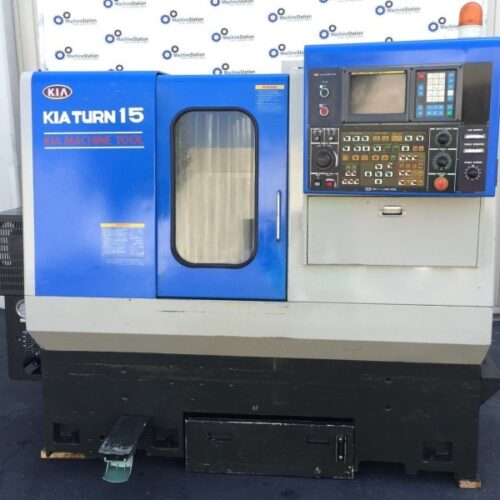

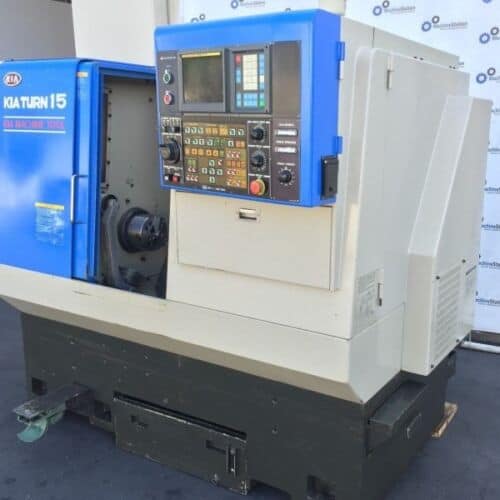

KIA TURN 15 Comes as shown in pictures.
