*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Kitamura |
| Model: | Mycenter-HX300iG |
| Year: | 2019 |
| Features: |
|---|
| Kitamura Arumatik-Mi CNC Control |
| Full 4th-Axis B-Axis Rotary Table |
| 2-Station Automatic Pallet Changer |
| 50-Position Automatic Tool Changer |
| 15,000 RPM Dual-Contact Spindle |
| CAT 40 / NST No. 40 Spindle Taper |
| High-Speed B-Axis Direct-Drive Motor |
| Through-Spindle Coolant |
| Chip Conveyor |
| Coolant System |
| Linear Scale Feedback |
| Ballscrew Cooling System |
| Full Machine Enclosure |
| Travels: |
|---|
| X-Axis Travel: 18.1″ |
| Y-Axis Travel: 20.1″ |
| Z-Axis Travel: 22.0″ |
| B-Axis Travel: 360° Full Rotary |
| X/Y/Z Rapid Traverse: 2,362 IPM |
| B-Axis Rapid: 150 RPM |
| Capacity: |
|---|

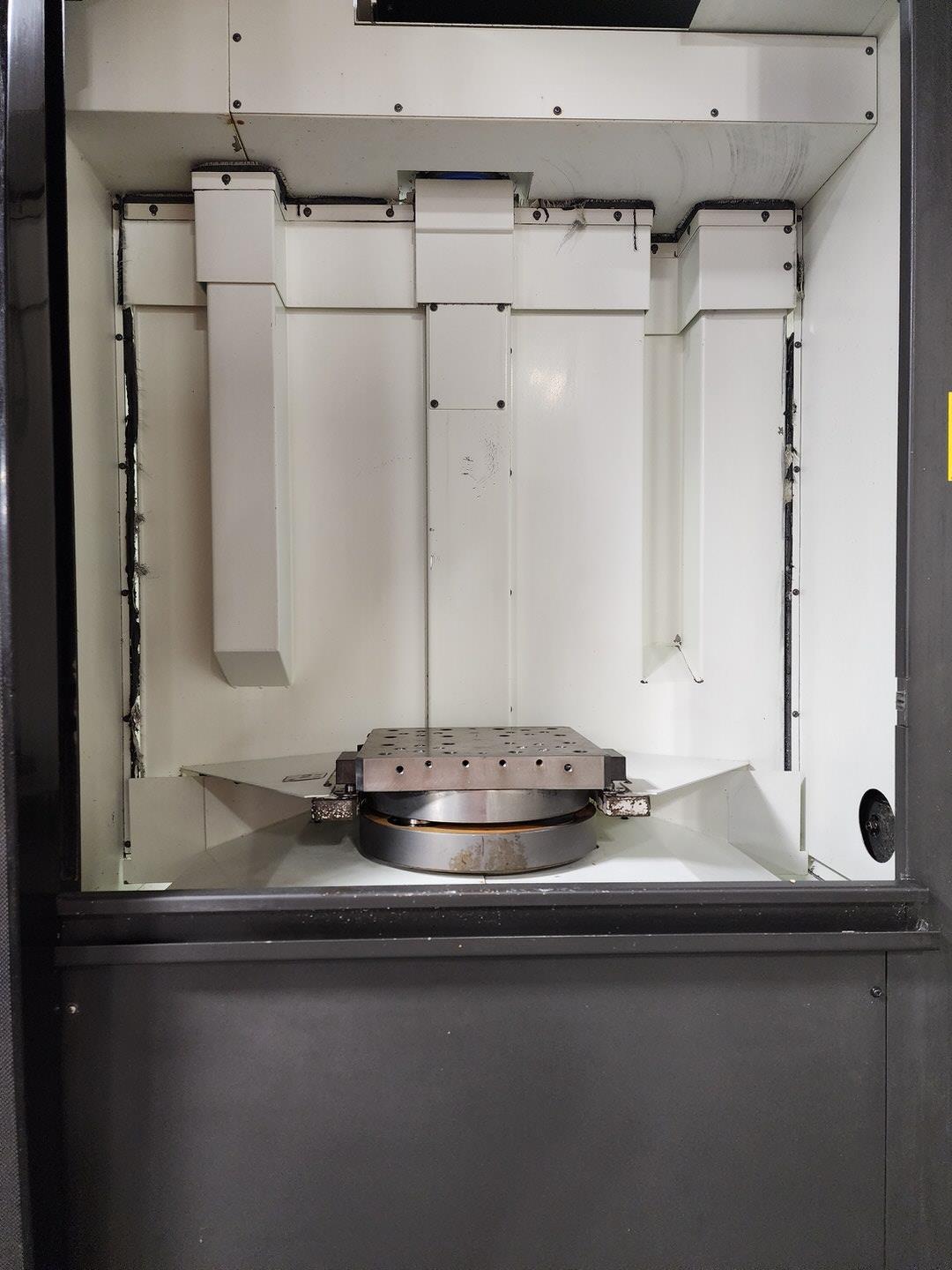

| Pallet Size: 12″ × 12″ |
| Number of Pallets: 2 |
| Maximum Workpiece Envelope: 19.7″ Diameter × 29.3″ High |
| Spindle: |
|---|
| Spindle Speed: 15,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 30 HP |
| Spindle Type: Dual Contact |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 50 Tools |
| Maximum Tool Diameter: 3.74″ |
| Maximum Tool Weight: 22 lbs |
| Tool-to-Tool Change Time: 1.3 Seconds |

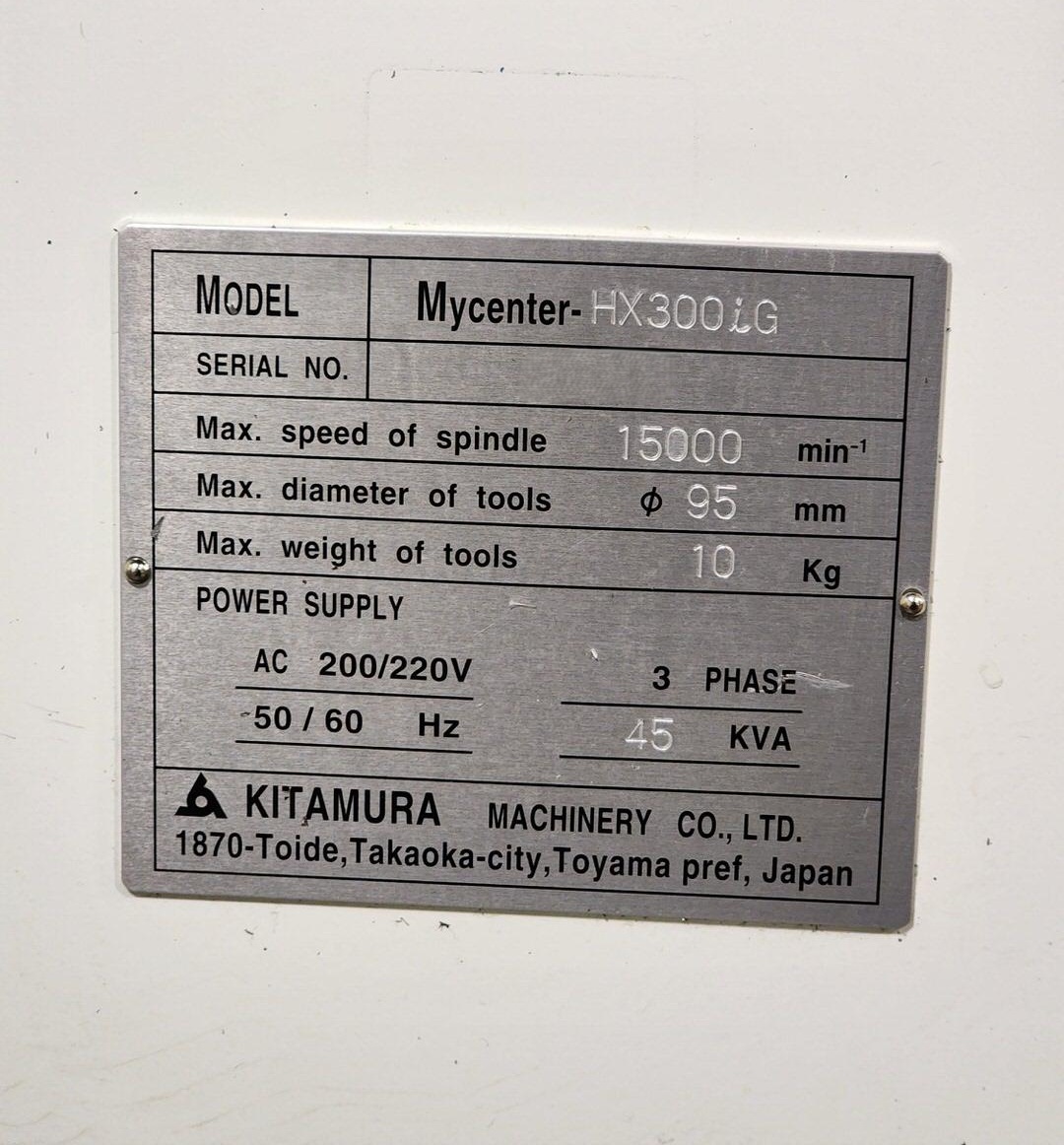

| Electrical: |
|---|
| Power Supply: 200/220 VAC |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 45 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 109″ × 141″ |
| Machine Weight (Approx.): 20,020 lbs |
