*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

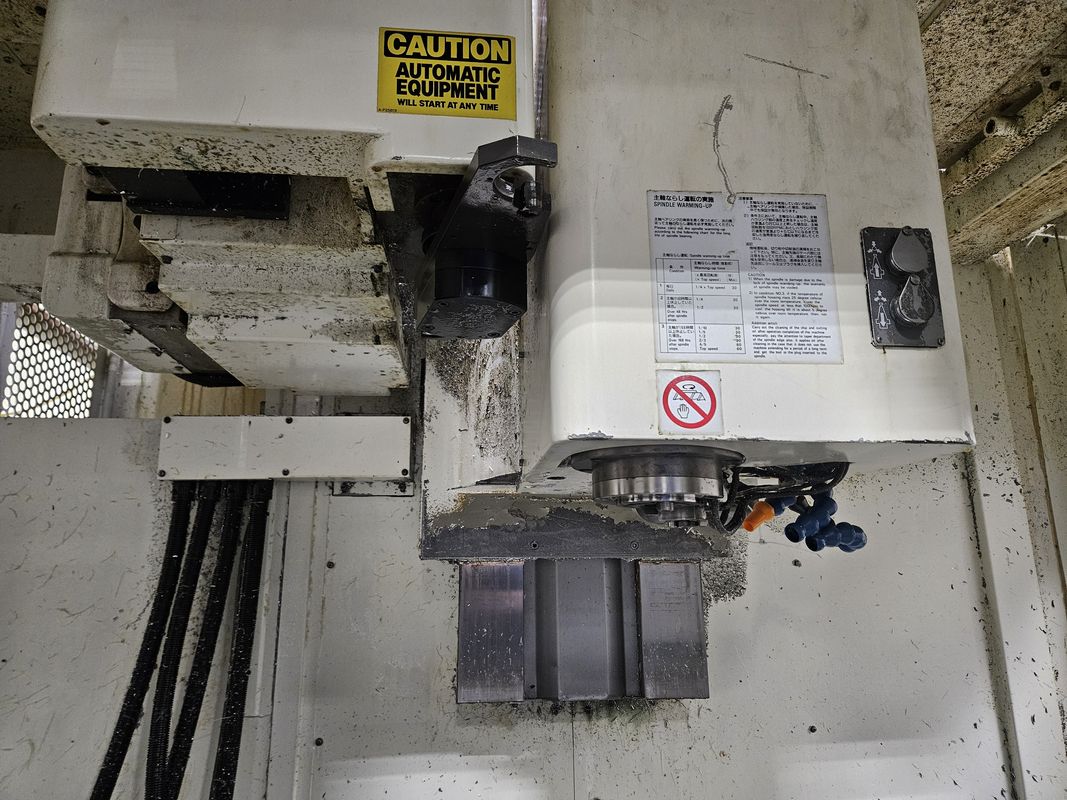

| Make: | Kitamura |
| Model: | Mycenter 4Xi |
| Year: | 2002 |
| Machine Type: | 3-Axis CNC Vertical Machining Center |
| CNC Control: | Fanuc 16i-M |
| Features: |
|---|
| Automatic Pallet Changer |
| 30-Position Automatic Tool Changer |
| High-Pressure Coolant: Through-Spindle High-Pressure Coolant |
| Renishaw Probe |
| Chip Conveyor |
| Capacity: |
|---|
| Pallet Size: 19.25″ × 39.25″ |
| Travels: |
|---|
| X-Axis Travel: 40″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 20″ |
| Feeds: |
|---|
| Rapid Traverse: 1,969 IPM |
| Cutting Feed: 500 IPM |
| Spindle: |
|---|
| Spindle Speed: 15,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: 30 HP |
| General: |
|---|
| Cutting Time: 9,499 Hours |
| Machine Weight (Approx.): 22,000 lbs. |
| Machine Dimensions (Approx.): 150″ W × 120″ D × 105″ H |
