*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

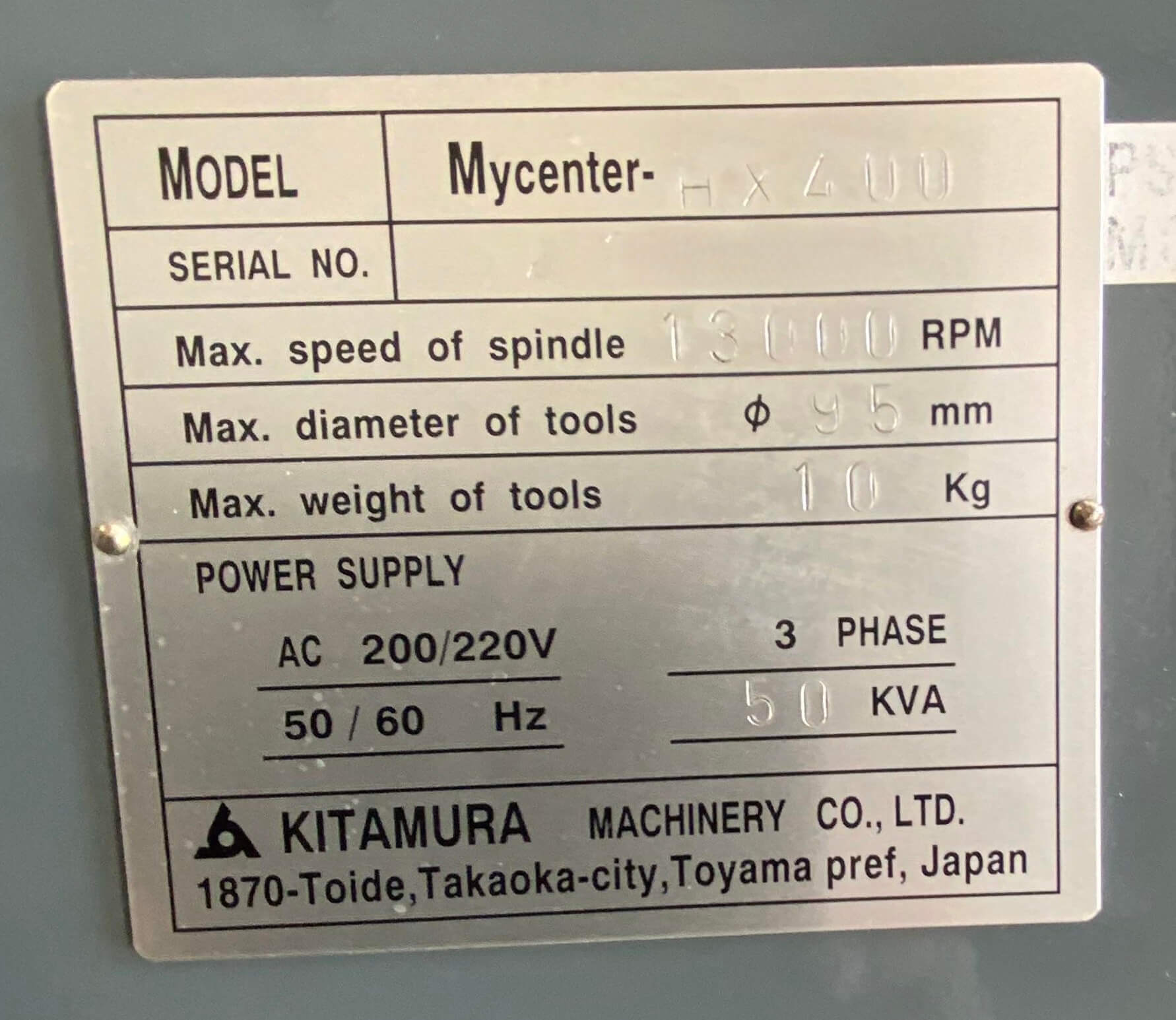

| Make: | Kitamura |
| Model: | Mycenter-HX400 |
| Year: | 2000 |
| Machine Type: | CNC Horizontal Machining Center |
| CNC Control: | FANUC Series 16i-M |
| Features: |
|---|
| Full 4th-Axis Capability |
| Dual-Pallet Automatic Pallet Changer |
| 50-Station Automatic Tool Changer |
| 13,000 RPM Geared Spindle |
| CAT 40 Spindle Taper |
| Chip Conveyor |
| Through-Spindle Coolant |
| Rigid Tapping |
| High-Speed Cutting / Smoothing |
| 2-Speed Gearbox |
| Box-Way Construction |
| FANUC 16i-M CNC Control |
| 0.001° Pallet Indexing |
| Coolant System |
| Automatic Tool Management |
| Capacity: |
|---|
| Pallet Size: 15.7″ × 15.7″ |
| Number of Pallets: 2 |
| Maximum Workpiece Weight: 880 lbs. |
| Travels: |
|---|
| X-Axis Travel: 26″ |
| Y-Axis Travel: 24″ |
| Z-Axis Travel: 22″ |
| Spindle: |
|---|
| Spindle Speed: 13,000 RPM |
| Spindle Type: Geared Head |
| Spindle Motor: 25–35 HP |
| Spindle Taper: CAT 40 |
| Spindle Center to Table: 1.97″–26″ |
| Spindle Nose to Table: 5.9″–27.9″ |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 50 Stations |
| Maximum Tool Diameter: 3.74″ |
| Maximum Tool Weight: 22 lbs. |
| Tool Taper: CAT 40 |
| General: |
|---|
| Power Source: 200/220V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 167″ L × 121″ W × 109″ H |
| Machine Weight (Approx.): 28,600 lbs. |
